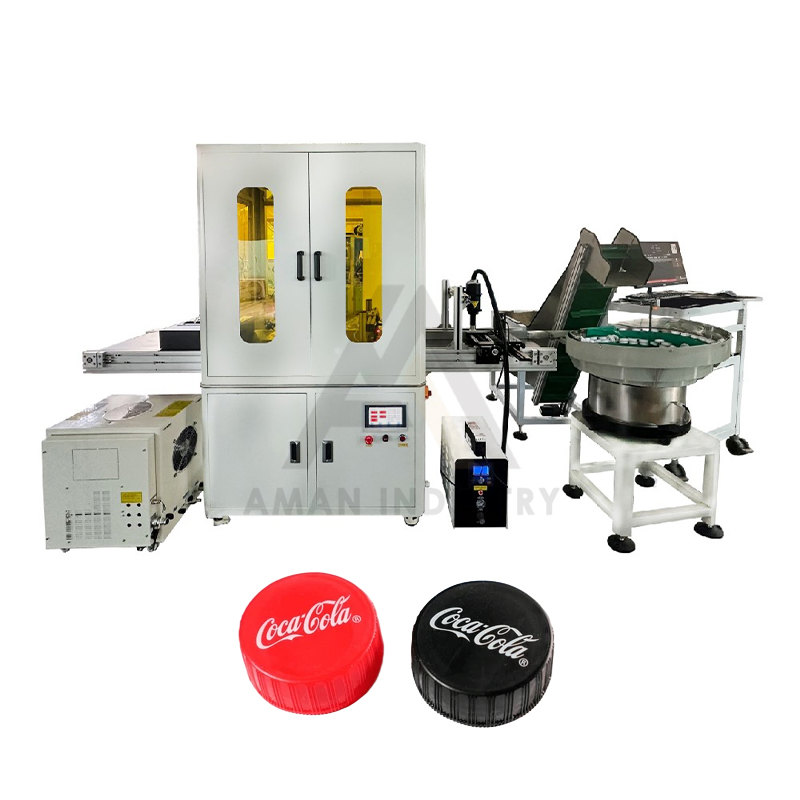

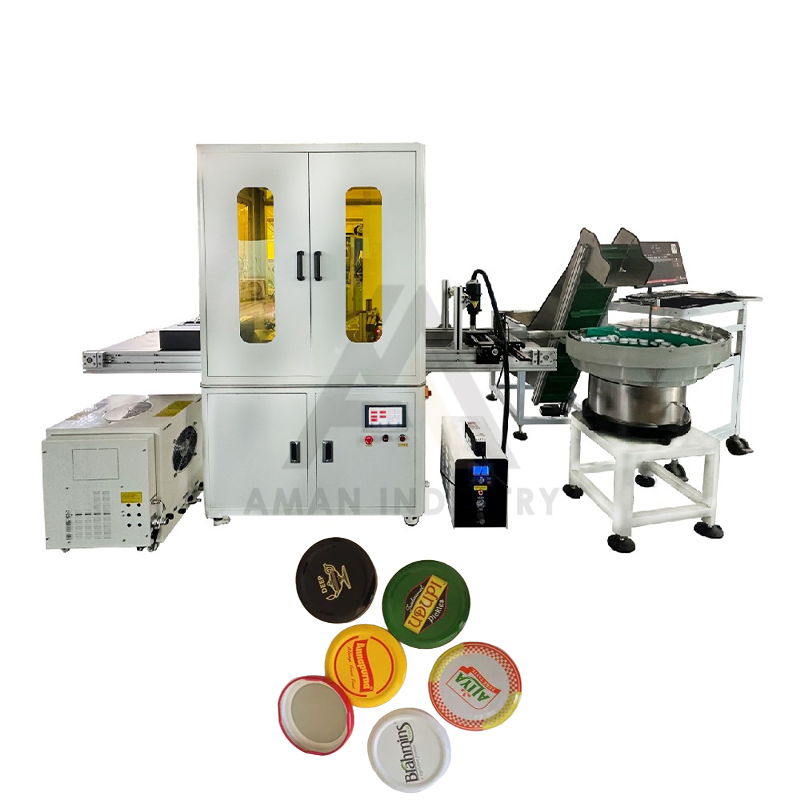

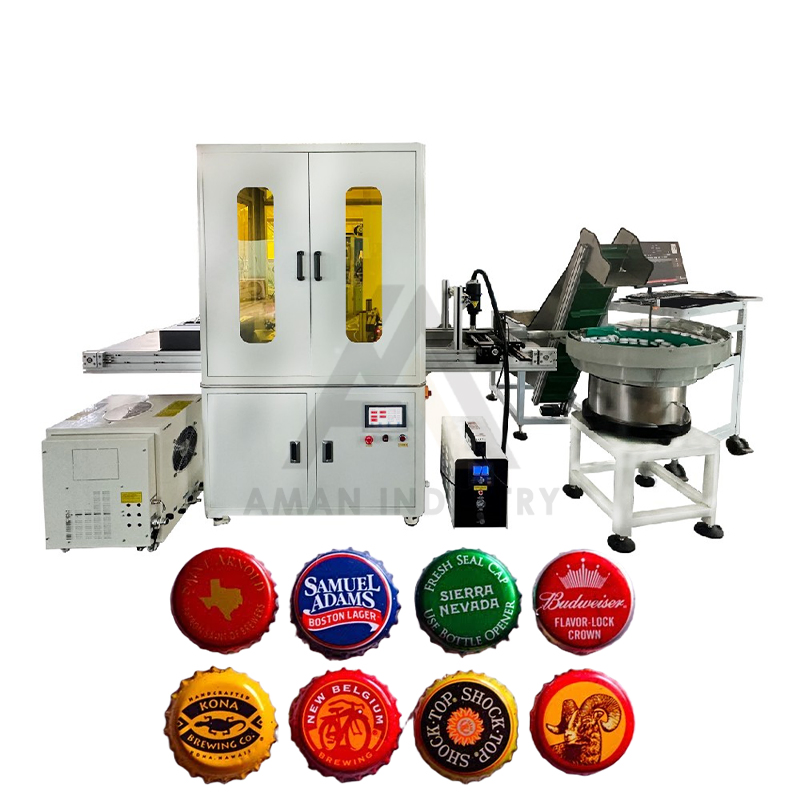

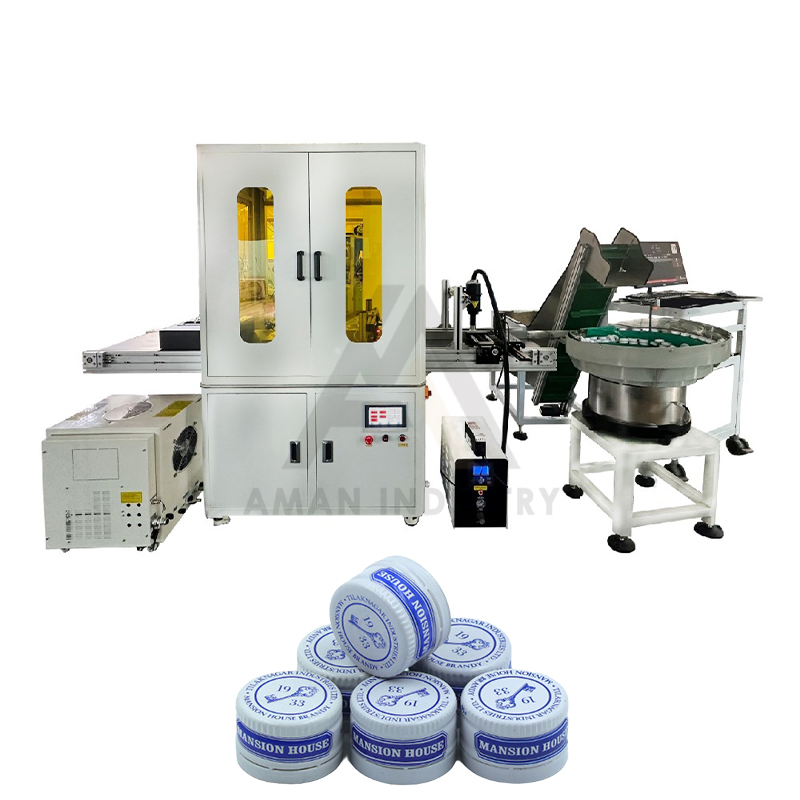

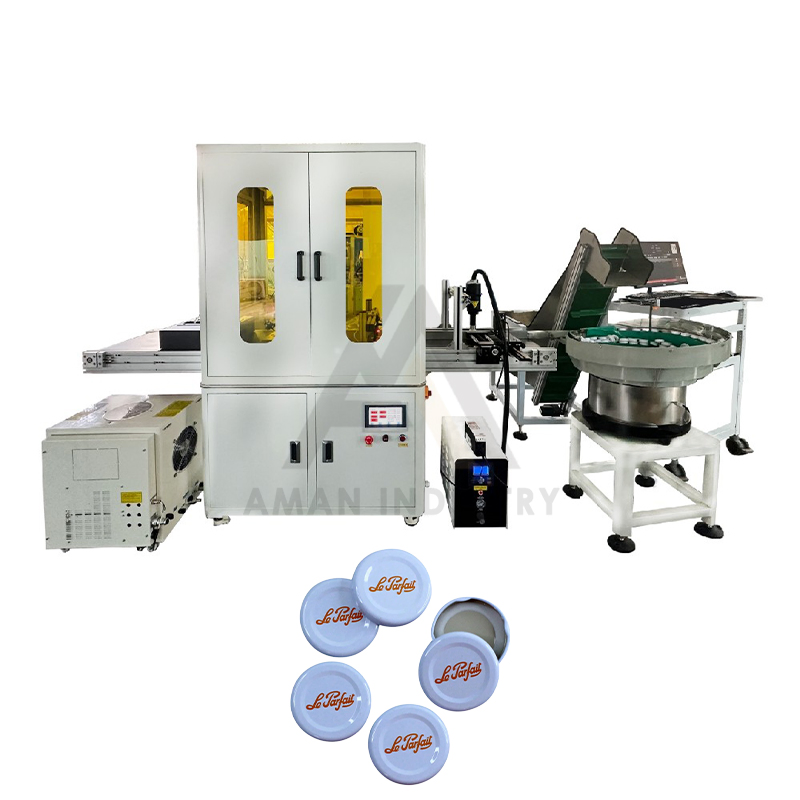

1 Liter Glass Bottles Screw Top UV Digital Printing Machine Industrial

Customization: Available
After-sales Service: Video Technical Support
Warranty: 1 Year

Product Description

High-Speed Bottle Cap Color UV Printer

The high-speed printer features industrial-grade print heads (3-5 years lifespan, anti-clogging) and eco-friendly UV inks (instant drying, odor-free). With low costs, high speed (10-40m/min), and minimal ink use, it enables direct digital printing from images, eliminating plate-making. Equipped with an automated line, including handling and unloading systems, it operates without manual intervention. Key advantages: UV curing for instant drying, plasma corona treatment for surface adhesion, and a vision system (±0.1mm accuracy) for alignment on irregular shapes. Its compact design (3500mm × 1000mm × 1850mm) and 220V power supply ensure efficiency in high-volume production.

📊 Technical Specifications

Parameter Detail
Model NO.AM-DY1-5
Plate / Printing MethodInkjet Printing / Rotary Letterpress
Automatic GradeAutomatic
Printing Speed10-40m/Min
Machine DimensionsL3500mm × W1000mm × H1850mm
Power Supply220V 50Hz 1.5kw
Print Heads3 Ricoh Gen5 Stainless Steel Print Heads
Printing Width54mm
Conveyor BeltWidth: 400mm / Length: 2300mm
Print Head Lifting100mm (Servo motor with height memory)
Anti-CollisionRuike Proximity Sensor

🔍 Product Showcase

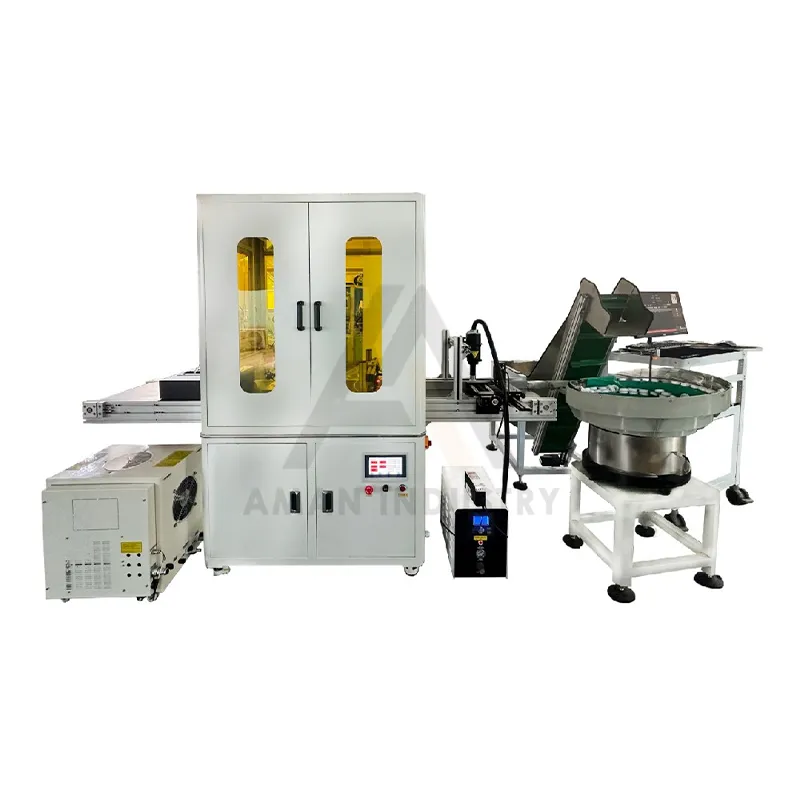

UV Digital Printing Machine

🌟 Core Advantages

No Plate-Making – One-click operation for personalized printing.
UV Curing Technology – Instant curing for maximum production efficiency.
600dpi Resolution – Ultra-fine quality for high-resolution images.
Plasma Treatment – Ensures superior surface adhesion.
Vision Alignment – ±0.1mm precision for irregular objects.

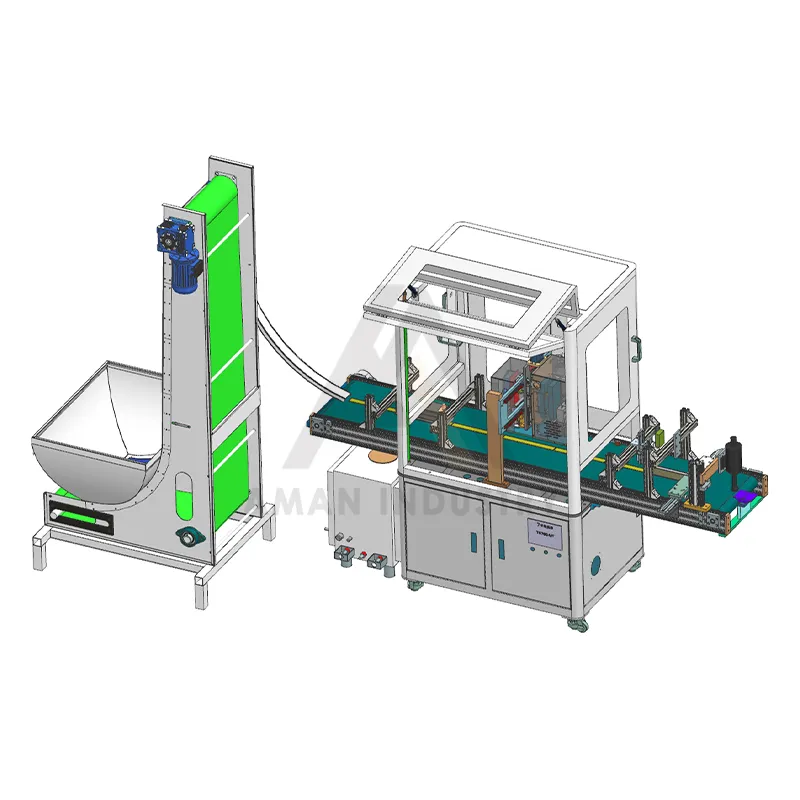

Industrial Printing Equipment Detail

⚙️ Operational Workflow

1. Elevator aligns caps onto the conveyor belt.
2. Products pass through the plasma unit for surface preparation.
3. Photoelectric sensors identify position for white ink printing.
4. LED UV curing unit dries the base layer instantly.
5. Color printing station applies the final image.
6. Secondary curing completes the process.
Efficiency: 300–500 caps per minute depending on size.

🚀 Application Scenarios

Application 1 Application 2 Application 3
Application 4 Application 5 Application 6
Application 7 Application 8 Application 9

🛠️ Service & Support

Warranty: 12 months or 2,000 operating hours. Extended coverage available up to 36 months.
Support: 24/7 technical assistance, global spare parts supply, and remote/on-site training.

❓ Frequently Asked Questions

Q: What is the typical lead time for an order? A: Standard machines typically ship in 15–30 days; customized solutions require 30–45 days.
Q: What are your standard payment terms? A: We typically accept T/T with a 30% deposit and the remaining 70% balance before shipment.
Q: Is there a minimum order quantity (MOQ)? A: Standard products have no MOQ. Custom orders require a minimum of 1 unit.
Q: What kind of packaging is used for shipping? A: Products are securely packed in professional wooden crates. OEM/ODM custom branding and packaging are also available.
Q: Can I request a sample of the printing? A: Yes, samples are available. Standard samples are usually ready in 10 days. Samples are free, but freight costs are covered by the buyer.
Q: Do you provide overseas after-sales support? A: Yes, we provide 24/7 technical assistance and have partnered service centers for global support.
