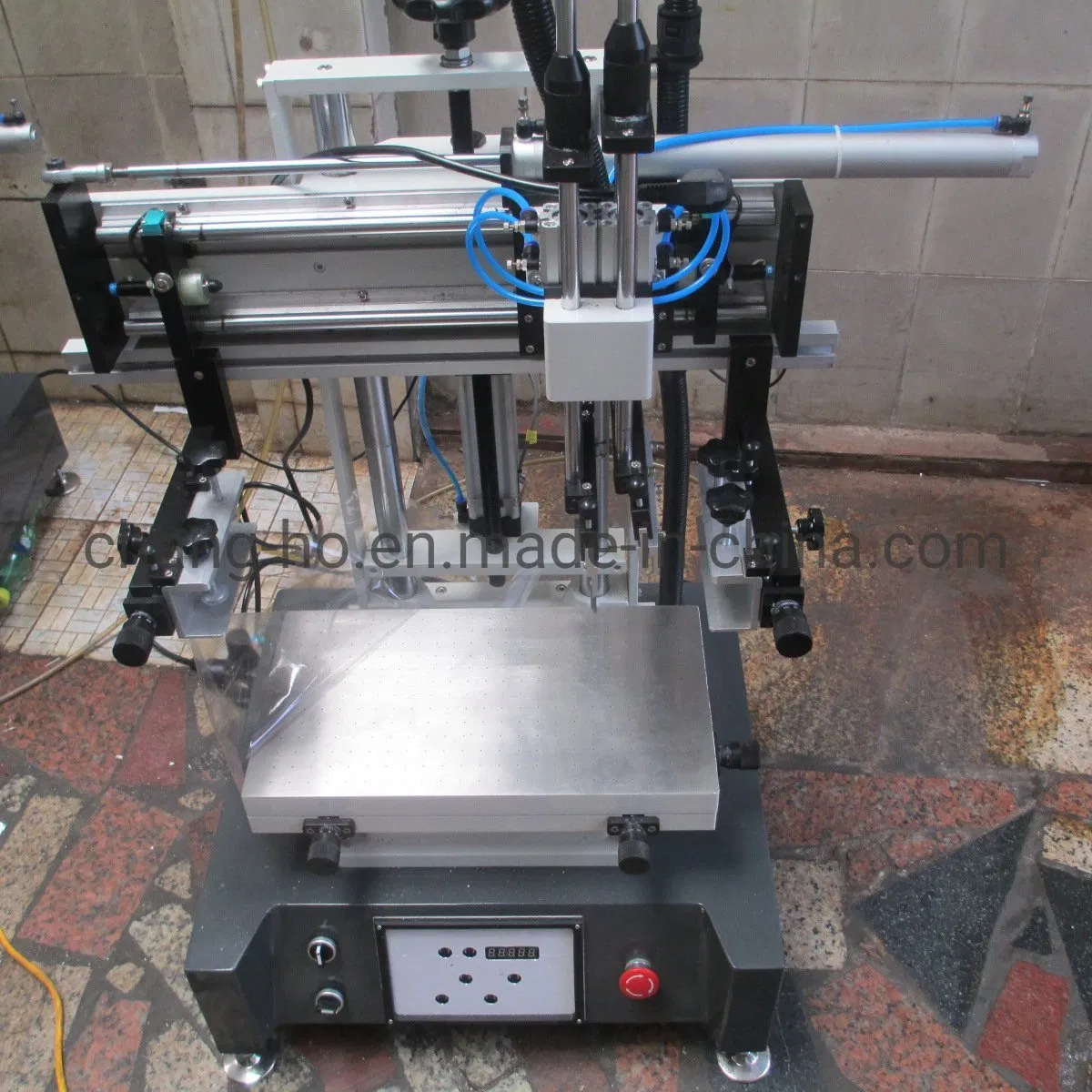

Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine
1 / 5
Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine
Wholesale Tabletop Flatbed Screen Printing Machine

Wholesale Tabletop Flatbed Screen Printing Machine

Customization: Available
After-sales Service: Lifelong Maintenance
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
HX-2030C
Type
Vertical Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Speed
600 - 800 PCS/Hr
Certificate
CE
Package Size
87.00cm * 78.00cm * 97.00cm
Gross Weight
150.000kg

Technical Parameters

ModelHX-2030C
Print size200*300mm
Machine speed600 - 800pcs/hr
Vertical stroke160mm
Transverse stroke350mm
Worktable size250*450mm
Action modeAutomatic | SEMI-automatic | Manual
Start methodPanel | Pedal
Vertical drivenPneumatic
Transverse drivenPneumatic
Power110/220V, single phase
Air supply5 - 7 Bar

Product Summary

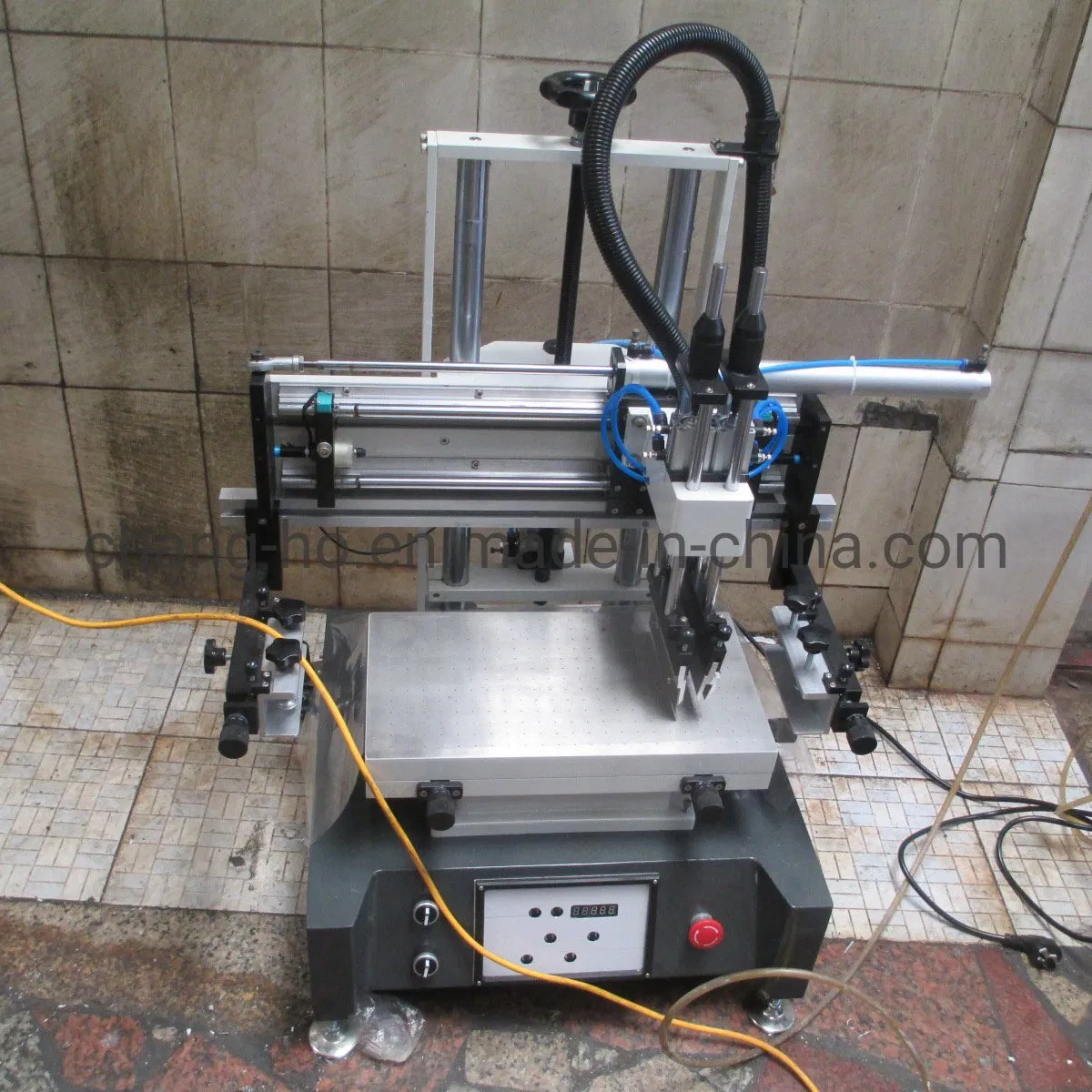

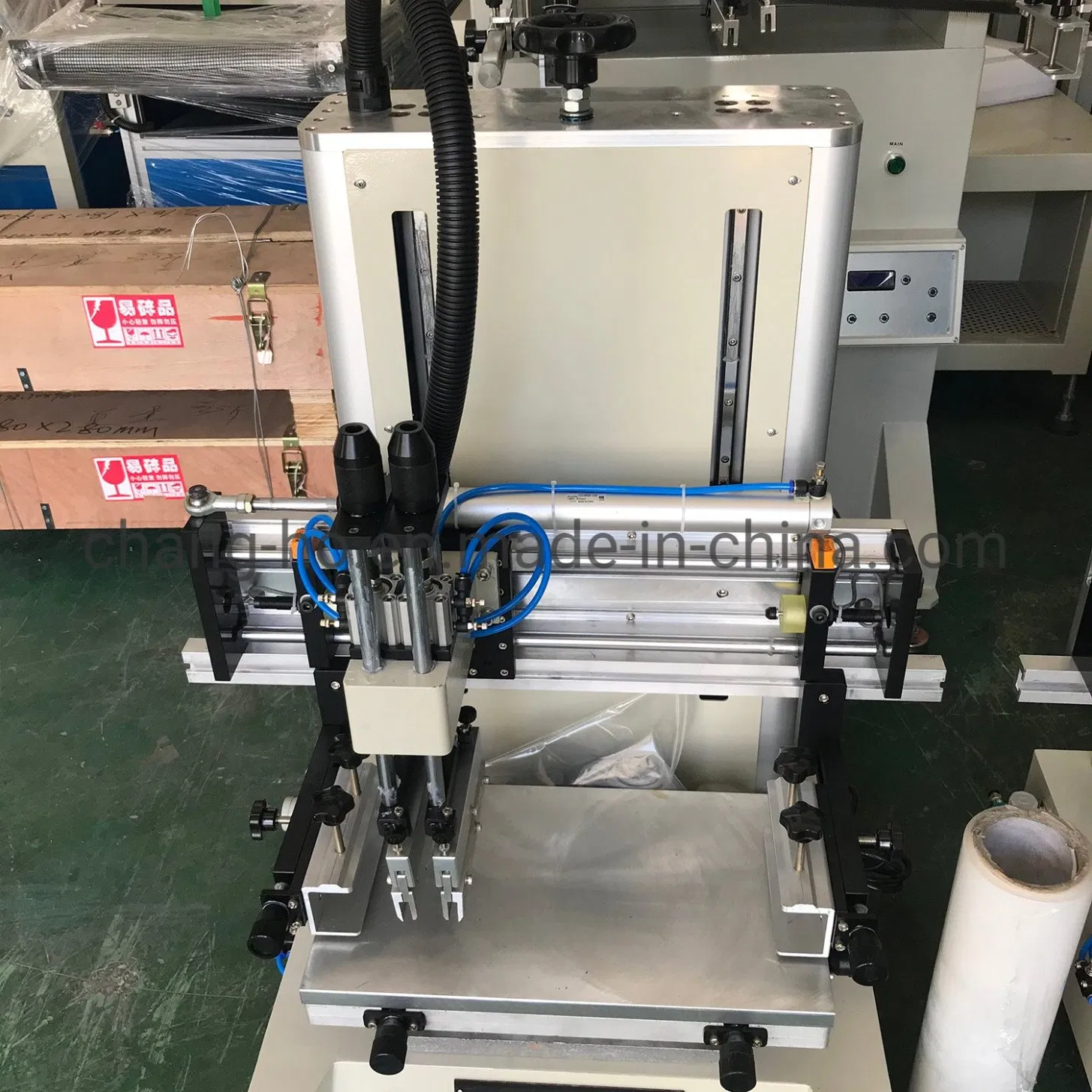

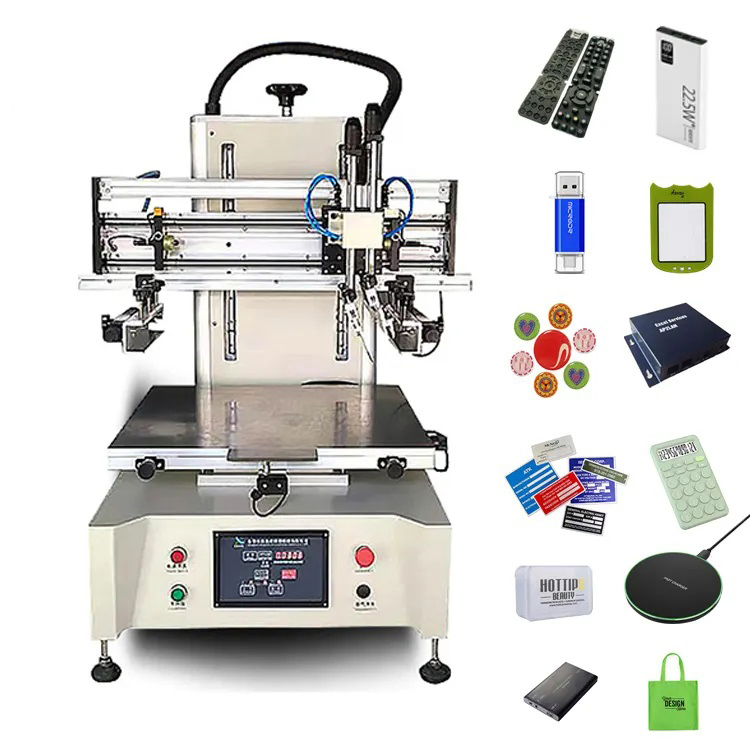

The mini flat screen printing machine with vacuum table is adopted vacuum generator to bring strong adsorptive power without noise. It replaces manual screen printing, and solves the problems of unstable printing quality and slow printing speed associated with manual processes. The machine is compact with high speed, stable function, and high precision. It is specially suitable for printing logos on the surface of lenses, mobile keys, paper bricks, small plastic products, CD boxes, gifts, etc.

Key Features

SCM IC coordinate light touching panel for programming.
Built-in auto 4-digit counter for printing quantity.
Airframe adopts coin alloy with metal coating surface.
Distyle vertical structure for high precision operation.
Adjustable transverse stroke with Taiwan electronic switch.
Adjustable scraper and ink covering blade angles.
Constant pressure equipment ensures steady printing.
Work-table adjustable in multiple directions (back/forth, left/right).
Screen frame adjustable in orientation and levels.
Vacuum worktable eliminates the need for jigs.
CEC oil buffers installed to avoid printing shock.
Fast, stable operation with significantly lower noise.

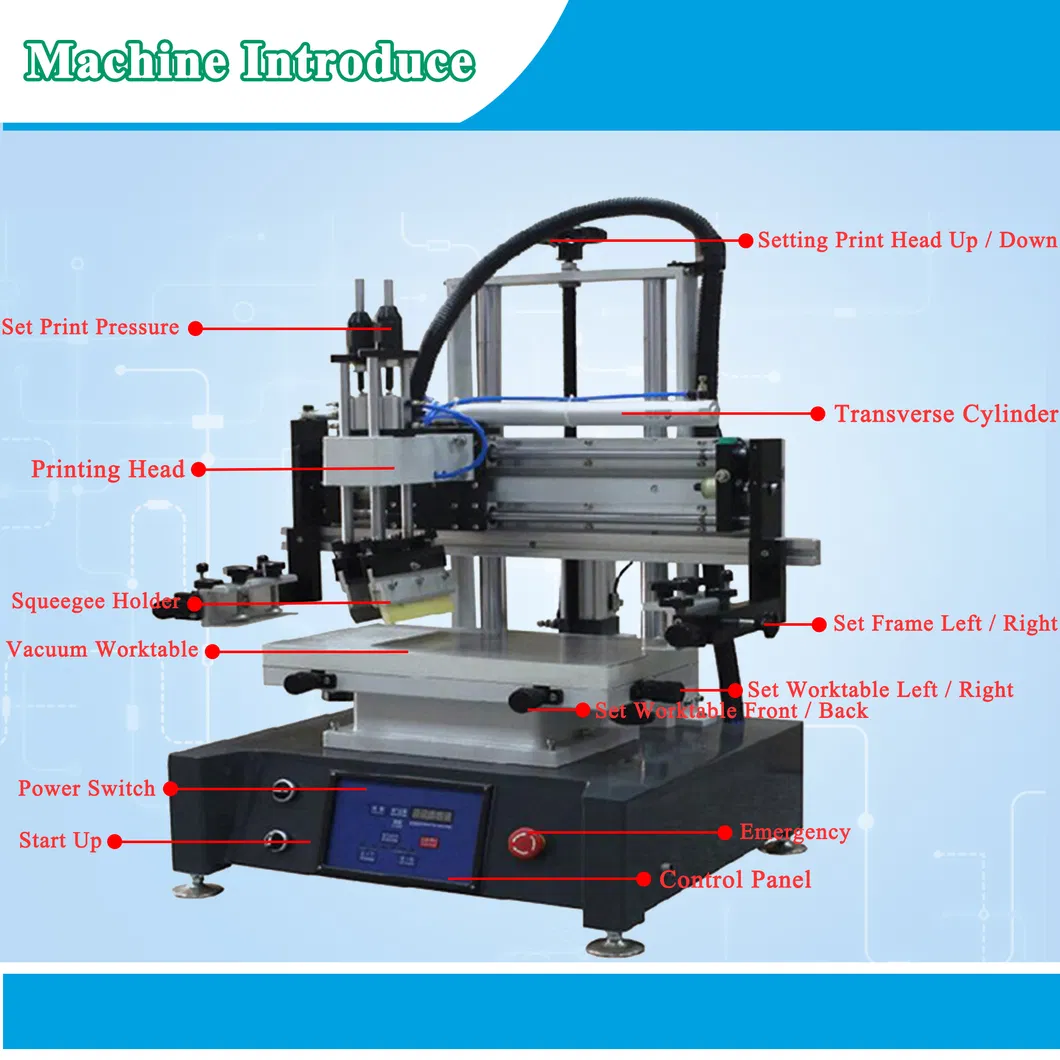

Screen Printing Machine 1
Screen Printing Machine 2

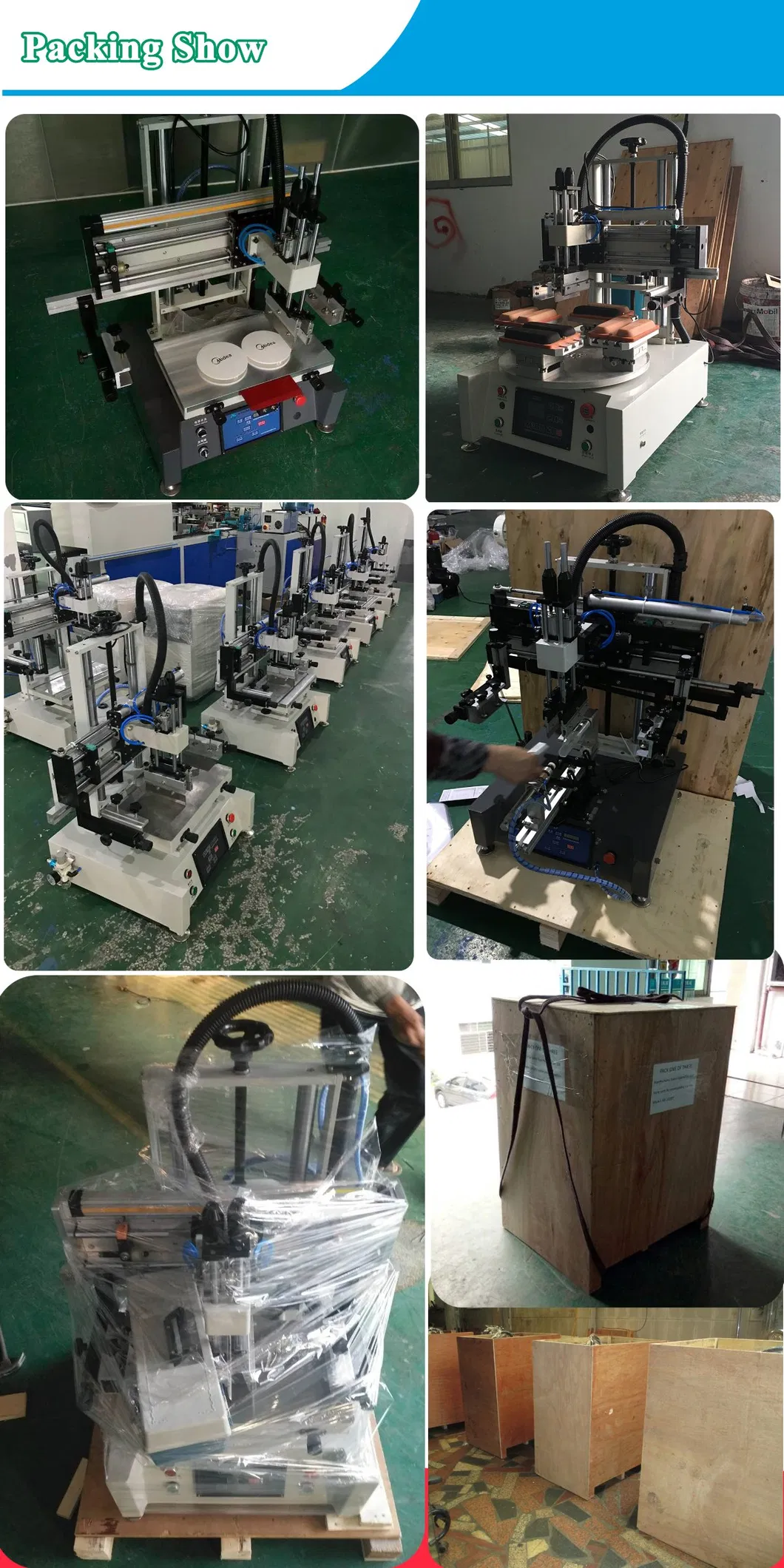

Screen Printing Machine 3
Screen Printing Machine 4
Screen Printing Machine 5
Screen Printing Machine 6

Frequently Asked Questions

What materials can this machine print on?
The HX-2030C is ideal for small flat items such as lenses, mobile phone keys, paper bricks, small plastic products, CD boxes, and various gifts.
Do I need special jigs to hold my products?
No, the machine features a vacuum worktable with strong adsorptive power, which holds items securely in place without the need for custom jigs.
What are the different operation modes available?
This machine supports three modes: Automatic, SEMI-automatic, and Manual, allowing for flexibility based on your production requirements.
How is the printing quality maintained?
The machine uses a distyle vertical structure for high precision and includes scraper constant pressure equipment to ensure consistent ink application.
What is the production capacity of the HX-2030C?
The machine can achieve a speed of 600 to 800 pieces per hour, depending on the operator and the complexity of the print.
What power supply is required for operation?
It supports standard 110V or 220V single-phase power, making it compatible with most workshop environments.
