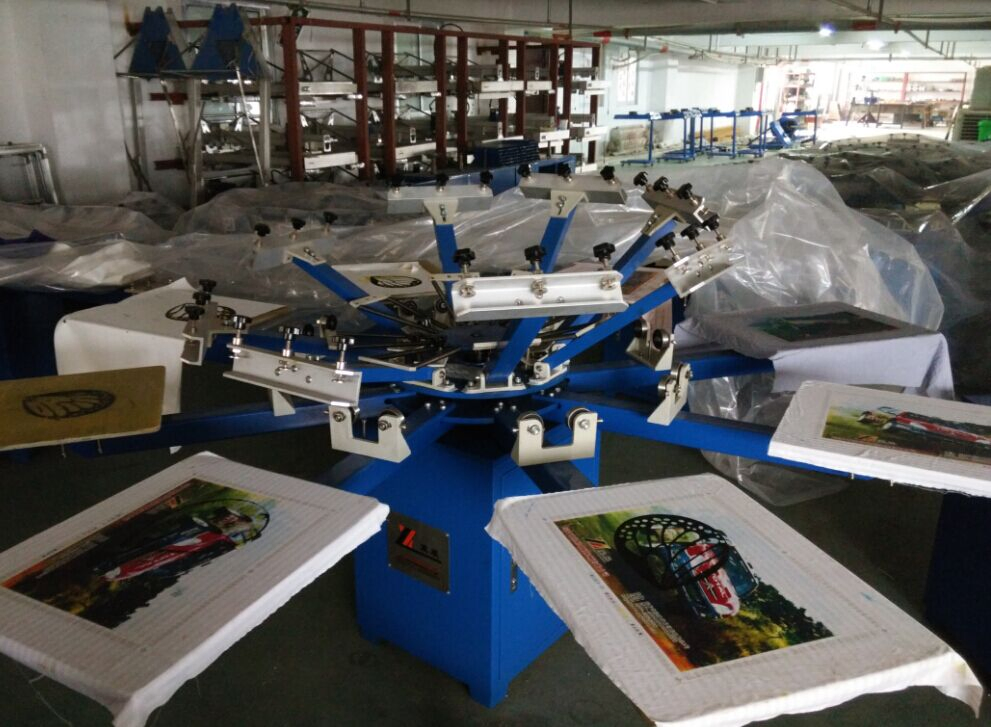

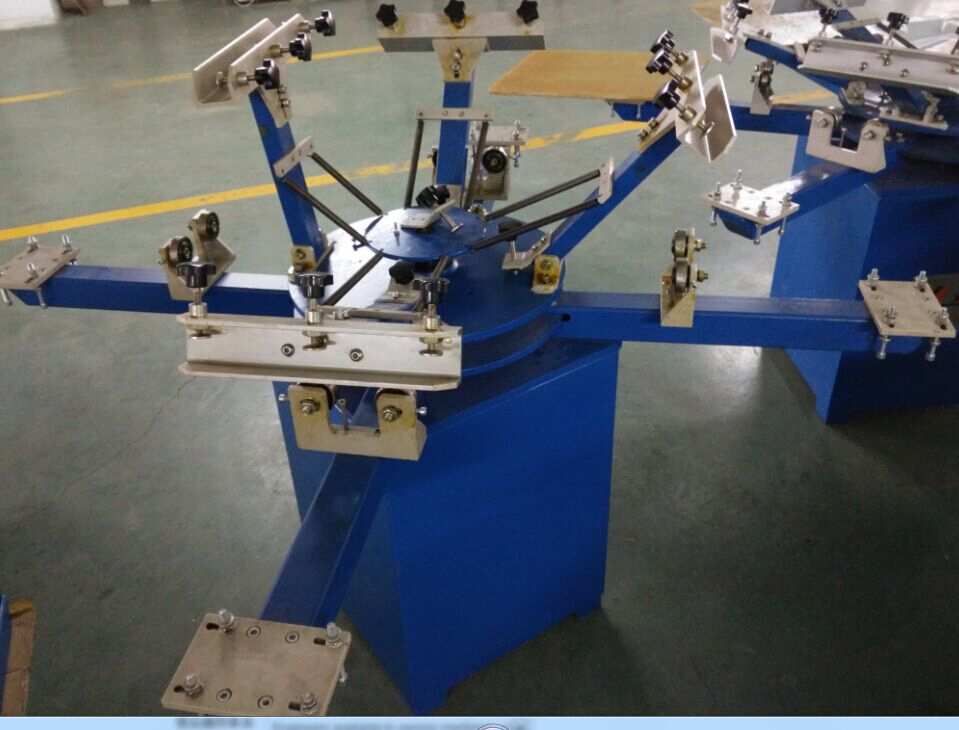

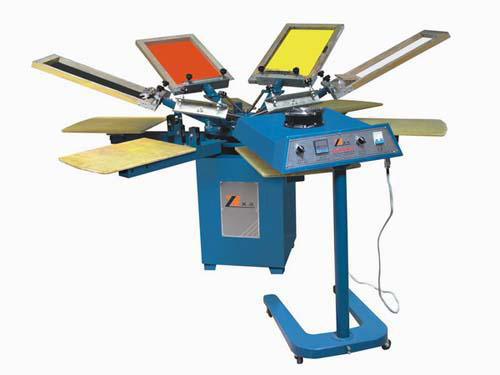

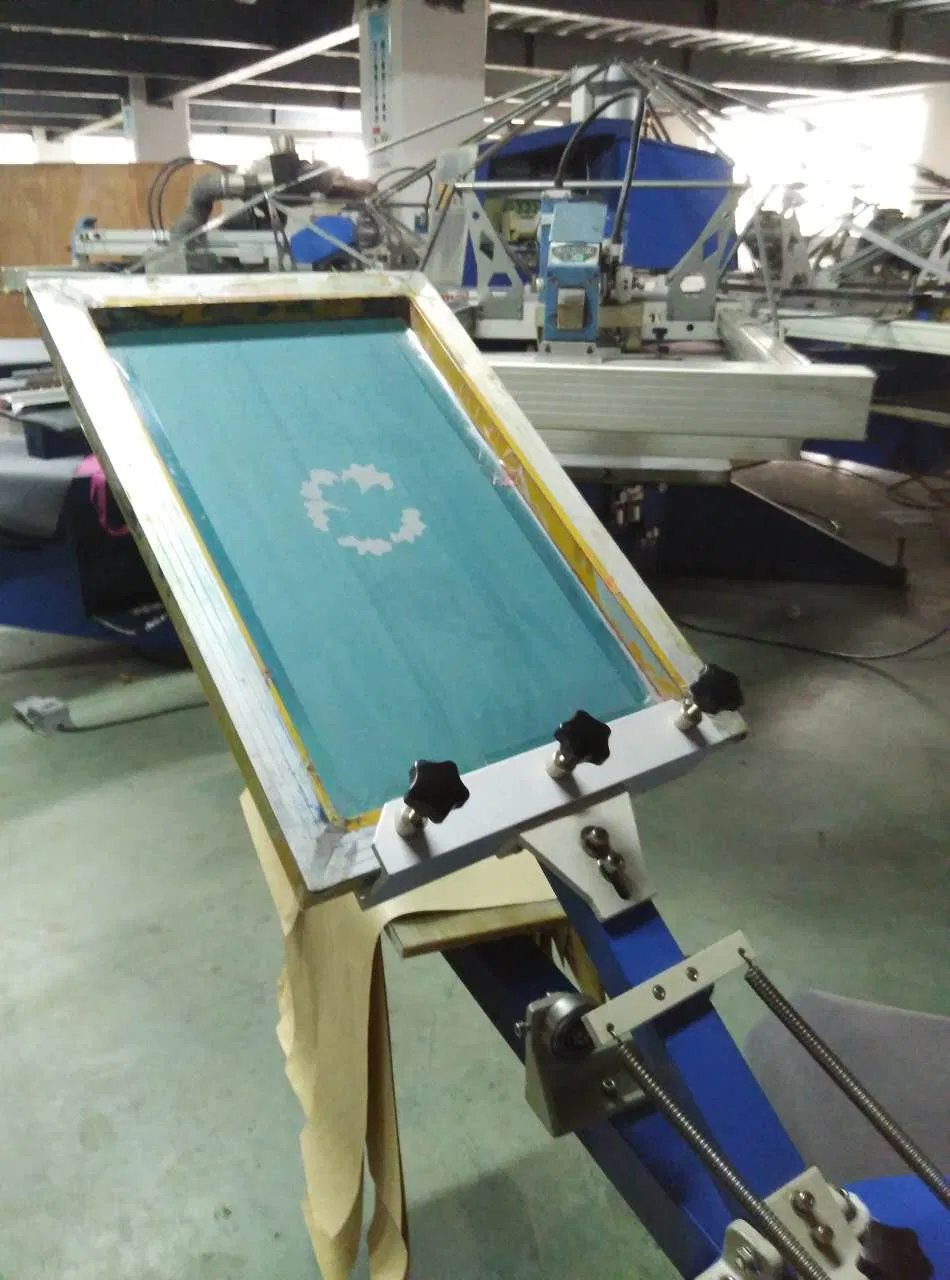

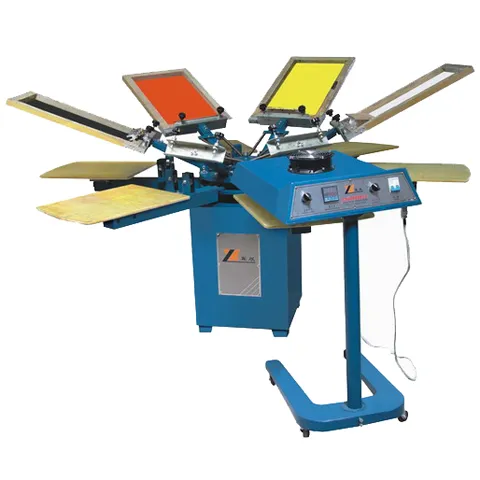

Garment Screen Printer: With its revolutionary duo-deck design and cabinet-like structure, the SPM is designed to be a highly efficient press for manual production systems. The U-slot guide locator allows for easy and fast registration during the printing process. A two-spring hinged screen holder system facilitates smooth screen lift-up actions. The T-shirt screen printer's left-and-right pallet movement design provides enhanced adjustment capabilities.

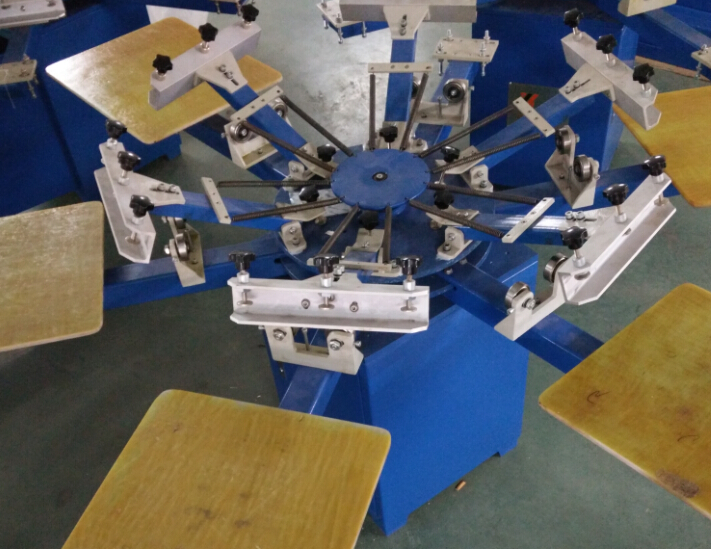

The SPM features rigid flatness resin-made pallets, a machine-tooled and polished 50mm center shaft, rugged tapered roller bearings, extra-large knobs, and four-point off-contact adjustment. These features help users accomplish high-precision print results efficiently and economically.
| Model | SPM450 | SPM650 | SPM850 |
| Print Color | 4 | 6 | 8 |
| Max. Image Area | 400×350/mm | 400×350/mm | 400×350/mm |
| Pallet Size | 500×400/mm | 500×400/mm | 500×400/mm |
| Dryer Power | 6Kw | 6Kw | 6Kw |
| Size (mm) | 2500×2500×1300 | 2500×2500×1300 | 2800×2800×1350 |
| Weight | 190Kg | 280Kg | 360Kg |
