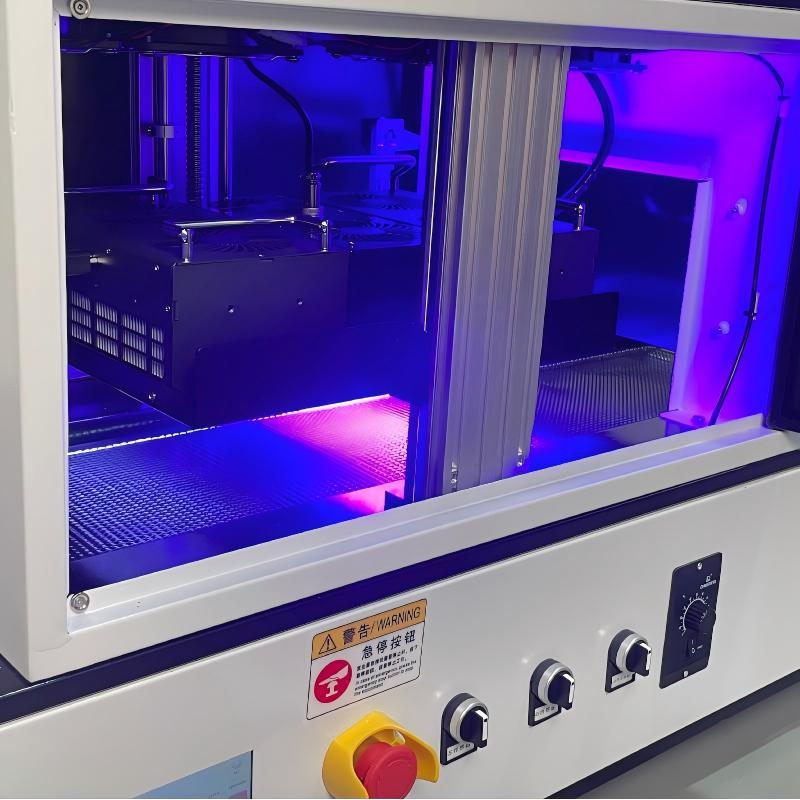

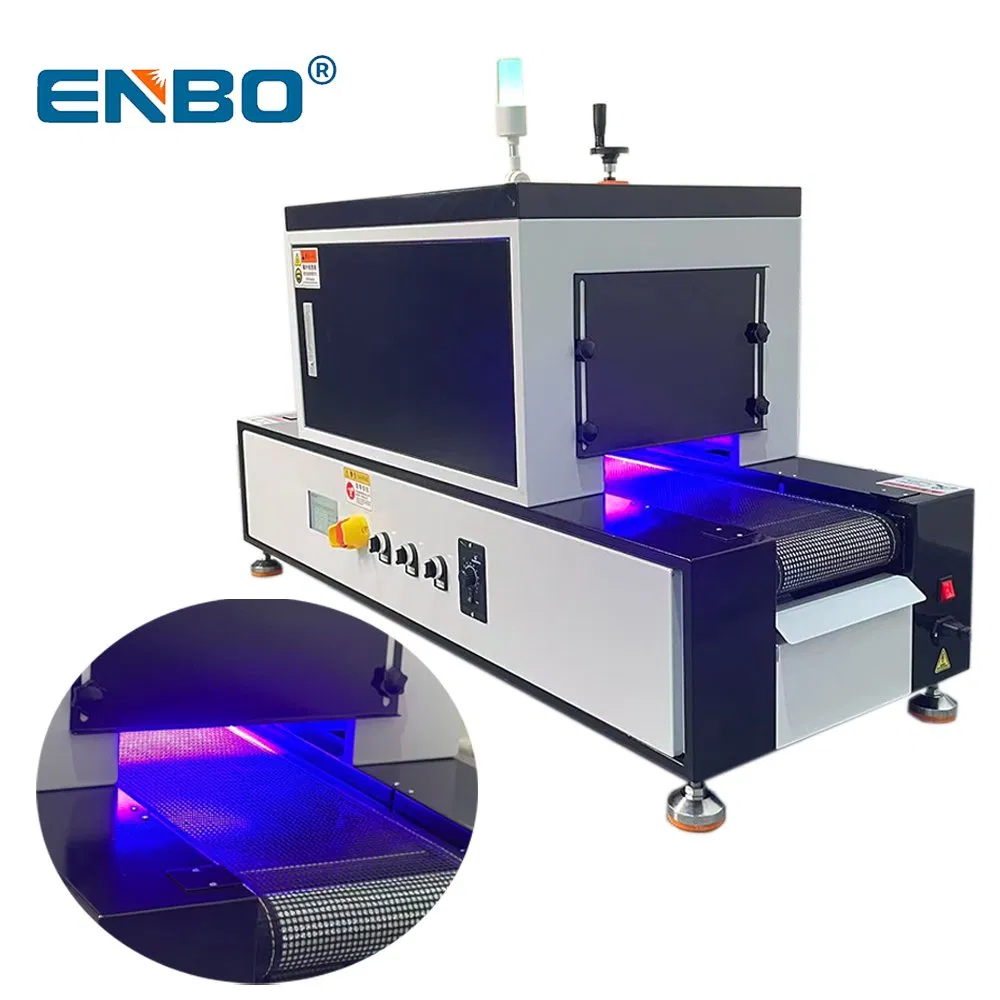

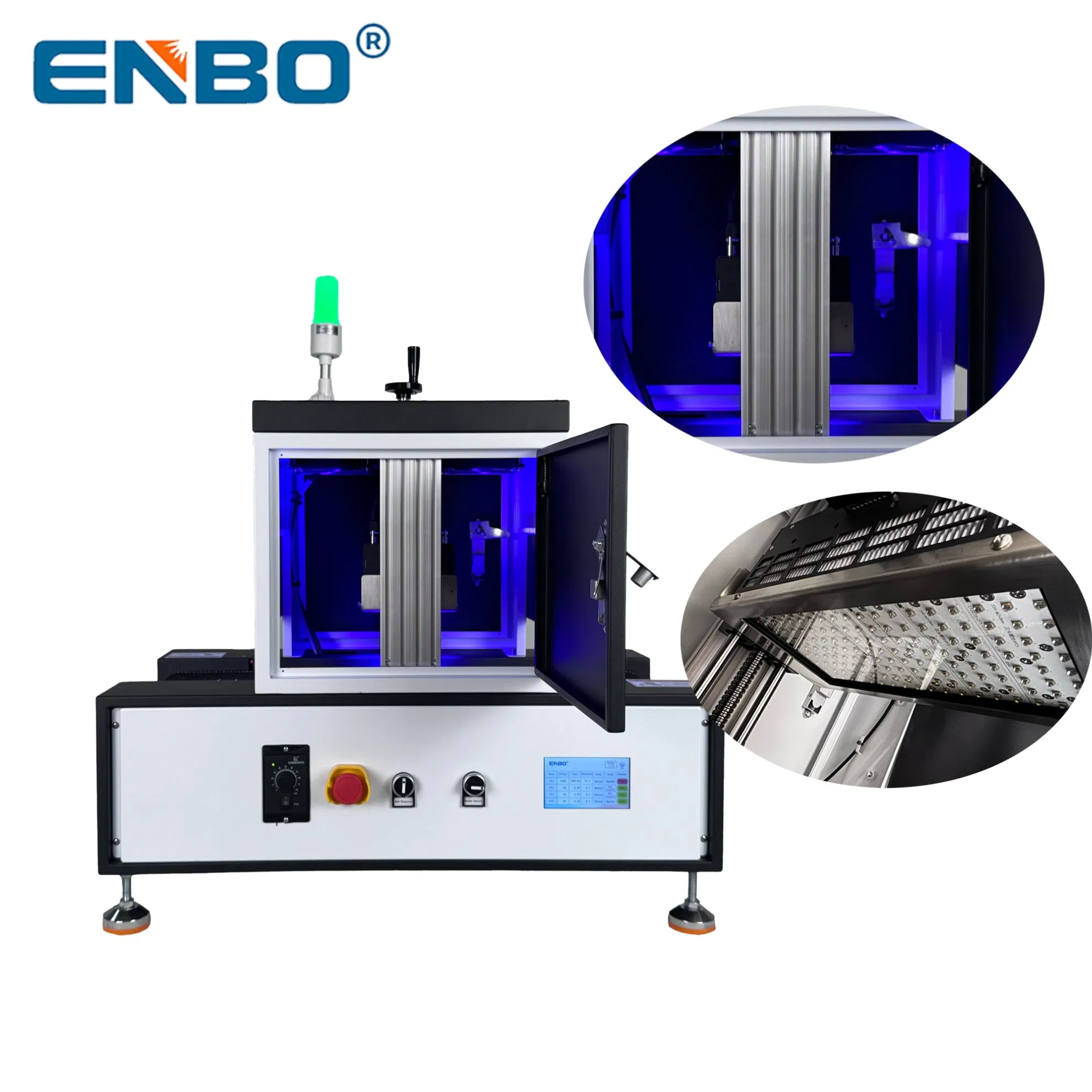

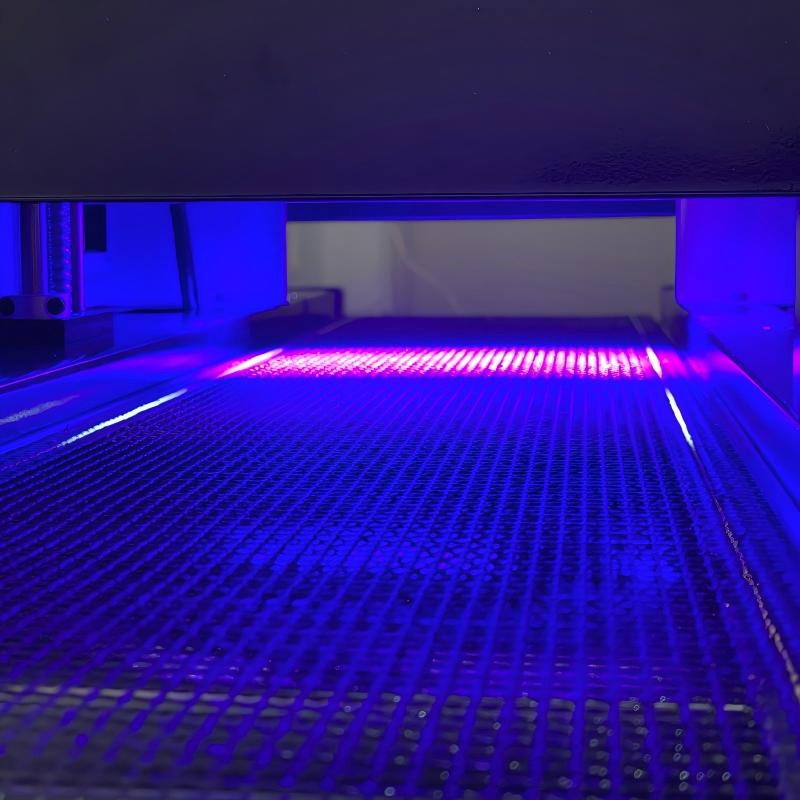

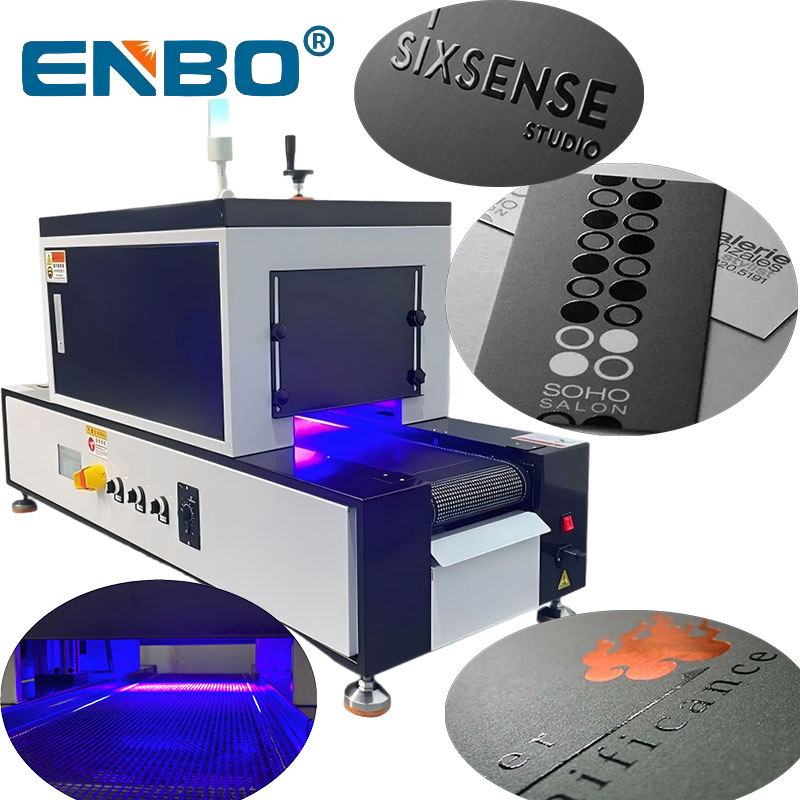

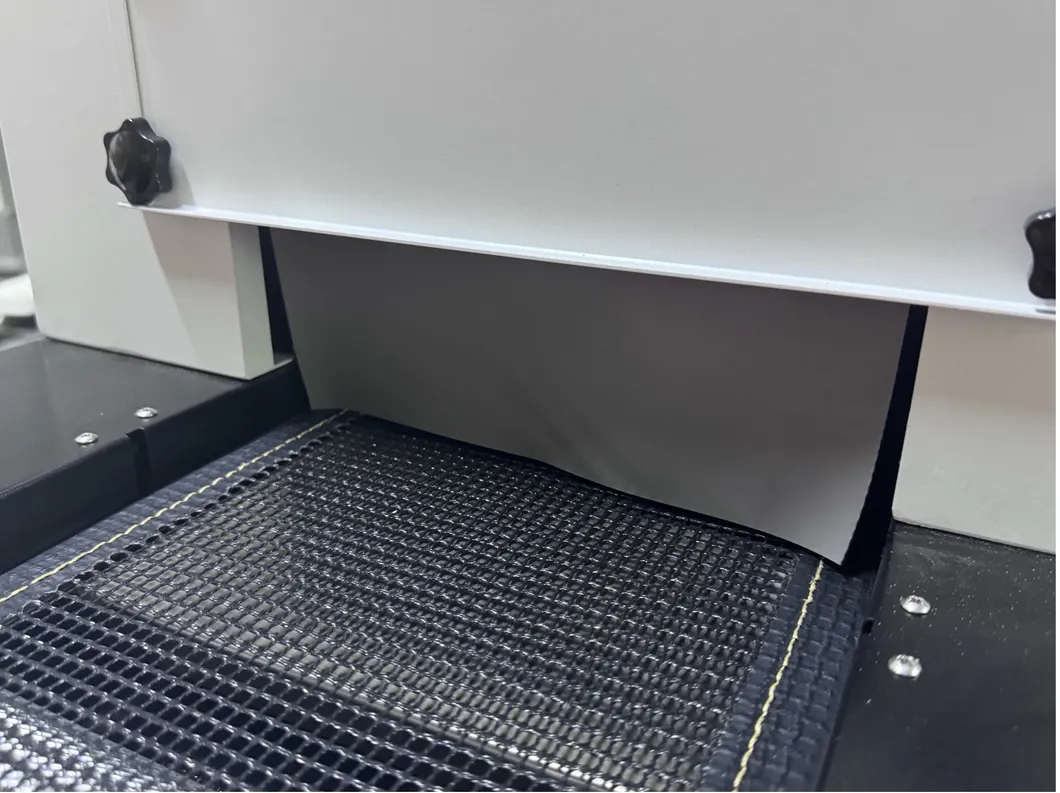

LED UV Curing Desktop Conveyor: A desk LED UV curing conveyor system with a 200mm conveyor belt width and optional power ranging from 600mw to 18000mw/cm2. This compact solution is designed for efficiency. The conveyor features material options including stainless steel and PVC, with an adjustable height from lamp heads to belt (10mm to 180mm).

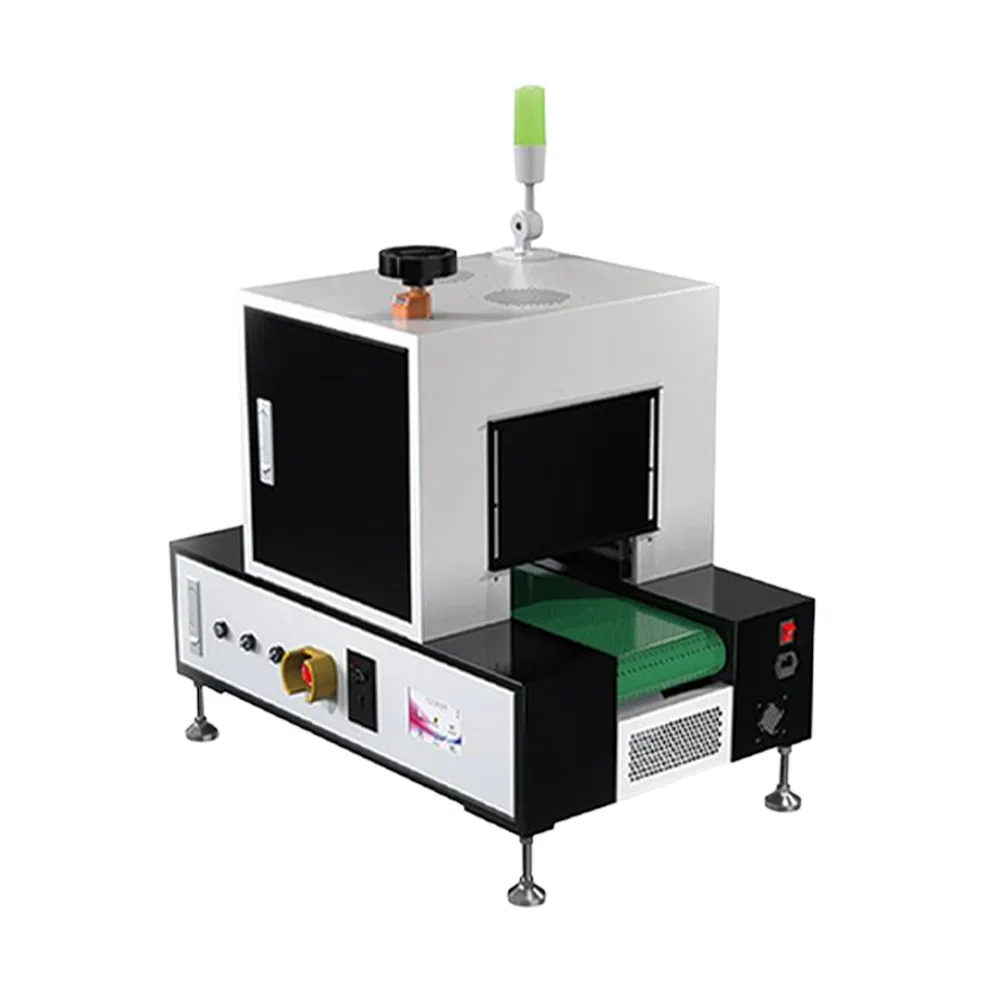

Desktop Conveyor System

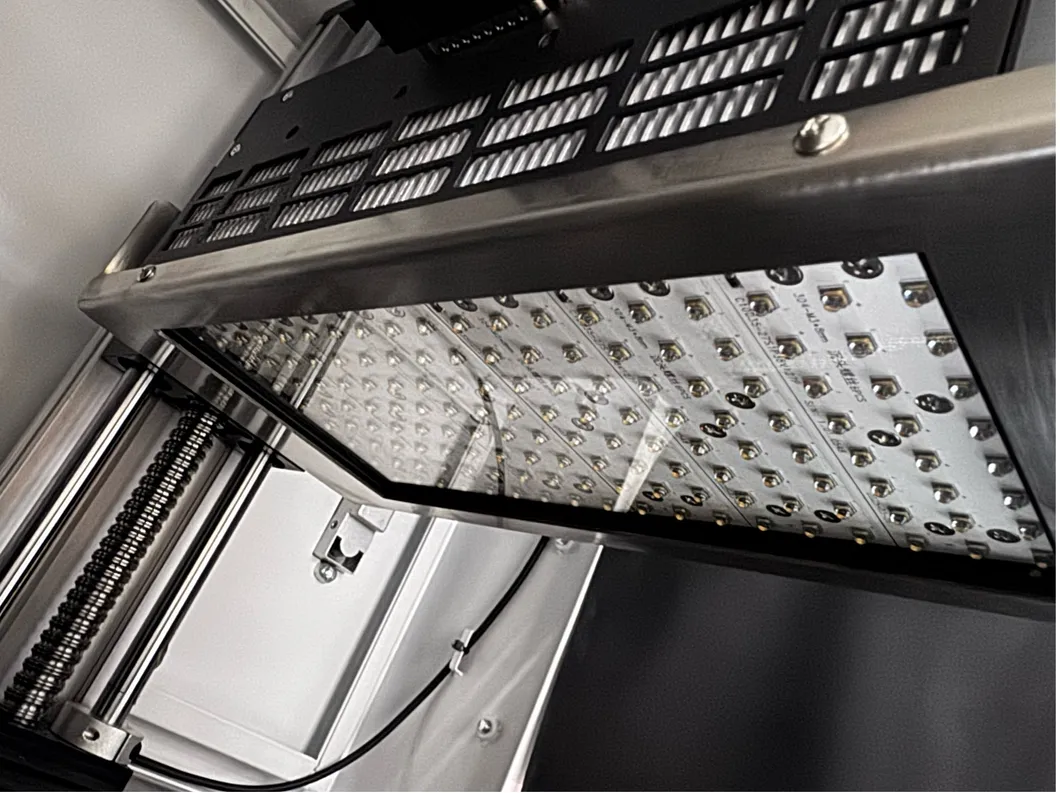

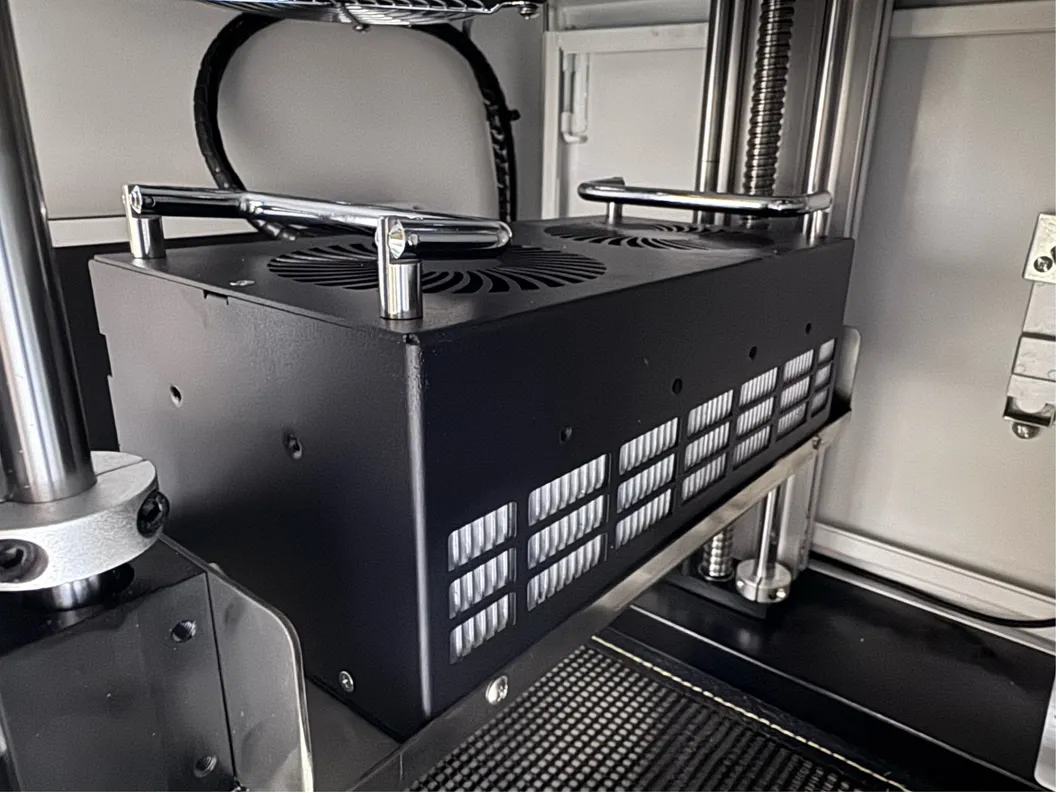

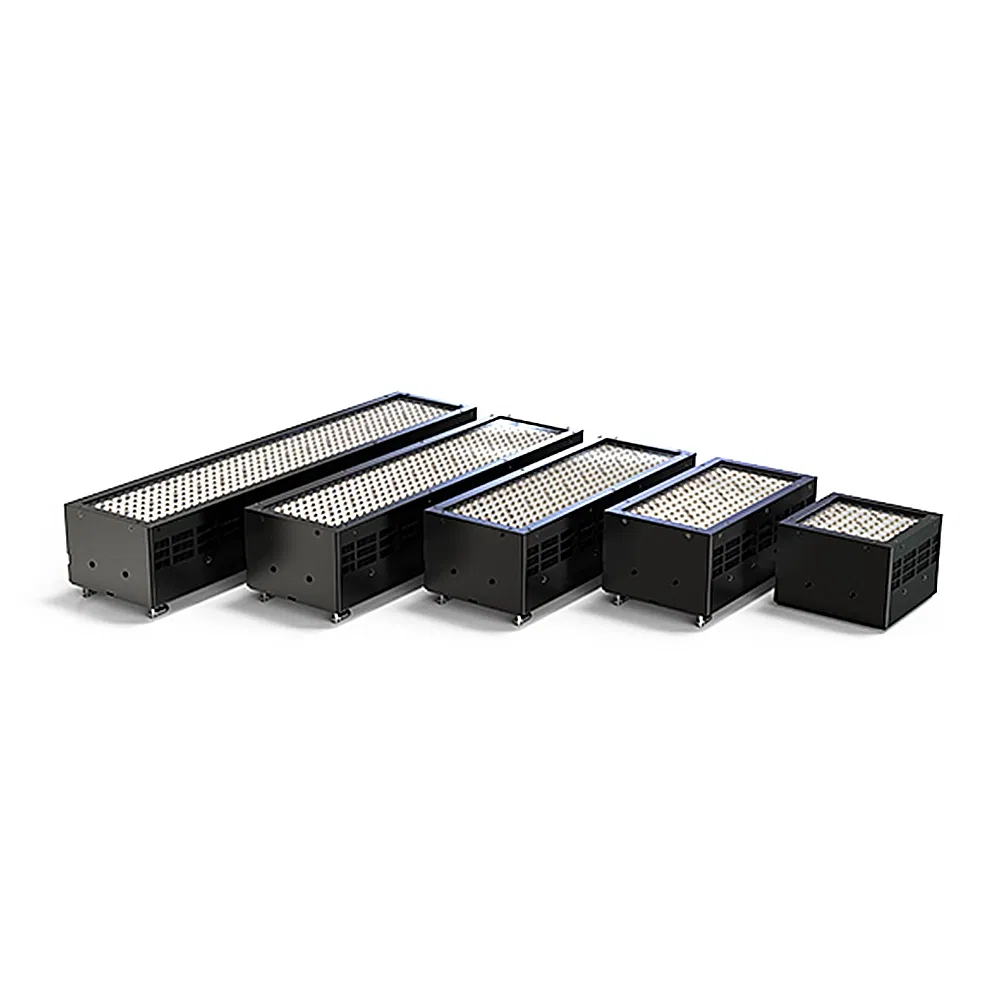

LED UV Lamp Head
The machine can be equipped with a Flood Curing Lamp allowing for 0-100% control of the internal working power. The internal LED UV curing lamp's size and wavelength intensity are adaptable, making it ideal for curing small areas of UV materials such as adhesives, inks, and coatings.
| Power | 600W | UV Wavelength | 365nm/395nm/405nm/485nm |
| Cooling Method | Air Cooling or Water Cooling | UV Intensity | 9000-18000mw/cm² |
| Display | 5-inch Touch Screen | Belt Width | 200mm |

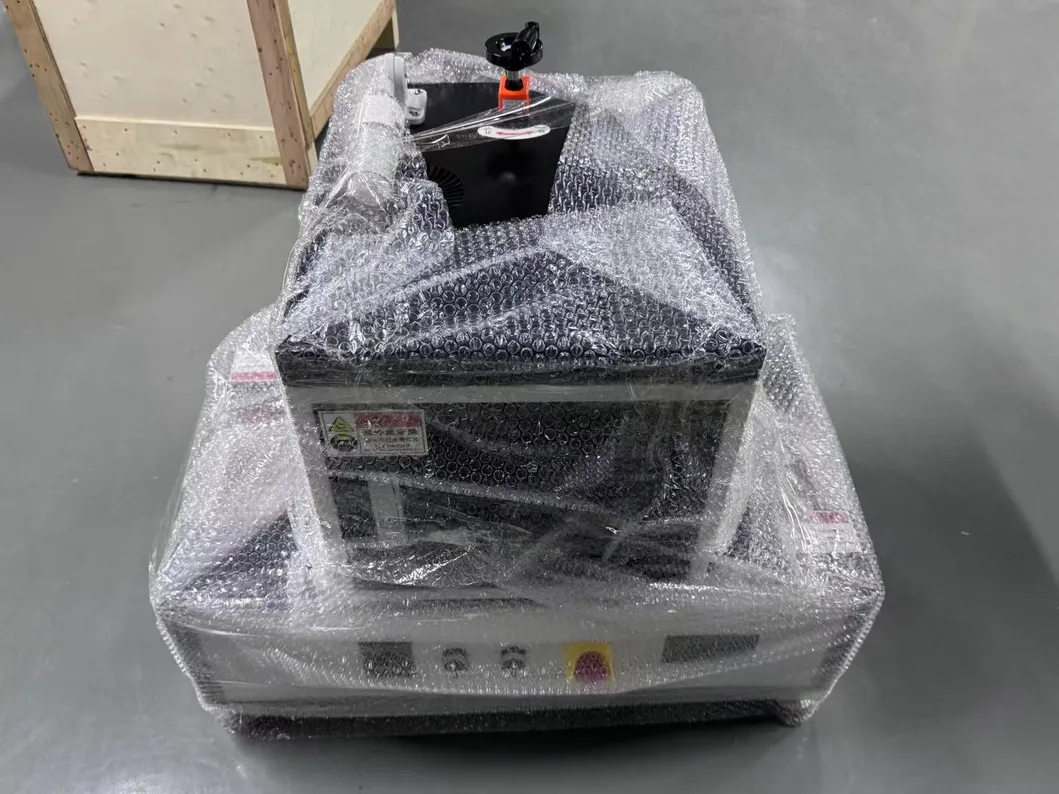

Professional export packaging and wooden crates are utilized to ensure the safe transportation of the product.
