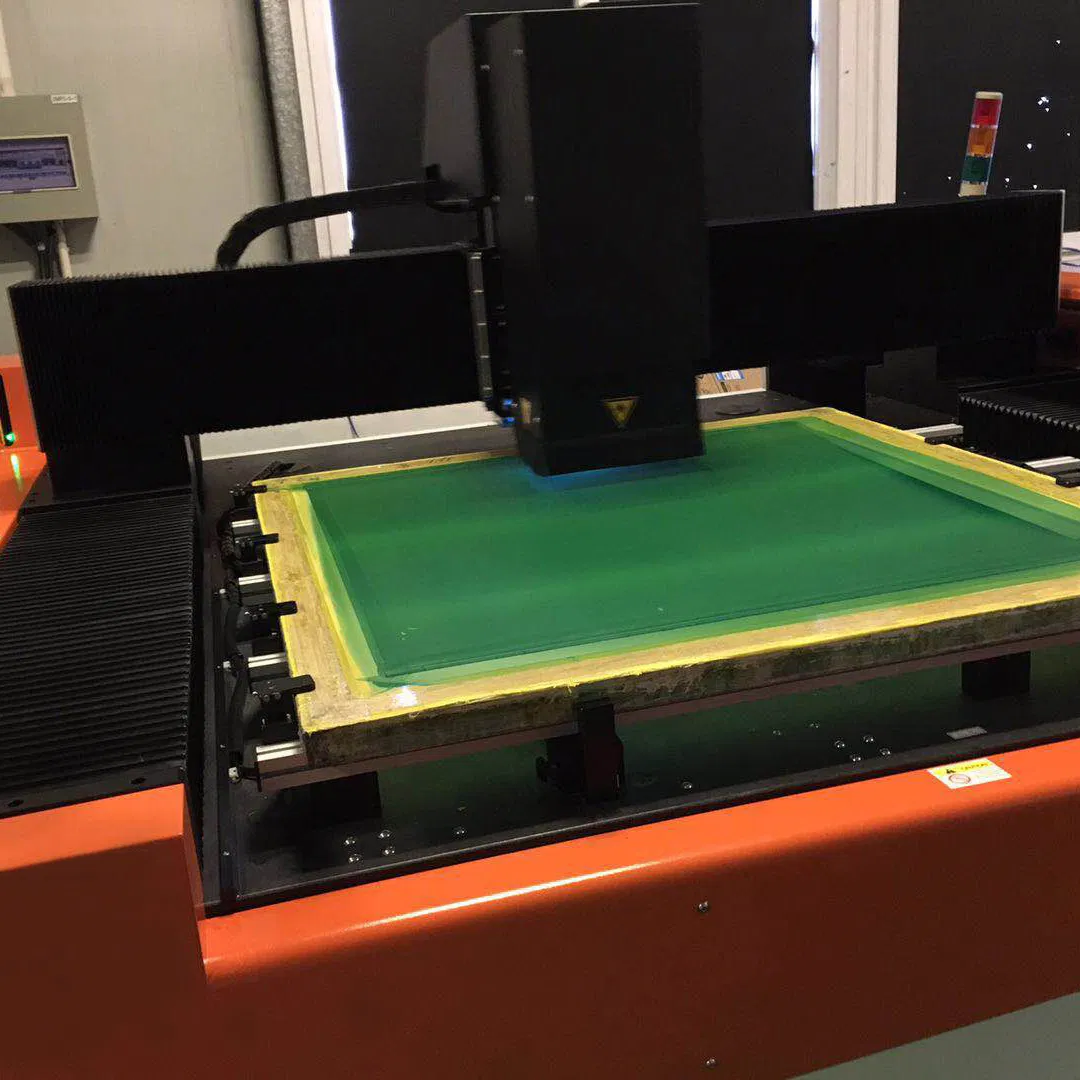

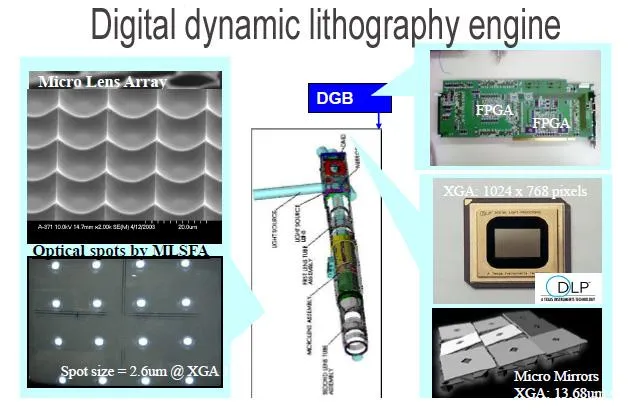

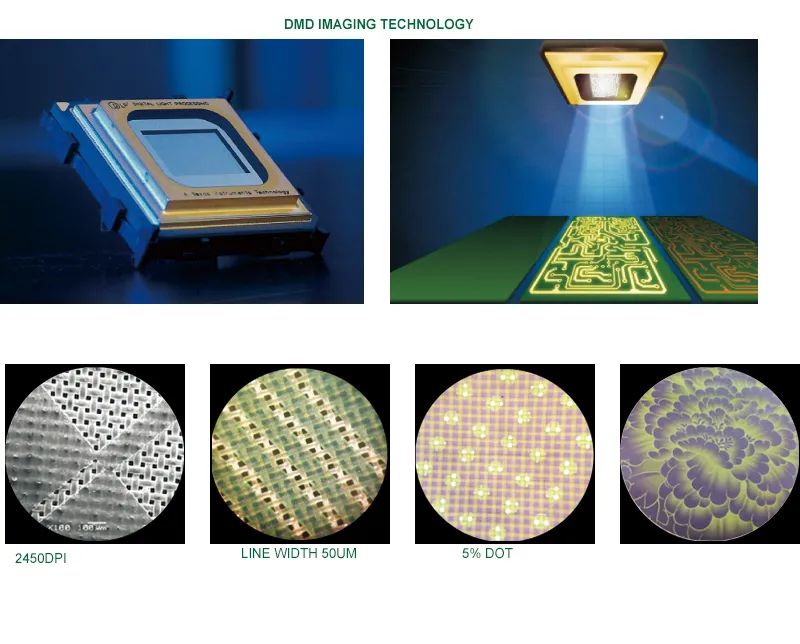

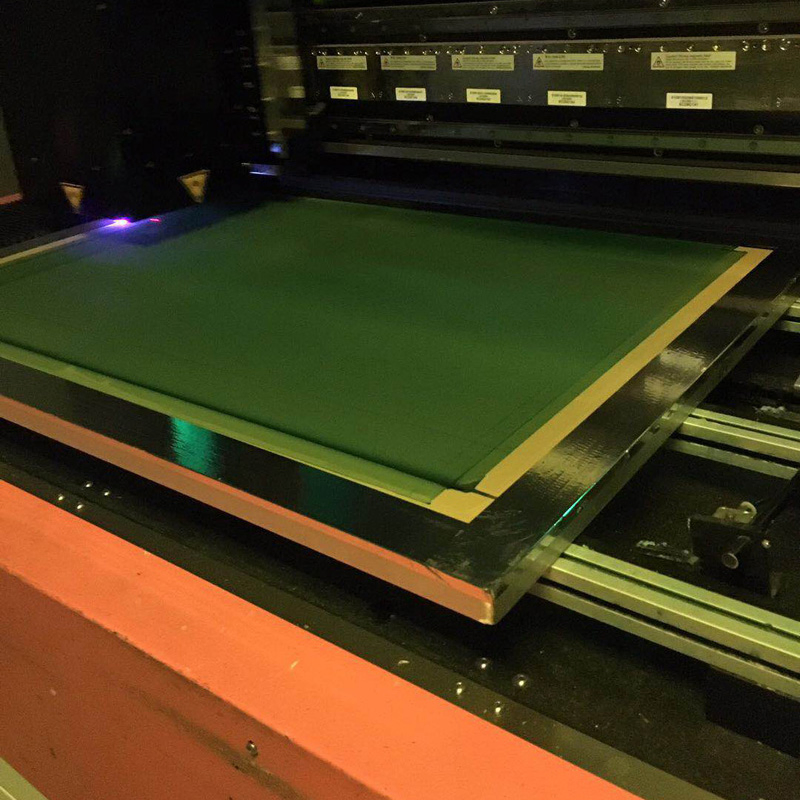

This system adopts industry-leading purple laser technology and incorporates DMD core components from American TI Company. Combined with a high-power 405nm laser module, a high-precision linear motor motion system, and a stable water cooling system, it allows for direct exposure on the surface of traditional wire mesh. This eliminates the need for film, providing high resolution, high efficiency, and low-cost production. This digital exposure system represents the new industry standard.

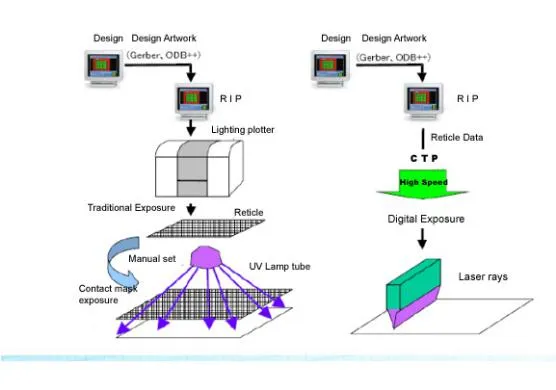

1) No film/mask required: Simplifies the image transfer process and significantly saves production costs.
2) Superior Resolution: Projection exposure technology matching semiconductor standards.
3) Digital Alignment: Graphics positioning is more accurate, solving material expansion and contraction issues.
4) Uneven Surface Transfer: Excellent focus depth (±4mm) minimizes image changes on irregular surfaces.

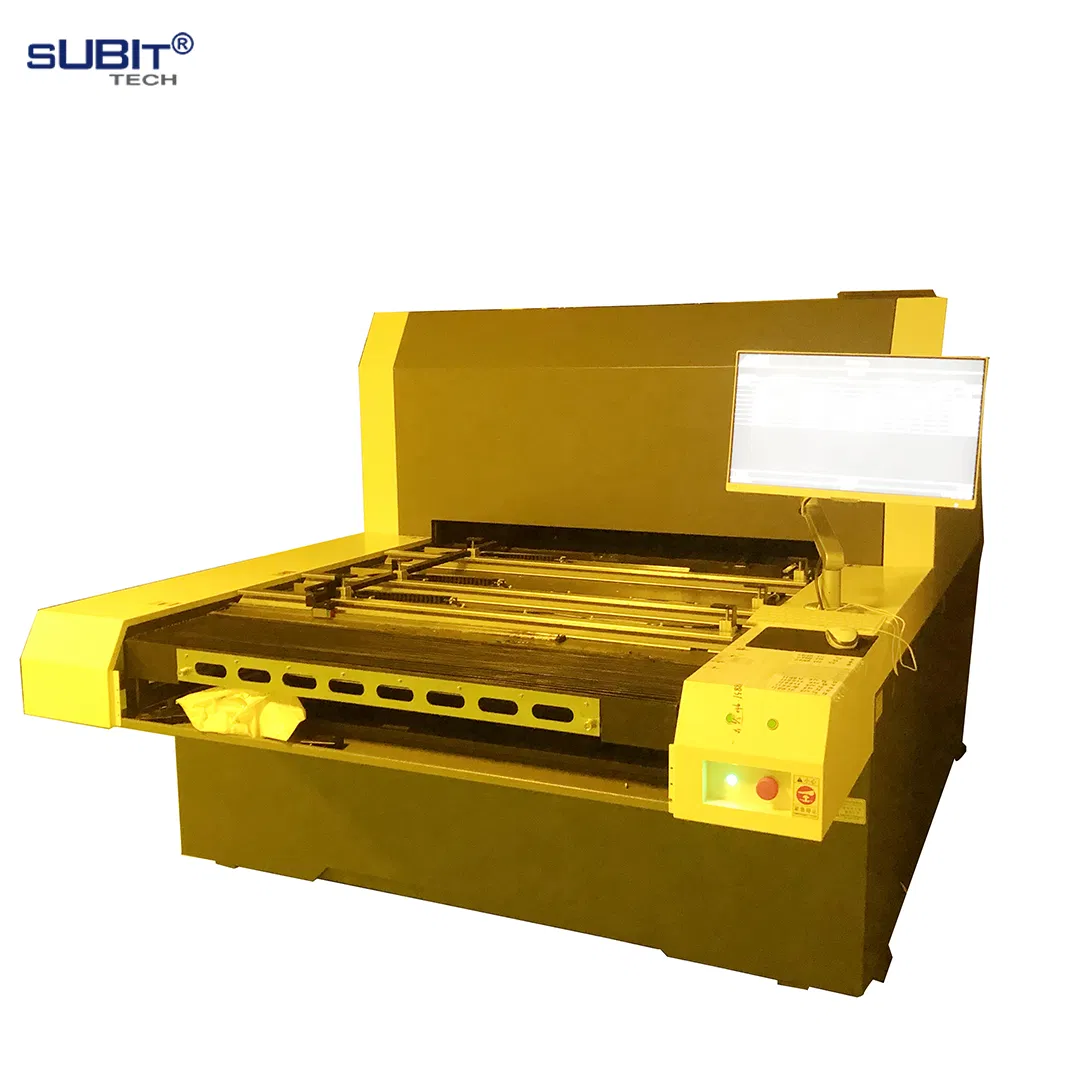

| Model | SBT-JG1210 |
| Maximum Frame Size | 1200 x 2000 mm |
| Minimum Frame Size | 300 x 300 mm |
| Frame Thickness | 20-40mm |
| Imaging System | DMD XGA |
| Wavelength | 405nm |
| Data Resolution | 12,700dpi |
| Minimum Line Width | 60 microns |
| Exposure Speed | 12 pph (1000 x 800 mm) |
| Equipment Size | 2950 x 1800 x 1650 mm |
| Net Weight | 2600KG |
| Power Supply | Single phase 220V, 50/60 Hz, 4Kw |
Packaging Details: Robust wooden case for secure transport.
Lead Time: 15 days
Volume: 9.5 CBM
Gross Weight: 3000 KGS
1) Free Warranty: Includes the first year of manufacturer's free warranty maintenance. Main components are designed for long-term durability, with many units serving over 4 years without issue.
2) Support: Experienced after-sales personnel provide reliable maintenance guarantees. For on-site service required after the first year, customer shall cover engineer travel and accommodation expenses.
