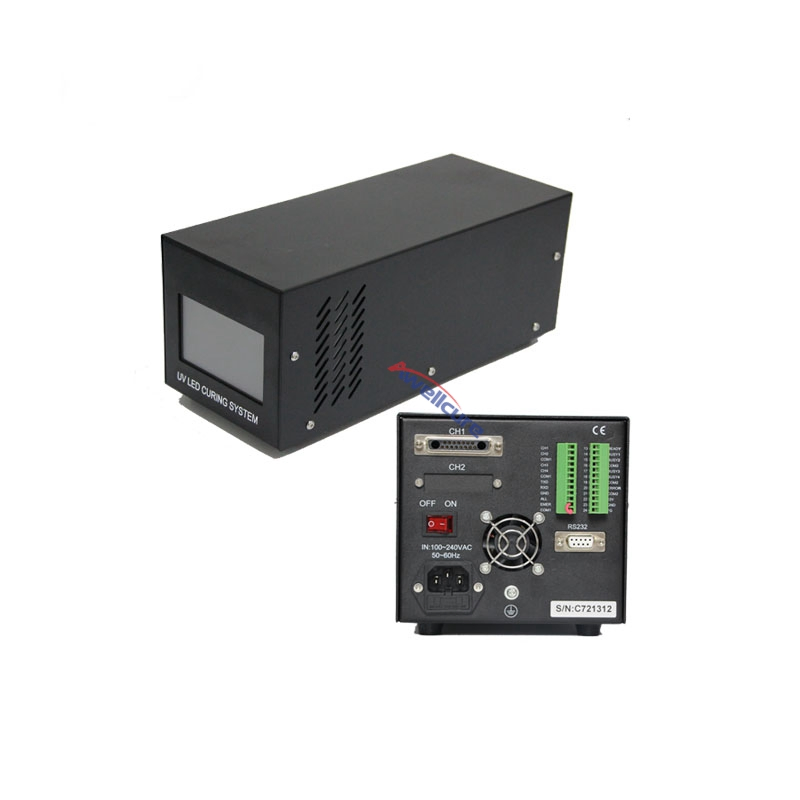

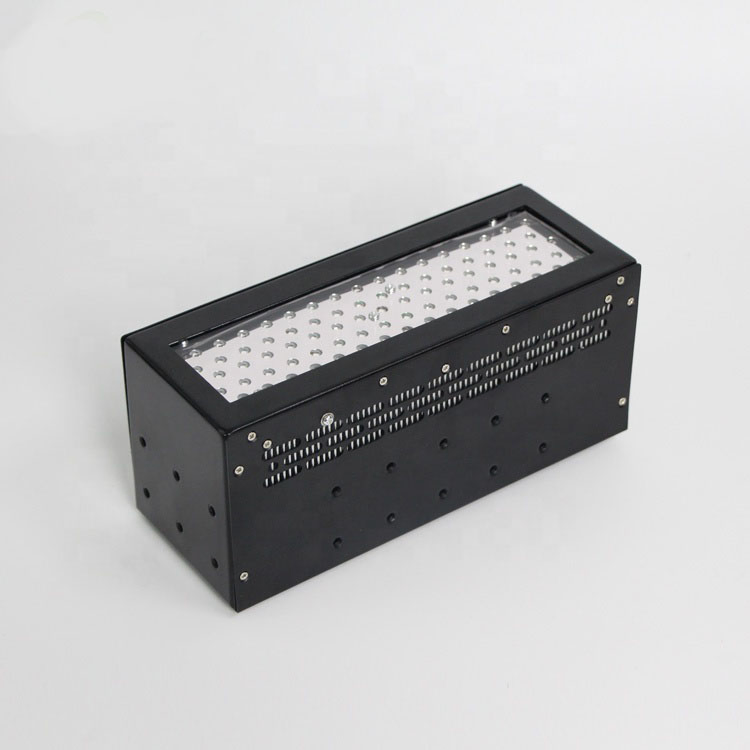

UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
1 / 5
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm
UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm

UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp UV Curing Machine 395nm

Customization: Available
Usage: Industrial use
Shape: Square
Send Inquiry

Product Description

Product Overview

UV LED Curing System Small UV Curing Lamp Screen Printing Ink Drying Lamp 395nm

Model NO.
AF50200H1
Wavelength
365/385/395/405nm
Material
Sheet Metal
Certification
CE
Input Voltage
AC100~240V(50/60Hz)
Cooling Method
Air-Cooled
LED Life
20000hrs
Control Method
RS232/Pedal/PLC
LED Beam Size
200X50mm
UV Intensity
1500MW/Cm2 or Customized

Key Features & Advantages

Controller Features

  • External input signal controls UV irradiation via MCU, PLC, or scanner.
  • Multi-status LEDs for real-time monitoring (Start, Stop, Working, Alarm).
  • RS232 interface for programming parameters and PC/PLC integration.
  • Direct lighting control through foot switch or sensor connection.

UV LED Advantages

  • No infrared radiation, ideal for temperature-sensitive materials.
  • Flexible spectrum ensuring safe and high-speed curing.
  • Instant On/Off capability with no warm-up phase required.
  • Energy-efficient with a long lifespan of up to 20,000 hours.

Technical Specifications

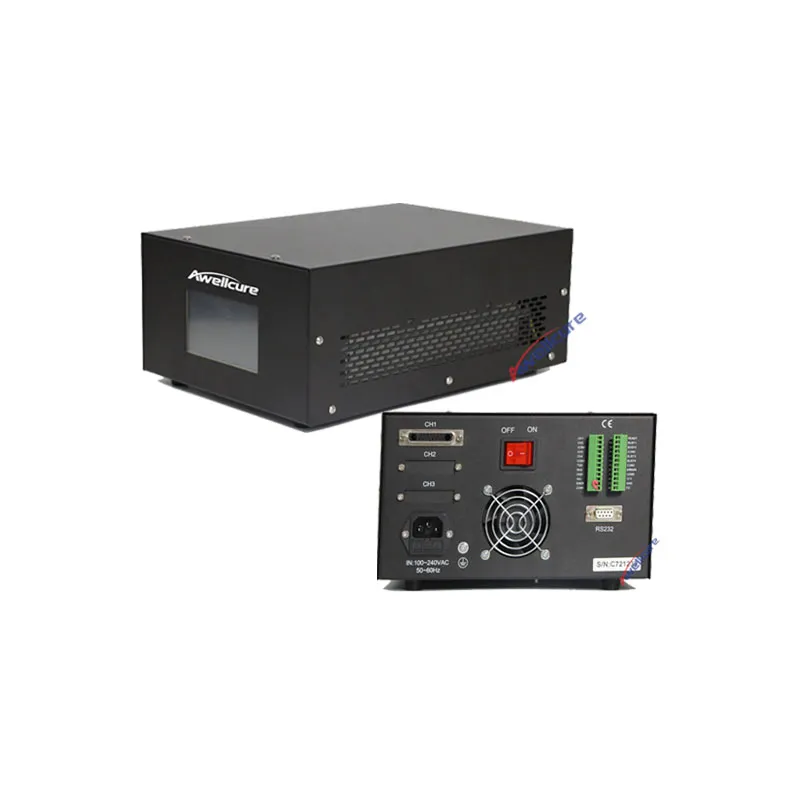

UV Curing System

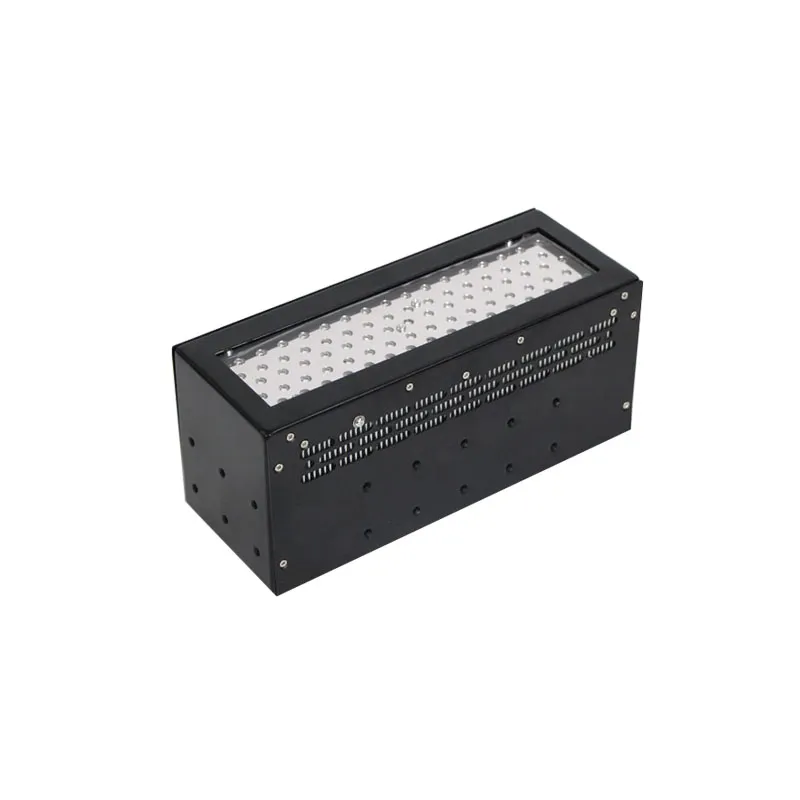

UV Irradiator
Controller Specifications
Voltage100-240V AC
Cooling MethodFan cooling
Control InterfaceTouch/Pedal/RS232 Port/PLC
Irradiation Power10%~100% Adjustable
Irradiation ModesManual, Automatic (0.1-999.9S), Ladder Step, Pulse

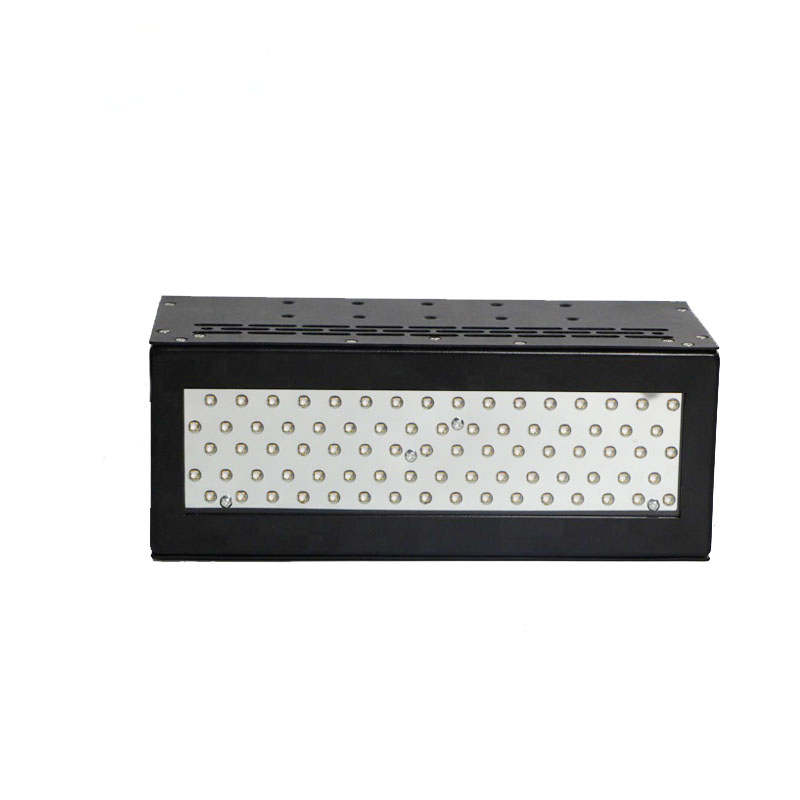

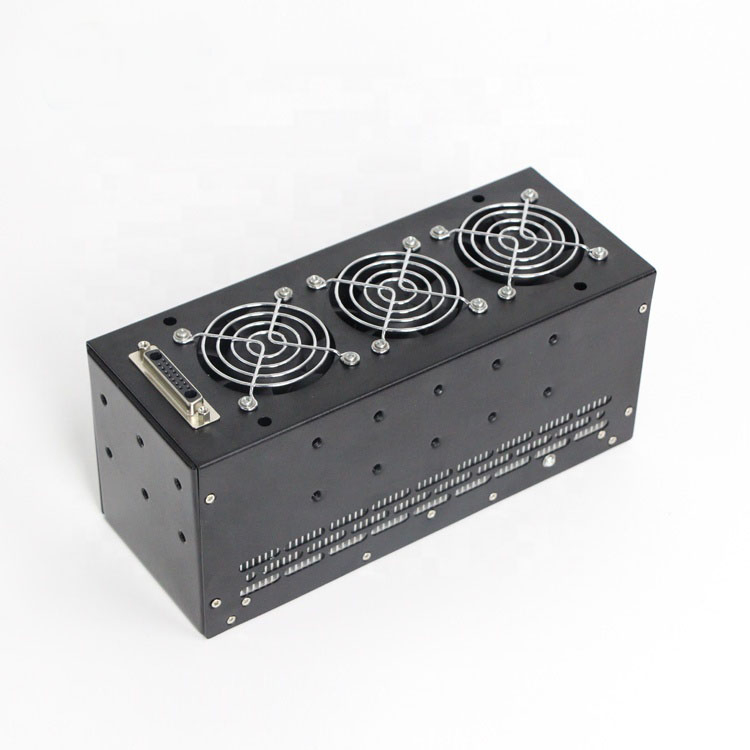

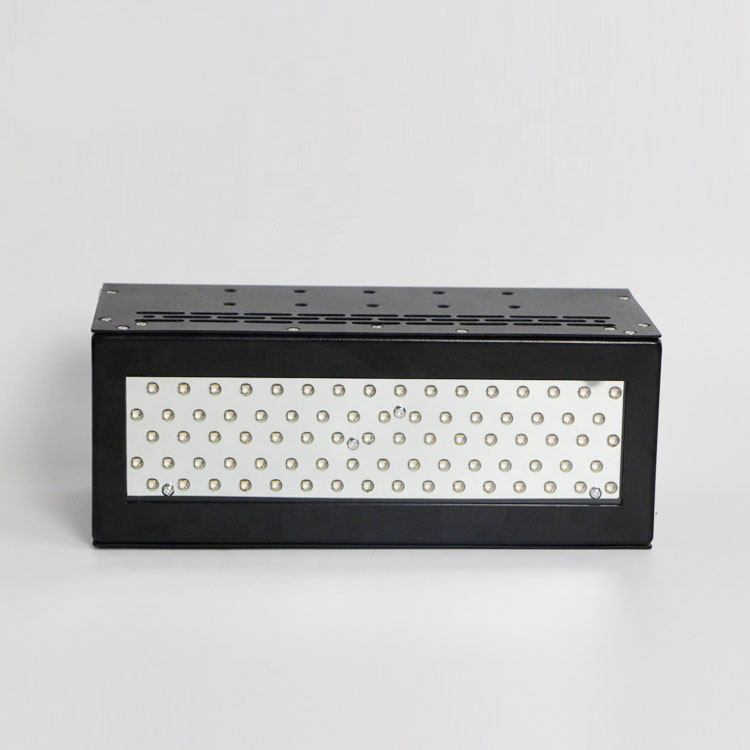

Irradiation Head Specifications
LED TypeHigh-Performance Imported Chips
Lifespan20,000 Hrs @ 80% Power
Wavelength365nm / 385nm / 395nm / 405nm (±5)
Luminous Size50x200mm
Peak Intensity500 / 750 / 1500 mW/cm² (Customizable)

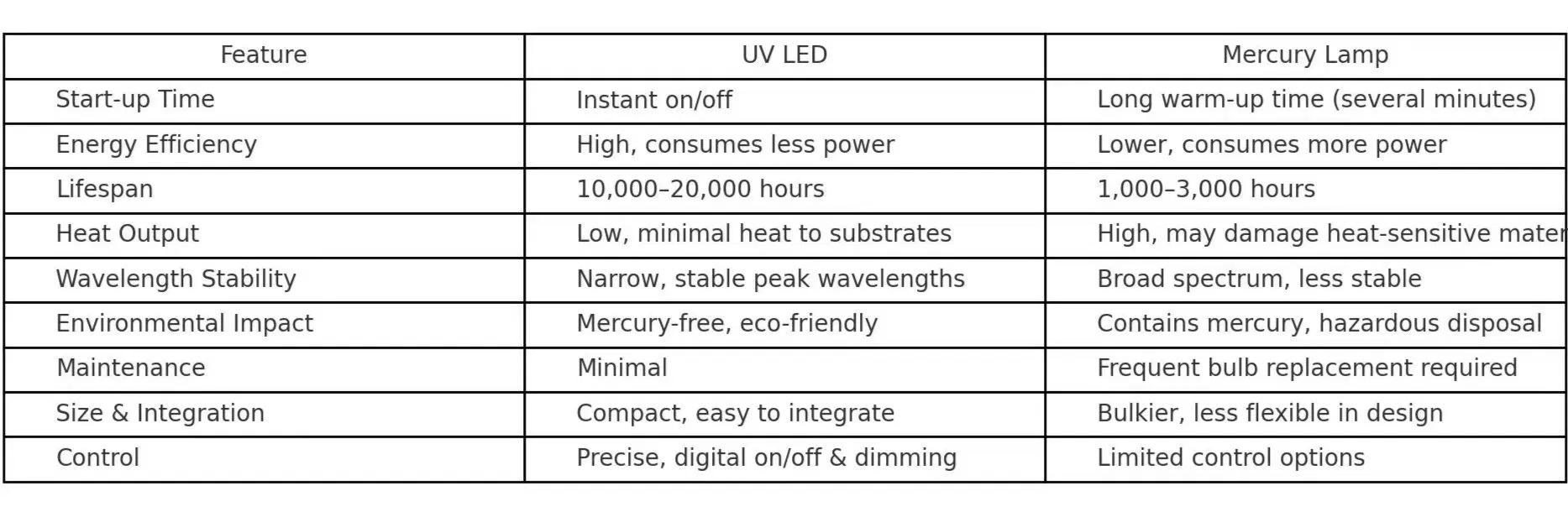

UV LED vs. Mercury Lamp Comparison

Comparison Table

Industry Applications

UV LED Applications
  • UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
  • UV Coating: PCBA, Precision Machining, Chip Packaging, Automotive Industry.
  • UV Ink: UV Digital Printing, 3D Printing, Screen Printing.

Support & Manufacturing

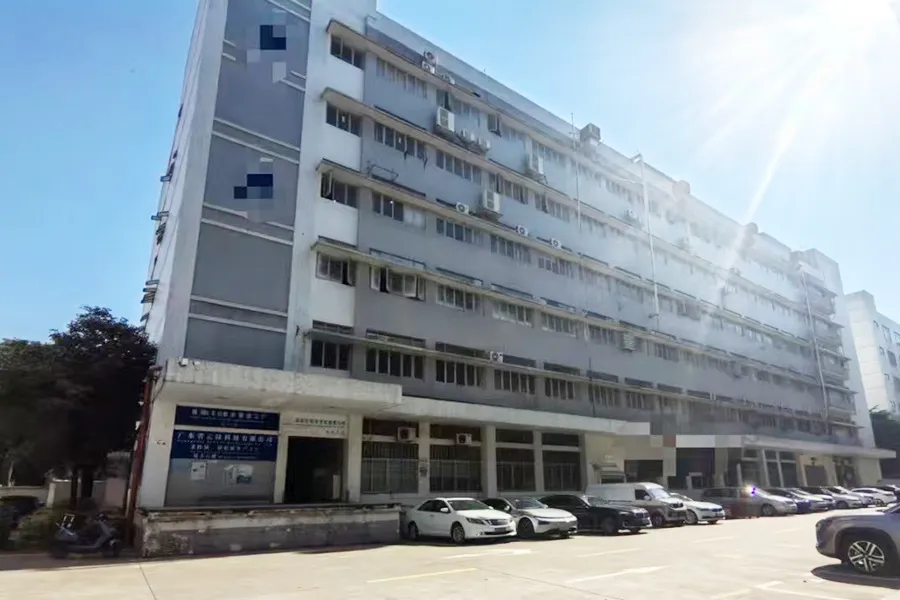

Production Facility

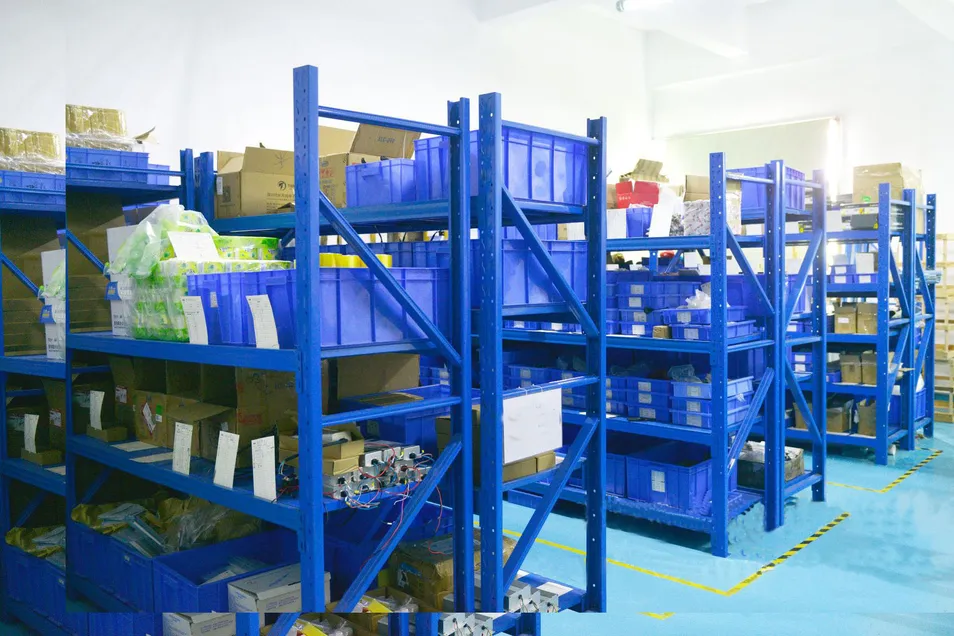

UV LED Products

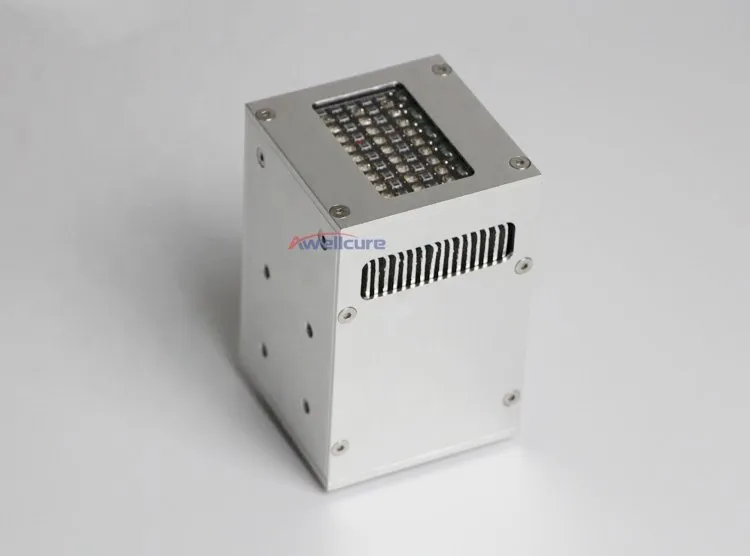

UV Solutions

Standard Warranty: 12 months (Extended coverage up to 36 months available).

Expertise: Leading manufacturer with over 12 years of experience in UV LED systems. Certified ISO 9001, CE, and RoHS.

Capabilities: OEM/ODM services, turnkey project solutions, and global technical assistance.

Frequently Asked Questions

Why choose this UV LED curing system?
Our systems are backed by over 12 years of combined industry experience, ensuring high reliability and meeting the specific technical requirements of global clients.
What are the primary applications for this equipment?
It is primarily used for curing UV-sensitive materials such as UV glues, inks, adhesives, paints, and varnishes across electronics, medical, and printing industries.
What are the main advantages over traditional mercury lamps?
UV LED systems provide a significantly longer service life, major energy savings, instant on/off capabilities, and are environmentally friendly without mercury content.
How do I determine the required emitting window size?
The size of the emitting window depends entirely on the specific curing area required by your production process or product dimensions.
What UV power intensity is recommended?
The required intensity depends on the sensitivity of your specific UV materials and your required production line speed or efficiency goals.
Can the irradiance and window size be customized?
Yes, we provide full customization for both the emitting window dimensions and the peak irradiance to match your unique industrial applications.
