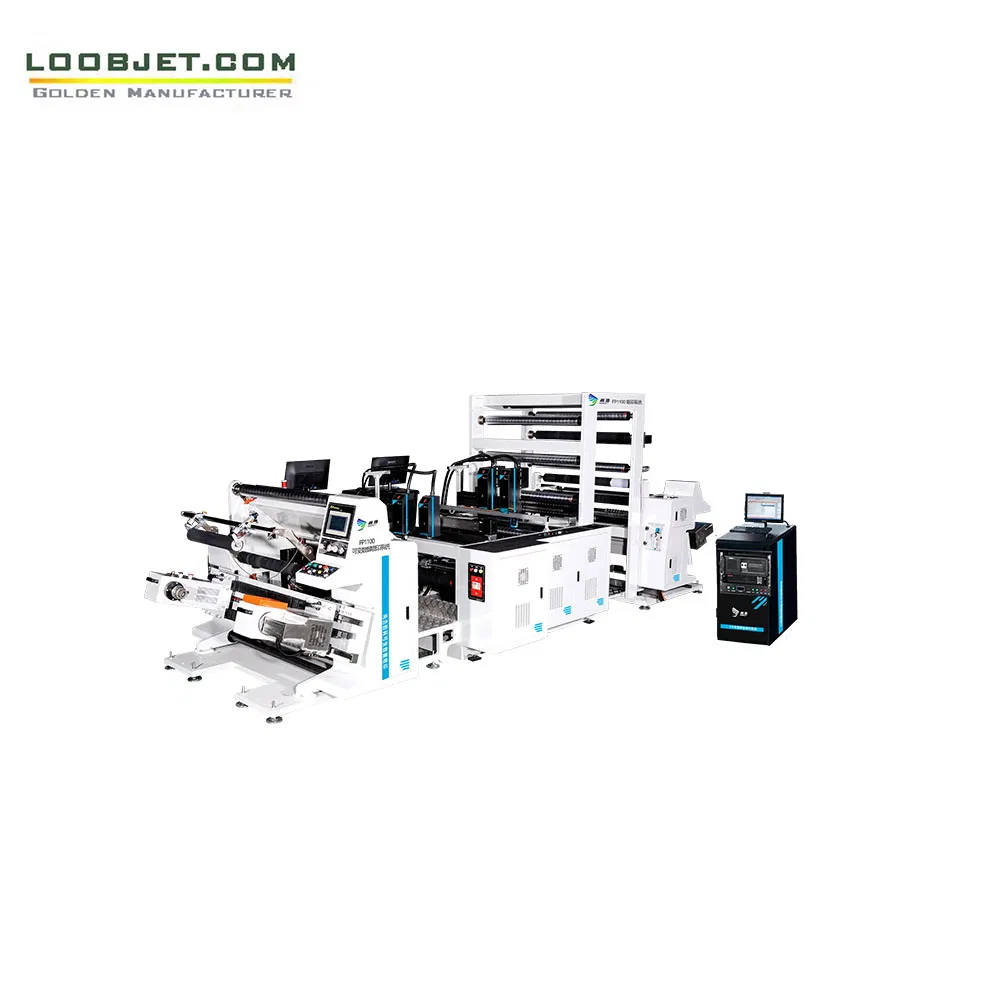

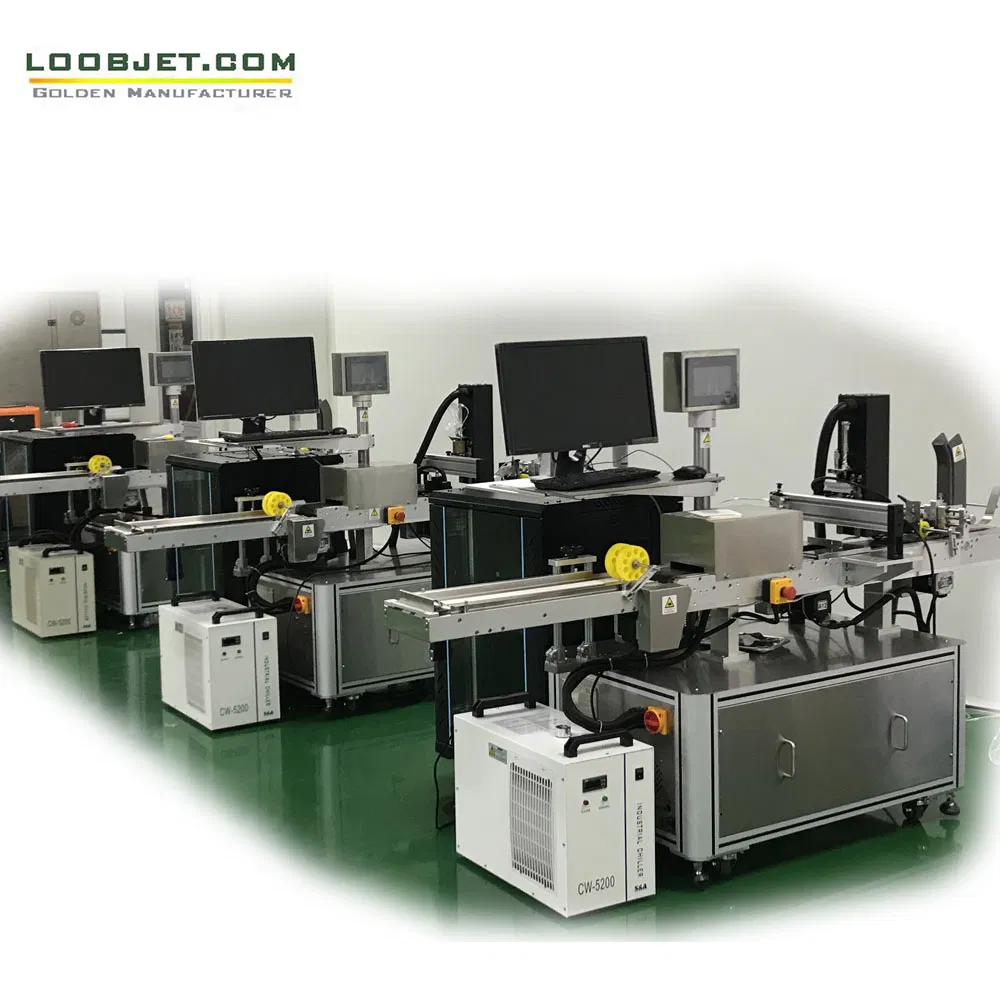

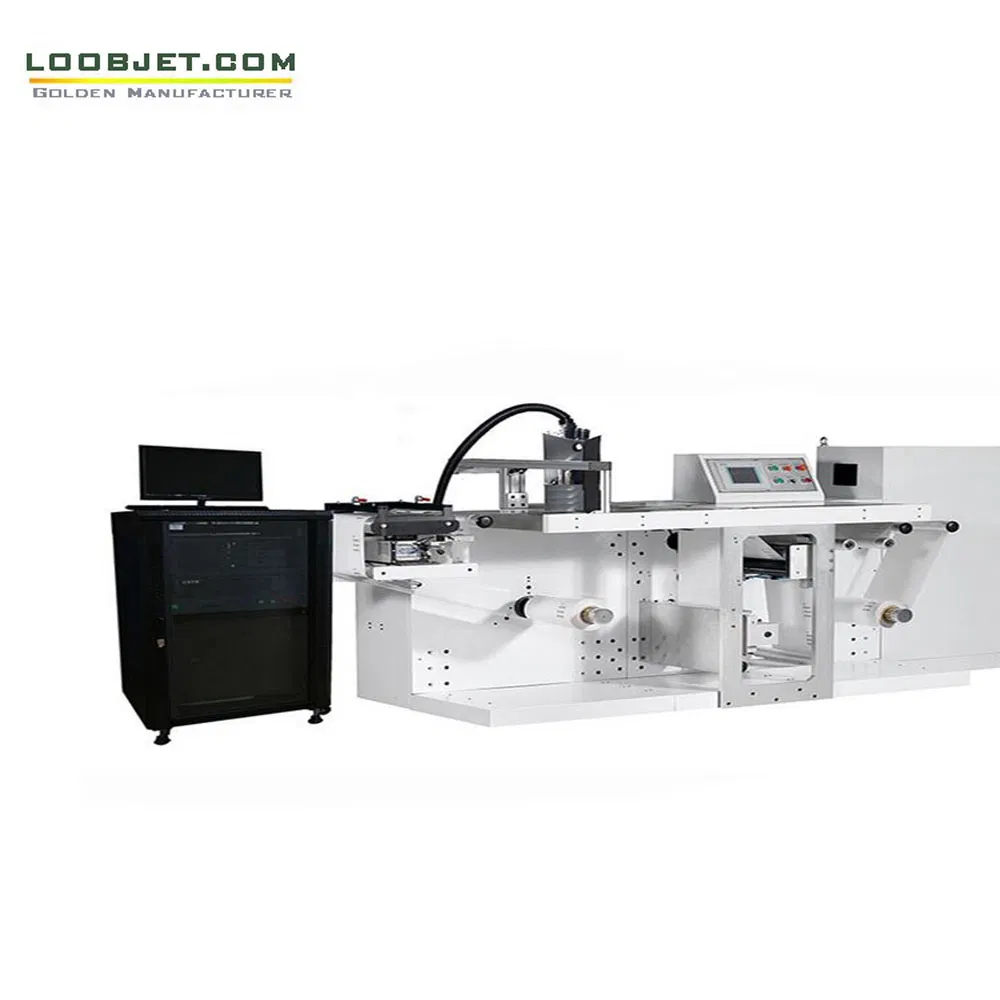

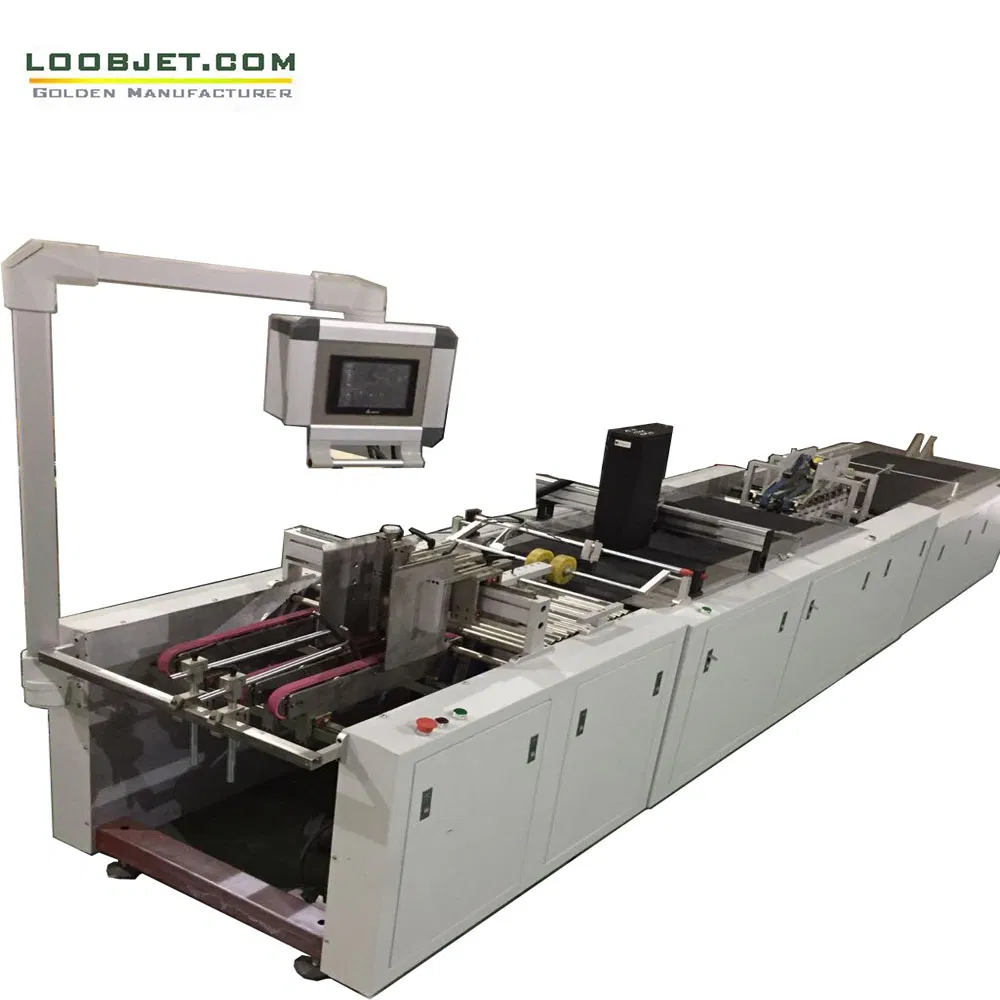

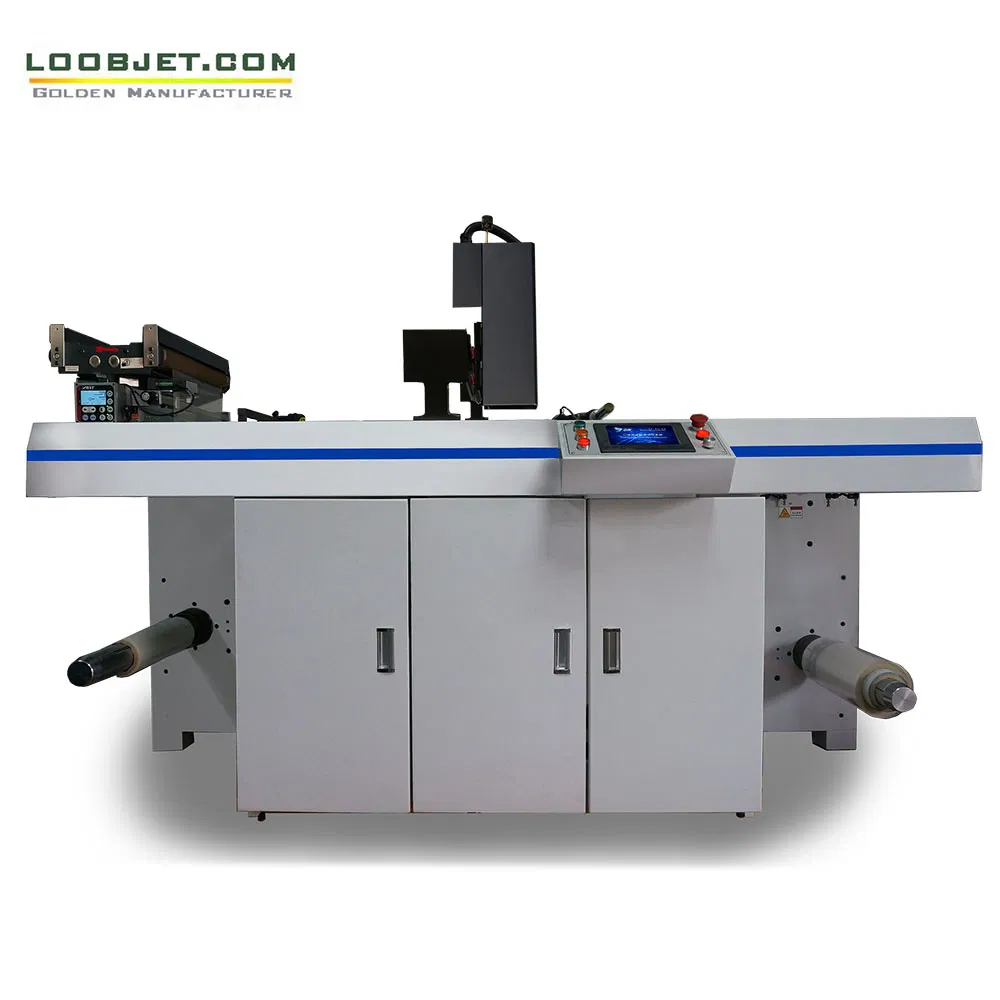

UV Dod Digital Printing System with 600dpi

1 / 5

UV Dod Digital Printing System with 600dpi

Customization:	Available
Type:	Ink Jet
Plate:	Variable Data

Send Inquiry

Product Description

Basic Info.

Model NO.

HSJET

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Application

Packing and Printing

Printing Breadth

Customizable

Printing Interface

RS232

Printing Speed

100m/Min

System Supported

Windows

Ink Solution

Porous, Semi-Porous, Non-Porous

Resolution

150-600dpi

Power

AC 90V-240V/50-60Hz

Specification

CE, SGS

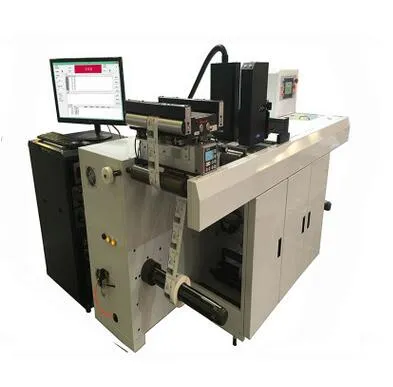

UV Inkjet Printer Label Press

Introduction: UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, the system meets rigorous demands for mailings, barcodes, bills, packages, and marking applications.

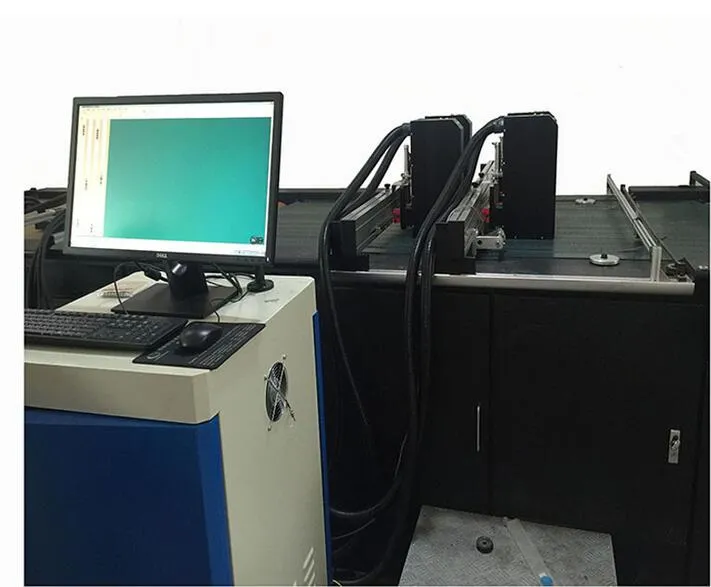

This system is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems, creating value-added opportunities for digital inkjet printing.

Technical Specifications

🔹 Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle.
🔹 Lifespan: More than 3 years (10 billion printing times).
🔹 Print Width: Single nozzle 54 / 72 / 108 mm (Customizable).
🔹 Expansion: Supports 1 ~ 24 groups with seamless jointing.
🔹 Precision: Physics 600 dpi printing precision.
🔹 Speed: 70 ~ 180 m/min linear speed.
🔹 Ink Compatibility: Environmentally friendly UV or water-based inks.
🔹 Substrates: Paper, plastics, PVC, PP, PE film, and more.

Control & Variable Data Software

The Printer Control Software (PCS) offers a user-friendly interface to monitor status and set options like waveform amplitude and head temperature. It includes database checking, DPI settings, and motor speed controls.

Variable Data Features: Supports text, dates, logos, serial numbers, and barcodes. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files. Supports multiple languages including English, Spanish, German, French, Portuguese, and Russian.

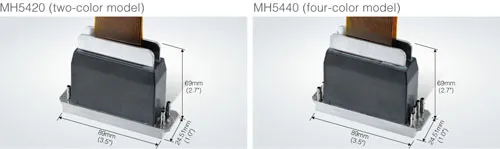

The Print Head Parameters

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GN5 / Konica 1024i / KY
Origin	Japan Technology	Resolution	600×600, 400, 300, 200 dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Max Printing Speed	180m/min (600×200dpi)
Max Width	Seamless Joint up to 24 units	Drop Size	5-21PL
Inks	Original SGS UV Inks	System	Windows 7 / 10
Interface	Gigabit Ethernet (Real-time)	Formats	MS Excel, TXT, PDF, BMP

Reference Video Resources

Technical demonstration videos and operational guides are available for system integration and print head configuration.

Frequently Asked Questions

What materials can this UV inkjet printer work on?

The system is highly versatile and works on all kinds of paper, plastics, and various films including PVC, PP, and PE.

What is the maximum printing speed of the HSJET system?

It can reach a linear speed of up to 180m/min at 600x200dpi resolution, or 75m/min at full 600x600dpi precision.

How long do the industrial print heads typically last?

The Ricoh and Kyocera industrial piezoelectric nozzles are designed for longevity, typically lasting more than 3 years or 10 billion printing operations.

Does the software support variable data printing?

Yes, the included software supports variable text, barcodes, QR codes, serial numbers, and database images from CSV, Excel, and PDF sources.

Can I expand the printing width if my requirements change?

Absolutely. The modular design allows for seamless jointing of up to 24 groups of print heads to meet your specific breadth requirements.

What kind of maintenance is required for the UV system?

The system uses stable DOD technology. Regular cleaning of the print heads and maintaining the environment within 0ºC-30ºC with 50-80% humidity is recommended for optimal performance.
