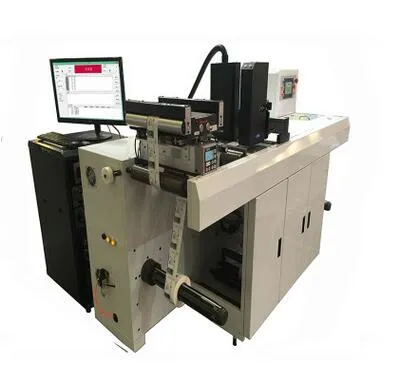

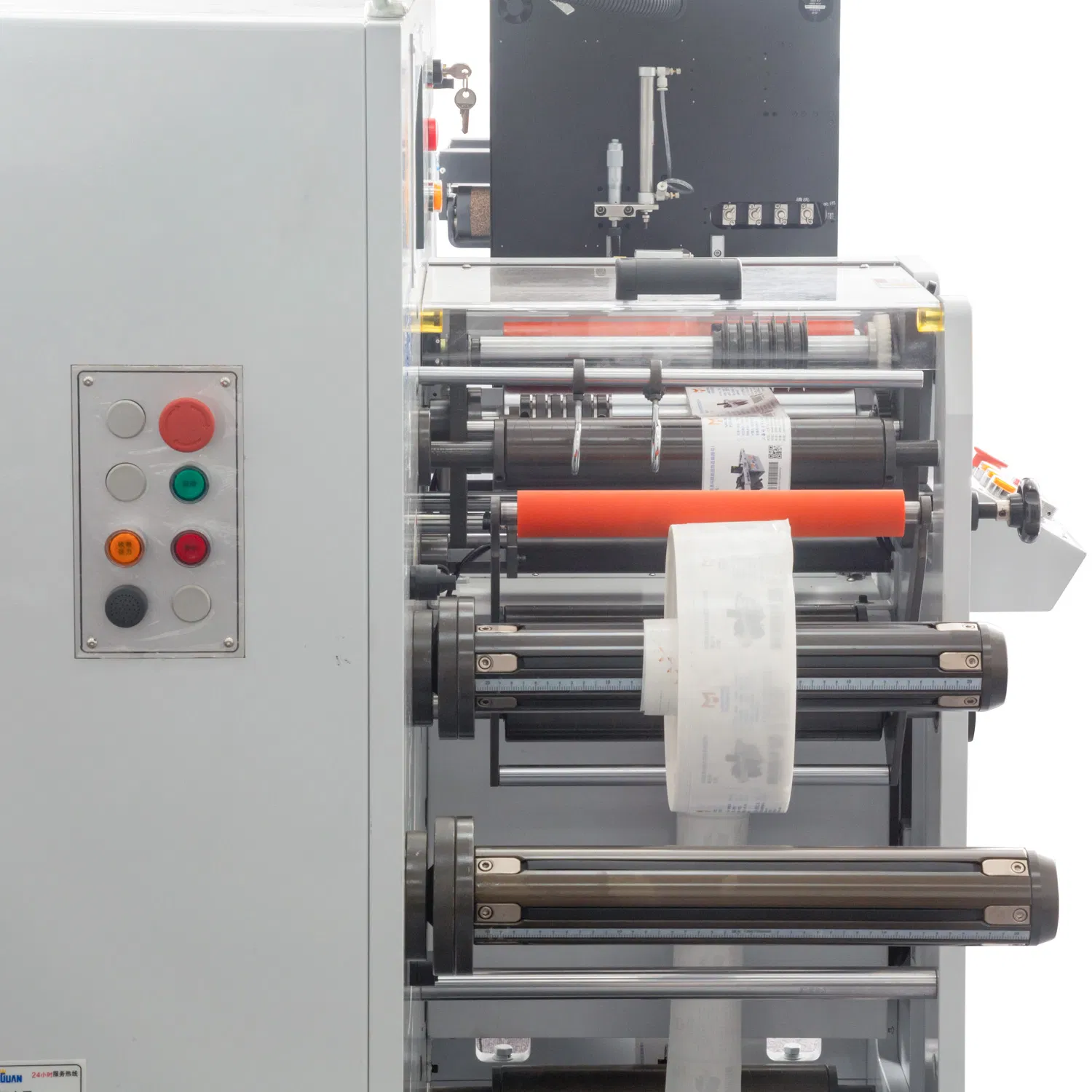

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking.

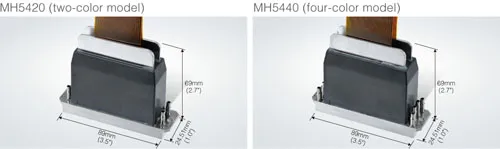

Nozzle type: Ricoh GEN5 / Kyocera108 / Konica 1024i industrial piezoelectric nozzle.
Service Life: Over 3 years or 10 billion printing times.
Print Width: 54/72/108 mm (Expandable up to 24 groups with seamless joint).
Linear Speed: 70 ~ 180 m/min.
Inks: Imported environmentally friendly UV or water-based inks.
Substrates: Suitable for all kinds of paper, plastics, PVC/PP/PE film, etc.

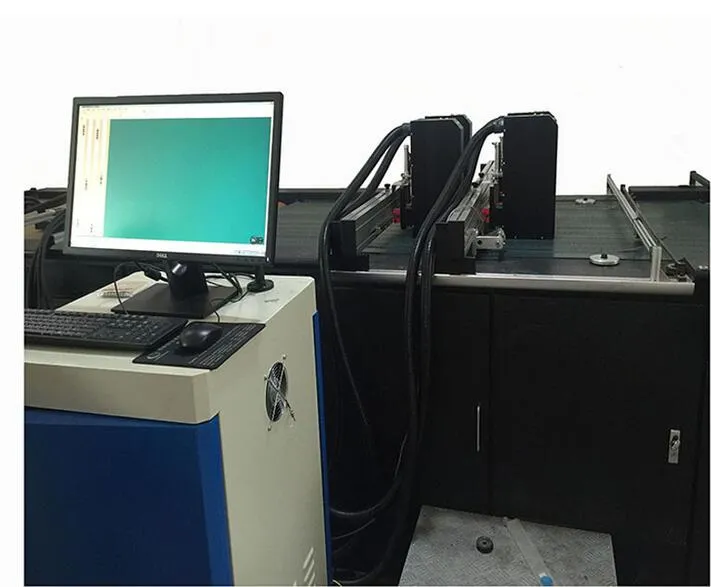

Our Printer Control Software (PCS) provides a user-friendly interface to control jetting waveforms, temperatures, and motor speeds. It supports Variable Data Printing (VDP) including:
| Model | VDG540/VDK720/KY108 | Print Head | Ricoh GN5/Konica 1024i/KY |
| Resolution | 600×600, 400, 300, 200dpi | Drop Size | 5-21PL |
| Max. Width | 54/72/108mm × 24 Seamless Joint | Method | Piezoelectric Ink-jet |
| Printing Speed | 180m/min (600×200dpi) | 130m/min (600×300dpi) | 75m/min (600×600dpi) | ||
| Interface | Gigabit Ethernet | System | Windows 7 / Windows 10 |
| File Formats | MS Excel, TXT, PDF, BMP | Environment | 0ºC~30ºC, Humidity 50~80% |
Clothing tag inkjet printing line reference application available.
