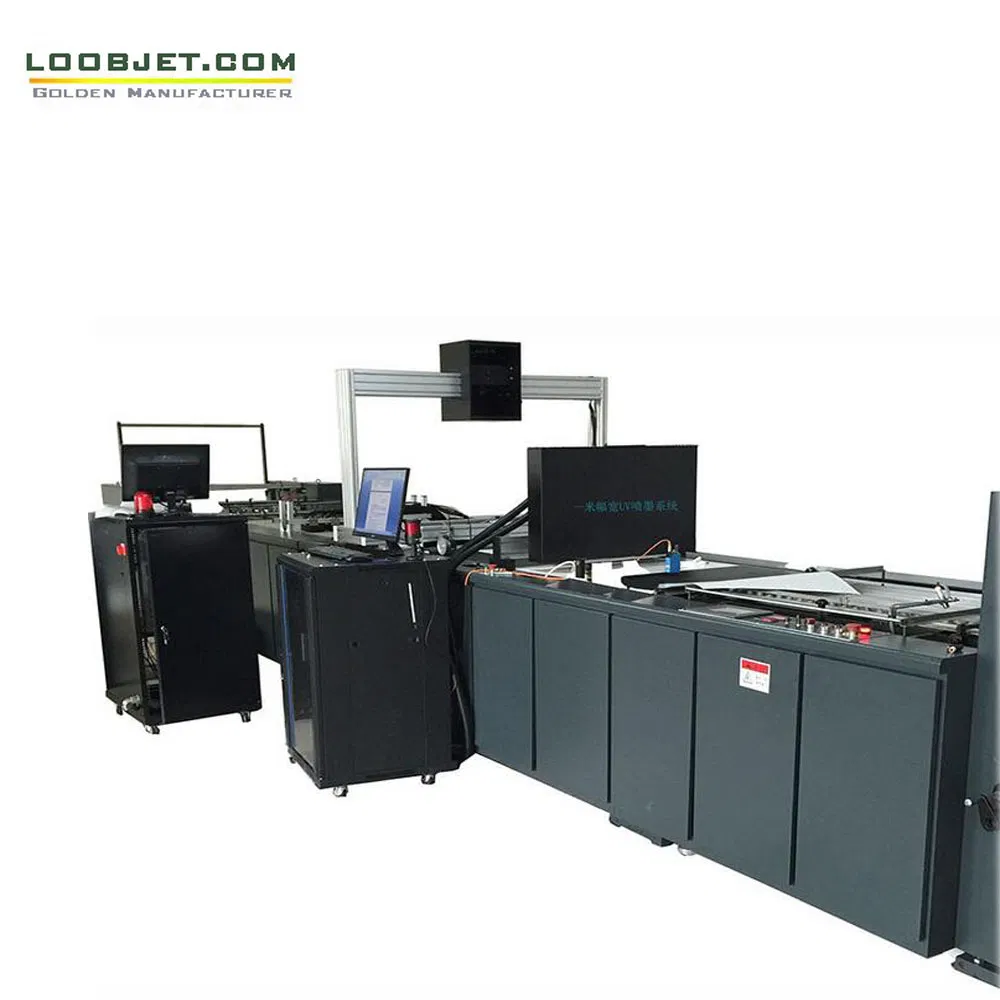

UV Digital Inkjet Printing System with Transport Systems

1 / 5

UV Digital Inkjet Printing System with Transport Systems

Customization:	Available
Type:	Demand for Ink Coding Machine
Usage:	Daily Industrial, Chemical Products, Drug, Food

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HSJET

Automatic Grade

Automatic

Principle

Drop on Demand

Application

High Resolution Ink Jet Printer

Working Patterns

On-Line

Supplies

Ink

Packaging

Box

Joint Type

Multi Print Head Seamless Joint

Ink Solution

Porous, Semi-Porous and Non-Porous

Resolution

150-600dpi

Power

AC 90V-240V/50-60Hz

Production Capacity

500 Sets/Year

Certification

CE, SGS

Origin

China

🚀 Product Description

Coding and marking Piezo DOD printers

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, which has greatly improved production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the increasing and rigorous demands for the applications of mailings, barcodes, bills, checks, packages, and marking.

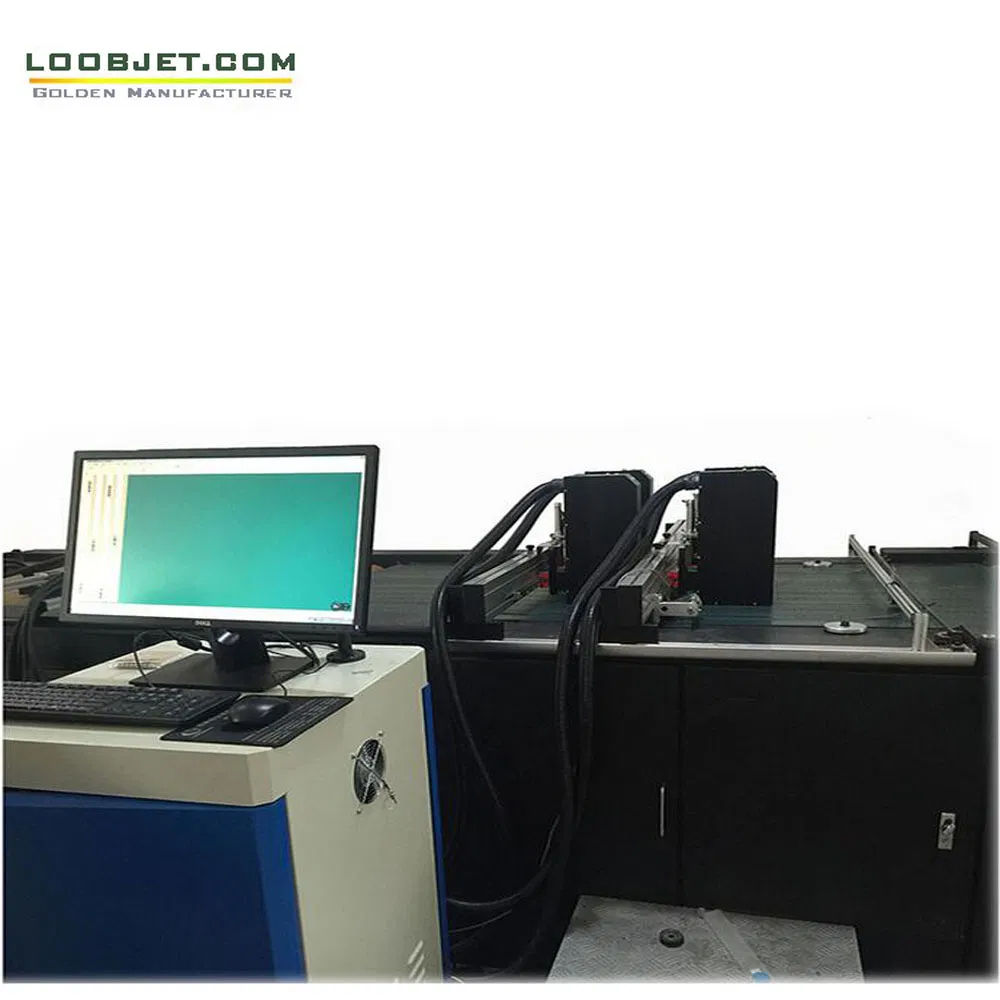

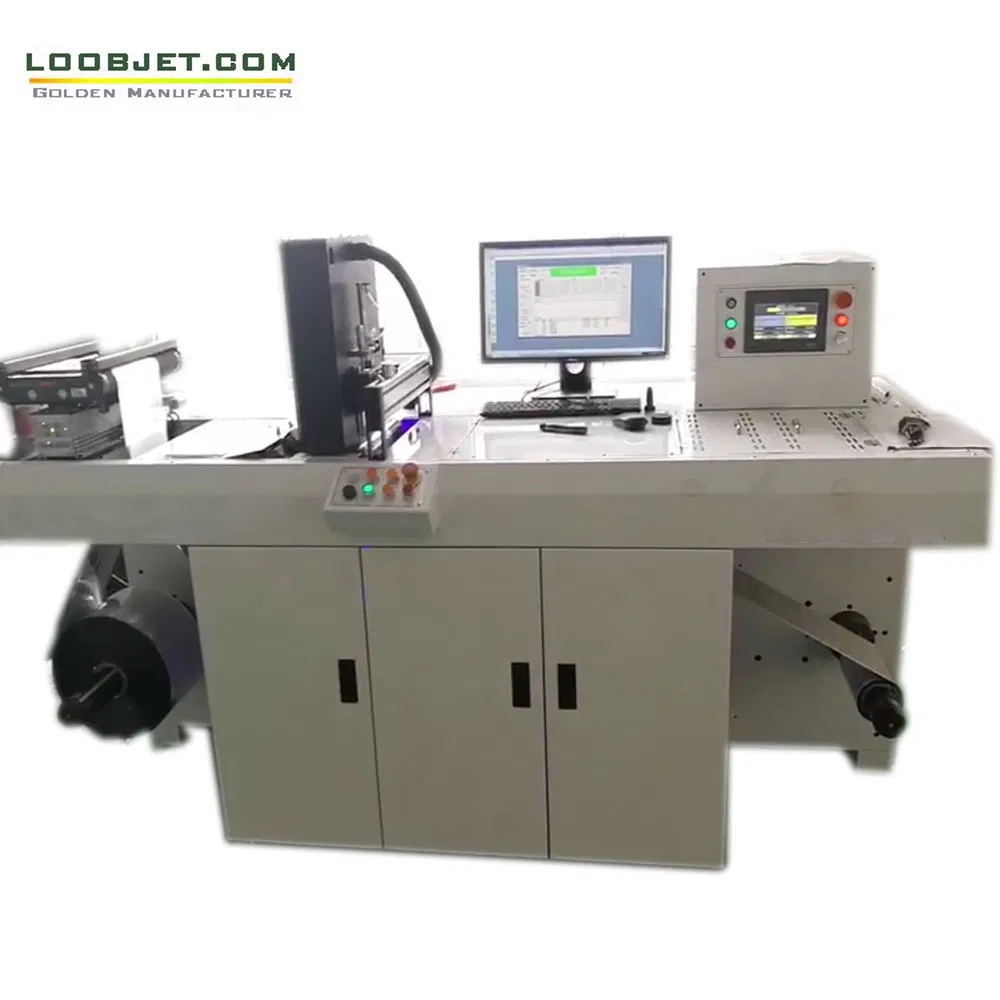

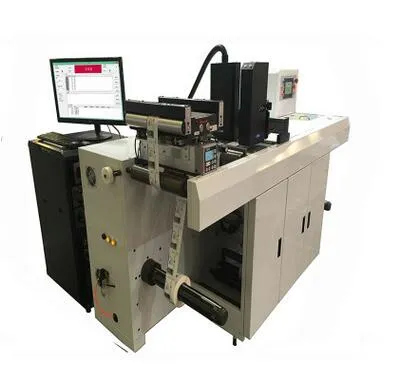

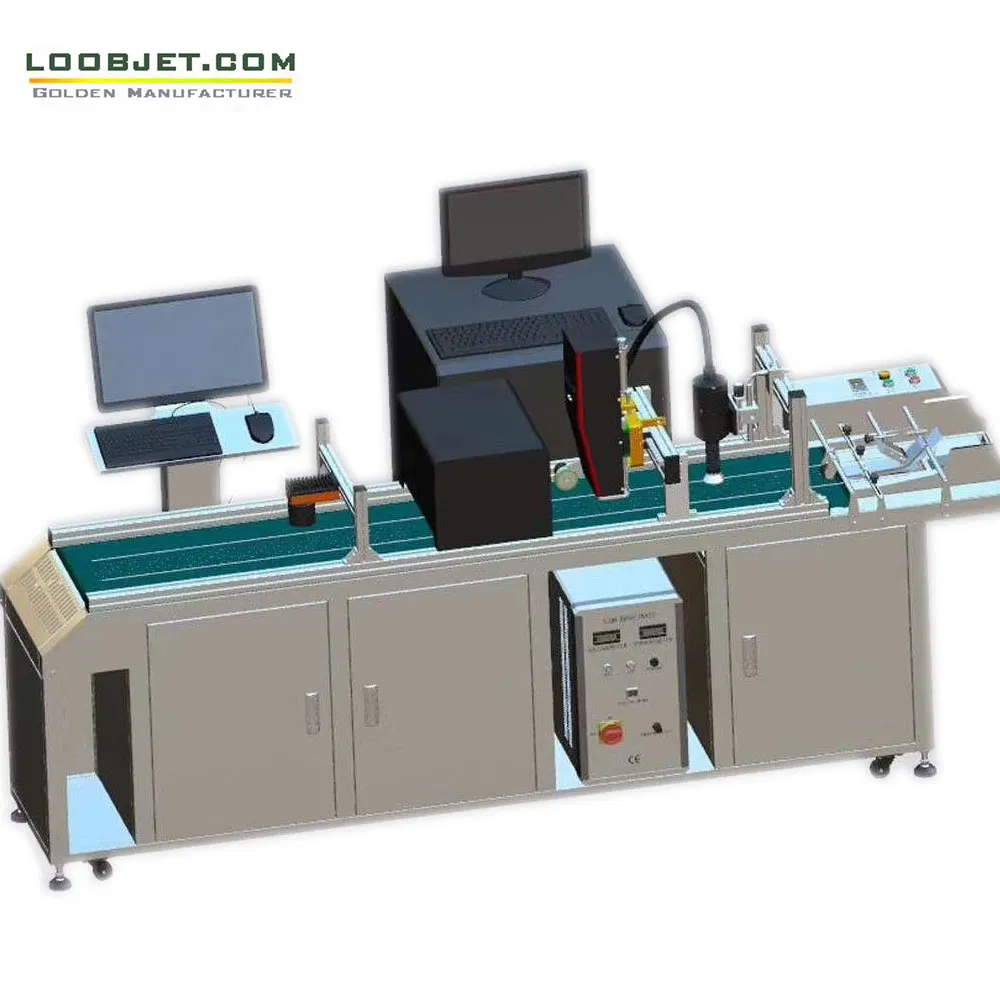

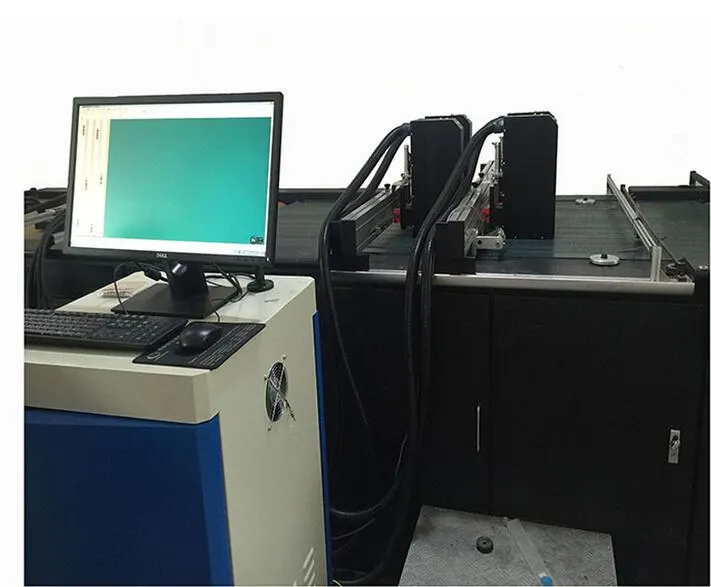

It is suitable for web printing, sheet-fed, and both online and offline target printing. As a fully integrated digital inkjet printing system, it can be easily integrated into existing transport systems thanks to its modular design to create more value-added opportunities.

⚙️ Technical Specifications

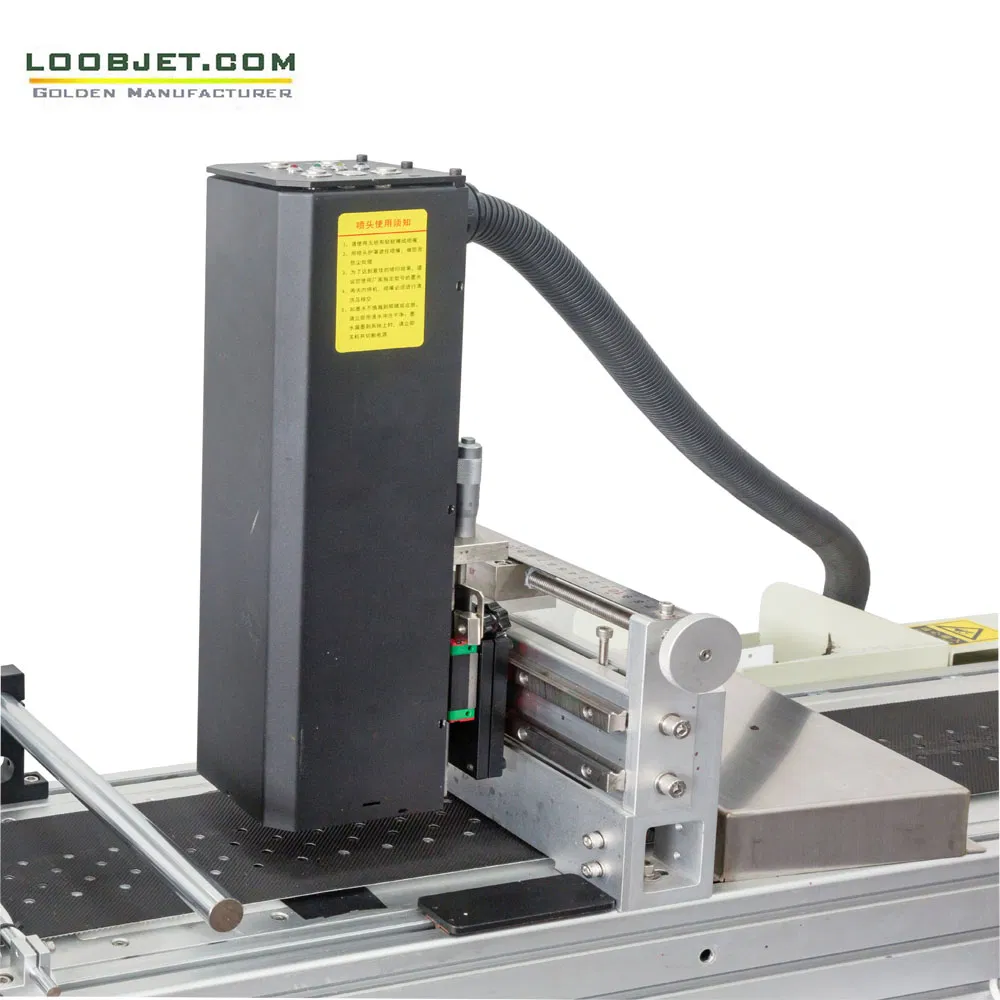

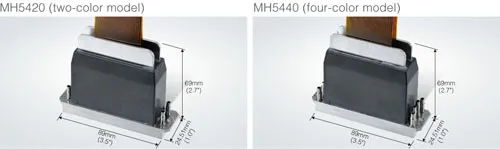

Nozzle type: Ricoh GEN5/Kyocera108 or Konica 1024i industrial piezoelectric nozzle.
Normal nozzle life: More than 3 years (10 billion printing times).
Single Nozzle print width: 54 / 72 / 108 mm based on requirements.
Printing units: 1 ~ 24 groups can be extended, seamless joint.
Precision: Physics 600 dpi printing precision.
Linear speed: 70 ~ 180 m/min.
Compatible Inks: Imported environmentally friendly UV or water-based inks.

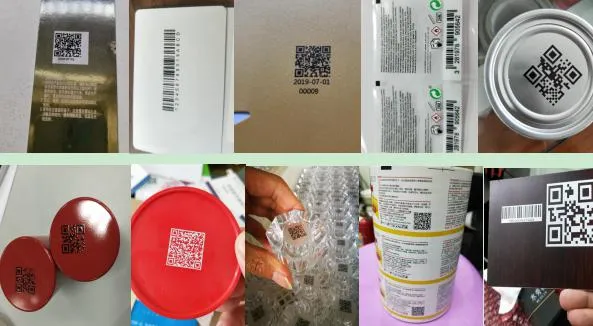

Materials: Suitable for all kinds of paper, plastics, PVC/PP/PE film, etc.

💻 Intelligent Control Software

The Printer Control Software (PCS) installed on a PC is designed for scanning inkjet printing. It offers a user-friendly interface to interactively control the printer, monitor printer status, and set printer options, such as the amplitude and pulse width of jetting waveforms and the temperature for each print head.

Variable Data Printing Features:

Supporting text, dates, times, graphics, logos, serial numbers, barcodes, Windows Fonts, and database photo images. Supports loading data source files including .CSV, .XLS, .XLSX, .TXT and PDF files. Supports multiple languages such as English, Spanish, German, French, Portuguese, Russian, and Chinese.

📊 Detailed Parameters

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GN5 / Konica 1024i / KY
Origin	Japan (Heads)	Resolution	600×600, 400, 300, 200 dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Printing Speed	Up to 180m/min (600×200dpi)
Max Width	Up to 24 heads seamless joint	Method	Piezoelectric Ink-jet
Drop Size	5-21 PL	Inks	Original SGS UV Inks
System	Windows 7	Port	Gigabit Ethernet (Real-time)
Barcode Formats	UPC, EAN, CODE128, QR, DATAMATRIX, etc.	File Format	MS Excel, TXT, PDF, BMP

❓ Frequently Asked Questions

Q1: What is Piezo DOD technology?

Piezoelectric Drop on Demand (DOD) technology uses industrial print heads that only eject ink when required, resulting in high resolution, speed, and durability for industrial marking.

Q2: Which materials can be printed on?

The system is highly versatile and can print on various substrates including paper, plastics, PVC, PP, PE film, and more, using UV or water-based inks.

Q3: What is the maximum printing speed of the HSJET system?

The system can reach a linear speed of up to 180 m/min at a resolution of 600×200dpi, ensuring high-efficiency production.

Q4: Can the system be integrated into existing production lines?

Yes, its modular design allows for easy integration into existing transport systems for both online and offline printing targets.

Q5: What types of variable data are supported?

The software supports a wide range of variable data including serial numbers, real-time dates/times, barcodes, QR codes, logos, and database-linked images.

Q6: What is the lifespan of the industrial print heads?

Under normal working conditions, industrial piezoelectric print heads like Ricoh or Kyocera have a life expectancy of more than 3 years or approximately 10 billion printing cycles.
