(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine
1 / 5
(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine
(JD-3004) Textile Garment Label Silk Screen Printing Machine

(JD-3004) Textile Garment Label Silk Screen Printing Machine

Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Structure: Flat-bed cylinder press
Send Inquiry

Product Description

Basic Information

Model NO.
JD-3004
Color & Page
Multi-Colour Printing Press
Application
Label Printer
Printing Area
800*280mm
Printing Speed
14m/Min/Tape
Power
380V / 25.3kw
Transport Package
Plywood Wooden Case Packing
Specification
CE Certificate
Trademark
JINGDA
Origin
China
HS Code
8443192290

Product Description

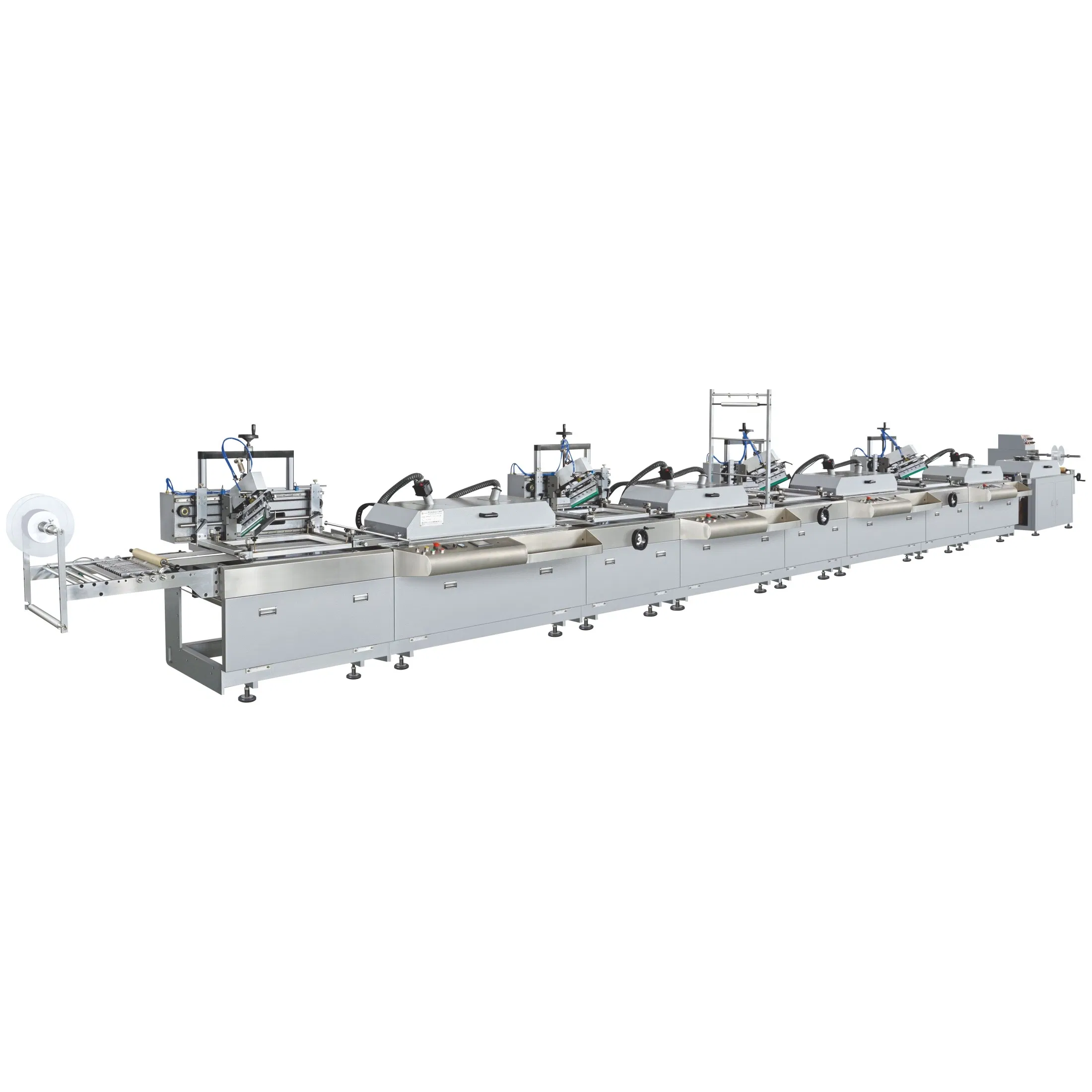

(JD-3004) Textile Garment Label Silk Screen Printing Machine

Silk Screen Printing Machine

Specifications

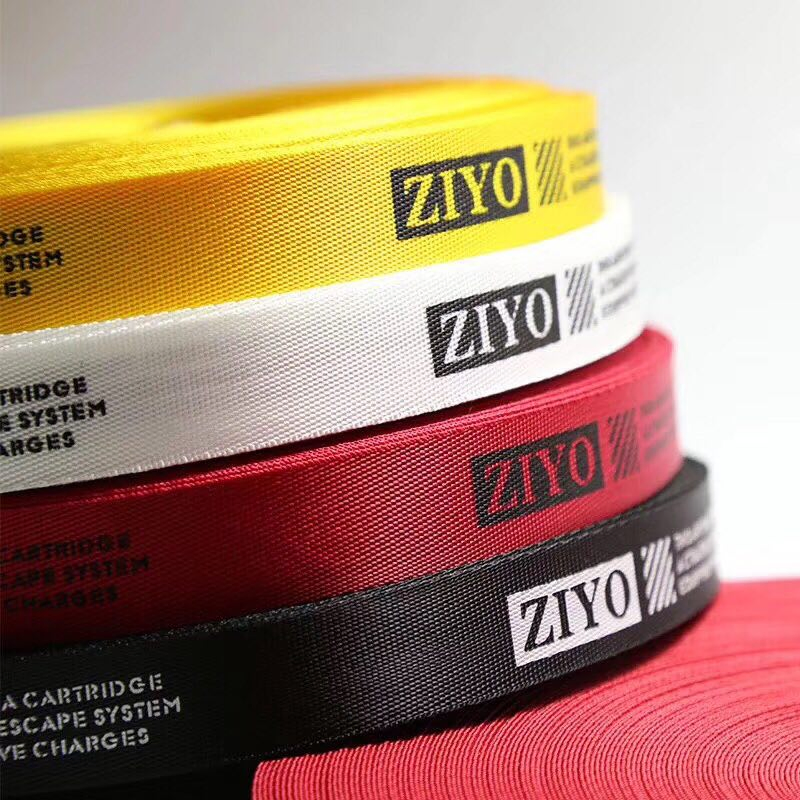

Woven Trademark With Silk Screen Printed Logo
New Product for one color label screen printing machine/label printing press

Key Characteristics

  • With CNC servo feeder, it can print materials of unlimited size.
  • Servo controller for doctor sets the length with digit.
  • Printing speed: 5 m/min.
  • Suitable for Satin labels, Ribbon label, taffeta labels, Cotton Labels, Elastic band, Polyester cotton, and nonwoven labels.
  • Capable of printing simultaneously up to several ribbons to increase capacity.
  • Print bottom colors or thin characters in large areas with clear net spots and no fading.
  • Exact white color printing even on dark ribbons.
  • User-friendly touch screen monitor.
  • Sensor installed to detect ribbons for front and back side printing or second-time printing.
  • Vacuum pump function for secure fixing of ribbons during the cycle.

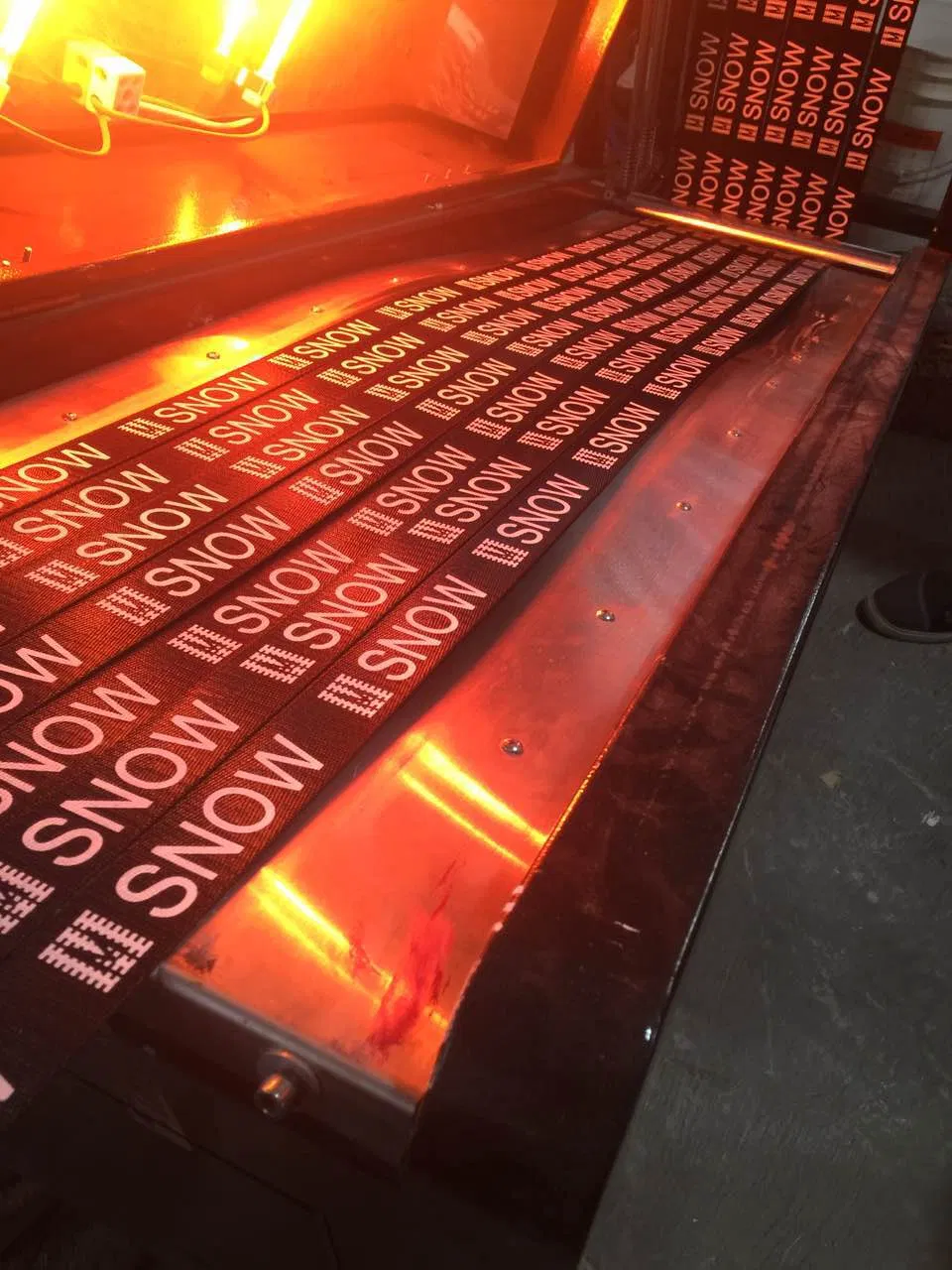

  • Cycle blowing drying oven for quick material drying.
  • Compact design that takes minimal space.

Main Technical Variables

Printing Area Printing Speed Printing Function Power Rate Weight Dimension
800*280mm 14m/min/tape 2 Colors 380V/16.6KW 2.6T 950*120*130cm
800*280mm 14m/min/tape 3 Colors 380V/21KW 3.4T 1250*120*130cm
800*280mm 14m/min/tape 4 Colors 380V/25.3KW 4.2T 1500*120*130cm
800*280mm 14m/min/tape 5 Colors 380V/29.7KW 5T 1800*120*130cm

Packaging & Shipping

Packaging Detail: Export wooden case packing

Payment: T/T 50% deposit prepaid and the balance paid before shipment.

Delivery Time: After receiving the balance.

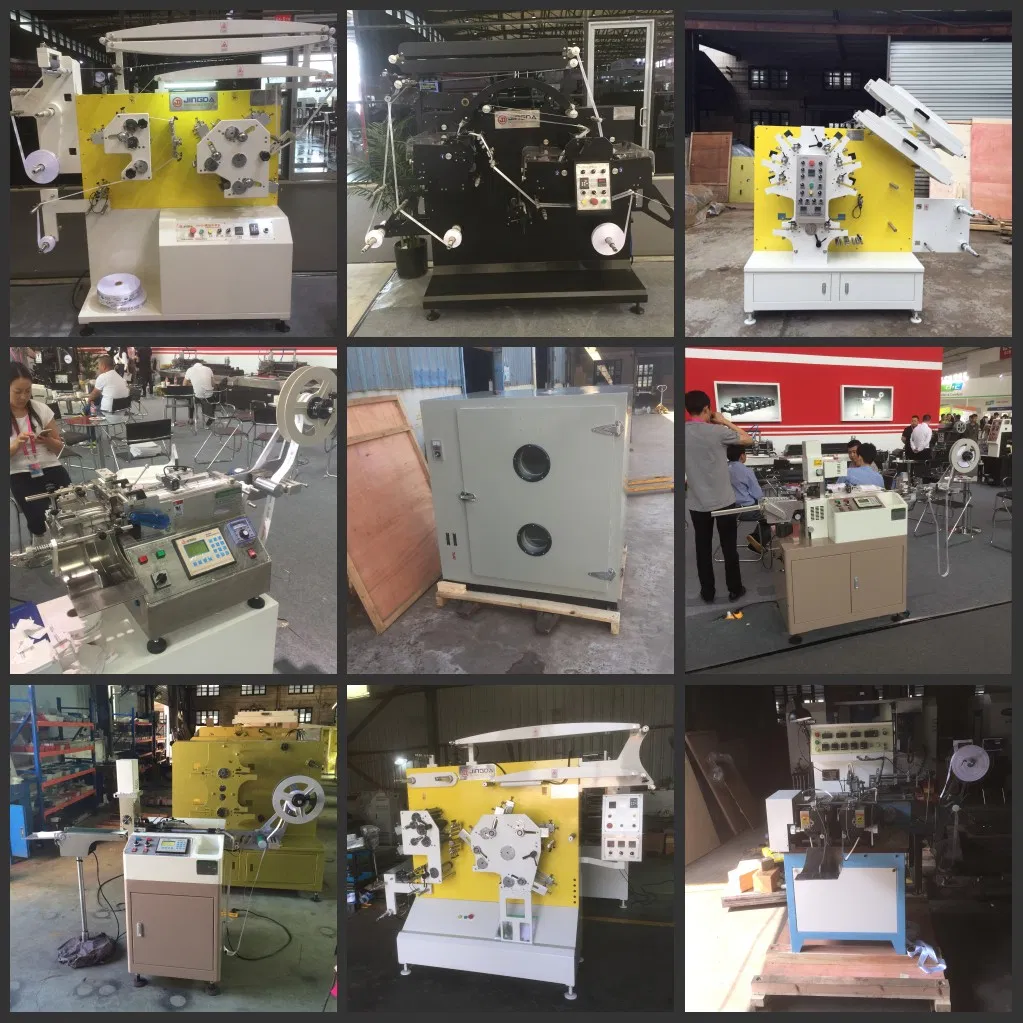

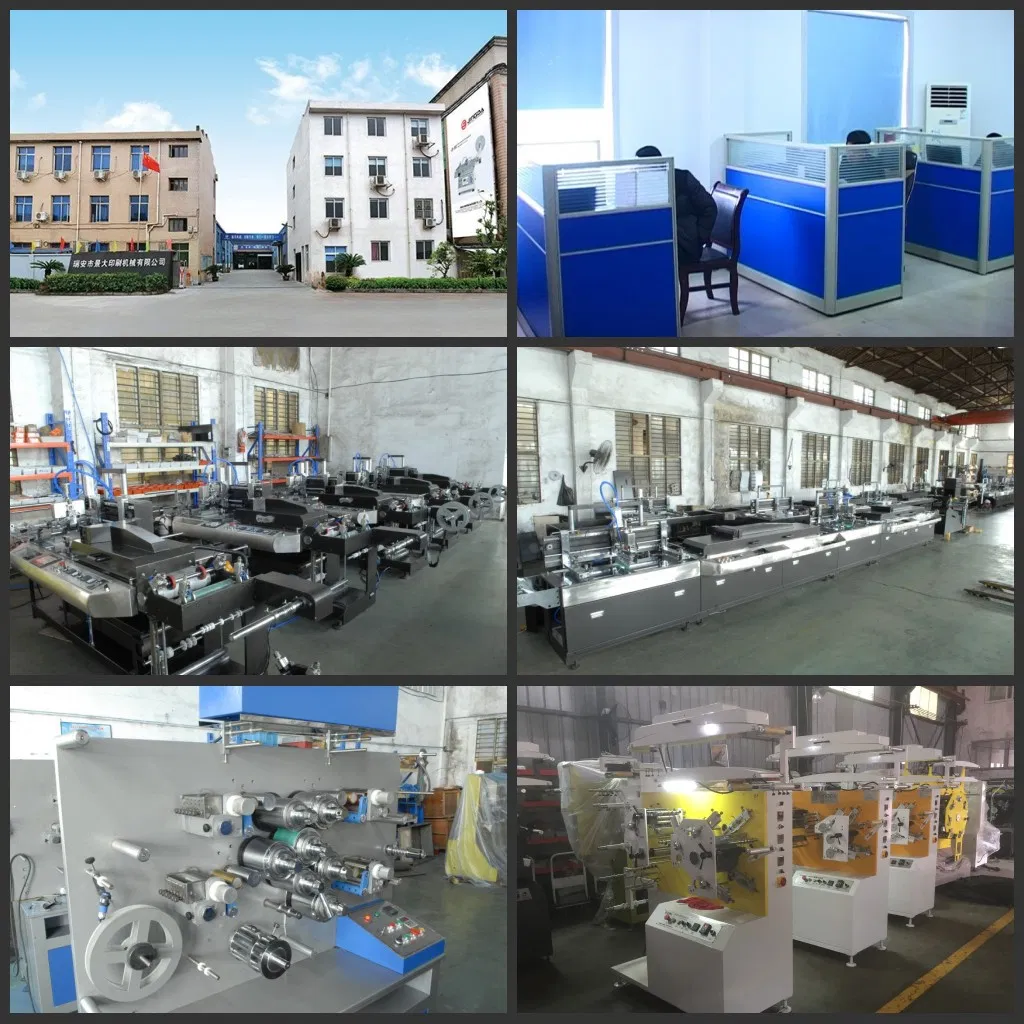

Machine Detail 1 Machine Detail 2 Machine Detail 3

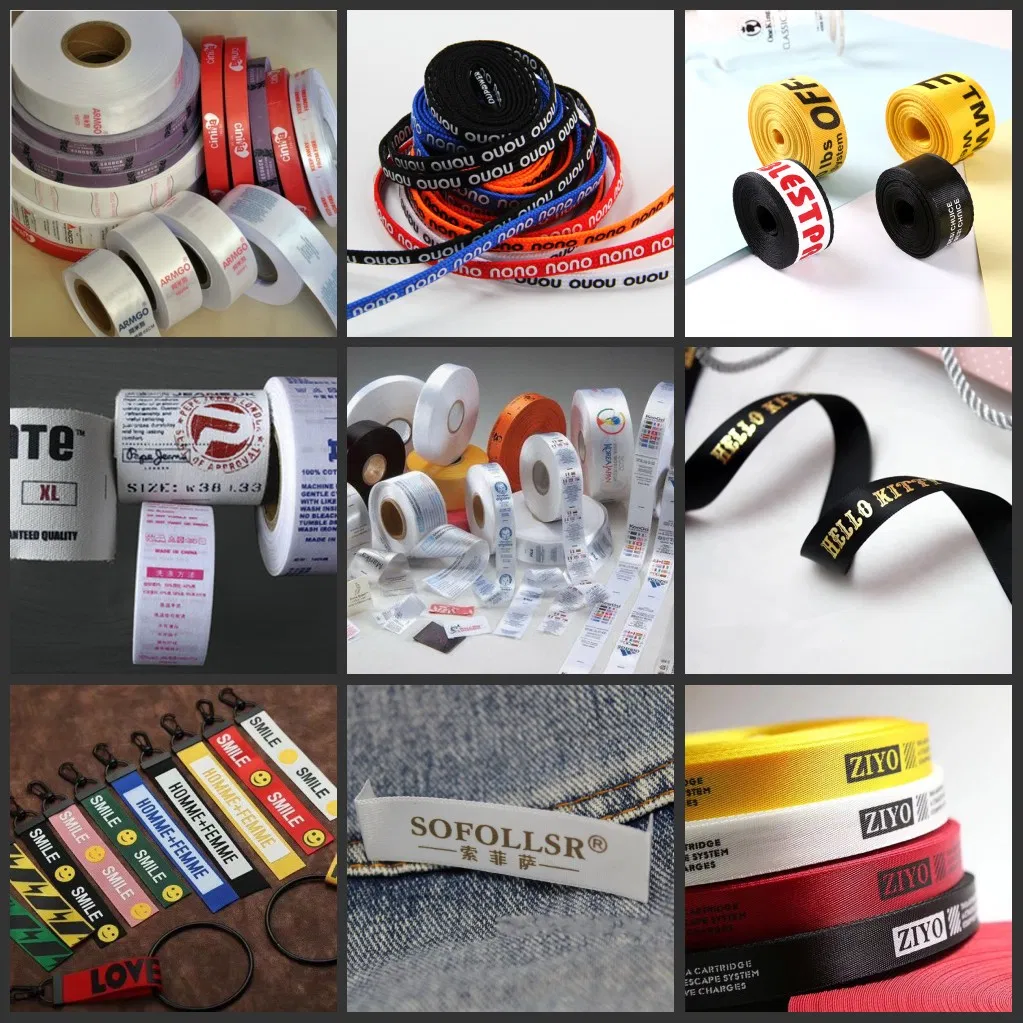

Machine Detail 4

Frequently Asked Questions

What materials are compatible with this silk screen printing machine?
This machine is suitable for various materials including Satin labels, Ribbon labels, taffeta, Cotton, Elastic bands, Polyester cotton, and nonwoven labels.
Can it print on dark-colored ribbons?
Yes, the machine is designed to print exact white and other colors clearly even on dark-colored ribbon materials.
What is the maximum printing speed of the JD-3004?
The machine offers a high-speed capacity of up to 14 meters per minute per tape, depending on the specific configuration.
Does the machine support multi-color printing?
Yes, we offer configurations for 2, 3, 4, and up to 5 colors to meet different production requirements.
How is the material dried after printing?
The machine utilizes a cycle blowing drying oven to ensure that materials dry quickly and efficiently during the printing process.
Is the printing area adjustable?
The standard printing area is 800*280mm, and the CNC servo feeder allows for printing on materials of unlimited length.
