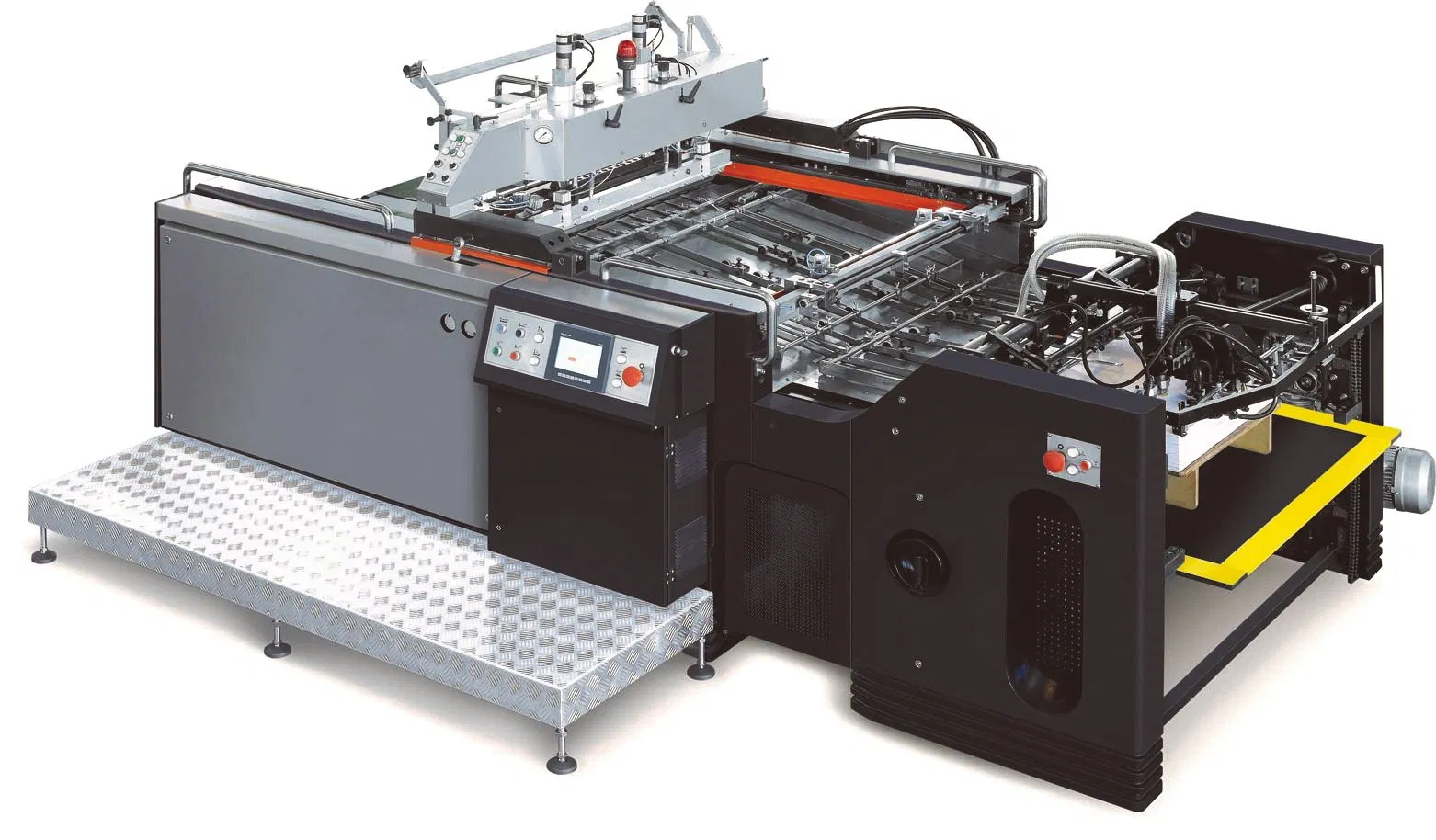

Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
1 / 5
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine
Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine

Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
TC72/92/105
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Stop-cylinder Press
Application
Packaging Printing
Max Printing Size
700X500mm
Printing Speed
800-3600 Pch
Origin
China
🚀 Product Description
Automatic Stop-Cylinder Screen Printing Machine

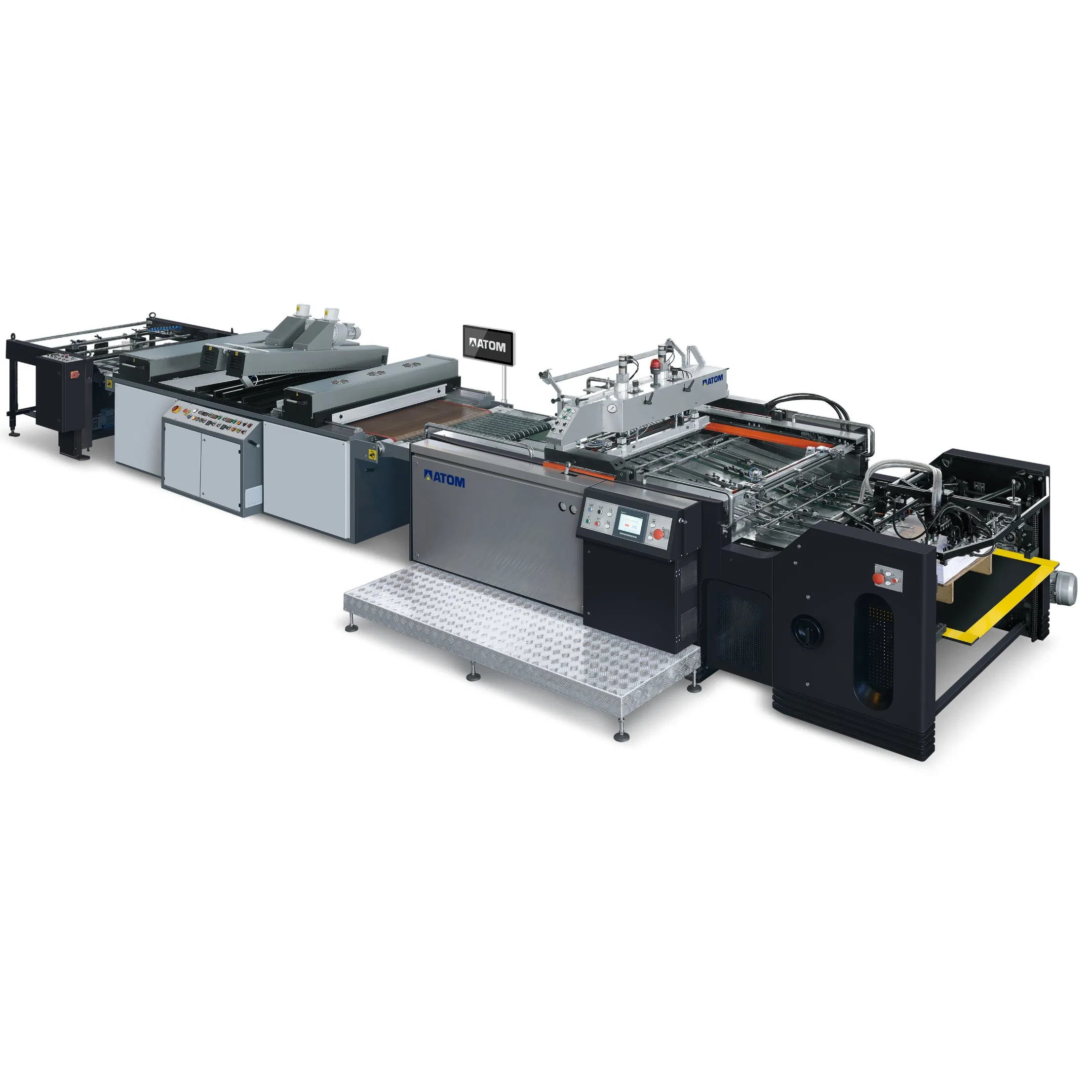

TC72/92/105 Automatic Stop-cylinder Screen Press
1. New designed patented machine, featuring advanced production technology combined with international engineering standards.
2. Adopts classical stop cylinder technology, equipped with a heavy pneumatic squeegee system; max speed reaches 4200 sheets/hour.
3. Ideal for screen printing on ceramic and glass decals, advertisements, packaging, textile transfers, and electronics.
🔍 Detailed Photos & Features

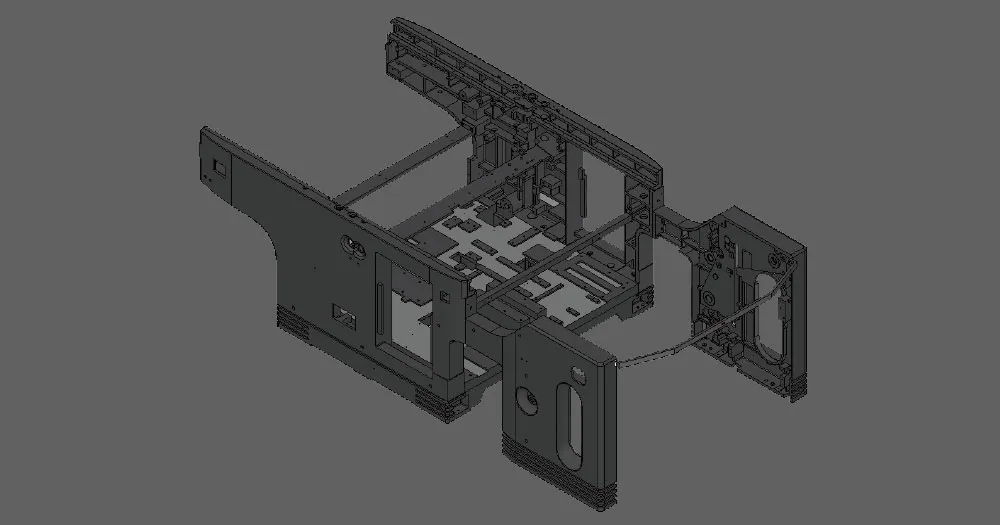

Machine detail 1
Machine detail 2
Machine Frame & Precision Casting

Utilizes grey cast iron (HT250) with polyester sand patterns and aging treatment. Completed in a one-time processing by large vertical CNC to guarantee accuracy and long-term stable operation.

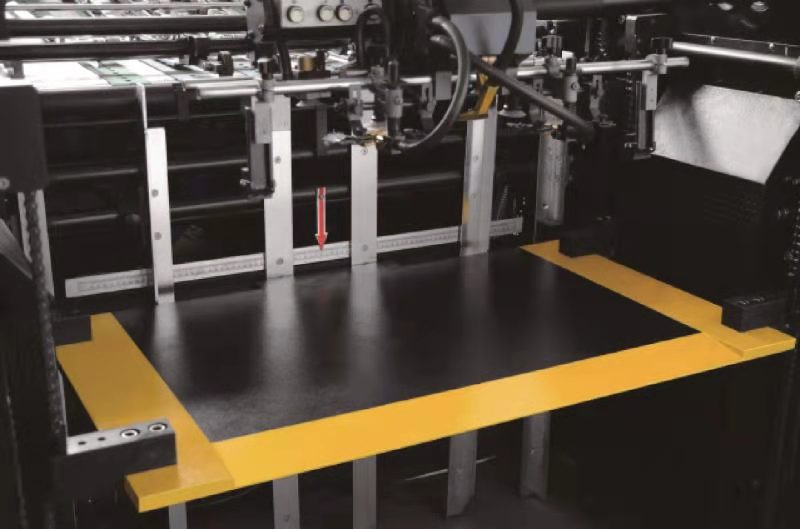

Loading Board

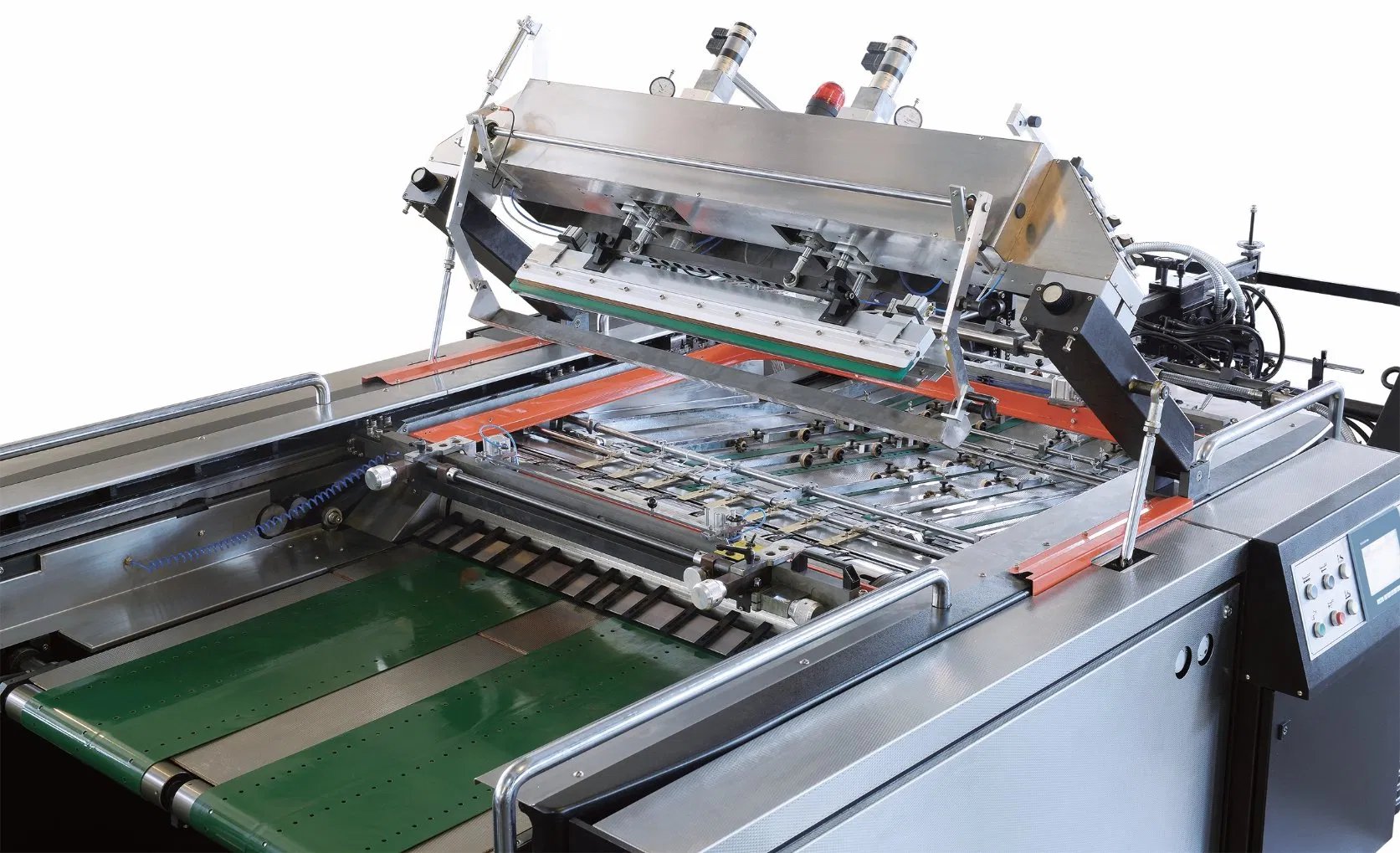

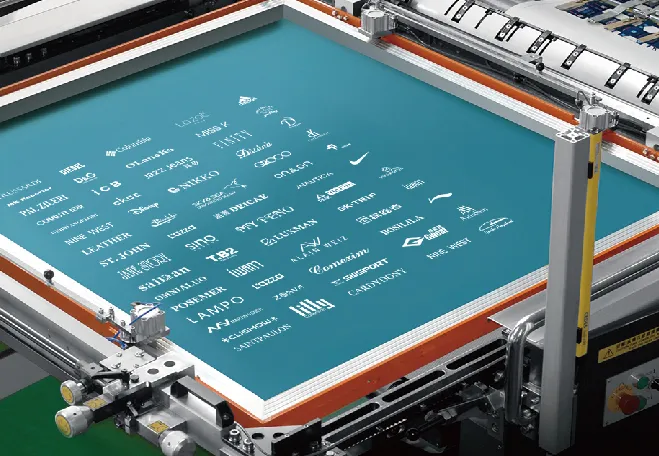

Squeegee System
Opened Loading Board & Pneumatic Squeegee

Lifting steel loading board allows for direct sheet pile pulling, simplifying loading and saving time. The heavy pneumatic squeegee system integrates electrical and hydraulic technology to ensure constant ink layer stability regardless of printing speed.

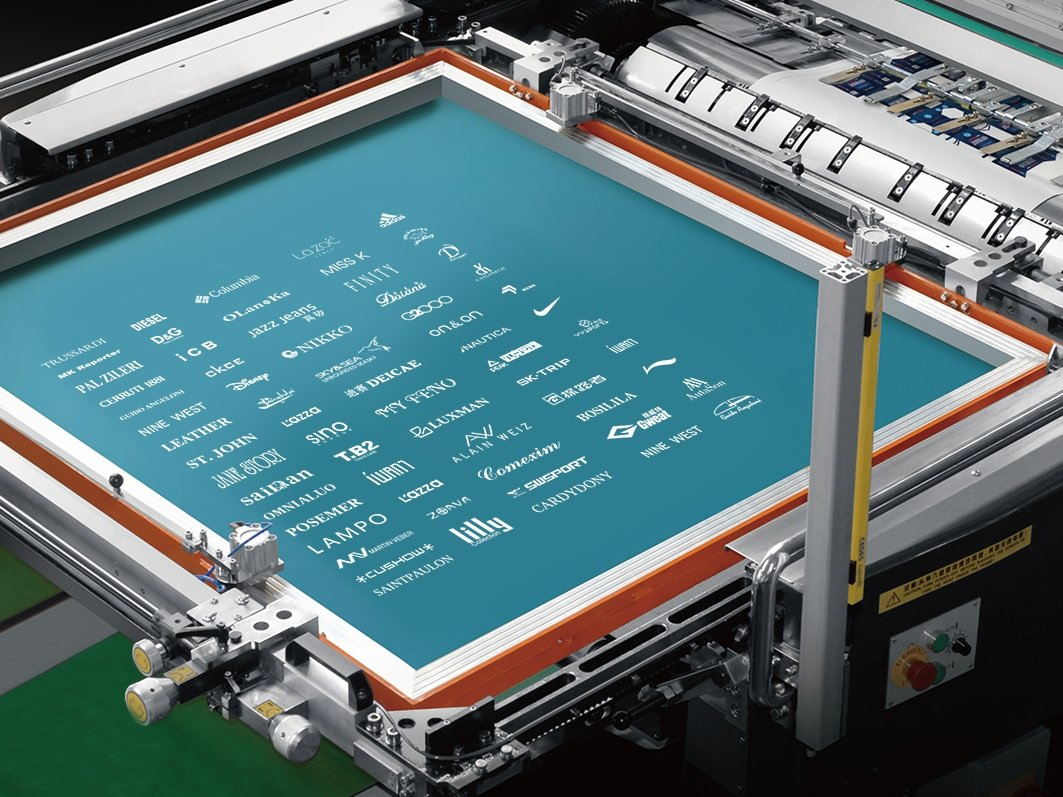

Separated Screen Frame Structure

The screen frame can be pulled out independently for easy registration adjustment and cylinder cleaning. Includes automatic detection sensors to avoid breakage or drive damage.

📊 Product Parameters
Model TC-72 TC-90 TC-105
Max. sheet size 720x510mm 900x600mm 1050x760mm
Max. printing size 700x500mm 900x590mm 1050x750mm
Screen frame size 880x880mm 1140x1140mm 1300x1170mm
Sheet thickness 108-400g/m² 108-400g/m² 90-420g/m²
Printing speed 800-3600 PCH 800-3300 PCH 800-4200 PCH
Installation power 10.5kw 8.9kw 10.7kw
Total weight 3550kg 3650kg 6600kg
🖼️ Exhibitions and Samples
Sample 1
Sample 2
Sample 3

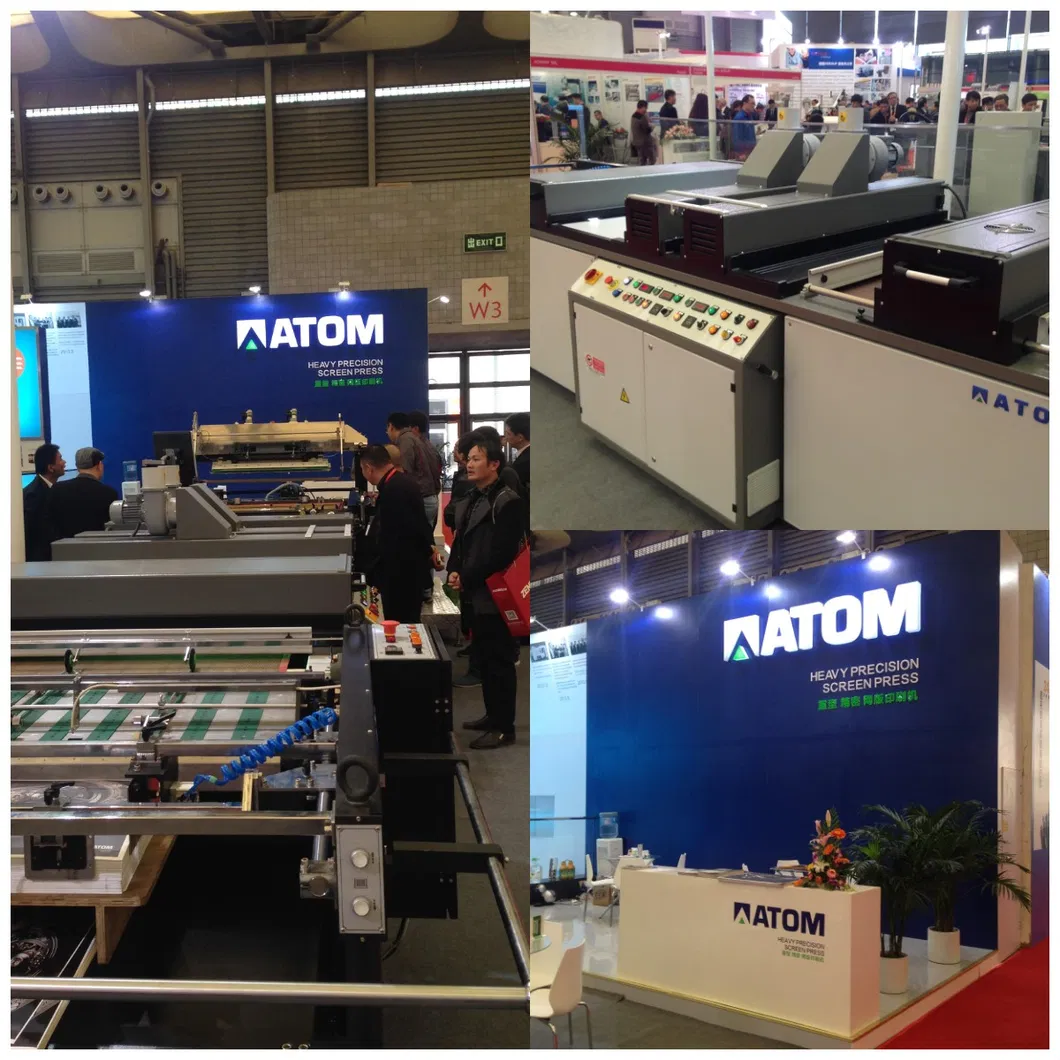

Exhibition View
🏭 Production Overview
Production Facility
💡 Frequently Asked Questions
1. How can I obtain a specific price quote for the TC series? Please send an inquiry with your specific requirements. Pricing varies based on model selection and additional configuration needs.
2. What is the standard warranty period for these machines? The machines come with a 12-month warranty from the date of arrival. Overseas engineering support and operation training are also available upon request.
3. What is the typical lead time for delivery? Delivery generally takes between 30 to 60 days, depending on the specific model and current production schedule.
4. What are the accepted payment terms? We typically work with FOB, CIF, or CFR terms. Payment is usually processed via 100% T/T (30% deposit, 70% before shipment) or 100% L/C.
5. Can the machine handle different material thicknesses? Yes, the series can handle sheet thicknesses ranging from 90g/m² up to 420g/m², depending on the specific TC model chosen.
6. Is technical training provided for new operators? Yes, we provide comprehensive installation and operation training to ensure your team can safely and efficiently utilize the machine's full potential.
