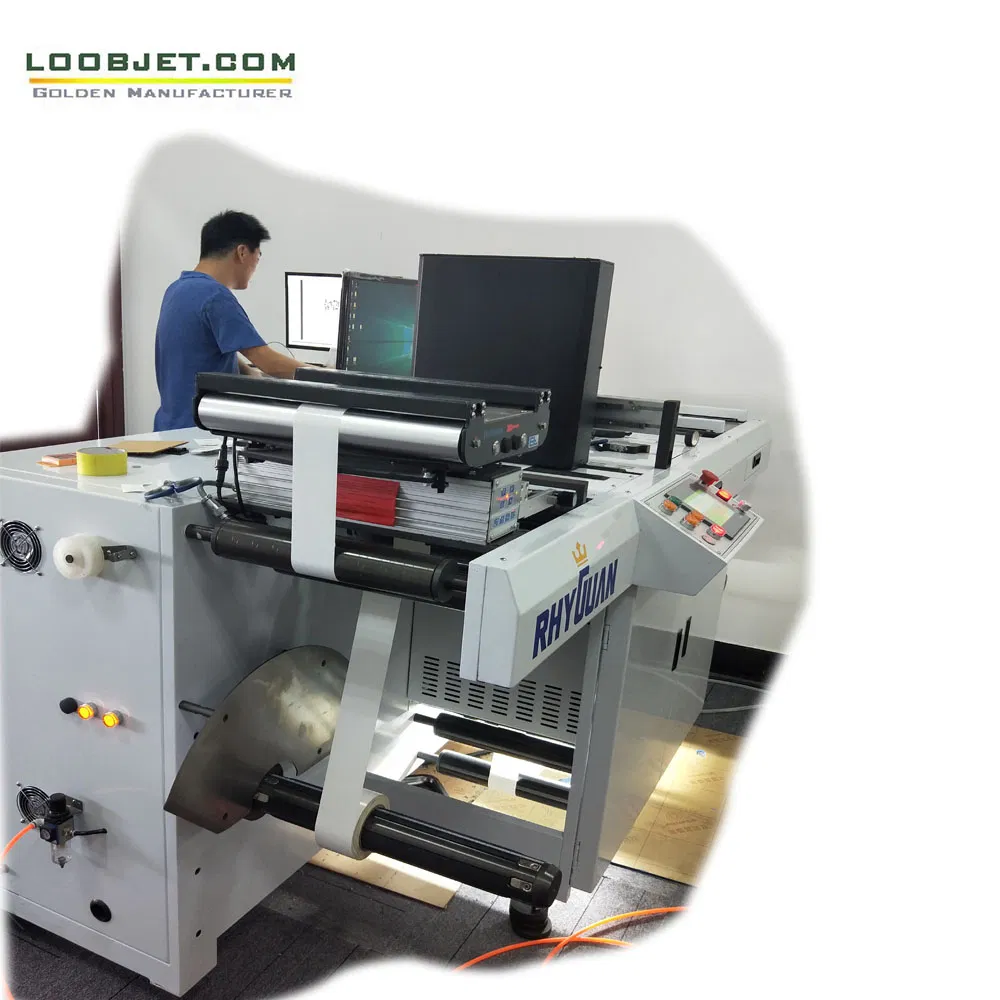

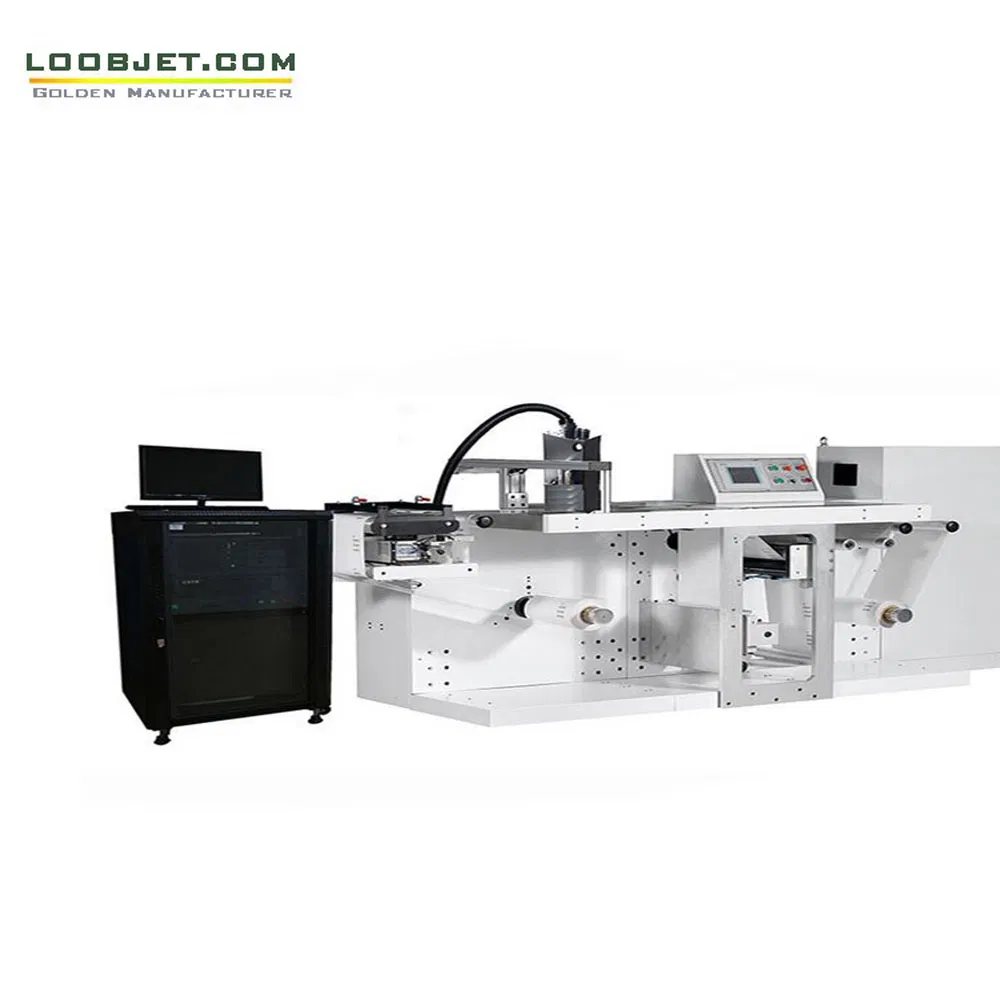

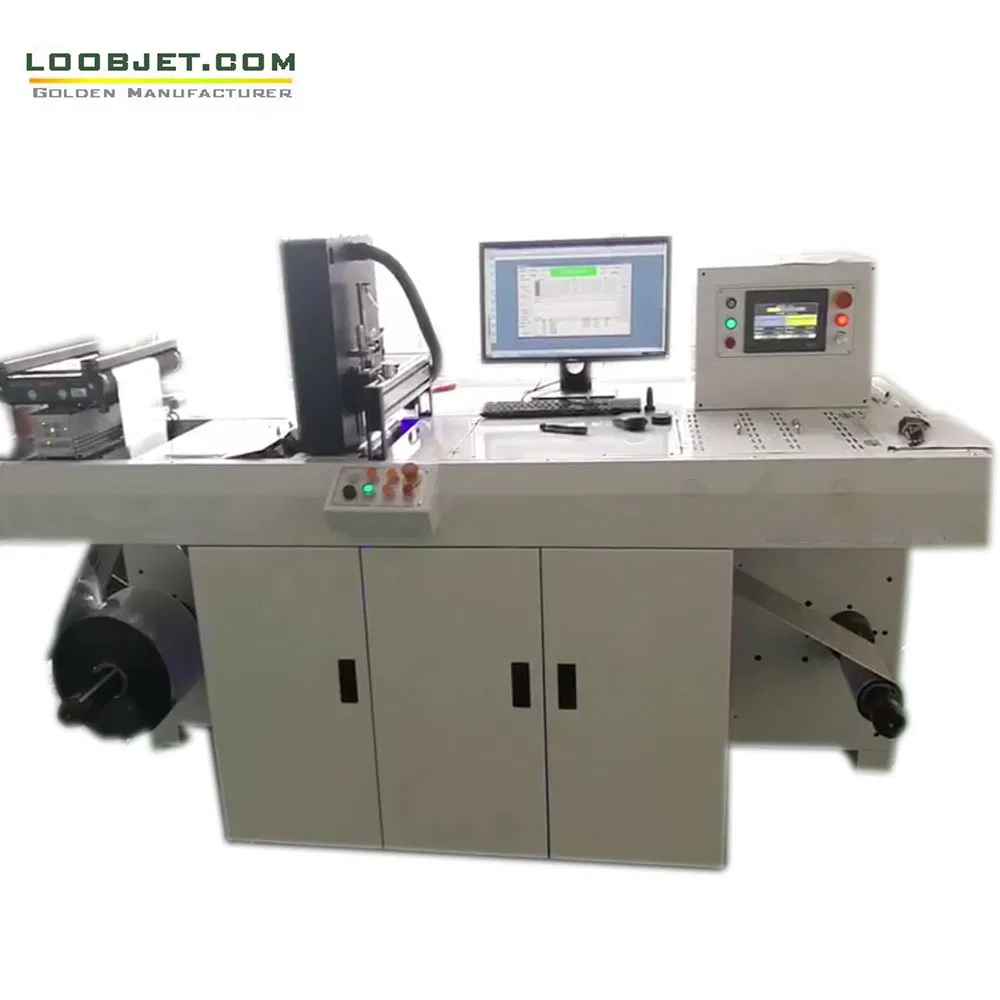

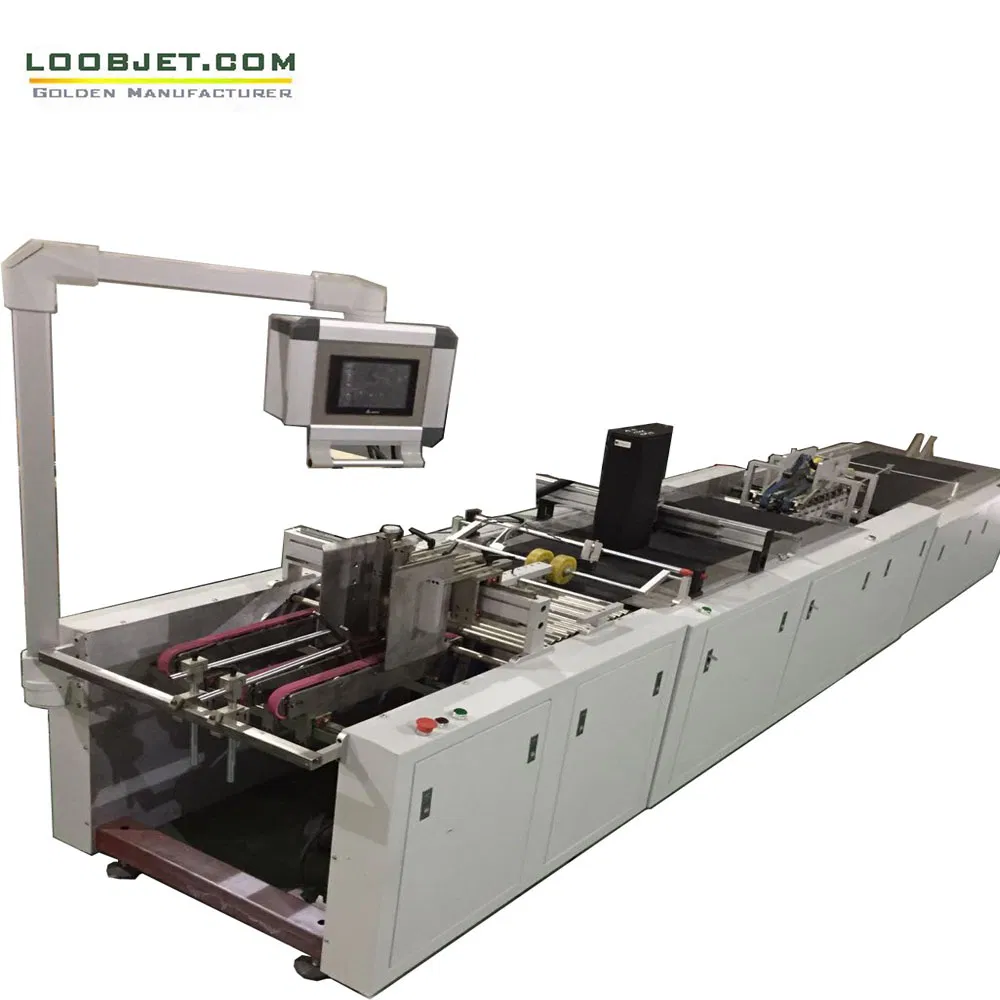

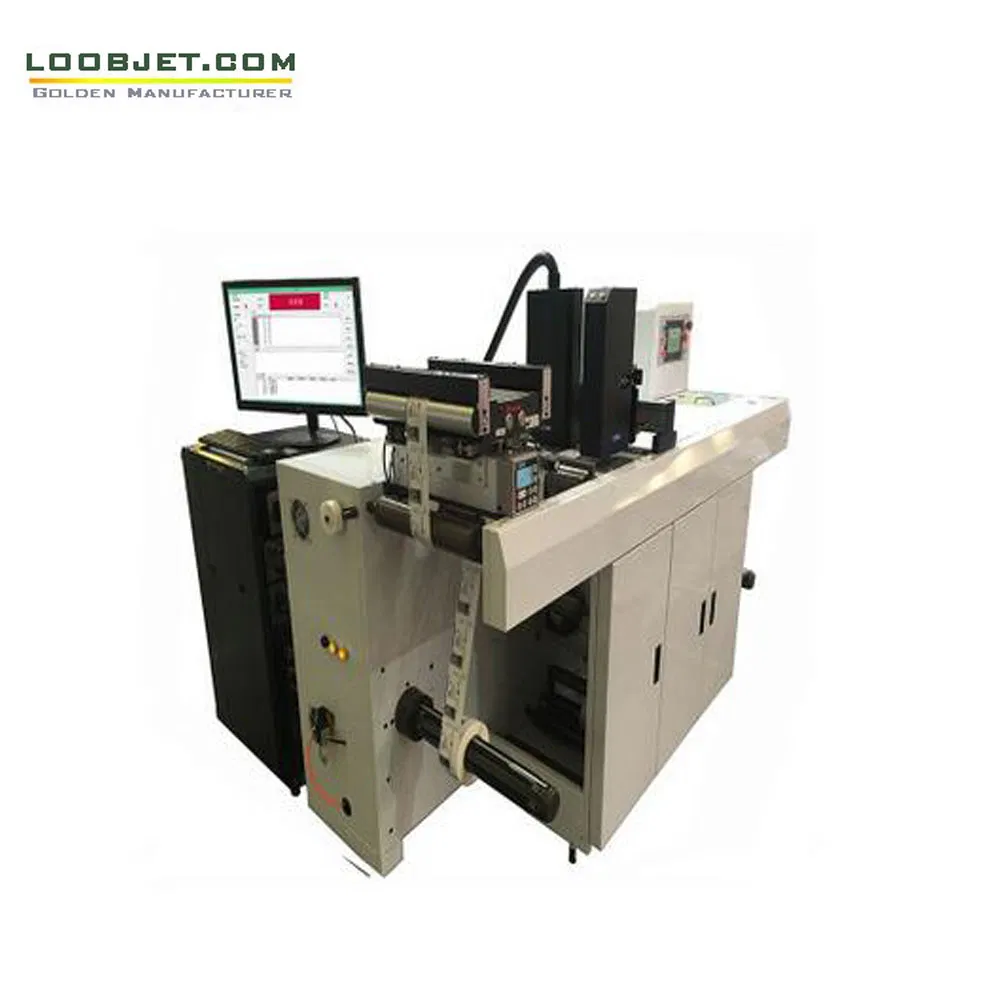

Tags Digital Printing and Inspection System

Introduction

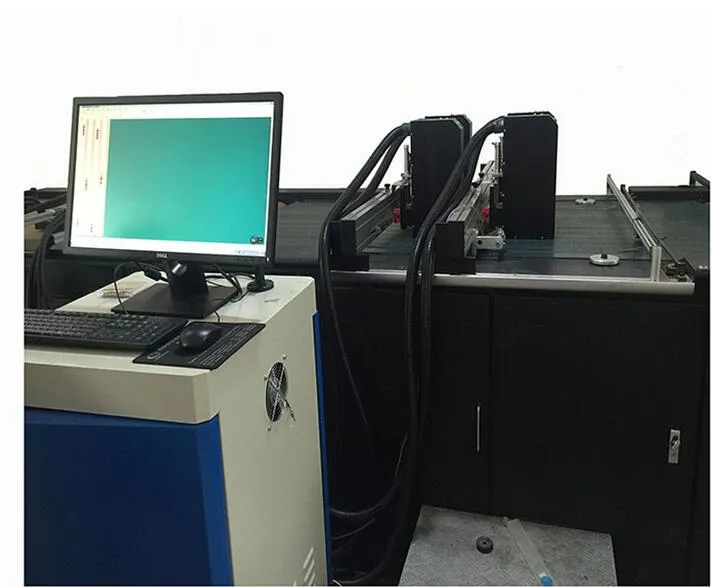

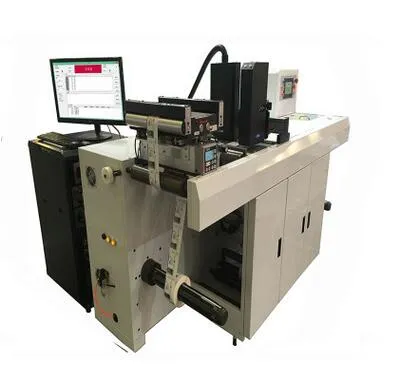

This UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications. It is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems.

System Performance:

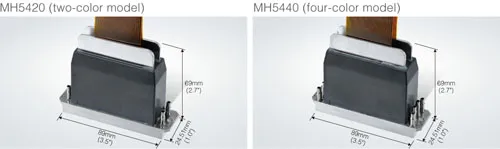

• Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
• Nozzle Life: More than 3 years (10 billion printing times).
• Print Width: 54 / 72 / 108 mm (expandable up to 24 groups with seamless jointing).
• Resolution: Physical 600 DPI precision.
• Linear Speed: 70 ~ 180 m/min.
• Inks: Environmentally friendly UV or water-based inks, suitable for paper, plastics, PVC, PP, and PE film.

Our Printer Control Software (PCS) is designed for professional inkjet scanning. It offers a user-friendly interface to control waveforms, temperature, and monitor system status. Features include database checking, DPI settings, and motor speed control.

Variable Data Printing: Supports text, dates, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files. Supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.
