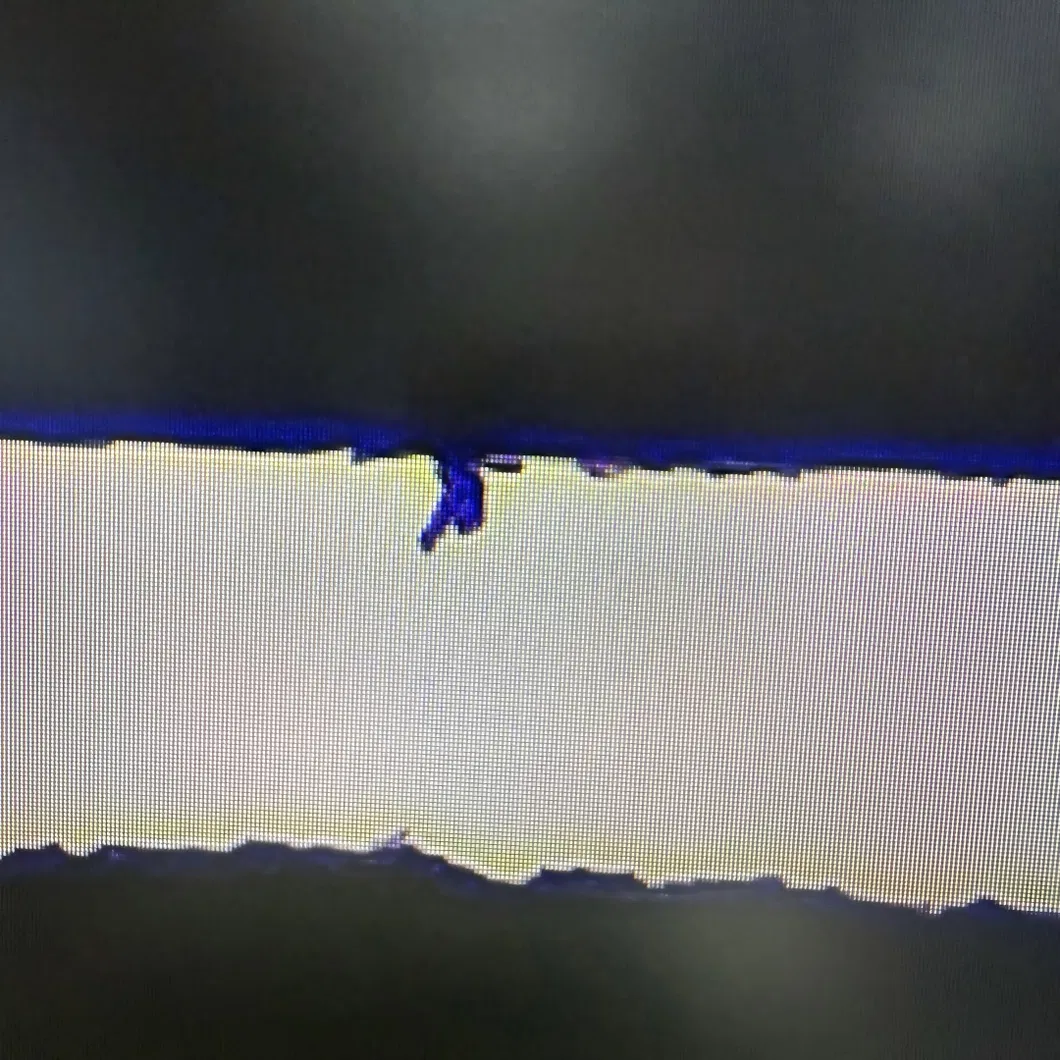

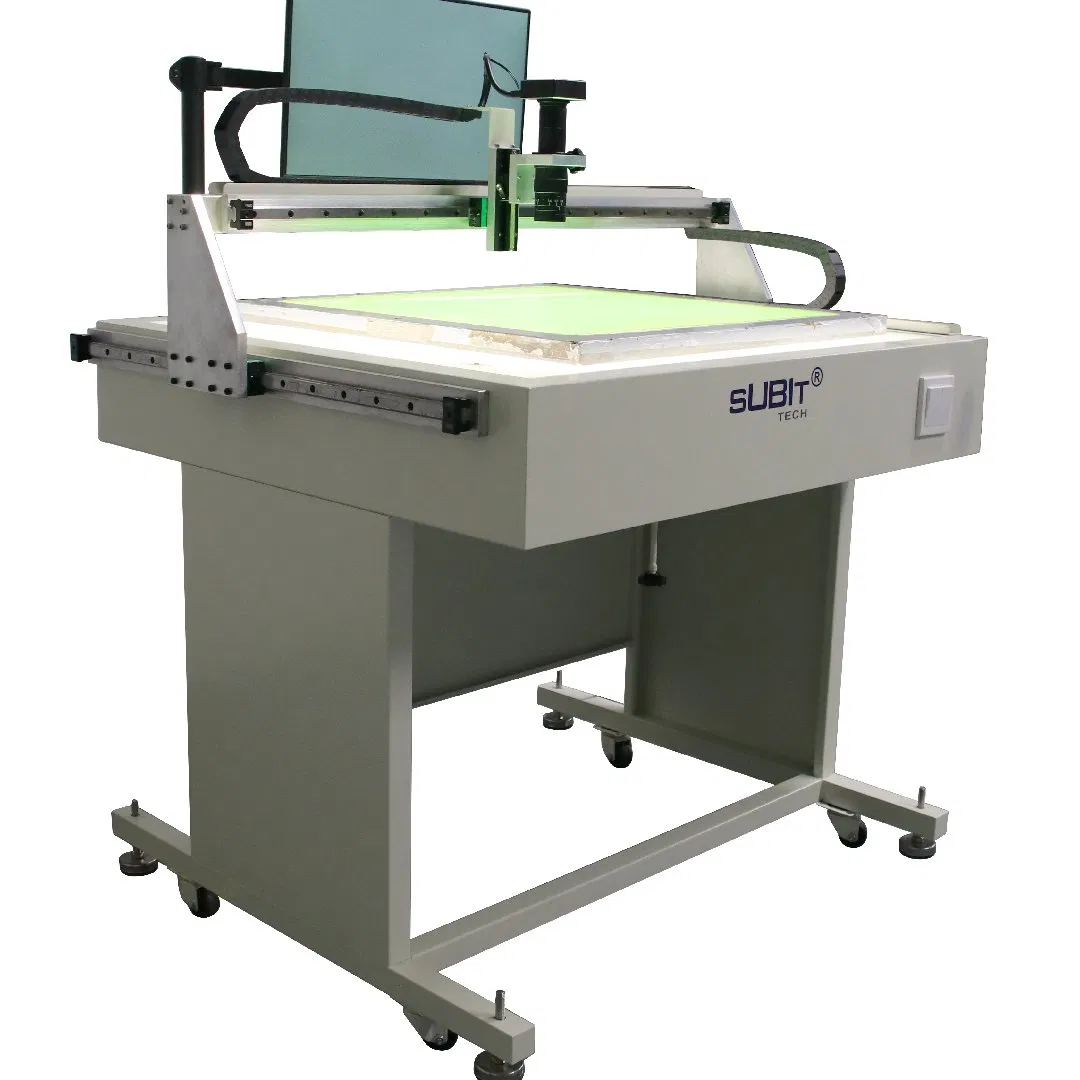

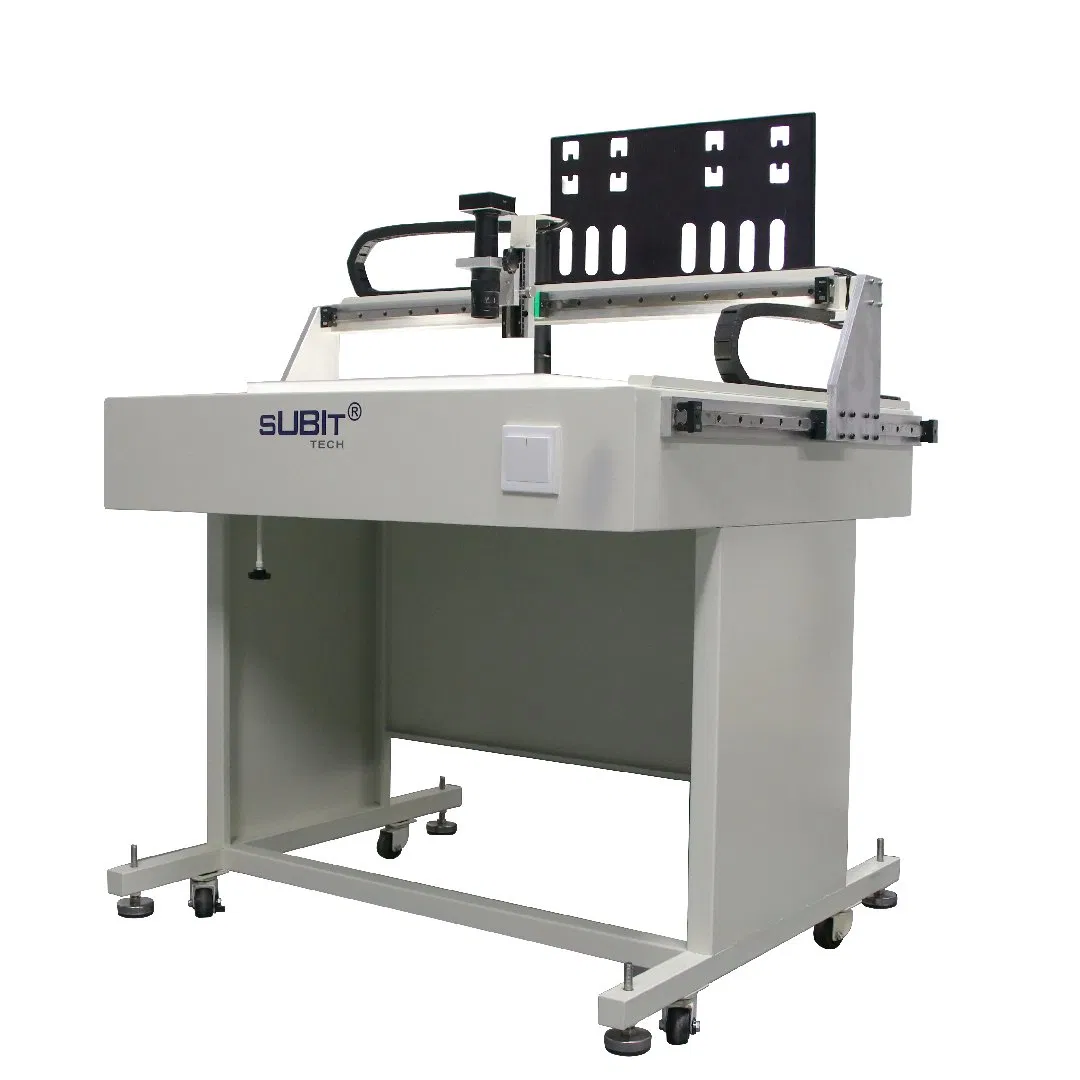

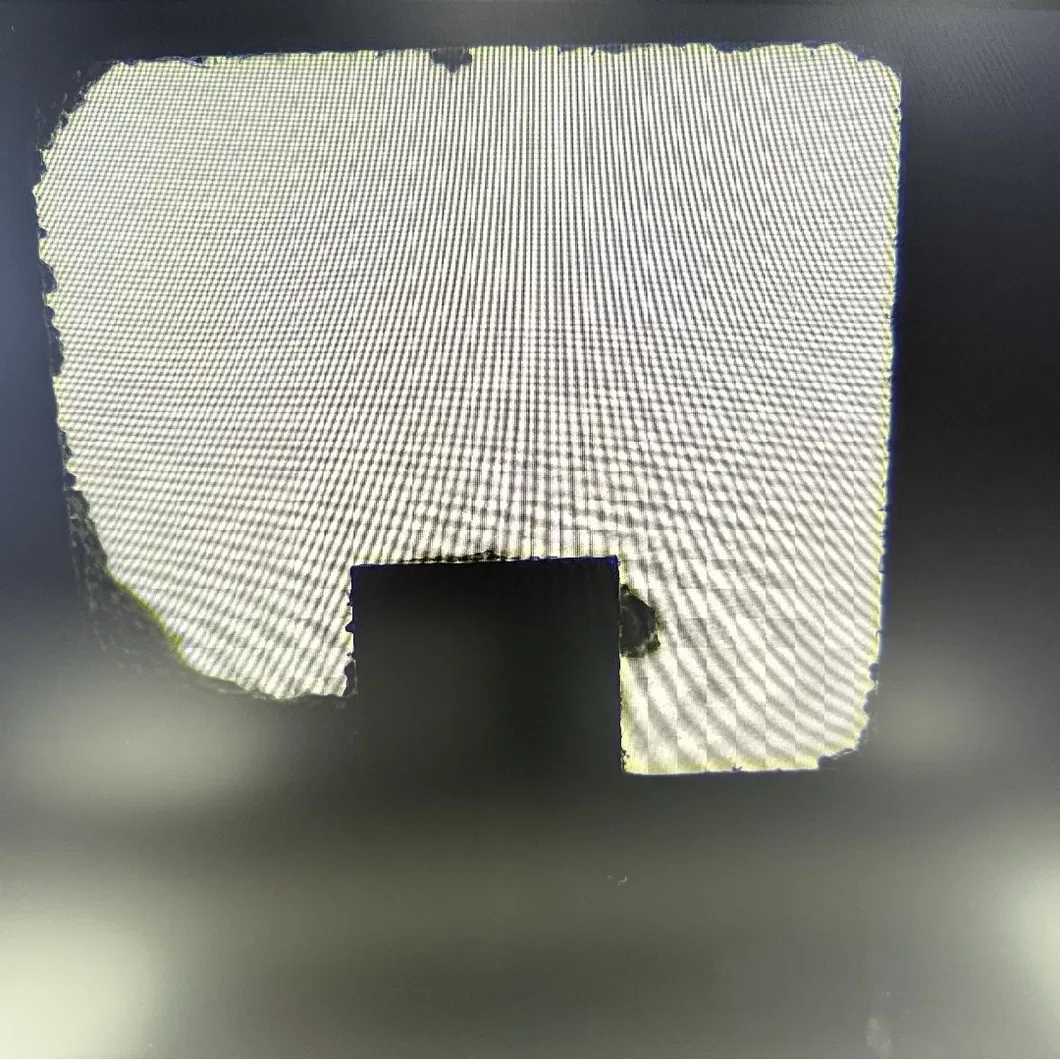

The camera moves automatically or stops based on preset instructions or manual movement. Operators can easily identify product defects and non-good parts from the display and mark them accordingly for timely problem-solving.
| 1. Parameter of Frame and Light Box | |
|---|---|
| Material of frame | Stainless steel |
| Light box and light source | Customized LED energy save light source |
| Dimension of operate area | L900xW900xH950MM |
| Max Steel screen size | L800xW800MM |
| Guide rail | Customized 900x900x200mm module |
| Glass | 12MM tempered white glass + ivory diffusion board |
| 2. Parameter of Guide Rail Module | |
|---|---|
| Effective travel | X:900MM; Y:900MM; Z:200MM |
| Controller | Manual |

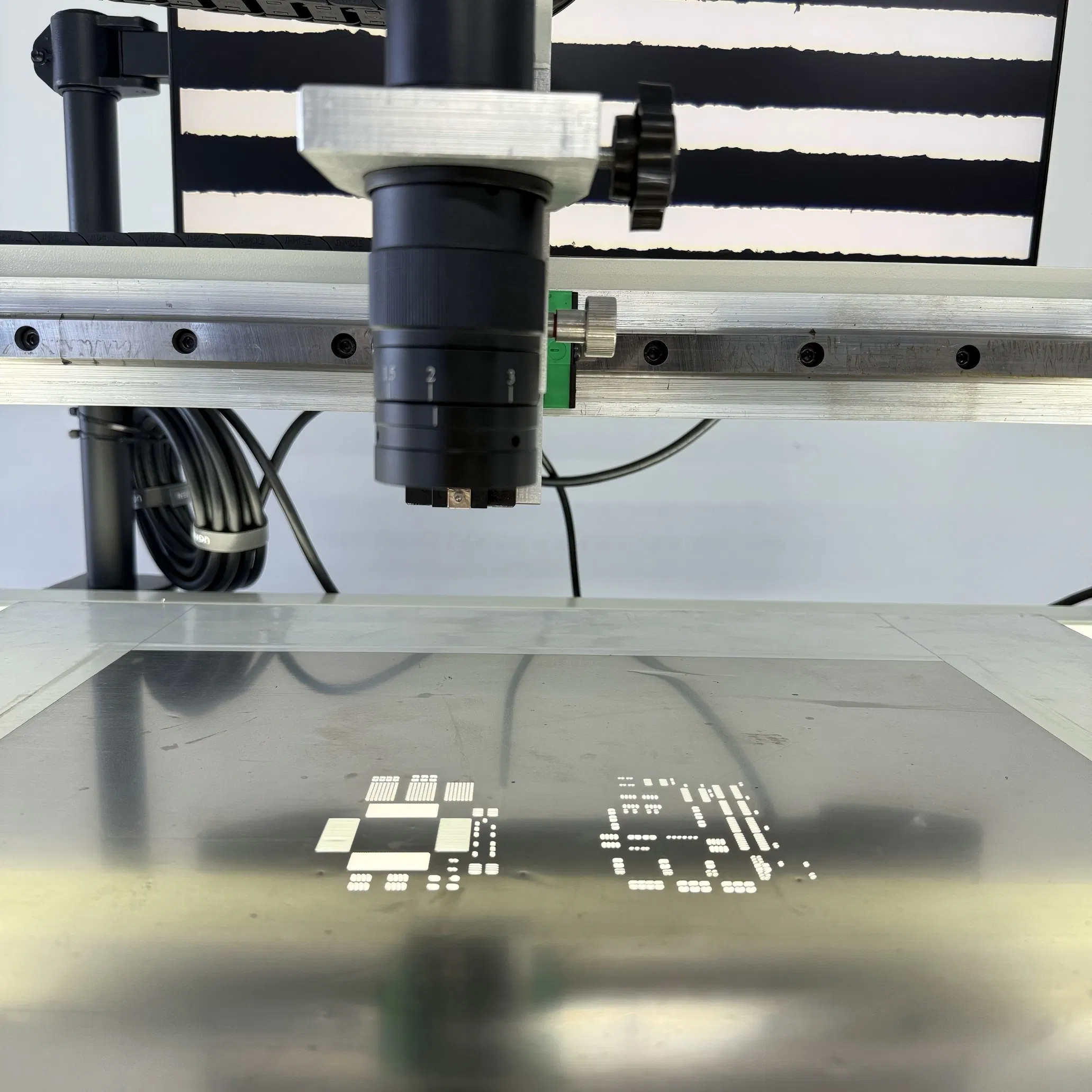

| Camera System | Equipped CCD microscope camera on the Z axis |
| 3. Parameter of Displayer & Microscope | |
|---|---|
| Optics magnification | 200 times (equipped microscope graduated scale) |
| Pixel | 20 million |
| Displayer | 24-inch HD displayer |
Vacuum Shrink Film + Export grade Non-Wooden Case Packing.

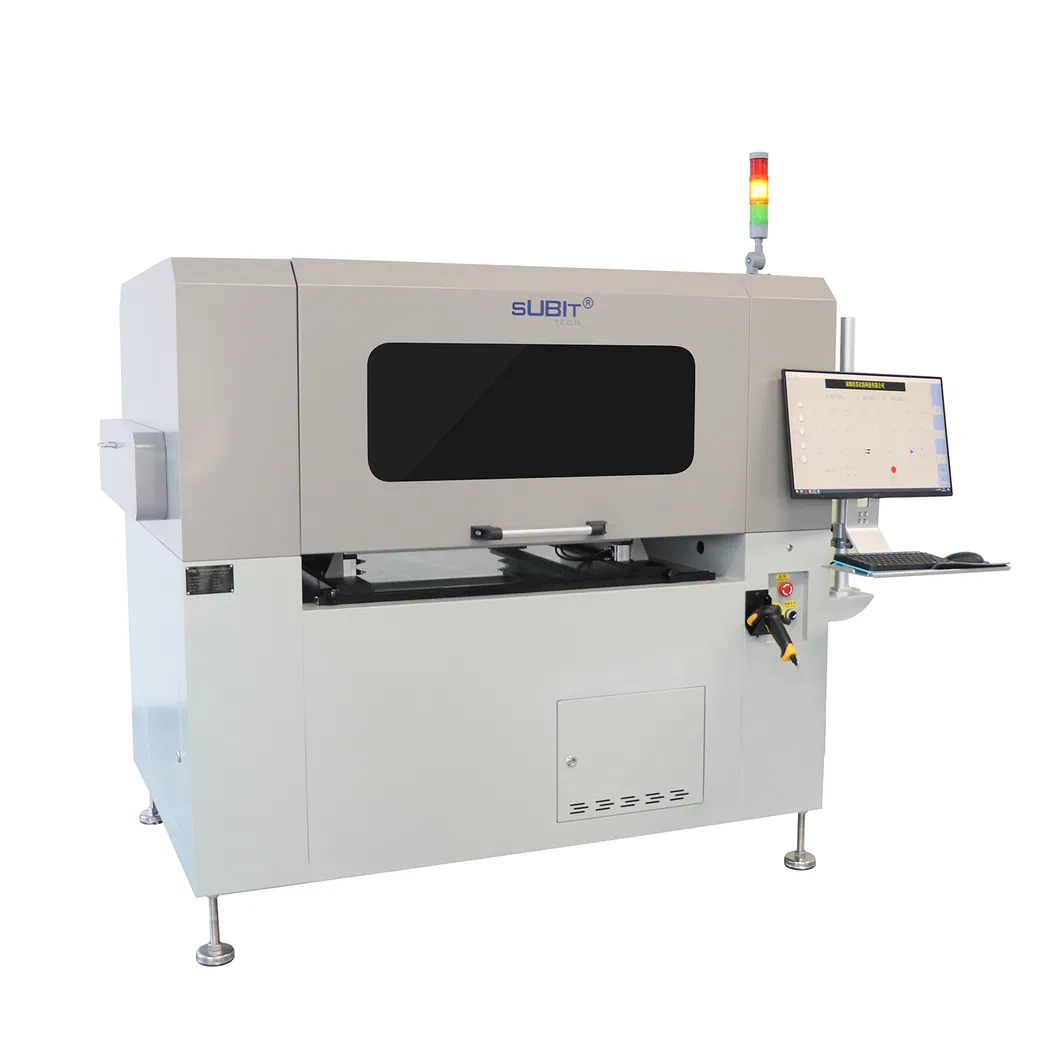

High-precision inspection dedicated for cleaned stencils. Utilizes automatic image measurement technology to scan images and collect parameters such as tension, comparing results within set error ranges for automatic management.

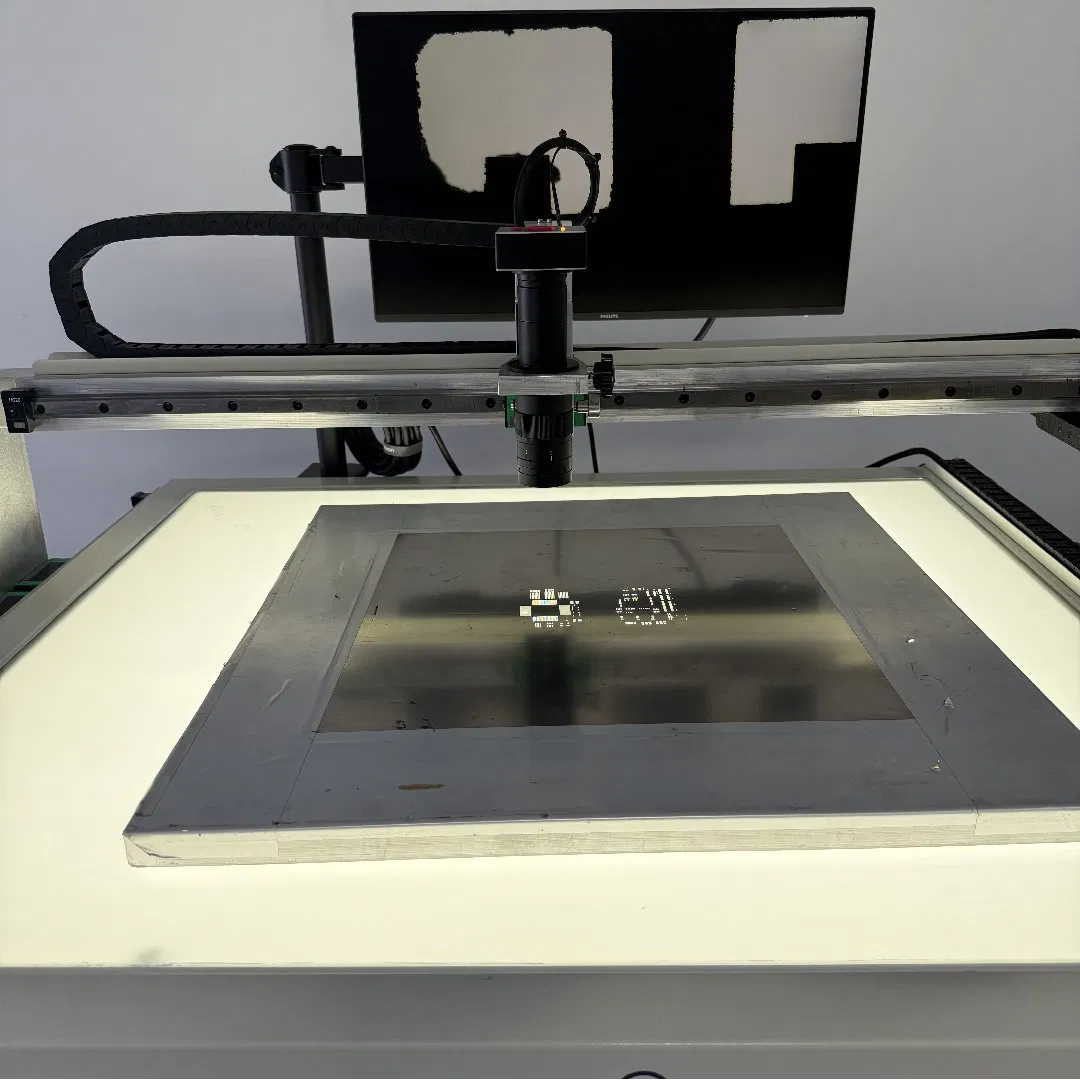

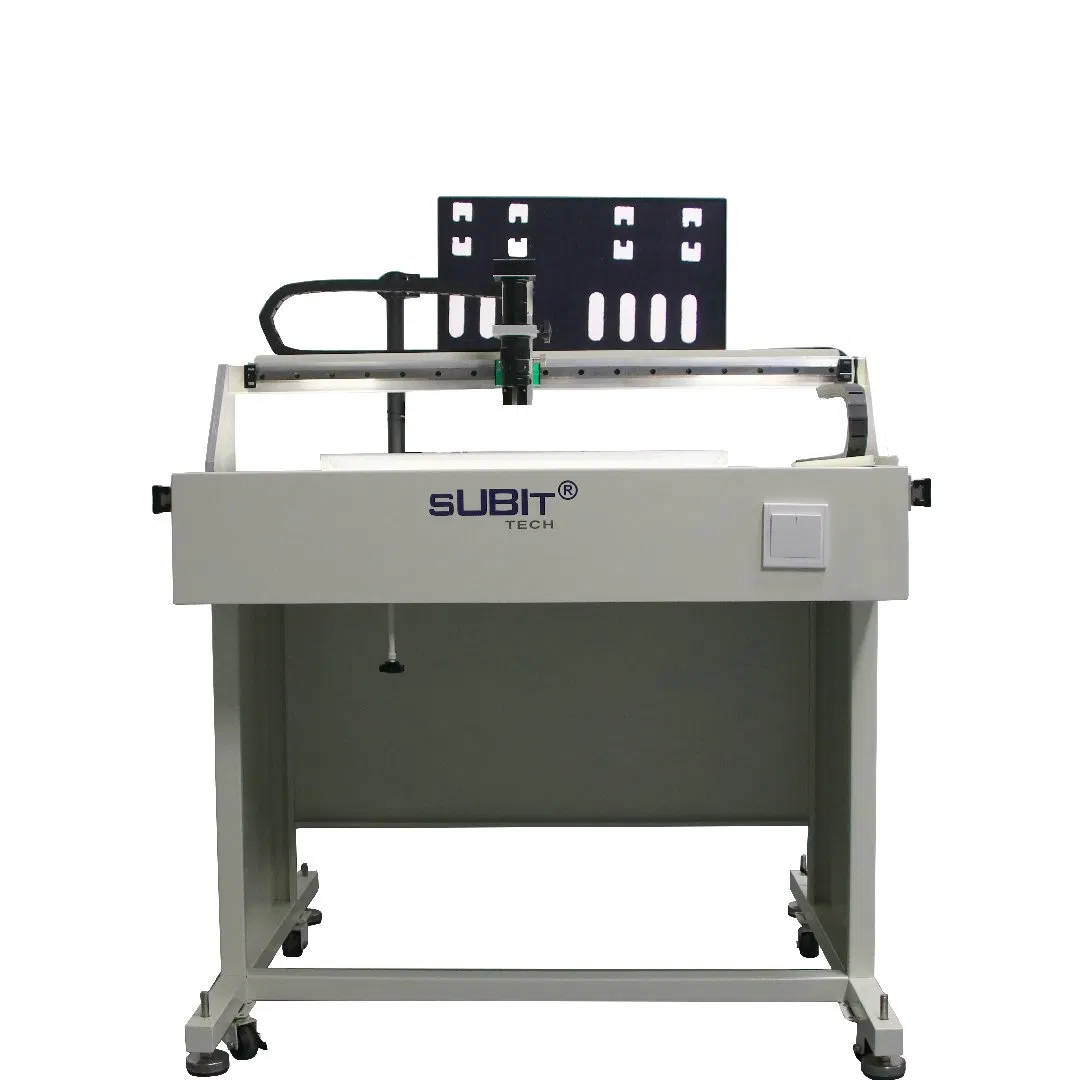

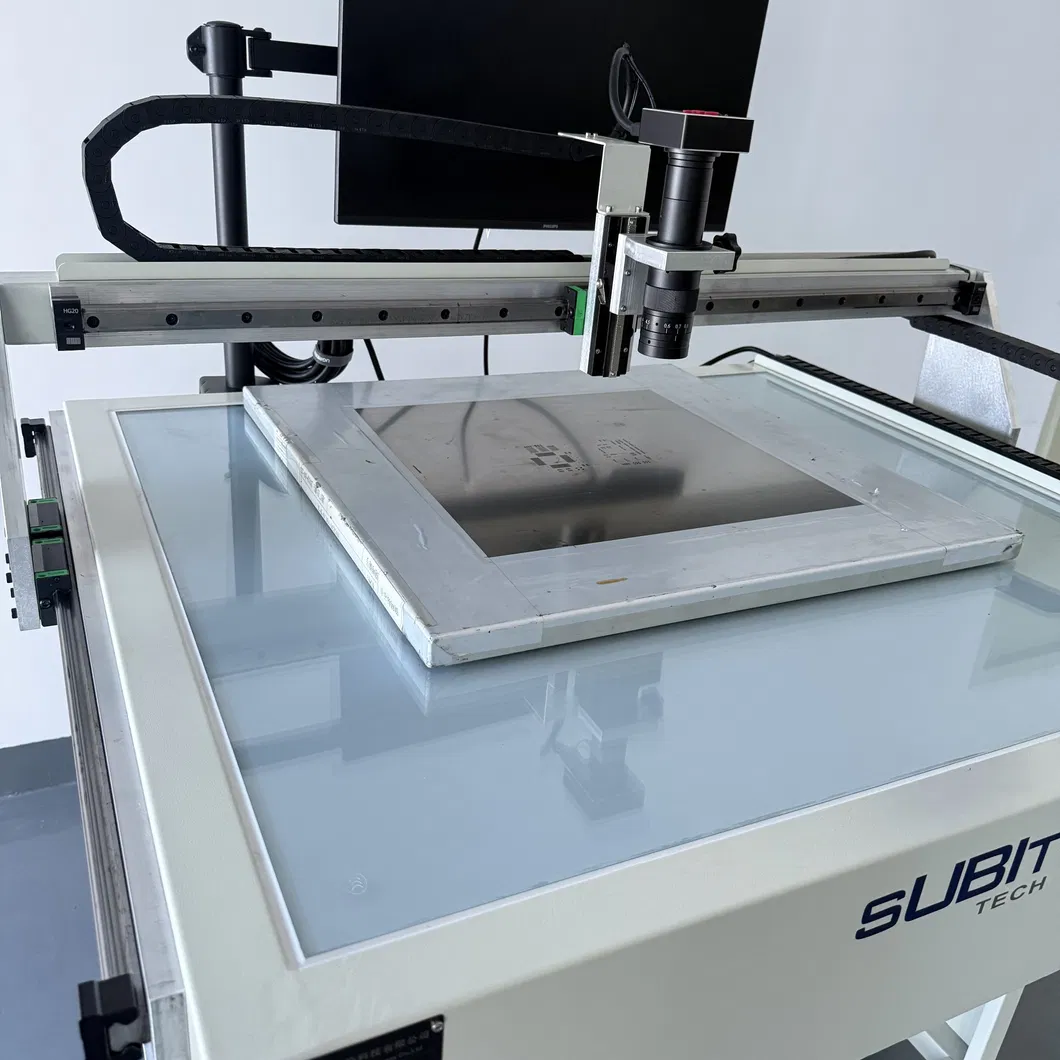

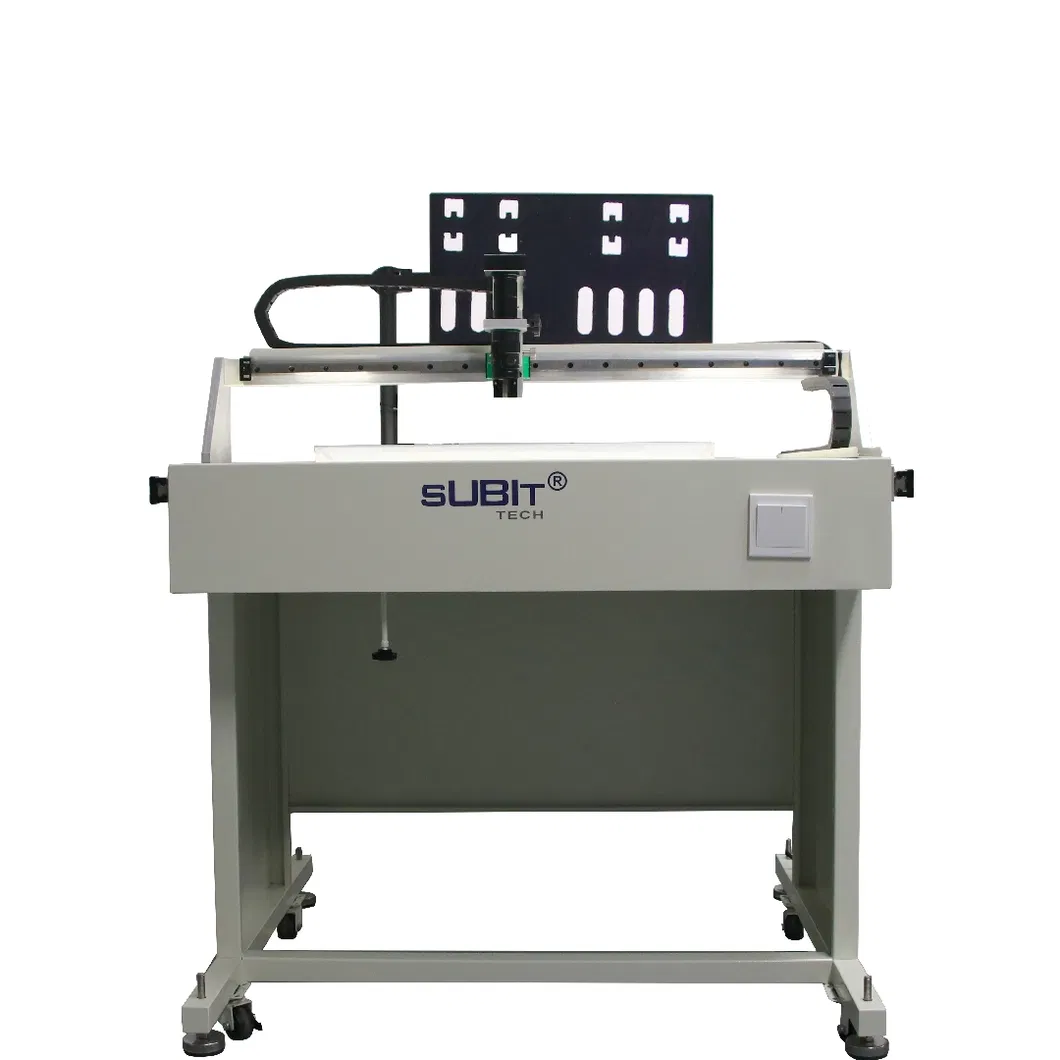

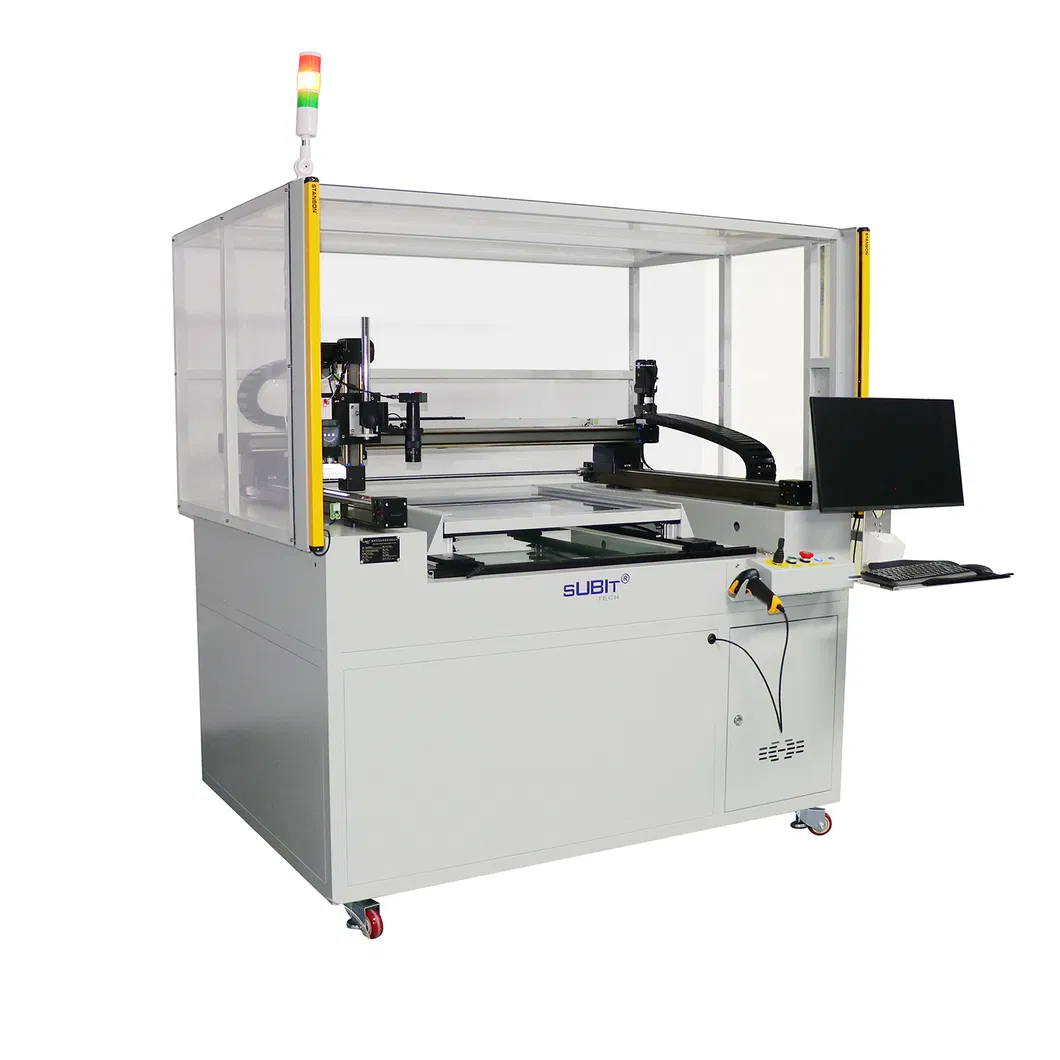

Applied to stencil appearance inspection and tension test. Equipped with auto/manual move linear sliders and digital tension meters. The camera follows preset trajectories to allow visual detection of defects.
