Product Description
Introduce:
✓

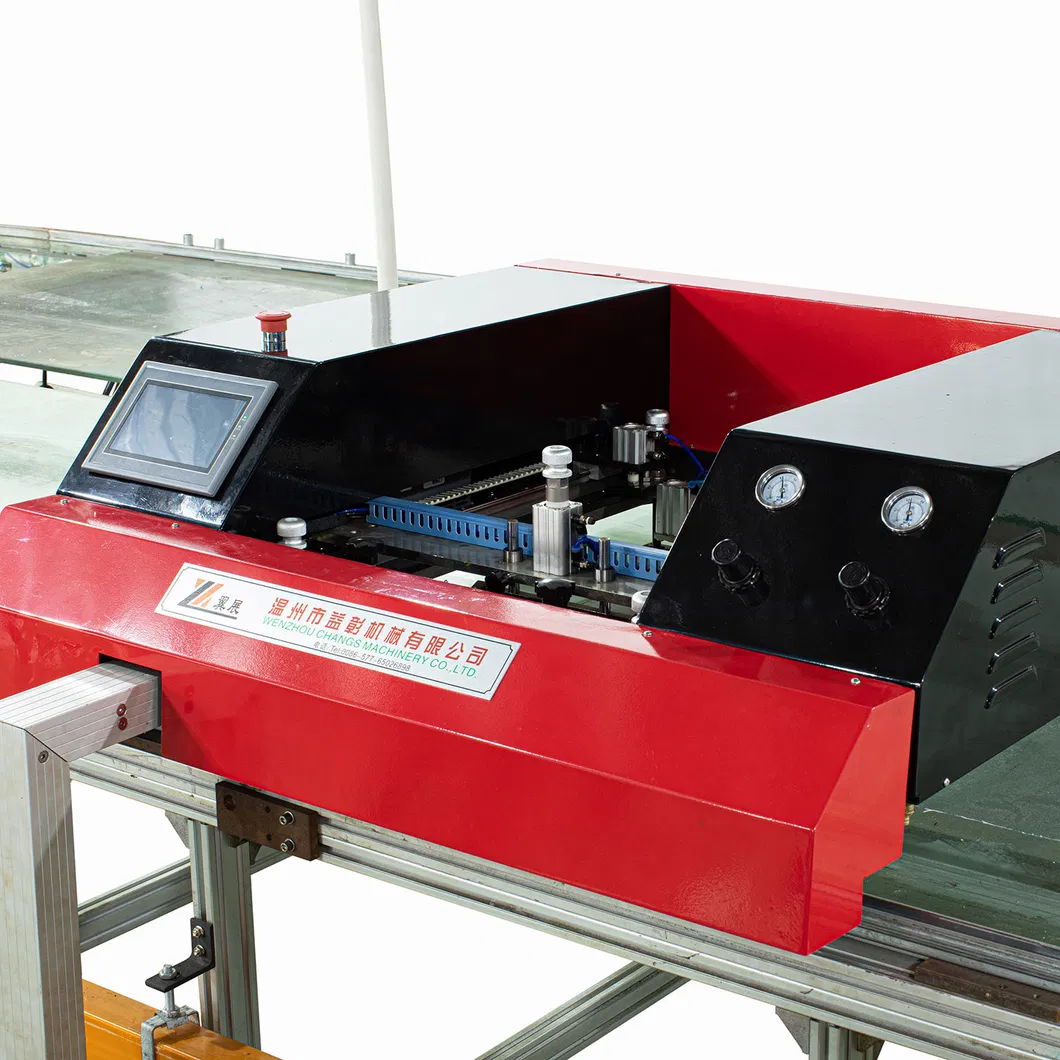

Running table printing machine, update your original manual table into automatic table.
✓

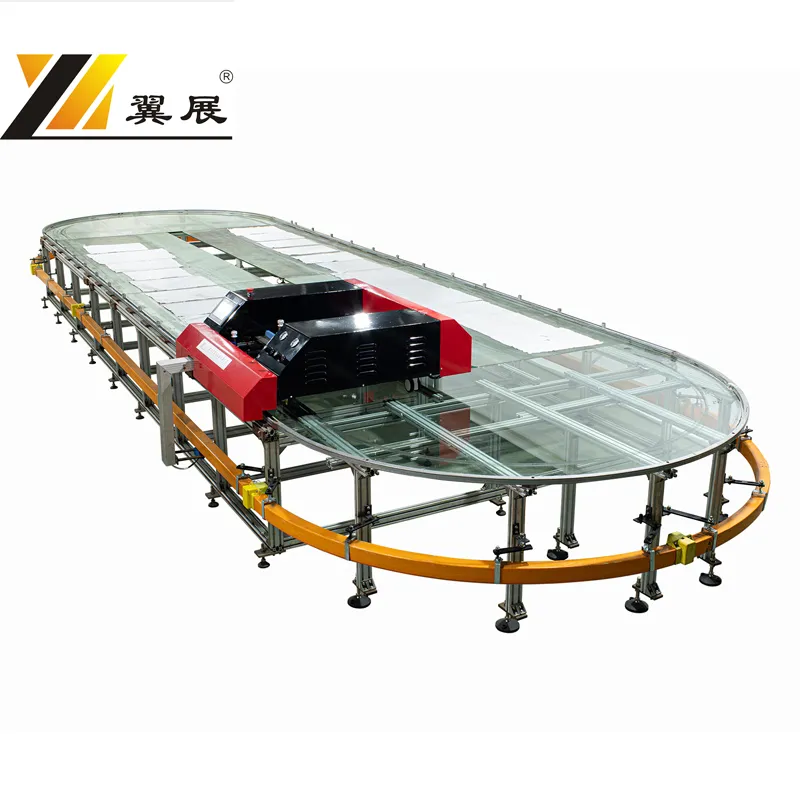

No need to buy an extra machine frame or install complex machinery. Simply purchase the printing head and two semi-circular running racks for both sides of your manual table. It preserves your original room layout while upgrading to modern automatic printing.
✓
Highly versatile: can print on shoe materials, clothing pieces, leather, Oxford cloth, PVC sheets, etc.
✓
Features high accuracy and fast printing speeds. Compatible with water-based ink, solvent ink, paste, and more.
Main Features
- ● Upgrade manual printing tables to automatic without removing existing setups.
- ● Reduces labor costs and dependency on highly experienced workers while maintaining stable quality.
- ● Direct power connection via conductive slots; no need for accumulators or charging downtime.
- ● Adjustable height suitable for luggage fabric, rubber, leather, and gift printing.
- ● High precision registration (± 0.05mm) for thick and detailed printing.
- ● Supports continuous printing and jump board printing modes.
Technical Parameters
| Model | SPU |
| Max Print Size | 350*450mm |
| Max Screen Frame | 460*700mm |
| Table Width | Depend on print size |
| Registration | ±0.05mm |
| Material Height | 1-40mm |
| Max Output | 800pcs/h |
| Total Power | 1.50kw |
| Weight | 150kg |
| Dimension | 1110*1230*400mm |
Frequently Asked Questions
Can I use this machine with my existing manual printing table?
Yes, the SPU is designed specifically to upgrade manual tables to automatic ones without needing to remove or replace your current setup.
What materials can this machine handle?
It is highly versatile and can print on shoe materials, leather, clothing sheets, luggage fabric, rubber, and PVC sheets.
What is the printing accuracy of the SPU model?
The machine offers high precision registration with an accuracy of ±0.05mm, ensuring consistent quality for complex designs.
Does the machine require downtime for charging?
No, it uses a conductive slot to connect directly to electric power, allowing for continuous operation without stopping for battery charging.
What type of inks are compatible with this equipment?
The system supports various inks, including water-based inks, solvent inks, and printing pastes.
Is the printing height adjustable?
Yes, the material height is adjustable between 1mm and 40mm to accommodate different product thicknesses.
