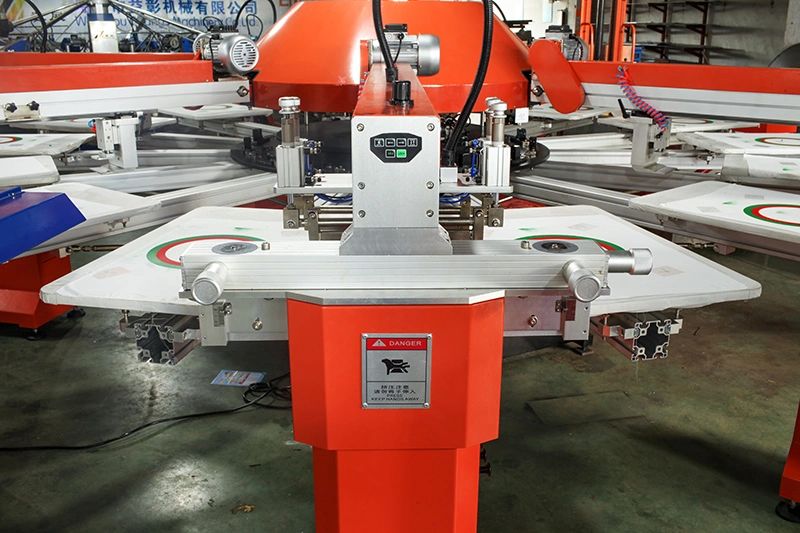

Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
1 / 5
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine
Spg T Shirt PCB Serigrafia Silkscreen Printing Machine

Spg T Shirt PCB Serigrafia Silkscreen Printing Machine

Customization: Available
Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:SPG
Structure:Platen Press
Color & Page:Multi-Colour Printing
Application:Packaging Printing
Package:Standard Wooden Package
Specification:CE, SGS
Origin:China
HS Code:8443192290
Capacity:20 set/Month
★

Product Description

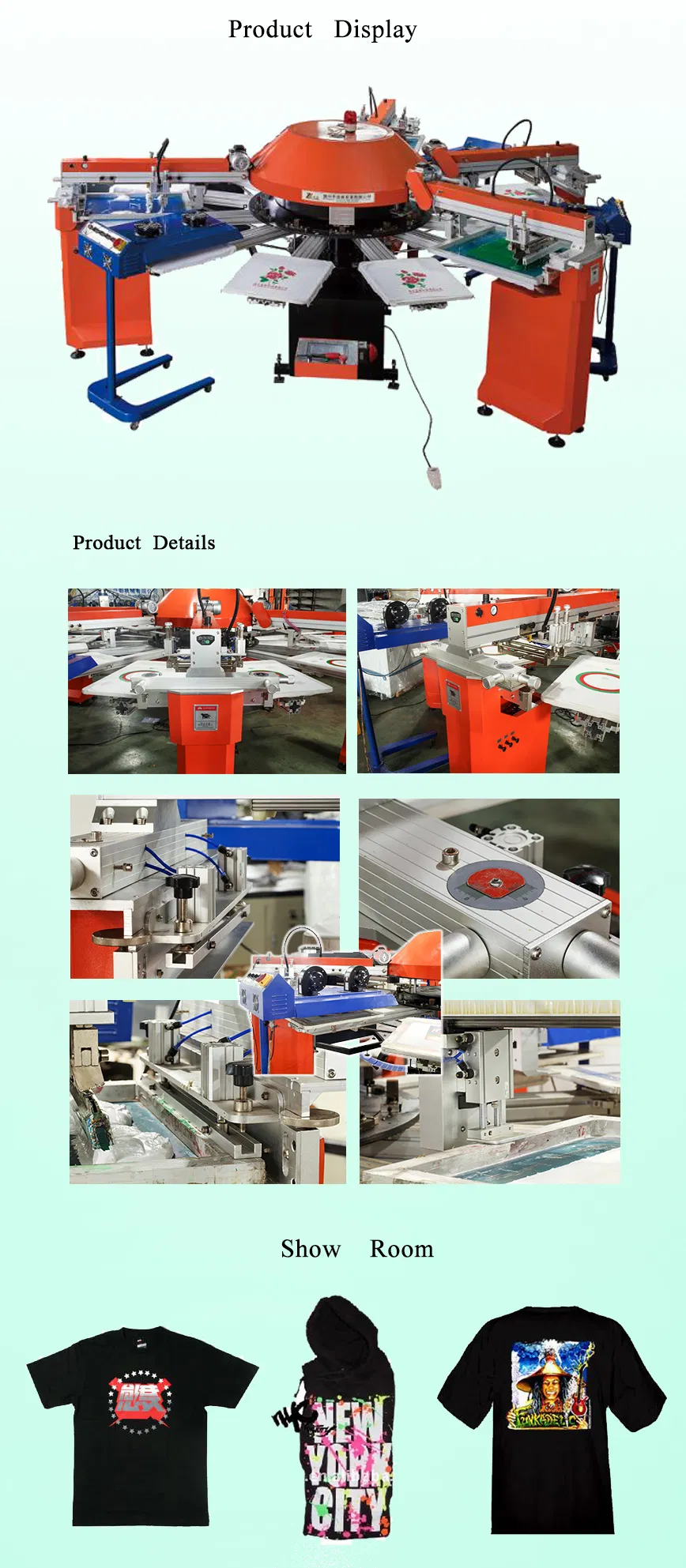

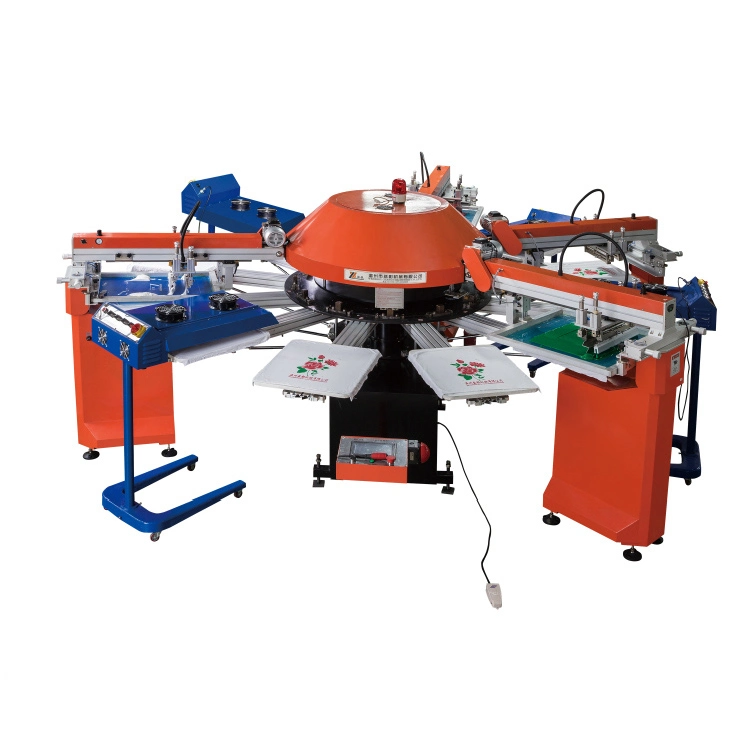

Automatic Screen Printing Machine

The SPG series is a multi-functional automatic screen printing machine. Equipped with an intelligent micro-processor, touch screen, and servo motor driven system, it ensures high printing stability and a color registration tolerance of up to ±0.05mm. All parts are precisely tested before installation, ensuring minimal maintenance and zero-fault operation.

●

Versatile Applications

Suitable for various printing materials including:

T-shirts & Garments
Satin Labels & Non-woven Bags
Wooden & Paper Boards
Glass & Ceramic Plates
PVC & Marble Surfaces
Umbrellas & Tetoron
⚙

Key Features

  • High-Tech Drive: Uses a servo motor driven system for maximum speed and stability.
  • Precision Positioning: Pallets are driven by servo motors for perfect registration (±0.05mm).
  • Adjustable Speed: Squeegee and flood bar speeds are controlled by a converter motor.
  • Total Control: Printing pressure, stroke times, length, and angles are fully adjustable.
  • User-Friendly: Designed for simple maintenance and easy operation.
📊

Technical Parameters

Model SPG-104/8 SPG-156/10 SPG-158/12
Print Color/Station 4-6/8 4-8/10 6-10/12
Max. Print Area 300×400mm 300×400mm 300×400mm
Pallet Size 400×500mm 400×500mm 400×500mm
Air Source ≥1.0Mpa ≥1.0Mpa ≥1.0Mpa
Max. Output 700pcs/h 700pcs/h 700pcs/h
Power 2.0Kw 2.0Kw 2.0Kw
Dryer Unit Power 13.5Kw 13.5Kw 13.5Kw
Overall Size Φ3400×1600mm Φ3400×1600mm Φ3400×1600mm
Weight 700Kg 800Kg 900Kg
✓

Our Service

1. Warranty: 1-year limited warranty after installation. Free replacement for broken spare parts during the warranty period.

2. Installation: Professional engineering support available for factory setup and staff training.

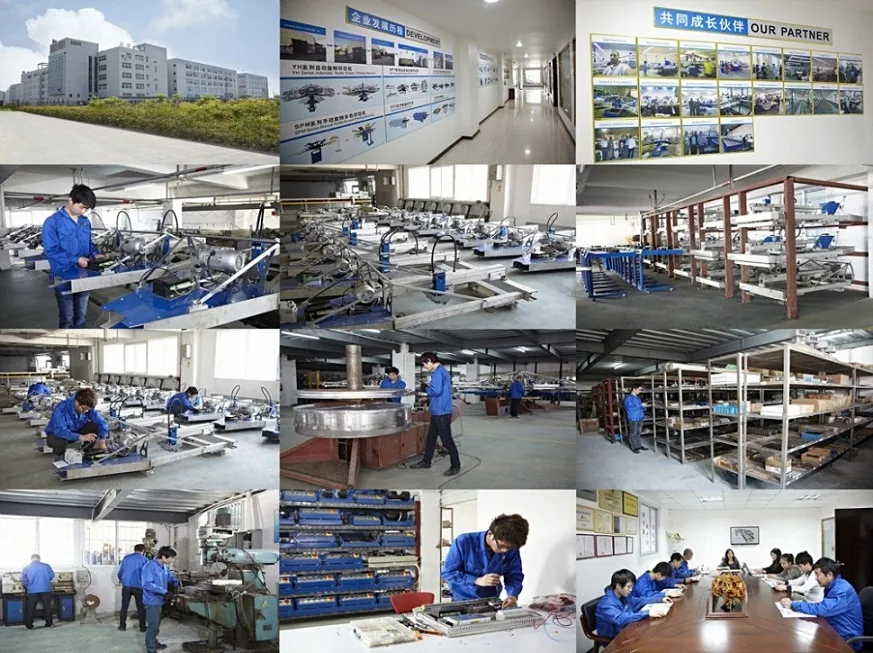

Shipment Factory Certificate

Frequently Asked Questions

Q1: What materials can the SPG series print on? The SPG series is versatile and can print on T-shirts, garments, fabrics, satin labels, non-woven bags, wooden boards, paperboard, glass, PVC, ceramics, and marble.
Q2: What information is needed for a customized quote? Please provide the number of colors required, your maximum printing size (e.g., 500x700mm), and your requested production capacity per hour.
Q3: What is the delivery time and MOQ? The Minimum Order Quantity (MOQ) is 1 set. Standard delivery time is approximately 20 workdays after receiving the deposit.
Q4: What is the registration accuracy of this machine? Thanks to the high-tech servo motor drive system, the machine achieves a color registration tolerance of up to ±0.05mm.
Q5: Is there any after-sales technical support? Yes, we provide a 1-year warranty and can dispatch engineers for on-site installation and operation training.
Q6: What are the payment terms? We typically accept T/T with a 30% deposit and 70% before shipment, or an irrevocable L/C at sight.
