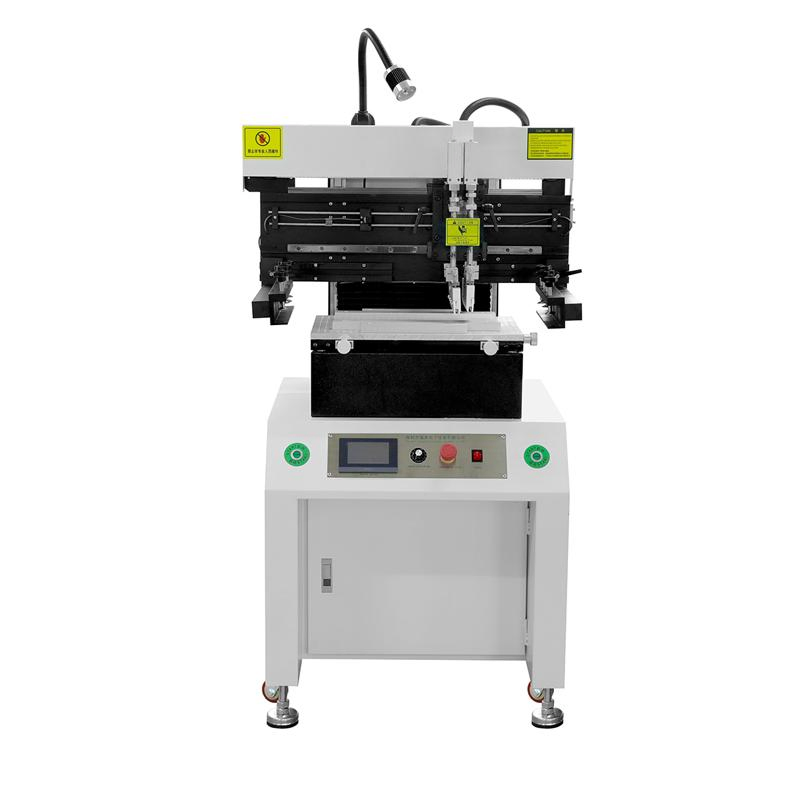

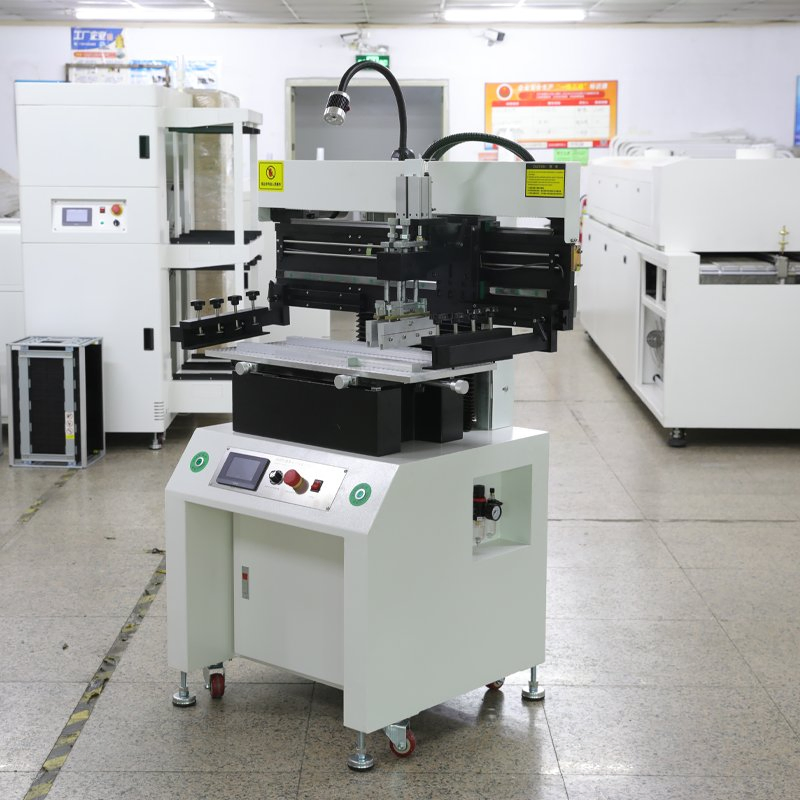

Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
1 / 5
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin
Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin

Solder Paste Printing Machine Small Semi-Automatic PCB Printing Clear Precision Screen Printin

Customization: Available
After-sales Service: Online
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Information

Model NO.
SD-5088
Type
Semi-Auto Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Printed Circuit
Origin
China
HS Code
8486209000
★

Product Introduction

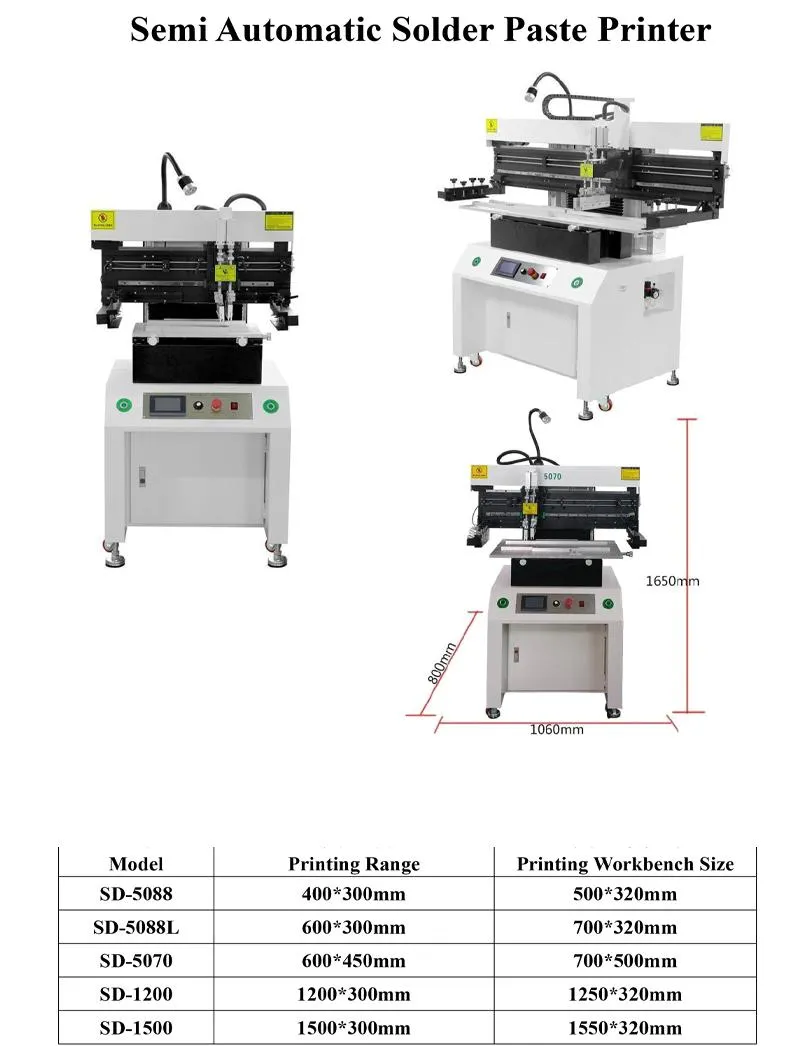

5088 SMT Solder Paste Printing Machine

5088 SMT Solder Paste Printing Machine

Main Features:

  • Microcomputer control with touch screen display and menu operation interface.
  • Floating blade system (similar to automatic MPM printing machines) allowing the scraper to float freely and adjust level automatically with the stencil.
  • Adjustable scraper pressure to accommodate different scraper lengths and types.
  • Equipped with a frequency converter speed regulation system for stable scraper running speed.
  • Two-hand button switch operation for enhanced safety and reliability.
  • Independent pause time settings for the entire stencil via the touch screen menu.
  • Multiple PCB positioning methods including reference hole, reference edge, and simultaneous template positioning.
  • Built-in time display, automatic printing count, and screen protection functions.
  • Adjustable scraper speed and emergency stop safety function.
  • Multiple printing modes: single, double, and secondary startup options.
  • Three selectable working states: automatic, semi-automatic, and inching.
  • Large cast-iron bench ensures smooth operation without shaking.
⚙

Technical Parameters

Model5088
Direction of MovementMove left and right
Workbench500*320mm
Power SupplySingle phase 220V
Dimension860*780*1650mm
Air Supply0.5-0.8mpa
Starting Power0.2KW
WeightAbout 150KG
Printing Range400*320mm
Moving Speed0-2200mm/min
PLC ControlSiemens
Touch Screen4.3# display control screen
Main CylinderSC63*150
FloodlightLED light
📷

Product Display

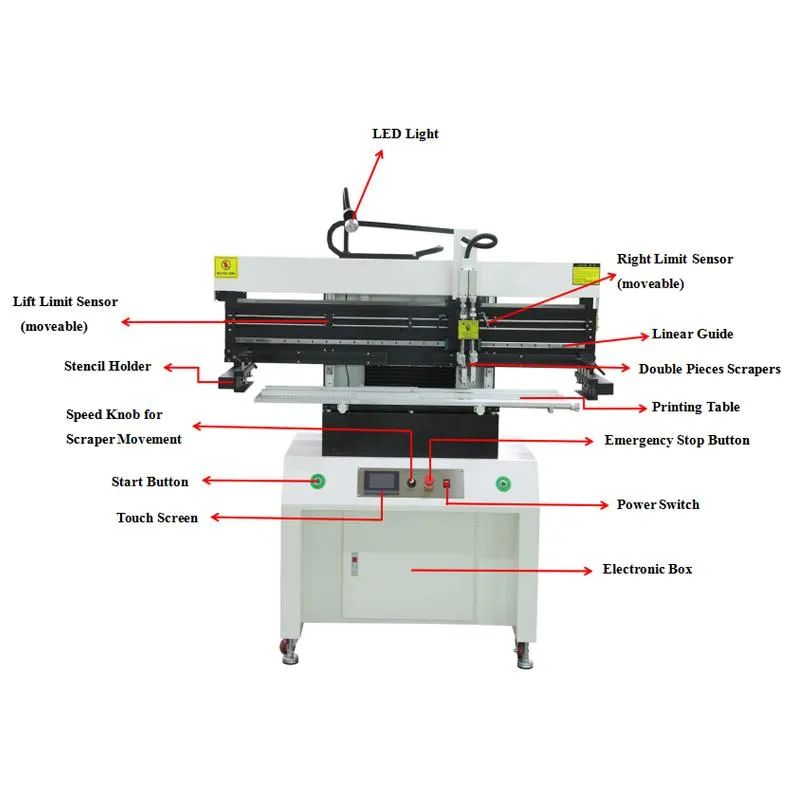

Printing Machine Detail 1

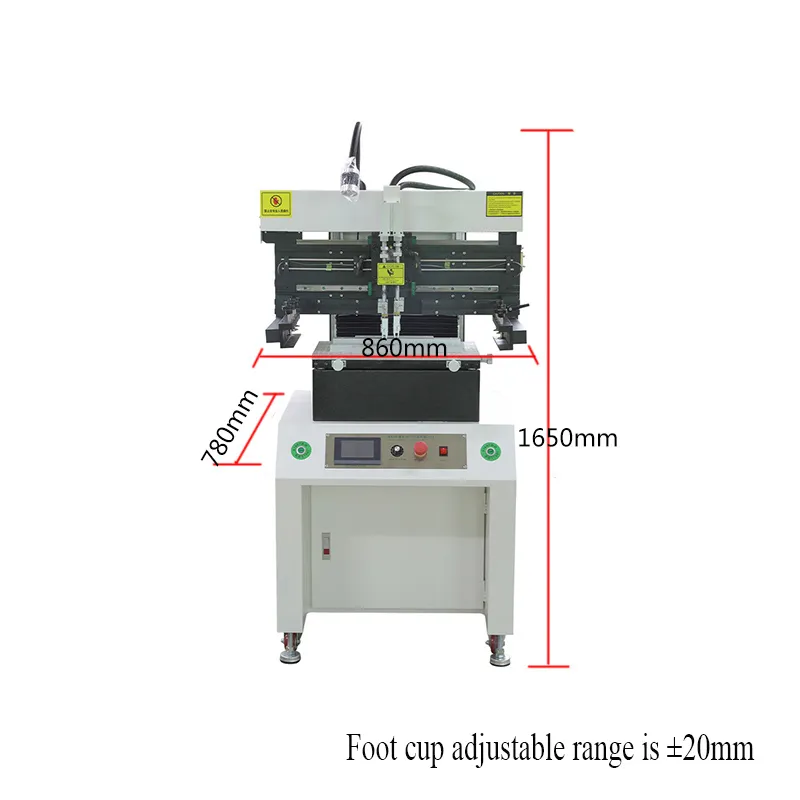

Printing Machine Detail 2

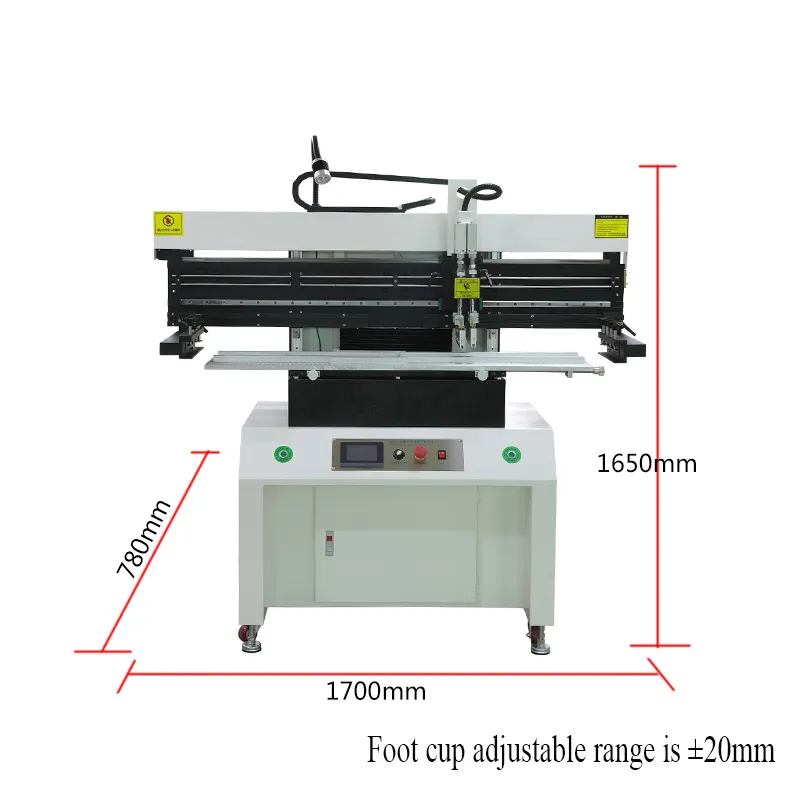

Printing Machine Detail 3

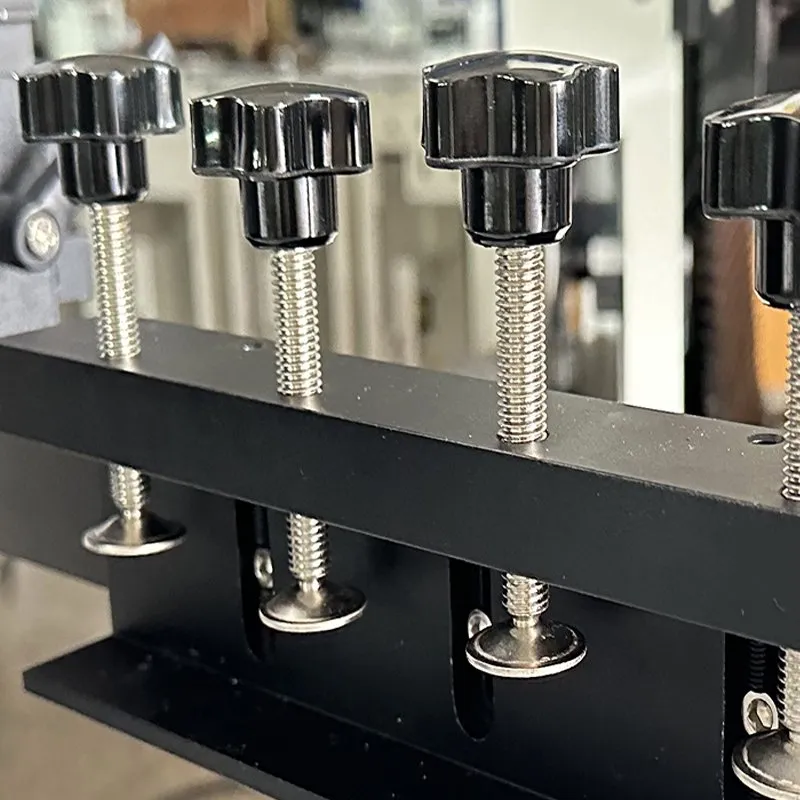

Printing Machine Detail 4

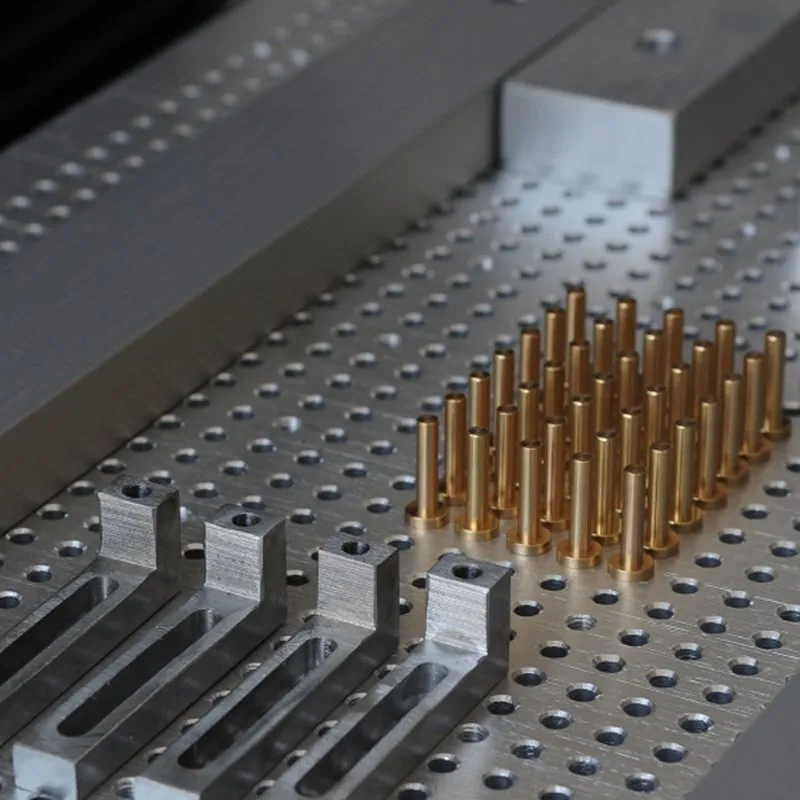

Printing Machine Detail 5
🔧

Maintenance and Repair

(1) Environment Management: High-temperature environments can cause mechanical failures. Regular maintenance and micro-repairs are essential for long-term stability.

(2) Voltage Stability: Inadequate voltage or power capacity and aging lines can lead to circuit imbalances and potential motor damage. Ensure consistent power supply to prevent burnout.

(3) Professional Support: Regular maintenance should be performed by professional electrical personnel. Daily inspections under manufacturer guidance help extend machine life.

Maintenance View 1
Maintenance View 2
Maintenance View 3
Maintenance View 4
Maintenance View 5
?

Frequently Asked Questions

Is this machine easy to operate for a first-time user?
Yes, the machine comes with an English manual and guide videos demonstrating the full operation process. Support is available online for any specific questions.
What should I do if the machine has a problem during the warranty period?
We provide free replacement parts during the warranty period. If the part is under 0.5KG, we cover the postage; if it exceeds 0.5KG, the customer pays the shipping cost.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. We also welcome mixed orders involving different models or equipment.
How can I purchase this machine?
The process is simple: consult with us, confirm the price and shipping terms, receive a proforma invoice, complete the payment, and we will prepare your order.
Do you perform quality checks before shipping?
Absolutely. We conduct a 100% quality check on every machine before it is sent out via air or sea to ensure it meets all operational standards.
