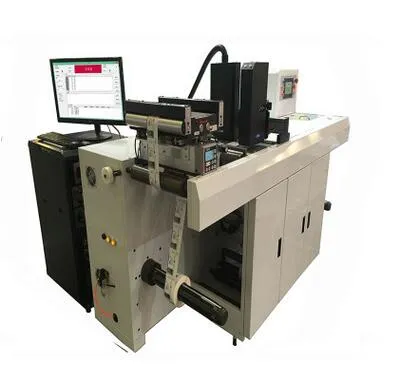

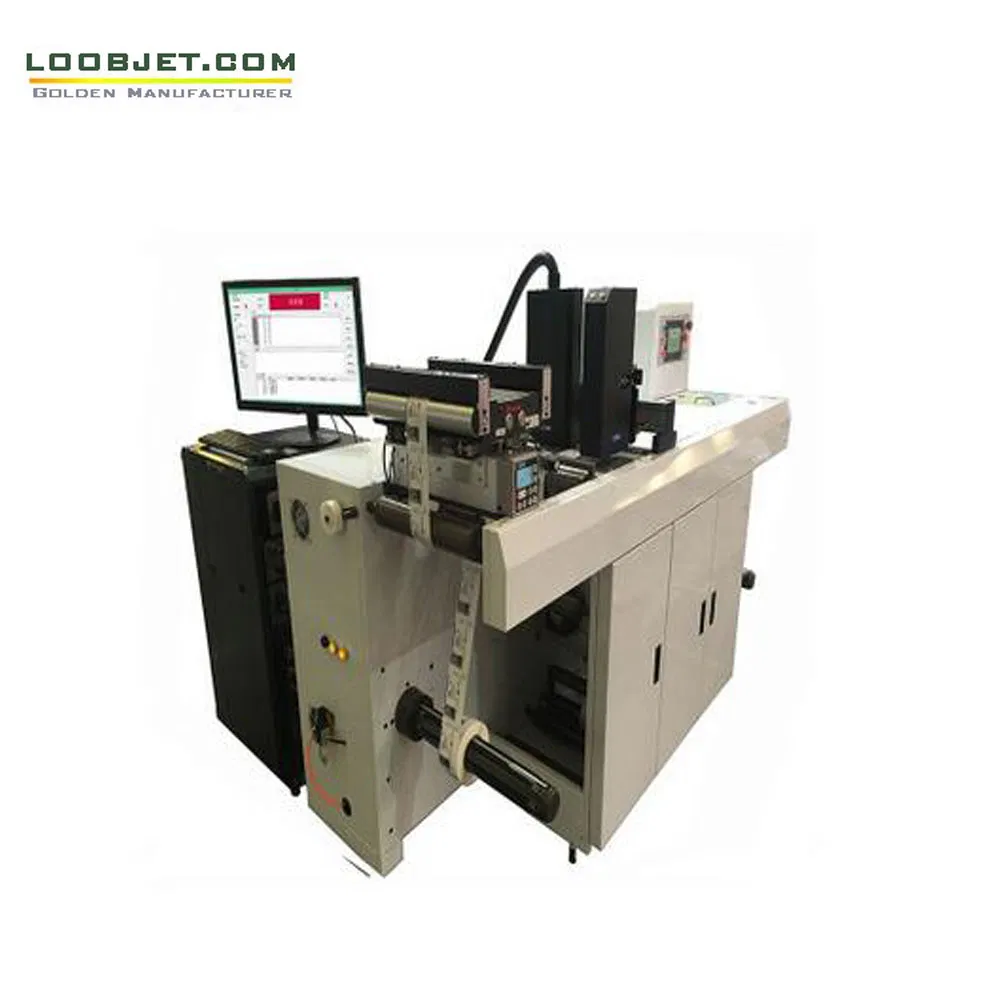

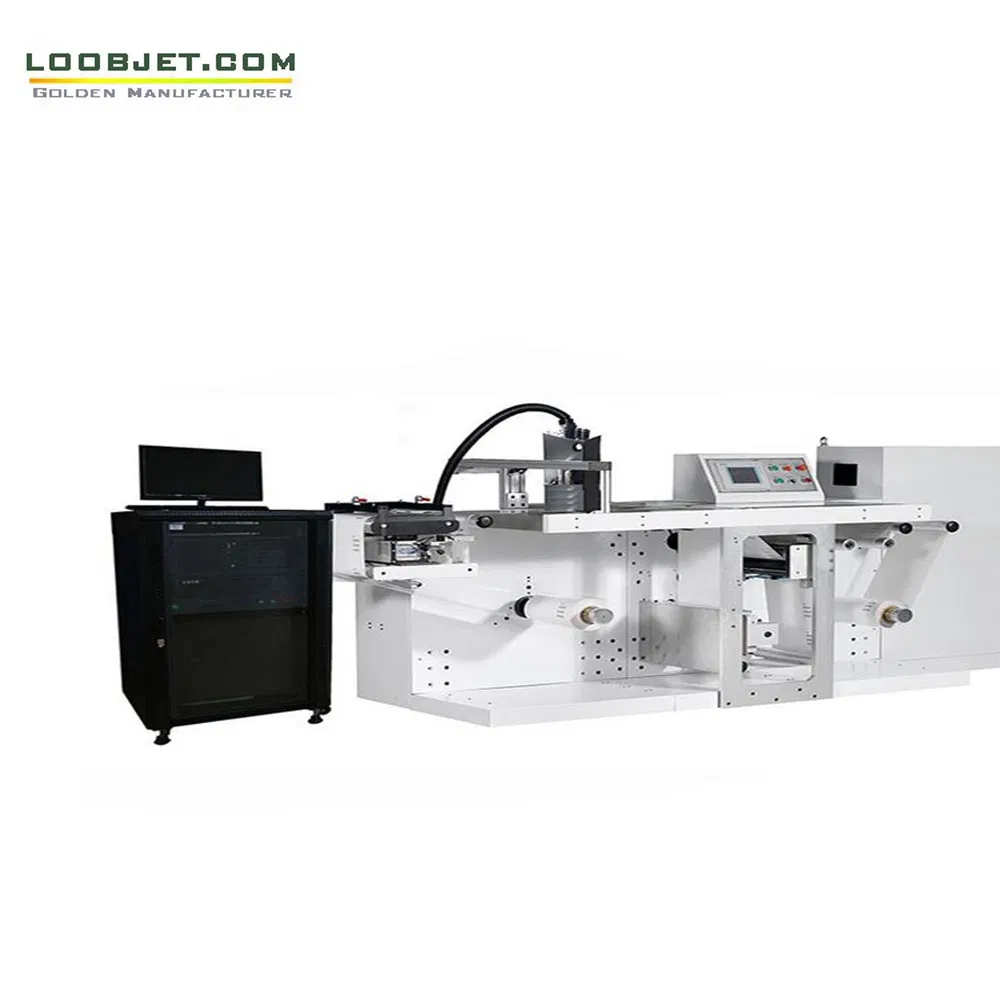

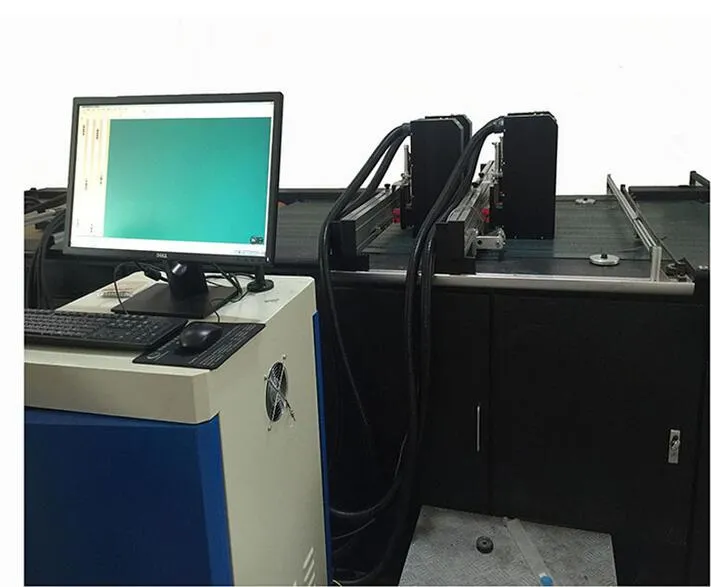

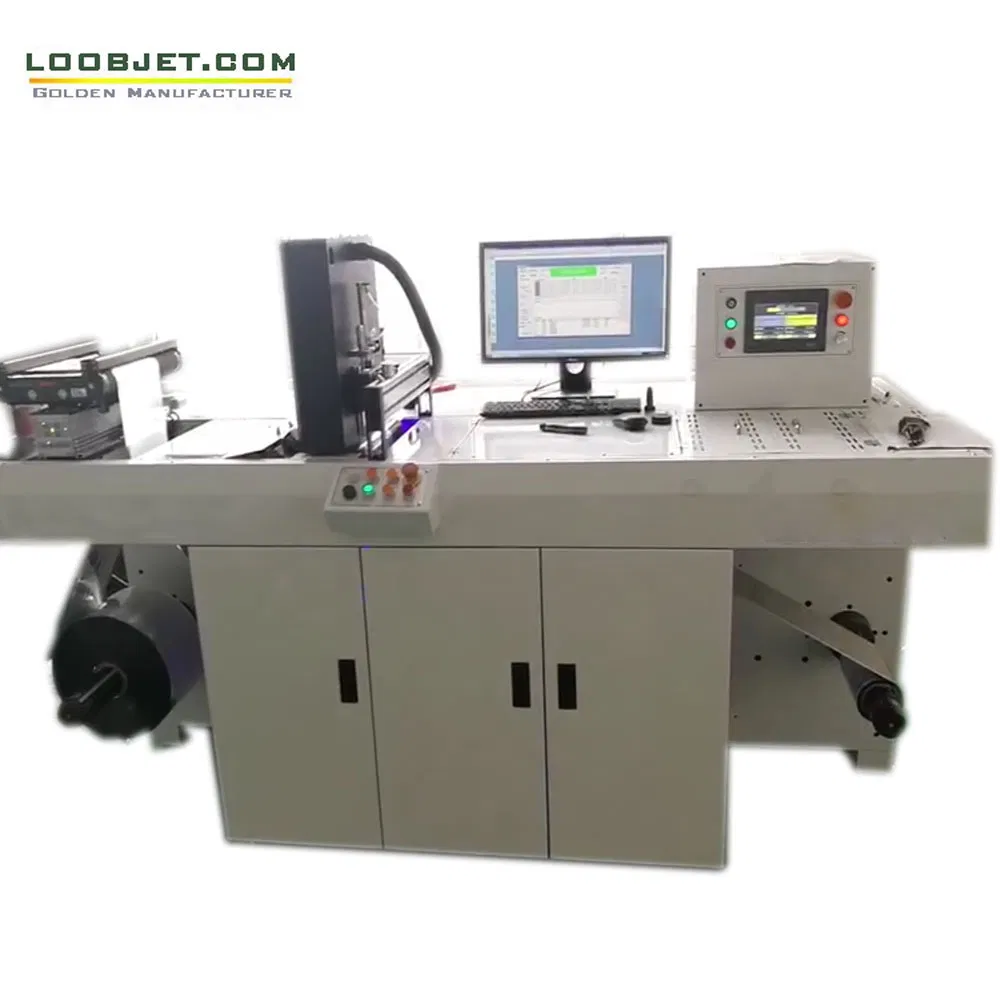

Product Description: UV Inkjet Printer Label Press
Introduction
The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for applications such as mailings, barcodes, bills, checks, packages, and marking. This system is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems.
Technical Details
- Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle.
- Nozzle Lifespan: More than 3 years (10 billion printing times).
- Print Width: Single nozzle 54/72/108 mm (expandable up to 24 groups with seamless joint).
- Resolution: 600 DPI physics printing precision.
- Speed: Linear speed of 70 ~ 180 m/min.
- Inks: Imported environmentally friendly UV or water-based inks.
- Materials: Suitable for paper, plastics, PVC/PP/PE film, and more.
Software Features
Printer Control Software (PCS): Designed for scanning inkjet printing, offering a user-friendly interface to monitor status, set jetting waveforms, and control temperatures for each print head. Features include database checking, DPI settings, and motor speed control.
Variable Data Printing: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.

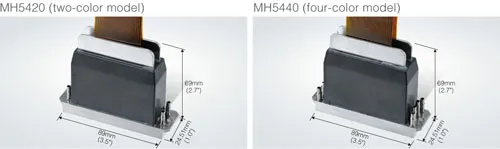

Print Head Specifications
| Specification |
Detail |
Specification |
Detail |
| Print Head |
Ricoh GN5 / Konica 1024i / KY |
Resolution |
600×600, 400, 300, 200 dpi |
| Single Head Width |
54.0mm / 72.0mm / 108mm |
Max Width |
Up to 24 Seamless Joints |
| Printing Speed |
Up to 180m/min (600x200dpi) |
Method |
Piezoelectric Ink-jet |
| Inks |
Original SGS UV Inks |
Drop Size |
5-21PL |
| System |
Windows 7 |
Port |
Gigabit Ethernet |
| Barcodes |
QR, DATAMATRIX, PDF417, CODE128, etc. |
Files Format |
MS Excel, TXT, PDF, BMP |
Frequently Asked Questions
1. What types of print heads are available for this system?
The system supports industrial piezoelectric nozzles including Ricoh GEN5 (54mm), Konica 1024i (72mm), and Kyocera (108mm) based on your specific requirements.
2. What is the maximum printing speed of the UV inkjet printer?
The linear printing speed ranges from 70 to 180 m/min, depending on the resolution settings (e.g., 180m/min at 600×200dpi).
3. Which materials are compatible with this printing system?
It is suitable for a wide variety of substrates including all kinds of paper, plastics, and PVC/PP/PE films.
4. Does the software support variable data printing?
Yes, the software supports variable data such as text, barcodes, QR codes, serial numbers, and database images from CSV, Excel, and PDF files.
5. What is the expected lifespan of the print nozzles?
Under normal operating conditions, the industrial piezoelectric nozzles have a lifespan of more than 3 years or approximately 10 billion printing times.
6. Can multiple print heads be combined for wider printing?
Yes, the modular design allows for 1 to 24 groups of print heads to be extended with seamless joints to achieve the required printing breadth.
