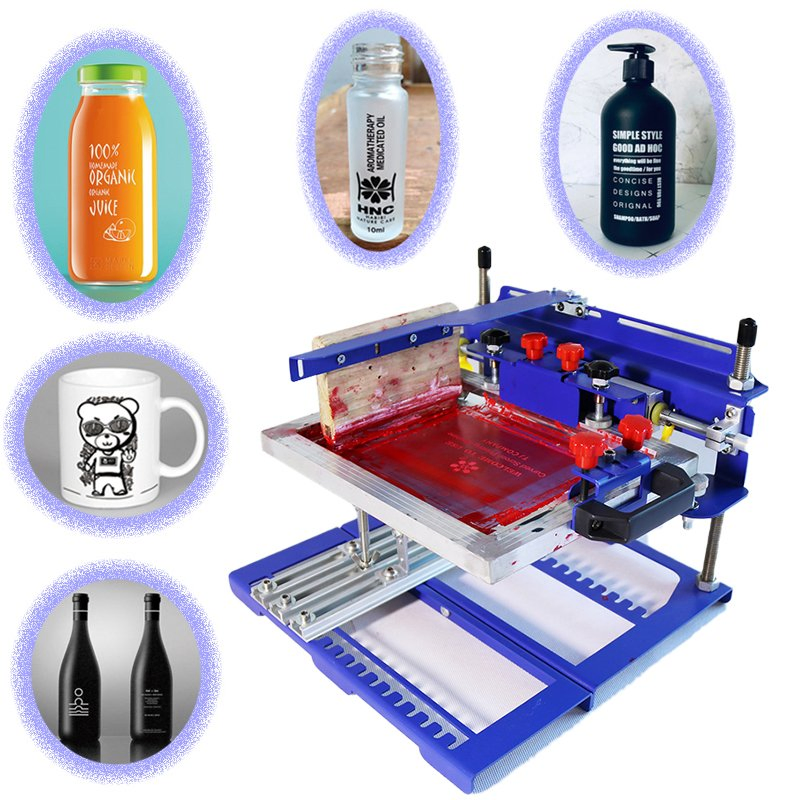

The machine is mainly used for printing cylindrical type and cone type products; Such as a variety of plastic, glass, metal materials made of cylindrical, conical shape products, including wine bottles, medicine bottles, cosmetics bottles and other packaging bottles; Mugs, thermos mugs, beer mugs, red mugs, etc. Glass tube, pen, ballpoint pen, fishing rod, bat and other small cylindrical products.
This curved screen printing machine is mainly used for the printing of cylindrical and conical products with the diameter below 170 mm. Please note: For products with large concave or convex surfaces, spots, or non-plane surfaces, this machine is not suitable.
Technical Data
Product Code
006591
Product Name

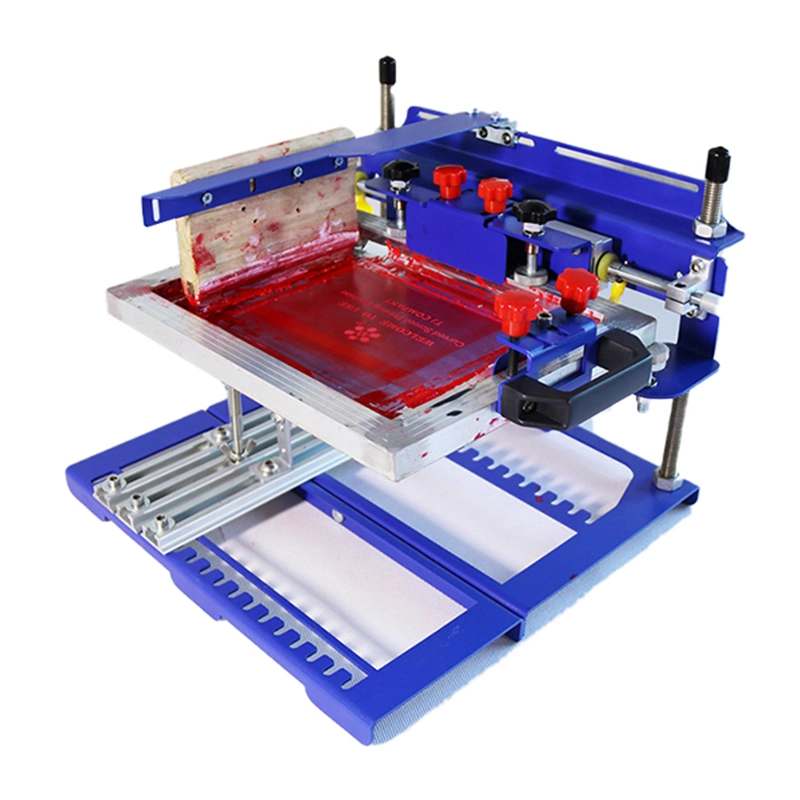

MK-QMH170A type curved screen printing machine
Packing Volume
0.01m³
Packing Material
Export carton
Product Features
1

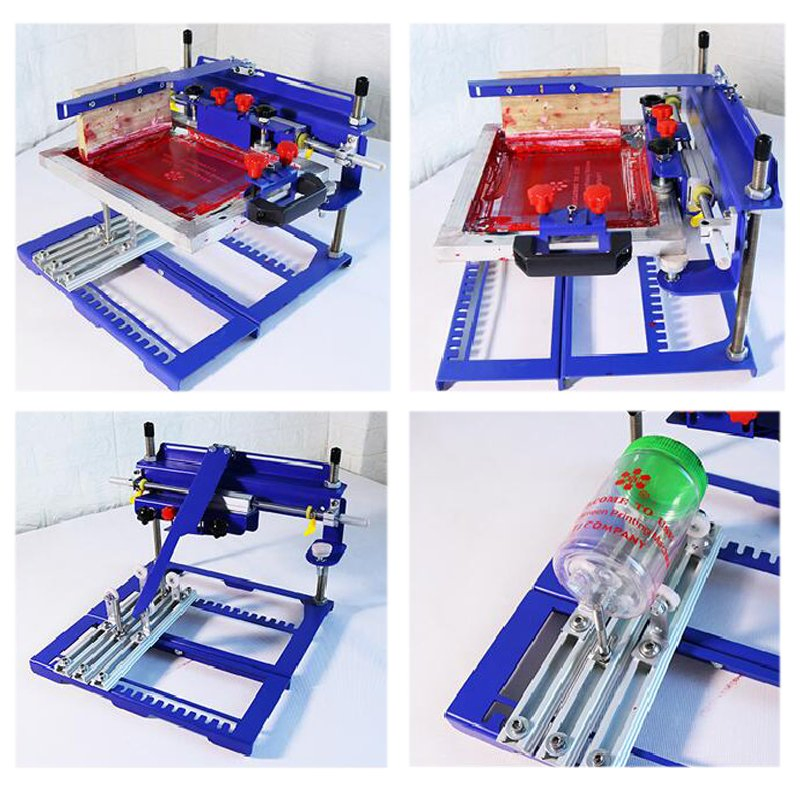

Adopts front and rear push-pull structure. Suitable for patterns width < 200mm, length < 250mm. Fits screen plates under 280*450mm and thickness < 40mm.
2

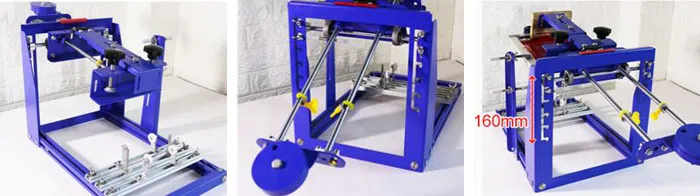

Height adjustable via the rear main frame (160mm range) to accommodate various substrate heights.
3

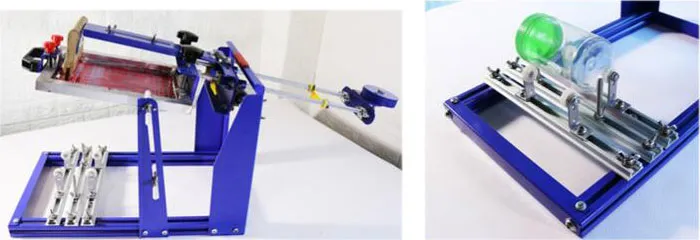

Substrate rack moves left/right and front/rear (300mm range). Aluminum bars are adjustable for precise placement.
4

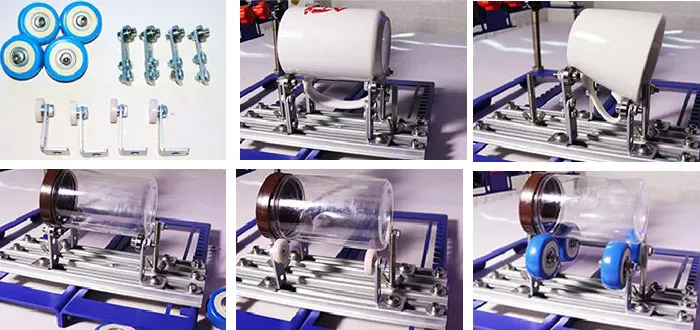

Includes three sets of rollers: Metal (19mm), Nylon (25mm), and Plastic (50mm). Adjustable for conical products with a 20mm vertical range.
5

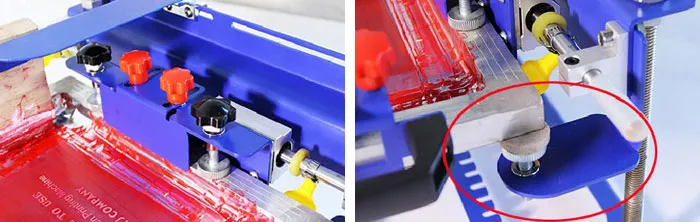

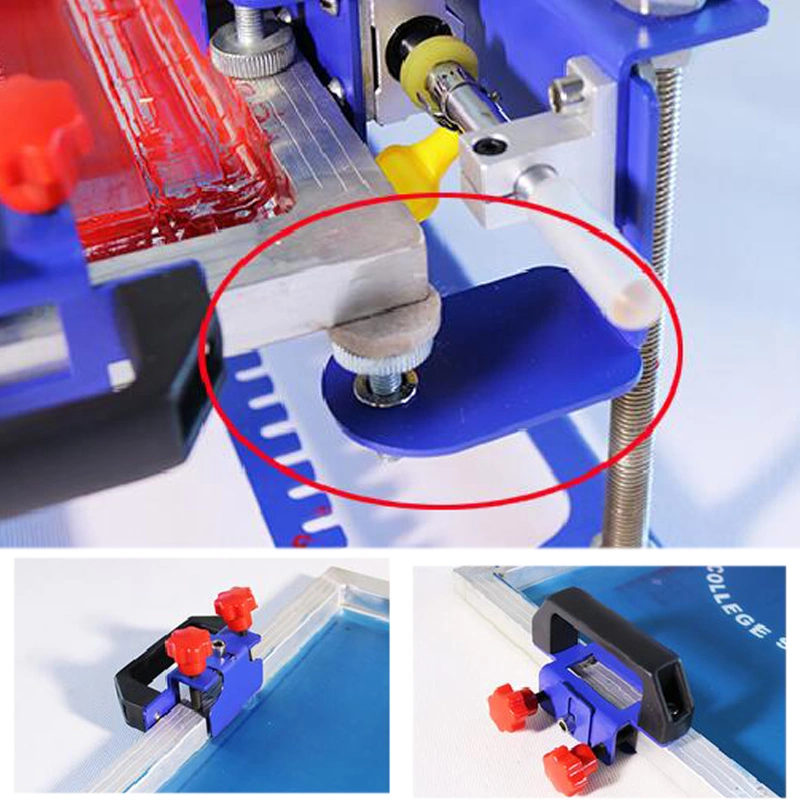

Special handle for the screen frame can be installed on top or side. Fits mesh frames within 40mm thickness.
6

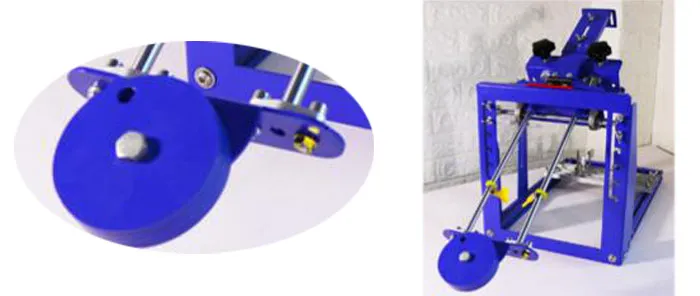

Gravity plate system automatically lifts the screen plate after printing. Two adjustable plates for perfect balance.
7

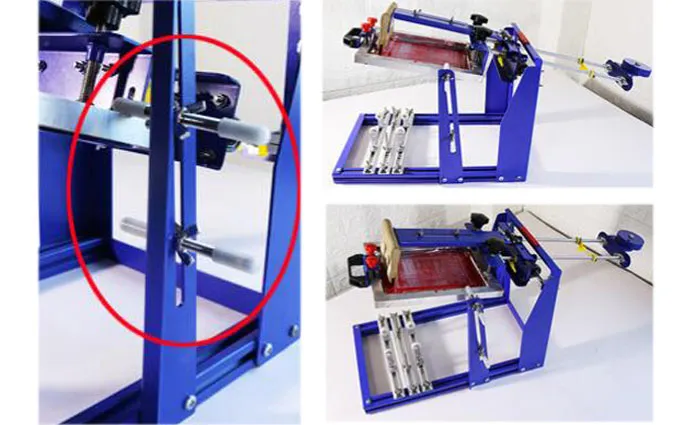

Upper and lower support frames control the angle and height to prevent damage and ensure parallel screen placement.
8

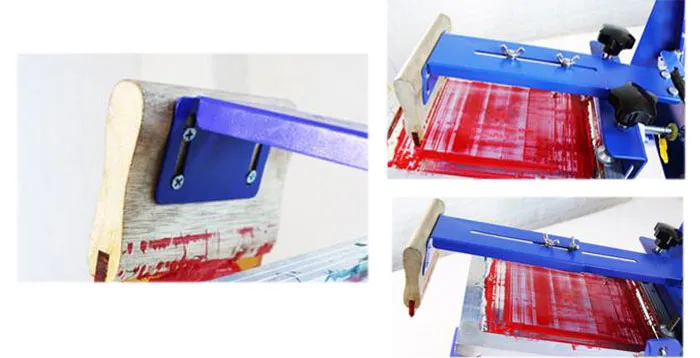

Squeegee rack compatible with wooden handle scrapers (< 200mm). Movable up to 250mm based on pattern position.
9

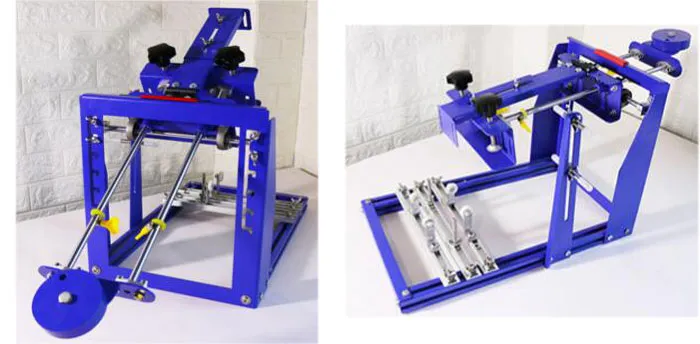

Precision positioning via optical shafts with positioning rings and anti-impact rubber rings for quiet, protected operation.

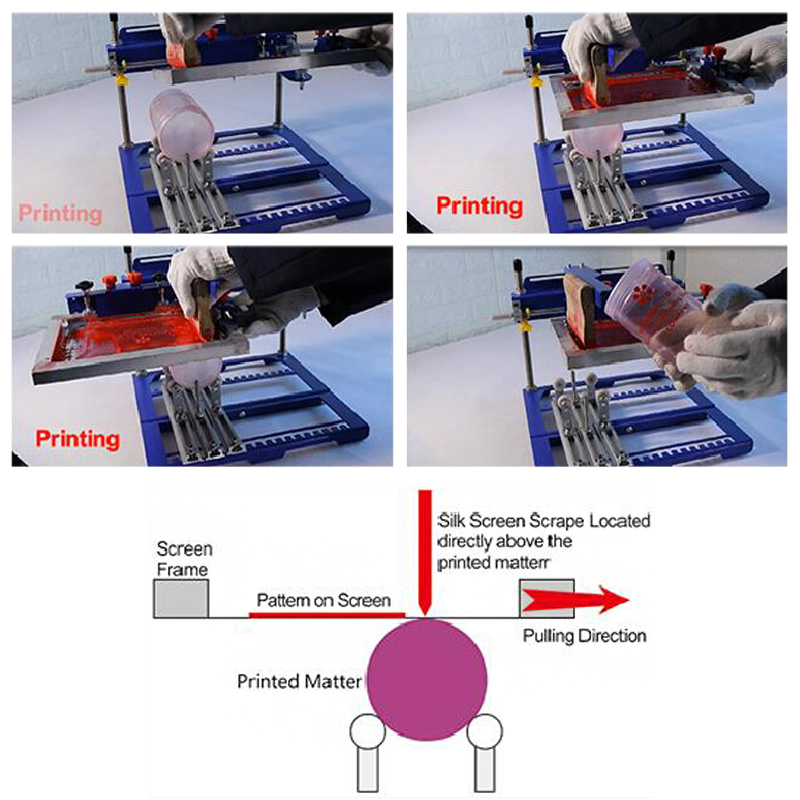

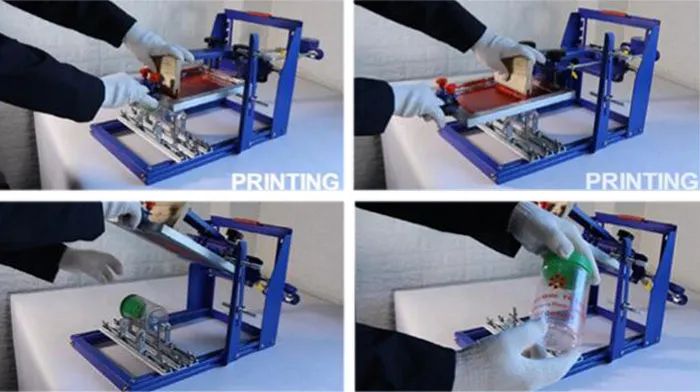

Usage Instructions
Install screen plate and adjust support seat level; fix pull handle.
Install scraper 1-2 cm from the pattern.
Adjust substrate frame/rollers; keep 1-3 mm gap between substrate top and screen.
Adjust positioning knobs based on pattern dimensions.
Add ink to the screen frame.
Press scraper and pull the handle to print.

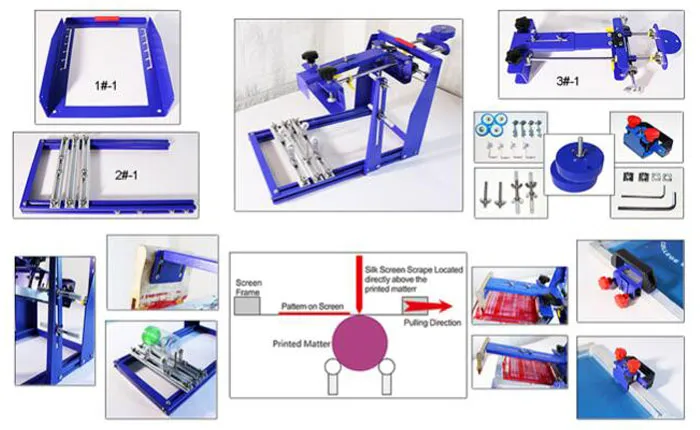

Product Assembly
Note: During installation, do not fully tighten screws until all parts are aligned and the machine is fully adjusted.
Frequently Asked Questions
What is the maximum printing diameter for this machine?
The machine is specifically designed for cylindrical and conical products with a diameter of up to 170 mm.
What materials can I print on?
It is suitable for a wide range of materials including plastic, glass, and metal, commonly used for wine bottles, cosmetics, and mugs.
Can it handle conical shapes like beer mugs?
Yes, the machine includes adjustable mounting frames and specific rollers designed to accommodate conical products.
Does the machine automatically lift the screen?
Yes, it features a gravity plate system at the rear that automatically lifts the screen plate after the printing stroke is completed.
Is it compatible with different screen sizes?
The machine fits all standard screen plates with an outer diameter less than 280*450mm and a thickness under 40mm.
How do I adjust for different substrate heights?
The vertical position is adjusted via the rear main frame, offering a movement range of 160 mm to match your substrate height.
