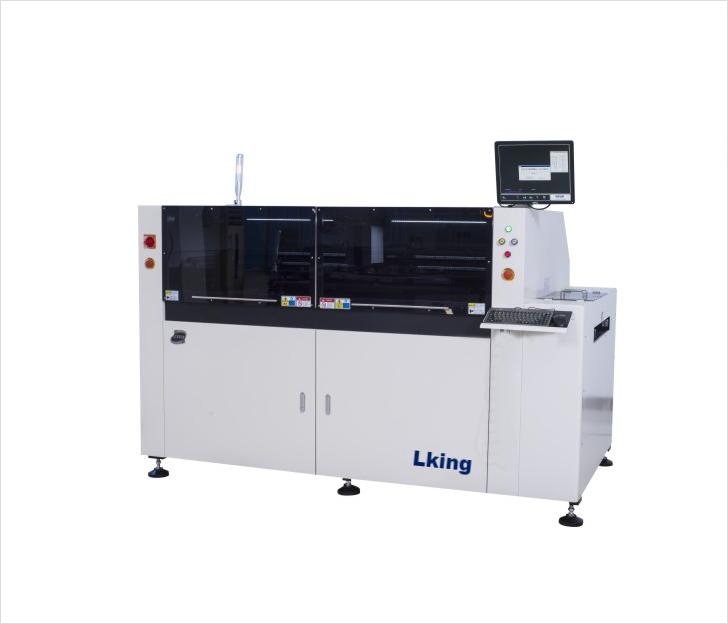

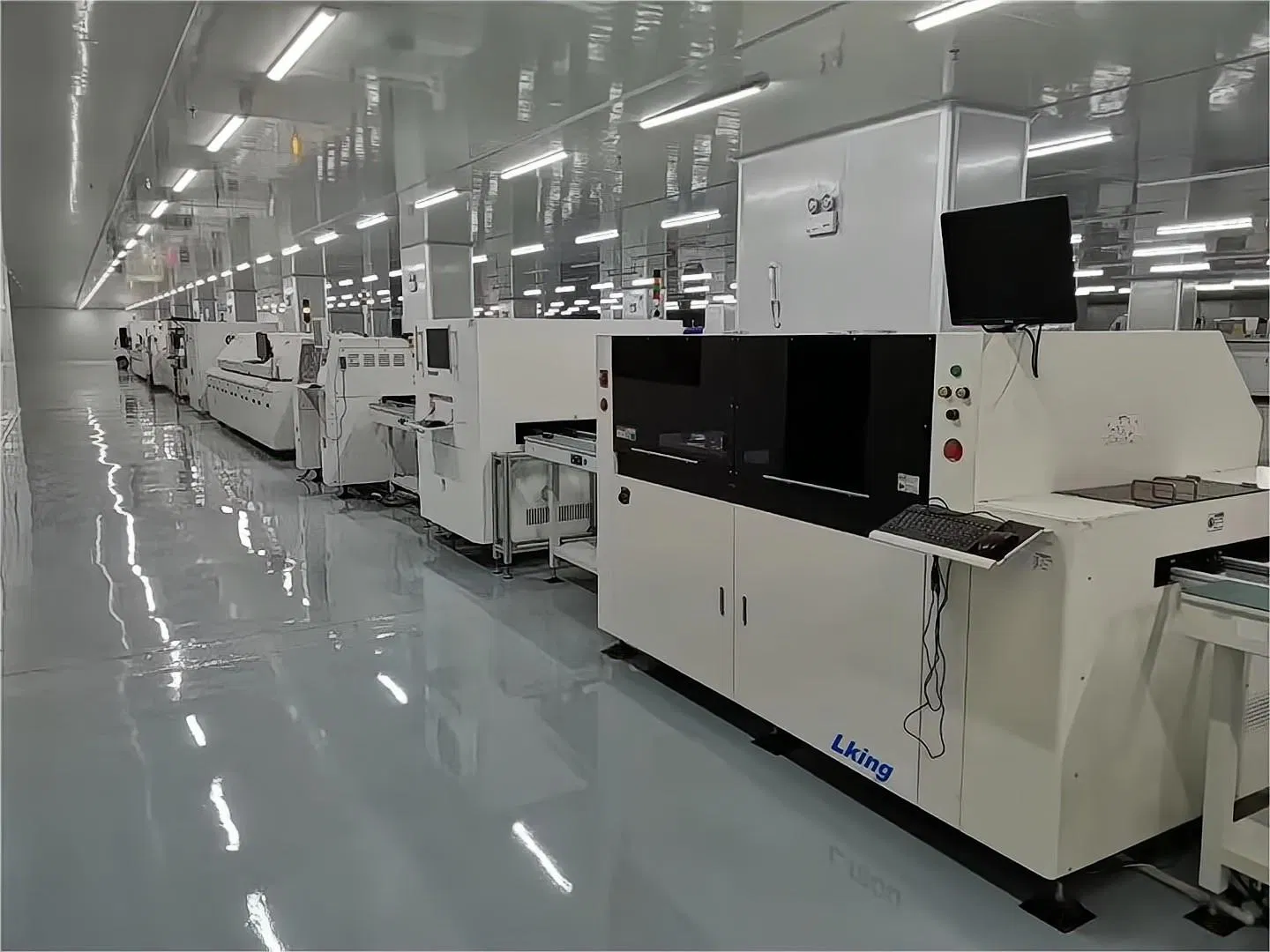

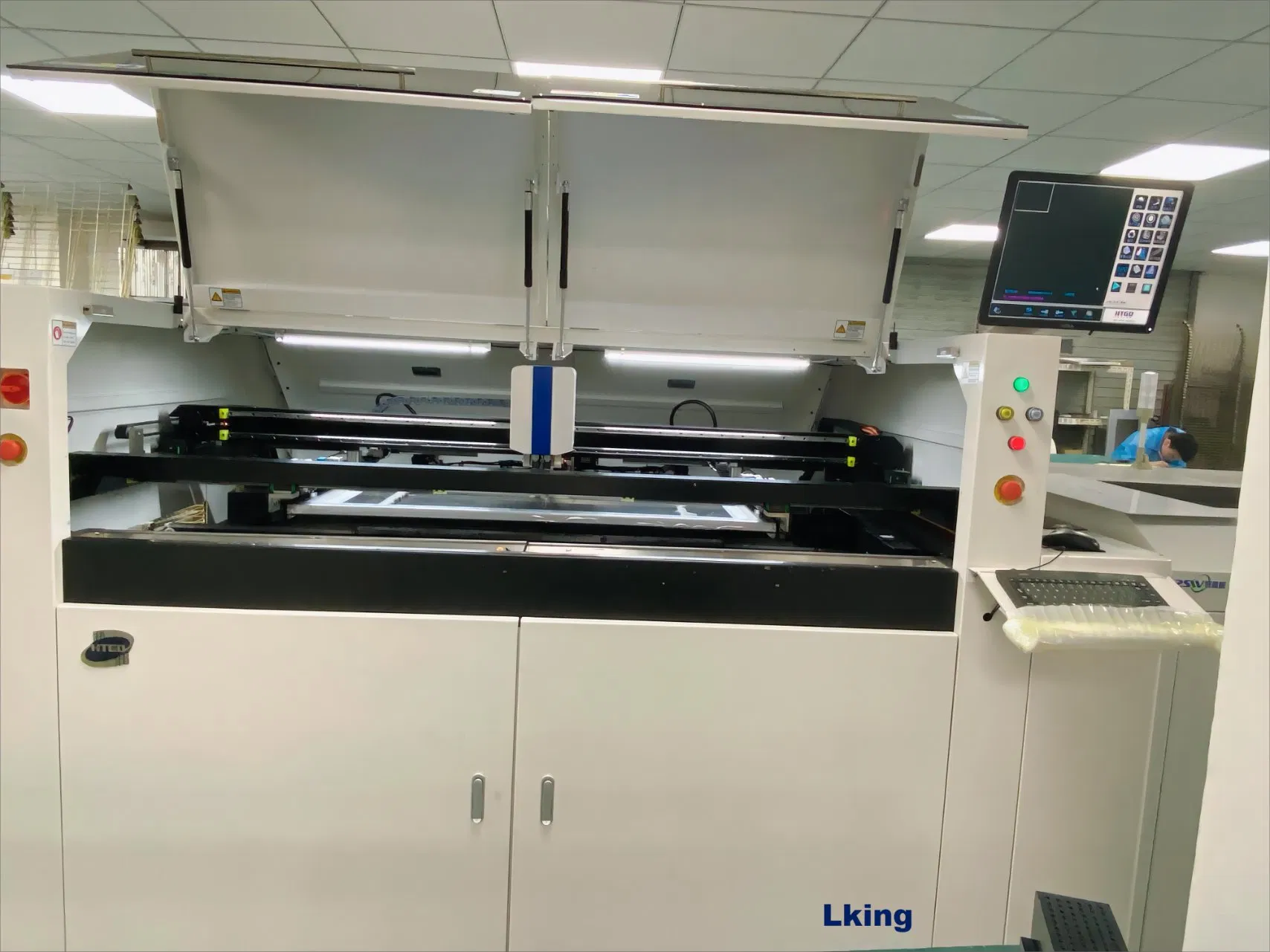

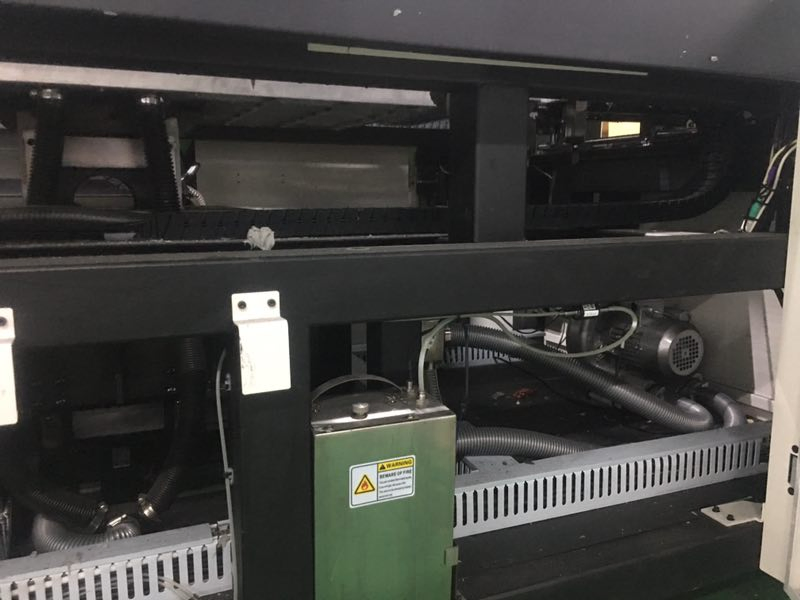

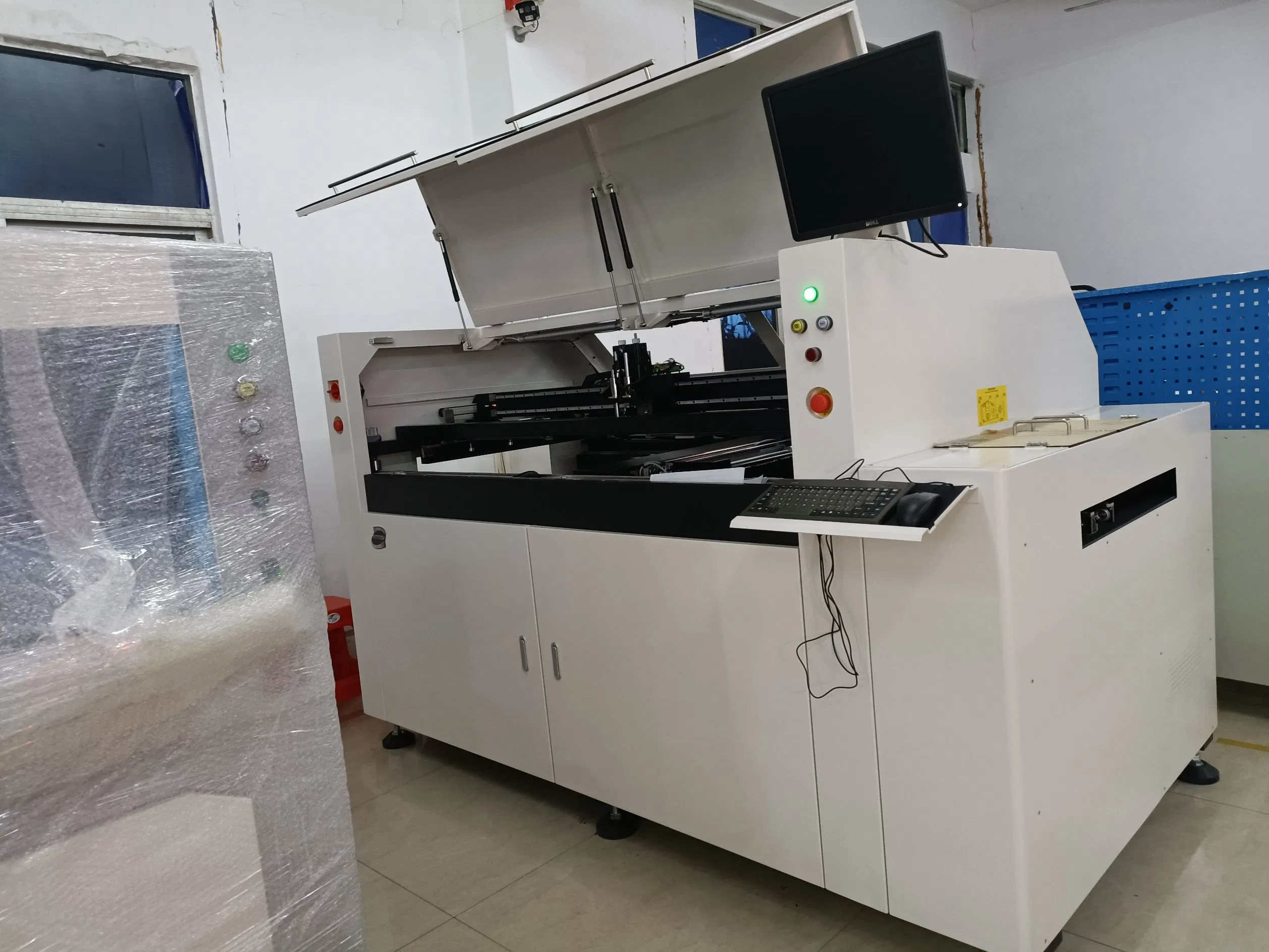

Professional PCB Solder Paste Printing Machine for Long Circuit Boards
| PCB Parameters | |
|---|---|
| Maximum Board Size (X x Y) | 1500mm x 500mm |
| Minimum Board Size (X x Y) | 80mm x 50mm |
| PCB Thickness | 0.8mm~6mm |
| Transfer Speed | 1200mm/s (Max) |
| Transfer Mode | One stage orbit |
| Printing Parameters | |
|---|---|
| Printing Head | Suspended intelligent closed loop (Linear motor) |
| Template Frame Size | 737mm x 370mm ~ 1800mm x 737mm |
| Squeegee Speed | 0 ~ 200 mm/s |
| Printing Pressure | 0.5kg - 10Kg |
| Repetition Precision | ±30.0 micron @6 σ |

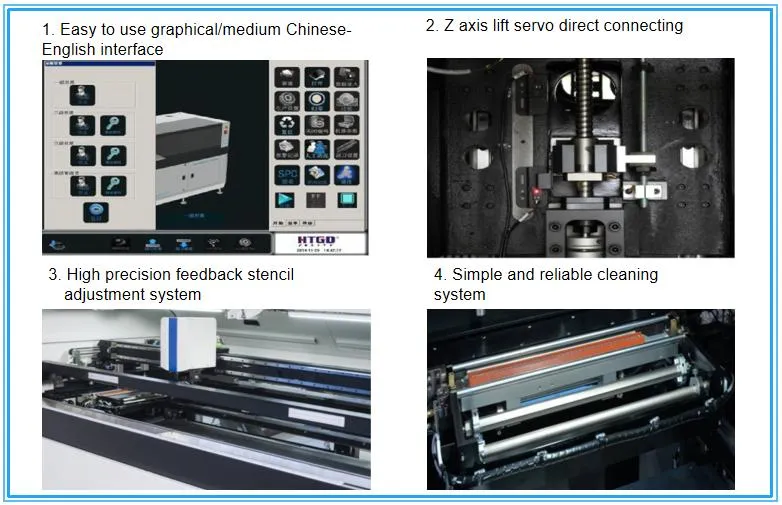

Graphical man-machine interface with Chinese-English switching. Features program file navigation, fault self-diagnosis, and failure analysis tips.
Servo direct connecting device ensures high precision, high speed, and stripping stability during the process.
Three cleaning methods: Dry, Wet, and Vacuum. User-definable parameters for cleaning period, time, and speed with soft wear-resistant rubber wipe boards.

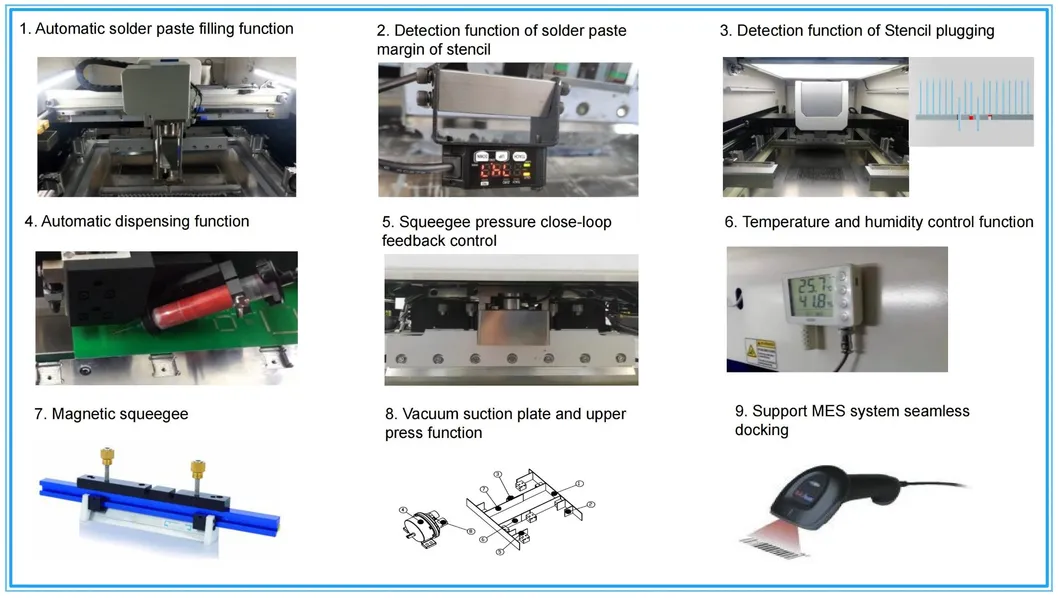

Ensures stable quality and continuous printing by automatically adding paste based on real-time monitoring.
Closed-loop control with digital sensors to maintain constant pressure and perfect printing for high-density devices.
Supports seamless integration with MES systems for quality traceability and scientific production management.
Forms a closed-loop system with SPI to automatically adjust offsets and improve printing quality.
Technical Support: One year free warranty and lifelong maintenance. We provide software upgrades and technical training based on requirements.

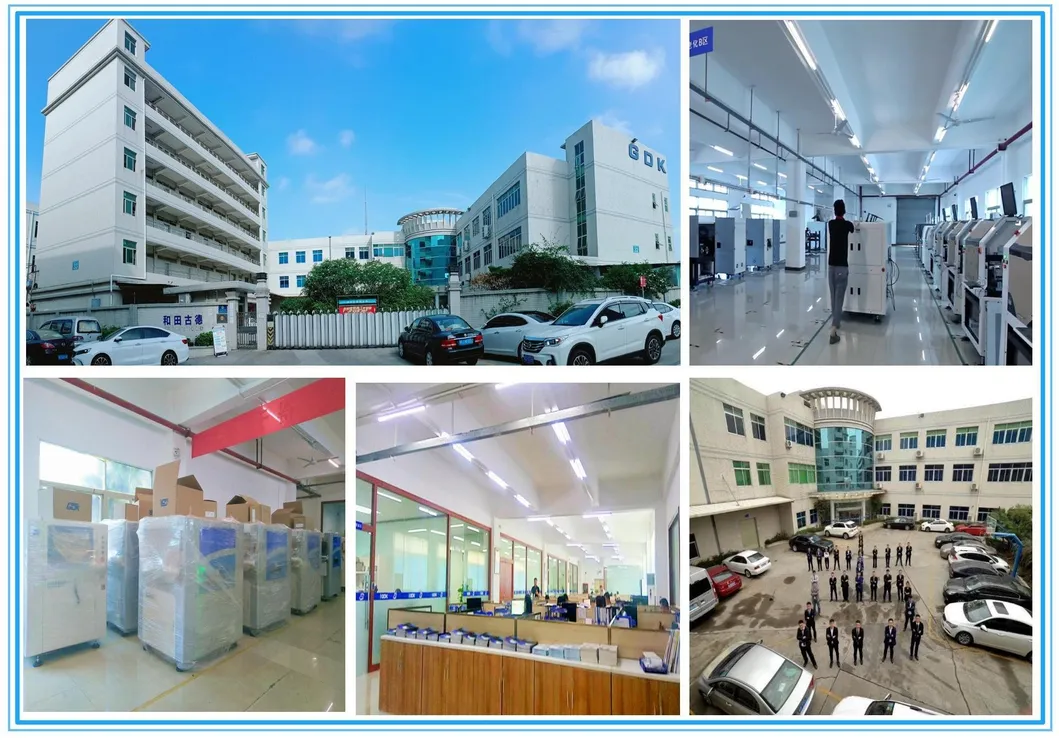

Packing: Vacuum and wooden box packaging for maximum protection during transport.
