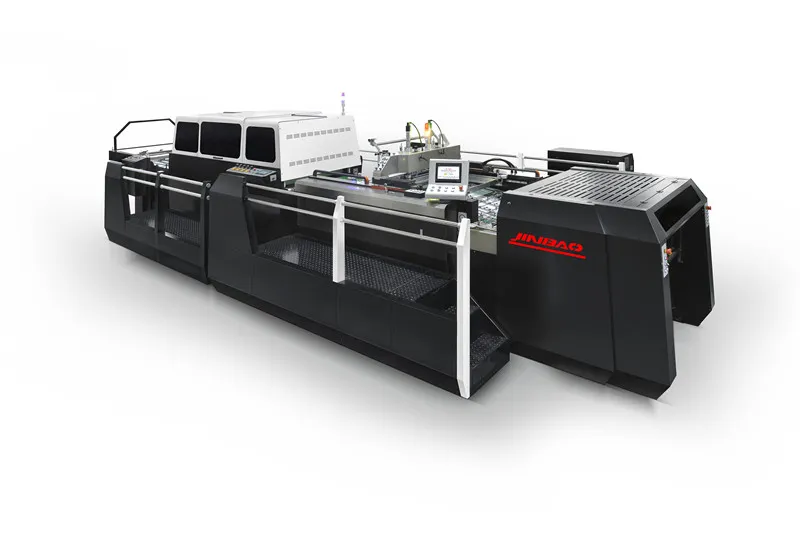

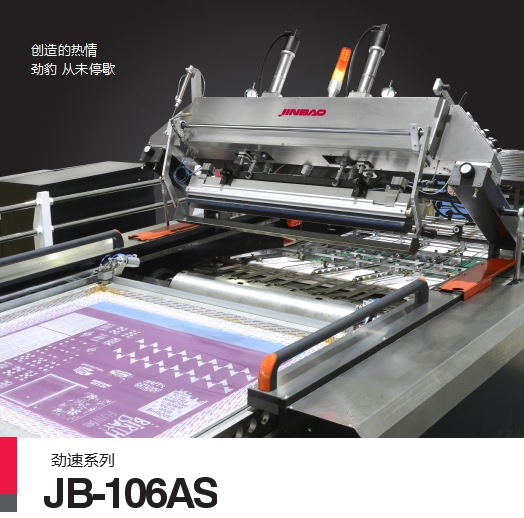

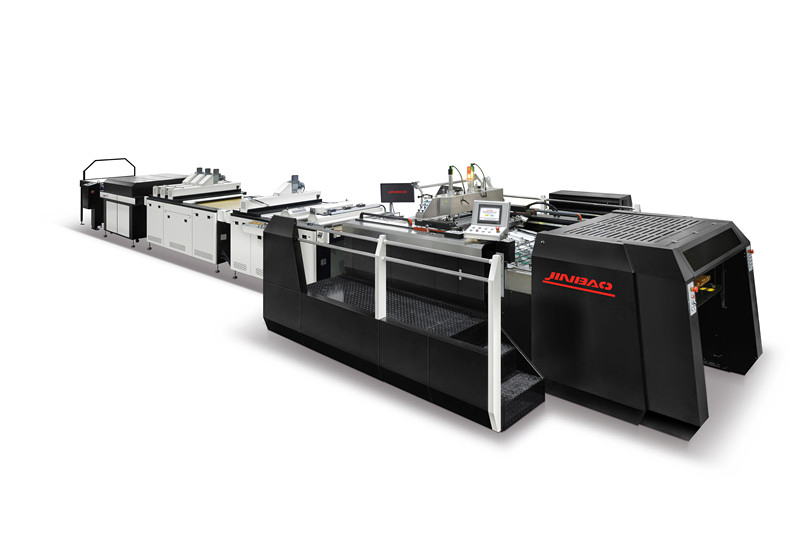

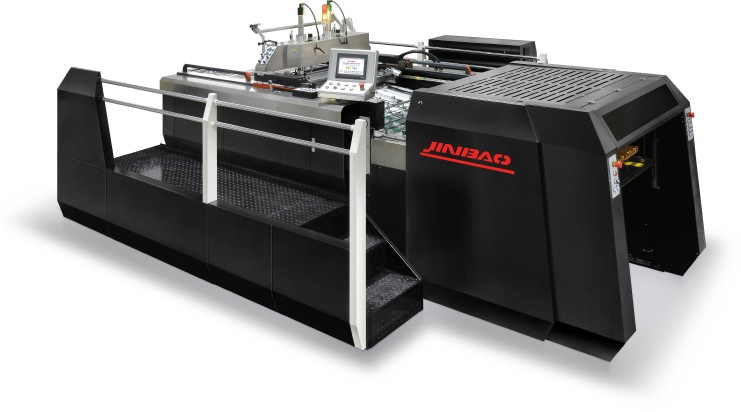

JB-106AS Servo Motor Controlled Automatic Stop Cylinder Screen Press
It is a new type of intelligent screen printing machine independently developed and designed with completely independent intellectual property rights. It has three invention patents and five utility model patents. The speed of full-size printing can be up to 5000 pieces / hour under the requirement of ensuring the quality of printing products. For example, the speed of personalized product printing can be up to 6000 pieces / hour. It is the best choice for paper and plastic packaging, ceramic and cellophane, textile transfer, metal signs, plastic film switches, electronic and electrical components and other industries.
| Model | JB-106AS |
| Max.sheet size | 1060×750mm² |
| Min.sheet size | 560×350mm² |
| Max.printing size | 1050×750mm² |
| Frame size | 1300×1170 mm² |
| Thickness of sheet | 90-500 g/m² |
| Border | ≤10mm |
| Printing speed | 800-5000 sheet/h |
| Installation power | 3P 380V 50Hz 24.3 Kw |
| Total weight | 4600KGS |
| Overall size | 4850×4220×2050 mm |

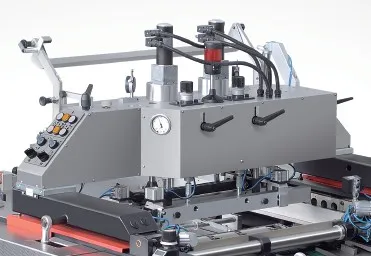

Heavy duty precision squeegee system, comprehensive use of electronic, pneumatic, hydraulic, mechanical, optical fiber and other advanced technology, can be preset pressure of squeegee, squeegee down position; squeegee pressure keep constant after confirmed, ensure to precise control the printing ink layer thickness and ensure the printing quality is perfect.

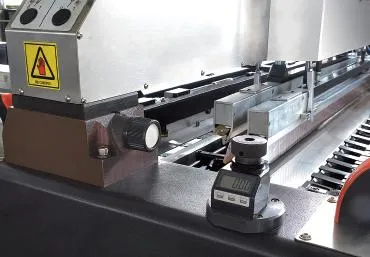

Automatic compensation for printing length contraction and extension. Automatic compensation for the substrate length change caused by former printing process.

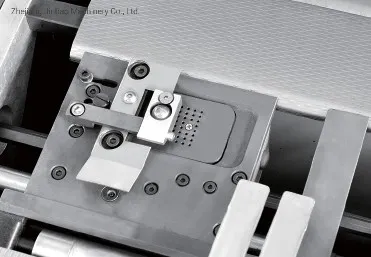

Vacuum side pull type side-lay will not cause the graphic side print damaged or dirty; variable pull & push side-lay allows accurate positioning with a long stroke and fast adjustment. Photoelectric detection system for real-time monitoring of the printed substrate ensures positioning and reduces waste rate. The micro suction board design avoids damage to double-side printed substrates often caused by traditional ball-type side-lays.

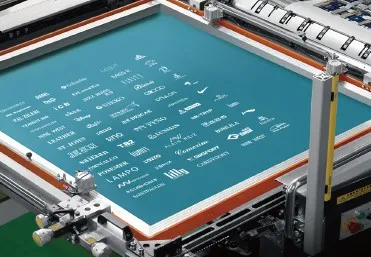

Screen frame can break away from the transmission part and be pulled out for easy adjustment of registration and feeding. It is much safer and faster for cleaning the cylinder and screen. Opto sensors automatic detection system ensures reliability and avoids rack breakage or damage to the main drive.
