Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
1 / 5
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine
Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine

Semi Automatic Screen Printing Machine SMT Line Equipment Semi-Auto LED PCB Screen Printing Machine

Customization: Available
After-sales Service: Online
Warranty: 1 Year
Send Inquiry

Product Description

🔹 Basic Specification Overview
Model NO.
SD-5088
Type
Semi-Auto Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Printed Circuit
Transport Package
Wooden Case
Dimensions
860*780*1650mm
HS Code
8486209000
Capacity
10000 units

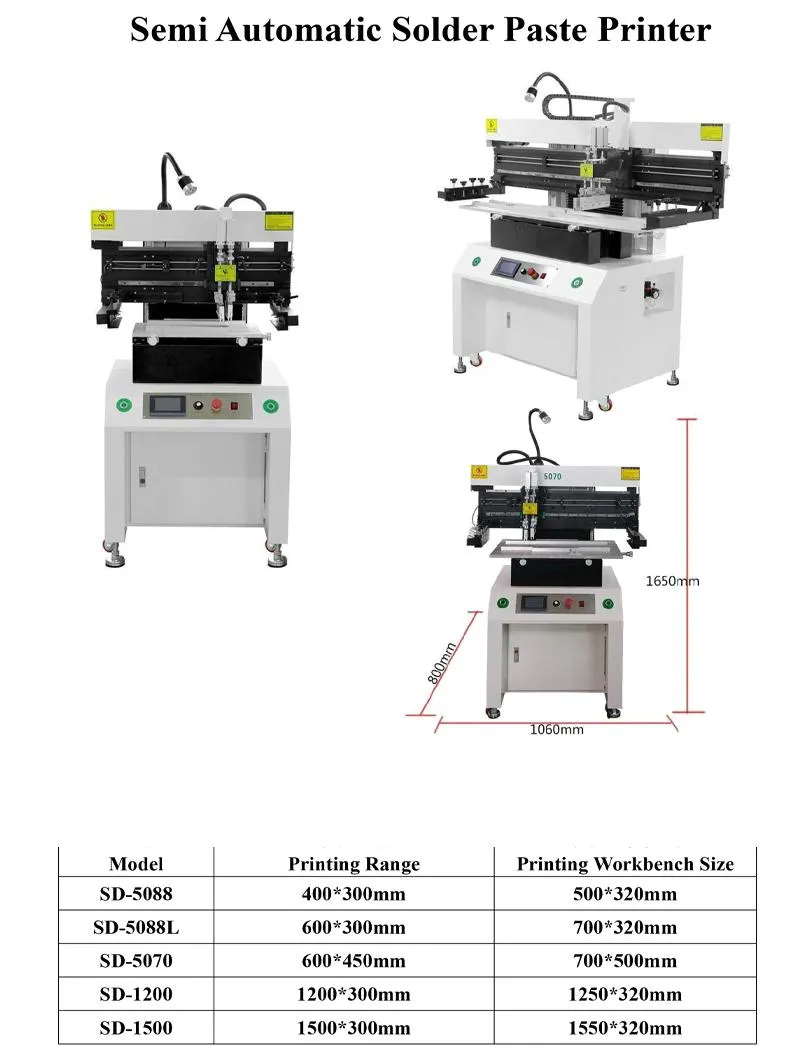

SMT Solder Paste Printing Machine
🚀 5088 SMT Solder Paste Printing Machine

Key Features:

  • Microcomputer control with touch screen display and intuitive menu interface.
  • Floating blade system (similar to automatic MPM) allowing free vertical movement and automatic leveling with the stencil.
  • Adjustable scraper pressure corresponding to different scraper lengths and types.
  • Equipped with a frequency converter speed regulation system for stable scraper operation.
  • Two-hand button switch operation for maximum safety and reliability.
  • Independent stencil pause time settings available via the touch screen menu.
  • Versatile PCB positioning: reference hole, reference edge, or simultaneous positioning.
  • Advanced touch screen features including time display, automatic printing count, and screen protection.
  • Emergency stop safety function and adjustable scraper speeds.
  • Multiple printing modes: Single, double, and secondary startup options.
  • Adjustable working states: Automatic, semi-automatic, and inching modes.
  • Heavy-duty cast-iron bench ensuring smooth operation without vibration.
📊 Technical Parameters
Direction of MovementMove left and rightWorkbench Size500*320mm
Power SupplySingle phase 220VAir Supply0.5-0.8mpa
Starting Power0.2KWWeightAbout 150KG
Printing Range400*320mmMoving MotorThree-phase motor 60W
Moving Speed0-2200mm/minRail TypeLinear guide
Control SystemSiemens PLCDisplay4.3" touch control screen
Main CylinderSC63*150Frequency ConverterENC
🖼️ Product Description & Details

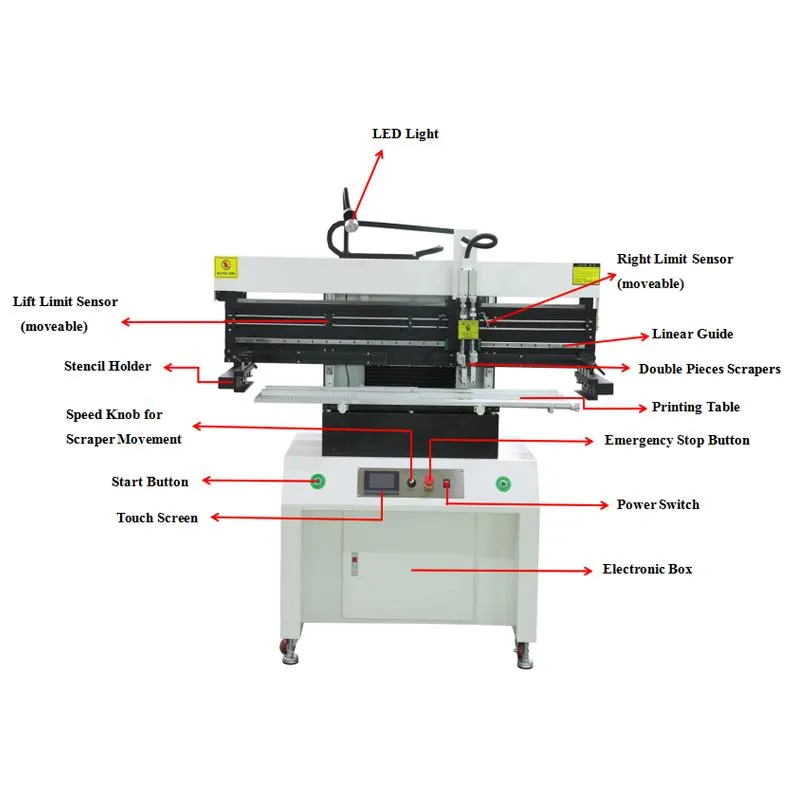

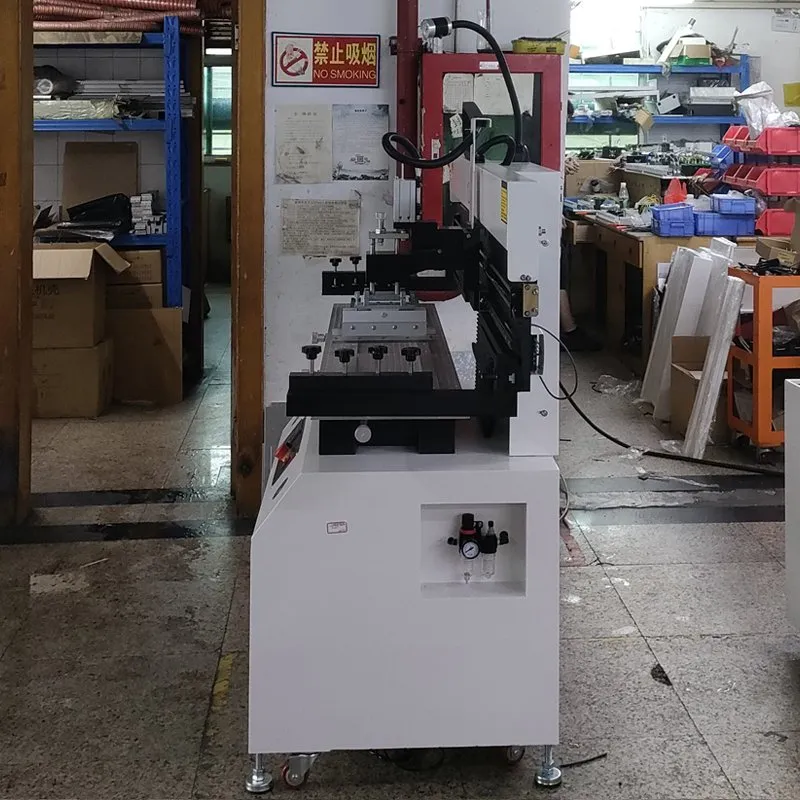

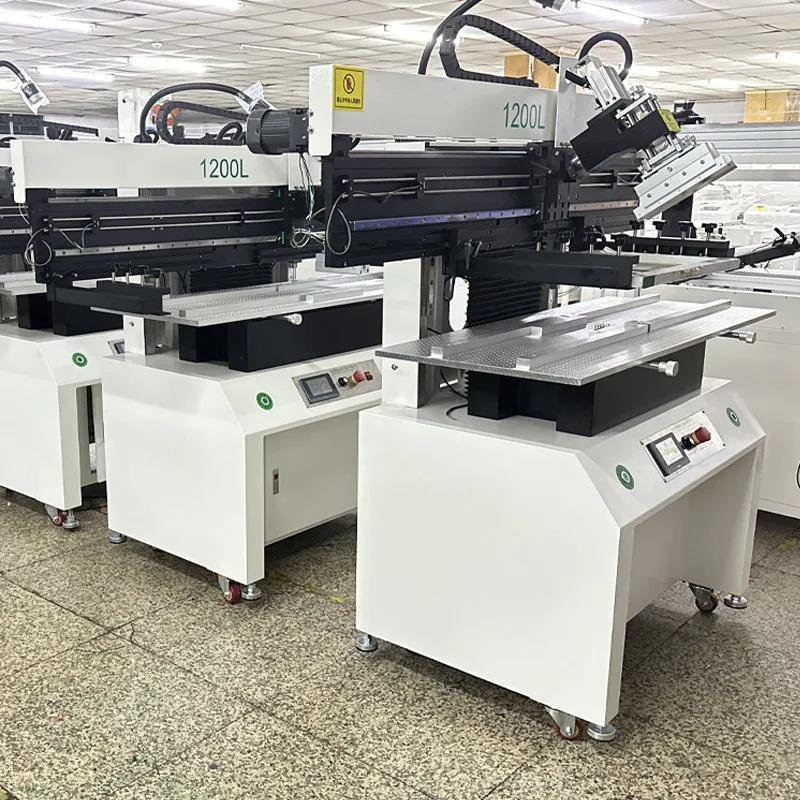

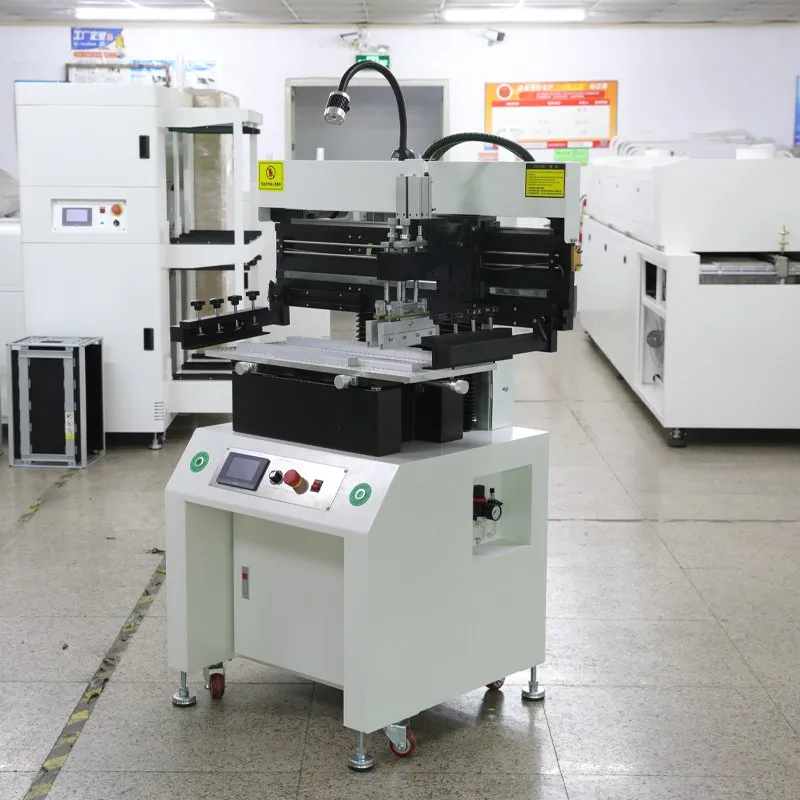

Machine Detail 1 Machine Detail 2 Machine Detail 3
Machine Detail 4 Machine Detail 5 Machine Detail 6
🛠️ Maintenance and Repair Guidance

(1) Temperature Control

Machines are sensitive to high-temperature environments. Ensure proper ventilation to prevent mechanical failures and maintain consistent production quality.

(2) Voltage Stability

Inconsistent voltage or aging lines can lead to display instability or motor failure. Ensure the power capacity is sufficient to avoid burning out electrical components.

(3) Professional Care

Regular maintenance by electrical professionals is recommended. Daily inspections and regular cleaning will significantly extend the equipment life.

Process 1 Process 2 Process 3
❓ Frequently Asked Questions
Is this machine easy to operate for first-time users?
Yes, the machine comes with a comprehensive English manual and guidance videos. The touch screen interface is designed for intuitive menu-driven operation.
What happens if the machine encounters a problem?
Free replacement parts are provided during the warranty period. Shipping costs are covered for parts under 0.5kg. Technical support is available to diagnose issues remotely.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. We also welcome mixed orders for different SMT line equipment.
How is the quality check performed before shipping?
Every machine undergoes a 100% quality inspection and test run before being packed in a secure wooden case for air or sea transport.
What are the positioning methods for the PCB?
The machine supports reference hole positioning, reference edge positioning, and simultaneous multi-point template positioning for maximum precision.
What is the standard lead time and purchasing process?
The process involves technical consultation, price confirmation, proforma invoice issuance, payment, and final shipment. We offer flexible terms for global customers.
