| Model NO. | HA-4A |
| Type | Rotary Screen Printing Machine |
| Style | Screen-process Printing Press |
| Structure | Flat-bed cylinder press |
| Application | Cylindrical Objects (Toys, Cosmetics, Industrial Products, Pens, etc.) |
| Drive System | Pneumatic |
| Printing Cycle Speed | 960 Cycles/Hr |
| Voltage | 110V/220V 50/60Hz |
| Transport Package | Wooden Carton |

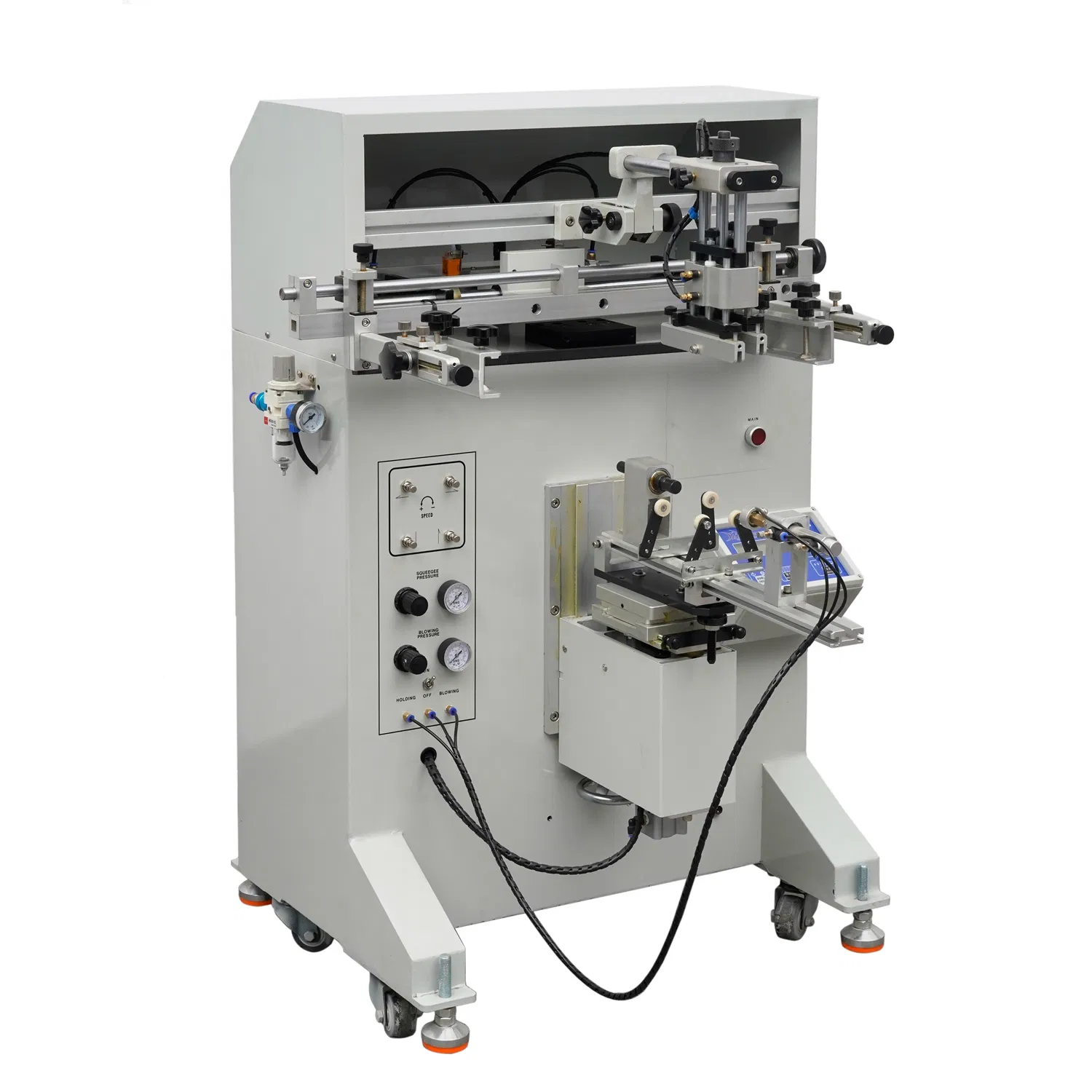

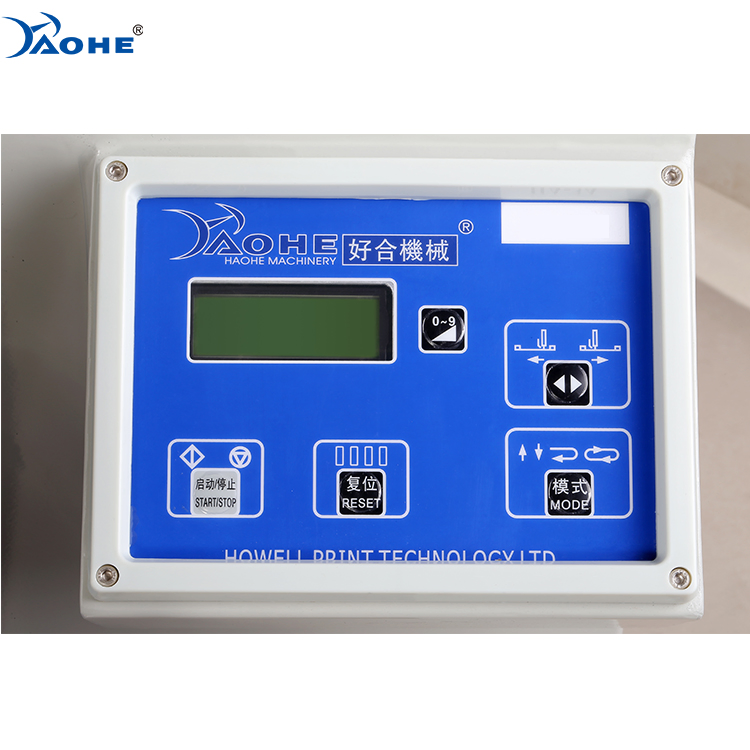

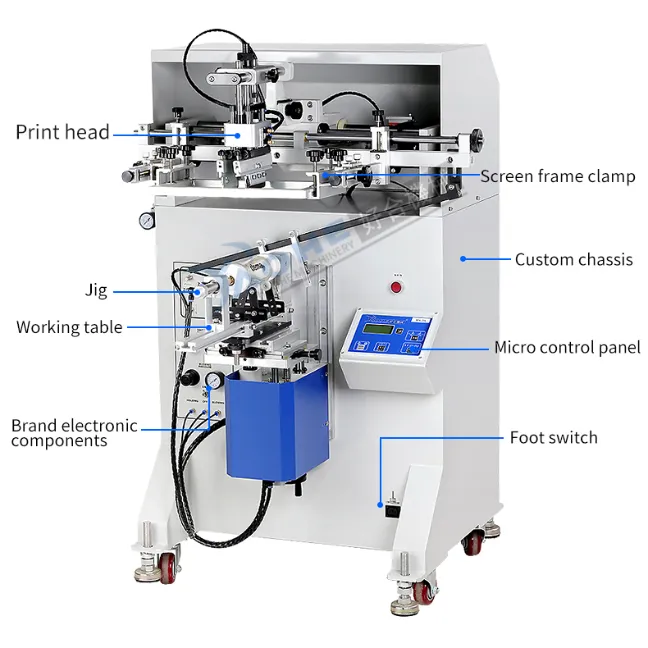

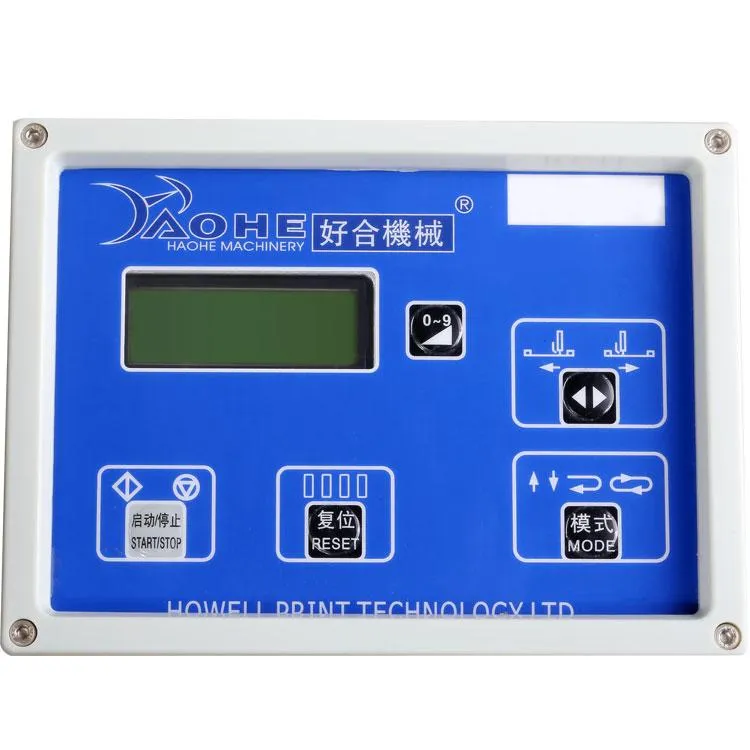

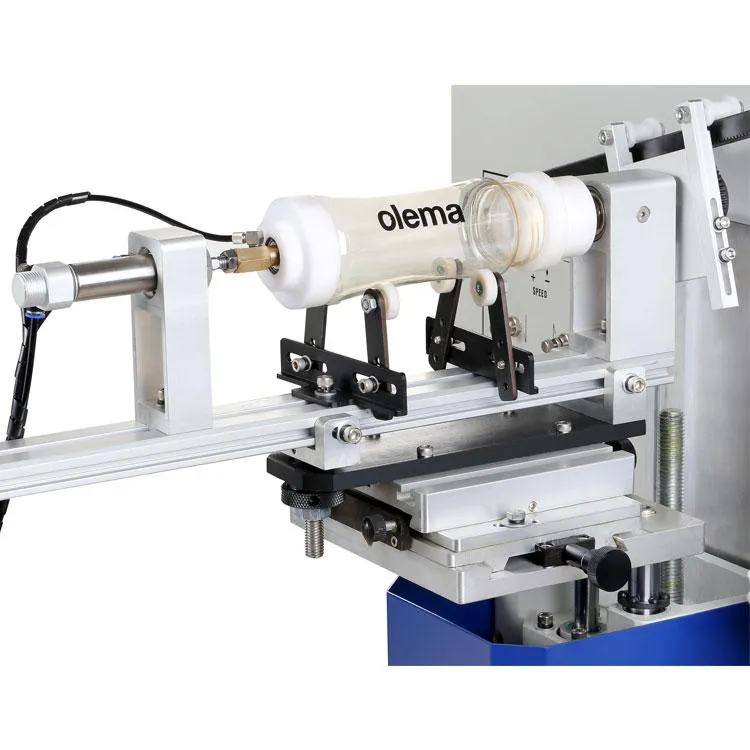

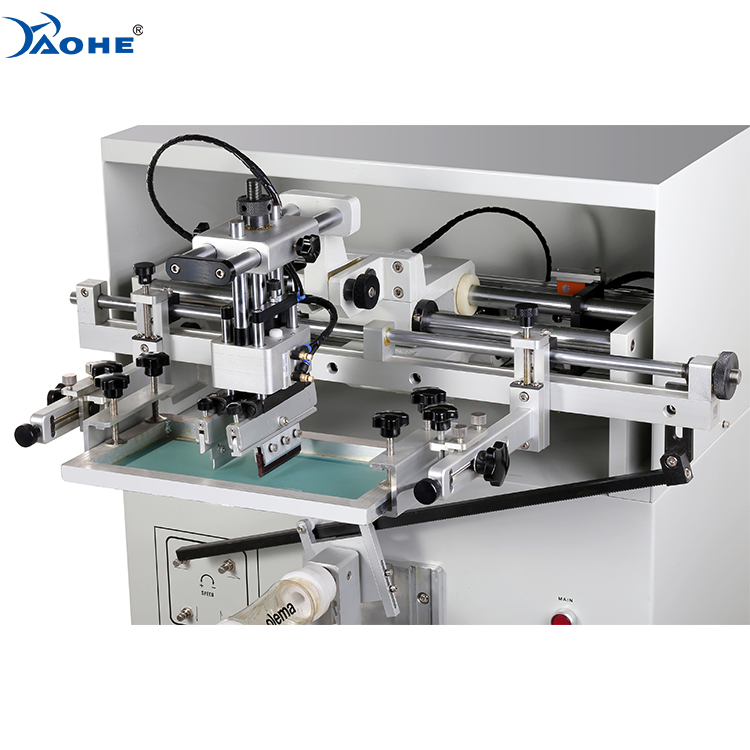

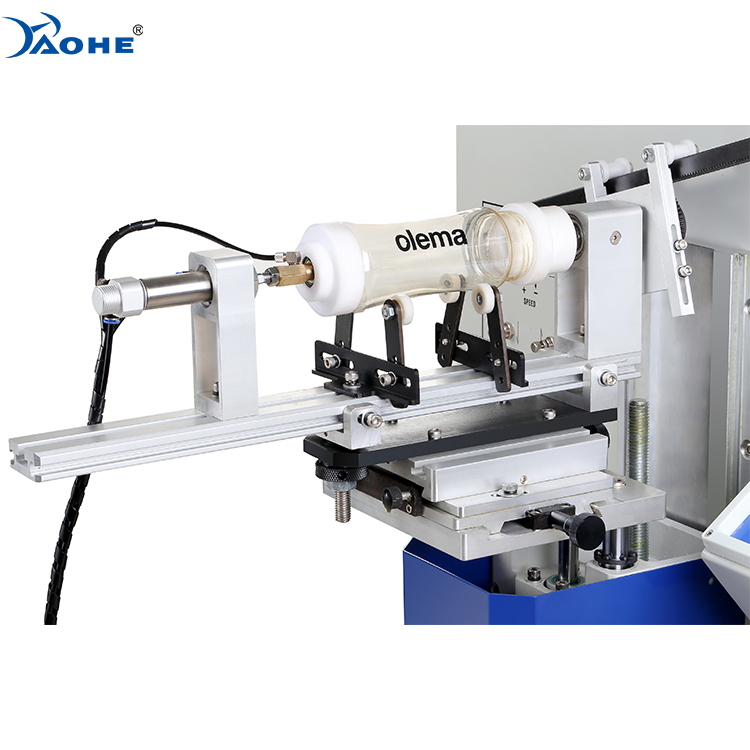

The pneumatic cylinder screen printer features quick and simple tooling changeovers, precise mechanical registration, and conveniently located controls on the front panel.

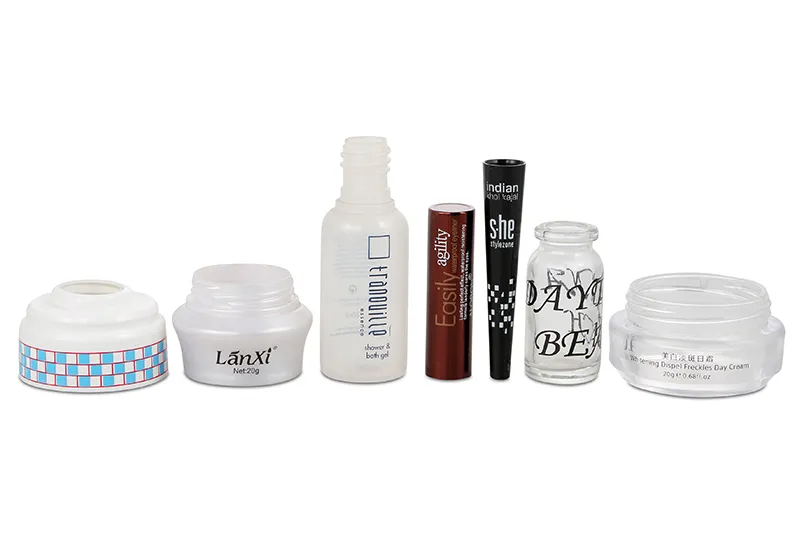

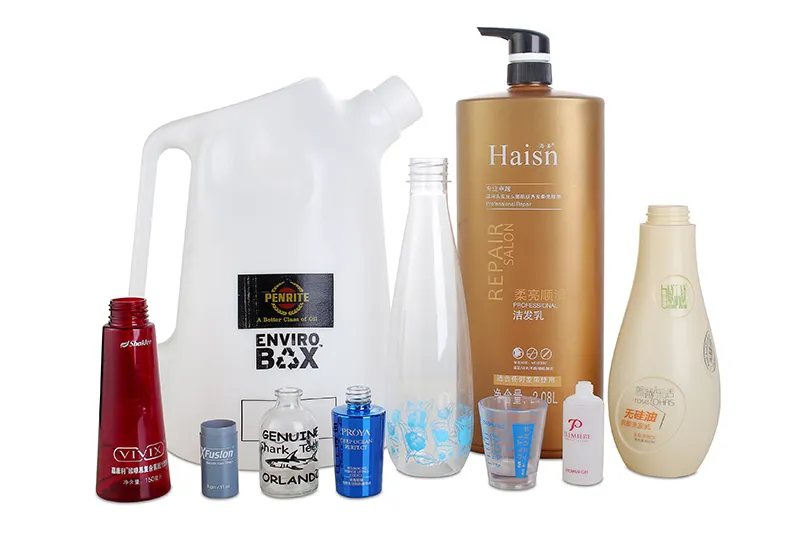

This versatile cylinder screen printer is designed for high-quality printing on round objects such as blow-molded bottles, cosmetic tubes, aluminum water bottles, large pails, drumsticks, and more.
| Model | HA-4A |
| Max. Print Area Round | 200 mm |
| Max. Print Area Oval | 620 mm |
| MAX. Print Area Flat | 200*630 mm |

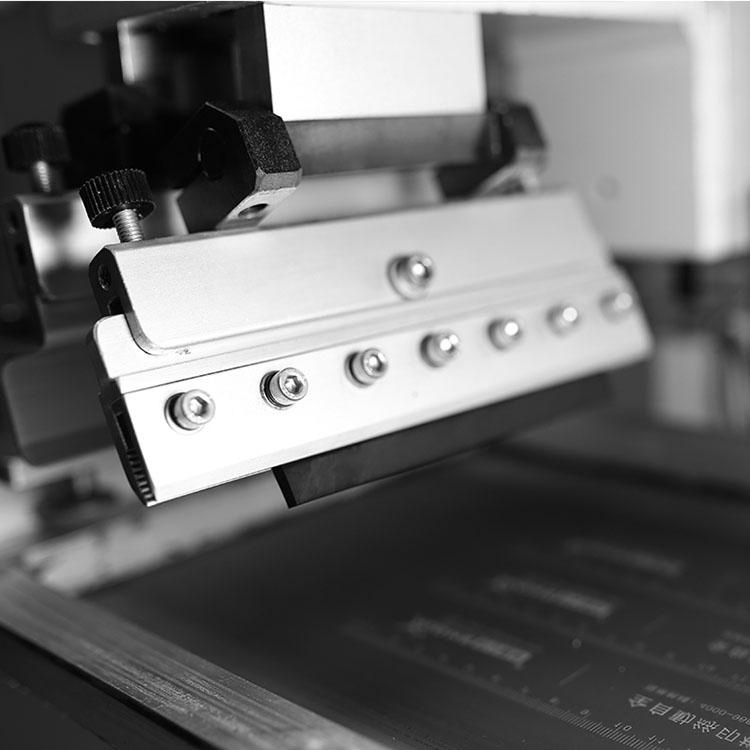

| Squeegee Pressure | 2-4 bar |
| Squeegee Angle | 0-15 degrees |
| Working Table Size | 700x200 mm |
| Max. Screen Frame Size | 400*800 mm |
| Air Consumption | 0.7L/cycle |
| Dimension | 1130*750*1350 mm |

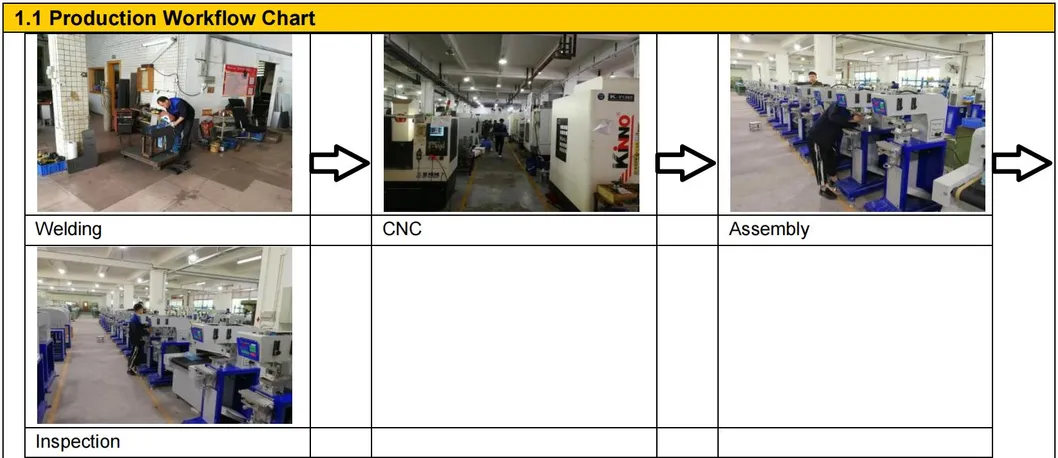

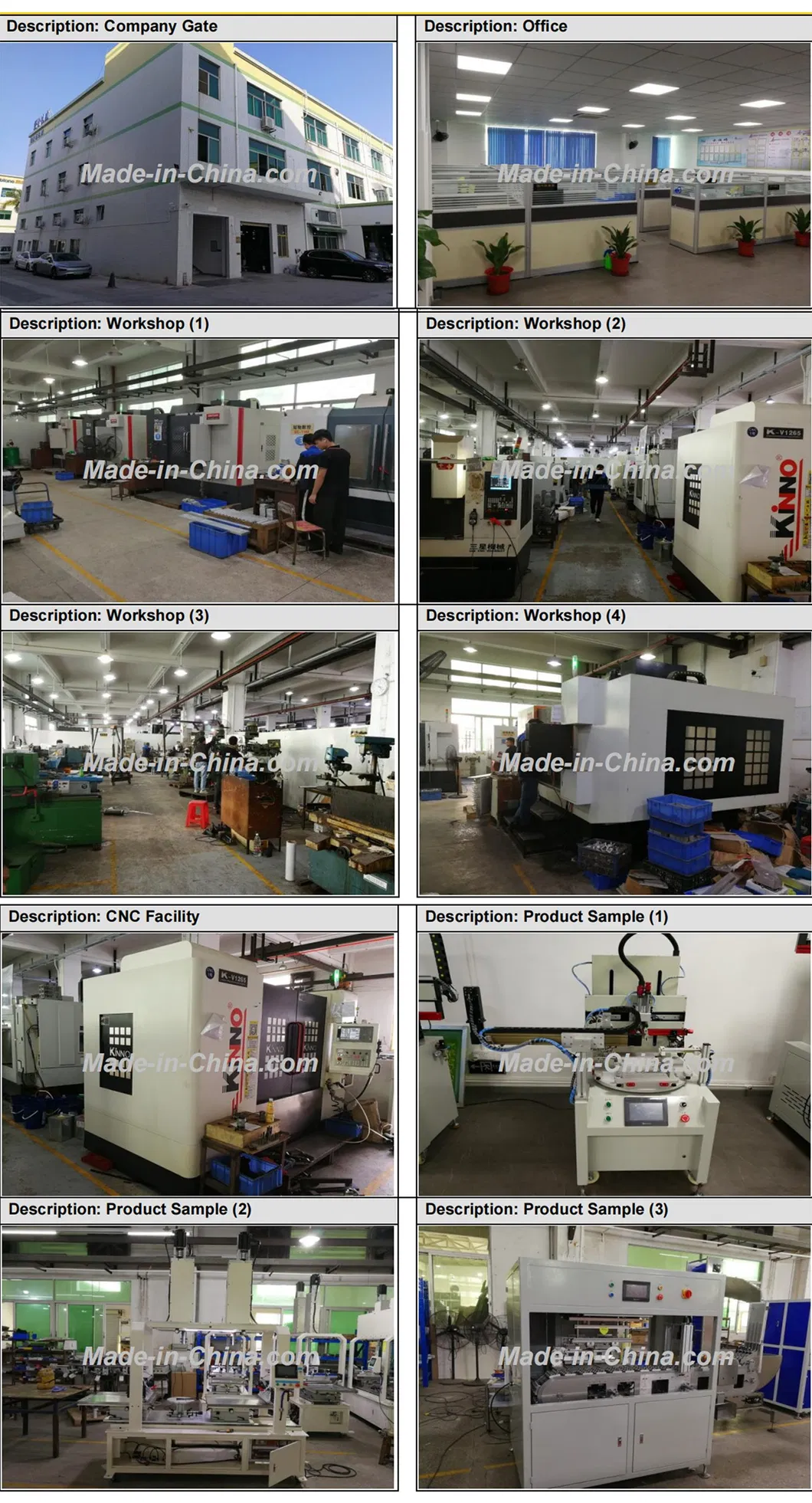

Specializing in high-performance pad printing and screen printing equipment, the production facility covers approximately 10,000sqm. With over 20 years of expertise, we focus on both semi-automatic and fully automatic printing solutions. All components are designed by experienced engineers to ensure industrial-grade durability and precision.
