Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
1 / 5
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board
Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board

Semi Automatic Flatbed Rotary Vacuum Table Screen Printing Machine for Plastic Cosmetic Case Box Paper Board

Customization: Available
After-sales Service: Lifelong Maintenance
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
JX-ZPT1
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Machine Speed
2500PCS/H
Accuracy
±0.05mm
Disc Diameter
600mm
Workstation
4 PCS
Printing Area
150*300mm
Air Supply
5-7bar
Power Supply
220V|2kw
HS Code
8443192290
Origin
China
📦

Packaging & Delivery

Package Size
160.00cm * 140.00cm * 178.00cm
Gross Weight
450.000kg
Transport Package
Wooden Case
⚙️

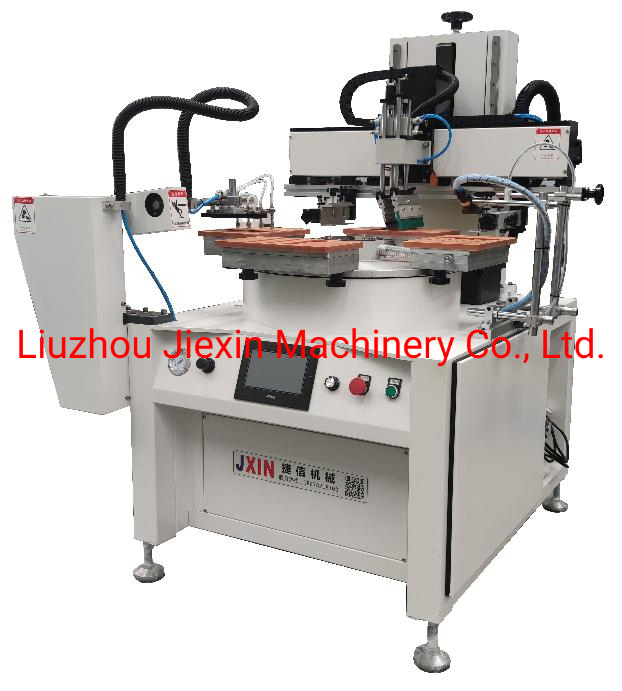

Machine Description

The machine is special designed for flat products logo or text printing, it is with high speed and automation. Use DT precision cam divider to build disc transmission system, together the high precision servo motor to achieve printing automatically, highly reduce labor cost, improving efficiency, machine running speed up to 2500pcs/hr.
Key Features:
  • High precise processing fixture for positioning.
  • Sensor inspection device "No Material, NO Print".
  • Taiwan motor driven conveyor station.
  • High precision cam indexer driving the conveyor.
  • PLC with Human-machine touch screen.
  • Easy to adjust fixture on the work table.
  • Manual feeding with adjustable matching speed.
  • Auto unloading system by manipulator or robot arm.
📊

Technical Parameters

Parameter Standard (4 stations) Standard (8 stations) Extra-large (4 stations)
Disc Diameter600MM600MM800MM
Workstations484
Print Area200*300MM150*150MM300*400MM
Machine Speed2500PCS/Hour2500PCS/Hour1500PCS
Accuracy±0.05MM±0.05MM±0.05MM
Horizontal Stroke550MM550MM550MM
Drive ModeServo/PneumaticServo/PneumaticServo/Pneumatic
Dimensions1350*1400*1650MM1350*1400*1650MM1600*1650*1680MM
🛠️

Machine Structure & Configuration

Basic Configuration
1. Manual feeding.
2. Adjustable worktable (X.Y. rotation).
3. Electrostatic precipitator.
4. Product detection system (No product, no print).
5. Double-stroke automatic system.

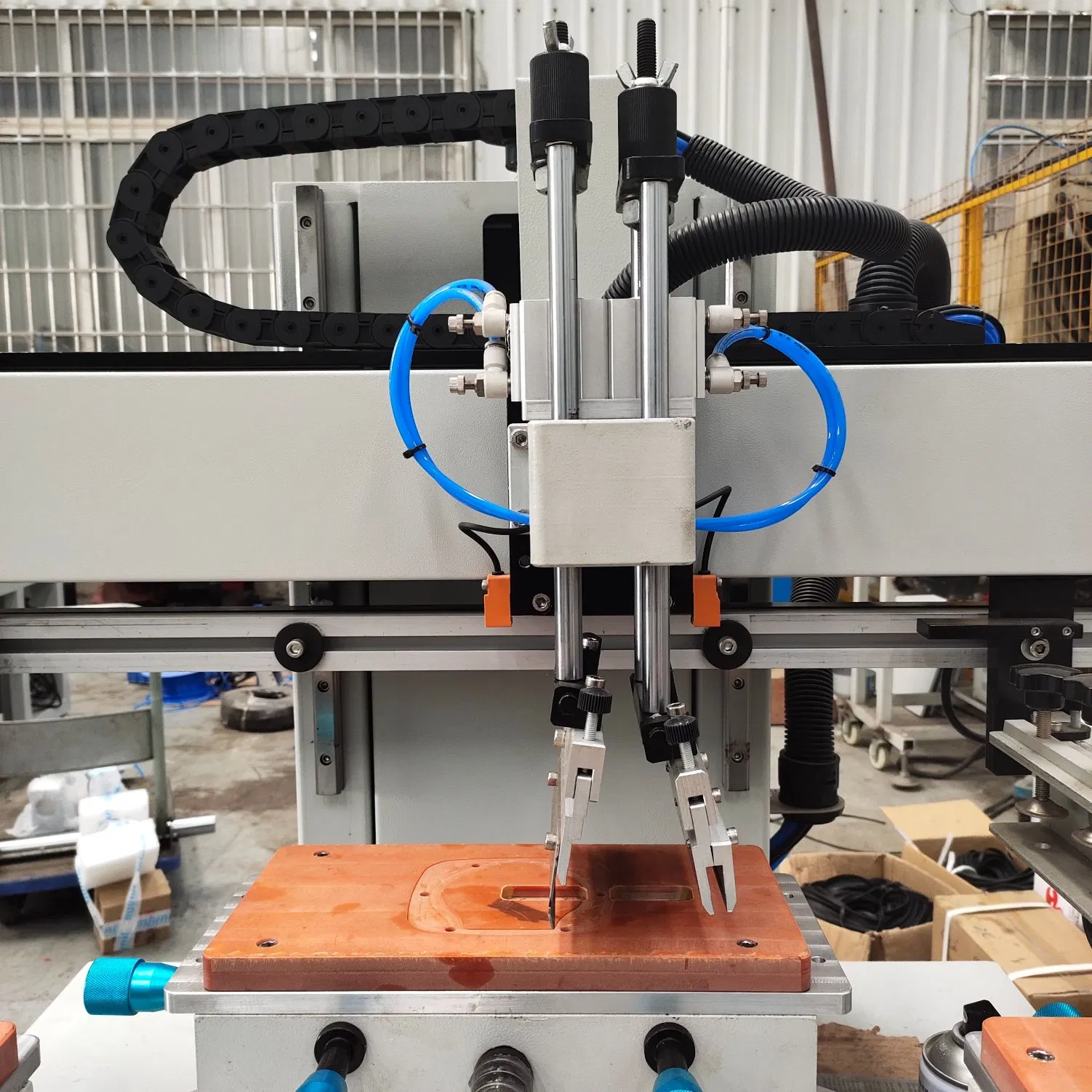

6. Vacuum sucker unloading manipulator.
Optional Configuration
1. Auto feeder (Linear/Disc/Vibrating).

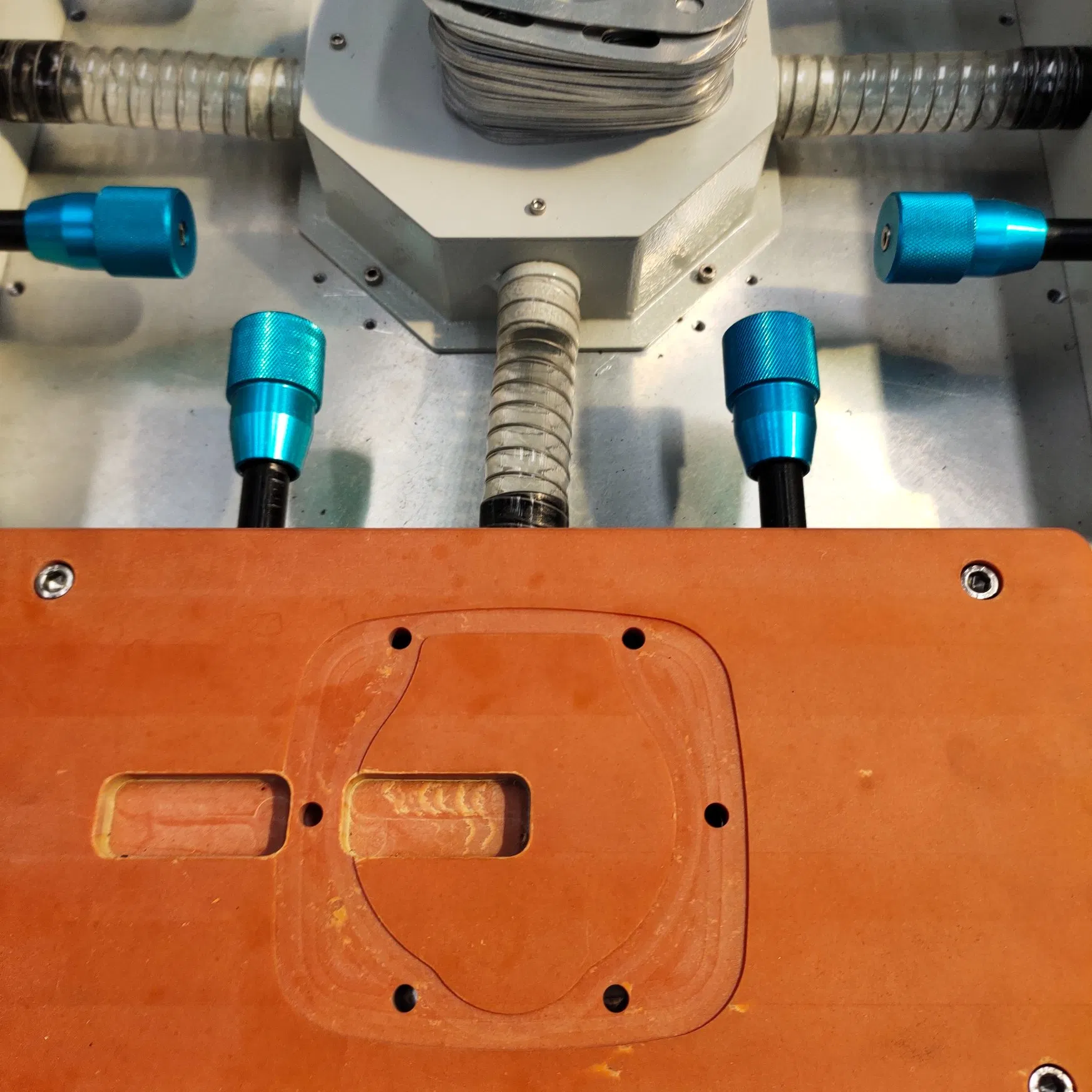

2. Vacuum suction worktable.
3. Pre-press Flame/Plasma treatment.
4. Online LED UV curing system.
5. Pneumatic finger clamp for unloading.
🖼️

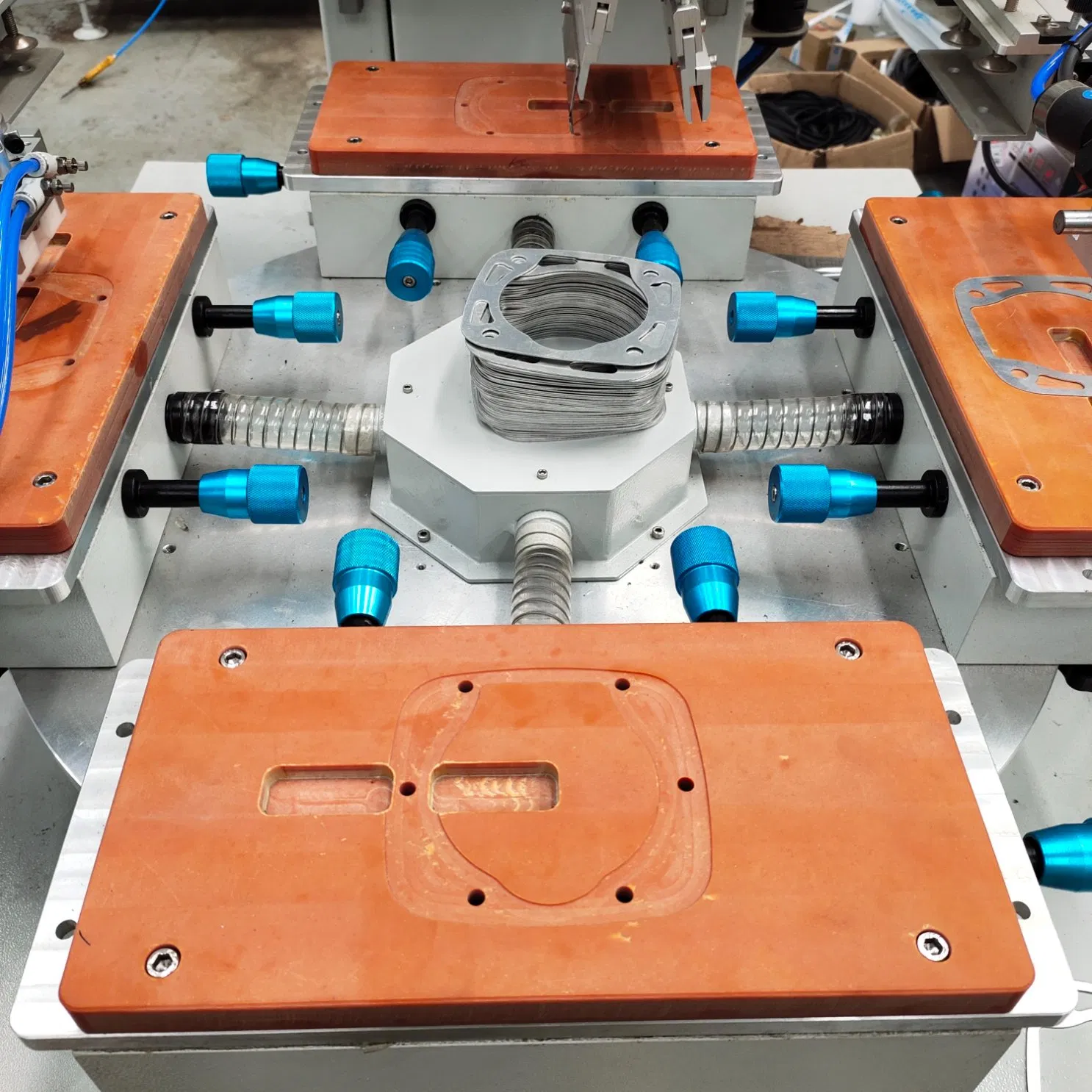

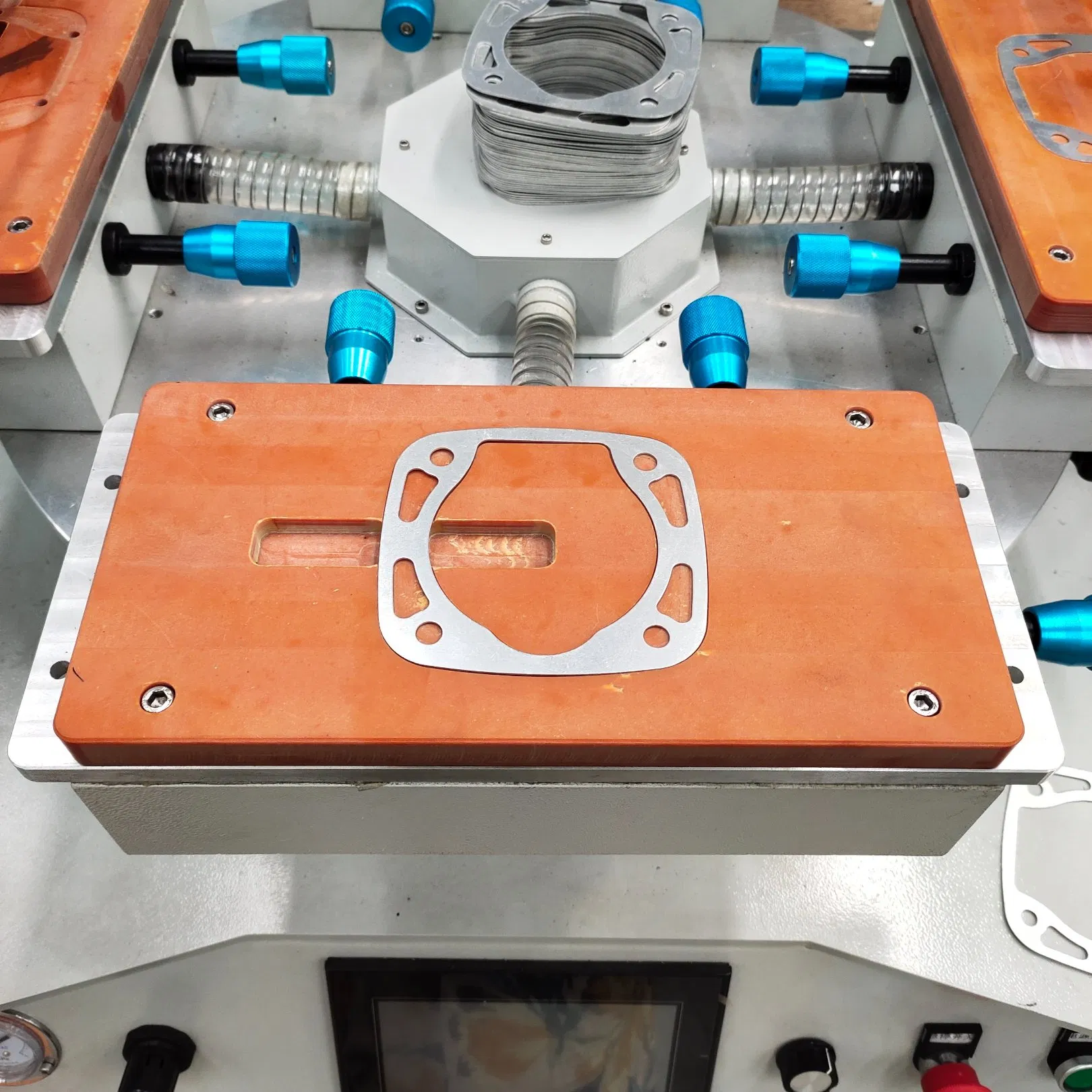

Product Display

Automatic Screen Printing Machine
❓

Frequently Asked Questions

What is the maximum production speed of this machine?
The machine is equipped with a high-precision cam divider and servo motor system, allowing it to reach speeds up to 2,500 pieces per hour.
Does the machine support automatic material detection?
Yes, it features a sensor inspection device that ensures "No Material, No Print," preventing ink waste and protecting the equipment.
How accurate is the printing registration?
The machine provides a high printing accuracy of ±0.05mm, suitable for precise industrial and packaging applications.
What kind of products can be printed on this machine?
It is specifically designed for flat products such as plastic cosmetic cases, boxes, paper boards, and other packaging materials.
Can I customize the feeding and curing systems?
Yes, we offer optional configurations including automatic feeders (vibrating disc or linear type), flame treatment for surface preparation, and online LED UV curing.
What are the power and air requirements?
The machine operates on a 220V power supply (2kw) and requires an air supply pressure of 5-7 bar.
