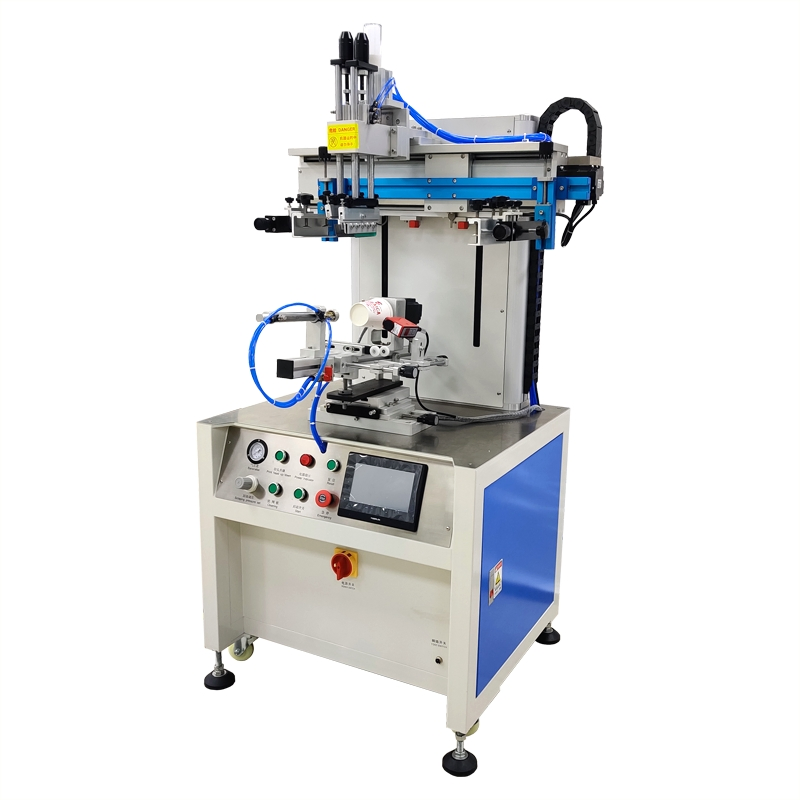

Semi Automatic Cylinder Screen Printing Machine for Sport Water Bottle Serigraphy Machine Overlay Maquina Para Serigrafa Circular Para Vaso De Policarbonato

1 / 5

Semi Automatic Cylinder Screen Printing Machine for Sport Water Bottle Serigraphy Machine Overlay Maquina Para Serigrafa Circular Para Vaso De Policarbonato

Customization:	Available
After-sales Service:	Spare Parts Provide and Technology Support
Warranty:	One Year

Send Inquiry

Product Description

📋 Basic Info.

Model NO.	GW-2A-CNC
Type	Cylinder Screen Printing Machine
Style	Screen-process Printing Press
Structure	Screen Printing
Color & Page	Multi-Colour Printing Press
Application	Packaging Printing
Transport Package	Package by Wooden Box and Sea Transportation
Specification	375*200mm
HS Code	8443192290
Production Capacity	50 Sets Per Month

📌 Product Description

Semi automatic cylinder screen printing machine for sport water bottle serigraphy machine overlay maquina para serigrafa circular para vaso de policarbonato

What's this rotary screen printing machine use for?

It is a cylindrical screen printing machine suitable for printing kinds of bottles, cup, jars, tube...etc. such as cosmetic glass bottle, glass jar, candle, plastic pet bottle, HDPE bottle, sport water bottle, stainless tumbler, plastic PET PP cup, salad cup, salad bowl, kraft paper bowl, coffee paper cup, milk tea cup, stadium cup, foam cup, and so on.

⚙ Product Parameters

Max.print product diameter	120mm
Max.print products height	250mm
Max.printing area	circumference 375mm * width 200mm
Air pressure	6-8 Bar
Voltage	220V Single phase
Dimension	9709001700mm
Weight	260kg

📷 Detailed Photos

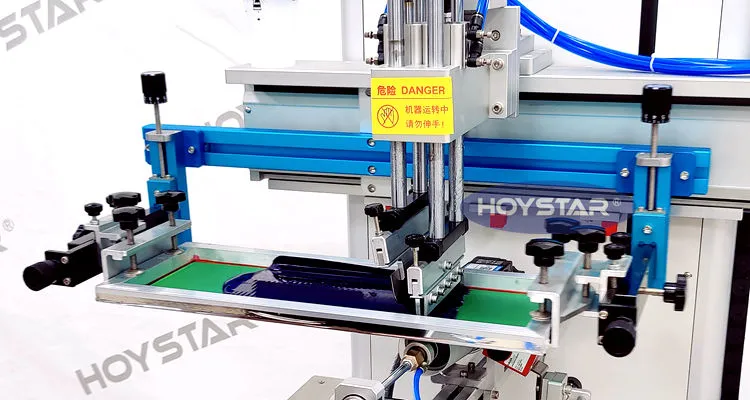

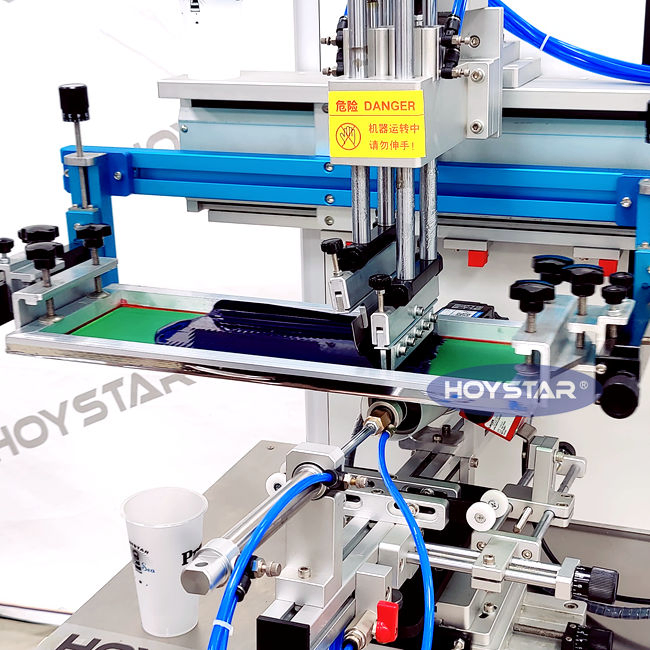

- Screen printing head driving by electric servo motor

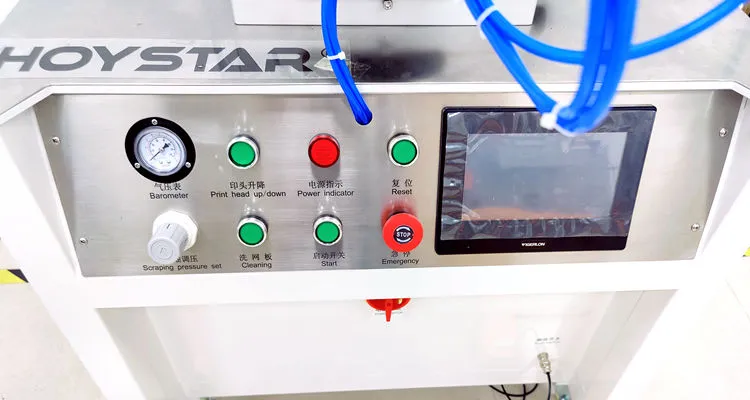

- PLC program and touch screen control panel

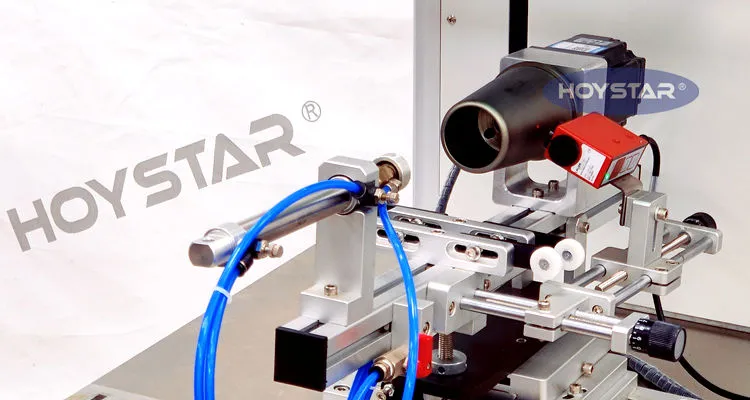

- Fixture for fix products

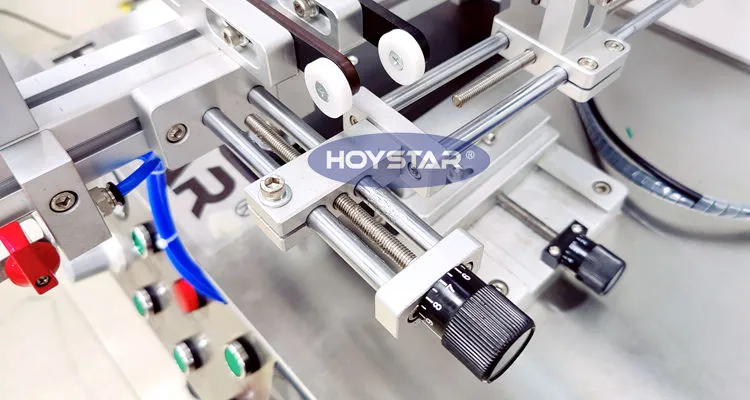

- Fixtures adjustable micro

- Customized mould depends on products

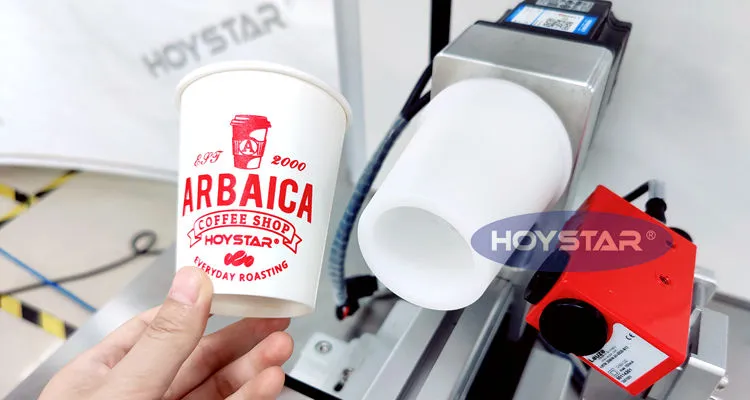

- Automatic color registered for multicolor printing

✨ Features

Japan Mitsubishi PLC program, touch screen control panel

Print head left and right by servo motor driving, up/down by pneumatic driving

Automatic optical eye alignment system, used for multi-color printing and identification of paper cup seams

Suitable for printing rigid bottles and soft bottles, pipes, etc., can do multi-color printing when there is no fixed point at the bottom of the bottle

With blowing function, suitable for printing and blow molding bottles

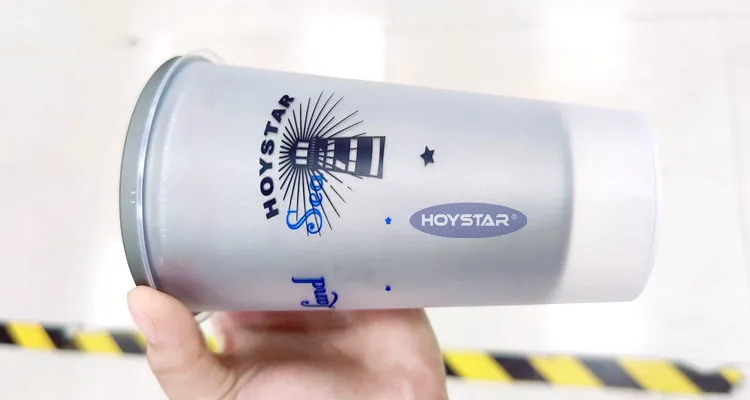

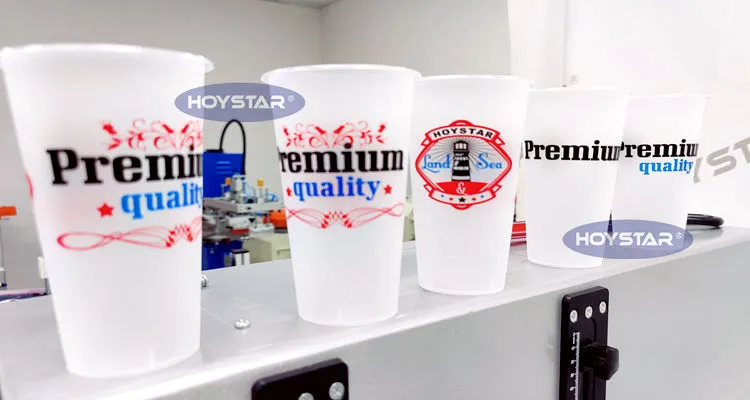

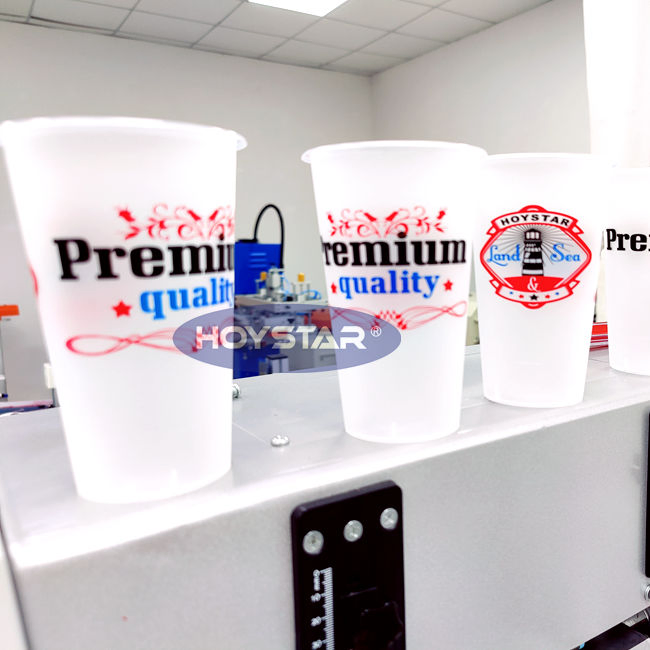

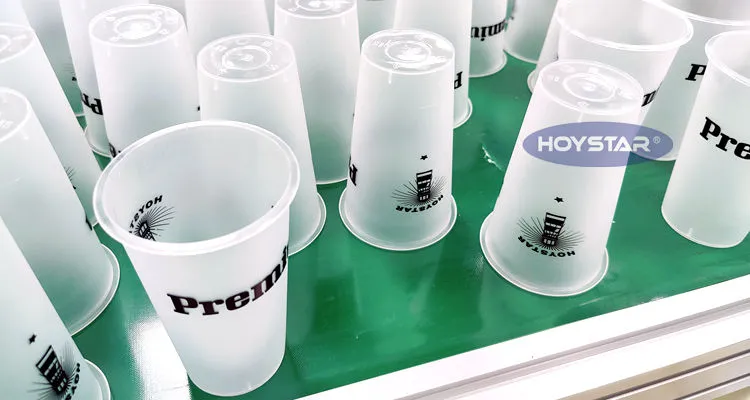

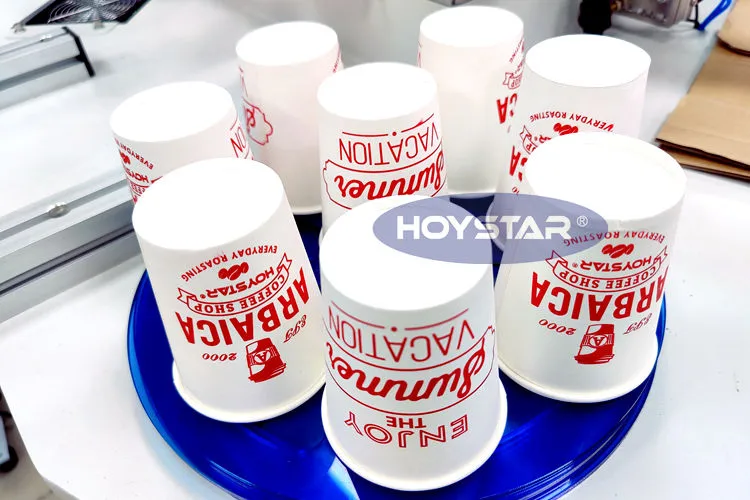

🍿 Printed Samples Show

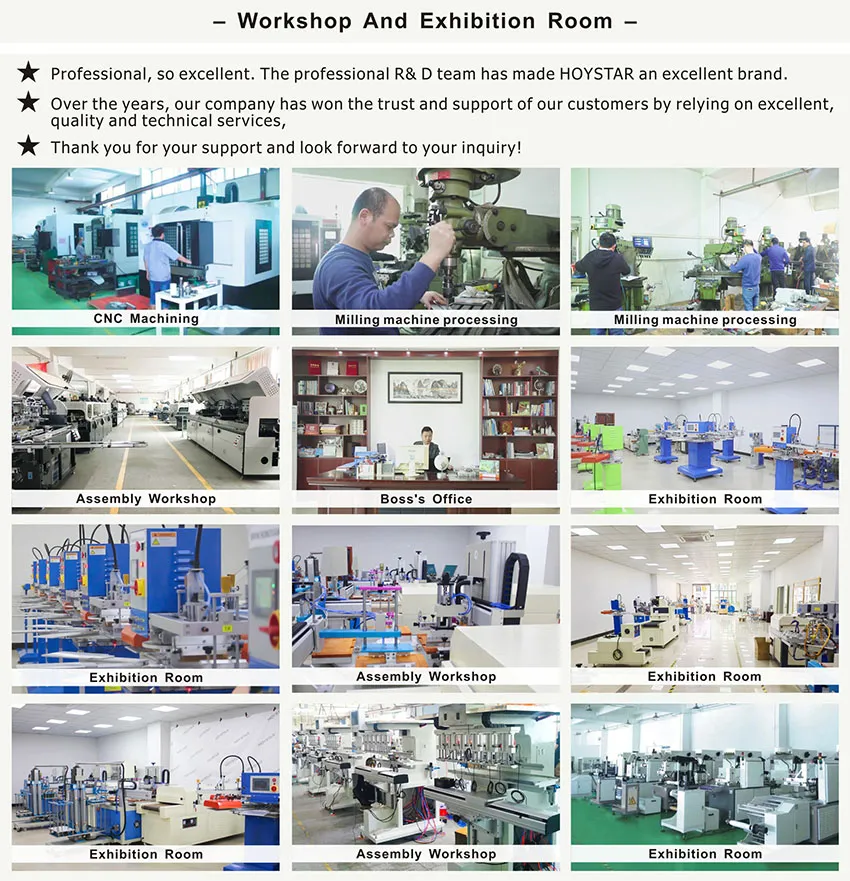

🏭 Production Facility

❓ Frequently Asked Questions

Q1: What materials can this cylinder screen printing machine handle? A: It is versatile and works with plastic (PET, PP, HDPE), glass, stainless steel, and even kraft paper products like bowls and cups.

Q2: Can I perform multi-color printing with this machine? A: Yes, it features an automatic optical eye alignment system specifically designed for high-precision multi-color registration.

Q3: Is the machine suitable for printing on soft or squeeze bottles? A: Absolutely. It includes a blowing function that provides internal pressure to soft bottles during the printing process to ensure a perfect finish.

Q4: What is the maximum product size supported? A: The machine can print products up to 120mm in diameter and 250mm in height, with a maximum printing area of 375mm (circumference) by 200mm (width).

Q5: How is the printing accuracy controlled? A: Accuracy is maintained through a Japan Mitsubishi PLC program and a high-precision electric servo motor driving the print head.

Q6: Does the machine require a special power supply? A: It operates on a standard 220V single-phase power supply, making it easy to integrate into most production environments.
