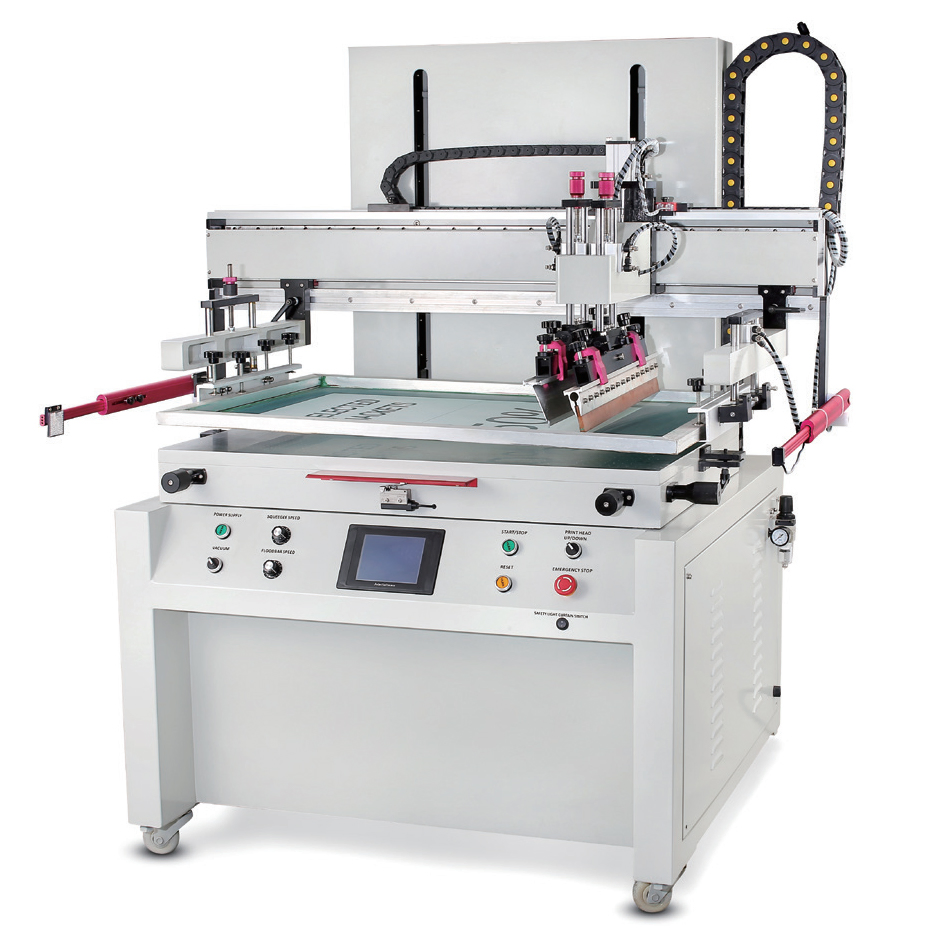

Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
1 / 5
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards
Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards

Screen Printing Machine Suitable for PCB Boards/Silicone/Textiles/Plastic Buttons/PET/IC Boards

Customization: Available
Warranty: 1 Year
Certification: CE
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
HP-5070
Application
Commodity, Apparel
Driven Type
Electric
Automatic Grade
Manual
Usage
Corner Pasting / Screen Printing
Origin
China
HS Code
84413090
Production Capacity
40/Month
Screen Printing Machine Header
📋

Technical Specifications

Parameter Specification
Maximum mesh frame size700*900mm
Workbench area600*800mm
Maximum printing area500*700mm
Maximum print height150mm
Printing speed800-1000 pcs/hr
Weight280kg
Machine Dimensions1350X1050X1650mm
Power Supply220V 50-60Hz 1350W
Air Pressure5-7bar

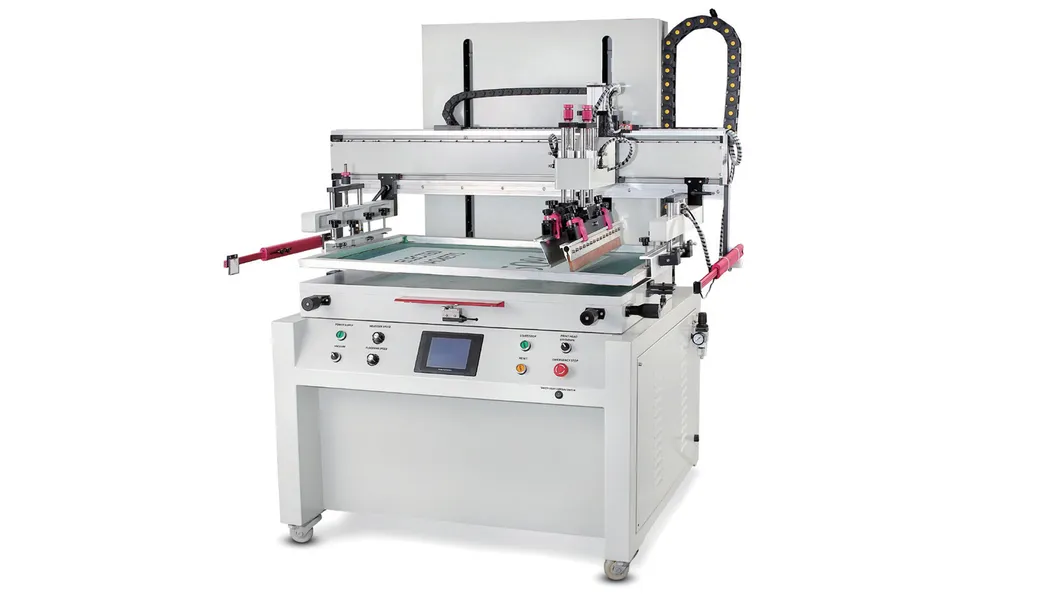

Machine Overview
Machine Detail
⭐

Key Features

1
Microcomputers combined with IC panels or touch screens to compile action programs, ensuring durability and easy maintenance.
2
Versatile flat printing capability for PCB boards, silicone, textiles, plastic buttons, PET, IC boards, cardboard, lenses, and glass.
3
Multiple printing cycles design, allowing users to choose freely from customized visual printing processes.
4
Scraper constant pressure device for stable printing results with adjustable blade angles.
5
High precision fine-tuning workbench with a self-locking device for accurate multi-color registration.
6
Enhanced safety with an integrated emergency stop device and an upright lifting printing head for easy screen cleaning.
📦

Packaging & Delivery

Package Size
150.00cm * 120.00cm * 190.00cm
Gross Weight
300.000kg
Transport Package
Wooden Case
Delivery Time
7-12 Days
Operating View
Machine Components
📝

Product Description

This equipment focuses on post-press packaging and high-precision screen printing. The machinery has passed EU CE certification and incorporates numerous patented technologies. It is designed to handle specialized tasks like closure box assembly, eye shadow box assembly, and collapsible box forming with efficiency and professional technical strength. Our systems are engineered to help clients gain maximum benefits through high-quality automated achievements.

❓

Frequently Asked Questions

What materials can this screen printing machine handle?
The machine is suitable for flat printing on a wide variety of materials including PCB boards, silicone, textiles, plastic buttons, PET, IC boards, cardboard, film switches, lenses, and glass.
What is the average printing speed?
The HP-5070 model offers a production capacity of approximately 800 to 1000 pieces per hour, depending on the material and complexity of the print.
How does the machine ensure multi-color registration accuracy?
It features a high-precision fine-tuning workbench equipped with a self-locking device, which ensures stable and accurate positioning for multi-color registration.
Is the machine easy to clean and maintain?
Yes, the printing head can be lifted upright. This design allows the operator easy access to the screen board for cleaning and routine maintenance.
What safety measures are included?
The workbench is equipped with an emergency stop device to ensure the safety of the operator during the printing process.
What are the power and air requirements?
The machine requires a 220V 50-60Hz power supply (1350W) and an air pressure range of 5-7bar for optimal operation.
