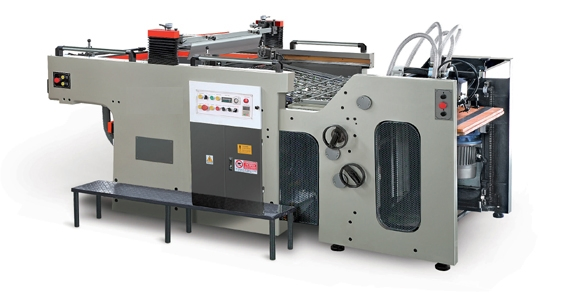

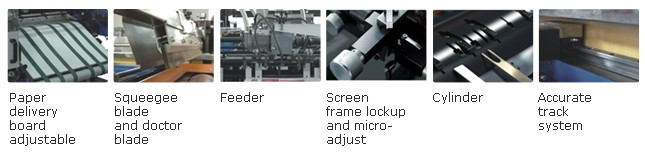

RYB Auto Swing Cylinder Type Screen Printing Machine
Characteristics:
The Auto Swing Cylinder Screen Printing Machine Series is a well-recognized auto flat screen press featuring high speed and high precision. It boasts a well-designed structure with single-piece or streamline paper feeding equipment. Equipped with frequency variance control motors and whole-process auto close monitoring devices, the system is controlled via a PLC program Panel or centralized controller.
Designed for efficiency, only one operator is required, significantly saving labor and boosting production. This machine is ideal for printing soft and semi-soft materials ranging from 100~350g/m², especially utilizing UV ink for vibrant colors like gold and silver on ceramic stickers, packages, labels, and cards. Its stereoscopic effect and strong covering power offer superior performance compared to other printing presses.
| ITEM | RYB-720 | RYB-780 | RYB-1020 |
|---|---|---|---|
| Max. Sheet Size | 720 x 500mm | 780 x 520mm | 1020 x 700mm |
| Min. Sheet Size | 350 x 270mm | 350 x 270mm | 480 x 270mm |
| Max. Printing Size | 720 x 520mm | 780 x 540mm | 1020 x 720mm |
| Border | ≤15mm | ≤15mm | ≤15mm |
| Substrate Thickness | 100-350g/m² | 100-350g/m² | 100-350g/m² |
| Screen Frame Size | 880 x 880mm | 940 x 940mm | 1180 x 1000mm |
| Max. Printing Speed | 600-3600s/h | 1000-3600s/h | 1000-3600s/h |
| Weight | 3200kg | 3500kg | 4100kg |
| Power(kw) | 3P4N 380v 7.20 | 3P4N 380v 8.20 | 3P4N 380v 8.20 |
| Dimension(LxWxH) | 3.02x 1.4x 1.25m | 3.05 x 1.47 x 1.28m | 3.15 x 1.68 x 1.3m |
