Customization: Available
Warranty: 1 Year
Type: Vertical Screen Printing Machine
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
TM-3050D
Style
Screen-process Printing Press
Structure
Platen Press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Print Interface
USB2.0
System Supported
Scm
Print Area
300*500mm
Table Size
400*600mm
Max Frame
550*750
Printing Thickness
±0~40mm
Overlay Accuracy
0.008mm
Platform Precision
About ±0.02mm
Air Pressure
0.5~0.6(MPa)
Origin
China
HS Code
8443198000
🔍 Product Description

TM-3050D Servo Precision Vertical Screen Printer

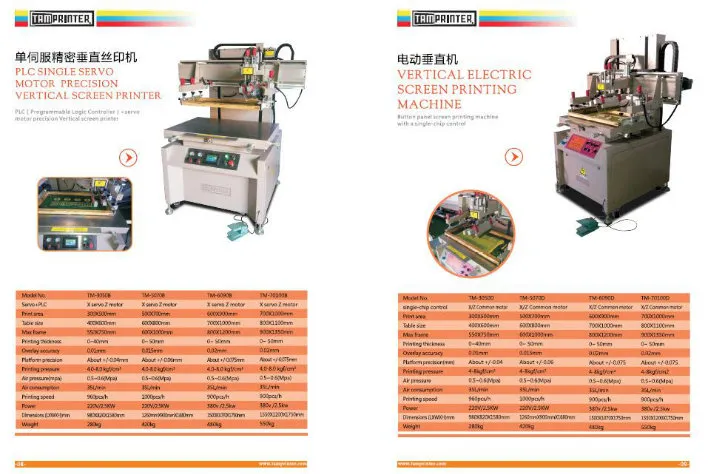

Servo Precision Vertical screen printer
Technical Parameter Specifications
Model No.TM-3050D
Control SystemServo + PLC / Single chip Control
Print Area300X500mm
Table Size400X600mm
Max Frame550X750mm
Printing Thickness0~40mm
Overlay Accuracy0.01mm
Platform PrecisionAbout ±0.04mm
Printing Pressure4.0-8.0 kgf/cm2
Air Pressure0.5~0.6(Mpa)
Air Consumption35L/min
Printing Speed960pcs/h
Power Supply220V/2.5KW
Dimensions (LxWxH)980X820X1580mm
Weight280kg

Note: Optional robot arm integration available.

Screen Printer Component

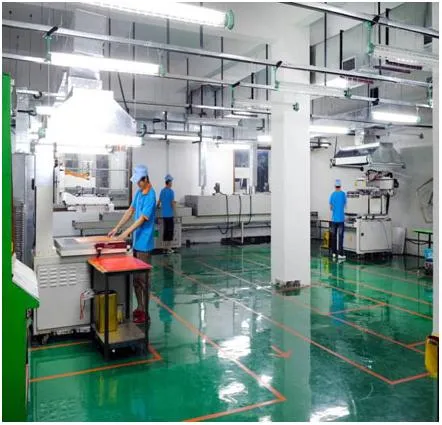

Screen Printer Detail
Printing Equipment
⭐ Key Features
Driven by motor and belt for sensitive, balanced, and adjustable speed.
Vertical screen movement driven by motor with frequency control for smooth operation.
Adjustable blade and back blade pressure regulating device for various thicknesses.
Versatile working modes: Manual, Semi-automatic, and Full-automatic.
Vacuum adsorption system for fixed and stable printing pieces.
Fine-tune device for left/right and before/after adjustments for accurate board positioning.
Equipped with comprehensive security guards for reliable operator safety.
Centralized microcomputer control ensures low failure rates and easy maintenance.
🚀 Applications

This equipment is widely used for precision printing in the following industries:

Membrane Switches Hot Transfer Printing Water Transfer Printing PCB & LED SMT Solder Paste Plastic & Glass Ceramics & Metal Leather & Textile Keyboard Printing
❓ Frequently Asked Questions
Q1: What is the maximum printing area for the TM-3050D? A1: The machine supports a maximum printing area of 300 x 500 mm with a table size of 400 x 600 mm.
Q2: How accurate is the overlay and platform precision? A2: The TM-3050D offers an overlay accuracy of 0.008mm to 0.01mm and a platform precision of approximately ±0.02mm to ±0.04mm.
Q3: What materials can this machine print on? A3: It is compatible with a wide range of materials including plastic, glass, ceramics, metal, leather, textiles, and electronic components like PCBs.
Q4: Does the machine support automatic operation? A4: Yes, the working process can be switched between manual, semi-automatic, and fully automatic modes.
Q5: What are the power and air requirements? A5: The machine requires a 220V/2.5KW power supply and an air pressure of 0.5~0.6 Mpa with a consumption of 35L/min.
Q6: Is the printing speed adjustable? A6: Yes, the machine uses motor-driven frequency control, allowing the printing speed to be adjusted up to 960 pcs/h.
