Customization: Available
Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

Basic Info.
Model NO.LTA-5060
StructurePlaten Press
Color & PageMulti-Colour Printing Press
ApplicationLabels, Stickers, RFID, FPC, IMD, Iml, etc
CertificationCe and ISO9001:2008
Registration Accuracy+/- 0.01mm
Max Printing Size(500X600)mm
WarrantyOne Year
Raw Material TypesPet, PVC, PE, PV, PP, PC, BOPP, Adhesive Stickers
HS Code8443911900
Production Capacity30sets/Month
Product Description

Fully Automatic Roll To Roll Flat Bed PVC Film Tape Paper Screen Printing Machine For Sale

Machine Description:

The Roll to Roll Screen Printing Machine is designed to print on film material in roll, such as PET, PVC, PE, PV, PP film. This high-performance line consists of a feeder, a printing unit, and a hot air dryer.

The feeder includes dust removal rollers and an automatic alarm for material depletion. The printing unit features a vacuum table for precise PET film positioning and three photocell sensors for automatic registration. For drying, the hot air dryer offers 30M, 60M, and 80M length options to cool and rewind the cured film.

Key Benefits:

  • High automation: One operator can manage the entire line.
  • Accuracy: Multi-color overprint with +/- 0.01mm precision.
  • Efficiency: Productivity equal to six sets of semi-automatic machines.

Application: RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.

Machine Parameters
Model LTA-3040 LTA-5060 LTA-6080
Max. Printing Size300x400mm500x600mm600x800mm
Printing Speed0~5000 print/hr.0~2500 print/hr.0~2500 print/hr.
Max. Screen Frame Size600x800mm800x1000mm900x1200mm
Max. Substrate Width320mm520mm620mm
Registration Accuracy±0.01mm±0.01mm±0.01mm
Power220V, 3KW, 15A220V, 3KW, 15A220V, 3KW, 15A
Thickness0.02~0.5mm0.02~0.5mm0.02~0.5mm
Weight600kgs700kgs950kgs
Machine & Process Gallery

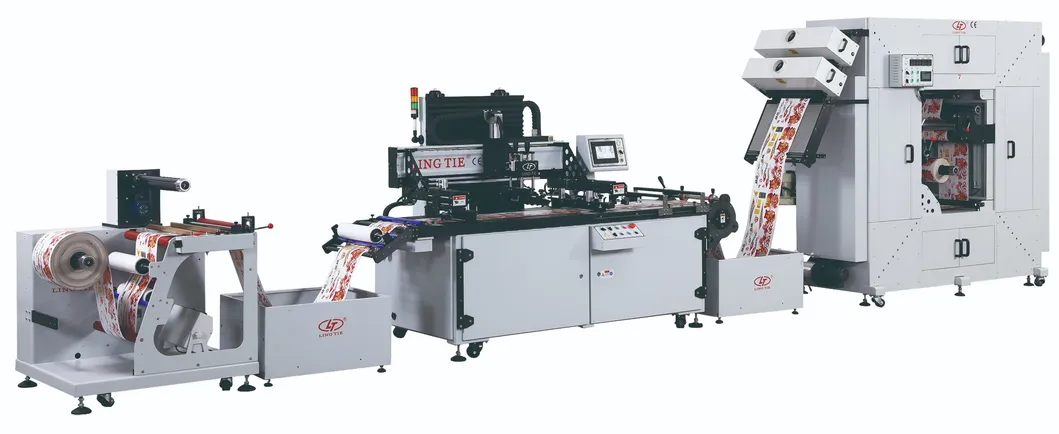

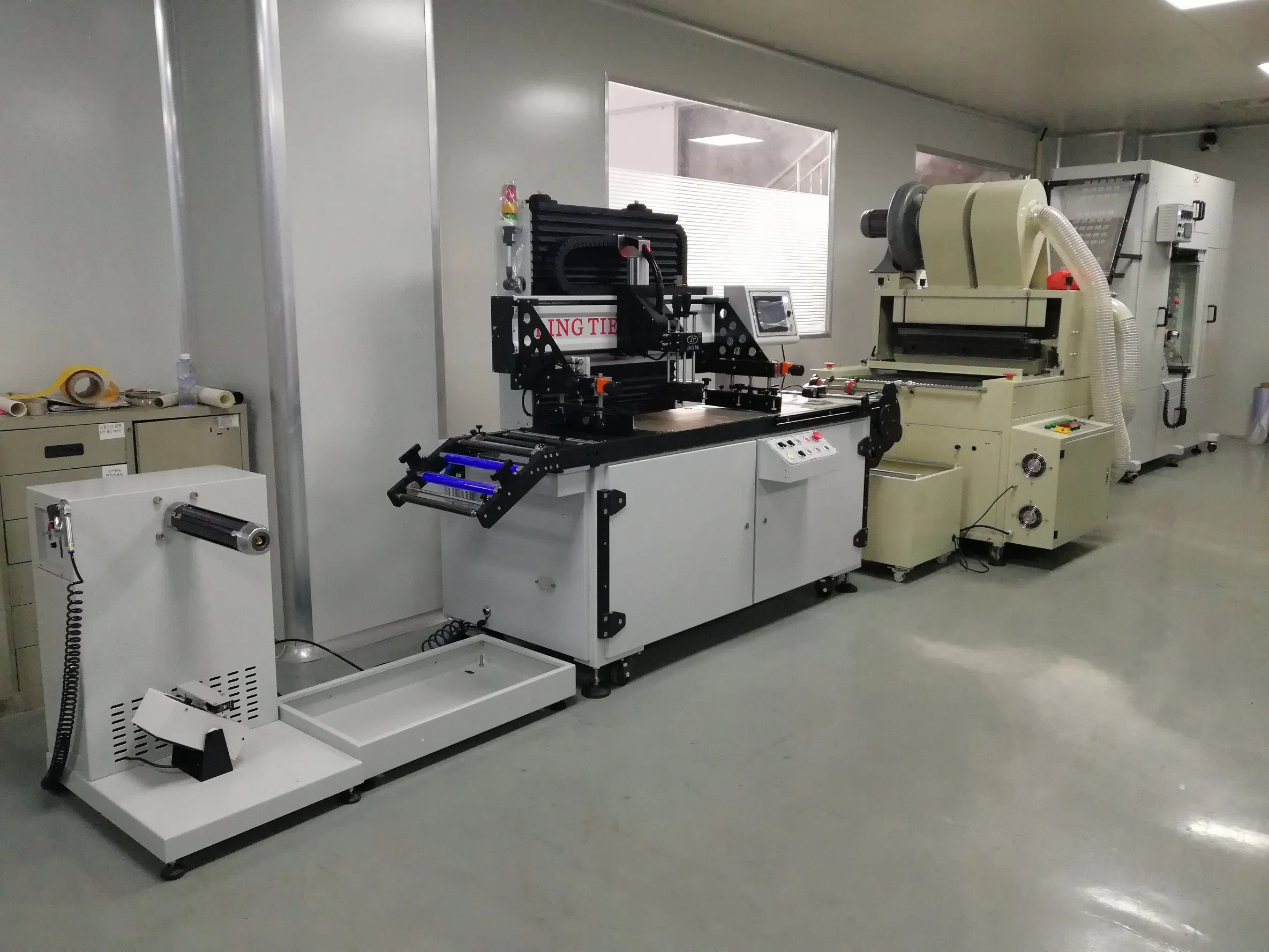

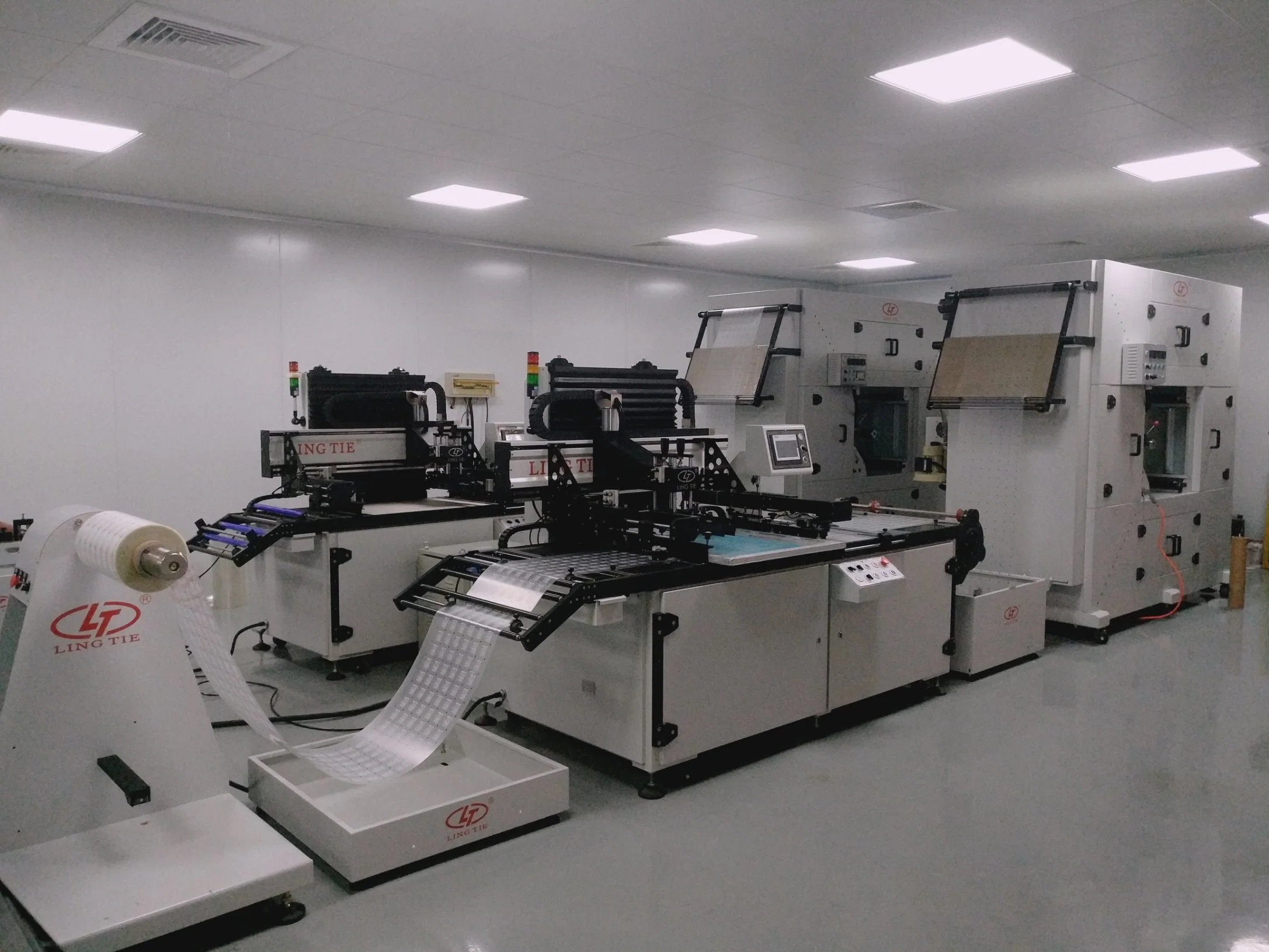

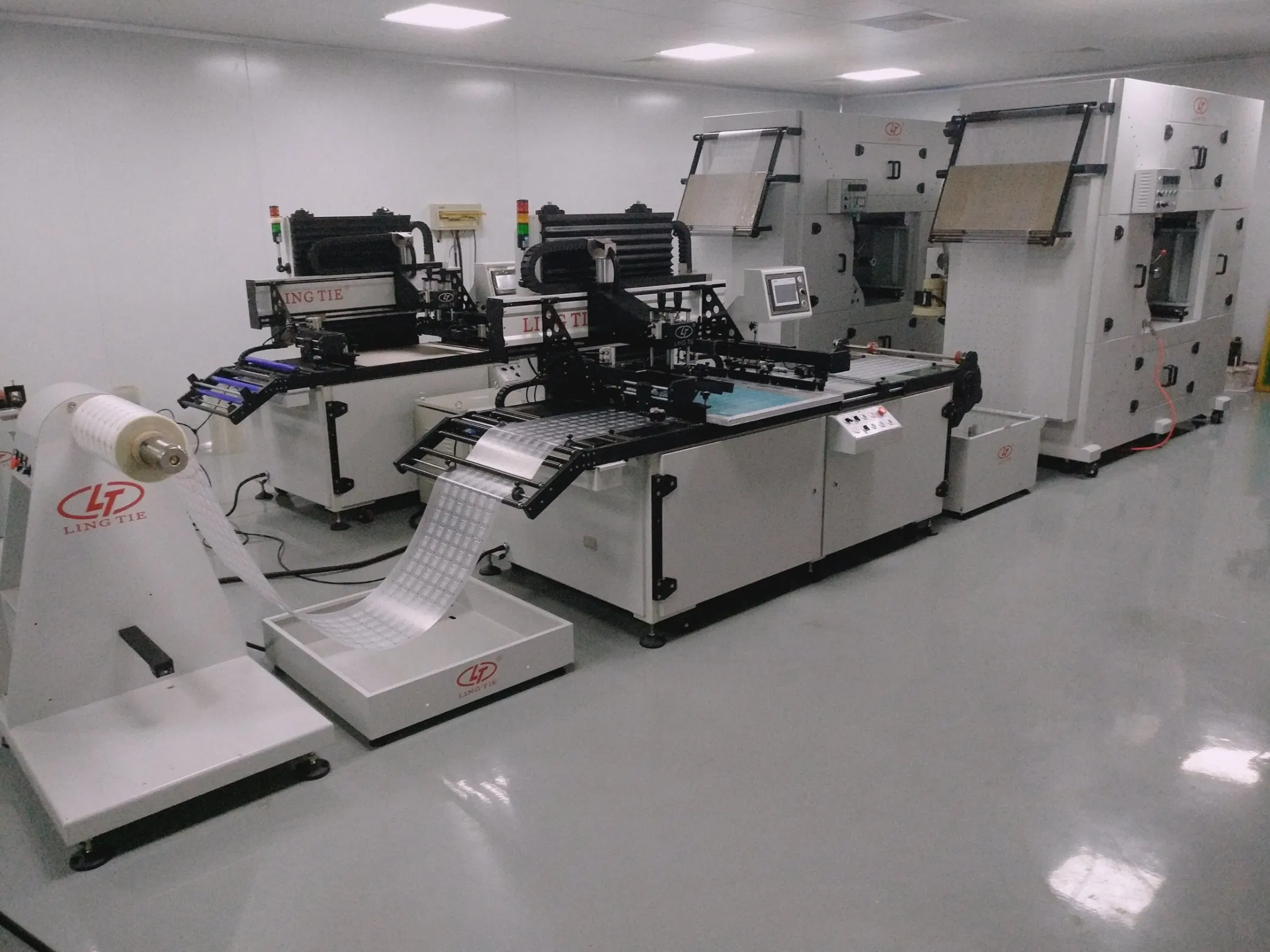

Full Printing Line
Roll to Roll Screen Printing System

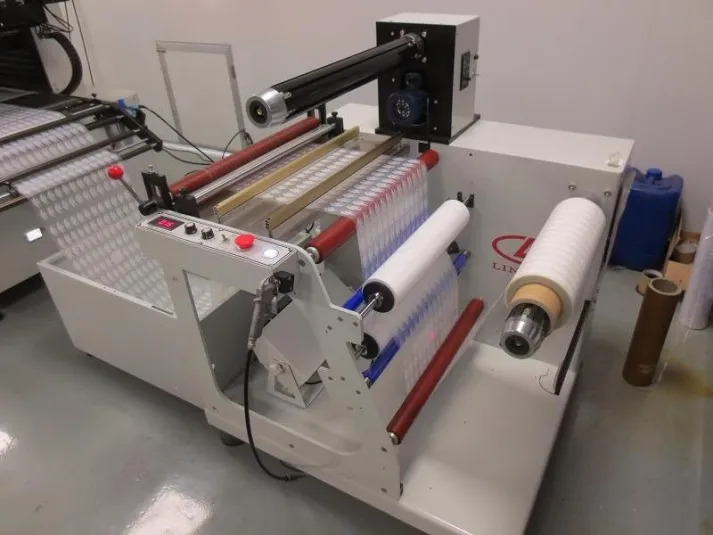

Feeder Unit
Feeder: Dust & Static Removal

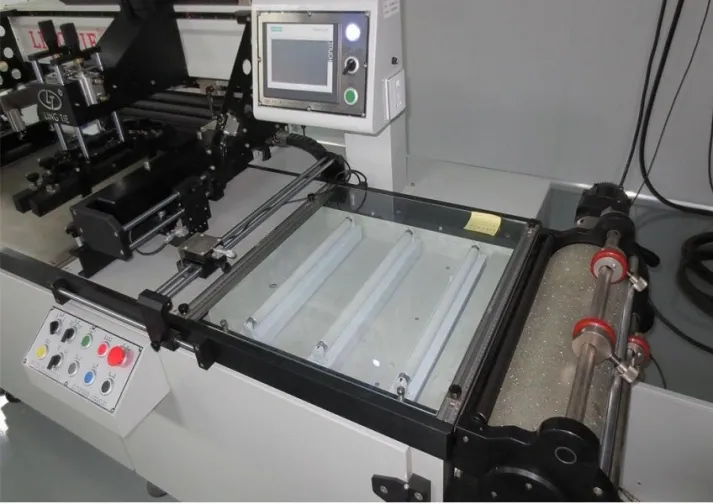

Inspection Station
Inspection Station

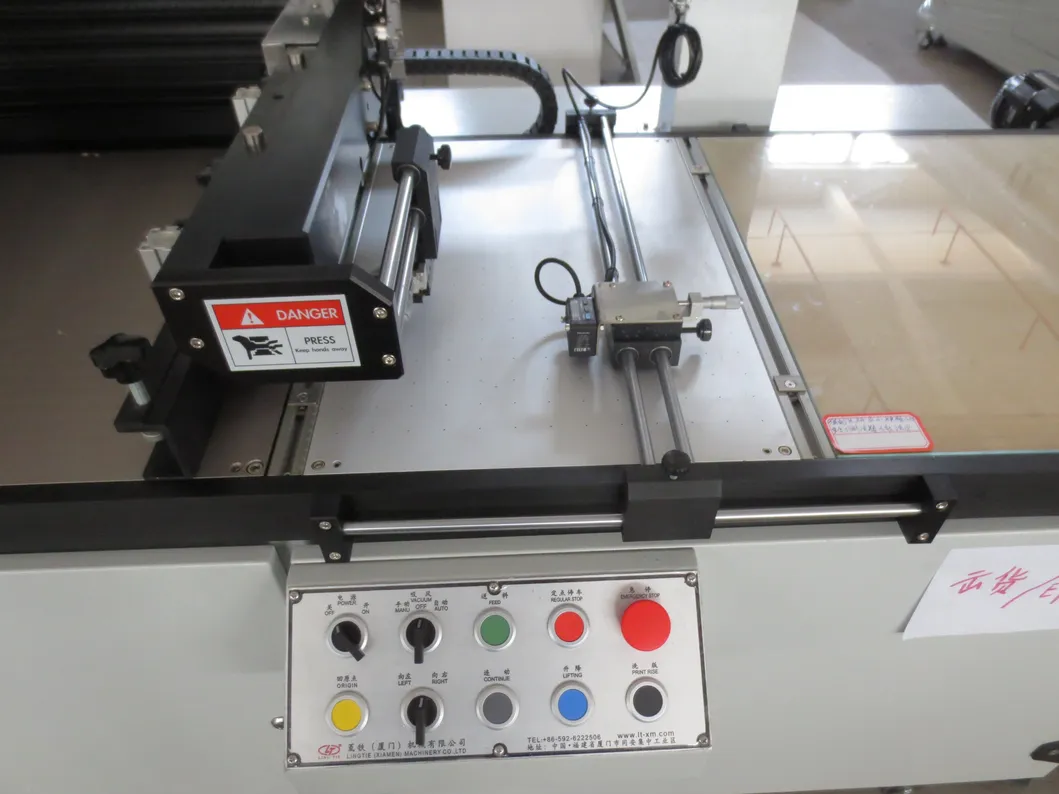

Registration Function
Automatic Registration System

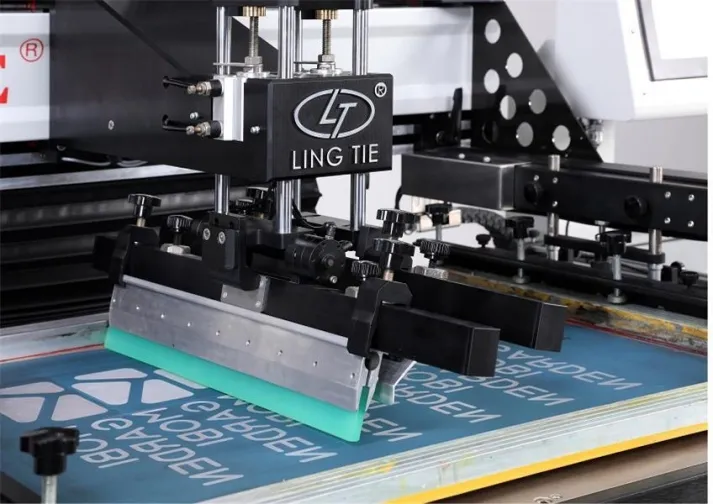

Print Head
High Precision Print Head

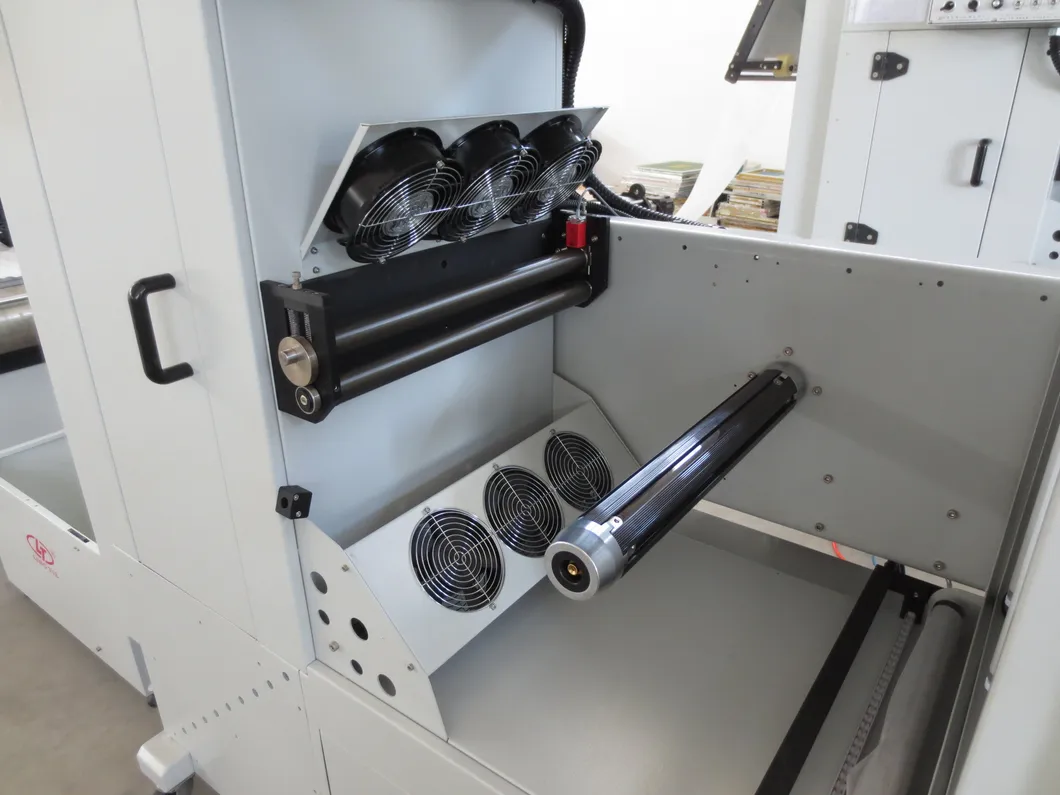

Rewinding Shaft
Automatic Rewinding Shaft
Printed Samples
Printed Quality Samples
Certificates
Certifications & Honors

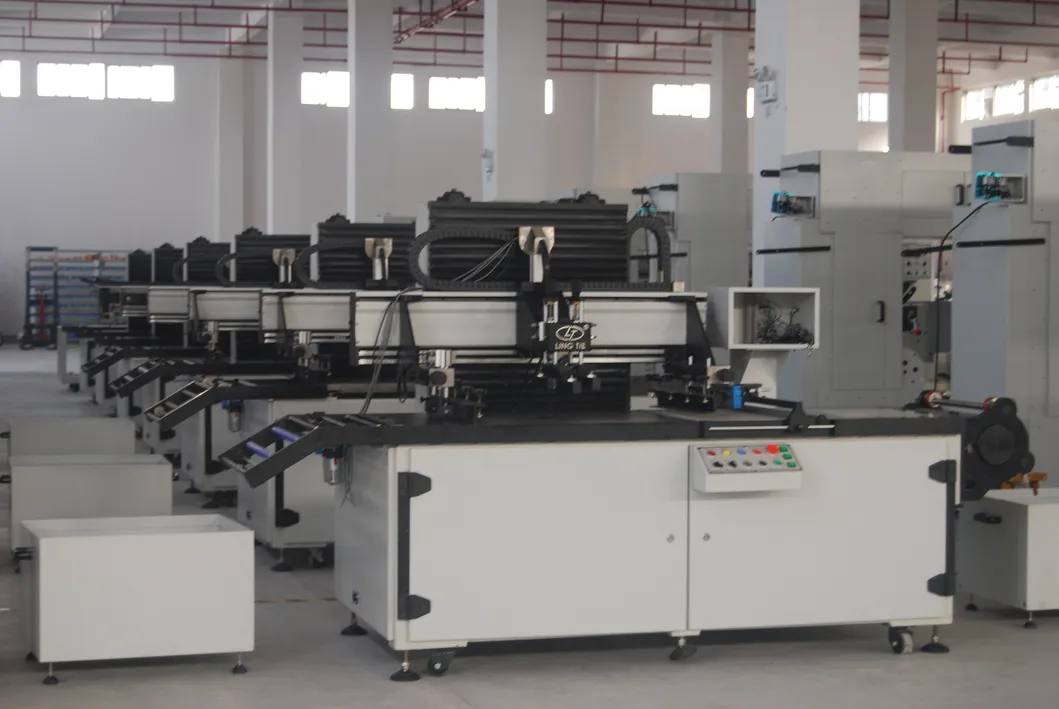

Workshop
Production Workshop

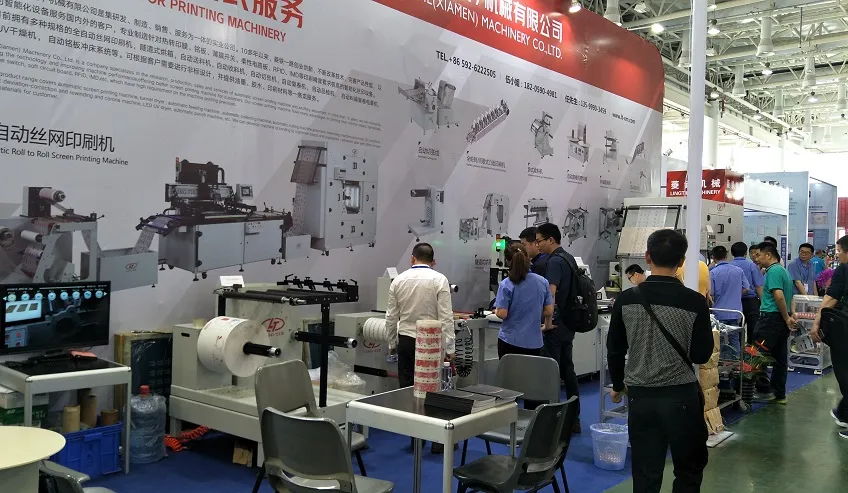

Exhibition
Industry Exhibition
Our Team
Team & Customer Support
Package
Export Wooden Box Packaging
FAQ
Q1: What materials can this roll-to-roll machine print on? A: It is suitable for various film materials in rolls, including PET, PVC, PE, PV, PP, PC, BOPP, and adhesive stickers.
Q2: How accurate is the multi-color overprinting? A: The machine features an independent three-point alignment system ensuring a high registration accuracy of ±0.01mm.
Q3: Does the machine include a drying system? A: Yes, it includes a hot air dryer with optional lengths of 30M, 60M, or 80M, capable of cooling and rewinding the film after drying.
Q4: How many operators are required for the production line? A: Due to its high level of automation, only one person is needed to operate the entire printing line.
Q5: What are the main applications for this equipment? A: Common applications include RFID tags, heat transfer labels, membrane switches, FPC, IMD/IML, and various industrial stickers.
Q6: What kind of after-sales support is provided? A: The machine comes with a one-year warranty, and engineers are available to provide machinery service overseas.
