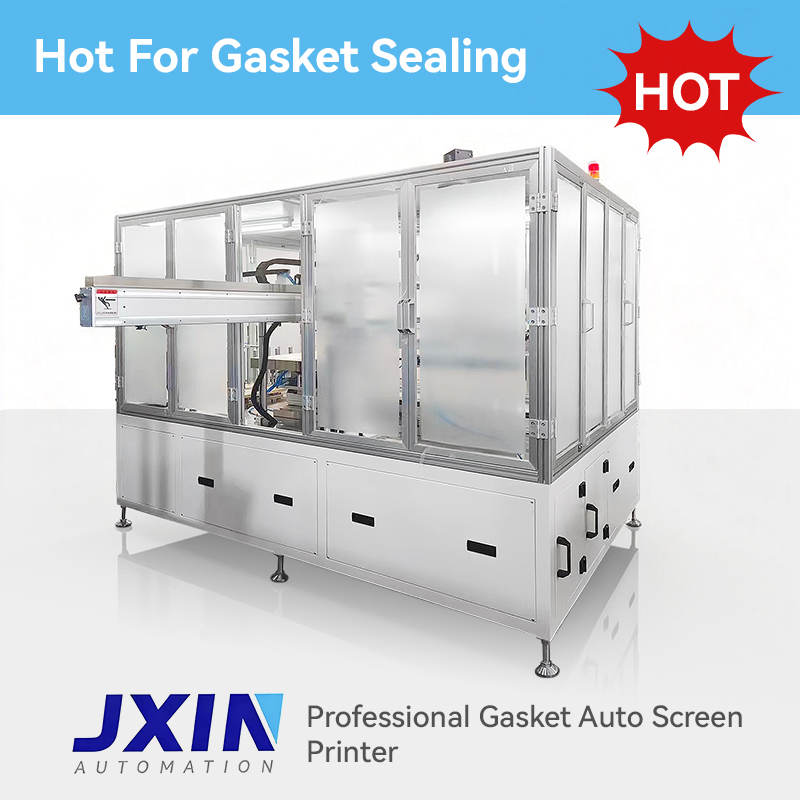

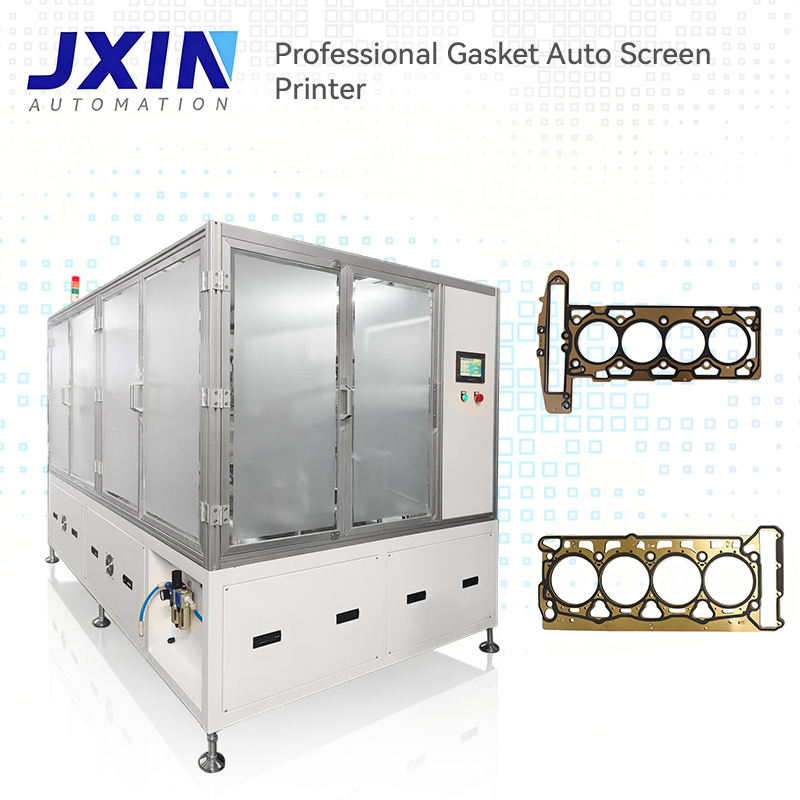

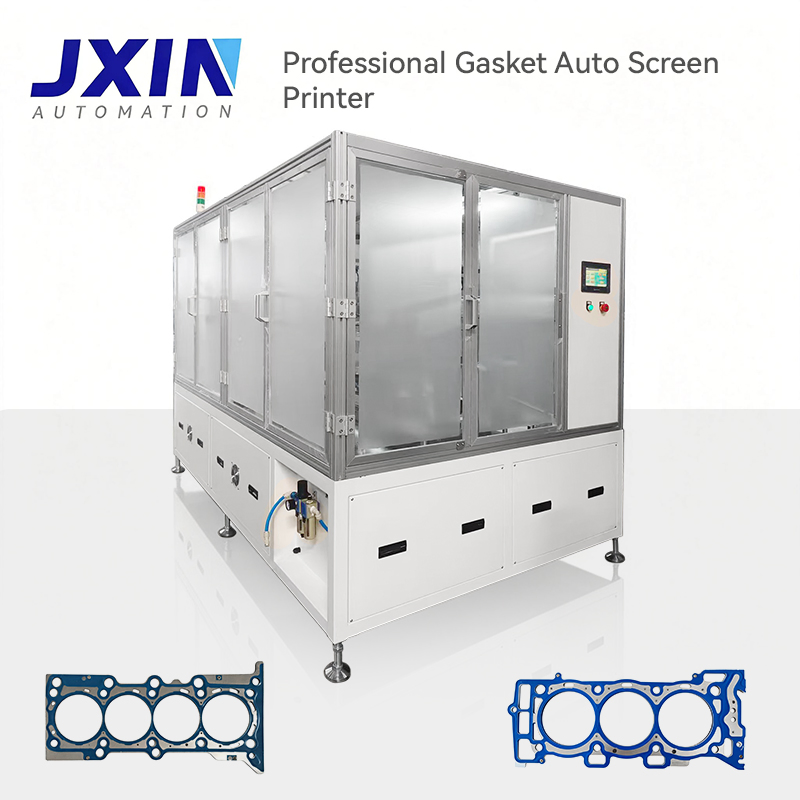

Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
1 / 5
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications
Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications

Premium Design Full Automatic Cylinder Gasket Screen Printing Machine for ODM and OEM Applications

Customization: Available
After-sales Service: Lifelong Maintenance
Warranty: 1 Year Warranty
Send Inquiry

Product Description

📊

Basic Information

Model NO.
JX-GJ3050
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Printing Speed
400-500 Prints/H
Voltage
220V
Air Pressure
5-7 Bar
Printing Area
300*500mm
Printing Table
400*650mm
Machine Weight
1000kg
Origin
China
HS Code
8443192200
⚙️

Product Description

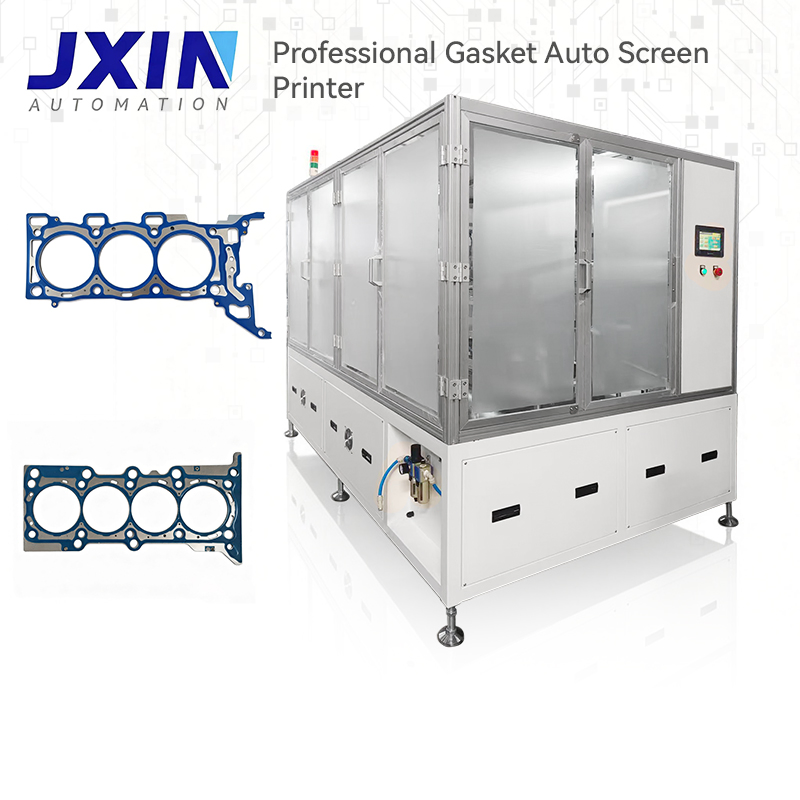

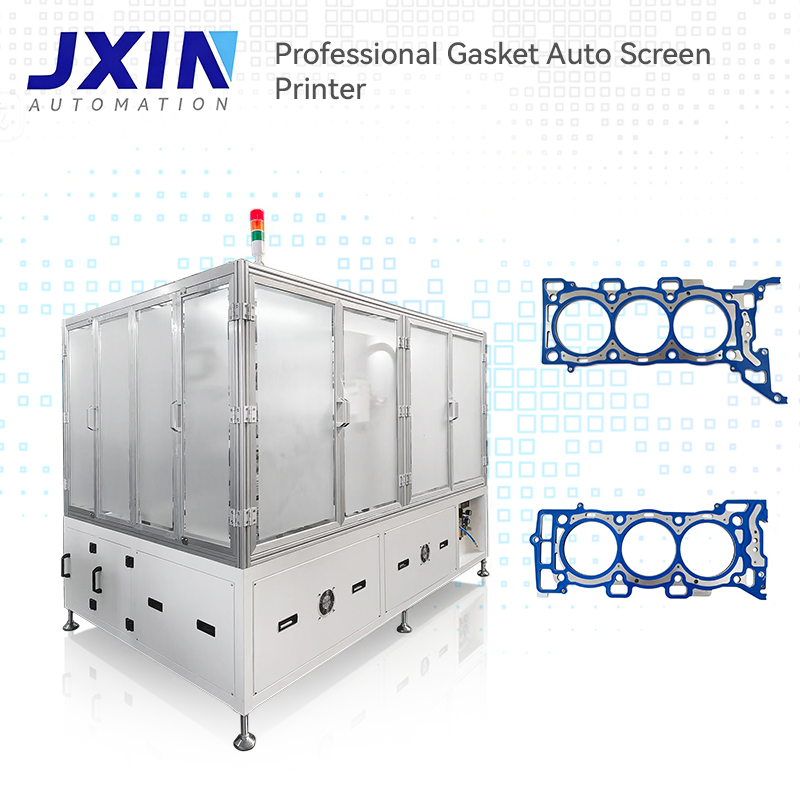

The Fully Automatic Cylinder Gasket Screen Printing Machine is a state-of-the-art industrial solution designed for high-precision, high-volume printing on engine cylinder gaskets and similar sealing components. This machine integrates advanced automation, precision engineering, and robust performance to meet stringent automotive and manufacturing standards. It is widely applied in the cylinder head gasket industry for sealing gaskets.

Key Features:

  • Complete Automation: Automates the entire workflow including feeding, alignment, printing, and unloading.
  • High Precision: Equipped with precision locating pins and magnets for accurate registration.
  • User-Friendly HMI: Intuitive touchscreen interface for easy setup and real-time monitoring.
  • Robust Construction: Built with high-quality components ensuring stable operation with minimal downtime.

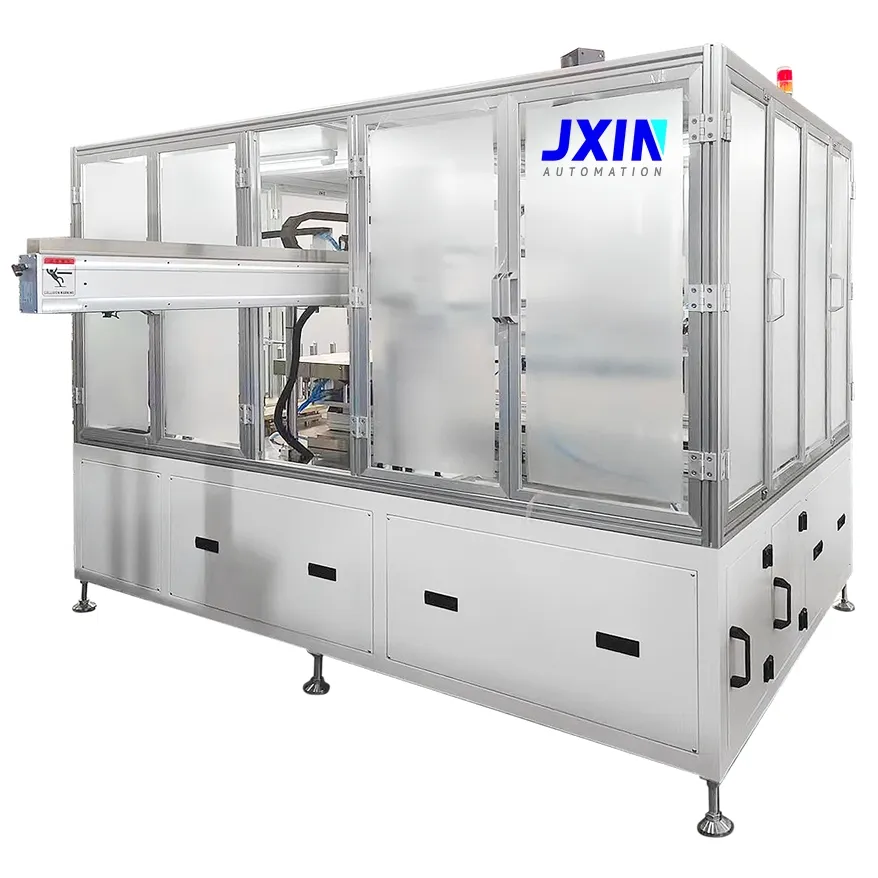

Automatic Cylinder Gasket Screen Printing Machine
📋

Technical Specifications

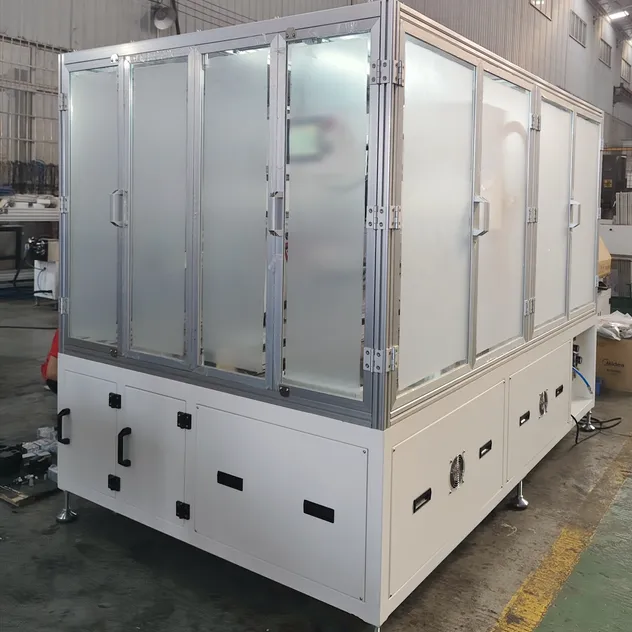

Safety Guard Design
Safety Guard Machine Design
PLC Servo System
PLC+Servo Accurate Printing System

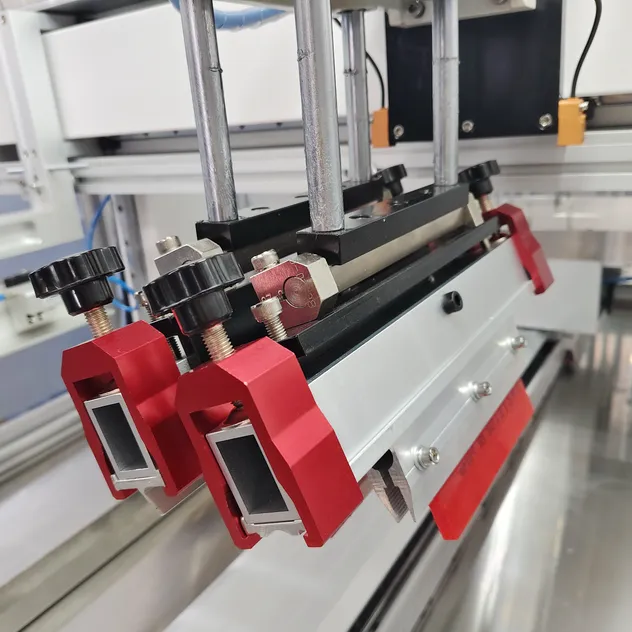

Squeegee System
Flexible Squeegee and Ink Blade

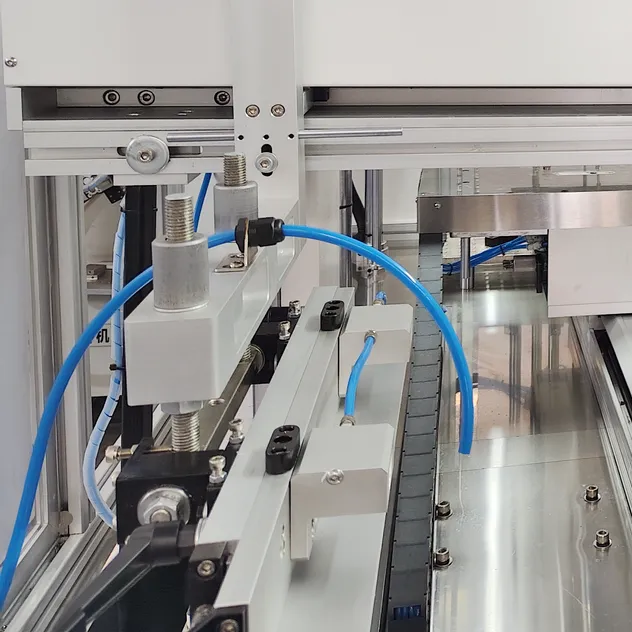

Screen Holder
Highly User Friendly Screen Holder

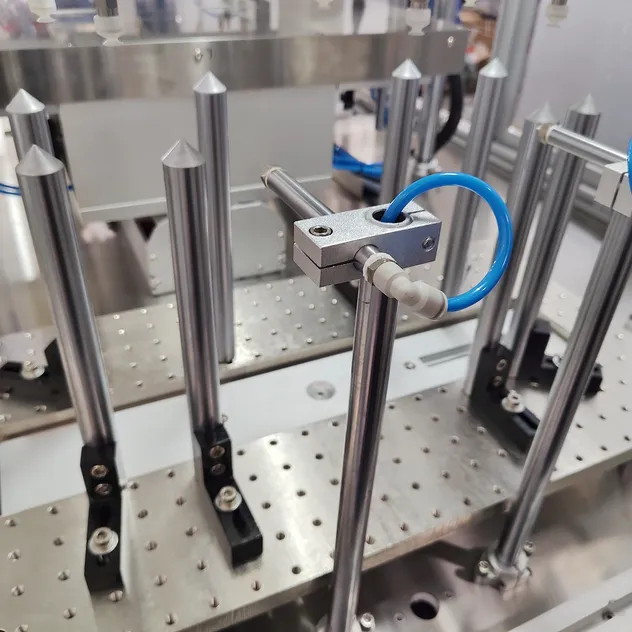

Rack Adjustment
Easy and Simple Rack Adjustment

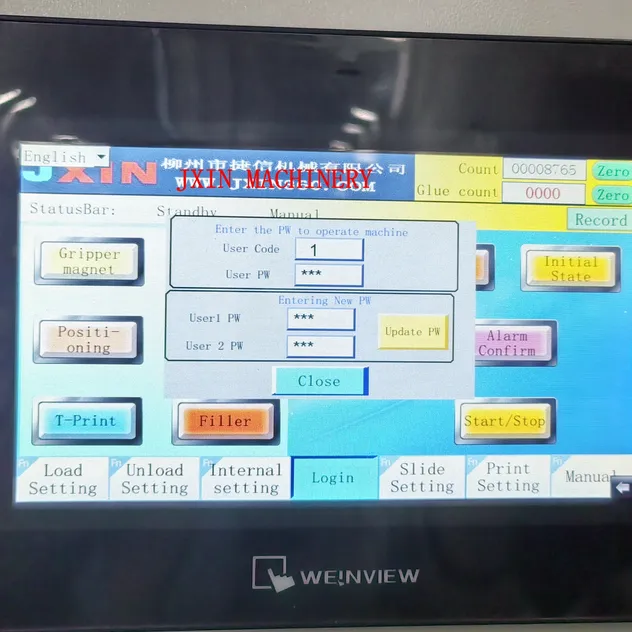

Touch Screen
High-User Friendly Touch Screen
Machine Dimension 2780*2250*1850MM Printing Speed 400-500PCS/H
Table Dimension 400MM*650MM Printing Area 300*500MM
Power Source 220V/1-P Power 5 KW
Air Pressure 5-7 Bar Machine Weight 1250KG
📦

Packing & Delivery

Package Type
Ply-Wooden Pallet
Package Size
271.00cm * 171.00cm * 218.00cm
Gross Weight
1250.000kg

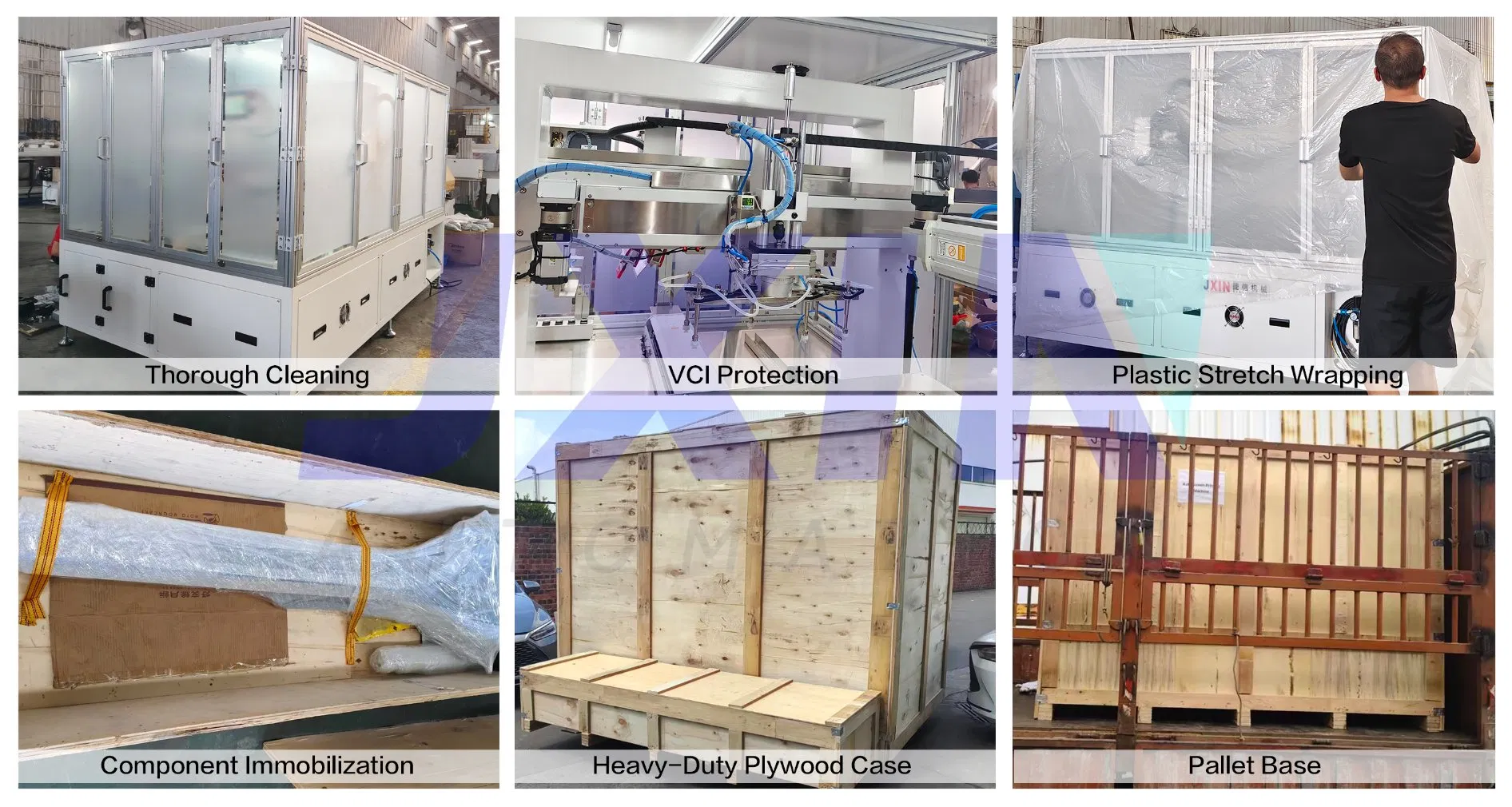

Packing Process
📜

Certifications

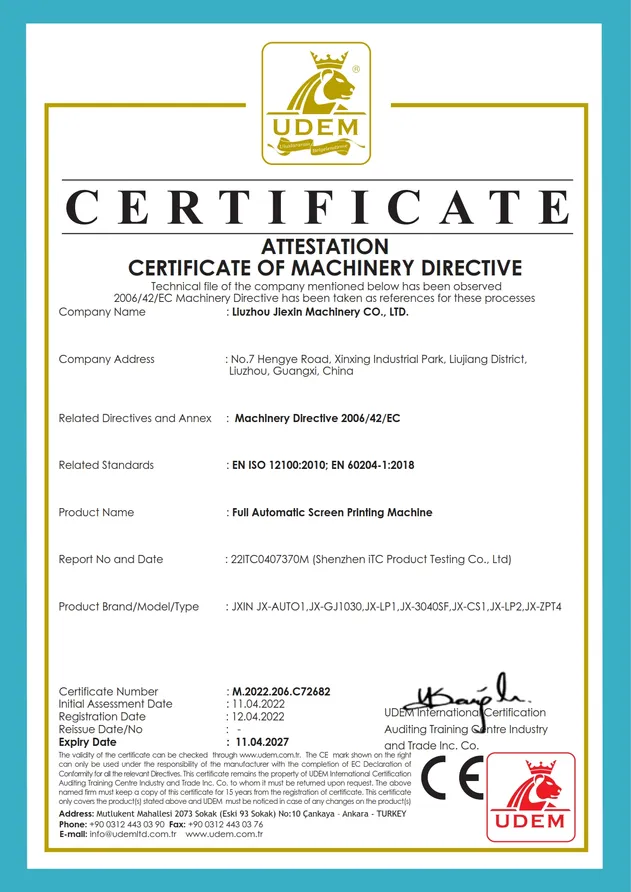

Certification 1
Certification 2
Certification 3
Factory Overview

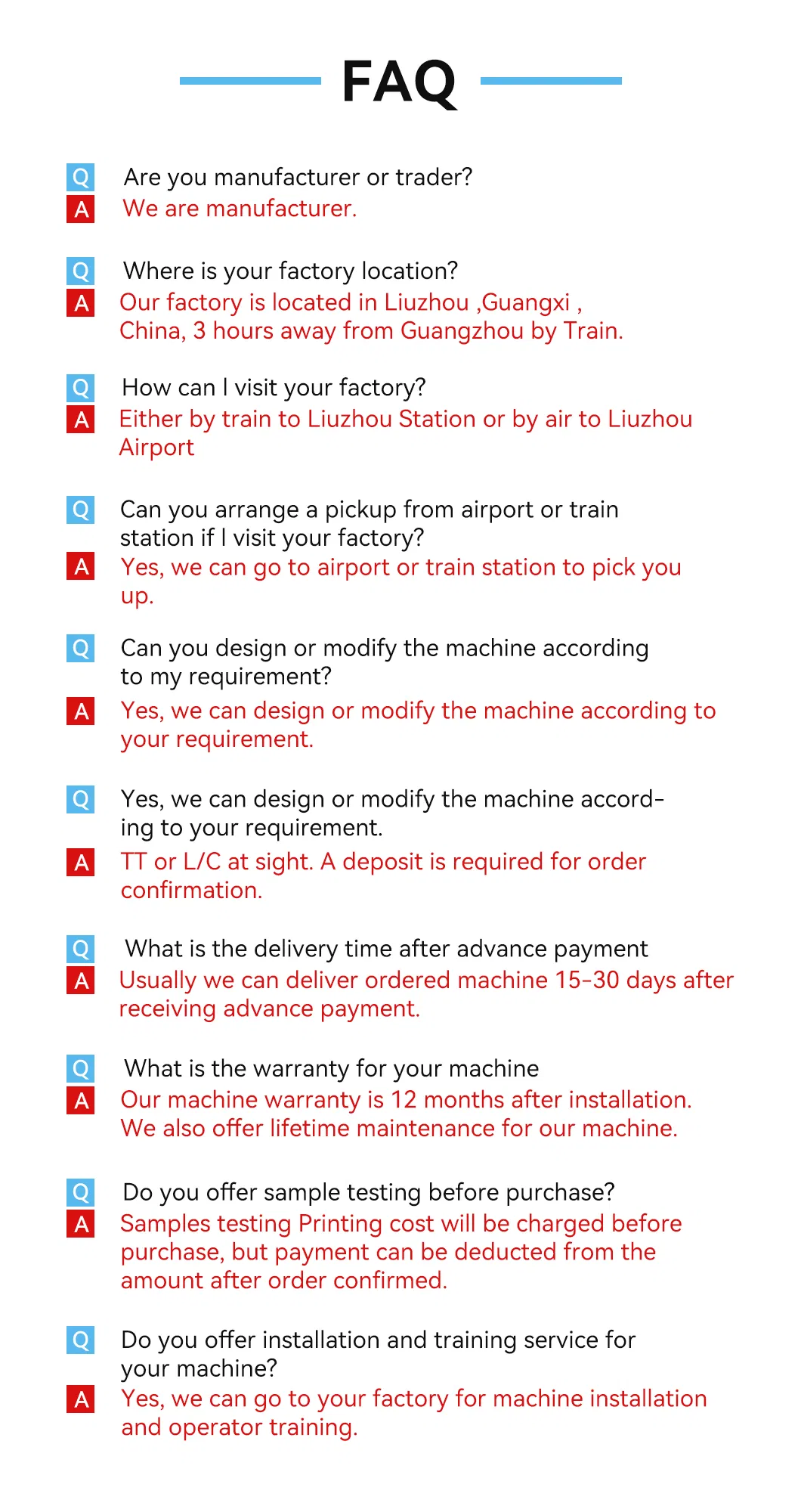

Frequently Asked Questions

Q1: What is the maximum printing speed of the JX-GJ3050? A1: The machine offers a printing speed of 400 to 500 prints per hour, depending on the material and complexity.
Q2: What are the primary applications for this machine? A2: It is specifically designed for high-precision packaging printing, particularly for engine cylinder gaskets and sealing components.
Q3: Does the machine support fully automatic operation? A3: Yes, it features complete automation including automatic gasket feeding, alignment, printing, and unloading to maximize productivity.
Q4: What is the power and air pressure requirement? A4: The machine operates on a 220V power source with 5KW power consumption and requires an air pressure of 5-7 Bar.
Q5: How is the machine protected during shipping? A5: The machine is securely packed in a Ply-Wooden pallet to ensure safety during international transport.
Q6: What is the maximum printing area available? A6: The JX-GJ3050 supports a maximum printing area of 300*500mm on a 400*650mm table.
