PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
1 / 5
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT
PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT

PCB Screen Printing Machine, Semi Auto Solder Paste, Semi Screen Printer Machine SMT

Customization: Available
After-sales Service: Online Service
Condition: New
Send Inquiry

Product Description

Product Overview

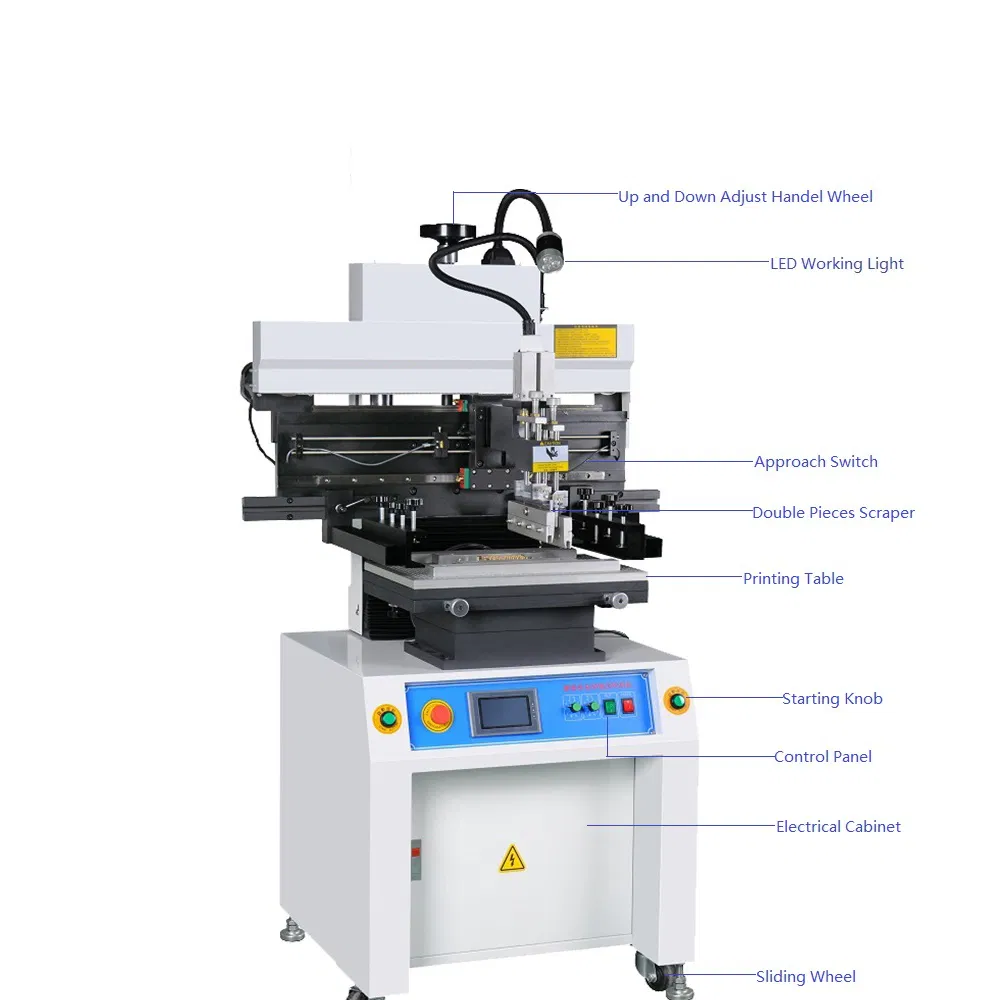

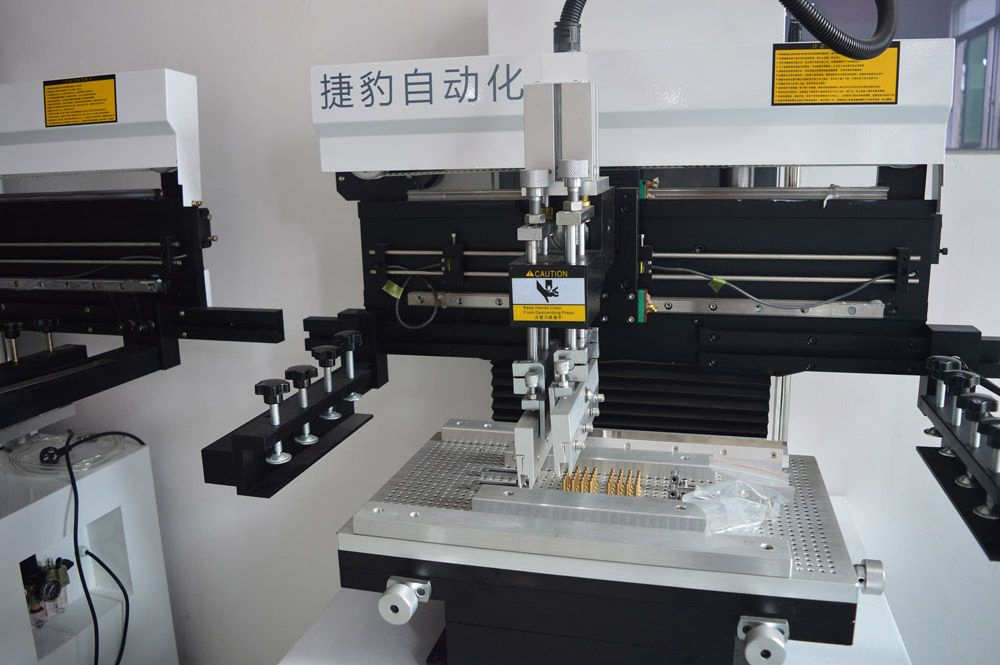

PCB Screen Printing Machine
◈ Model: S400
◈ Type: Vertical Screen Printing Machine
◈ Certification: CCC, ISO, CE
◈ Driven Type: Electric
◈ Automatic Grade: Semiautomatic
◈ Application: Packaging Printing / SMT
Key Features
  • Precision guide rail and imported motor drive for high accuracy blade seat conversion and printing.
  • 45-degree rotating printing scraper for easy stencil/squeegee cleaning and replacement.
  • Adjustable blade block to select the optimal printing position.
  • Fixed groove printing platen and PIN system for easy single/double-sided printing setup.
  • Convenient X, Y, Z fine adjustment for steel mesh and PCB alignment.
  • Supports both one-way and two-way printing methods.
  • Automatic counting function for efficient production statistics.
  • Compatible with both steel blades and rubber scrapers with adjustable angles.
  • Touch screen with adjustable screen saver to prolong hardware life.
  • Adjustable printing speed with real-time display.
Technical Specifications
Parameter Details
Dimensions850×720×1650mm
Platform Size320×400mm
PCB Size250×350mm
Template Size550×680mm
Printing Speed0-8000mm/min
PCB Thickness0.2-2.0mm
PCB Fine TuningFront/Side ±10mm
Power Supply1PAC220V 50/60Hz
Repeating Precision±0.02mm
Printing Accuracy±0.02mm
Positioning ModeOutside / Reference hole
WeightApprox. 300Kg - 350Kg
Product Gallery

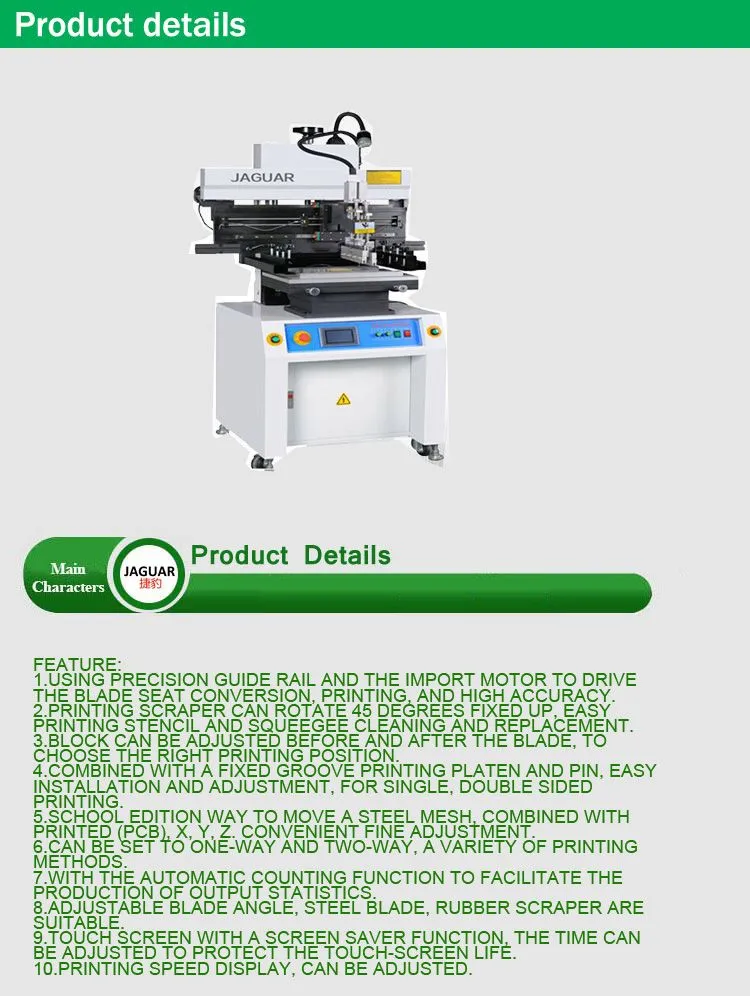

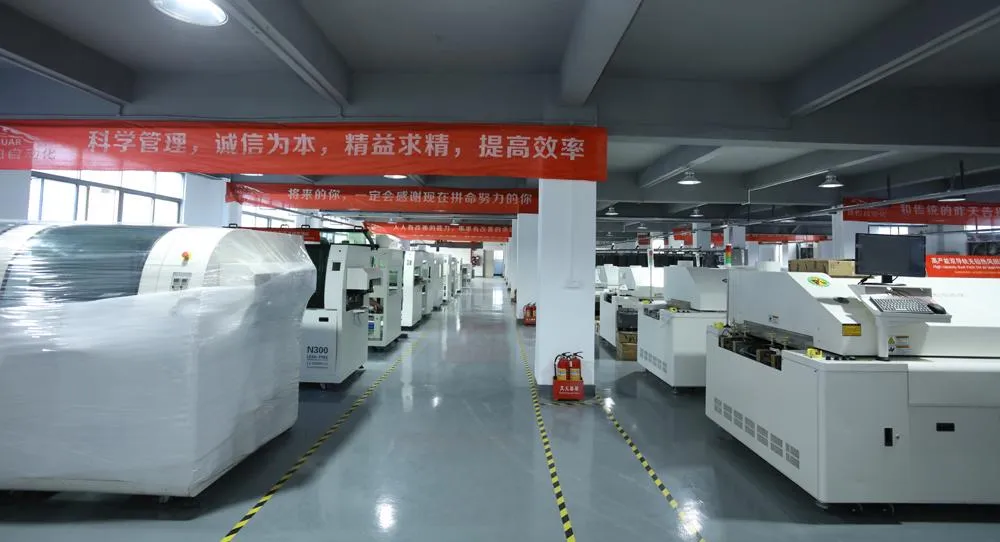

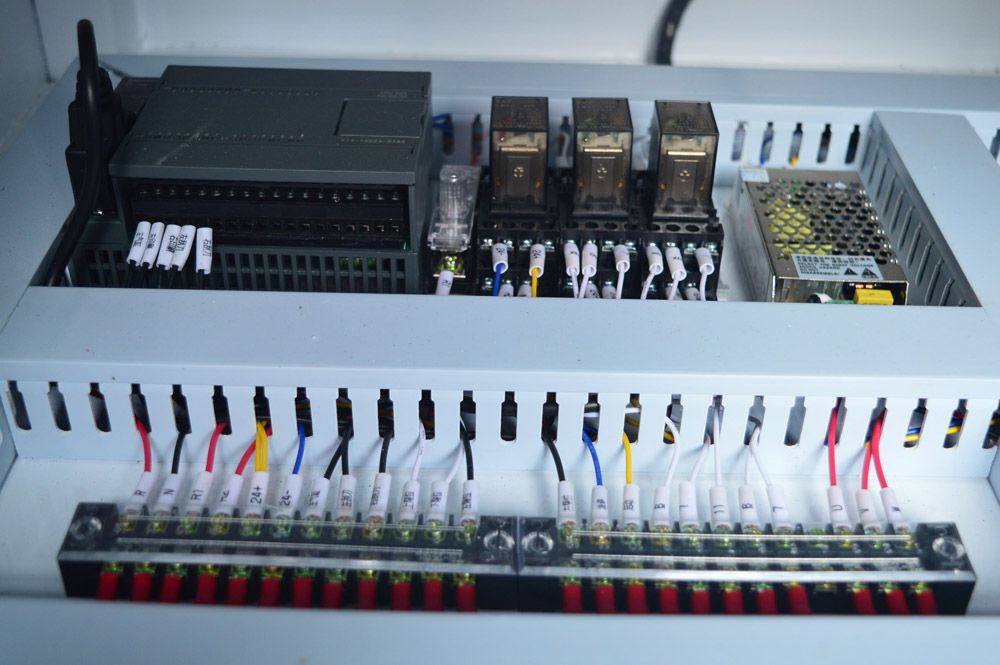

S400 Detail 1 S400 Detail 2 Factory Production
Manufacturing Capabilities
📌 Over 6000 square meters production plant.
📌 Over 20 years of experience in SMT automation equipment.
📌 Professional team of mechanical and electrical engineers.
📌 Certified National High-tech Enterprise.
📌 Global presence in over 35 countries.

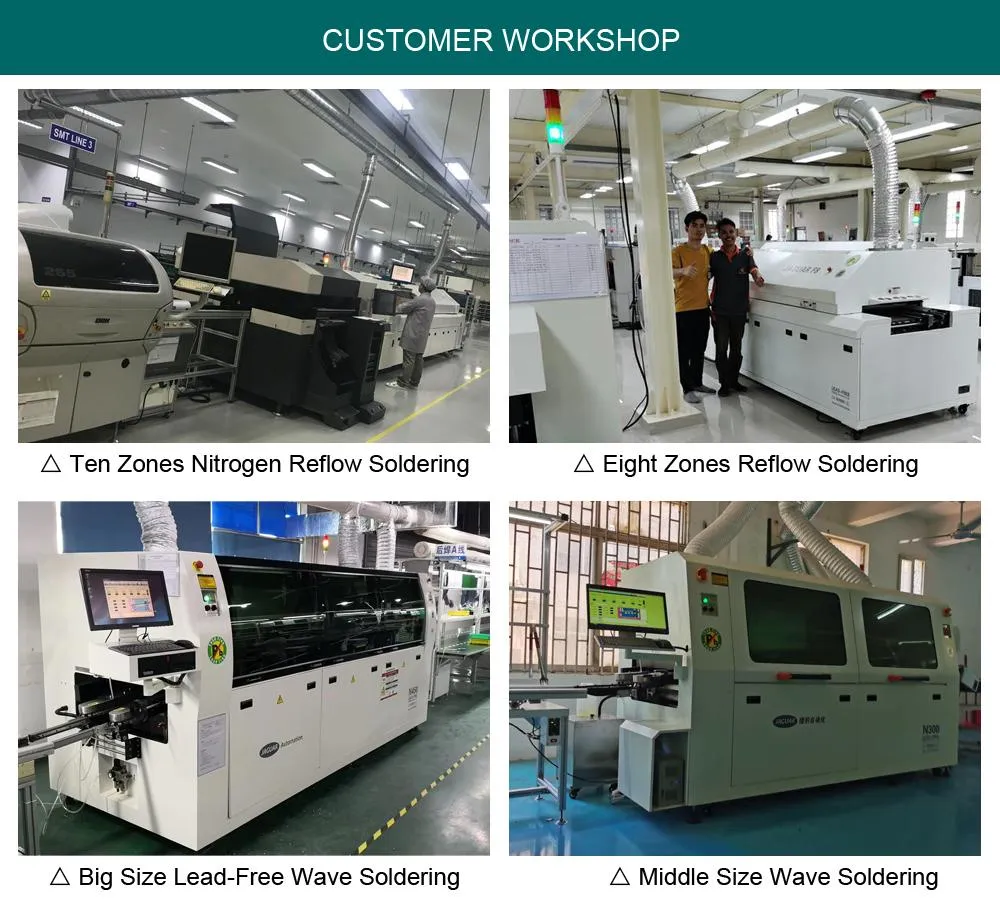

Global Success Exhibition

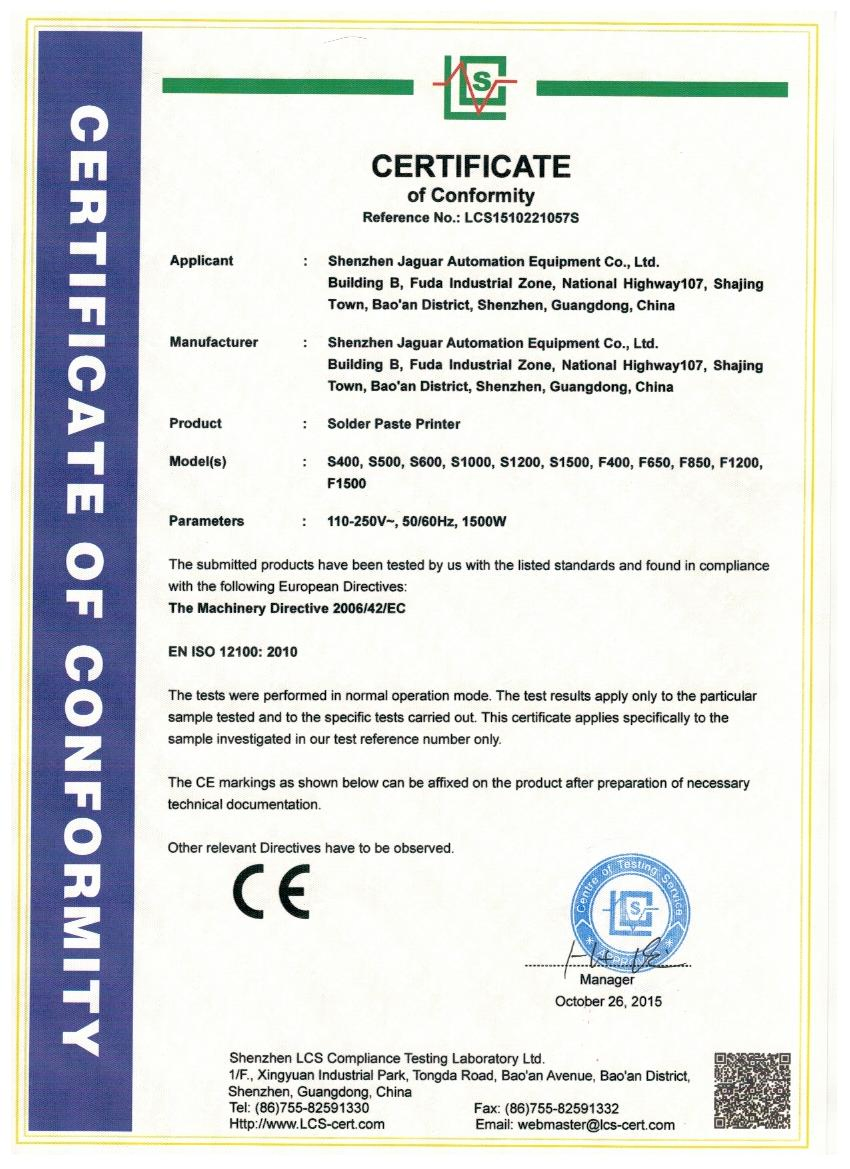

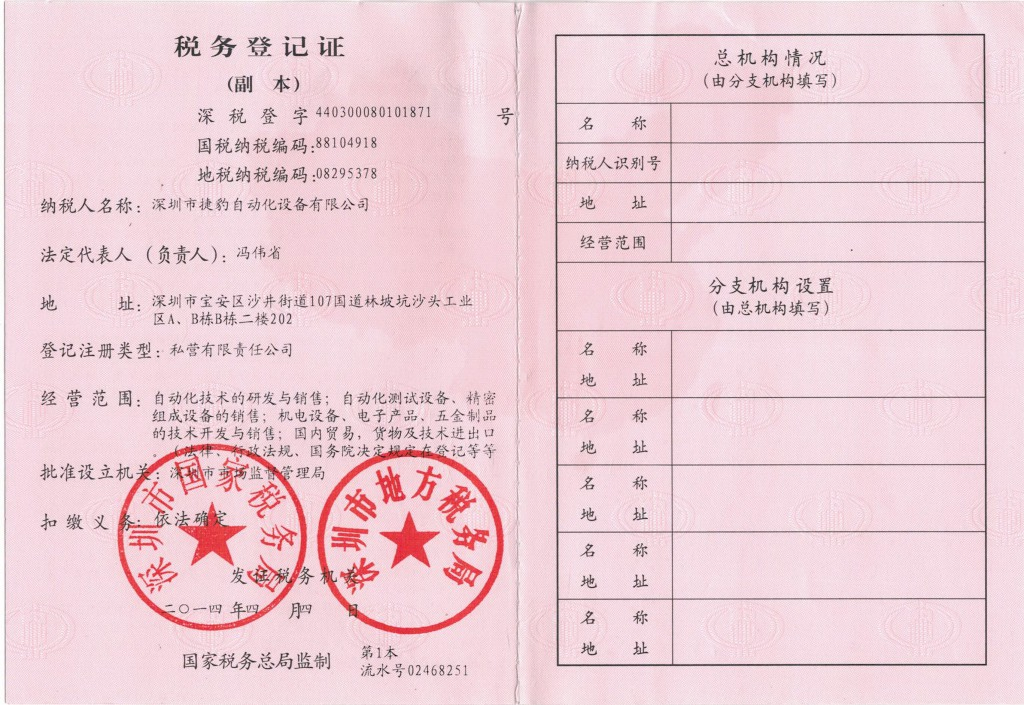

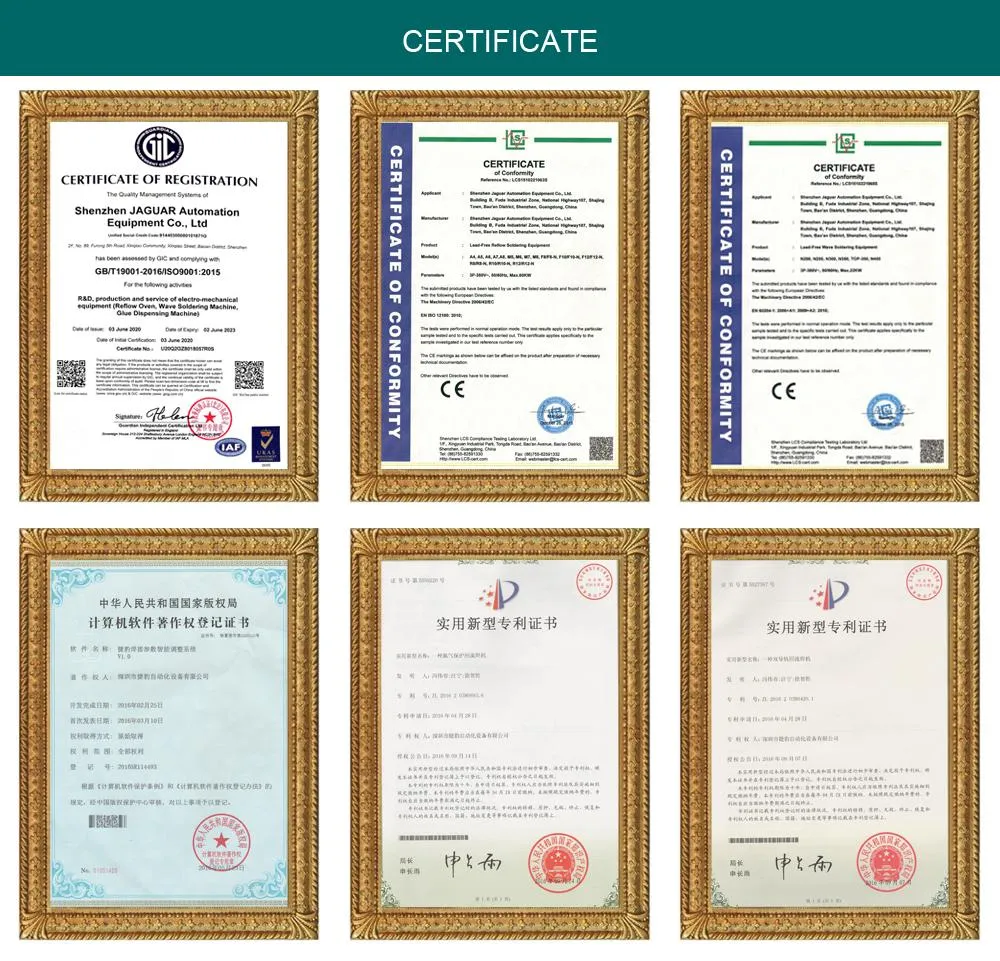

Certifications & Shipping
Packing and Shipping Certificates
Frequently Asked Questions
Q1: What is the maximum printing speed of the S400 machine? The machine offers an adjustable printing speed ranging from 0 to 8000mm/min, which can be monitored via the digital display.
Q2: What level of printing accuracy can I expect? The S400 provides high precision with both repeating precision and printing accuracy rated at ±0.02mm.
Q3: Does the machine support double-sided PCB printing? Yes, it features a combined fixed groove printing platen and PIN system designed for easy installation and adjustment for both single and double-sided printing.
Q4: What certifications does the equipment hold? The machines are fully certified with CE and ROHS standards, and the manufacturer is ISO certified.
Q5: What are the PCB size and thickness limitations? The machine supports a maximum PCB size of 250×350mm and handles PCB thicknesses ranging from 0.2mm to 2.0mm.
Q6: How is the machine protected during transportation? The equipment is professionally packed in a robust wooden case to ensure safety during delivery.
