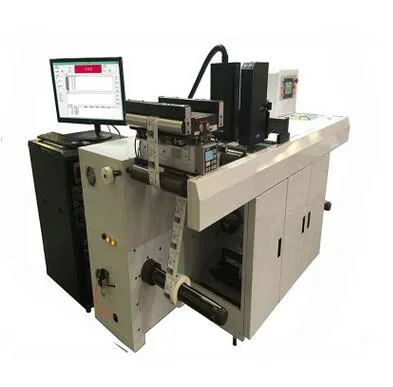

Monocolor Digital Inkjet Printing System

1 / 4

Monocolor Digital Inkjet Printing System

Customization:	Available
Type:	Ink Jet
Plate:	Variable Data

Send Inquiry

Product Description

📋Basic Information

Model NO.

UVJET

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Application

Packing and Printing

Printing Breadth

Customizable

Printing Speed

100m/Min

System Supported

Windows

Resolution

150-600dpi

Ink Solution

Porous, Semi-Porous, Non-Porous

Printing Interface

RS232 / Gigabit Ethernet

🚀Product Description

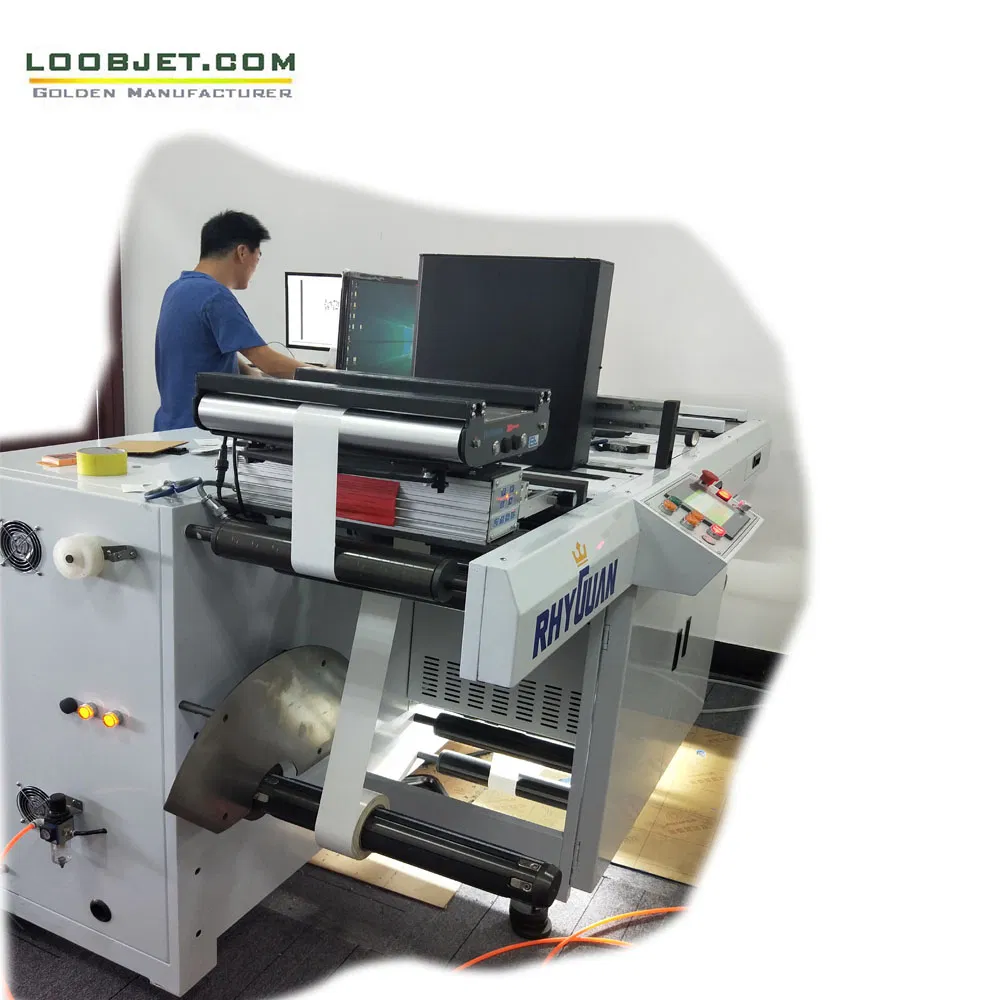

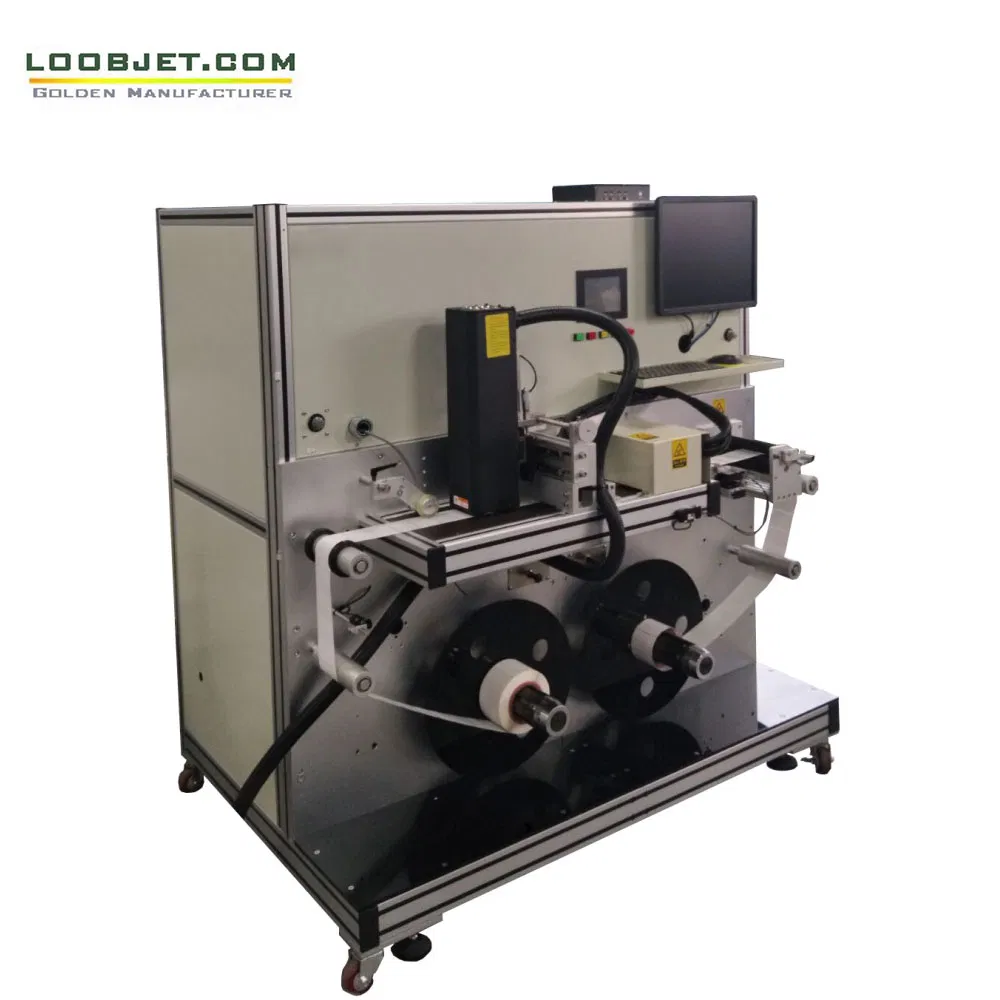

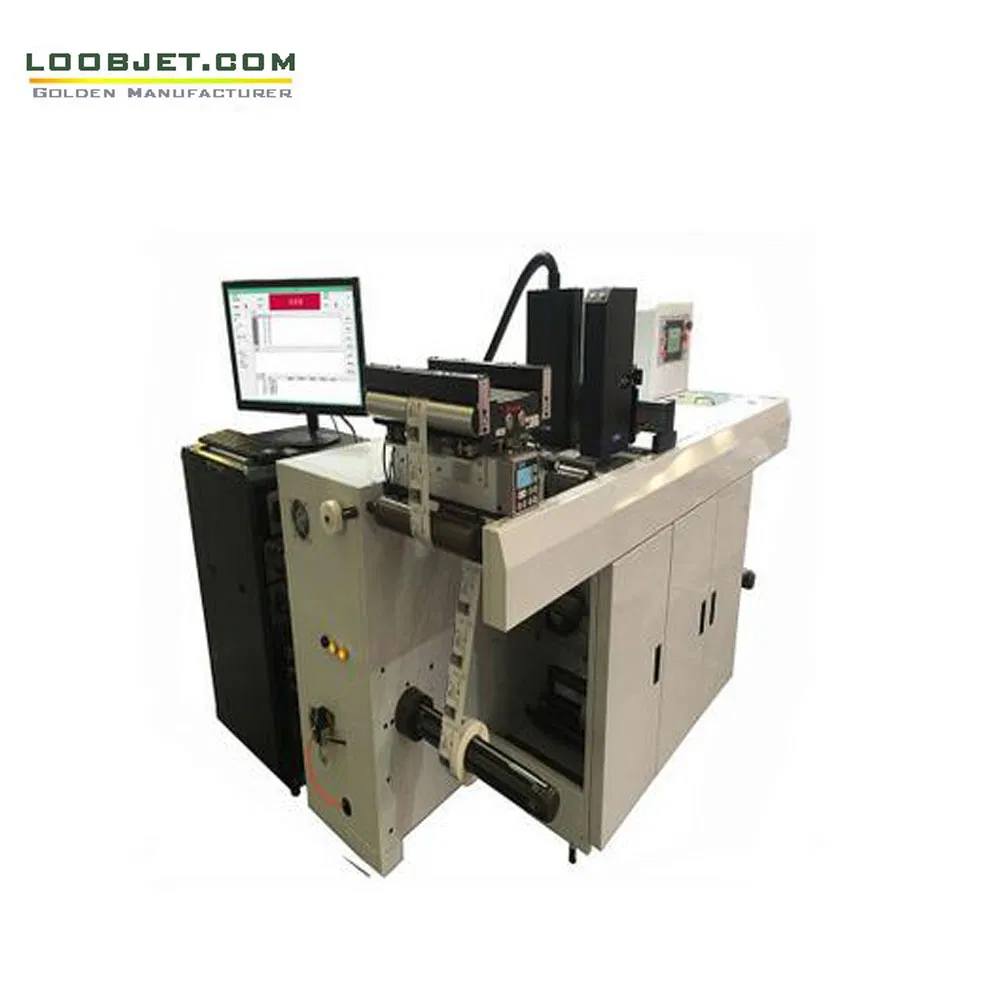

UV Inkjet Printer Label Press

This industrial UV DOD inkjet system adopts advanced industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with high-resolution and high-speed industrial print heads, it meets rigorous demands for mailings, barcodes, bills, packages, and marking applications.

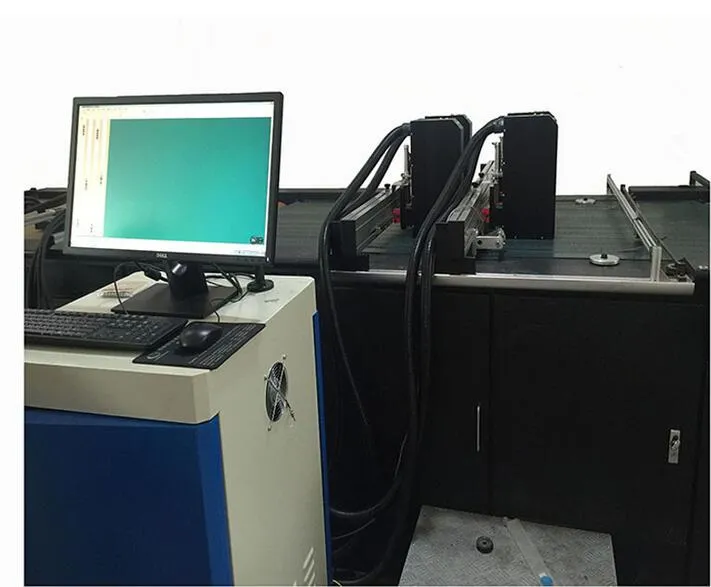

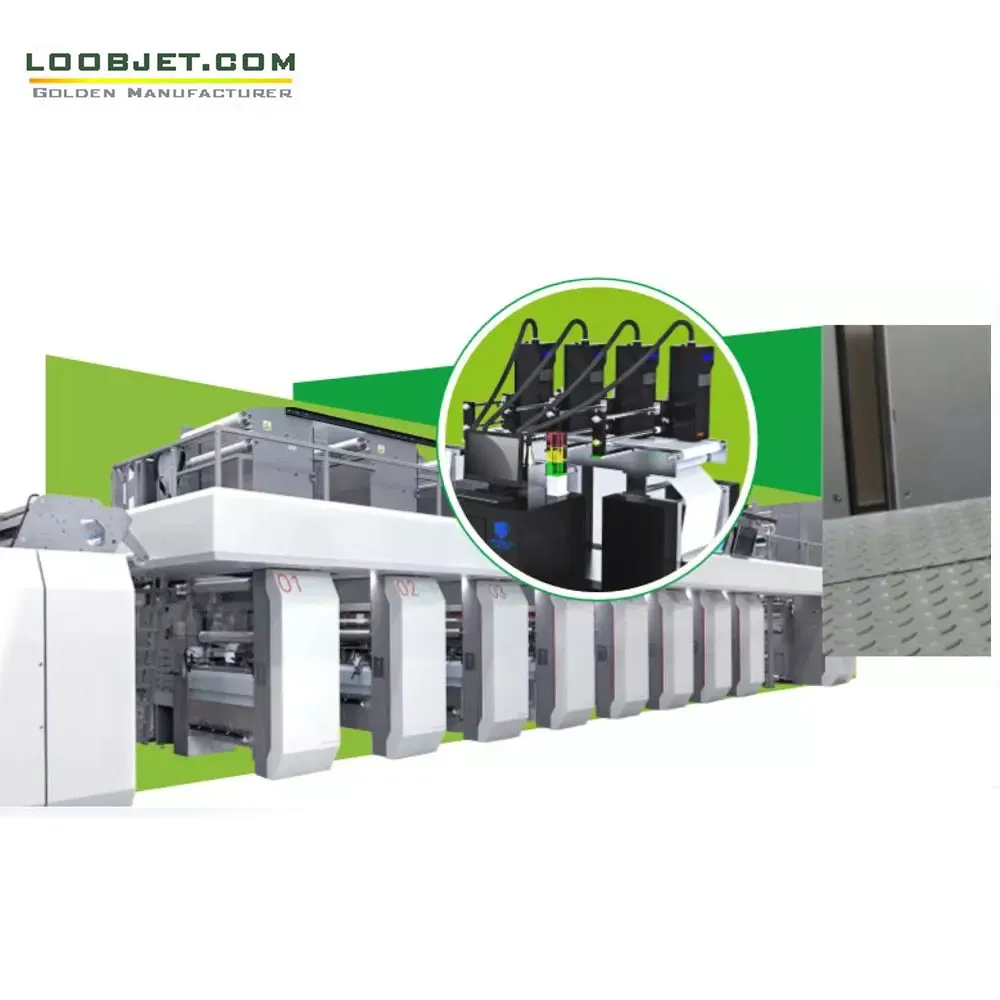

The system is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems, creating more value-added opportunities for your production line.

🛠️Technical Specifications

Nozzle Type

Ricoh GEN5 / Kyocera108 / Konica 1024i

Nozzle Life

>3 Years (10 billion pulses)

Print Width

54/72/108 mm (Expandable)

Linear Speed

70 ~ 180 m/min

Ink Type

UV or Water-based (Eco-friendly)

Material Support

Paper, Plastics, PVC, PP, PE film

💻Control Software (PCS)

Our Printer Control Software (PCS) provides a user-friendly interface to monitor printer status, set jetting waveforms, and manage temperatures for each print head. It supports database checking, DPI settings, and motor speed control.

Variable Data Printing (VDP):

Supports text, dates, times, graphics, logos, and serial numbers.
Supports barcodes, Windows Fonts, and database photo images.
Data formats: .CSV, .XLS, .XLSX, .TXT, and PDF.

📊Detailed Parameters

Print Head	Ricoh GN5/Konica 1024i/Kyocera	Resolution	200 / 300 / 400 / 600 DPI
Single Head Width	54.0mm / 72.0mm / 108mm	Max Width	Up to 24 Seamless Joints
Printing Speed	180m/min (600x200dpi) 75m/min (600x600dpi)	Drop Size	5-21 PL
Barcodes	UPC, EAN, CODE128, QR, DATAMATRIX, PDF417	Format	MS Excel, TXT, PDF, BMP
Interface	Gigabit Ethernet (Real-time)	Power	AC 200~240V / 50~60Hz

🎥Reference Video

Please refer to our technical video library for system operation, maintenance, and live printing demonstrations across various substrates.

❓Frequently Asked Questions

What materials can this UV printer work on?

The system is highly versatile and suitable for all kinds of paper, plastics, and various films such as PVC, PP, and PE.

What is the maximum printing speed?

The maximum linear speed can reach up to 180 m/min at 600x200 DPI resolution, or 75 m/min at a high precision of 600x600 DPI.

Does the software support variable data printing?

Yes, our VDP software supports variable text, barcodes, QR codes, serial numbers, and images from external databases like Excel or CSV files.

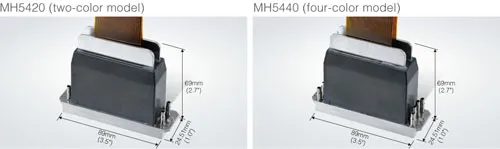

What print head options are available?

Depending on your requirements, you can choose between Ricoh GEN5 (54mm), Konica 1024i (72mm), or Kyocera (108mm) industrial piezoelectric nozzles.

Is the system compatible with Windows?

Yes, the Printer Control Software (PCS) is fully compatible with Windows 7 and Windows 10 systems via a Gigabit Ethernet interface.

How long do the nozzles last?

Under normal operating conditions and maintenance, the industrial piezoelectric print heads have a lifespan of more than 3 years or approximately 10 billion printing pulses.
