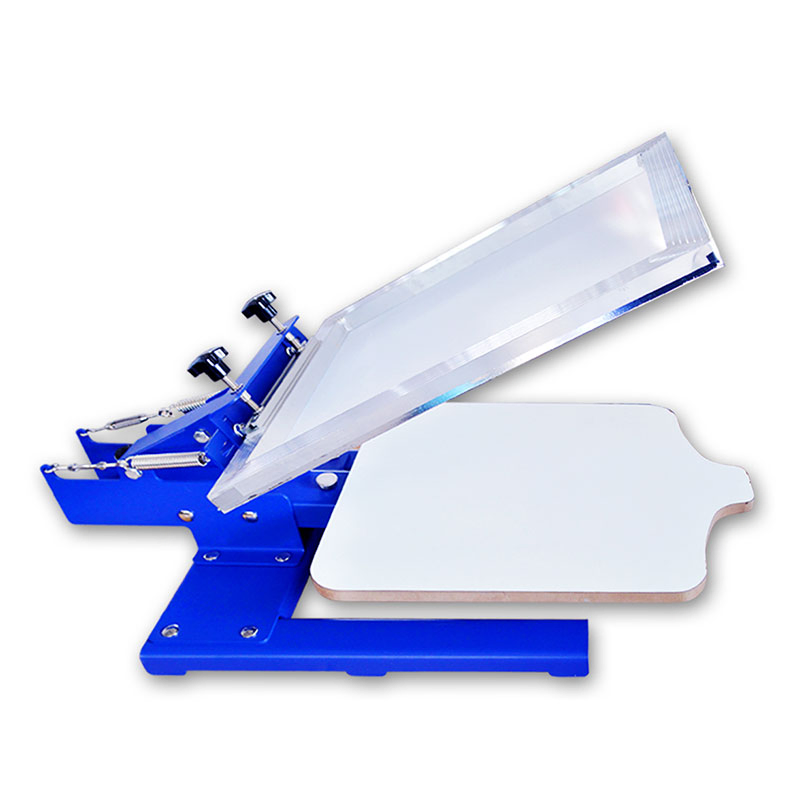

Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
1 / 5
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine
Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine

Mk-T11d One Color Manual Textiles Printer Silk Textiles Screen Printer Screen Printing Machine

Customization: Available
Type: Rotary Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

Basic Info
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Surface Treatment
Electrostatic Spraying
Attachment Material
Stainless Steel, Zinc/Nickel Plating
Net Weight
35lb
Gross Weight
40lb
Origin
China
HS Code
8443192290
Product Description

This machine can be placed directly on a desk and is mainly used for one-color screen printing. It is specially suitable for printing multiple designs within one screen frame. By moving the screen frame or the pallet, designs can be printed on different positions of a T-shirt.

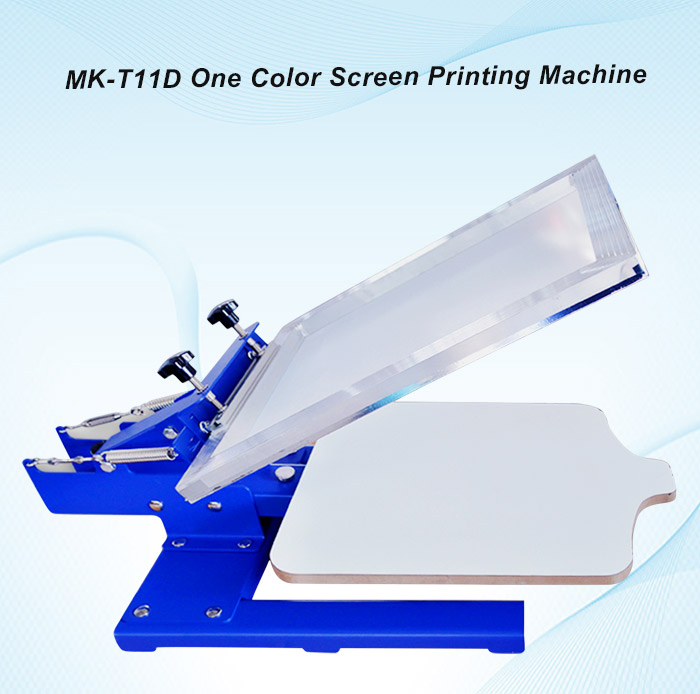

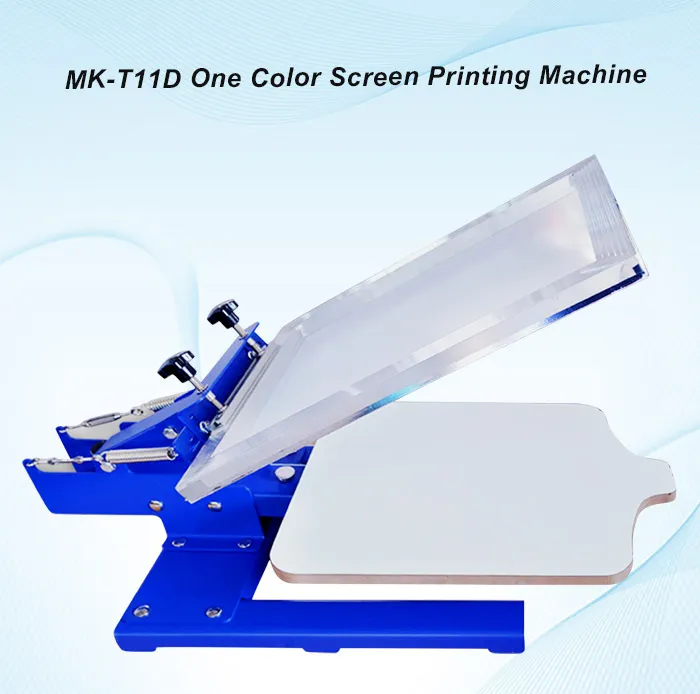

Screen Printing Machine Main View

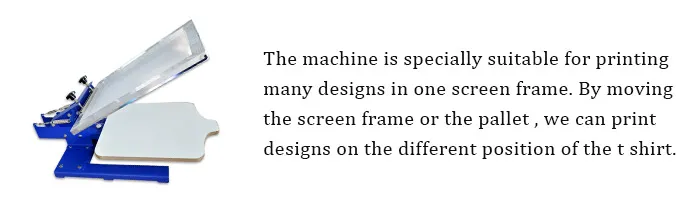

Application View

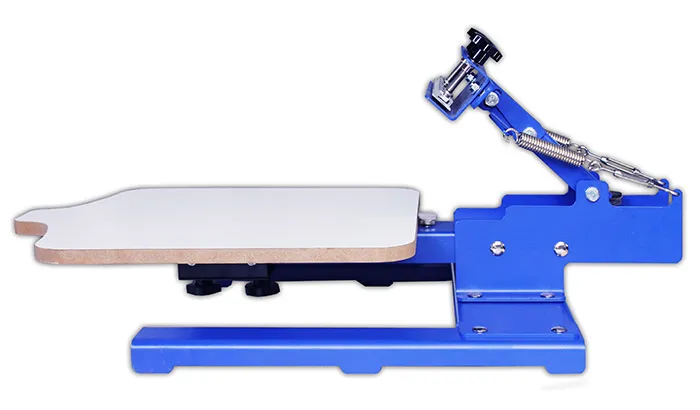

Operational View
Product Feature Specifications
Product Code006203
Product NameMK-T11D One Color Screen Printing Machine
Machine ColorBlue
Printing Area22*18in
Machine MaterialSteel Plate
Surface TreatmentElectrostatic Spraying
Machine Size35*19*14in
Net Weight42lb
Gross Weight46lb
Packing Size27*21*11in
Packing Volume0.1 m3
Packing MaterialExport Carton
Functions and Features
1
According to the height of the substrate, the chuck of the screen frame can adjust 1.6in from top to bottom.
2
The pallet can adjust 4in from front to back according to printing needs.
3
When the screen frame is fixed in the middle, the chuck and the screen frame can move 10in from left to right.
4
By adjusting the angle of the chuck, the machine can print products with an angle of +12 degrees or -12 degrees.
5
The turn buckle is adjustable to suit different weights of screen frames.
6
The screen frame is fixed using an aluminium alloy pressing plate for superior stability.
7
The lifting angle of the screen frame can be precisely adjusted by a screw.
8
Features a detachable structure for easy installation with the included tool set.

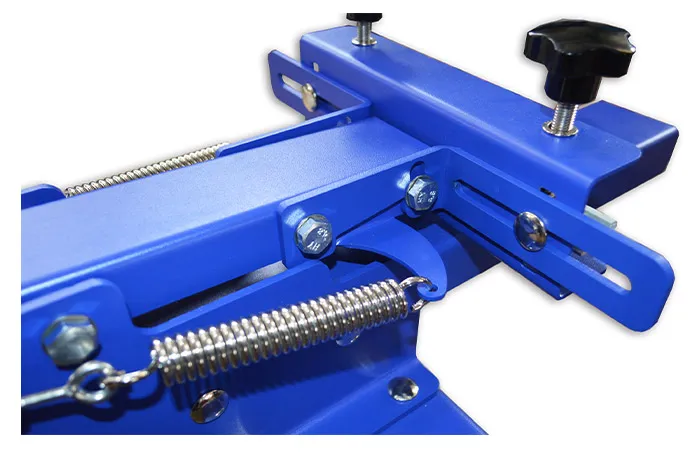

Adjustment Mechanism

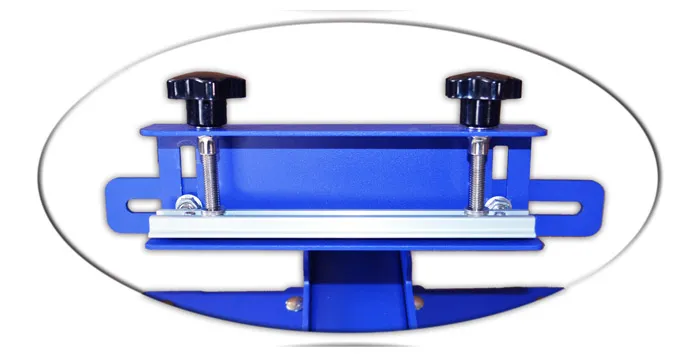

Clamping System

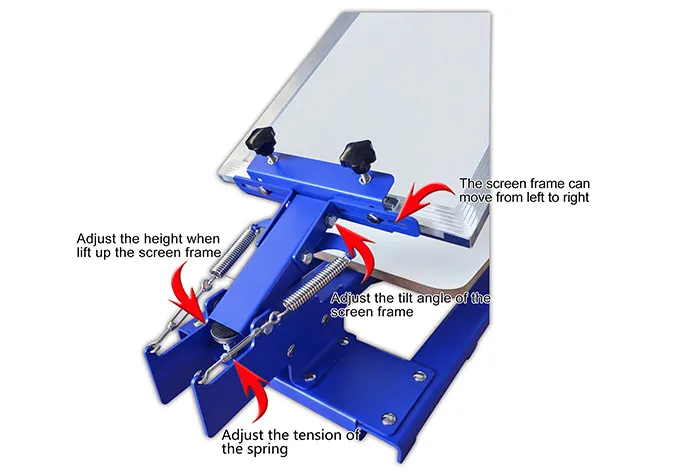

Angle Adjustment

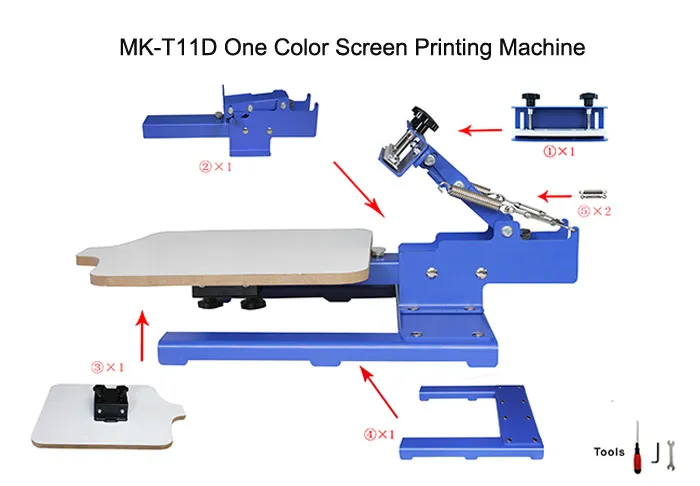

Full Machine Assembly
Product Packaging
Frequently Asked Questions (FAQ)
What is the primary application for this screen printing machine?
The MK-T11D is specifically designed for one-color manual screen printing on textiles like T-shirts. Its compact desktop design makes it ideal for smaller workspaces.
Can the machine handle different thickness of printing materials?
Yes, the chuck of the screen frame can be adjusted up and down by 1.6 inches to accommodate substrates of varying heights.
How does the machine ensure the stability of the screen frame?
The machine utilizes a high-quality aluminium alloy pressing plate to fix the screen frame, ensuring it remains stable and secure during the printing process.
Is it possible to print at an angle?
Yes, the machine features an adjustable chuck that allows for a printing angle of up to +12 or -12 degrees to suit specific product requirements.
What is the construction material of the machine?
The machine is built from durable steel plates with an electrostatic spraying surface treatment. Additional components are made of stainless steel or feature zinc/nickel plating for longevity.
Is assembly required for this model?
The machine features a detachable structure. It can be easily installed and used by following the provided specifications and using the included full set of tools.
