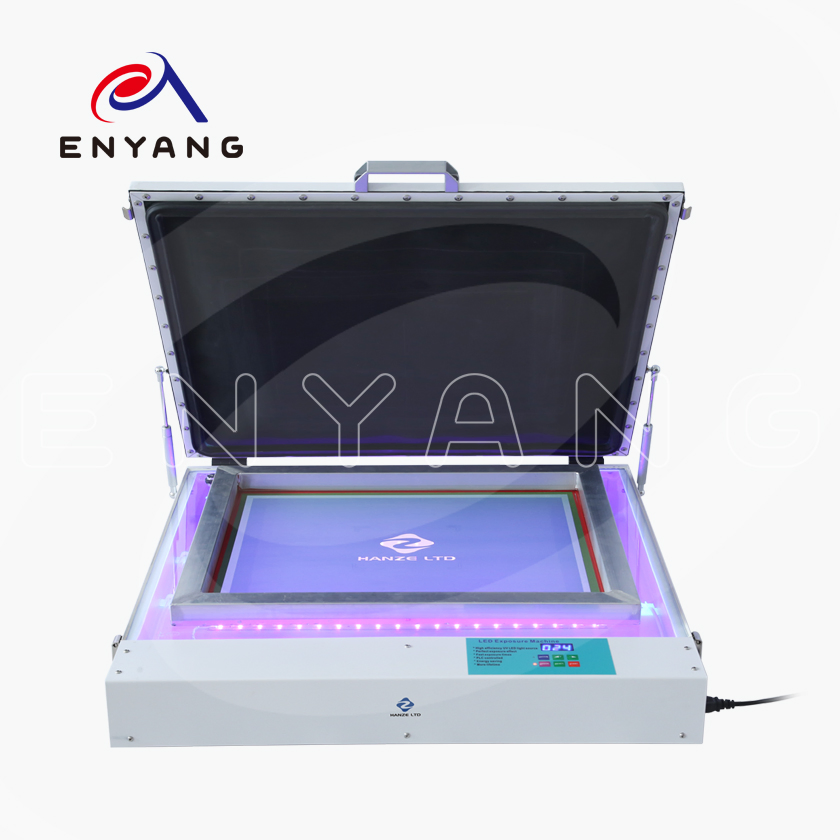

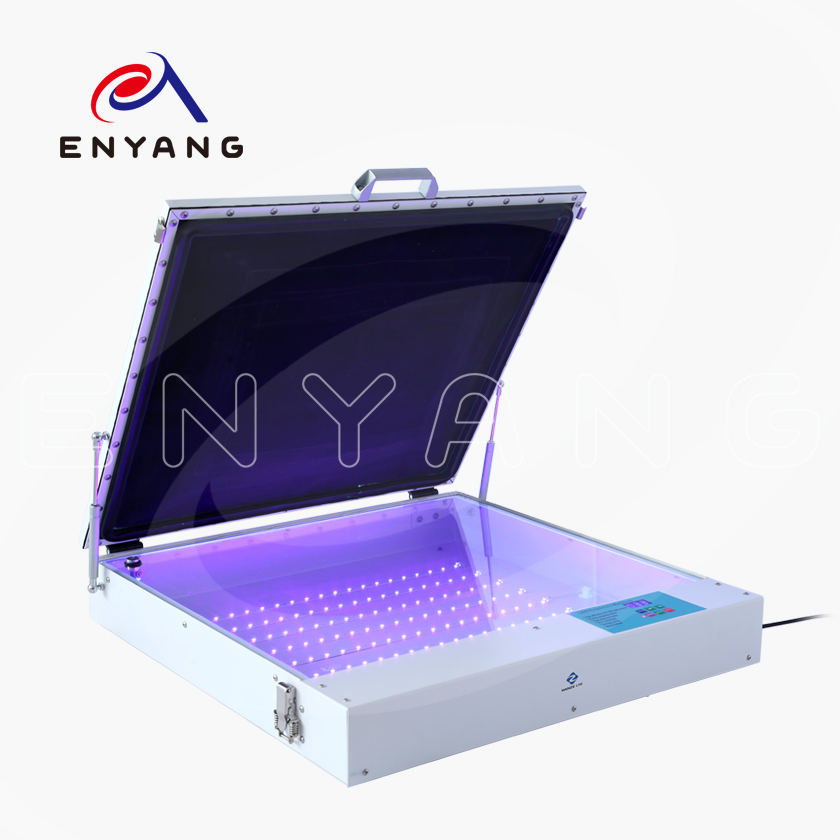

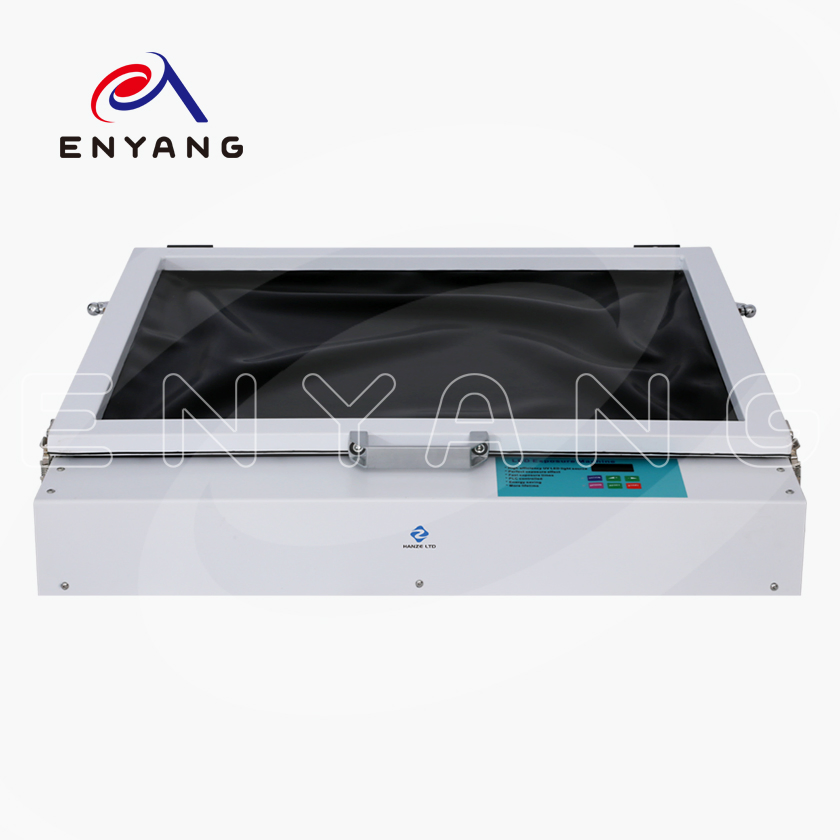

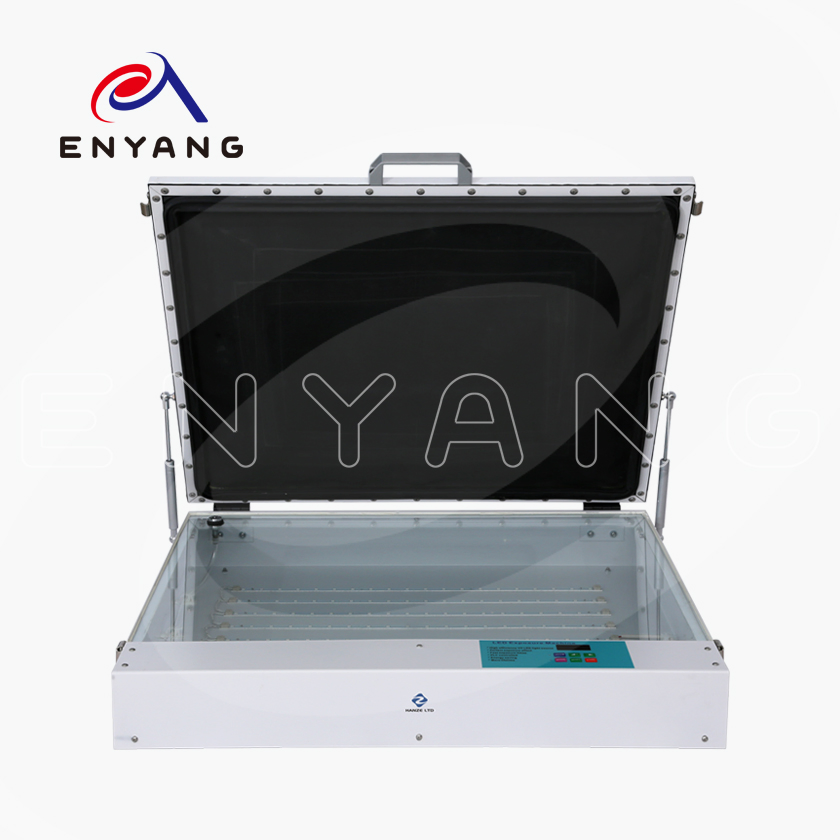

Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
1 / 5
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side
Mini PCB UV Plate Screen Printing Exposure Machine Double Side

Mini PCB UV Plate Screen Printing Exposure Machine Double Side

Customization: Available
Warranty: 1 Year
Usage: Offset Printing
Send Inquiry

Product Description

Product Overview

LED Vacuum Exposure Unit is a specialized solution used in plate-making fields such as pad plates, screen plates, hot stamper plates, and resin plates. By utilizing UV LED technology, this machine transfers film images onto plates through a precise emulsion exposure process, which is a critical step in modern plate-making technology.

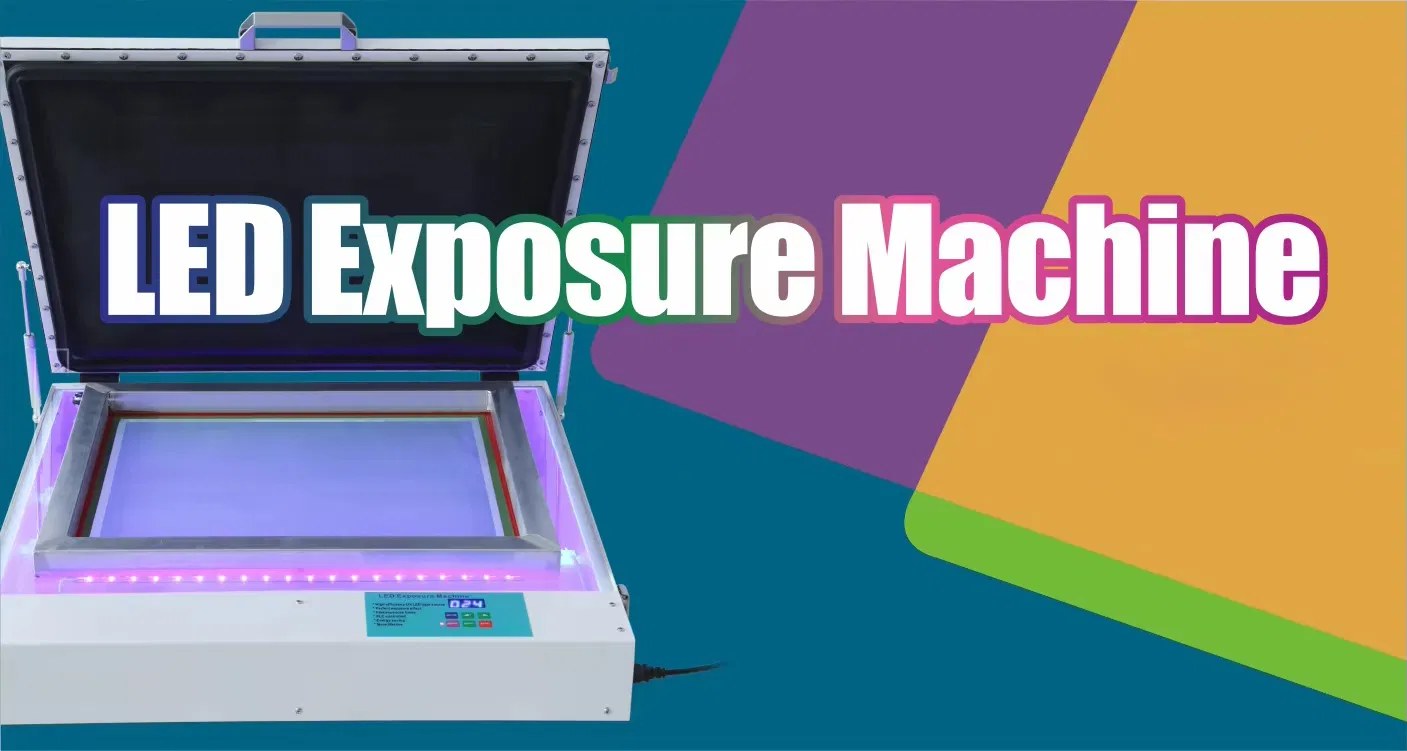

LED Vacuum Exposure Unit
Technical Specifications
ModelExposure Unit
Max. Exposing Area20.4" x 24" (52 x 61 cm)
Light SourceLED Ultraviolet Light Source
Voltage110V / 220V (Single Phase)
Power of Lamps80W (8 x 10W UV LED-light)
Exposure Time40-70 Seconds
Vacuum Degree80 Kpa / 0.08MPa
Time Control0-999 S
Automatic GradeAutomatic
Driven TypeElectric
Thickness of Glass5 mm
Thickness of Blanket1.2 mm
Gross Weight35.00 Kgs
Packing Size82 x 80 x 30 cm
ConditionNew
Key Features
High efficiency UV LED light source, saving 50% electricity compared to ordinary models.
PLC controlled panel, making it exceptionally easy to operate.
Automatic memory function to retain settings for repeat operations.
Perfect exposure effects and fast exposure time (approx. 40-70 seconds).
Stable exposure quality with an extended lifespan.
Energy saving and environmentally friendly design.
Durable and aesthetic build with a professional steel coating.
Safety-focused outside connecting power plug for convenience.
Easy to transport; LED lights are not fragile during delivery.
Product Details

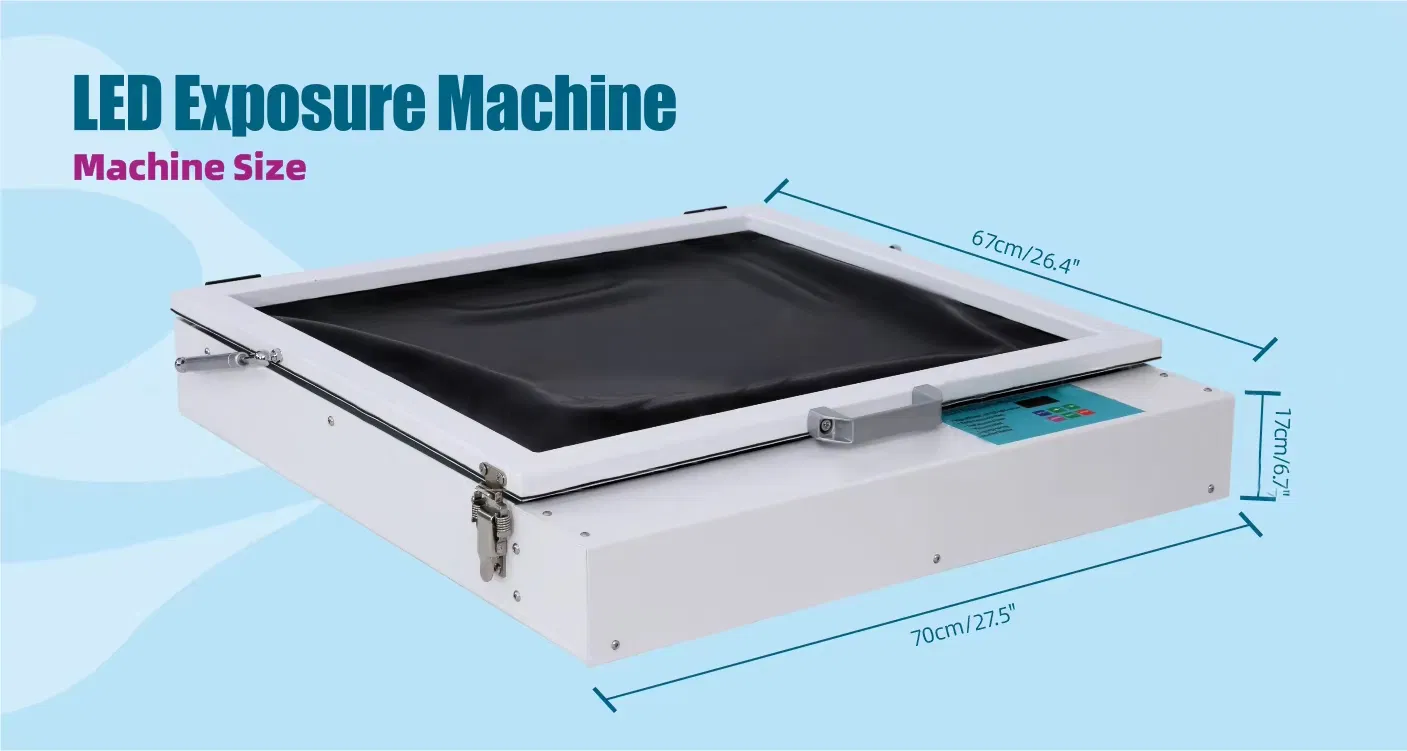

LED Detail

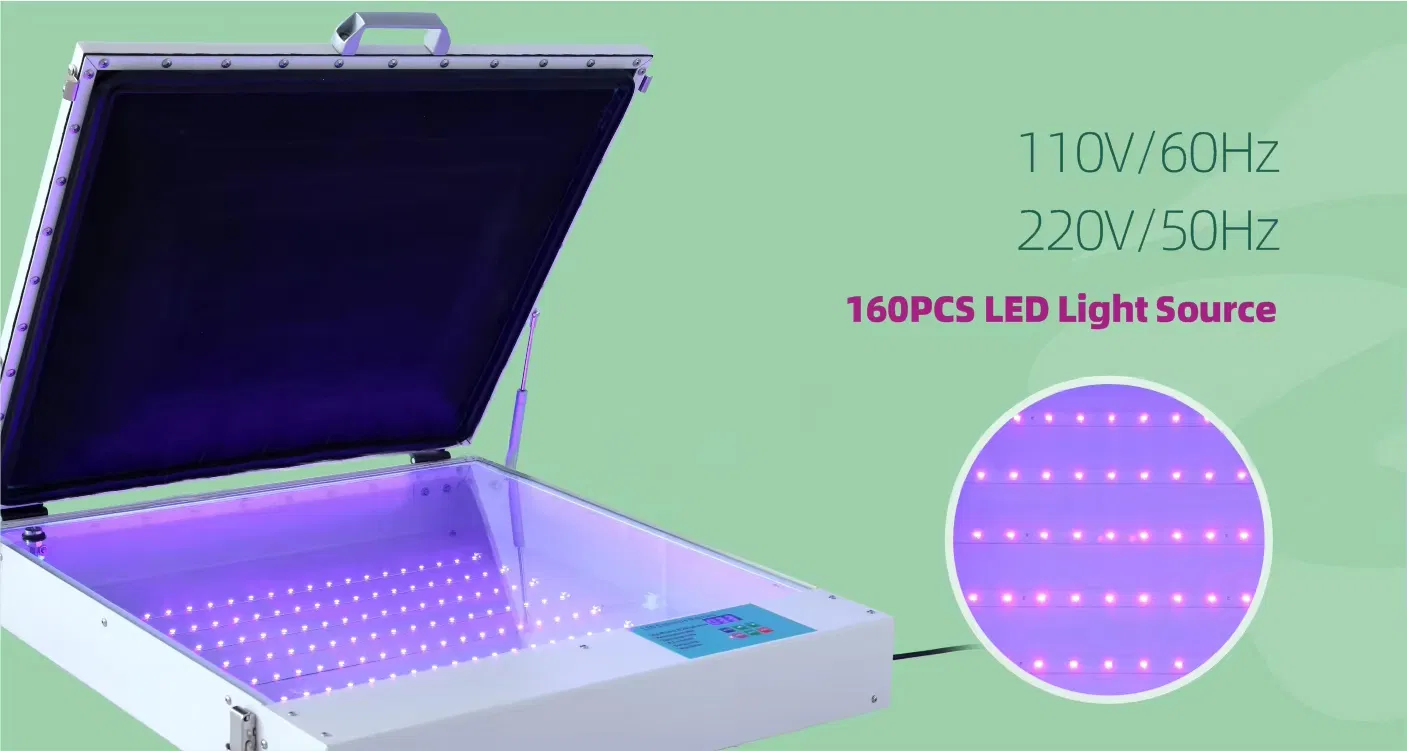

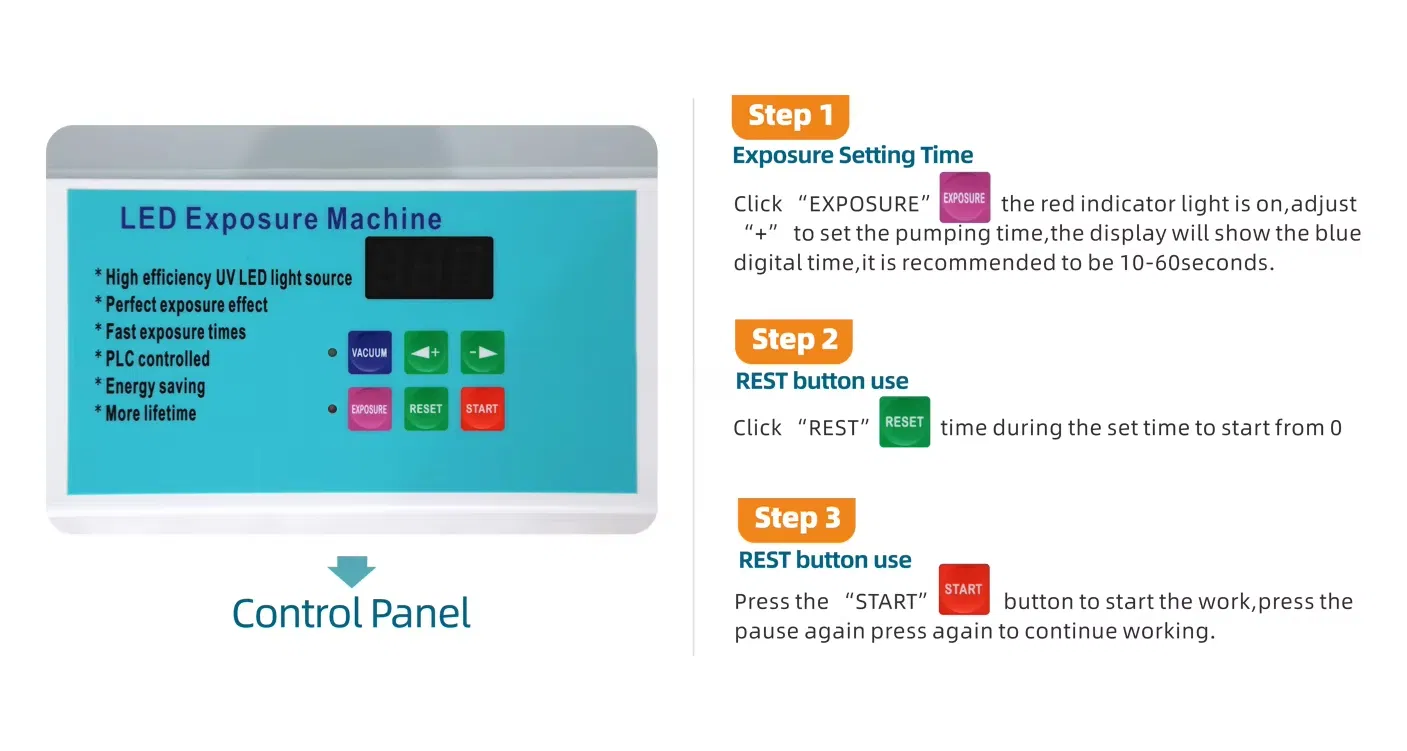

Control Panel

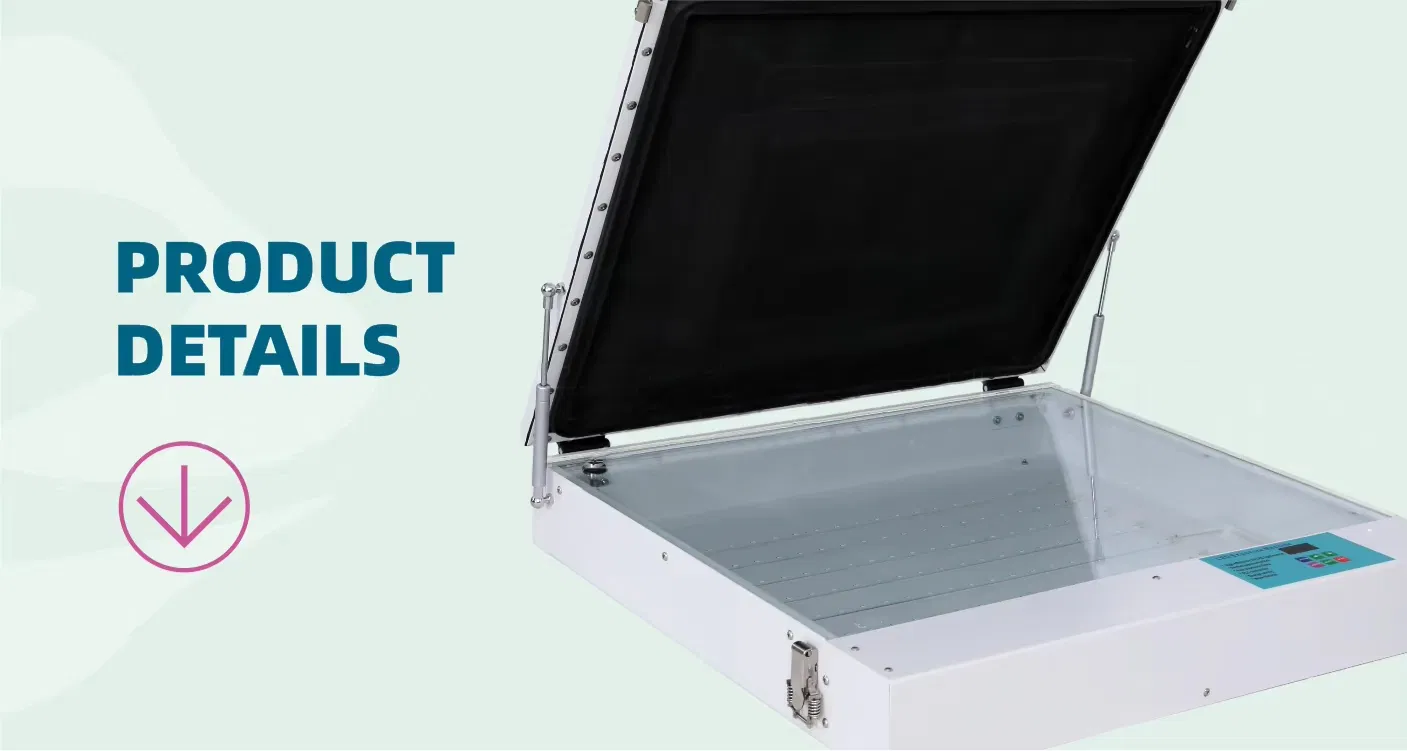

Vacuum Blanket

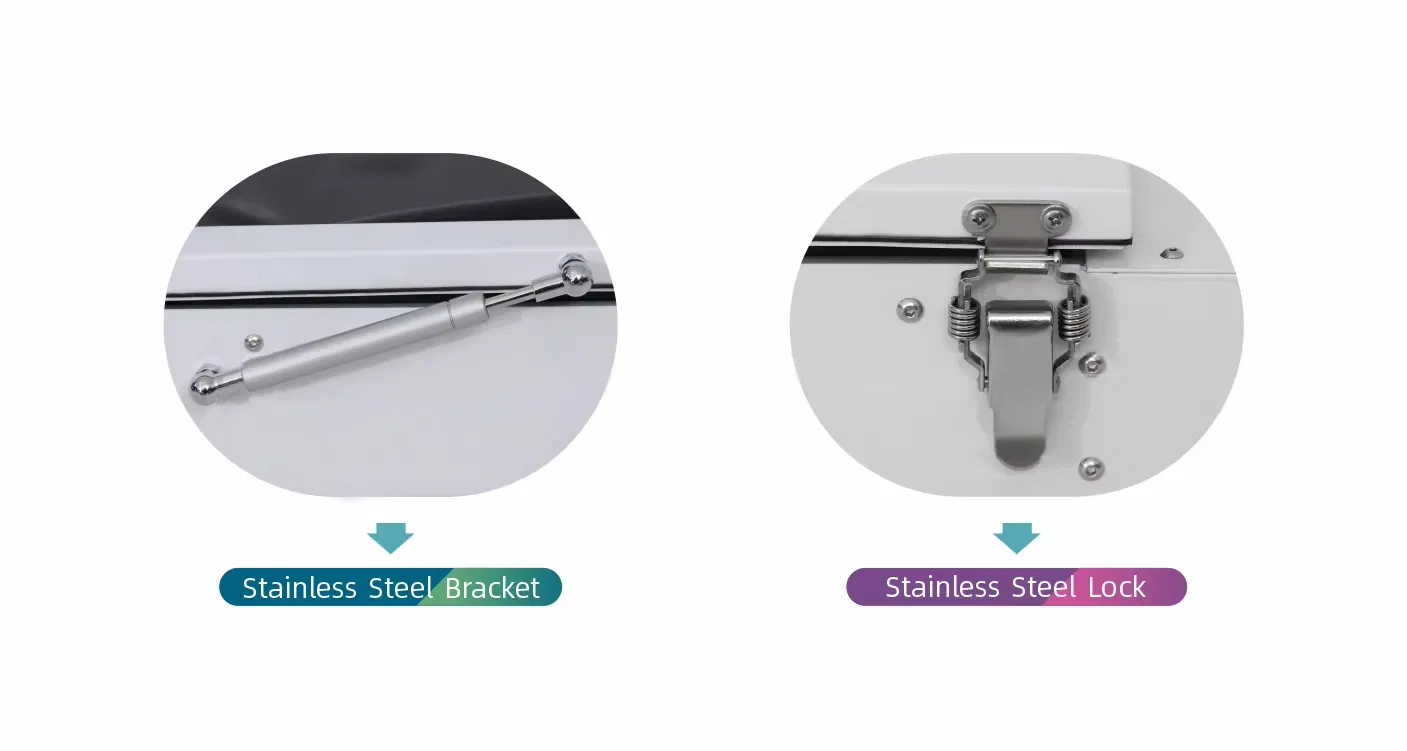

Machine Internal

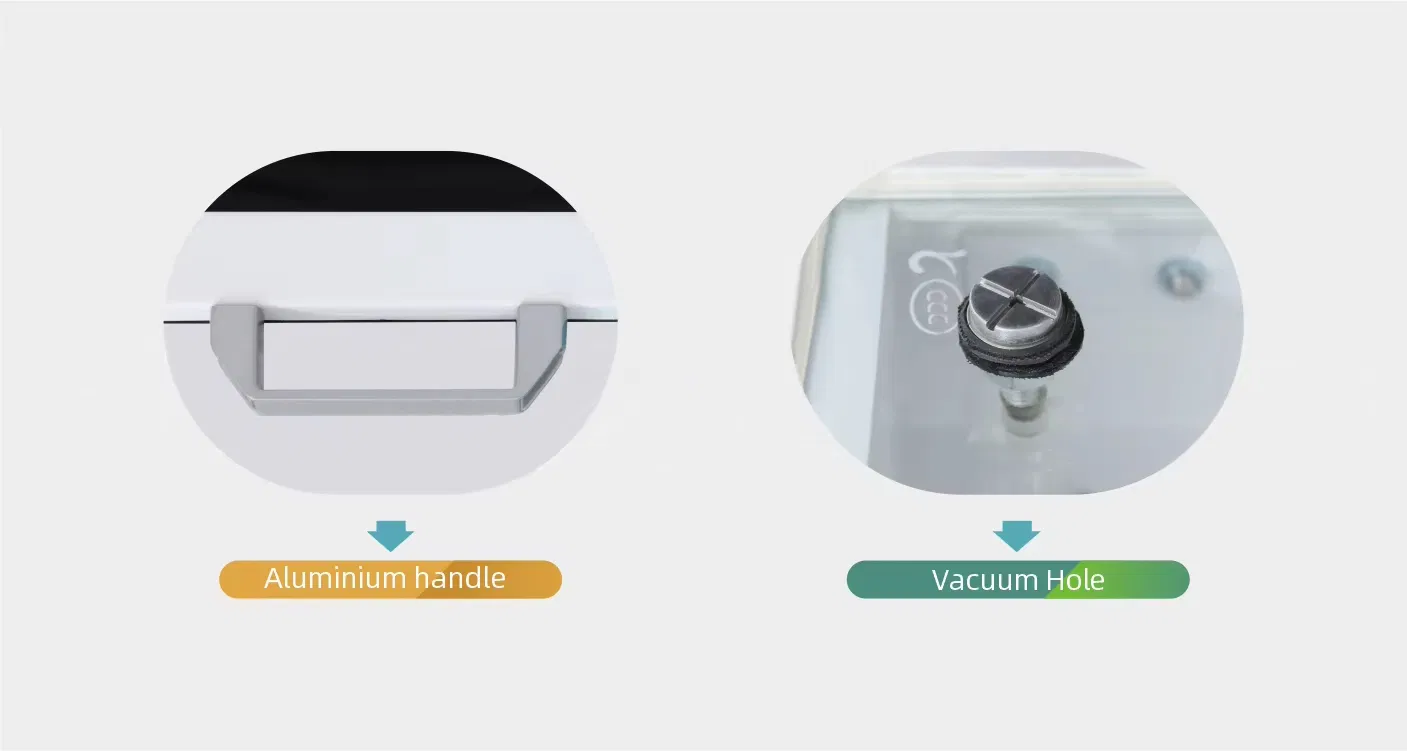

Plate Making

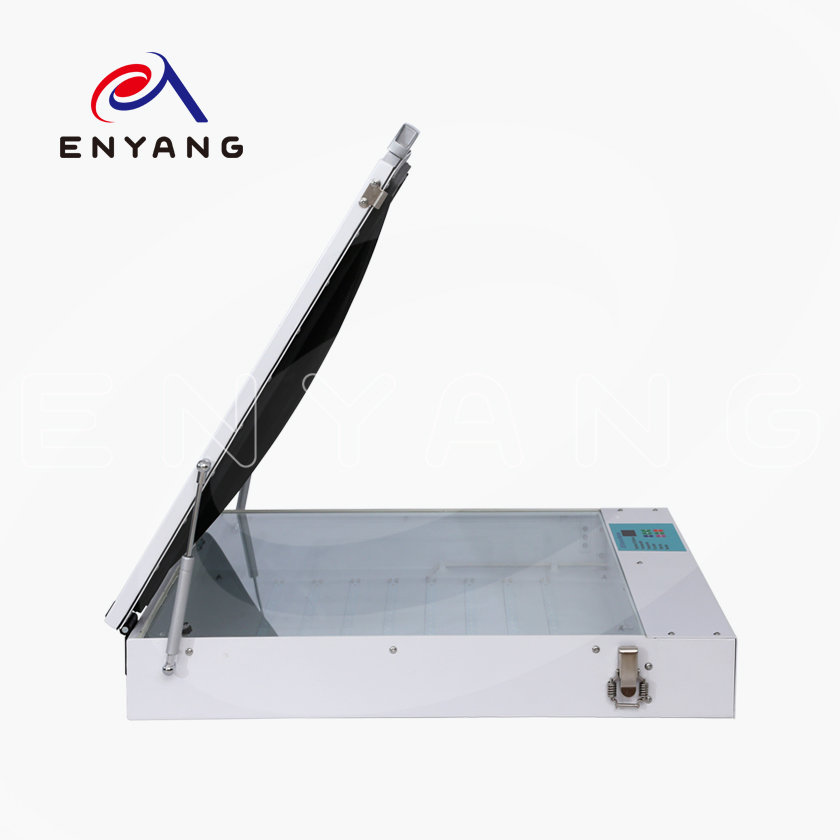

Side View
Packing & Delivery

The unit is securely packed in a Wooden Box to ensure maximum protection during transit.

Packing Details
Frequently Asked Questions
What applications is this exposure unit suitable for?
It is ideal for plate-making in various industries, including pad printing, screen printing, hot stamping, and resin plate production.
How does the LED light source compare to traditional lamps?
The UV LED source is highly efficient, saving up to 50% more electricity than ordinary models. It also offers a more stable quality and a longer lifespan.
Is the exposure time adjustable?
Yes, the time control ranges from 0 to 999 seconds. Typical exposure times for most plates are between 40 and 70 seconds.
Does the machine remember previous settings?
Yes, it features an automatic memory function that allows the machine to work according to your last original settings.
What is the maximum exposure area?
The maximum exposure area is 20.4" x 24" (approximately 52 x 61 cm).
How is the product protected during shipping?
The machine is shipped in a sturdy wooden box. Additionally, the LED light source is less fragile than traditional bulbs, ensuring safe delivery.
