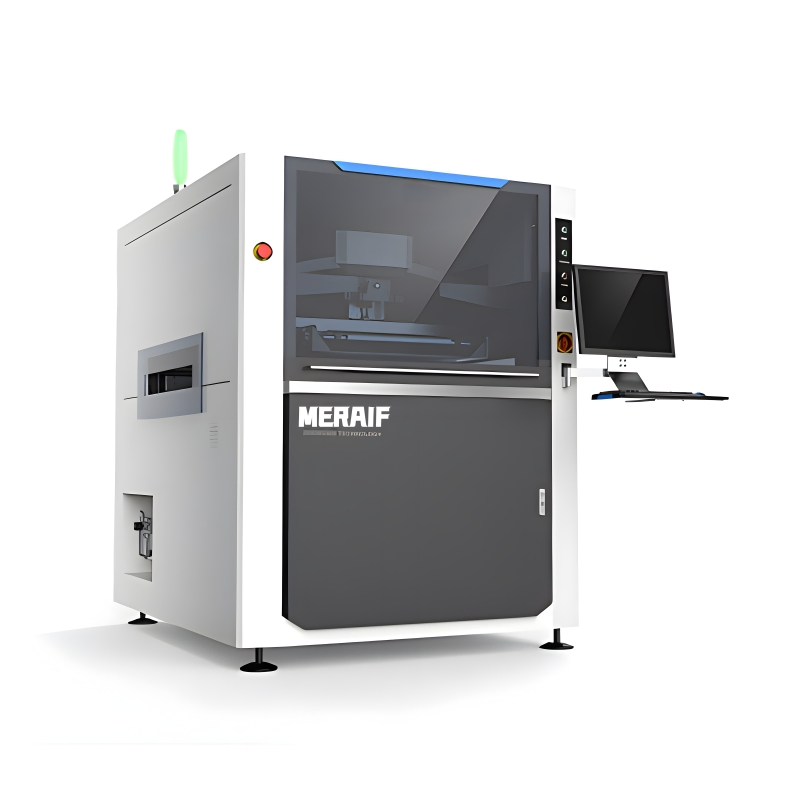

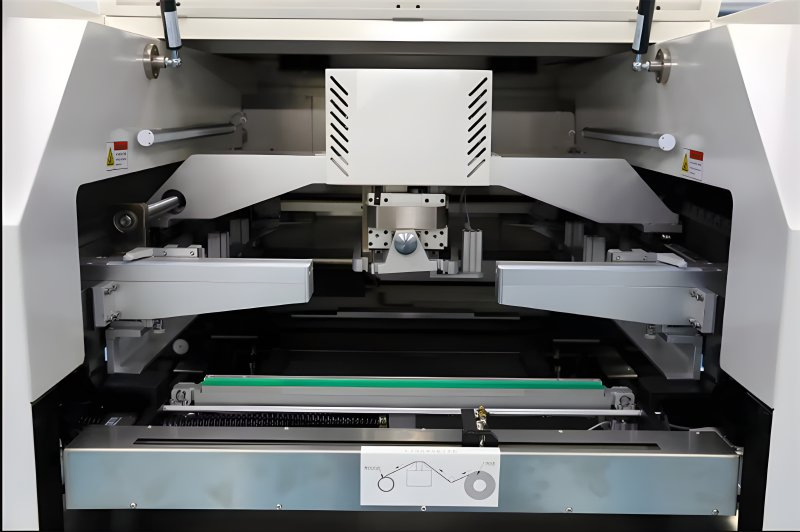

SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
1 / 5
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line
SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line

SMT Machine Meraif-5151 SMT Printer Machine Screen Printing Machine Solder Paste Printer Machine for PCB Assembly Line

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.Meraif-5151 solder paste printer
SpeedHigh Speed
PrecisionHigh Precision
CertificationCE
Warranty12 Months
Automatic GradeAutomatic
TypeHigh-speed Chip Mounter
Max PCB Size510*510mm
PCB Thickness0.4~6mm
SystemGenuine English 32-Bit Win10
VoltageAC220V, 50/60Hz
HS Code8443322900
SMT Machine Printer

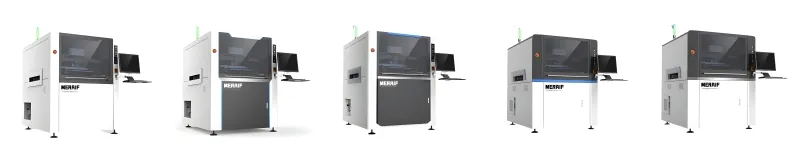

Solder Paste Printer Series
Product Features & Highlights
Meraif-5151 Printer
  • Humanized design: Easy to operate and maintain.
  • Wide application: Strong versatility for various PCBA needs.
  • Unique Cleaning: Automatic sprinkler cleaning system for stencils.
  • High Efficiency: Energy-saving and wiping paper-saving structure.
  • Precision Vision: Unique image processing system for high accuracy.
  • Intelligent Mode: Fully intelligent printing production mode.
  • Stable Platform: Uses international universal UVW three-axis linkage platform.
Detail Display

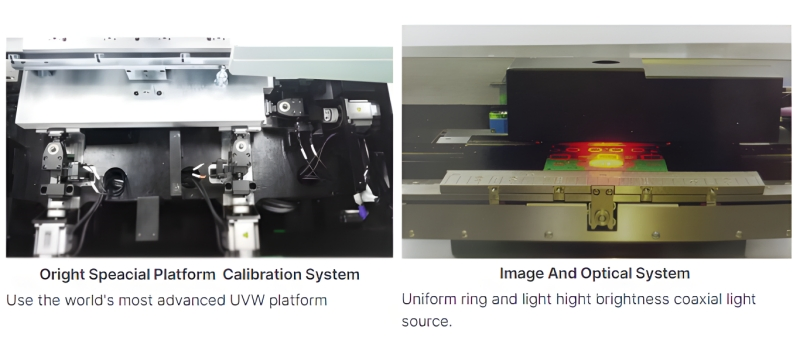

Detail 1

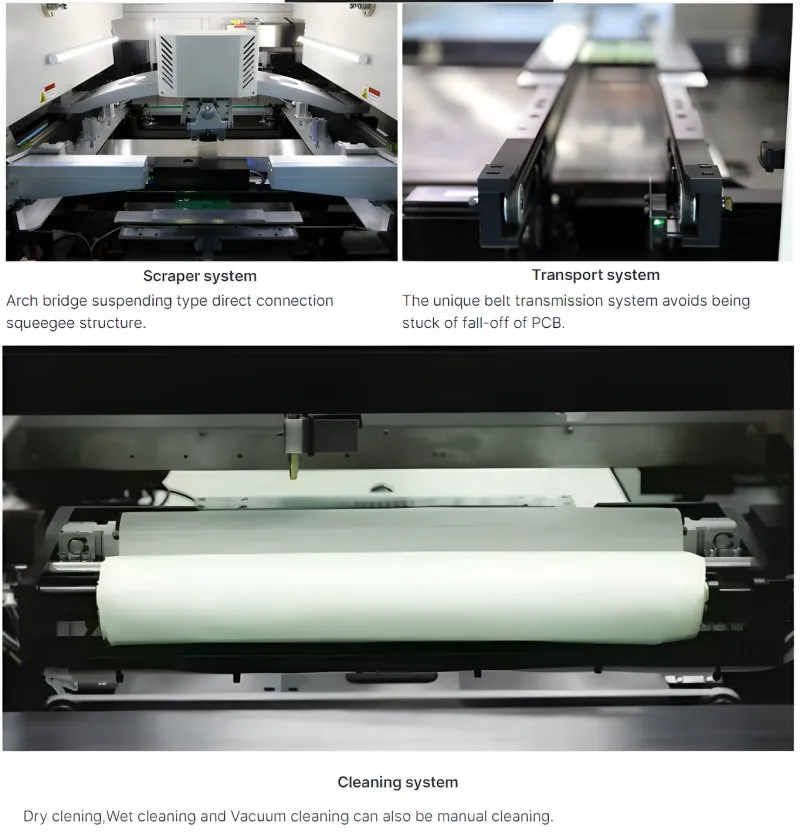

Detail 2

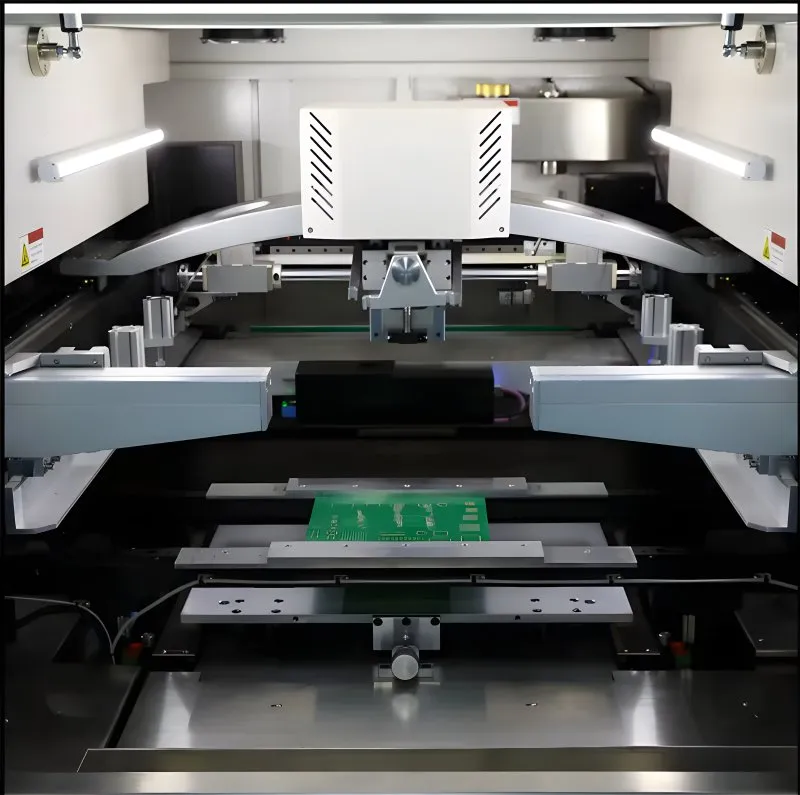

Detail 3
Technical Specifications
Model MERAIF-5151
Screen Frames Mini Size 470×370mm
Max Size 737×737mm
Thickness 25~40mm
PCB Max Size 510*510mm
PCB Thickness 0.4~6mm
Transport Direction L-R, R-L, L-L, R-R
Printing Accuracy ±0.025mm
Repeat Position Accuracy ±0.01mm
Cycle Time <7s (Exclude Printing & Cleaning)
Cleaning System Dry, Wet, Vacuum (Programmable)
Dimensions 1220*1550*1500mm
Weight Approx. 1200kg
One-Stop Solution Capability

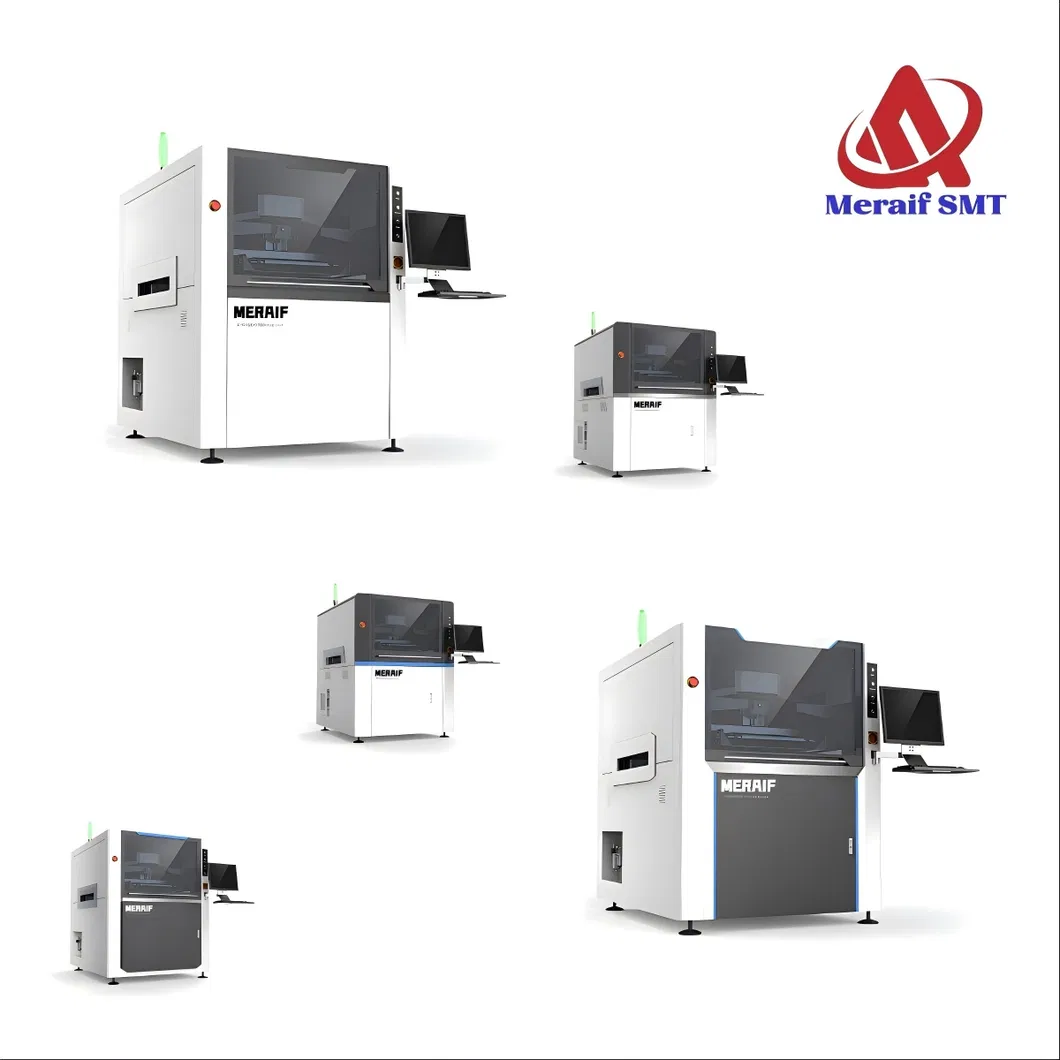

Complete SMT Line

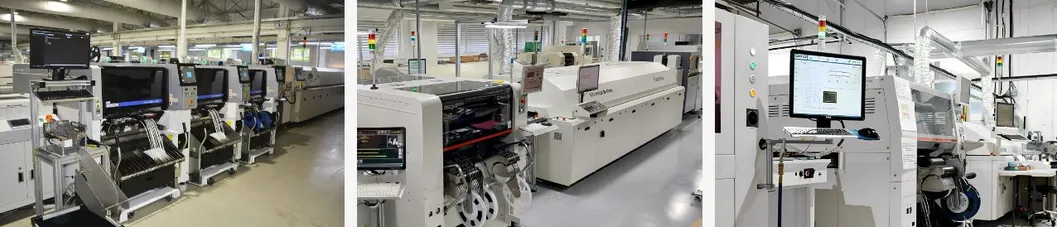

SMT Equipment
Line Layout

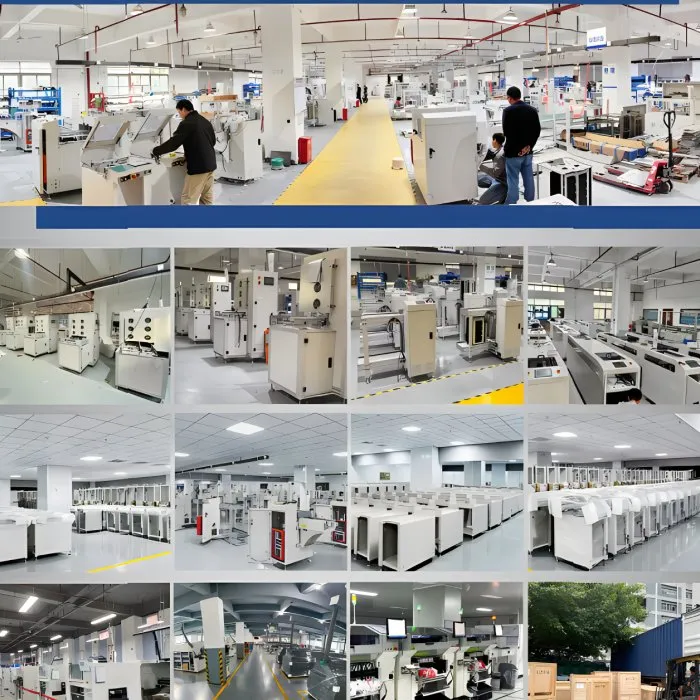

Success Case
FAQ
1. What is the maximum PCB size supported by the Meraif-5151?
The machine supports a maximum PCB size of 510mm x 510mm.
2. What is the printing accuracy of this solder paste printer?
The Meraif-5151 offers a printing accuracy of ±0.025mm and a repeat position accuracy of ±0.01mm.
3. Does the stencil cleaning system support wet cleaning?
Yes, the unique cleaning system is programmable and supports Dry, Wet, and Vacuum cleaning modes.
4. What operating system is the machine using?
It uses a genuine English 32-Bit Windows 10 system for reliable and user-friendly control.
5. What are the power and air requirements for installation?
The power input required is AC 220V (±10%, 50/60Hz) and the required air pressure is 4.5~6kg/cm².
6. How long is the cycle time?
The cycle time is less than 7 seconds, excluding the actual printing and cleaning process, making it ideal for high-speed production.
