Basic Information
Style
Screen-process Printing Press
Color & Page
Multi-Colour Printing Press
Usage
Cloths Printer, Paper Printer, Label Printer, Card Printer
Specification
820mm * 200mm * 1900mm
Production Capacity
5000 Sets Per Month

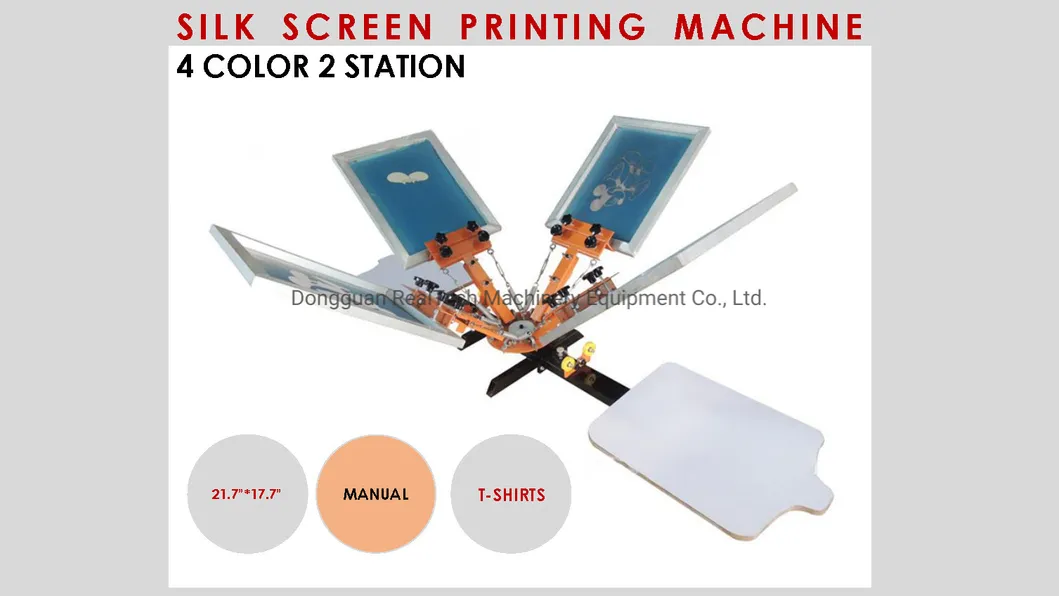

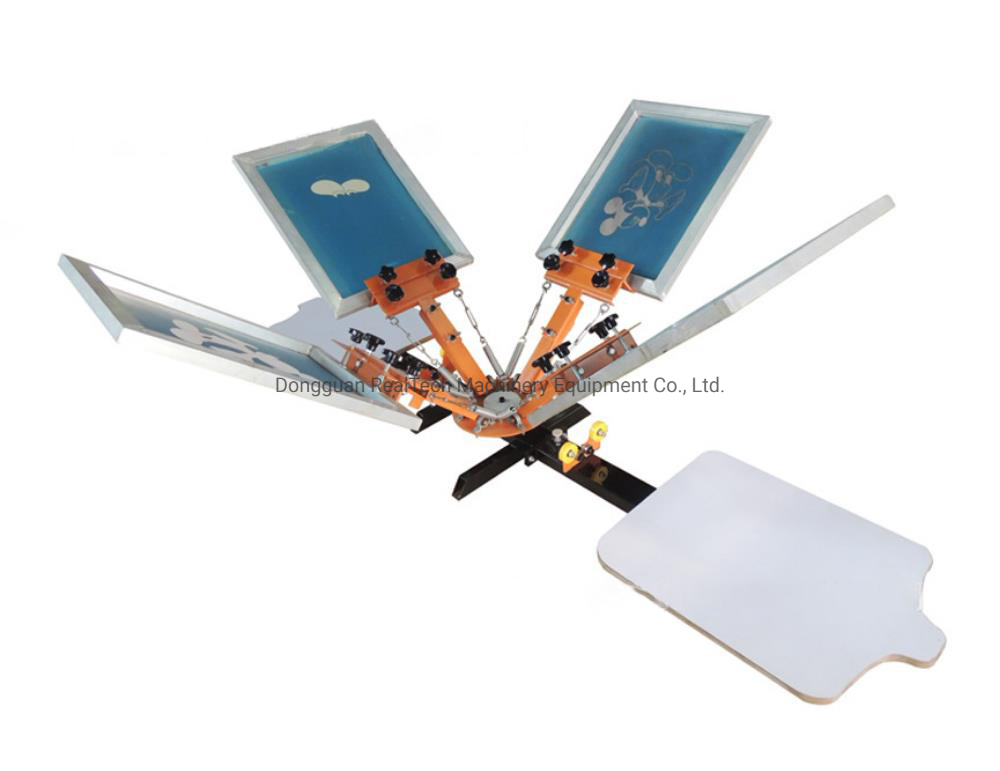

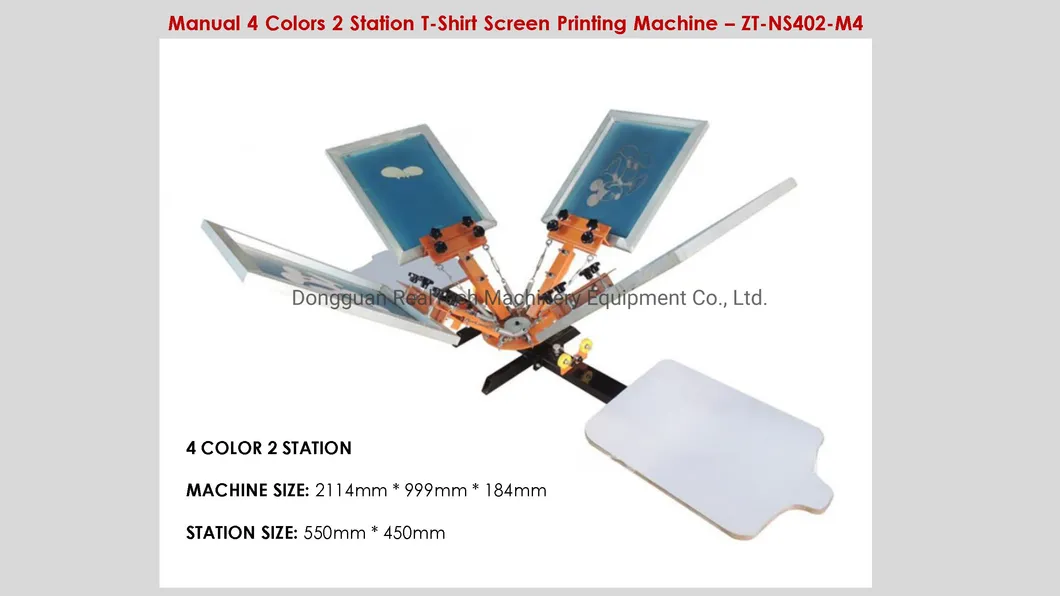

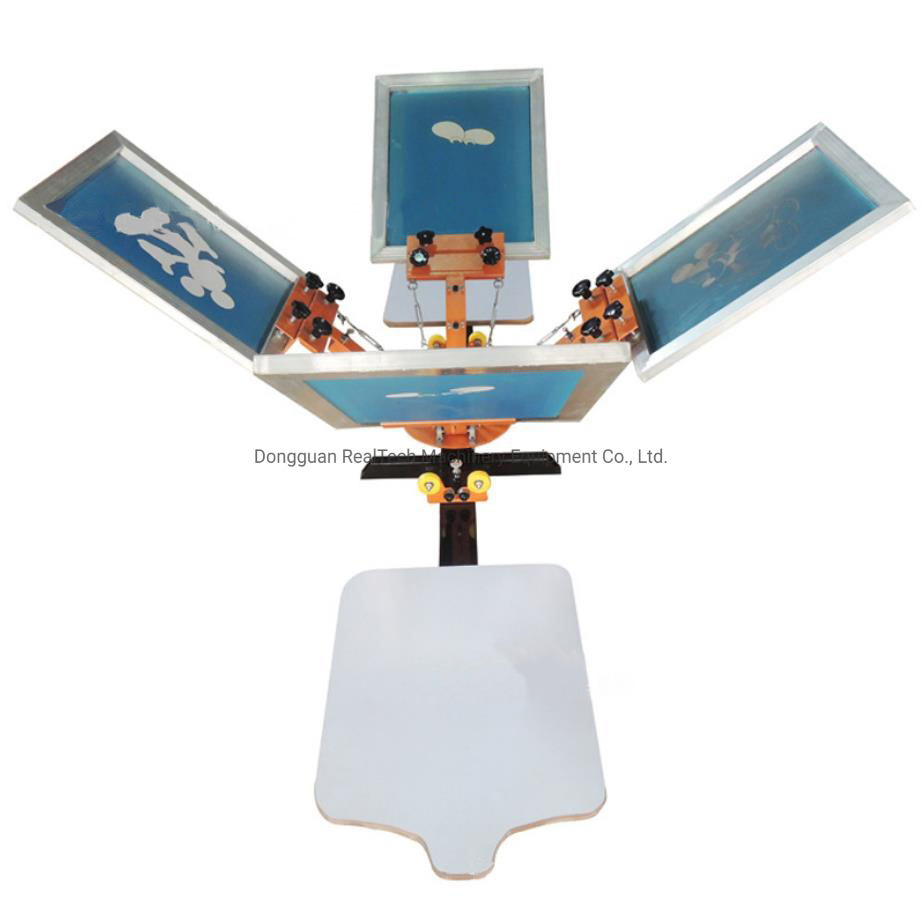

Manual Multi Colors 4 Colors 2 Station T-Shirt Screen Printing Machine
Product Introduction
Based on the needs of the consumers and market, this kind of 1 color screen press with removable pallet is easy operated but with very low cost and is especially suitable for single color T-shirt printing.

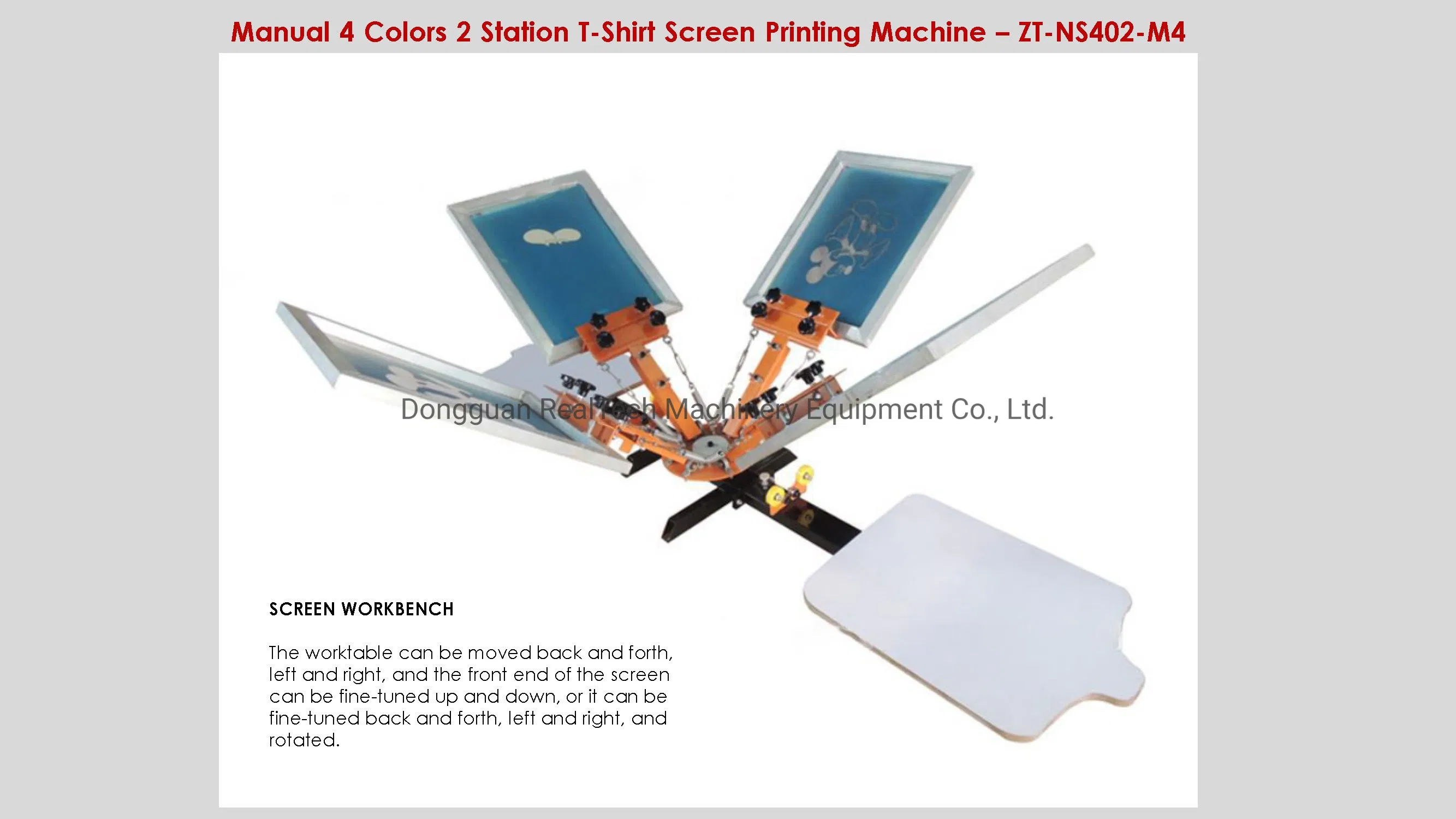

By using this machine, with its removable pallet, you can print many images at the same time. Just put the substrate on the pallet, adjust the screen to a suitable position and then apply the first image printing. The moveable pallet can be adjusted in every direction, from forward or backward to left or right, up and down. It's very easy and convenient.
Wide Applications
✔
Specially designed for one color T-shirt screen printing with dedicated pallet for accurate positioning.
✔
Applicable to substrates needing overprinting, such as pillowcases, bags, and non-woven bags.
Key Features
★Table type and combinatorial design saves space and simplifies transportation.
★Screen printing platen layer can rotate independently for higher efficiency.

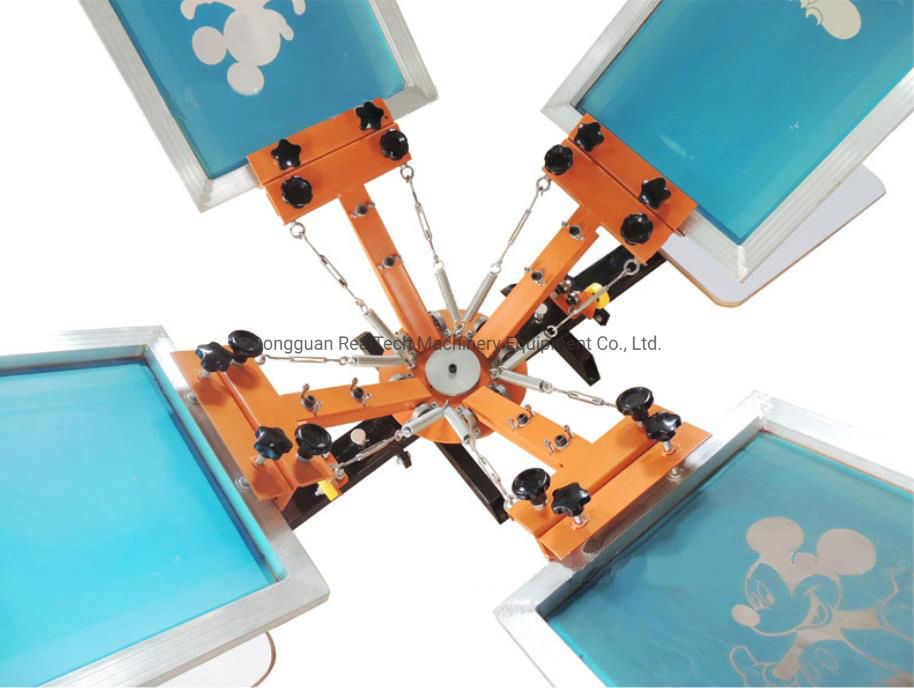

★Adjustable double-spring devices for different screen frame weights.
★Supporting device keeps the machine stable and in perfect balance.

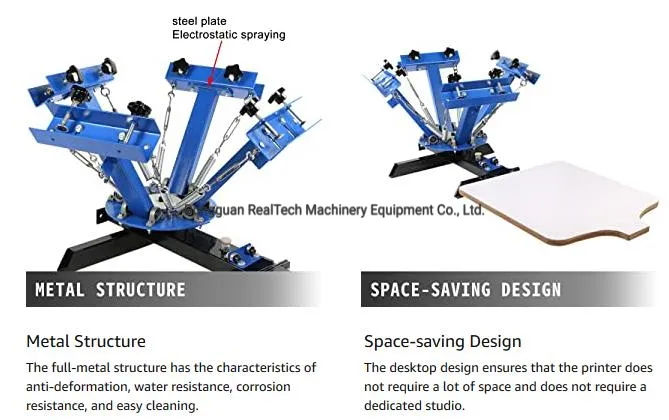

★All-metal construction with advanced electrostatic spraying for easy cleaning.

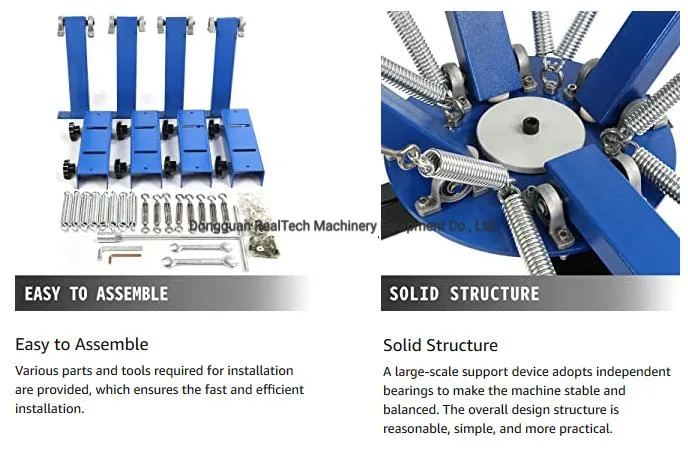

★Equipped with a full set of installation tools for immediate operation.
Premium Advantages
●PREMIUM MATERIAL: High-quality material with advanced electroplating, durable and rust-free.

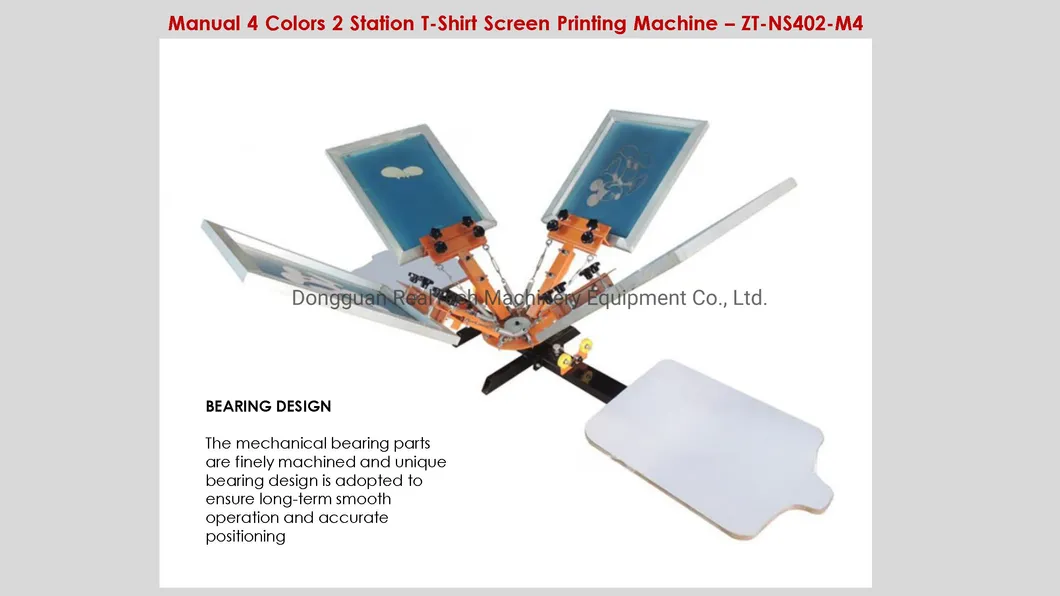

●STURDY STRUCTURE: Precision machined parts with different bearings ensure stable operation.
●SPRING DEVICE: Dual springs adjust tension for balanced screen frame support.

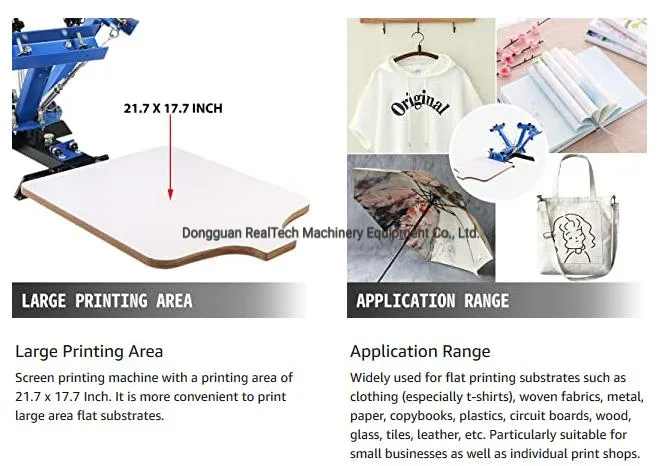

●VERSATILE USE: Suitable for clothing, metal, paper, plastic, wood, glass, and ceramics.
Machine Details
Technical Specifications

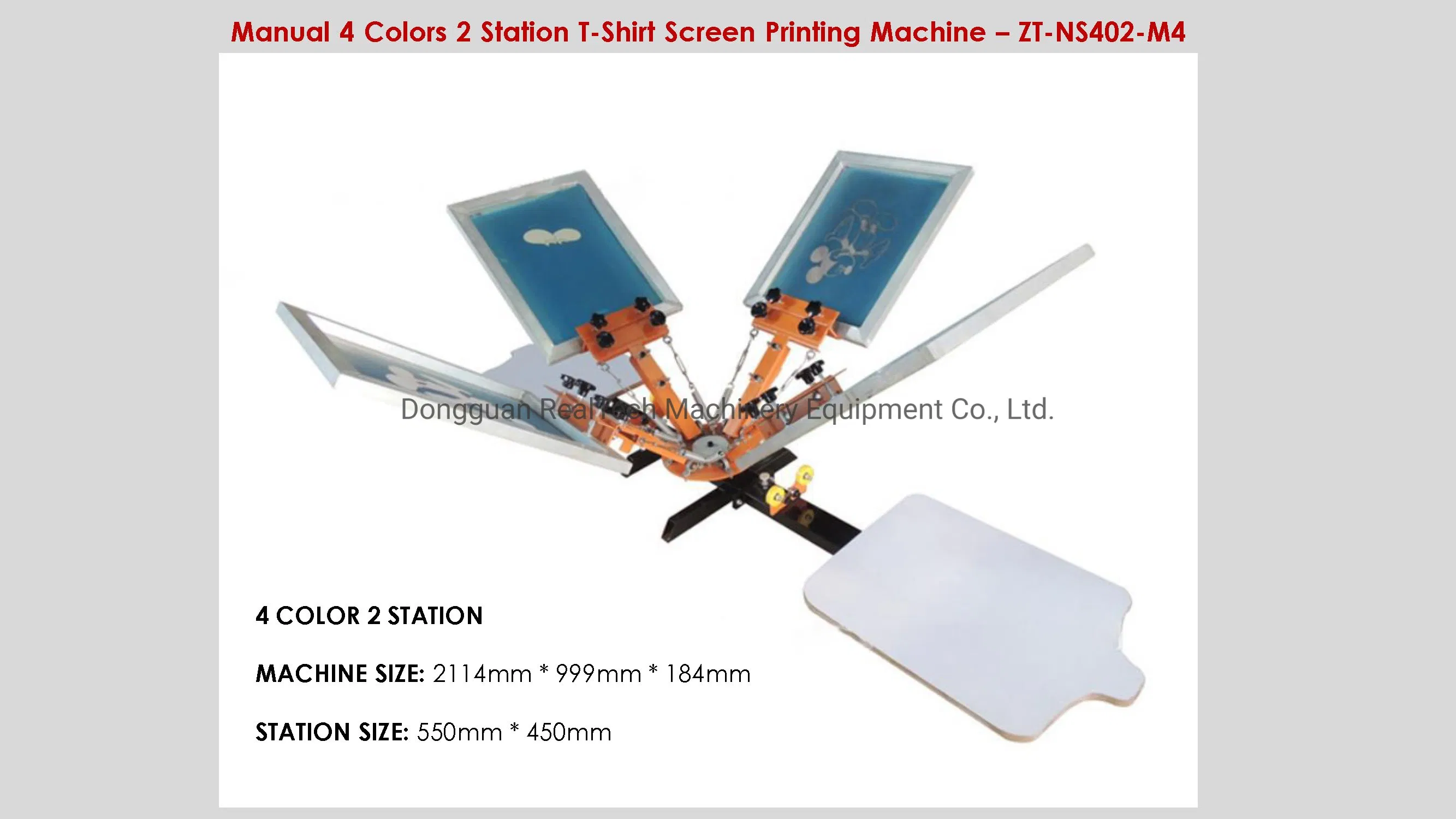

| Machine Specification |
| Model#: | ZT-NS402-M4 |

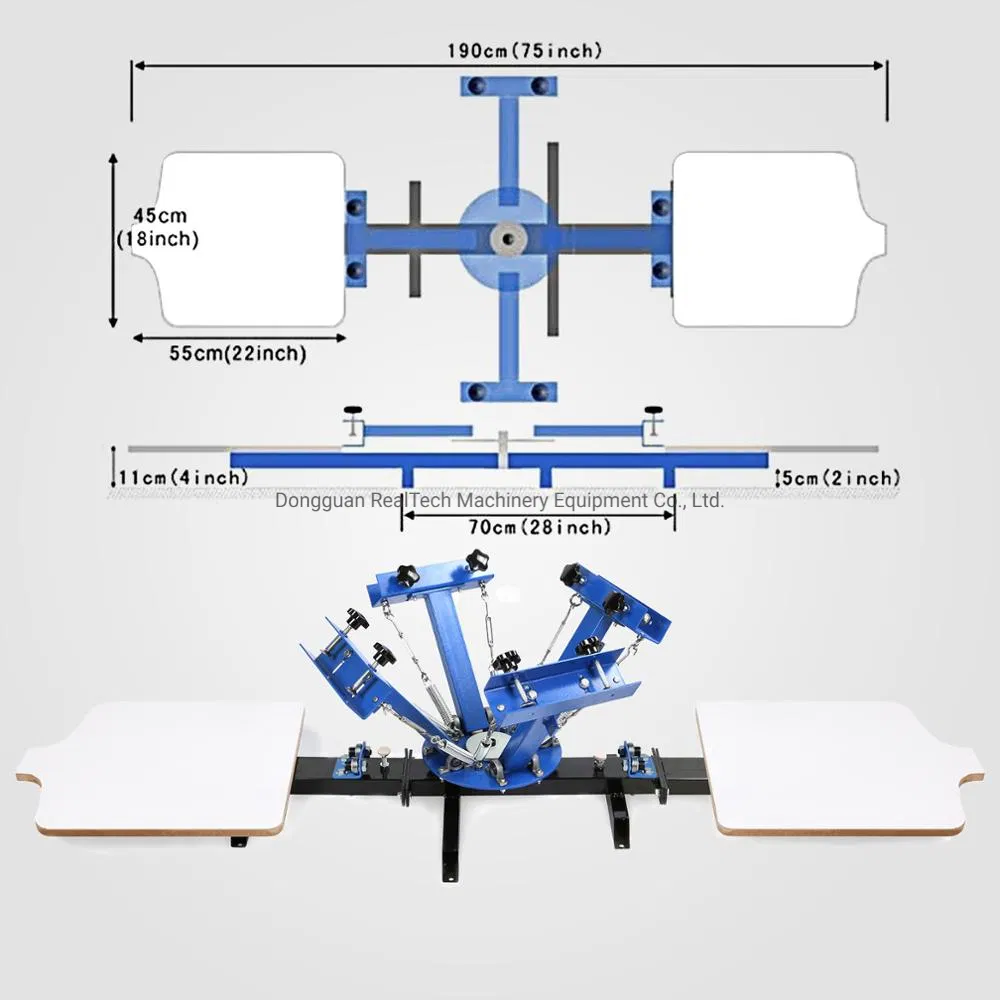

| Machine Size: | 820mm * 200mm * 1900mm (32" * 7.9" * 75") |
| Work Station: | 2 |
| Printing Color: | 4 |
| Station/Pallet Material: | HDF |
| Station/Pallet Size: | 450mm * 550mm (17.7" * 21.7") |
| Max Printing Size: | 400mm * 500mm |
| Max Screen Thickness: | 2 inches |
| Arm Length: | 13.25 inches |
| Arm Width: | 10 inches |
| Package: | Strong Brown Box With Styrofoam Protection |
| Package Size: | 530mm * 610mm * 700mm (0.226cbm) |
| Net Weight: | 34.6kgs |
| Gross Weight: | 36.6kgs |
Frequently Asked Questions (FAQ)
Q1: What materials can this screen printing machine work on?
A1: This machine is highly versatile and can be used for T-shirts, clothing, pillowcases, fabrics, metals, paper, plastics, wood, glass, ceramics, and leather.
Q2: How does the "movable pallet" benefit the printing process?
A2: The pallet is adjustable in every direction (forward, backward, left, right, up, and down), allowing for precise positioning and the ability to print multiple images efficiently.
Q3: Is the machine durable enough for long-term use?
A3: Yes, it features an all-metal construction with advanced electrostatic spraying and electroplating, making it rust-resistant, easy to clean, and built for long-term stability.
Q4: Can I adjust the machine for different screen frame weights?
A4: Yes, the machine is equipped with adjustable double-spring devices that can be tuned to balance screen frames of various weights.
Q5: Is this machine suitable for a small workspace?
A5: Absolutely. The table-type combinatorial design is specifically engineered to save space, making it ideal for small shops or home-based printing setups.
Q6: Does it come ready for installation?
A6: Yes, it comes with a full set of installation tools and the necessary equipment to get you started with operation quickly.
