Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
1 / 5
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment
Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment

Manual Type 800X800mm Stencil Defects Detecting Inpsection Equipment

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.SBT-JC1009HP
Driven TypeMechanical
CertificationISO9001, ISO, CE
Automatic GradeManual
ConditionNEW
Material of FrameStainless Steel
Max Stencil SizeL800 x W800mm
Effective TravelX:900mm; Y:900mm; Z:200mm
Pixel20 Million
Displayer24-Inch HD Displayer

Machine Description

Model Number: SBT-JC1009HP

✓ Mainly used for appearance and tension detection of steel screen in SMT production industry.
✓ Equipped with full auto/manual moving guide rail, electric microscope, and data display tensiometer.
✓ High-resolution displayer and computer keyboard for precise operation.
✓ Camera moves automatically or manually based on preset instructions, allowing operators to easily find product defects.

Technical Parameters

Frame and Light Box

Material of frameStainless steel
Light box and light sourceCustomized LED energy save light source
Operate area dimensionL900 x W900 x H950MM
Guide railCustomized 900x900x200mm guide rail module
Glass12MM tempered white glass + ivory diffusion board
Outer Dimension/WeightL1050 x W1100 x H1450mm / 80KGS

Display & Microscope

Optics magnification200 times (equipped with microscope graduated scale)
Pixel20 million
Displayer24-inch HD displayer

Equipment Details

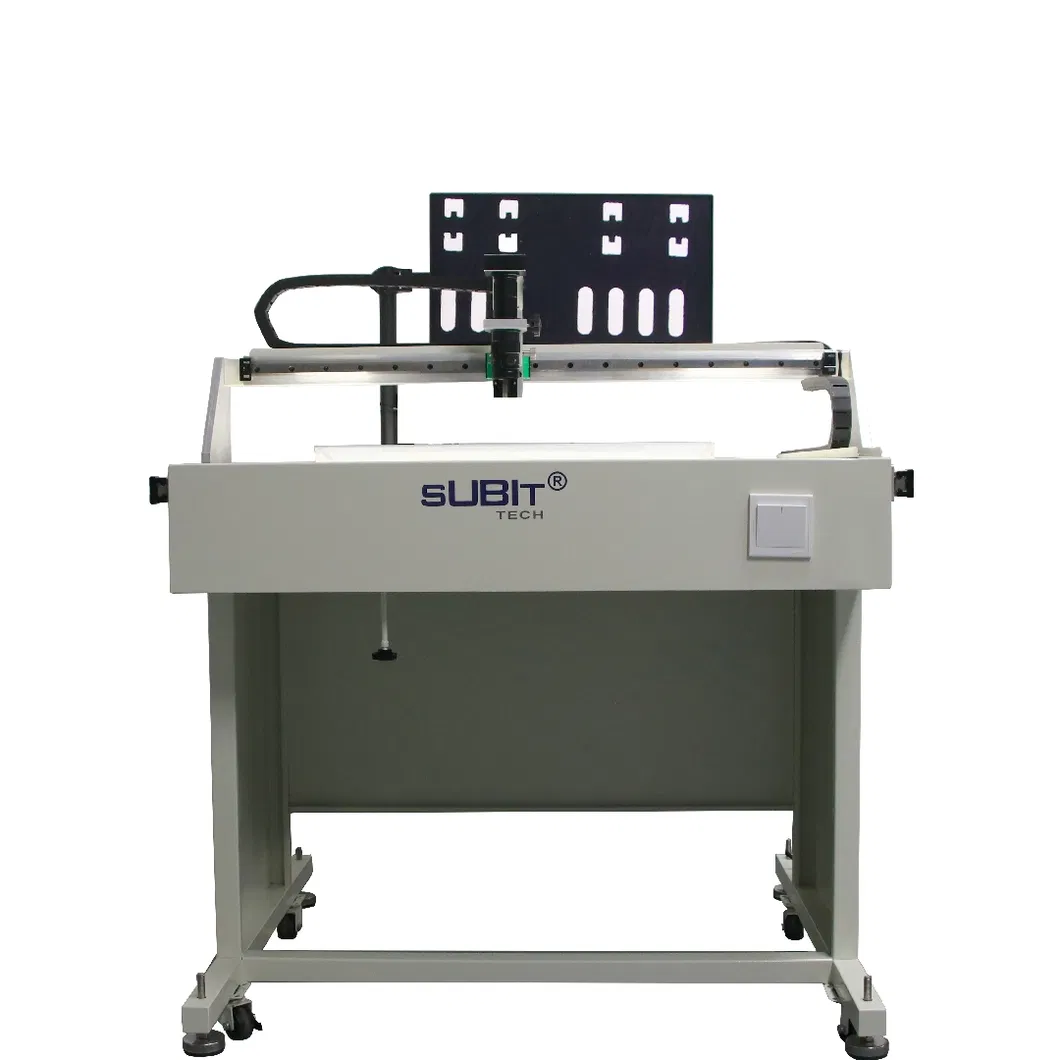

Inspection Equipment Detail 1
Inspection Equipment Detail 2

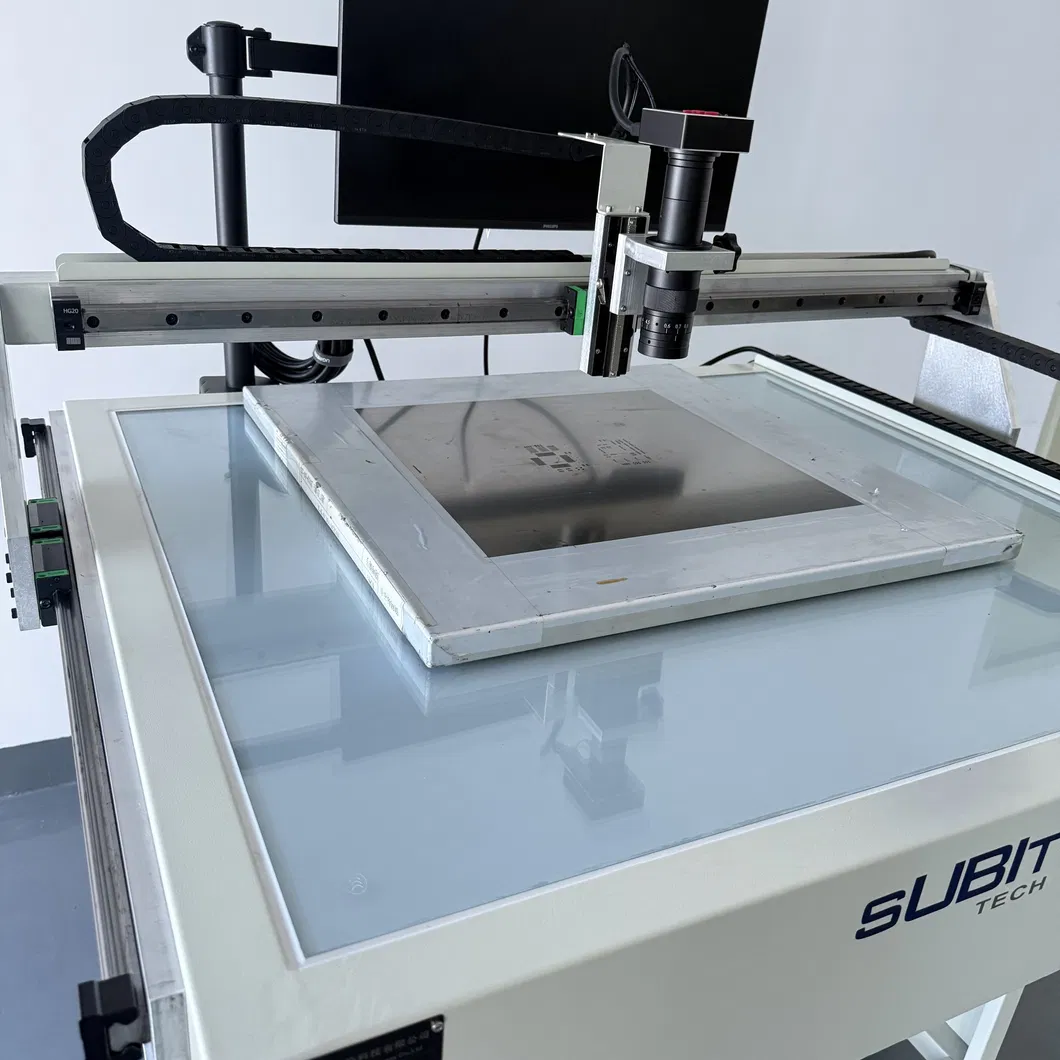

Inspection Equipment Detail 3
Inspection Equipment Detail 4

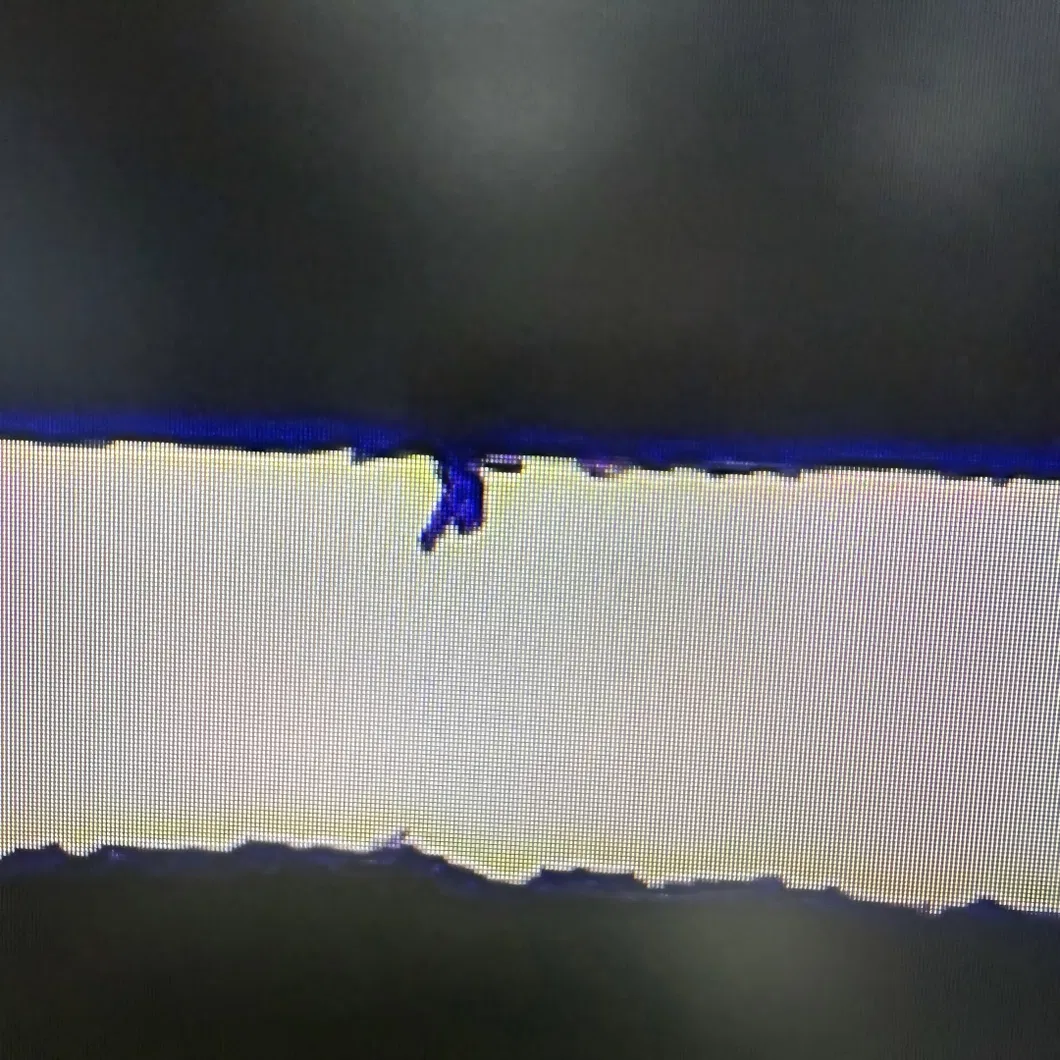

Inspection Equipment Detail 5

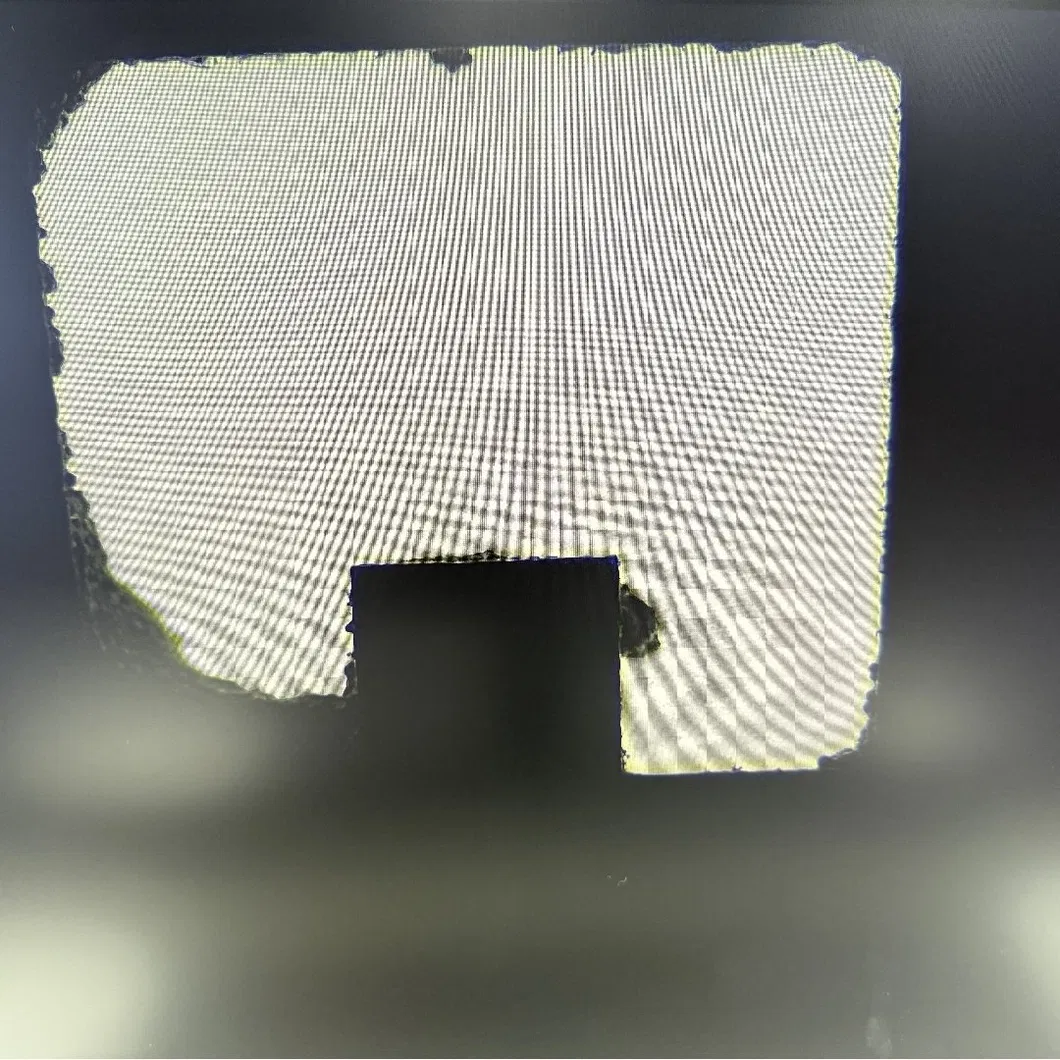

Inspection Equipment Detail 6

Certificates

Certificates and Clients

Packing & Shipping

Packaging: Vacuum Shrink Film + Export grade Non-Wooden Case.

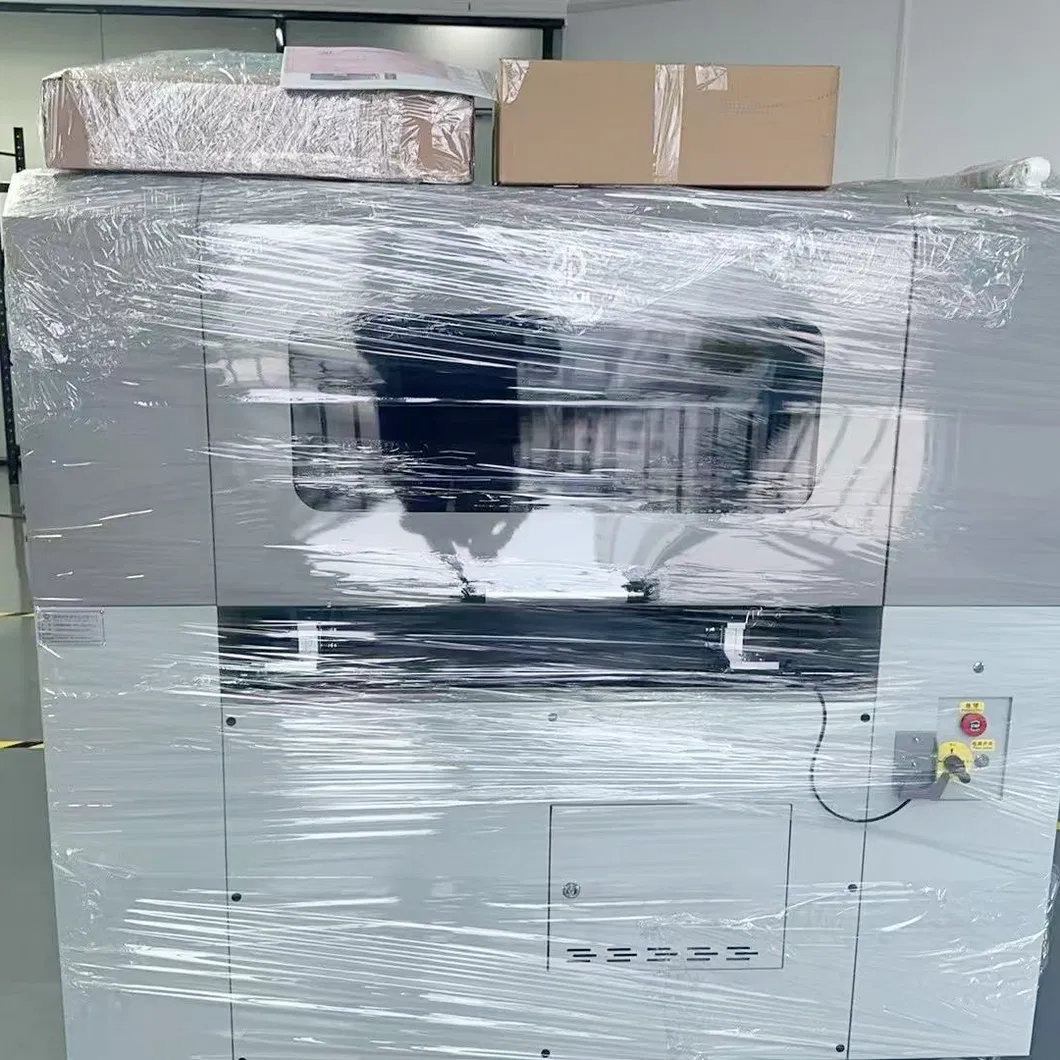

Packing 1
Packing 2

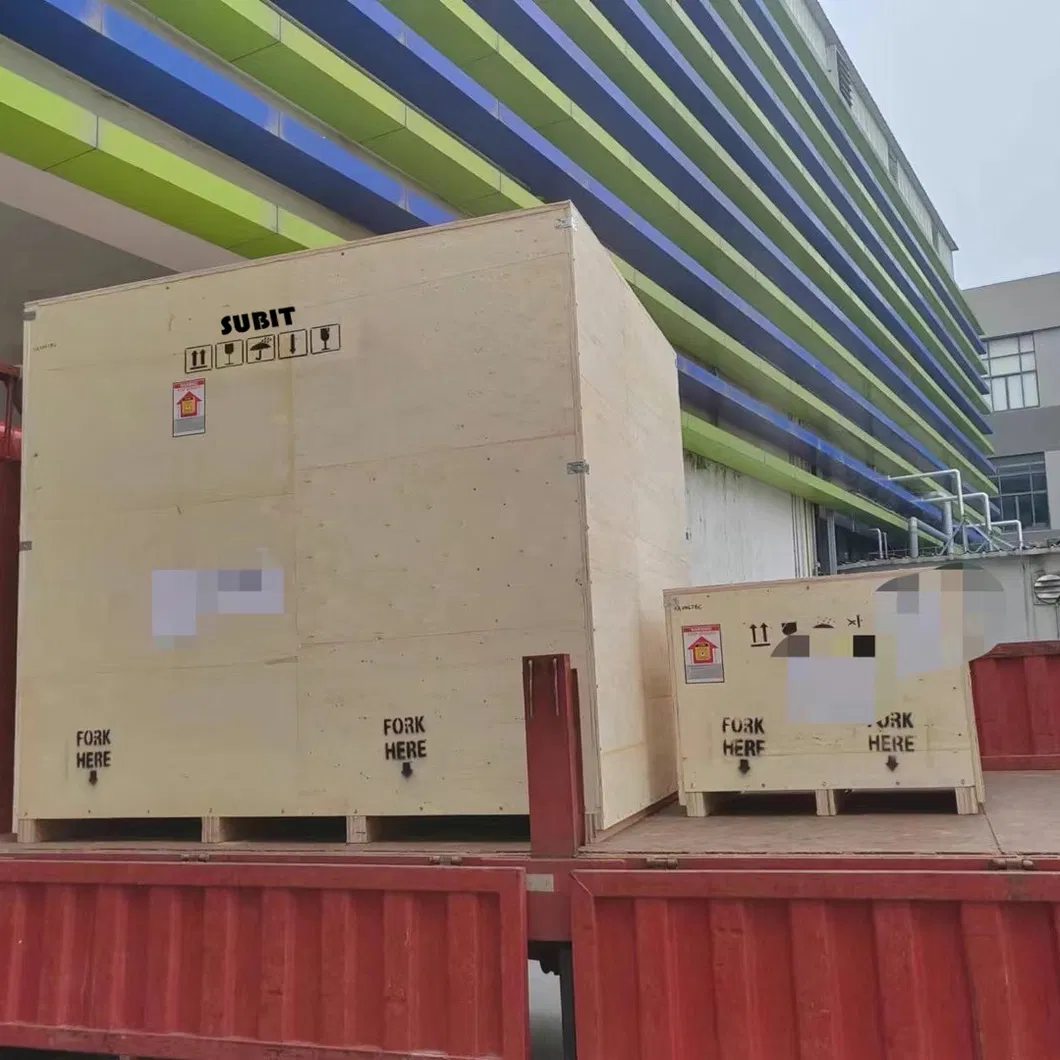

Packing 3

Other Inspection Models

Automatic Stencil Inspection

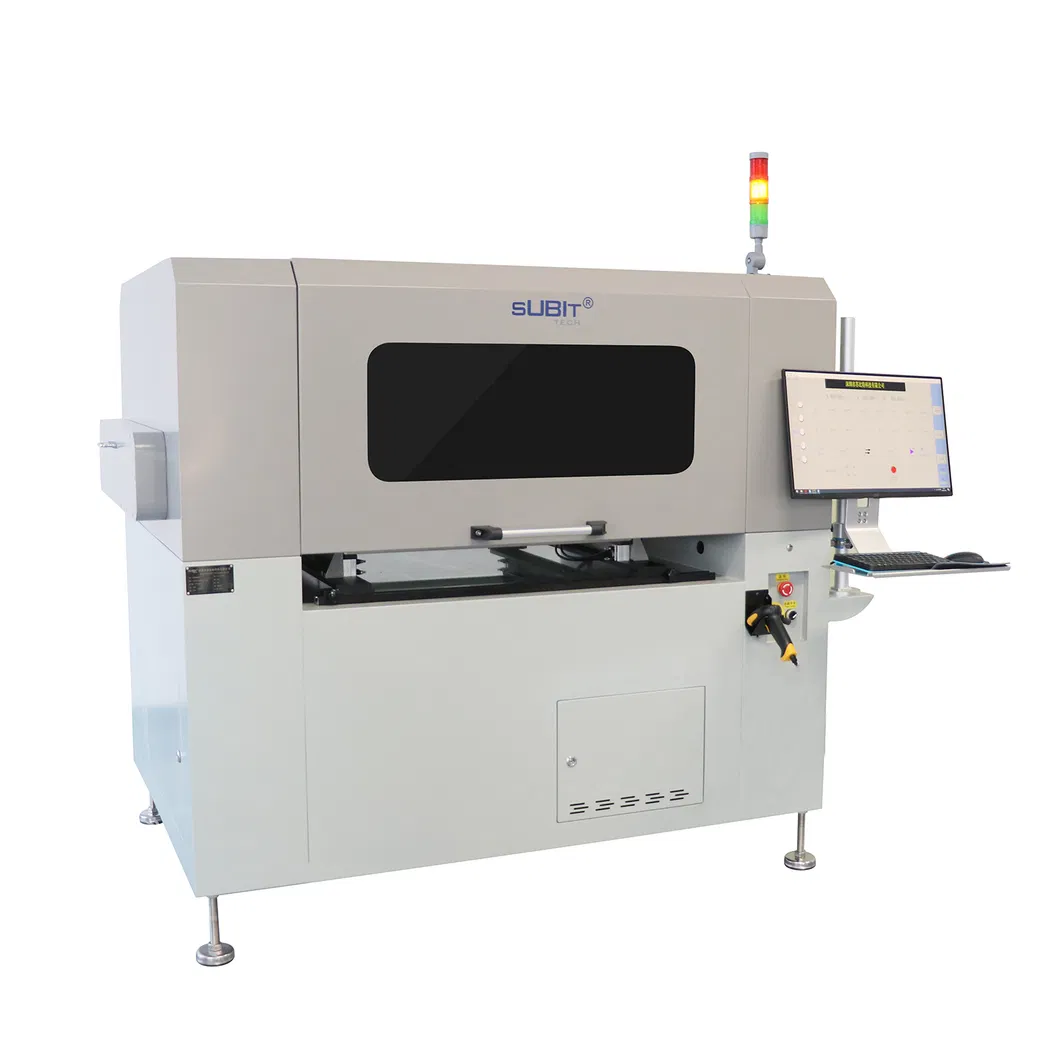

Automatic Stencil Inspection Equipment

High-precision inspection equipment dedicated for cleaned stencil after printing. Utilizes automatic image measurement technology to scan images and collect parameters such as tension, recording results automatically to optimize quality management.

Semi-automatic Stencil Inspection

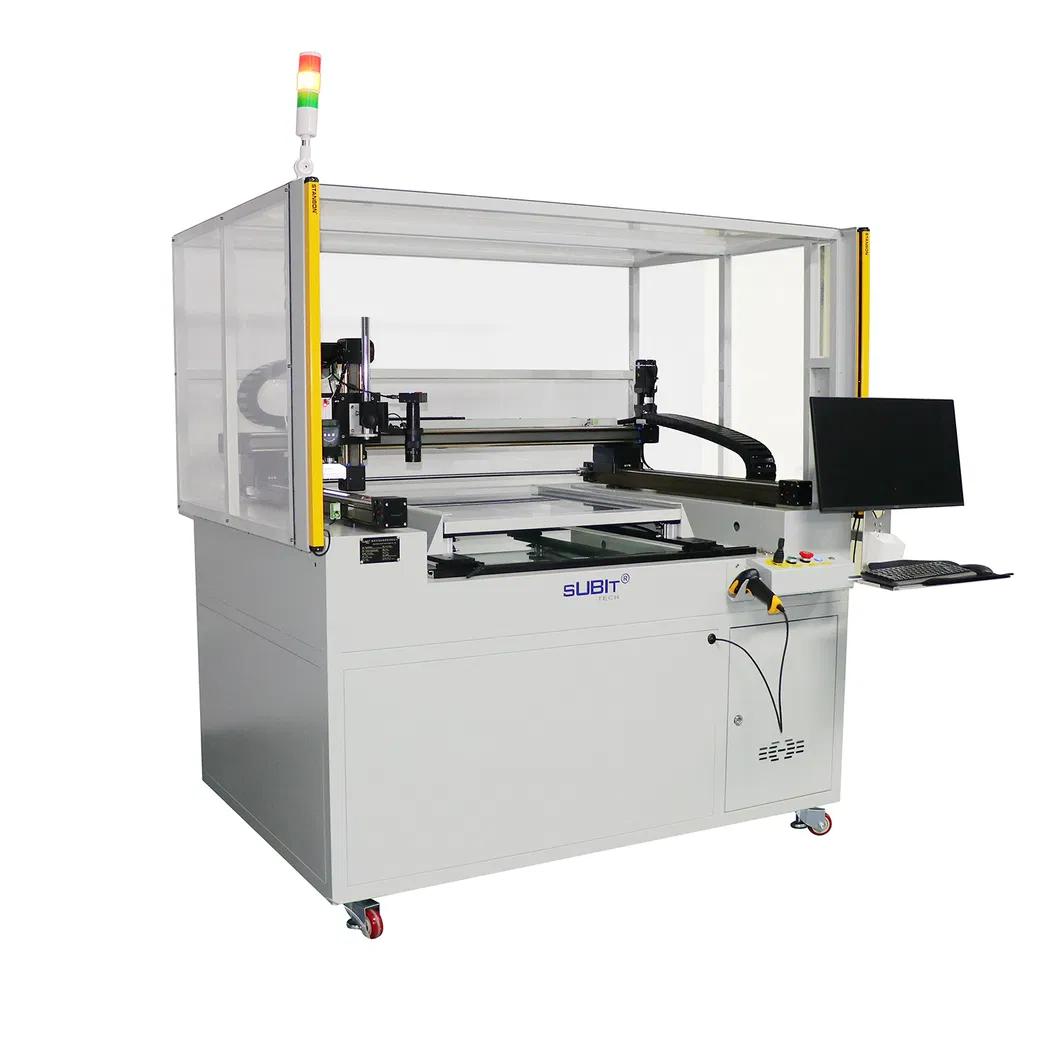

Semi-automatic Stencil Inspection Equipment

Mainly applied to stencil appearance inspection and tension tests. Equipped with auto/manual linear sliders and digital tension meters. The camera follows a preset trajectory for visual detection of flaws and defects.

After Sales Service

1 Warranty Period: 12 months. Factory supplies spare parts for free within the warranty period.
2 Technical Support: Lifetime technical support. Response within 8 hours via email or instant message for any issues.

Frequently Asked Questions

Q1: Which procedure is used to secure your quality? Our products are professionally tested before loading at our own R&D and production base to ensure the accuracy and authority of test results.
Q2: How does the after-sales service system work? The product guarantee period is 12 months. we provide free consumable parts within 1 year and reply to technical problems within 24 hours.
Q3: What are the available payment methods? We accept T/T, L/C, D/P, and other standard international payment methods.
Q4: What is the standard packing method? We use vacuum film shrink wrapping and standard export non-wooden box packaging to ensure safety during transit.
Q5: How do you ensure the customer knows how to operate the instrument? We provide operation videos showing installation and use. For specific needs, we can also arrange engineer training for equipment operation.
Q6: What are your main export markets? Our products are currently exported to North America, Europe, Southeast Asia, South America, and various other regions globally.
