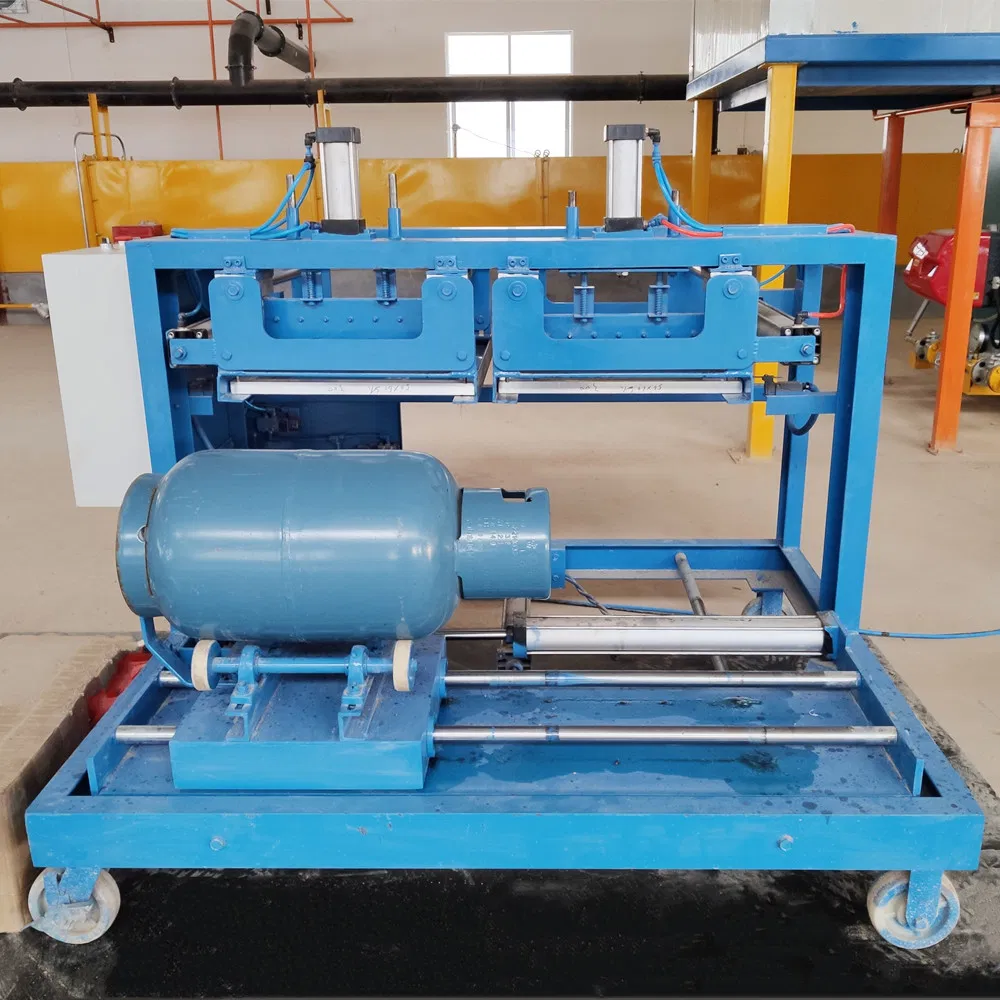

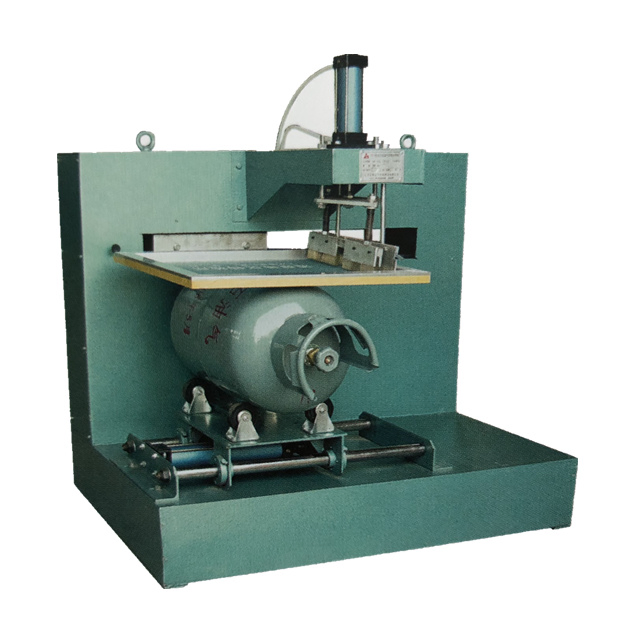

LPG Gas Cylinder Silk Screen words LOGO Printing Machine
| Parameter | Specification |
|---|---|
| Printing Machine Size | 700*600mm(L*W) |
| Max. Producing efficiency | 2pc/min (include cylinder loading & unloading) |
| Ink consumption | <2g/pcs |
| Color | Two colors once |
| Motor power | 1.5KW |
| Weight | 0.5T |
| Machine includes one screen. | |

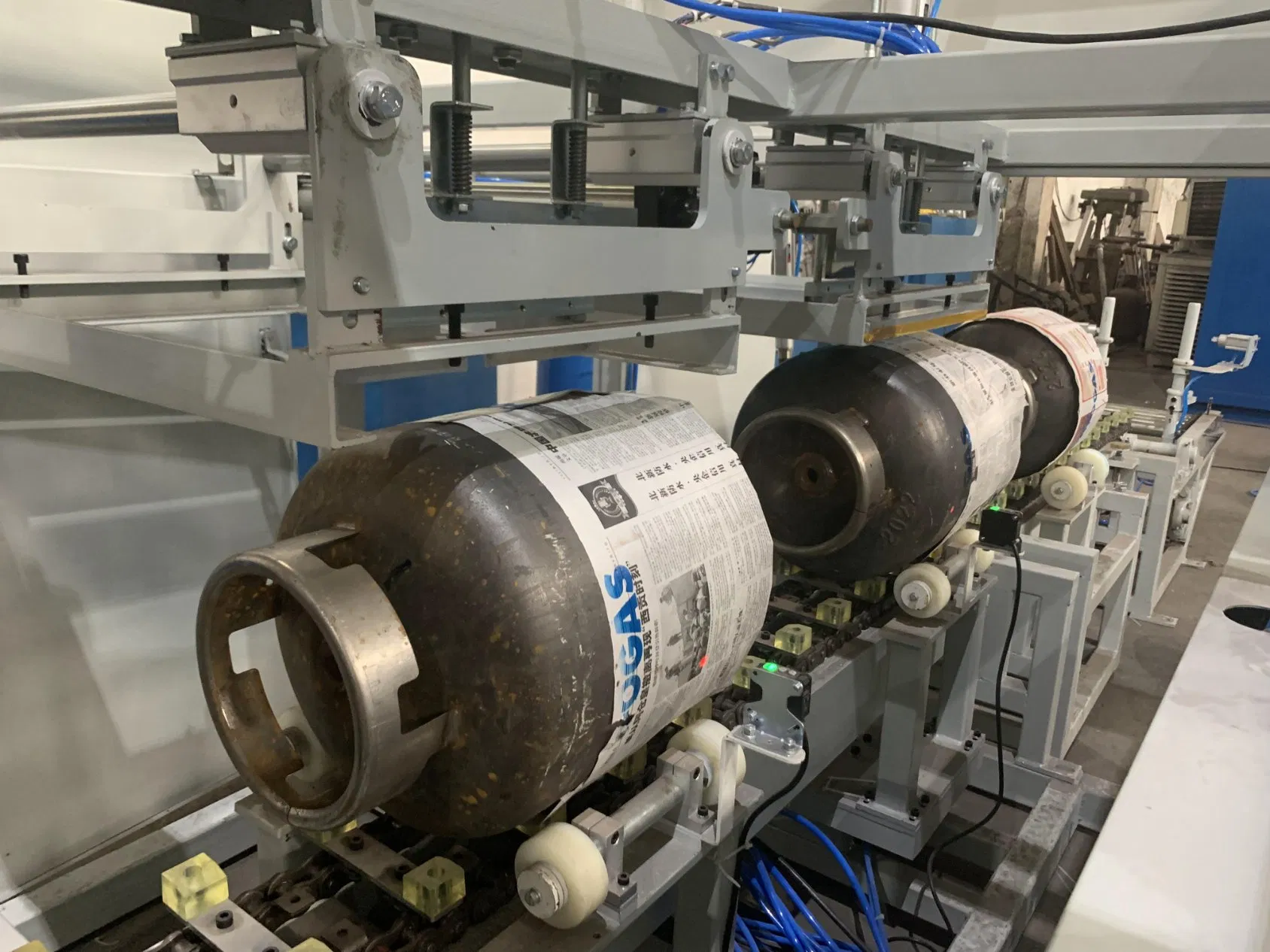

The printing machine is a specialized unit for LPG cylinder body printing, covering words, brands, and other patterns. It combines a frame, pressing plate, move and control system. It features reliable working, good print quality, and easy operation.

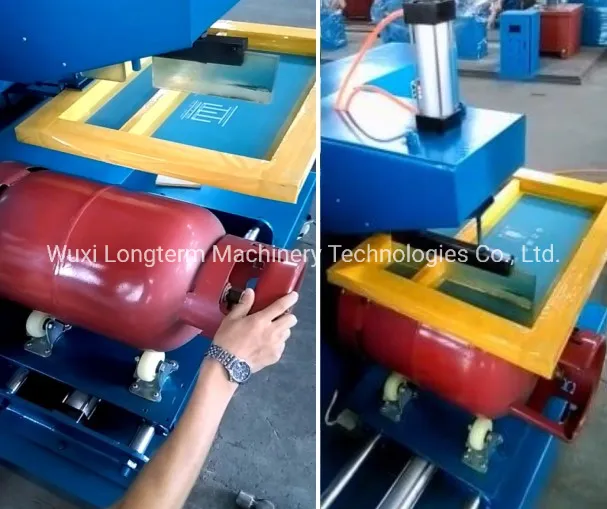

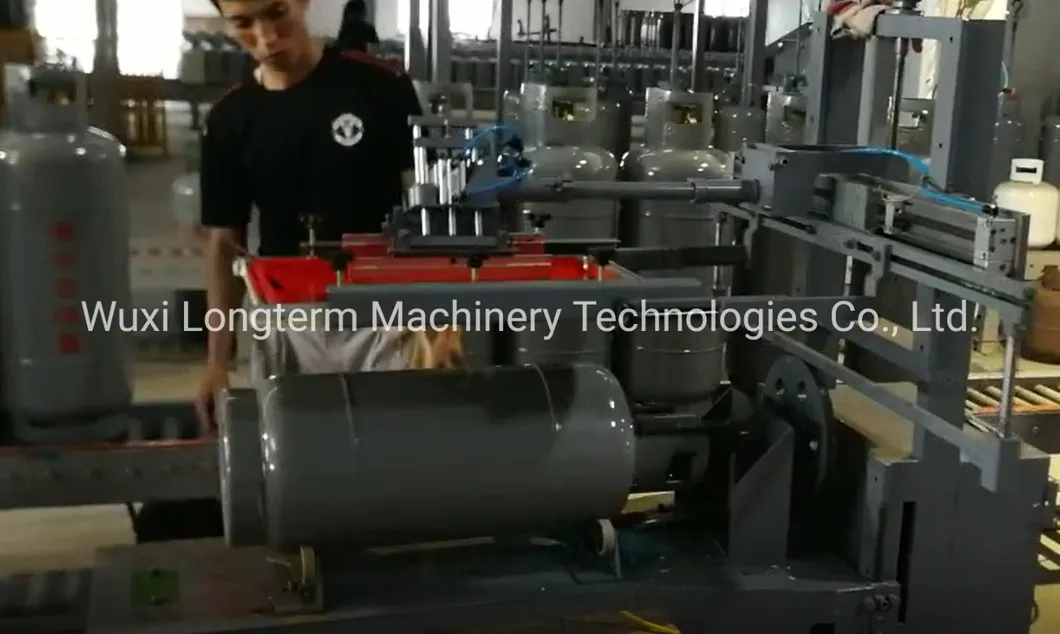

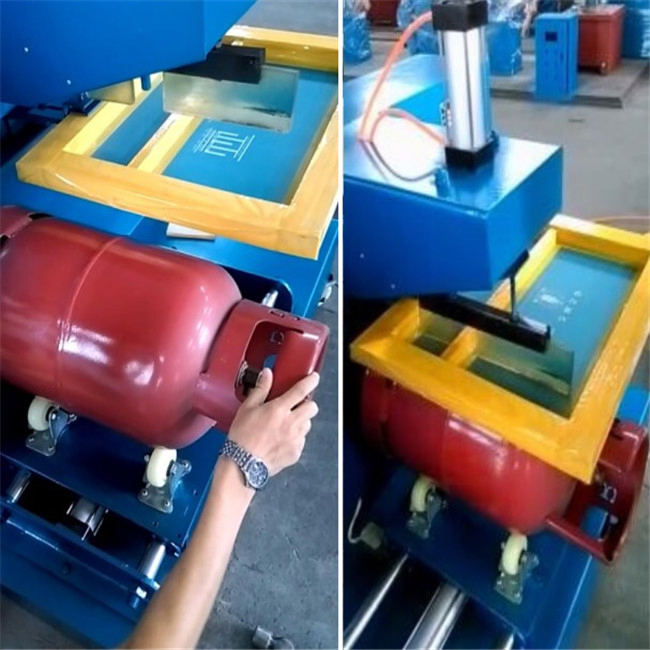

Working Principle: Place the cylinder on the supporting table and press "Start". The feeding system transfers it to the printing location. The glue plate closes automatically, and the print plate moves to execute the design. After completion, the system resets for the next cycle.
1. Lubricate movement parts and keep pneumatic FRL oil levels maintained.

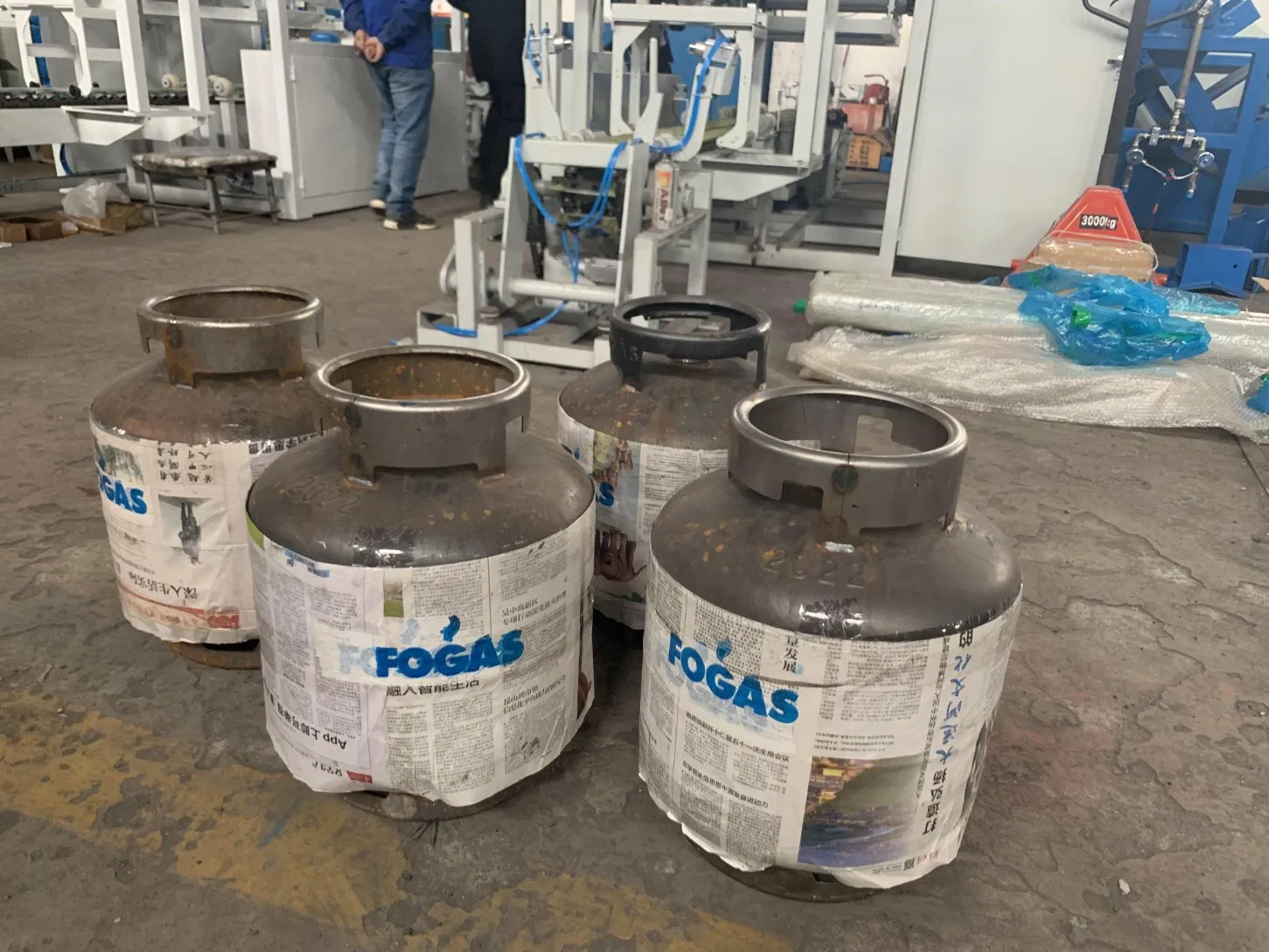

2. Clean cylinder surfaces before printing to protect the silk screen.
3. Adjust ink viscosity: too thin causes leakage, too thick makes printing difficult.
4. Clean the print plate, glue plate, and scrap blade with soft materials after use.

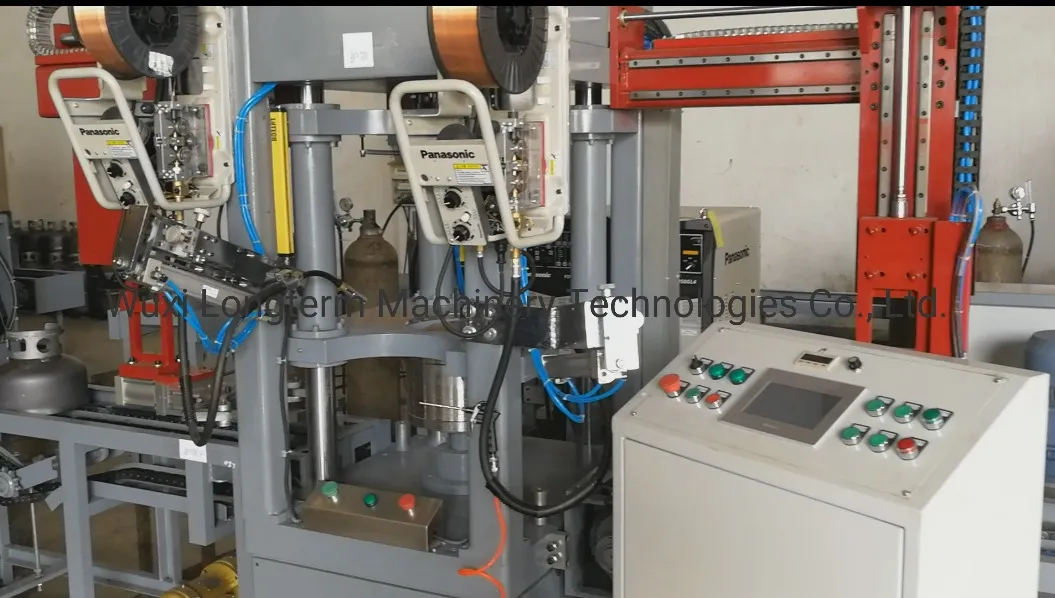

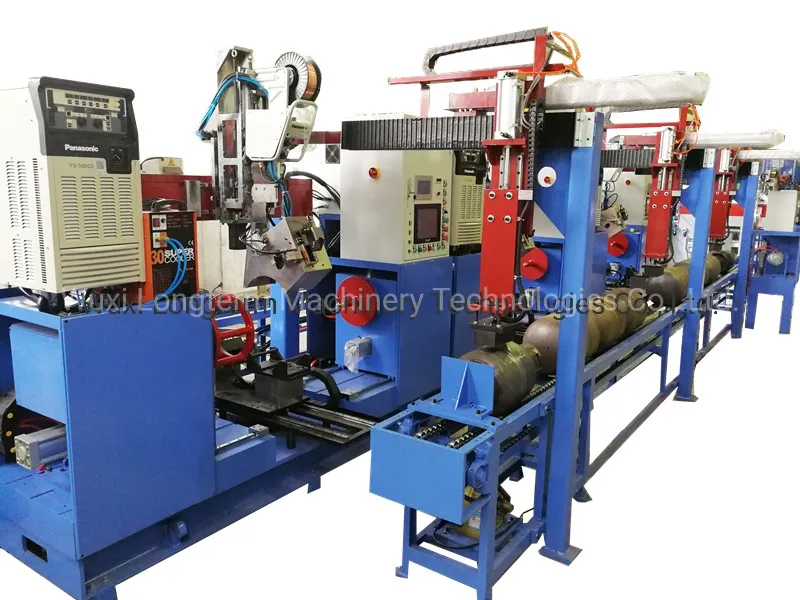

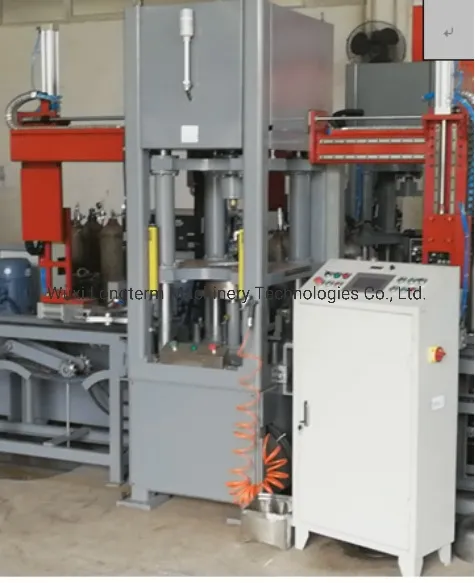

Complete welding solutions for LPG cylinders, including socket, handle/collar, base ring, and circumference welding machines.
| Comparison: MIG vs SAW Welding (2000 pcs/8 Hours) | ||
|---|---|---|
| Description | MIG welding | Saw welding |
| Capacity | 360 pcs/8hrs/set | 240 pcs/8hrs/set |
| No. Of Welders | 3 | 39 |
| Power/Wire Consumption | MIG saves 40% compared to SAW | |
| Tracking | MIG includes auto laser & video tracing | |

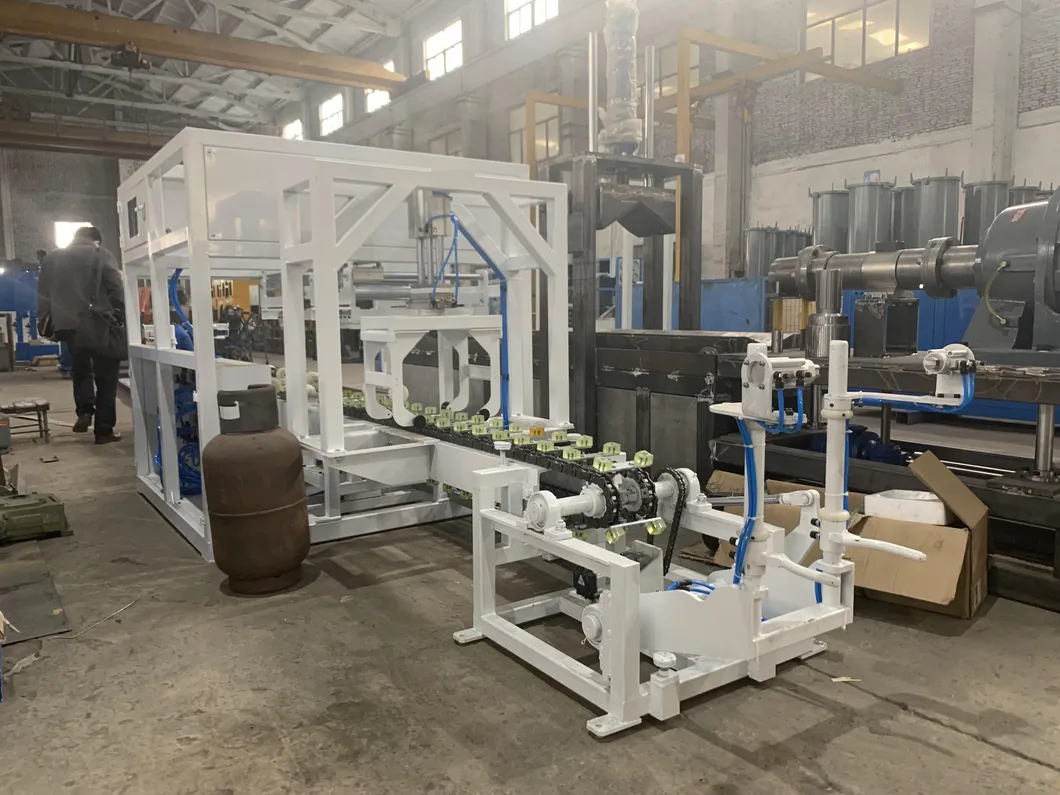

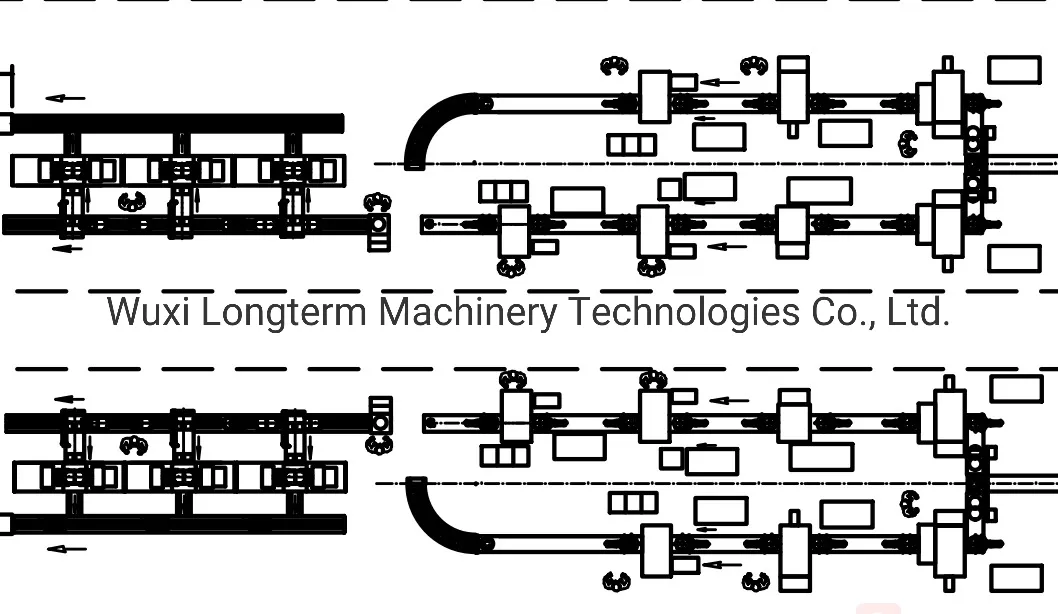

Full Automatic: Includes mechanical arms and chain conveyors for high efficiency and lower labor costs.

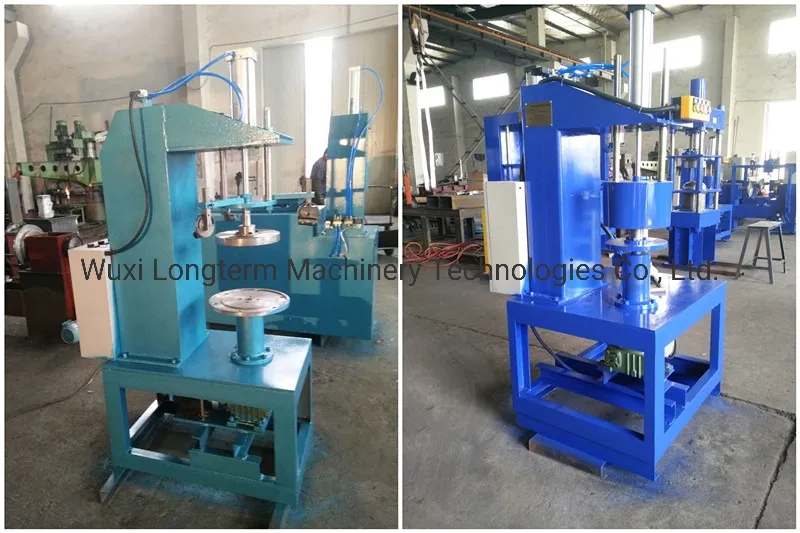

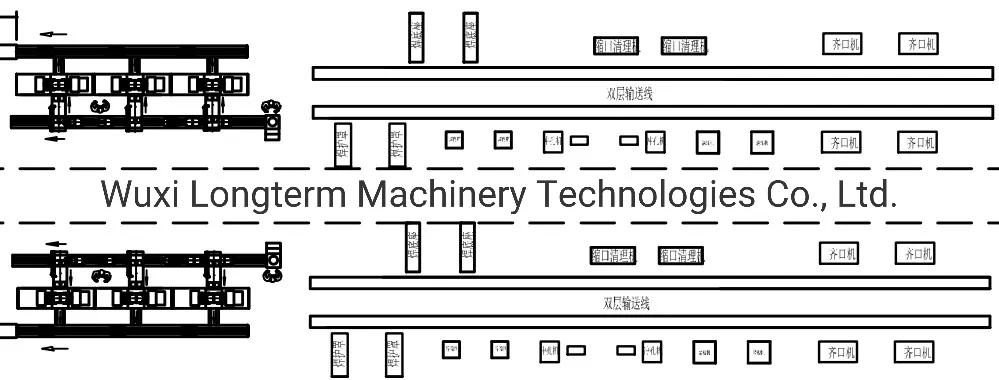

Semi-Automatic: Economical option using manual loading and unloading for tighter budgets.

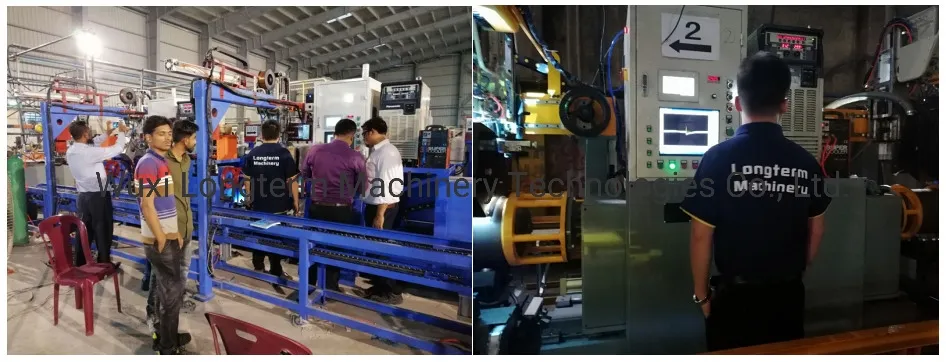

Experienced in international installation and commissioning. Skilled engineers ensure smooth operation at client sites.
Our facility utilizes advanced milling, punching, and grinding machines to manufacture all parts in-house, ensuring 100% quality control.
