Product Overview

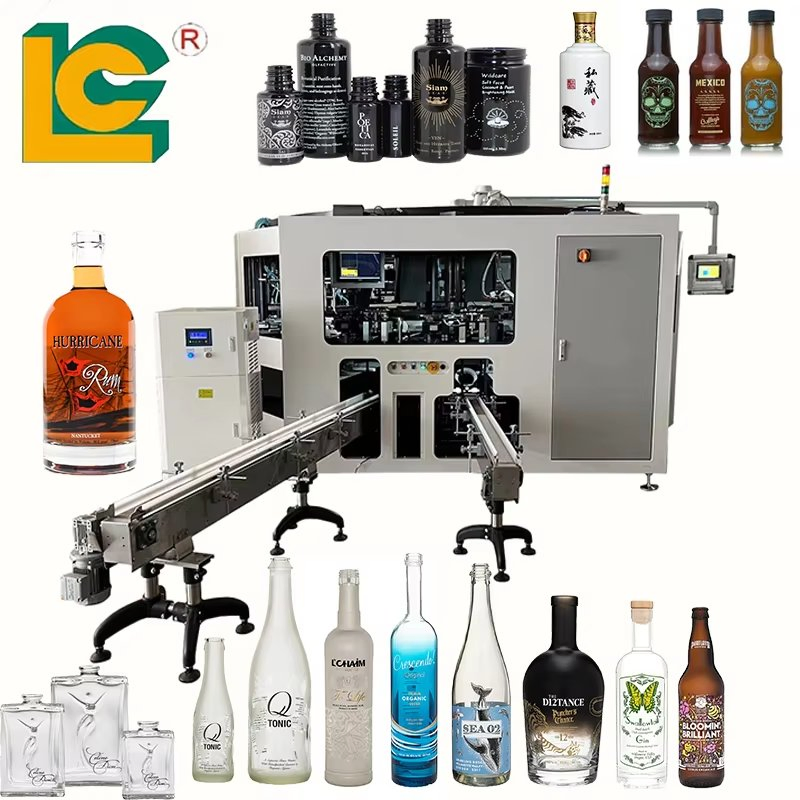

6 Colors High Precision Fully Automatic Servo System Silk Screen Printing Machine
Basic Specifications
Type
Vertical Screen Printing
Color & Page
6-Color Printing
Application
Bottle Printing
Printing Speed
2700-3600 PCS/Hr
| Dimensions (L*W*H) |
5876 * 2362 * 2362 mm |
| Max. Product Size |
Round Diameter 100mm, Length 310mm |
| Core Components |
Motor, Pump, Gear, PLC, Engine |
| Control System |
BECKHOFF PLC & Touch Screen |
| Main Motor Drive |
Servo Motor |
| Air Pressure |
5~6 BAR |
Key Advantages
🤖

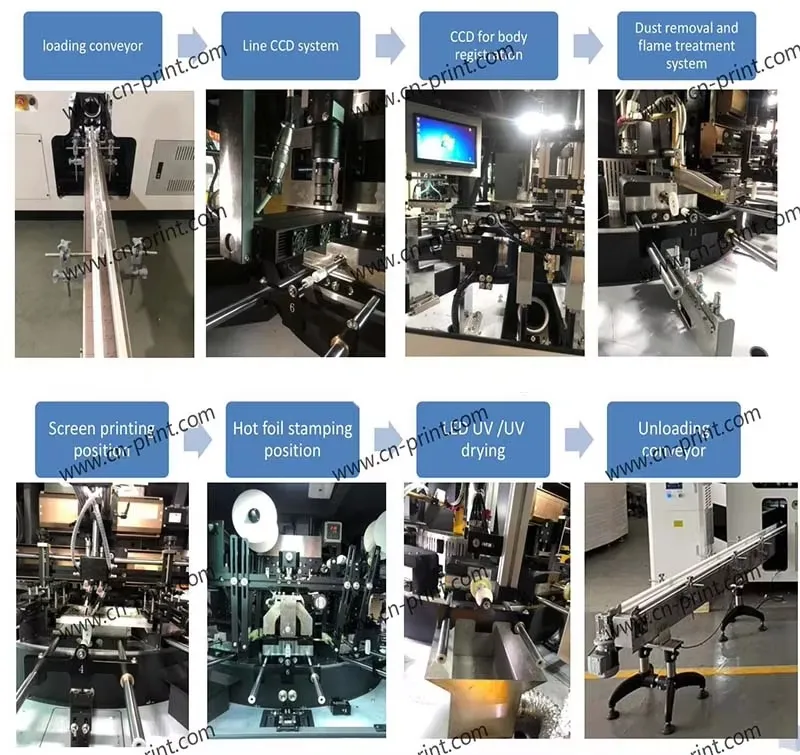

Advanced Robotics
Auto loading and unloading with multi-axis servo robot for maximum efficiency.
🔥
Pre-Treatment
Auto flame treatment before printing and dust cleaning system ensure perfect ink adhesion.
💡
UV LED Curing
Equipped with high-efficiency UV LED lamps. Zero ozone emission and reduced CO2 production.
⚙️
Full Servo System
All driven by servo: printing heat, mesh screen frame, and rotation. No gears needed.
⏱️
Quick Changeover
Easy changeover from one product to another. Parameters setting in touch screen takes only 20 minutes.
🔍
CCD Scanning
Linear high-speed precision CCD scanning for cylindrical products without registration points.

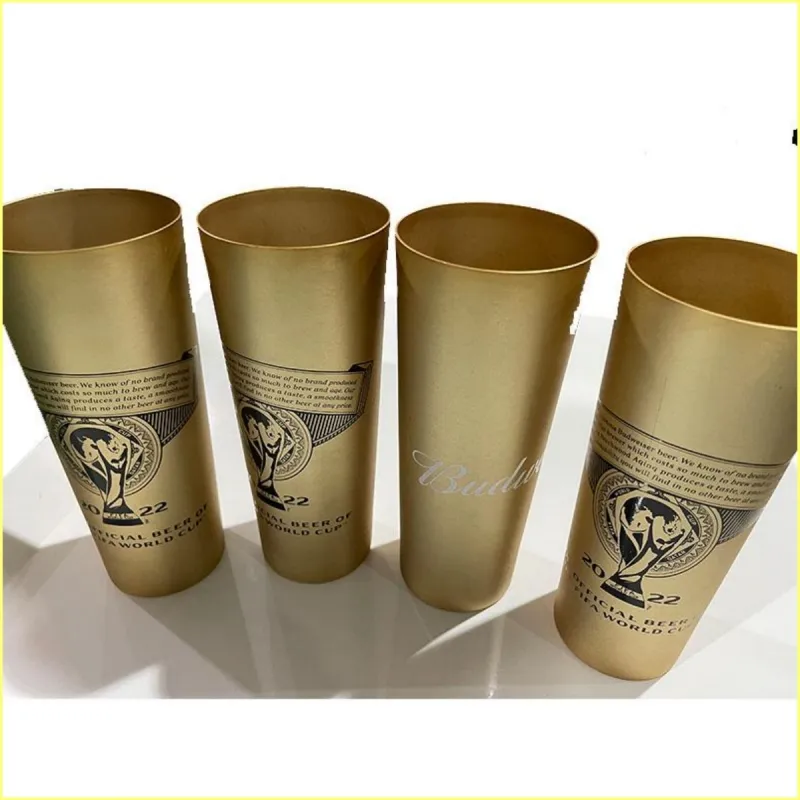

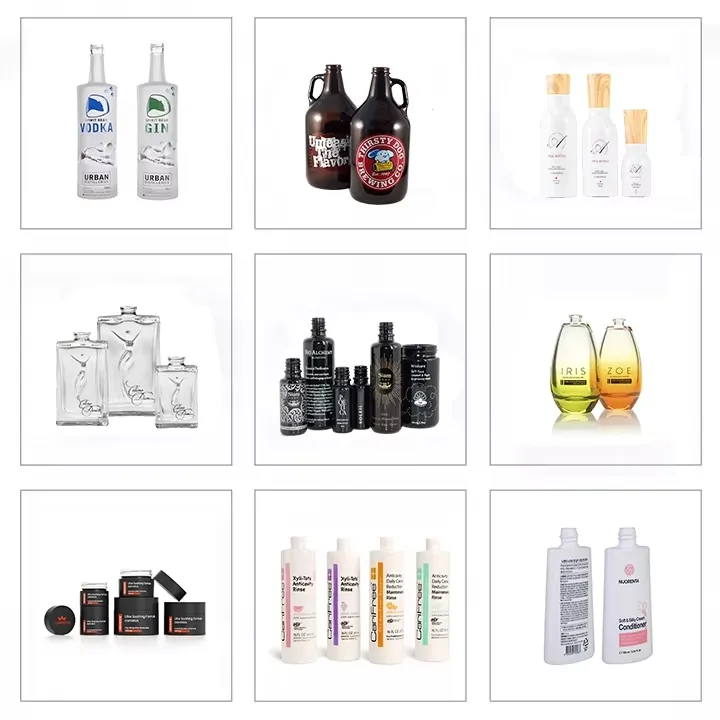

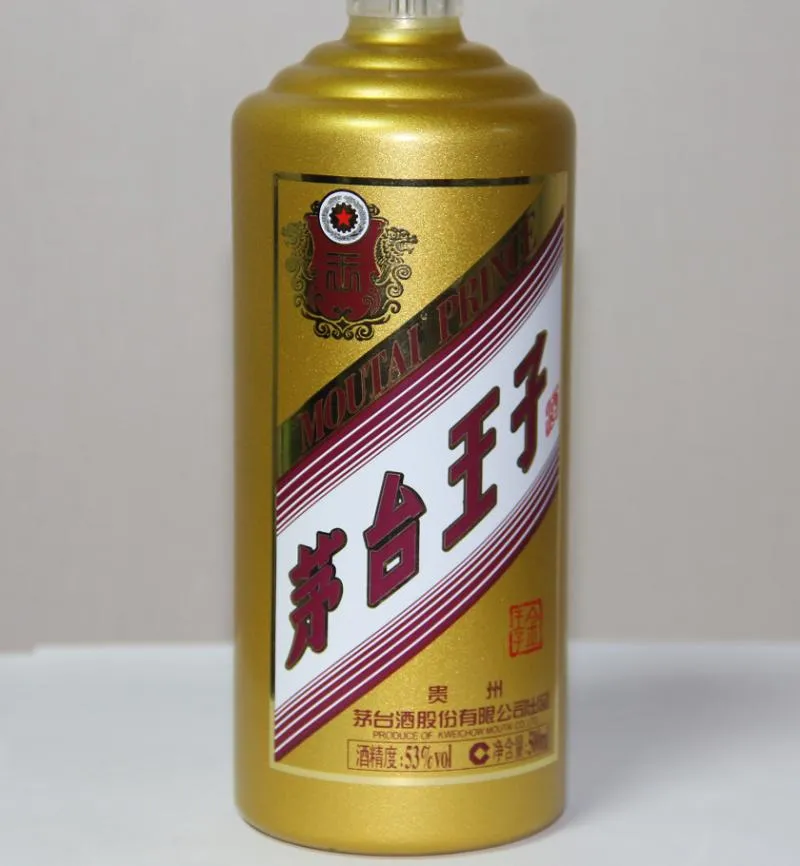

Printing Samples

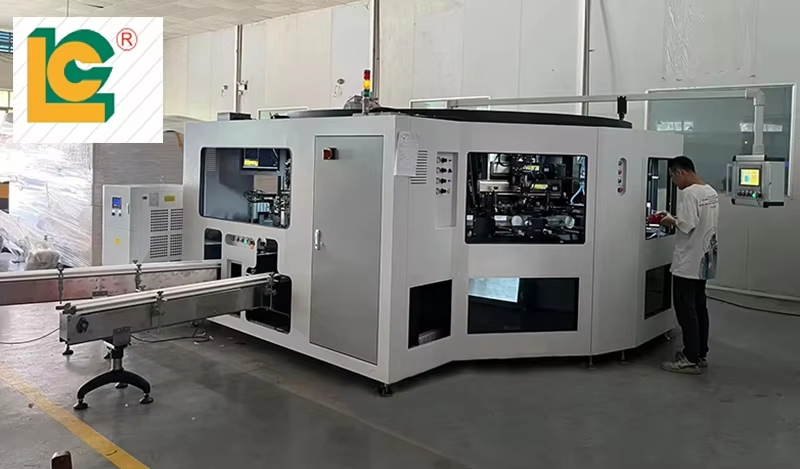

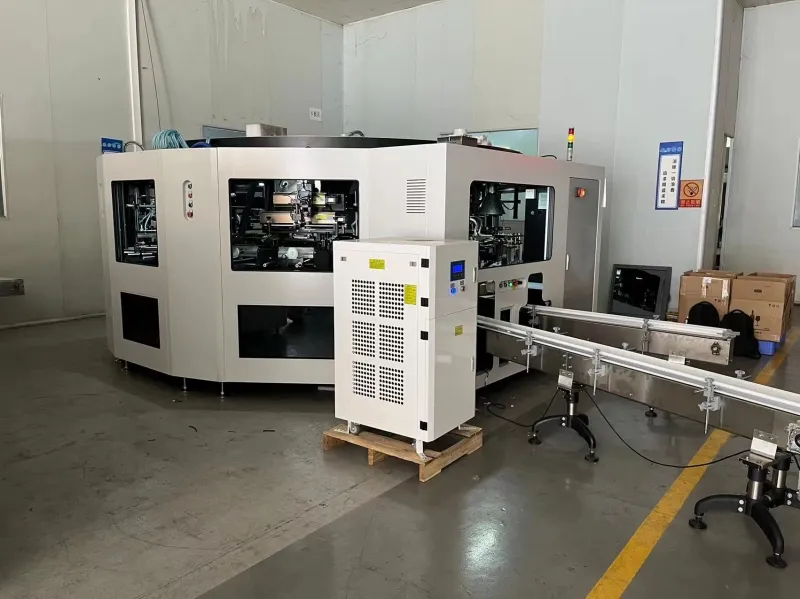

Product Display

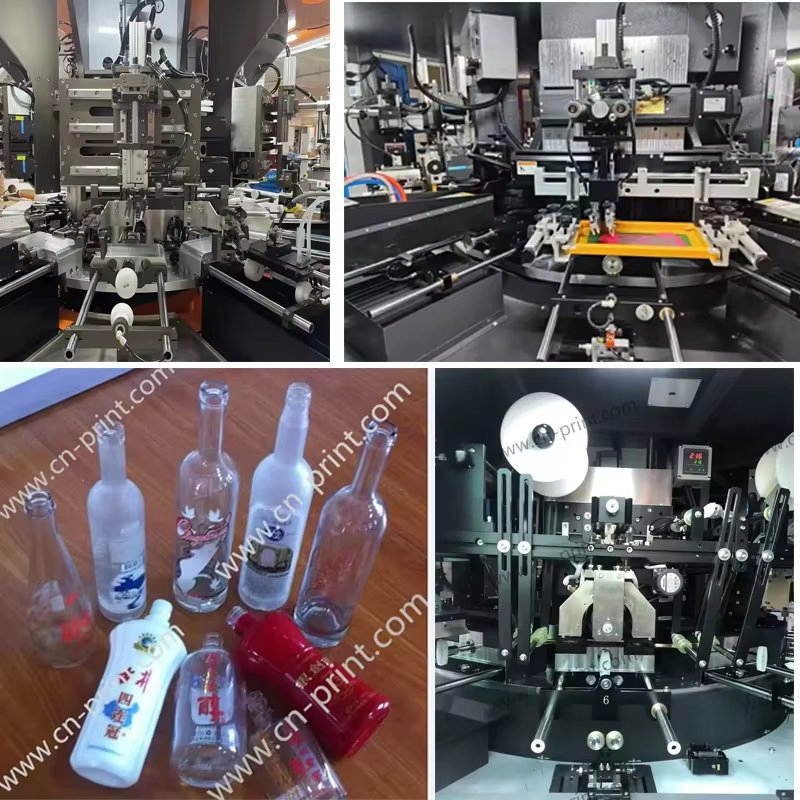

Technical Details
Applications
Glass Bottle Screen Printing
Cosmetic Bottle Printing
Plastic Bottle Printing
Wine Bottle Printer
Perfume Bottle Screen Printing
Nail Polish Bottle Printer
Automatic UV Silk Screen Printing
Servo Rotary Screen Printing
Multi-color Bottle Printing
Frequently Asked Questions
What types of bottles can this machine print on?
The machine is highly versatile and can print on glass, plastic (PET, HDPE), and metal bottles, including wine, cosmetics, perfume, and water bottles.
How many colors can the machine handle in one cycle?
This is a 6-color fully automatic system, allowing for high-precision multi-color printing in a single production line.
What is the maximum printing speed?
The machine can reach speeds of 2,700 to 3,600 pieces per hour, depending on the product size and complexity.
Is it difficult to switch between different bottle sizes?
No, the servo-driven system allows for quick and easy changeover. Most parameters can be adjusted via the touch screen in about 20 minutes.
What type of ink does this machine use?
The machine is compatible with both UV inks (utilizing the integrated UV LED curing system) and thermoplastic inks.
Does the machine support registration for bottles without a physical point?
Yes, it features a high-speed precision CCD scanning system specifically designed for cylindrical products without mechanical registration points.
