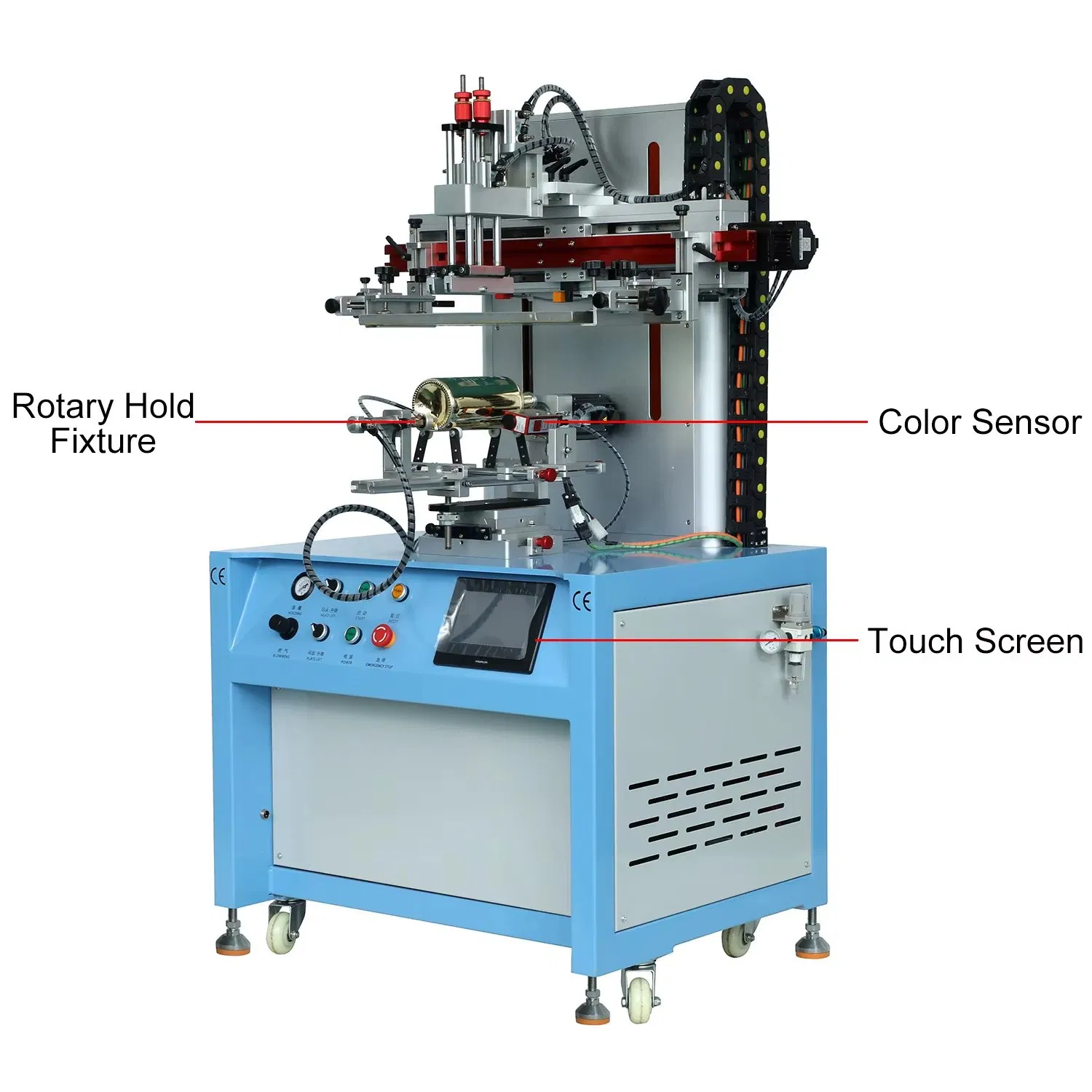

LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
1 / 5
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers
LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers

LC Automatic Screen Printing Machine for Bubble Tea Cups, Plastic Cups & Glass Bottles Rotary Flatbed Printer for Cylindrical Containers

Customization: Available
After-sales Service: Lifetime Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
LC-PA-400ES
Type
Rotary Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Application
Packaging Printing
Transport Package
Wooden Case
Specification
98*88*139cm
Trademark
LC
Origin
Dongguan
Production Capacity
100set/Month

Product Overview

Paper Plastic Cup & Bottle Screen Printing Machine

LC Automatic Screen Printing Machine
Model NumberLC-PA-400ES Product AppearanceRound
Max Printing DiameterΦ120mm Max Printing Arc Length370mm
Printing Speed2000 PC/H Machine Weight260kg
Gross Weight330kg Air Pressure0.5Mpa
Voltage Power220V/ 50HZ Application AreaBottles, Cups, Mugs

Advanced Servo Control System: This machine is controlled by PLC and features 3 sets of servos. The left, right, top, and bottom movements, as well as rotation, are all driven by the servo system, eliminating the need for gears. Equipped with a planetary reducer, it ensures highly stable and precise printing results.

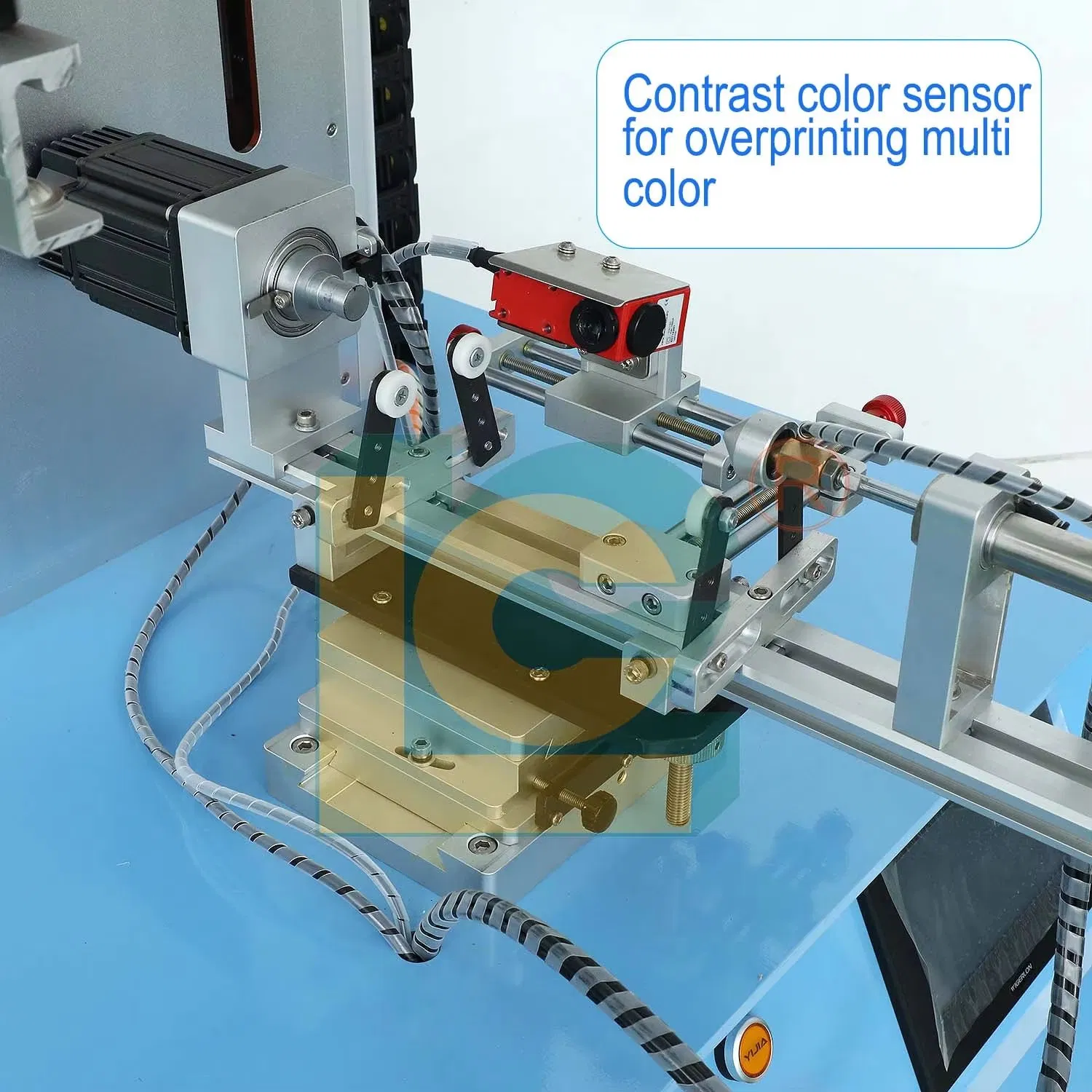

Precision Registration: Utilizing the German Leuze color sensor, the machine automatically recognizes the print position, ensuring accurate placement for every product without manual adjustment.

Main Features & Applications

✔
Versatile Printing: Suitable for cylindrical forms with smooth curve surfaces including metal, plastic, ceramic, glass, and wood.
✔
Taper Support: Includes a round printing function specifically designed for taper sections.
✔
Automation: Features automatic oil scrubbing, oil return, and a lifting table for efficiency.
✔
Balanced Pressure: Self-poise scraper ensures balanced printing pressure across the substrate.
✔
Adjustable Settings: Easily adjustable routes, speeds, and netting easel for quick setup.

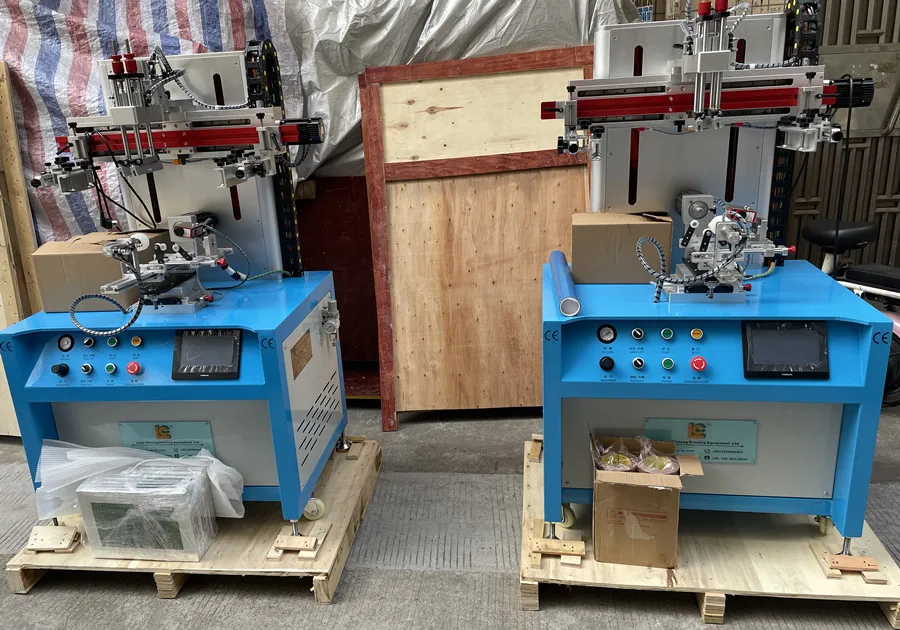

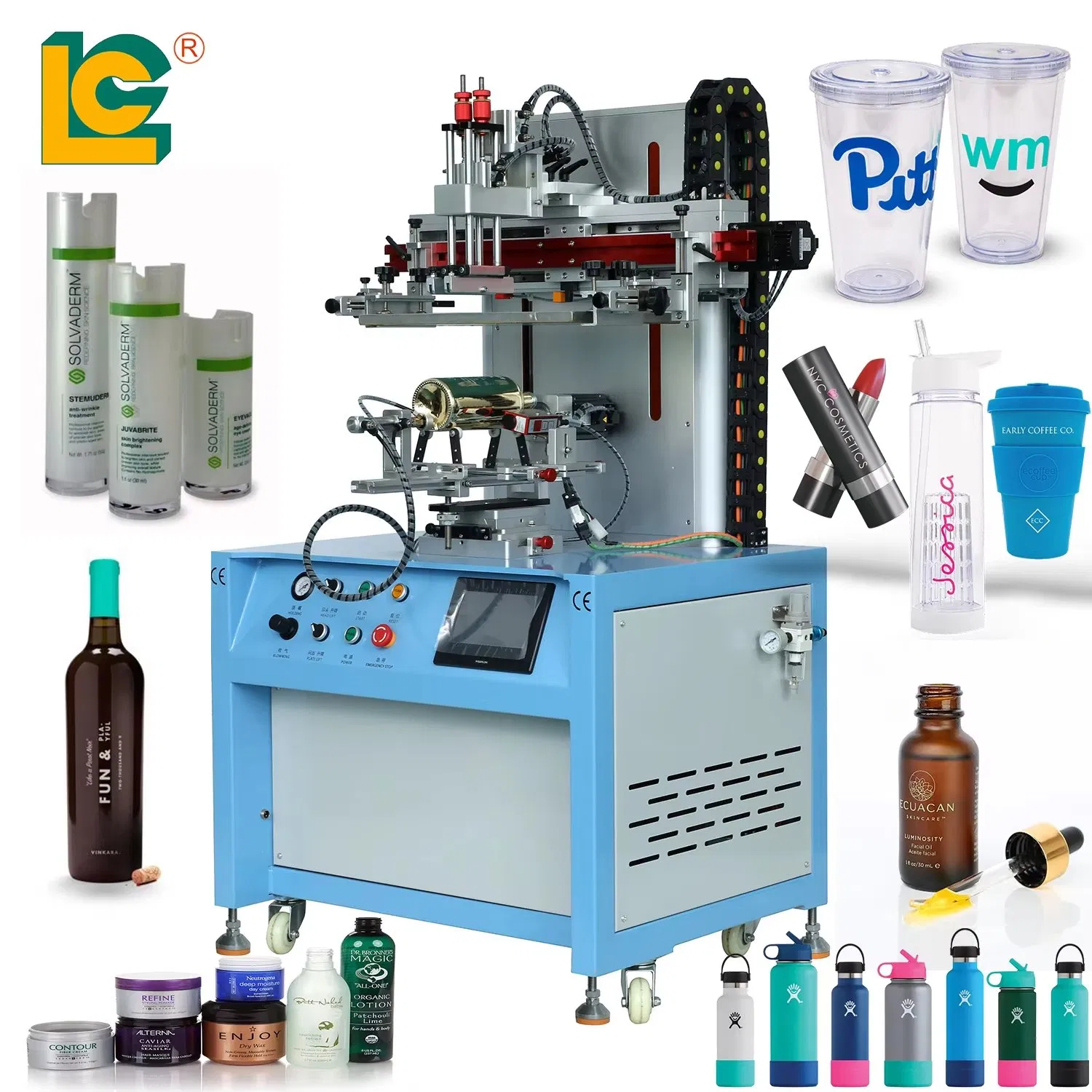

Application for Screen Printing Machine

Detailed Photos

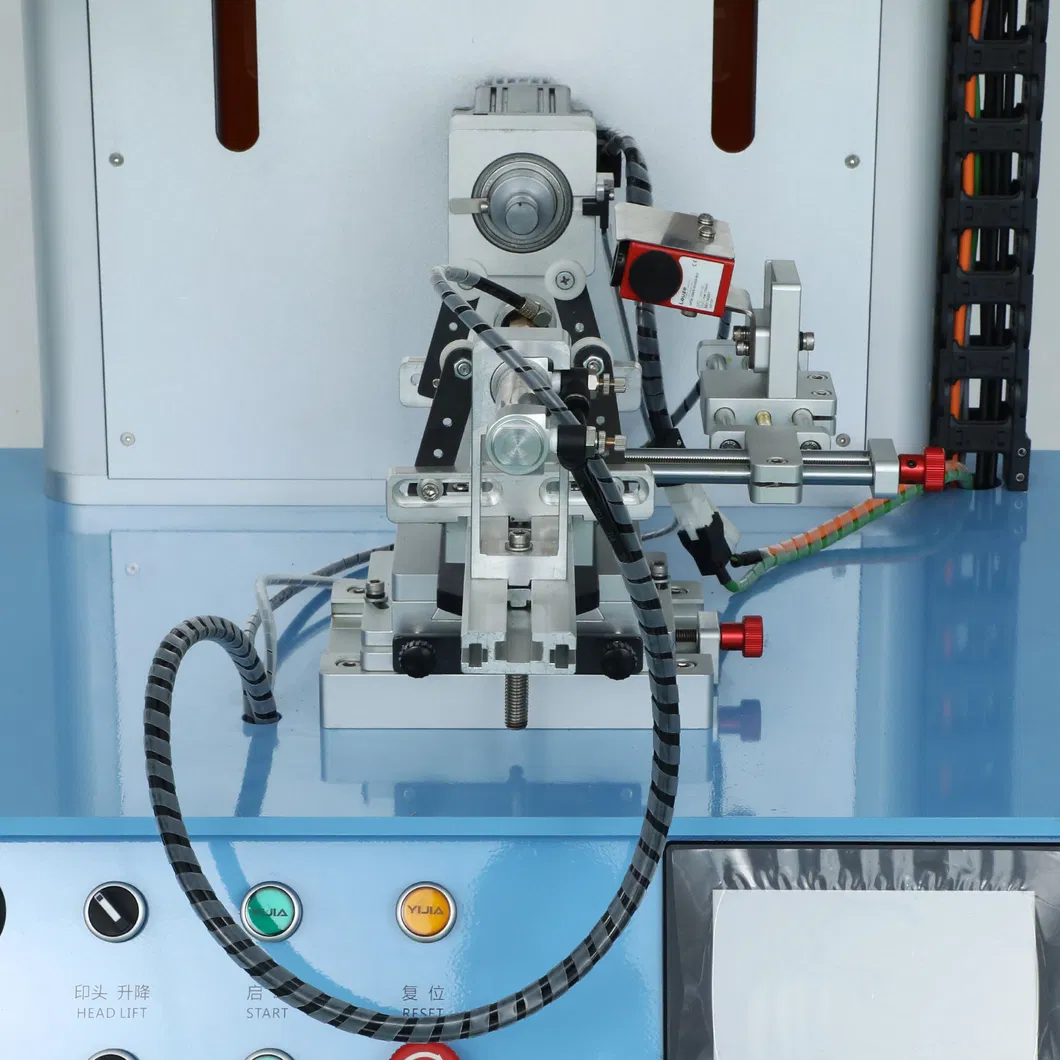

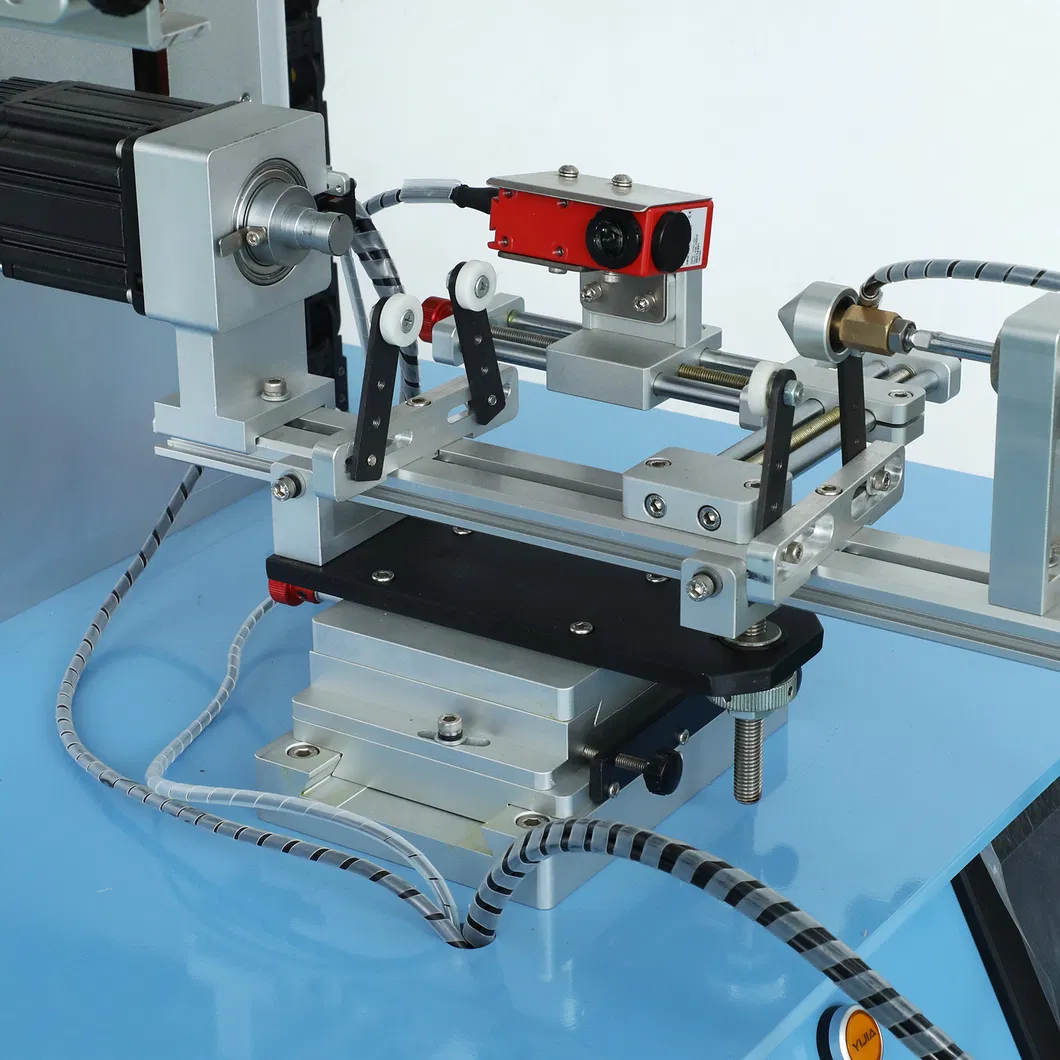

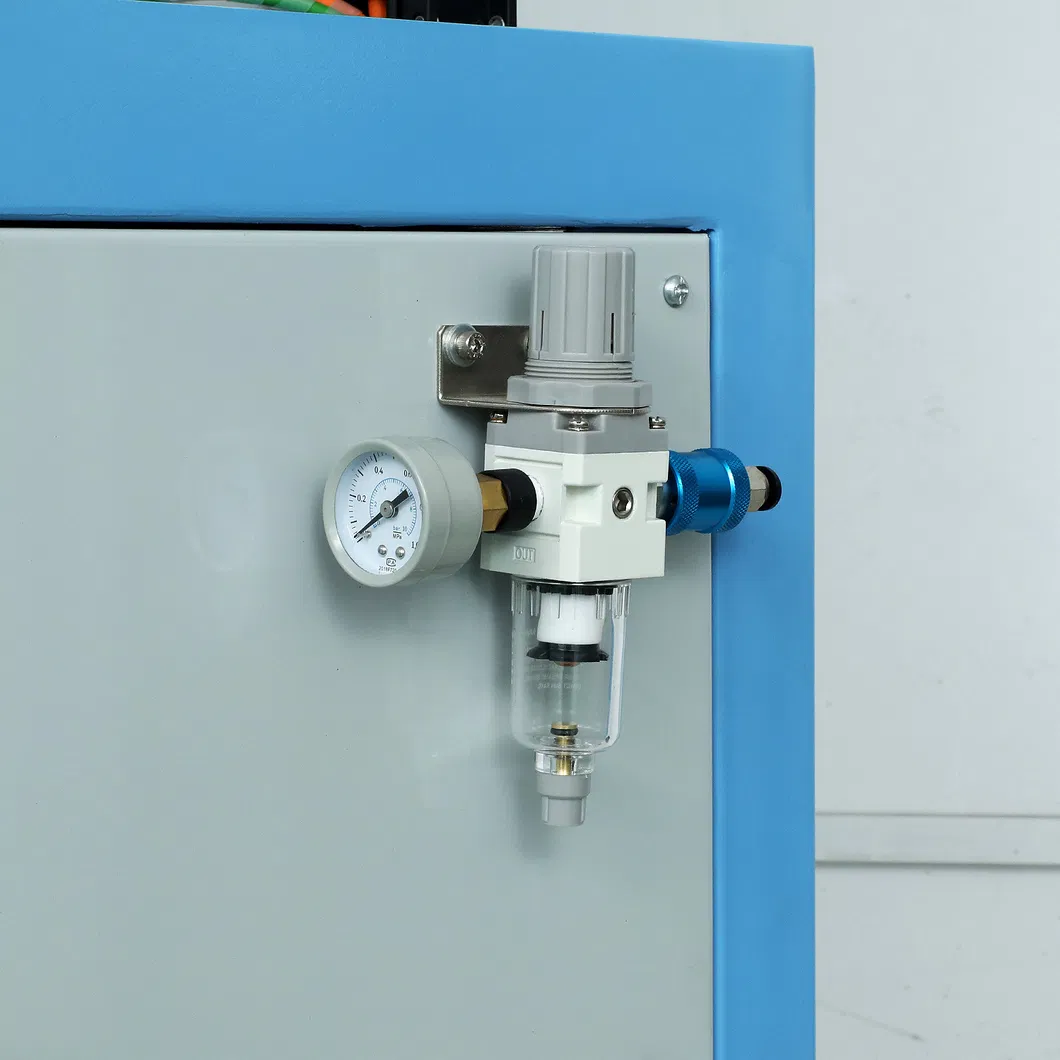

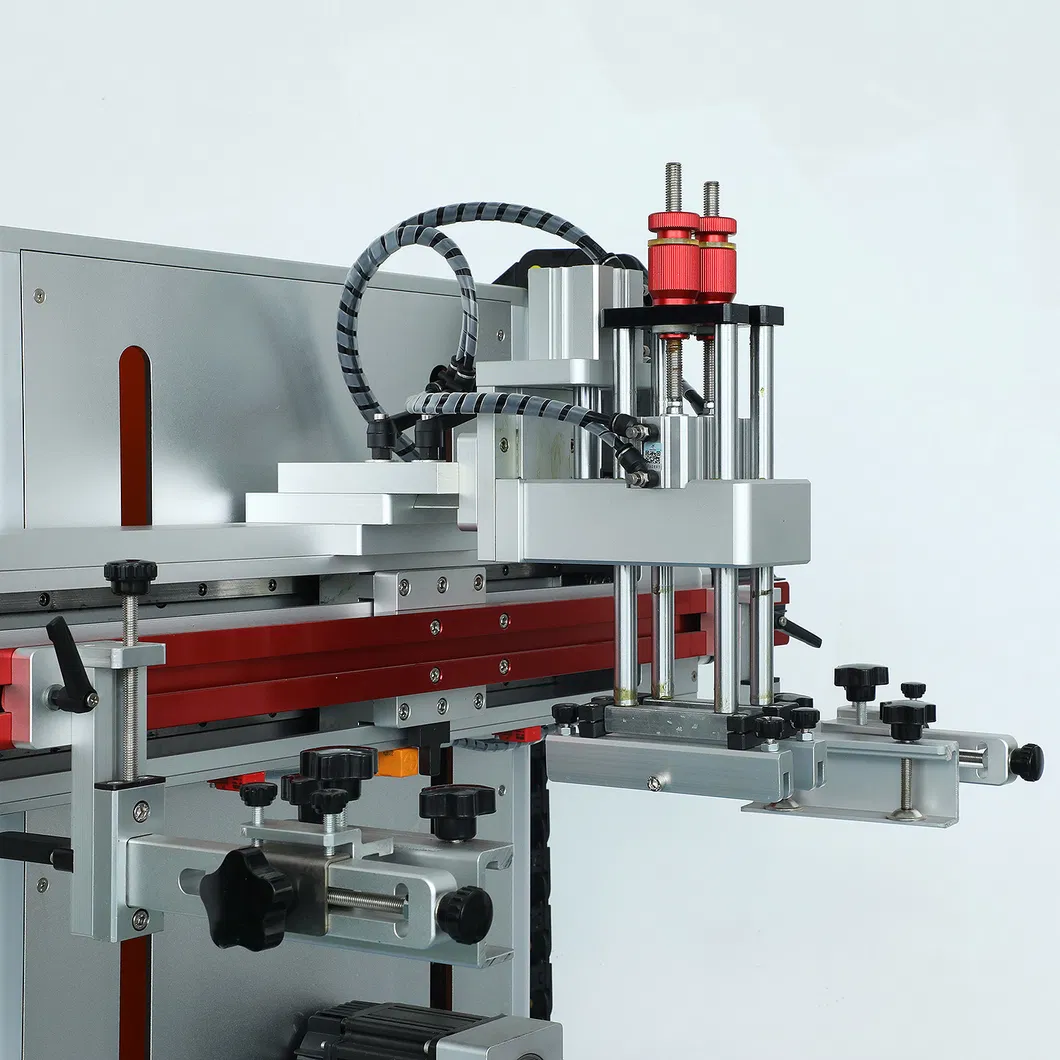

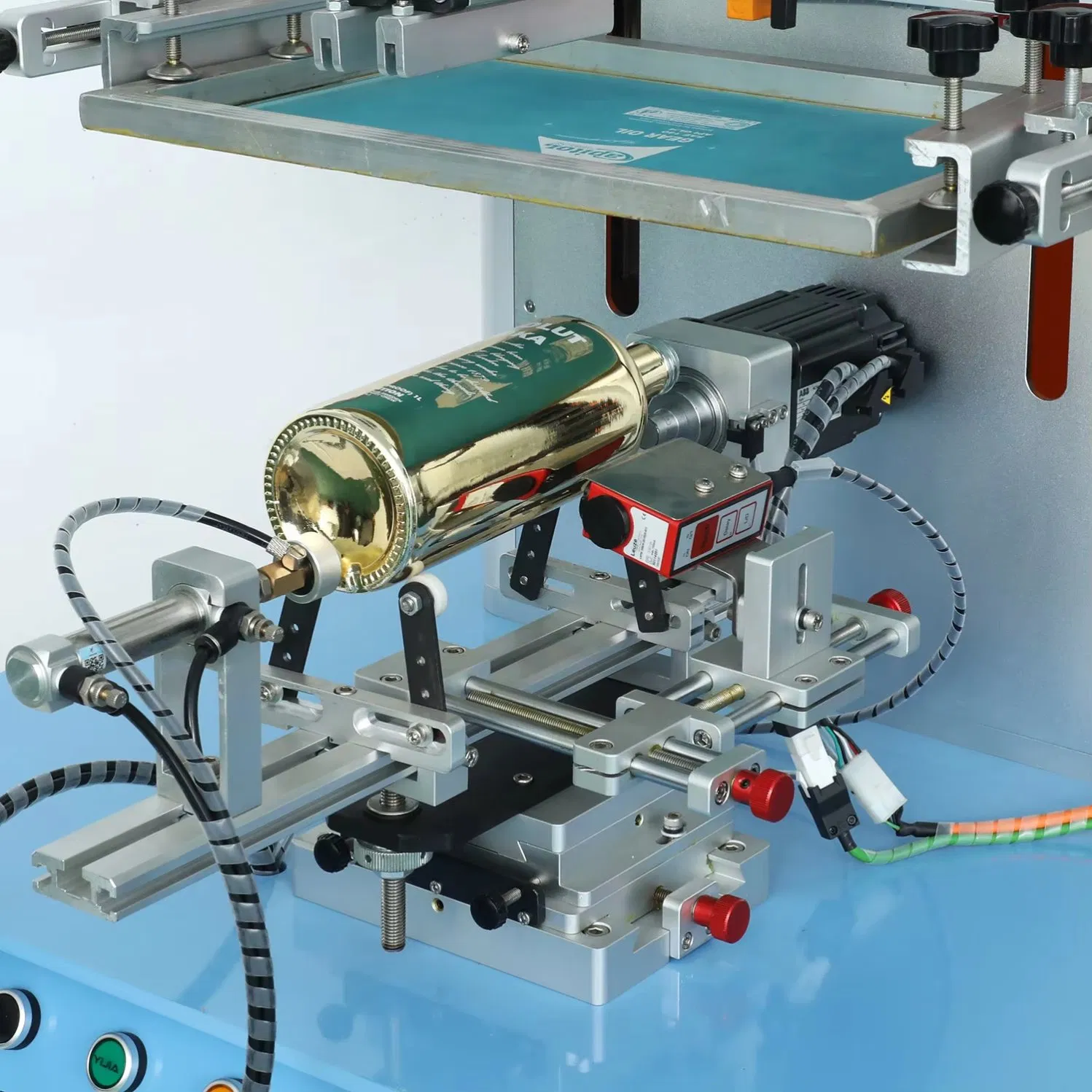

Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4 Detailed View 5
Full Machine Specs Diagram

Frequently Asked Questions

What types of products can this machine print on?
The machine is designed for cylindrical and curved substrates such as paper cups, plastic bottles, cosmetic tubes, drink bottles, mugs, and even metal or ceramic containers.
How does the machine ensure printing precision?
It utilizes a PLC control system with 3 sets of servos and a planetary reducer. Additionally, a German Leuze color sensor is used for high-accuracy color registration and positioning.
What is the maximum production speed?
This rotary screen printing machine can reach a printing speed of up to 2000 pieces per hour (PC/H), depending on the substrate and settings.
Can it handle tapered or conical cups?
Yes, the machine features a specific round printing function designed to handle taper sections, making it ideal for various cup designs.
Is the machine easy to adjust for different sizes?
Absolutely. The machine is designed for high precision with easy and quick adjustability of routes, speeds, and the printing table (both fluctuation and round).
What are the power and air requirements?
The machine operates on a 220V/50HZ voltage power and requires an air pressure of 0.5Mpa for optimal performance.
