Product Description

i

Basic Information

Style:
Screen-process Printing Press
Package:
Wooden Case
Origin:
Zhejiang
★

Product Description

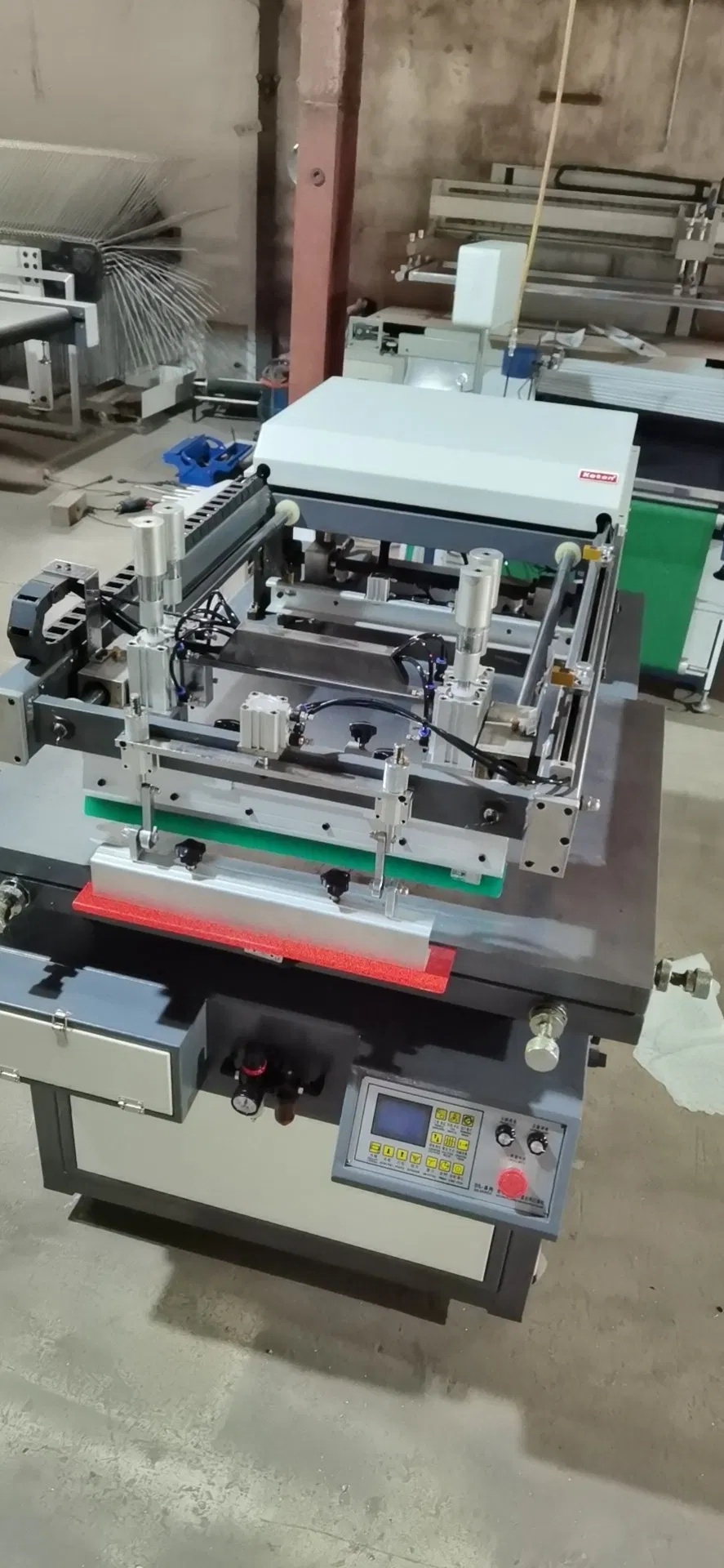

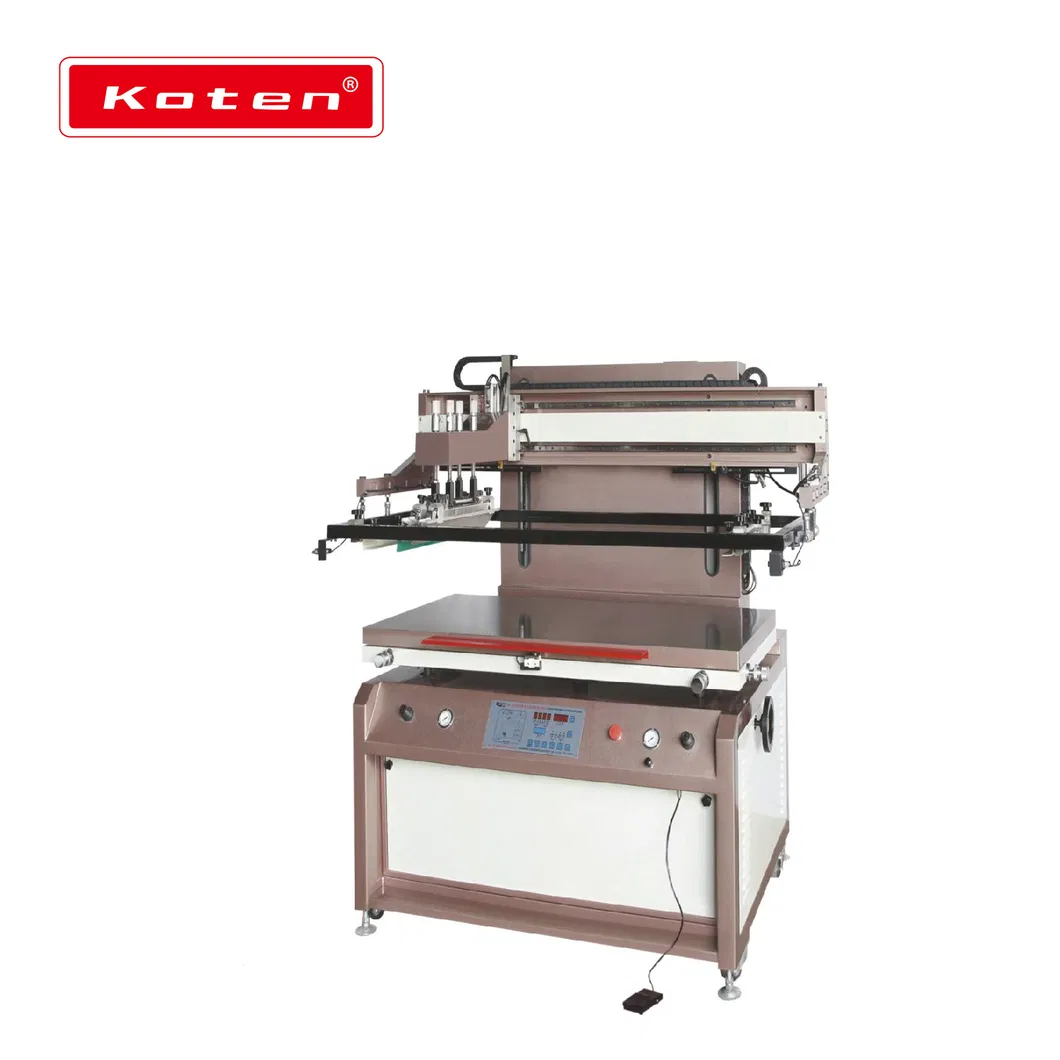

Electric Screen Printing Machine
JB-PYC series horizontal-lift half-tone printing machine is a high-performance semiautomatic plane printing solution. It is designed for precision screen-printing across a wide variety of substrates including paper, plastic, glass, ceramics, metal, textile, and leather.

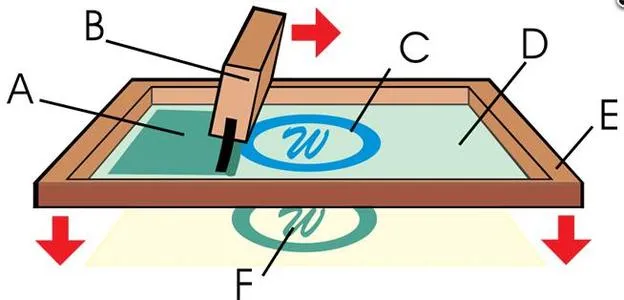

Printing Components
  • A. UV ink compatibility
  • B. Precision ink return scraper
  • C. Logo printing design
  • D. High-quality silk screen
  • E. Durable Frame
  • F. Versatile printed materials
✔

Key Characteristics

The vertical lifting and lowering mechanism of the printing arm ensures consistency in half-tone printing and minimizes aberration. For spot printing, the stability and uniformity of inking are significantly enhanced. Independent fine adjustment and worktable locking systems eliminate positioning errors. Both the printing blade and ink-returning blade feature step-less regulation for height and pressure, extending the service life of the screens while maintaining top-tier quality.
⚙

Technical Specifications

Model JB-PY1020C JB-PY960C JB-PY750C
Max. printing area 700X1020mm 600x900mm 500x700mm
Max. frame dimension 1000x1400mm 900x1300mm 700x1100mm
Workbench dimension 800x1200mm 700x1100mm 600x900mm
Printing thickness 0-25mm 0-25mm 0-25mm
Instant off-network height 0-20mm 0-20mm 0-20mm
Printing speed 900 times/hour 1000 times/hour 1100 times/hour
Weight 800kgs 680kgs 550kgs
Overall dimension 1700x1400x1850mm 1500x1180x1700mm 1300x950x1540mm
Printing motor 0.4kw 0.4kw 0.4kw
Power 4.1kw 3.0kw 3.0kw
⚙

Product Showcase

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Detail 9
Detail 10
Detail 11
?

Frequently Asked Questions

What materials can be printed using the JB-PYC series?
The machine is highly versatile and can print on paper, plastic, glass, ceramics, metal, textile, and leather.
How does the horizontal-lift design benefit printing quality?
The vertical movement of the printing arm improves the consistency of screen wire placement and reduces color aberration, ensuring high stability in spot printing.
Is it possible to adjust the printing pressure?
Yes, the height and pressure of both the printing blade and the ink-returning blade can be adjusted step-lessly and independently.
What is the maximum printing speed of these machines?
The speed varies by model, ranging from 900 times/hour for larger areas up to 1100 times/hour for smaller formats.
Can the machine accommodate different frame sizes?
Yes, the printing travel and half-tone fixing mechanism can be quickly adjusted to suit various printing area sizes.
How are positioning errors prevented?
Fine adjustment and locking of the worktable are independent functions, which significantly controls and minimizes positioning errors during operation.
