Basic Information
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
System Supported
Windowsxp32
Material Weight
60-250G/M2
Specification
3200*1800*800mm
Production Capacity
100sets/Year

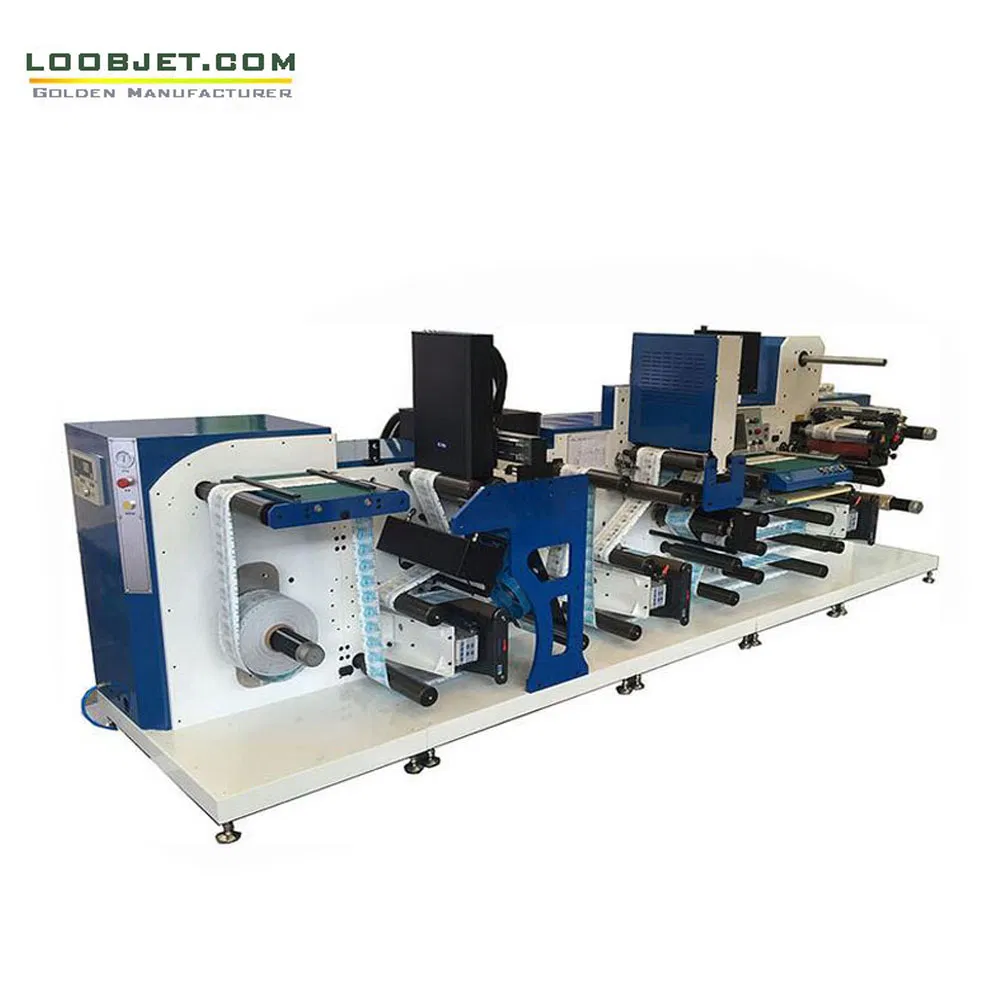

UV DOD Digital Inkjet Printer Overview

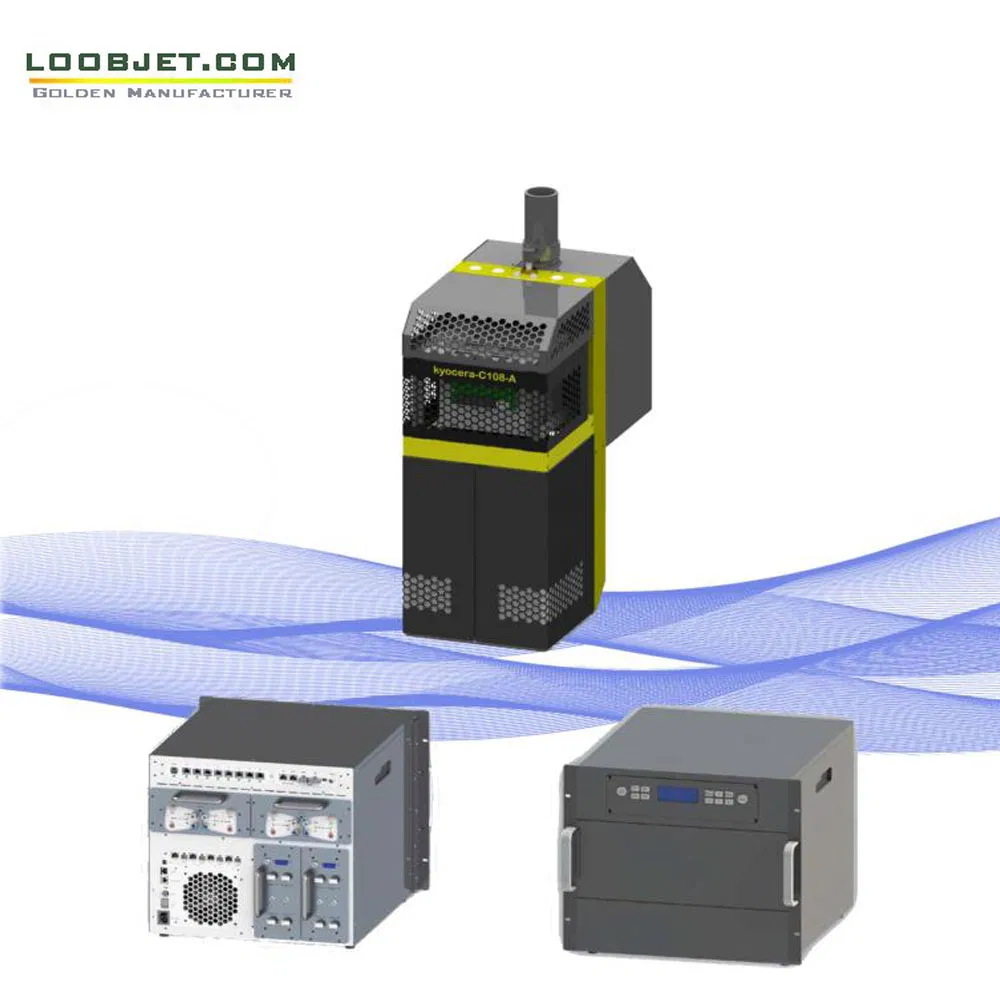

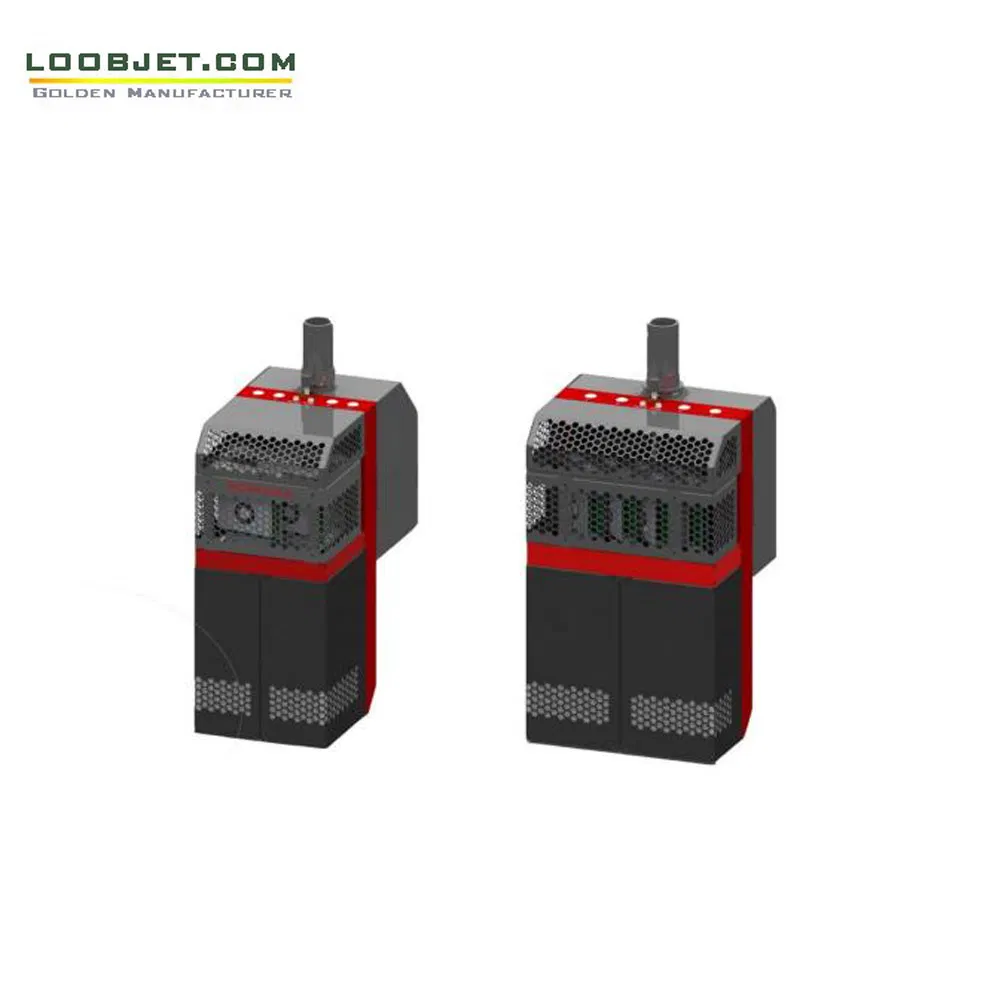

Systems composition: The printing system utilizes Kyocera PH, an industrial-level digital four-color printing engine system primarily designed for the packaging and printing industry. It is equipped with 12 pieces of industrial-level Kyocera print heads.
Kyocera nozzles enable high-speed printing with high precision (600 * 1200dpi), reaching maximum speeds of up to 50m / min.
System Key Features
⚡ High Resolution: 12 industrial grade Kyocera PH, printing precision reaches 600 * 1200dpi with a 324mm width.

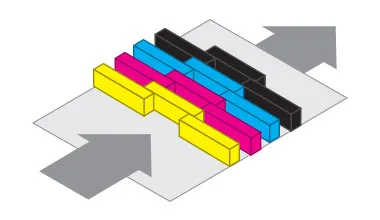

🚀 High Speed: Single pass non-contact technology with speeds up to 50m / min at 600dpi.
🏷️ Material Versatility: Suitable for all kinds of paper and adhesive labels without pre-coating.
🎨 Advanced Color: Supports CMYK four colors plus customized spot colors.
⚙️ Intelligent RIP: Powerful image processing and data transmission for efficient color correction.
🛡️ Industrial Reliability: Designed for 24/7 continuous production and operation.
Print Head (PH) Parameters
Nozzle Width
108mm per unit
Ink Drop
3.5pl, 7pl, 11pl, 14pl (Adjustable)
Voltage/Temp
24 ±1V / 15 to 45ºC
Technical Specifications
| Ink Type | UV / Water base ink |
| Ink Color | Y, M, C, K (Expandable to Orange, Purple, White, or Spot) |
| Curing Type | Drying module or quick drying ink |
| Power | AC220V 50 / 60Hz |
| Air Supply | 6-8 PA, clean and dry |
| Platform | Single-fed or roll-fed |
| Materials | Ordinary paper, offset paper, adhesive labels (60-250g/m2) |
Frequently Asked Questions (FAQ)
❓ What is the maximum printing speed of the KY320?
The industrial single-pass technology allows for a maximum printing speed of 50 meters per minute at 600dpi resolution.
❓ What types of print heads are used in this system?

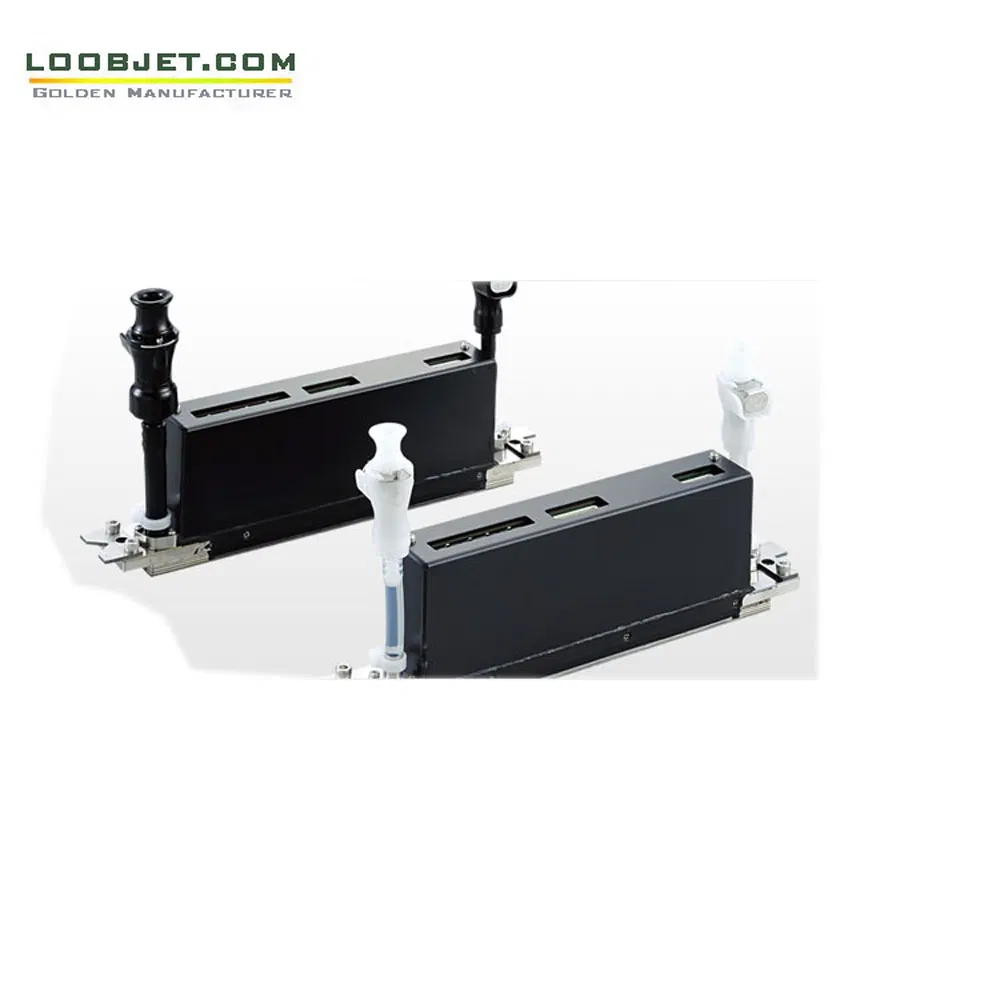

The system is equipped with 12 industrial-grade Kyocera piezoelectric print heads, known for their durability and high precision.
❓ Does the printer require special pre-coating for materials?
No, the system can print high-quality patterns directly on various materials, including paper and adhesive labels, without the need for pre-coating.
❓ What color configurations are supported?
It standardly supports CMYK four colors, and can be expanded to include White (W), Varnish (V), or other customized spot colors.
❓ Can this printer handle variable data and 2D barcodes?
Yes, the system fully supports various variable barcodes, 2D barcodes, and complete variable image printing.
❓ What are the material requirements for printing?
It supports materials with a weight range of 60-250g/m2, including ordinary paper, offset paper, and adhesive labels.
