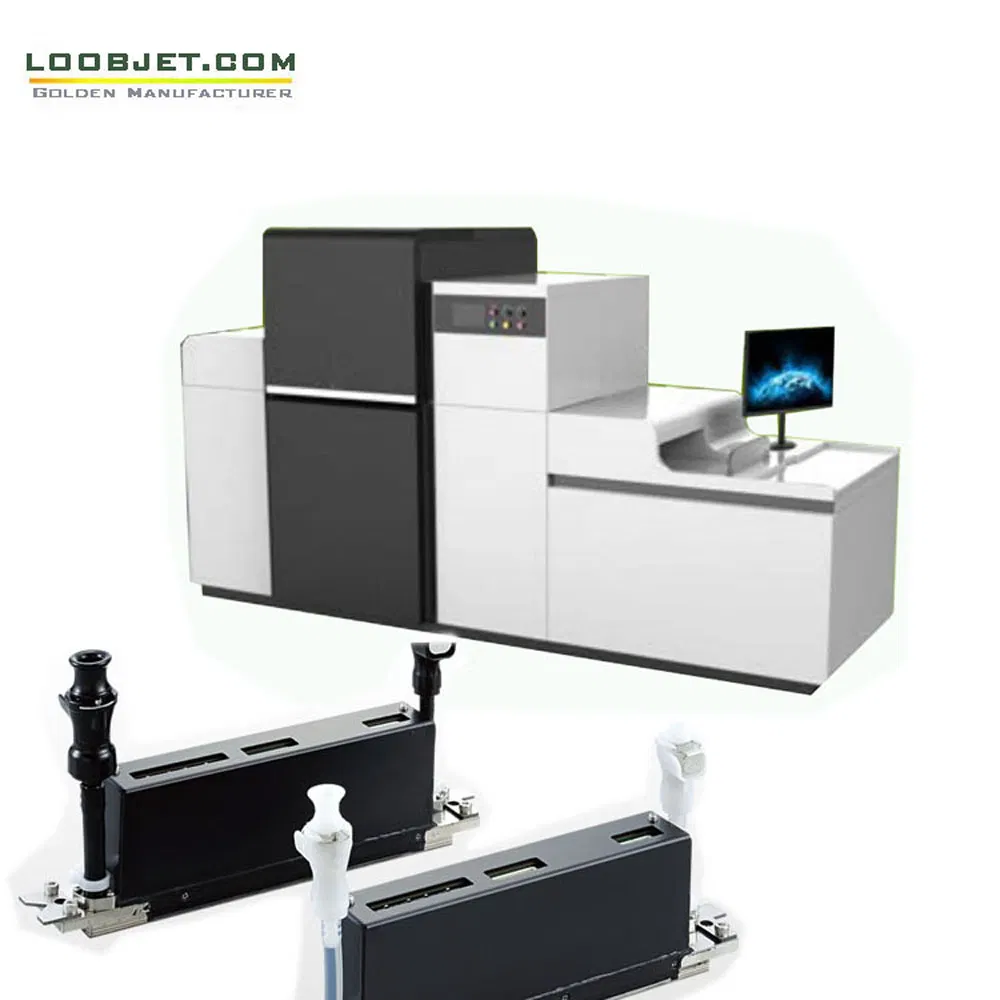

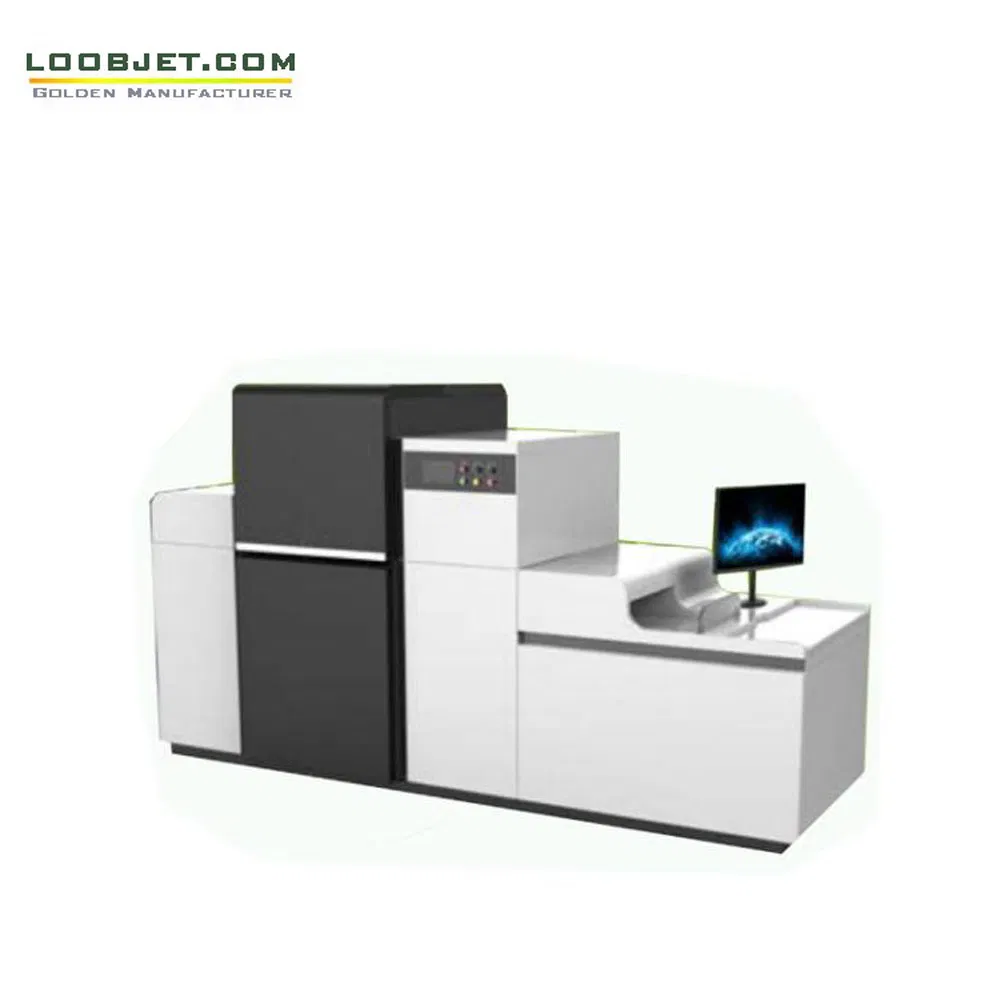

Inkjet Digital Printing Equipment Systems

1 / 5

Inkjet Digital Printing Equipment Systems

Customization:	Available
Plate:	Variable
Structure:	Non-Contact

Send Inquiry

Product Description

Basic Information

Model NO.

KY320

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

50m/Min

System Supported

Windowsxp32

Color Support

CMYK+W+V

Overprint

+-0.05mm

Max.Web Dia.

600mm

Material Weight

60-250G/M2

Total Power

45kw

Gross Weight

3000kgs

Specification

3200*1800*800mm

Origin

China

HS Code

8443322100

UV DOD Digital Inkjet Printer

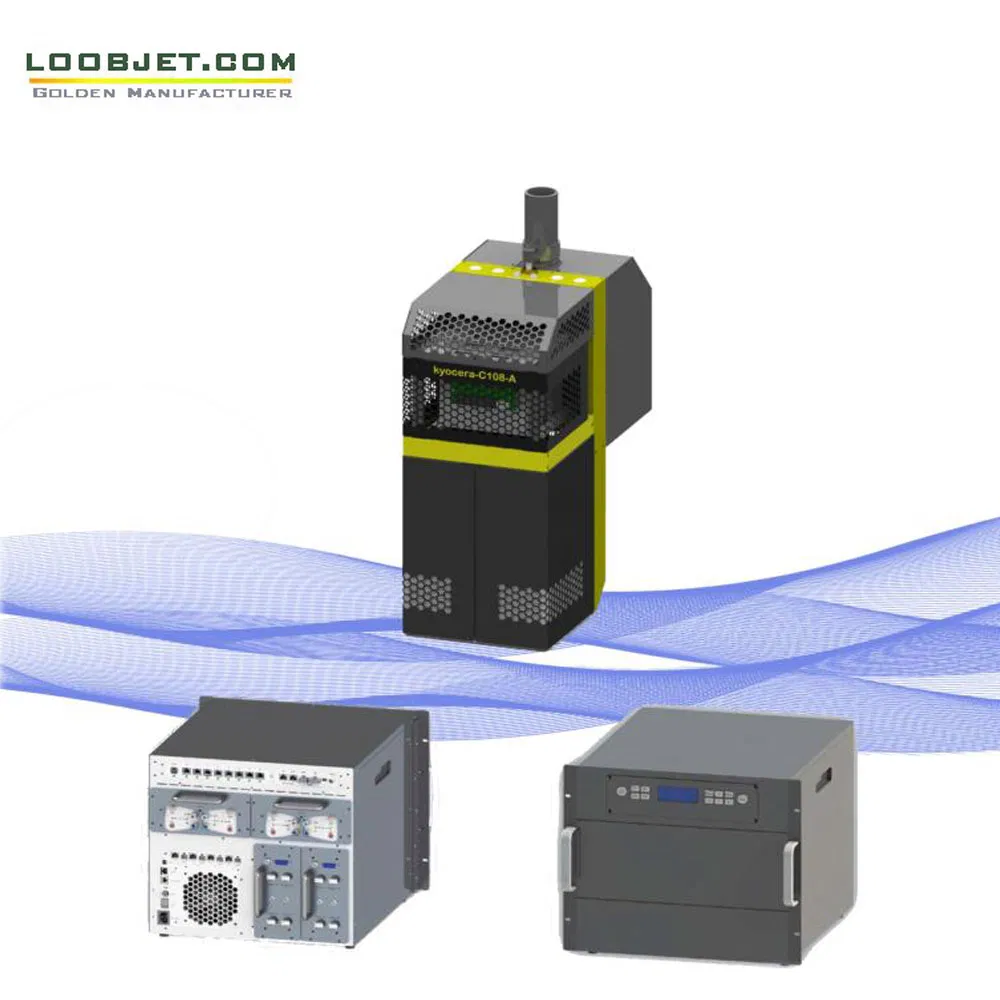

Systems Composition:

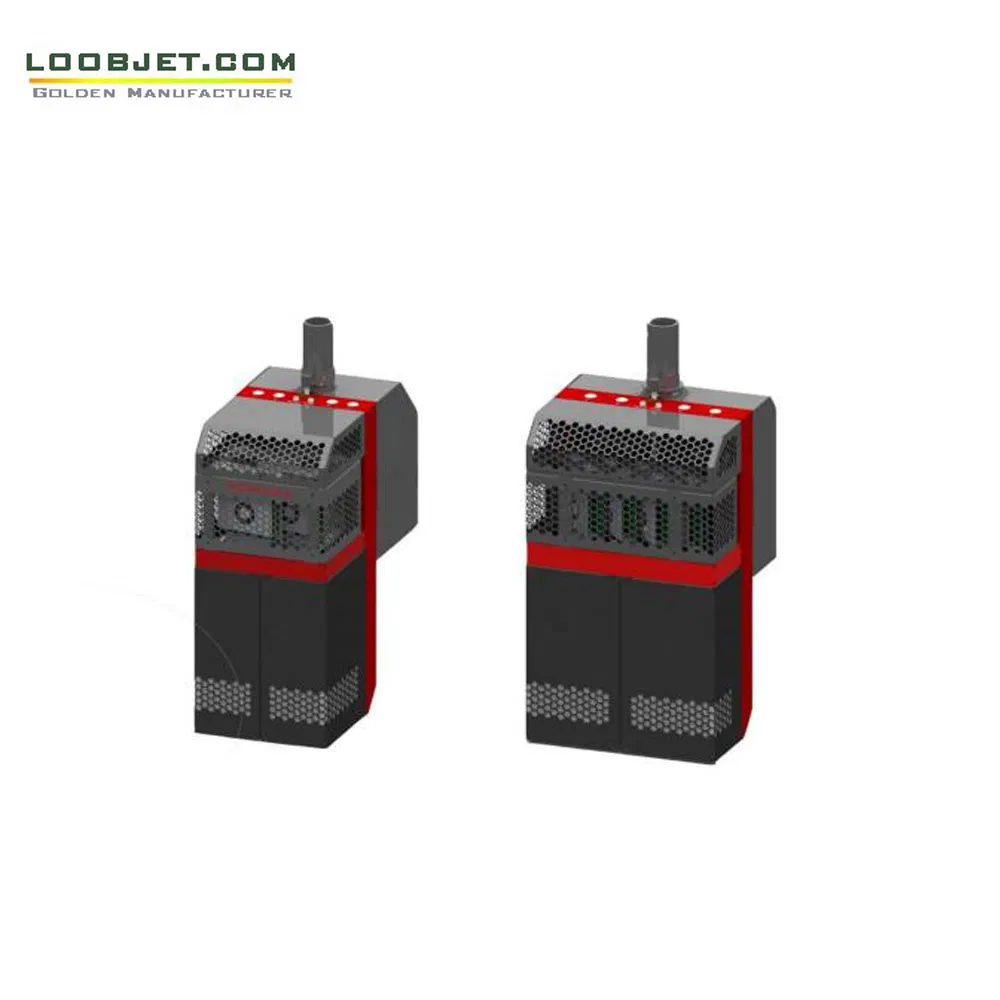

The printing system of Kyocera PH is an industrial level digital four-color printing engine system, it mainly used for packaging and printing industry, which is equipped with 12 pics industrial levels Kyocera PH. Kyocera nozzle can print at high speed with high precision, 4 colors 600 * 1200dpi, and the maximum printing speed can be reach 50m / min.

System Features

High Resolution: 12 pics industrial grade Kyocera PH, UV/water-based nozzles, precision reaches 600 * 1200dpi.

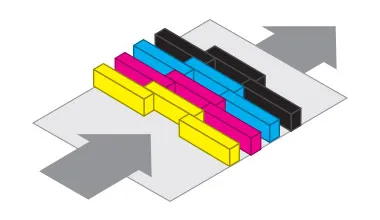

High Speed: Industrial single pass technology, speed up to 50m / min at 600dpi.
Printing Width: Maximum printing width of 324mm.
Versatile Materials: Suitable for paper, adhesive labels without pre-coating; supports variable barcodes/2D codes.
Color Support: CMYK four colors, with options for customized spot colors.
Quick Setup: Average preparation time less than 1 minute; seamless roll changing.
Advanced Software: Powerful Rip and image processing for easy proofing and color correction.
User Friendly: Direct printing from computer without plate making or color matching.
Auto Processing: Automatic ink and air supply with intelligent negative pressure maintenance.
24/7 Reliability: Designed for continuous industrial production with durable components.

Technical Specifications

PH Parameters

Nozzle Model

Kyocera

Unit Width

108mm

Nozzle Density

600dpi

Ink Drop

3.5pl - 14pl adjustable

Grayscale

8 levels

Control System

Software

Variable Data / Graphic Output

Dot Control

CMYK two bit dot Rip

Interface

USB3.0 / Optical Fiber

Processor

i7, 8G RAM, 2TB HDD

Ink type	UV/water base ink
Ink color	CMYK expanded to orange, purple, white or spot color.
Curing type	Drying module or quick drying ink
Power requirements	AC220V 50 / 60Hz
Air supply	6-8 PA, clean and dry
Materials type	Ordinary paper, offset paper, adhesive labels

Frequently Asked Questions

What is the maximum printing speed of the KY320?

The system utilizes industrial single-pass technology to achieve speeds up to 50 meters per minute at 600dpi resolution.

What types of materials are compatible with this printer?

It is designed for a wide range of materials including ordinary paper, offset paper, adhesive labels, cardstock, and cloths (60-250g/m2) without the need for pre-coating.

Does the printer support variable data printing?

Yes, the software supports complete variable image printing, including various barcodes and 2D barcodes, allowing for unique information on every print.

What is the printhead configuration and its lifespan?

The machine is equipped with 12 industrial-grade Kyocera piezoelectric nozzles, designed for 24/7 continuous industrial production with high durability.

What are the ink and color options available?

The standard configuration supports CMYK four colors using UV or water-based inks. It can be expanded to include white, varnish (V), or specialized spot colors like orange and purple.

What is the required environment for operation?

The system requires an AC220V power supply and a clean, dry air supply of 6-8 PA. The nozzles operate best at temperatures between 15 to 45ºC.
