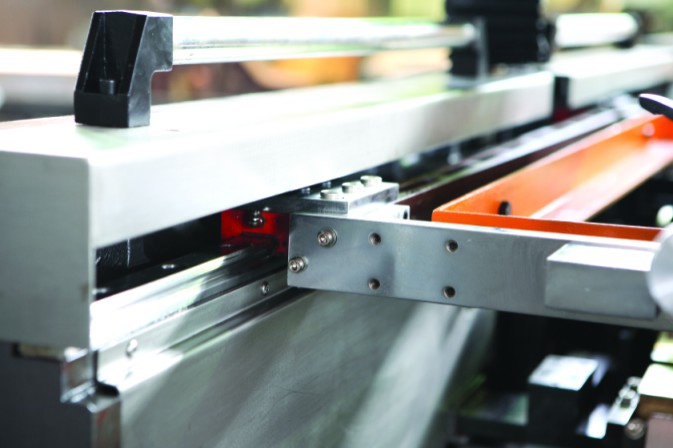

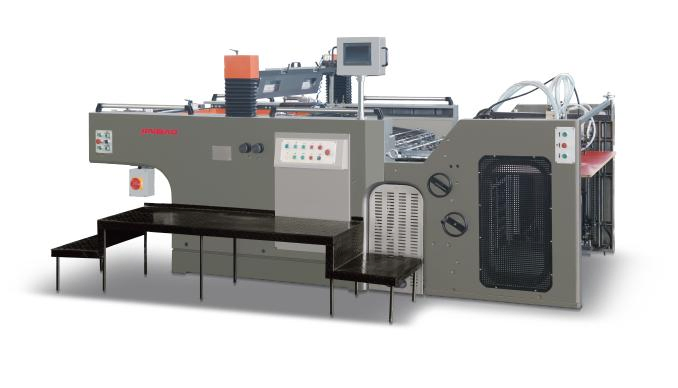

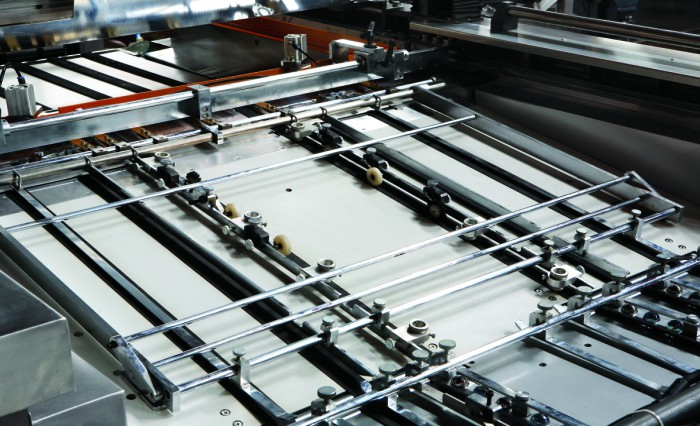

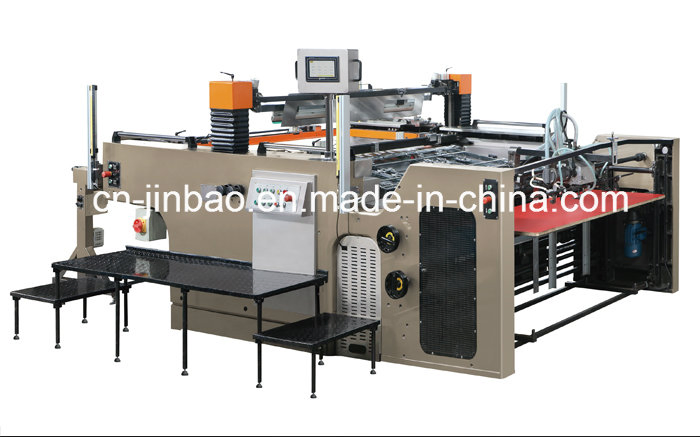

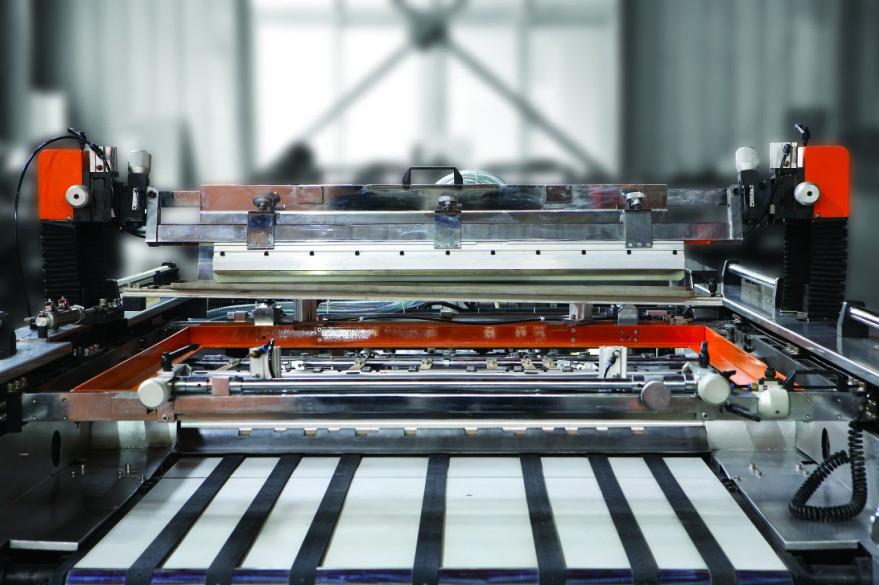

Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
1 / 5
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A
Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A

Hot-Transfer Decals Rotary Glass Screen Printing Machine Jb-1020A

Customization: Available
Type: Screen Printing
Structure: Flat-bed cylinder press
Send Inquiry

Product Description

Hot-Transfer Decals Rotary Glass Screen Printing Machine JB-1020A
Basic Information
Model NO.
JB-1020A
Color & Page
Single-Colour Printing Press
System Supported
3p 380V 50Hz 14.64kw
Weight
5500kg
Measurement
15.07cbm
Package
2 Plywood Case
Plate
Screen Printing
Model
1020X720mm
Usage
Label Printer, Cloths Printer, Paper Printer
Automatic Grade
Automatic
Printing Speed
3000PCS/H
Origin
Made in China
HS Code
8443192900
Production Capacity
200sets/Year
Product Description

The JB-A Series full automatic stop cylinder screen press adopts classical stop cylinder technology, offering numerous operational advantages. It ensures paper is located exactly and steadily with high precision and high speed, while maintaining low noise levels and a high degree of automation.

🎯
Applications: Suitable for ceramic and glass applique, film switches, flexible circuitry, meter panels, mobile telephones, and textile transfer.
⚙️
Technology: Classical stop cylinder technology for steady and exact paper positioning.
Product Parameters
Model JB-720A JB-800A JB-1020A
Max. paper dimension 720X520mm 800X610mm 1020X720mm
Min. paper dimension 350X270mm 350X270mm 560X350mm
Max. printing dimension 720X500mm 800X600mm 1020X710mm
Paper thickness 108-400g 108-400g 120-400g
Border ≤ 10mm ≤ 10mm ≤ 10mm
Max. printing speed 1000-3600pcs/h 1000-3300pcs/h 1000-3000pcs/h
Power 3p 380v 50Hz 8.89KW 3p 380v 50Hz 8.89KW 3p 380v 50Hz 14.64KW
Weight (approx.) 3500kg 4000kg 5500kg
Detailed Photos

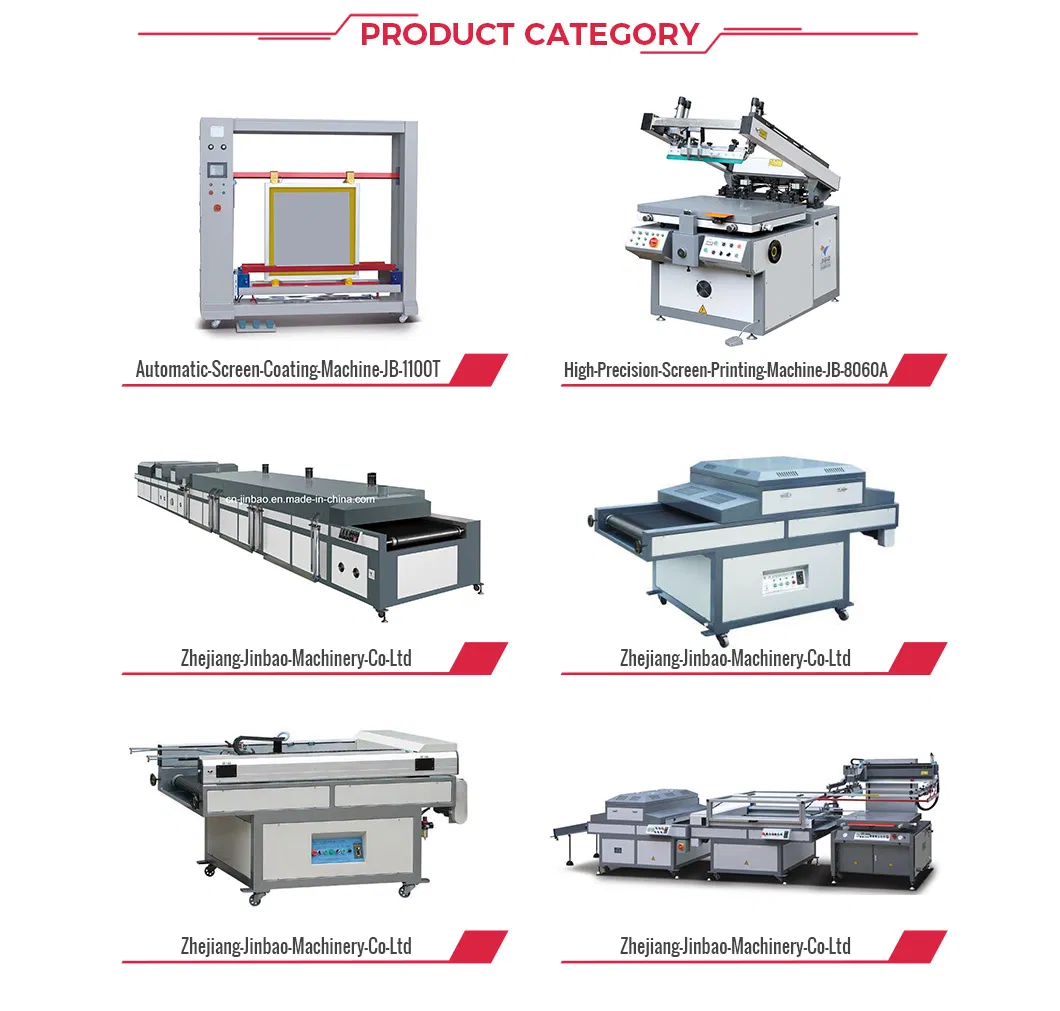

Screen Printing Machine Detail 1

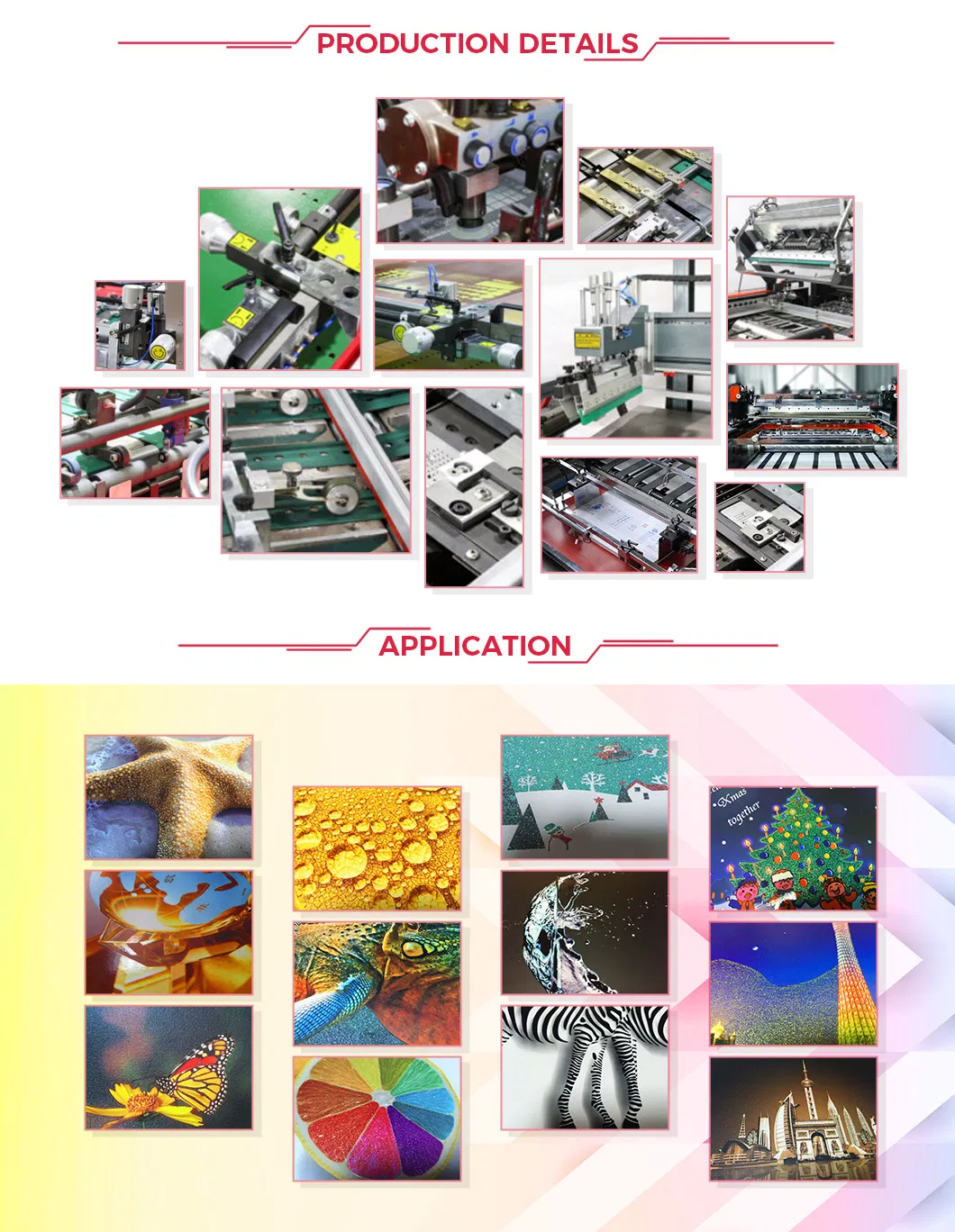

Screen Printing Machine Detail 2
Production & Certifications

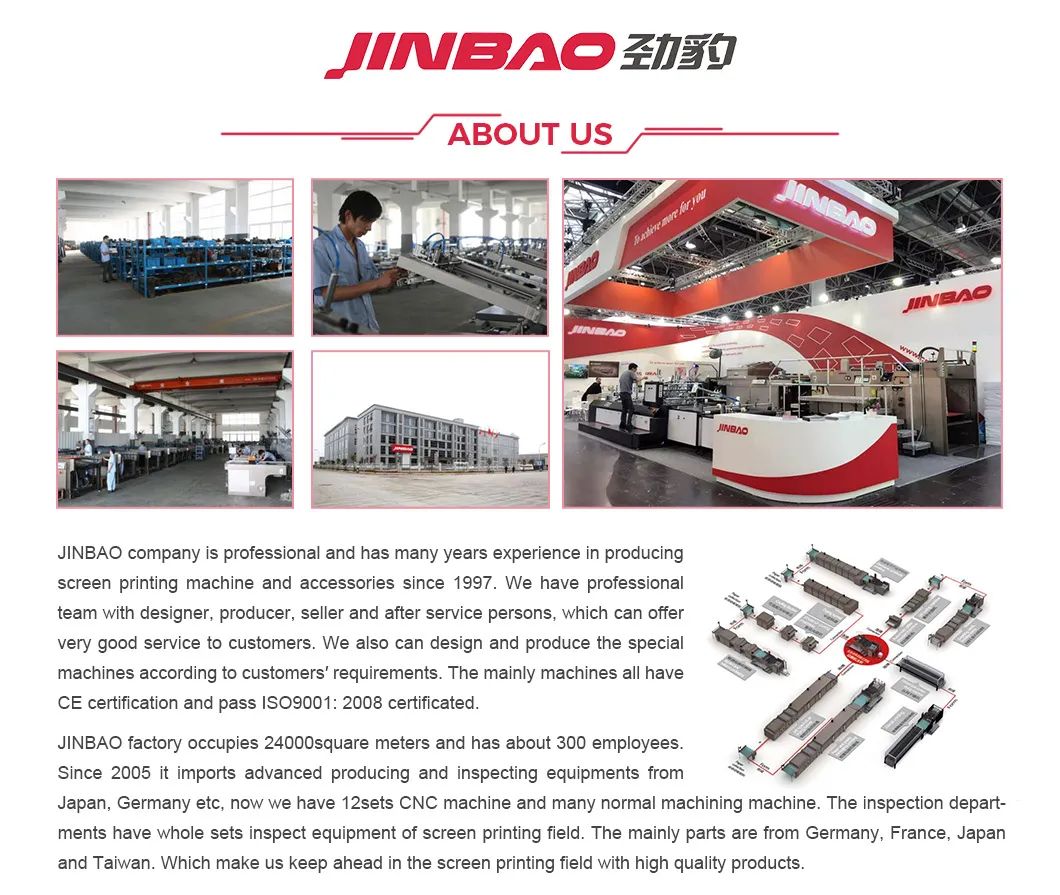

Production Facility
Quality Certifications
Frequently Asked Questions
What are the main advantages of the stop cylinder technology used in this machine?
The technology ensures that paper is positioned with extreme accuracy and stability, allowing for high-precision printing at high speeds with minimal noise.
Which industries is the JB-1020A model suitable for?
It is ideal for the electronics industry (film switches, circuits), ceramic/glass applique, textile transfers, label printing, and specialized packaging.
What is the maximum printing speed of the JB-1020A?
The JB-1020A can reach a maximum printing speed of 3000 pieces per hour (PCS/H).
What paper thickness can this machine handle?
The JB-1020A model is designed to handle paper thickness ranging from 120g to 400g.
Is the machine fully automatic?
Yes, the machine is classified as Automatic Grade, featuring a high degree of automation for streamlined production.
What are the power requirements for installation?
The system requires a 3-phase 380V 50Hz power supply with a power rating of approximately 14.64KW.
