Hot Sale Turntable Flatbed Screen Printing Machine for Clothes Stabilizer Manufacturers for Ruler

1 / 5

Hot Sale Turntable Flatbed Screen Printing Machine for Clothes Stabilizer Manufacturers for Ruler

Customization:	Available
After-sales Service:	Lifelong Maintenance
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

JX-ZPT1

Type

Automatic Screen Printing Machine

Style

Screen-process Printing Press

Structure

Flat-bed cylinder press

Color & Page

Single-Colour Printing Press

Application

Packaging Printing

Machine Speed

2500PCS/H

Accuracy

±0.05mm

Disc Diameter

600mm

Workstation

4 PCS

Printing Area

150*300mm

Air Supply

5-7bar

Power Supply

220V|2kw

Origin

China

Machine Description

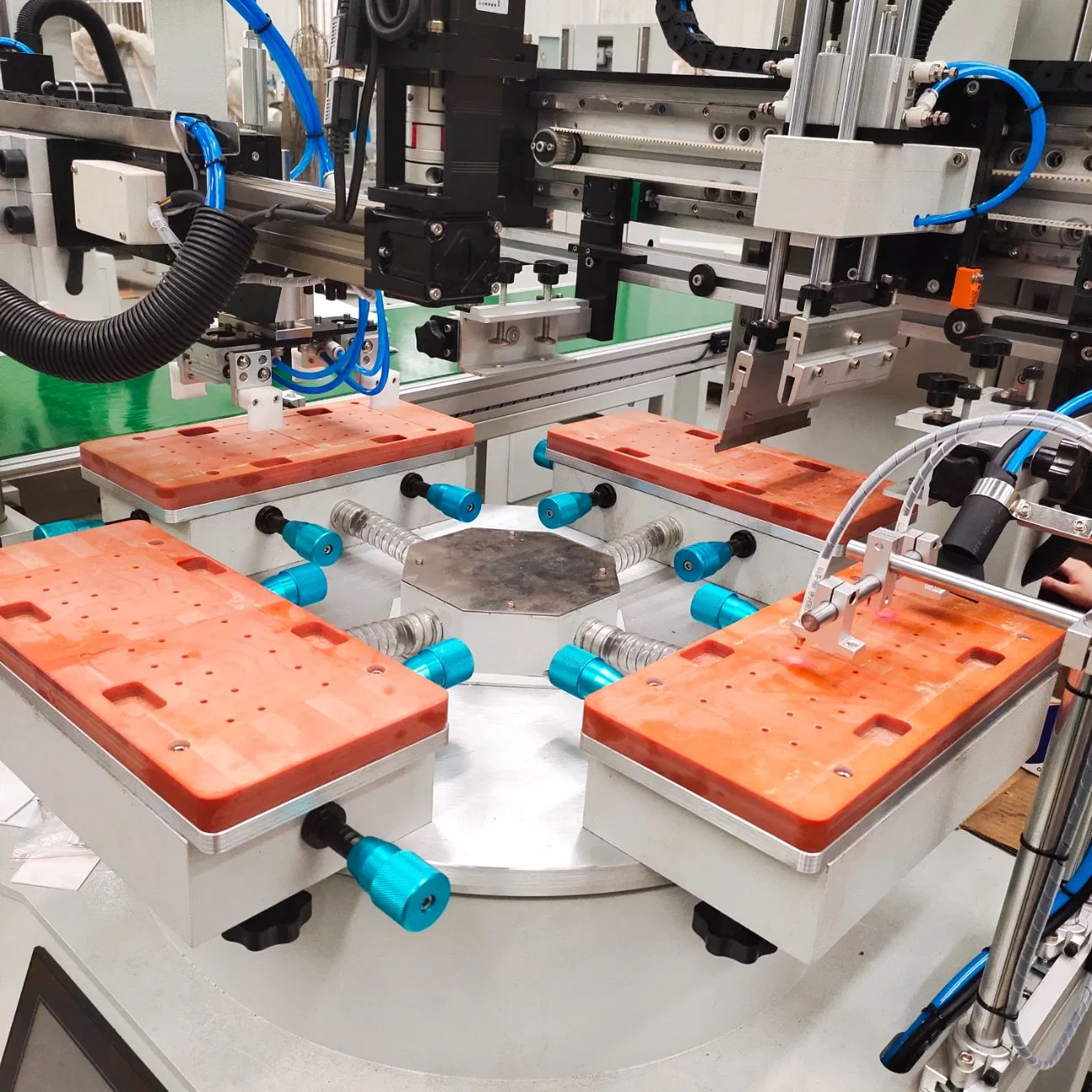

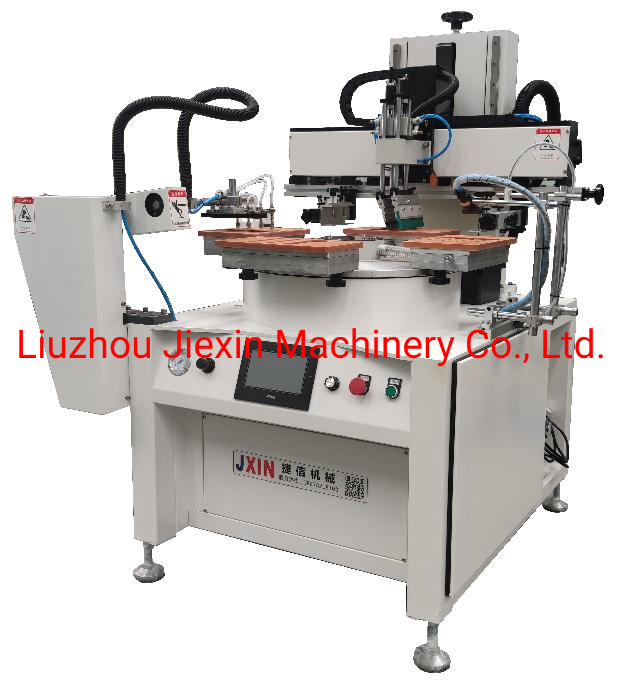

The machine is specially designed for flat products logo or text printing, featuring high speed and automation. It utilizes a DT precision cam divider to build the disc transmission system, paired with a high-precision servo motor to achieve automated printing. This significantly reduces labor costs while improving efficiency, with machine running speeds up to 2500pcs/hr.

Key Features

High precise processing fixture for positioning.
Sensor inspection device: "No Material, NO Print" process.
Taiwan motor driven conveyor station for high speed.
High precision cam indexer driving for smooth location.
PLC with Human-machine touch screen, programmable process.
Easy-to-adjust work table fixtures.
Adjustable speed matching manual feeding requirements.
Auto unloading system by manipulator or robot arm.

Technical Parameters

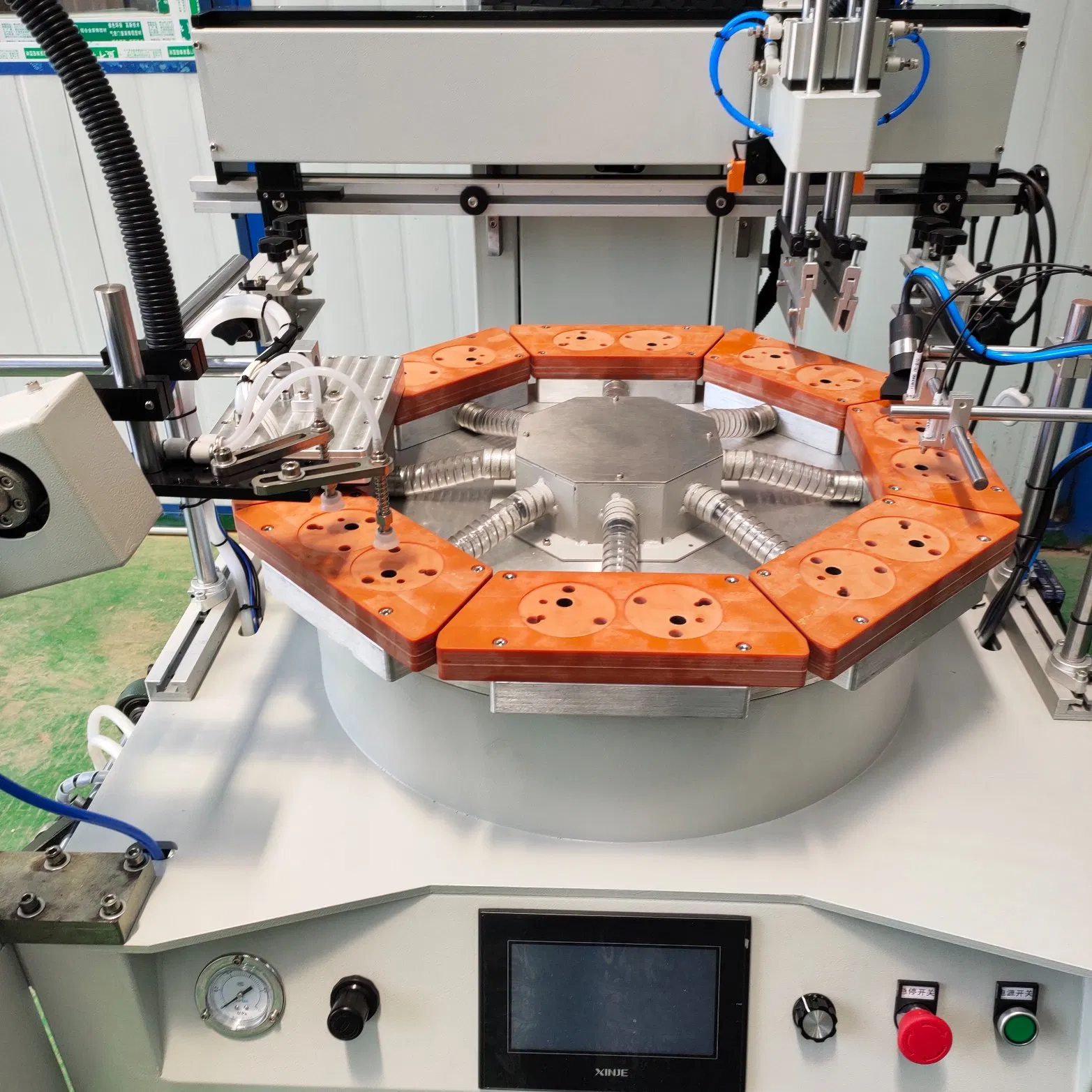

Parameter	Standard (4 stations)	Standard (8 stations)	Extra-large (4 stations)
Disc Diameter	600MM	600MM	800MM
Workstations	4	8	4
Print Area	200*300MM	150*150MM	300*400MM
Machine Speed	2500PCS/Hour	2500PCS/Hour	1500PCS/Hour
Accuracy	±0.05MM	±0.05MM	±0.05MM
Drive Mode (L/R)	Servo Motor	Servo Motor	Servo Motor
Power Supply	220V 2kW	220V 2kW	220V 2kW
Dimensions	135014001650MM	135014001650MM	160016501680MM

System Configuration

Basic Configuration

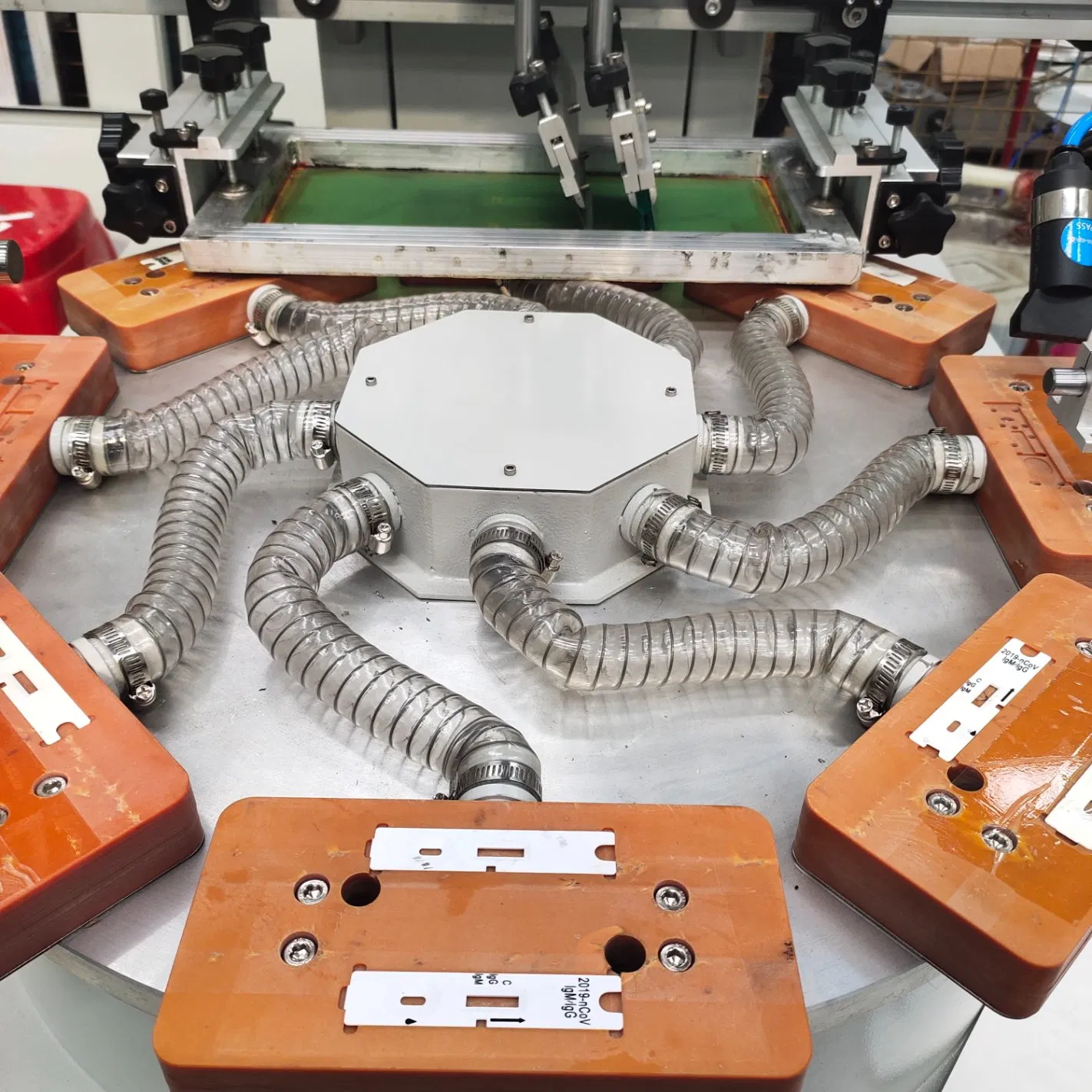

Adjustable worktable (X.Y. rotation)

Electrostatic precipitator

Product detection system

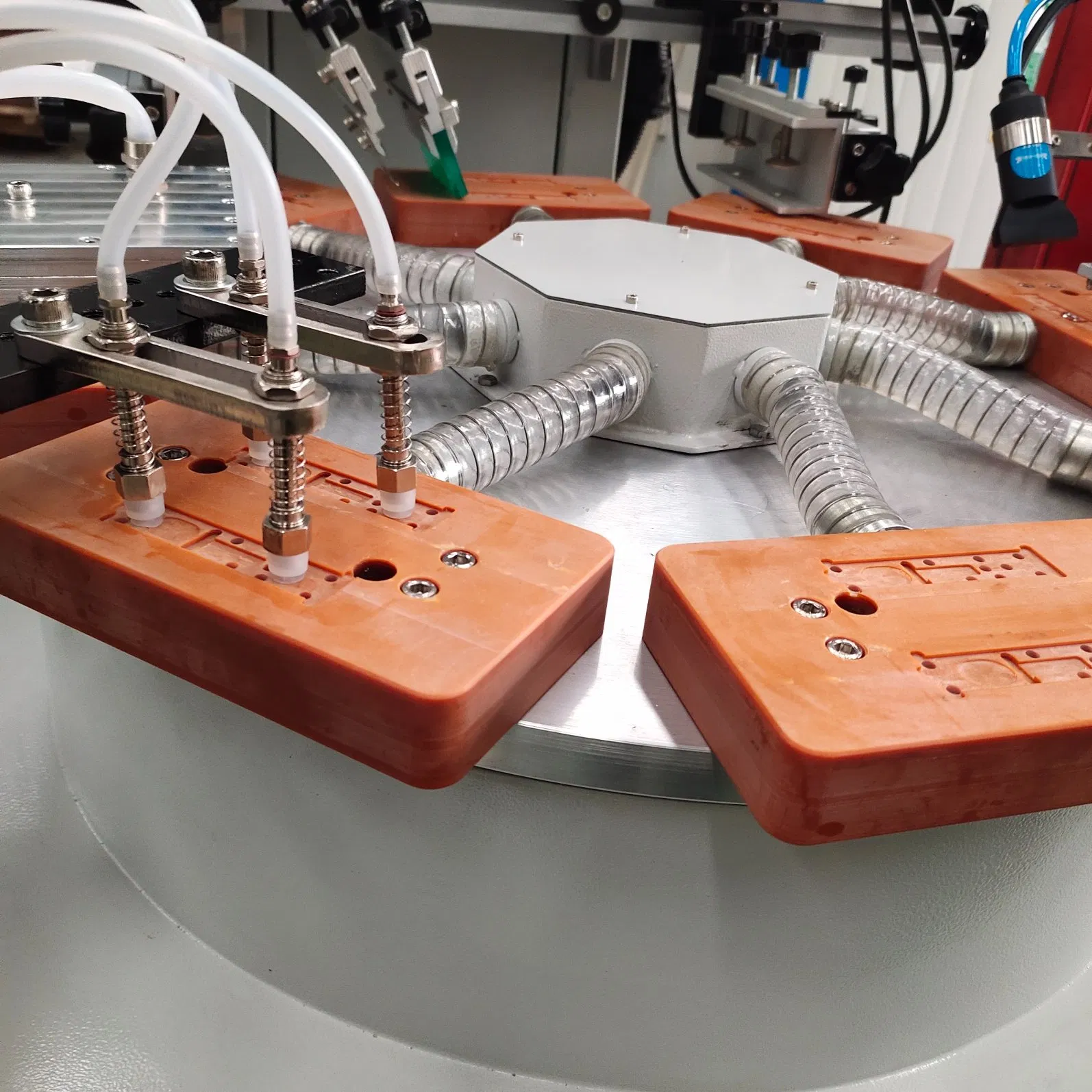

Automatic unloading by vacuum sucker

Optional Configuration

Automatic feeder (Linear/Vibrating disc)

Vacuum suction worktable

Flame or Plasma pre-treatment

Online UV curing system

Factory & Packaging Display

Frequently Asked Questions

Q1: What is the maximum production speed of this machine? A: The standard JX-ZPT1 model can achieve a printing speed of up to 2,500 pieces per hour, depending on the material and product size.

Q2: How accurate is the printing registration? A: The machine offers high precision with a printing accuracy of ±0.05mm, thanks to its cam indexer and servo motor drive system.

Q3: Does the machine prevent printing when no material is present? A: Yes, it is equipped with a "No Material, No Print" sensor detection system to avoid ink waste and ensure process reliability.

Q4: Can this machine handle different product sizes? A: Yes, the worktable is adjustable (X, Y, and rotation), and the fixtures can be easily swapped or adjusted to accommodate various flat products.

Q5: What are the requirements for power and air supply? A: The machine requires a 220V | 2kW power supply and a stable air supply of 5-7 bar.

Q6: Is there an automatic unloading system included? A: Yes, the standard configuration includes an automatic unloading system using a swing arm manipulator with vacuum suckers or pneumatic fingers.
