High Speed Cards UV Full Color Digital Printing System

Customization:	Available
After-sales Service:	Online Support
Warranty:	12month

Send Inquiry

Product Description

Basic Specifications

Model NO.

VDG540

Type

Ink Jet

Plate

Variable Data

Structure

Inkjet Printing

Color & Page

Multi-Colour Printing Press

Application

Packing and Printing

Printing Speed

100m/Min

Resolution

150-600dpi

System Supported

Windows

Power

AC 90V-240V/50-60Hz

Packaging & Delivery

Package Size

150.00cm * 120.00cm * 120.00cm

Package Gross Weight

120.000kg

Transport Package

Box/Pallet

Product Description

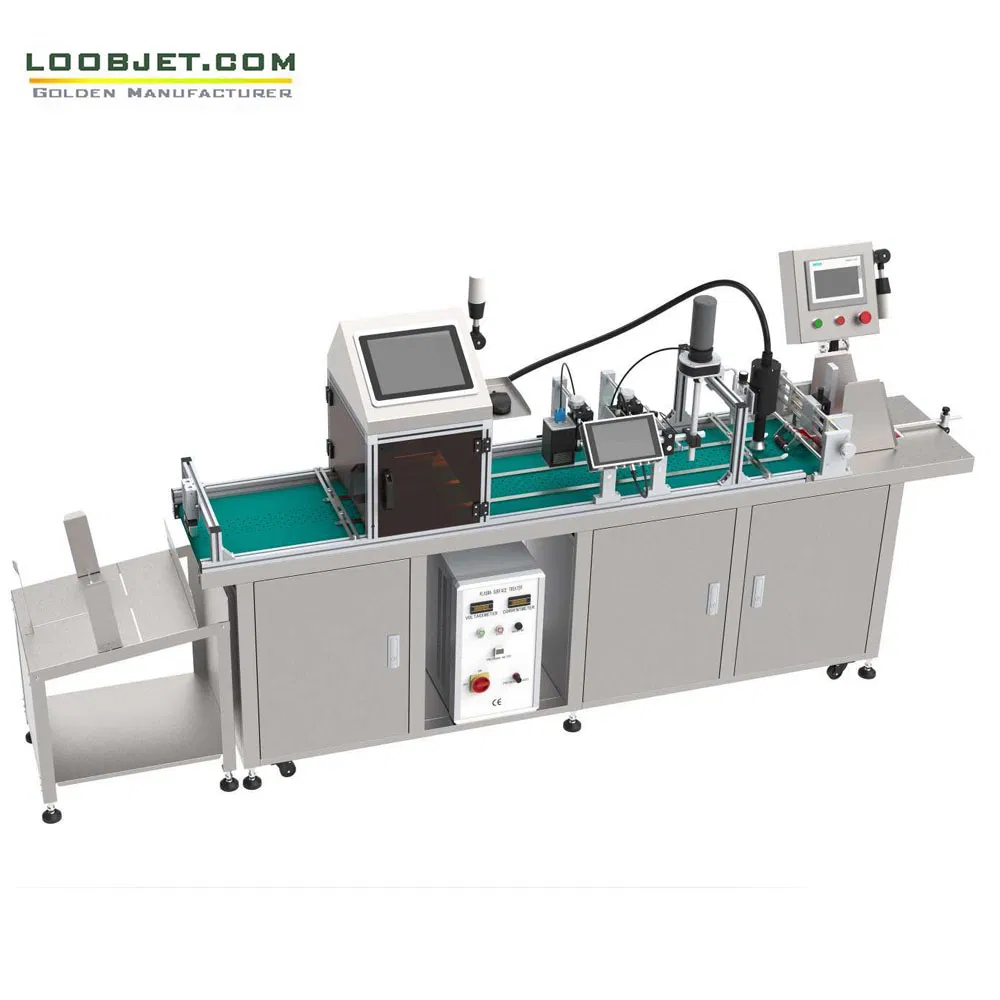

High Speed Cards UV Full Color Digital Printing System

600 dpi across the head, (600 to 200 dpi in direction of travel)
Cover more than 54mm*24 of variable print with multiple head combinations
Adjustable drop size and shaving for highest barcode readability
UV curable or water based ink available
Internal heaters minimize the impact of external temperature changes
Integrated head cap and automated service mode reduce maintenance

Our latest UV Drop-on-Demand (DOD) technology has proven performance, ease of operation, flexible resolutions, and is expandable for future requirements. Our UV ink is ideal for printing on difficult substrates like films, foils, plastics, coated stocks and other synthetics.

★ KEY ADVANTAGES

Full web-width variable data and coding
Pharma compliance as a standard
Automated workflow enables digital transformation
Print quality independent of the foil speed
All pharmaceutical barcodes and 2D codes supported
Low consumables costs
Qualified, UV-cured ink performance

System Capabilities

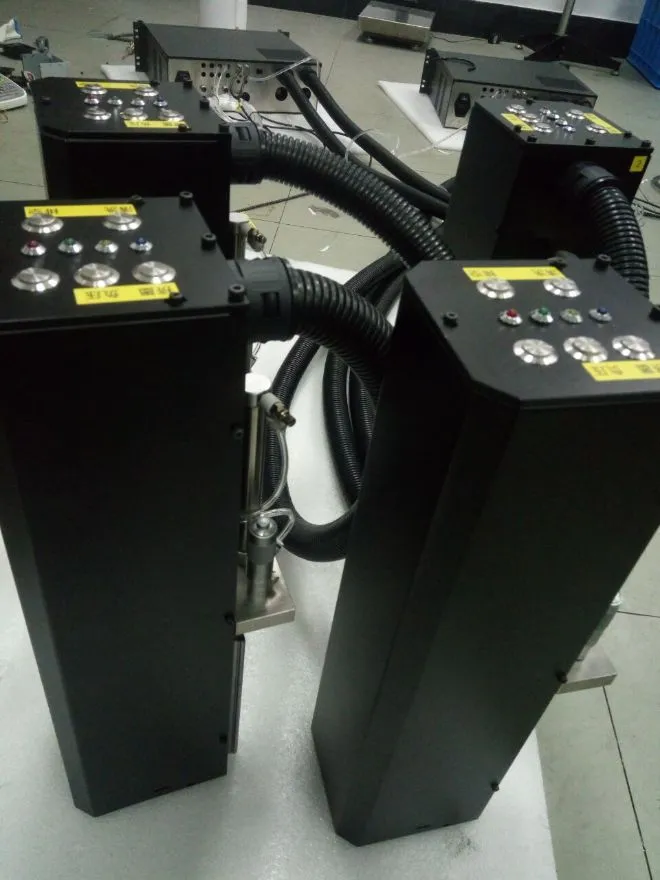

Industrial Head	Use Ricoh G5 (Japan) high-speed and high-precision industrial piezoelectric nozzle.
Linkage Control	Realize linkage with various online printing and packaging equipment with automatic stop/alarm functions.
Anti-Leakage	Real-time monitoring to prevent empty codes and ensure data integrity.
High Speed Data	Ethernet gigabit data transmission for high stability.
Adjustable Quality	Printing resolution and ink drop size (7PL-21PL) can be adjusted freely for personalized needs.

Hardware Features

Single nozzle width of 54mm, supports seamless splicing for wider coverage.
All-steel nozzle material with strong corrosion resistance.
One-button cleaning and evacuation function for easy maintenance.
Automatic constant temperature and pressure ink supply system.
UVLED curing with cold light source, high energy, and low power consumption.
Independent speed synchronizer for undistorted printed content.

Frequently Asked Questions

Q: What is the maximum printing speed of the VDG540 system? A: The system supports stable inkjet printing speeds ranging from 70m/min to 180m/min, depending on the resolution settings.

Q: What kind of print heads does this system use? A: It utilizes high-speed Ricoh G5 industrial piezoelectric nozzles known for high precision and durability.

Q: Which materials can this UV digital printing system handle? A: It is ideal for difficult substrates including various films, labels, metals, foils, plastics, and coated stocks.

Q: Does the software support variable data printing? A: Yes, it supports variable barcodes, QR codes, two-dimensional codes, anti-counterfeit codes, logos, and dates with anti-leakage monitoring.

Q: What are the power requirements for the system? A: The system operates on AC 90V-240V at 50-60Hz.

Q: Is the curing system safe for heat-sensitive materials? A: Yes, it uses a UVLED cold light source which provides high energy with low heat generation, protecting the substrate.
