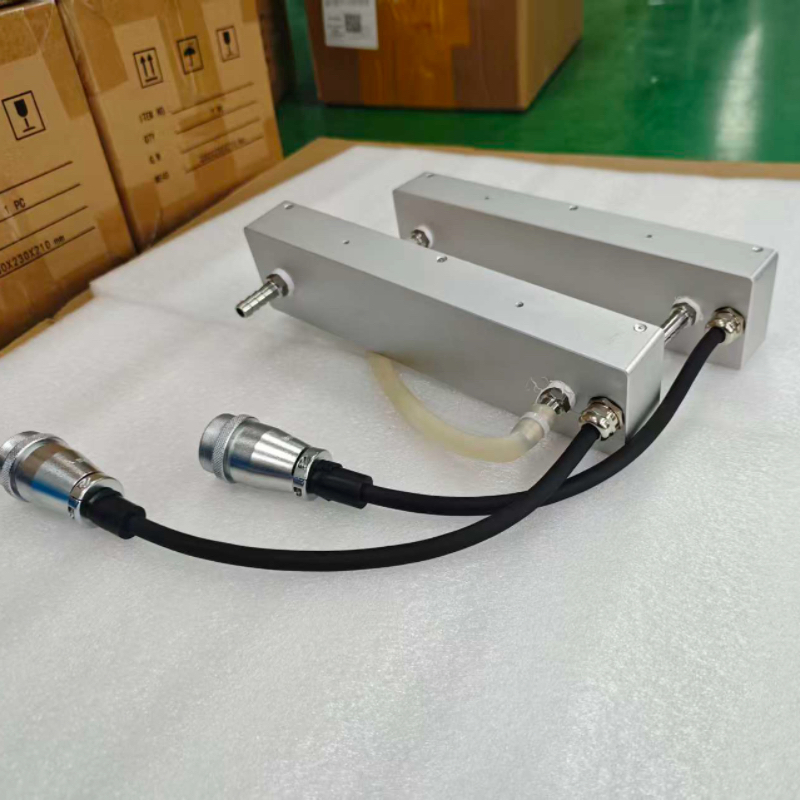

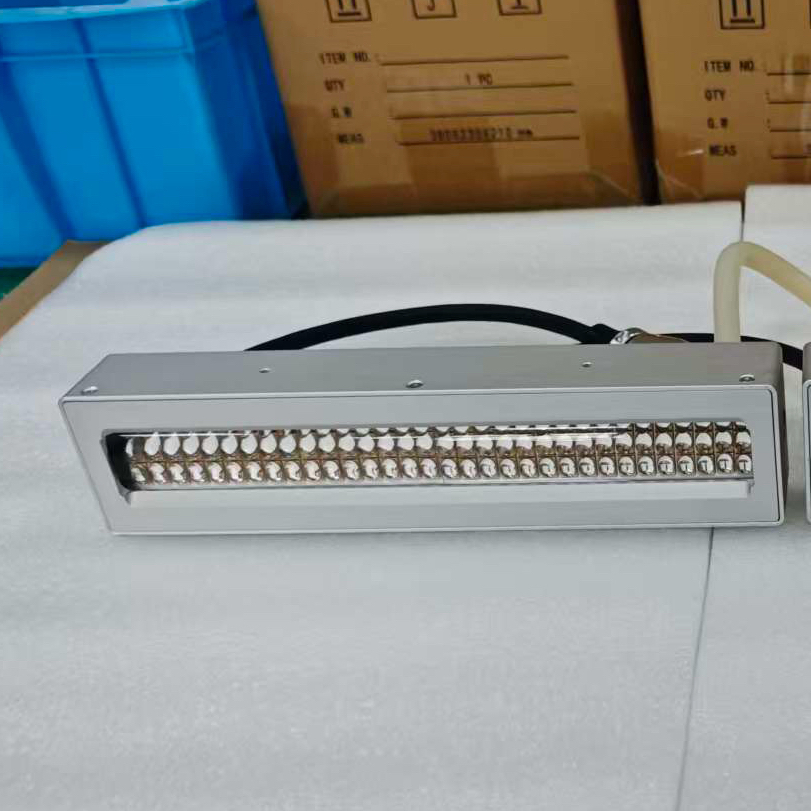

High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
1 / 5
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling
High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling

High Power UV LED Curing Lamps System for UV Ink Curing 395nm Flexo Label Printing Water Cooling

Customization: Available
After-sales Service: Repair, Replacement in Gurantee
Warranty: 12 Months
Send Inquiry

Product Description

Product Overview

High Power UV LED Curing Lamps System designed for UV Ink Curing, specifically optimized for 395nm Flexo Label Printing with advanced Water Cooling technology.

Model NO.AW20500H1
Input VoltageAC85~240V(50/60Hz)
Cooling MethodAir/Water-Cooled
LED Life20,000 hrs
Control MethodRS232/Pedal/PLC
Wavelength365/385/395/405nm
UV Intensity1~20W/cm²
MaterialPure Aluminum
System Features
Product Model: AFL-300x10

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)

◈
External Control: External input signal controls UV irradiation via MCU, PLC, or scanners.
◈
Status Monitoring: LEDs for Start, Stop, Working, and Alarm status outputs.
◈
RS232 Interface: Programmable parameters for PC/PLC integration and software updates.
◈
Instant Response: No warm-up phase; instant on/off capabilities for maximum efficiency.

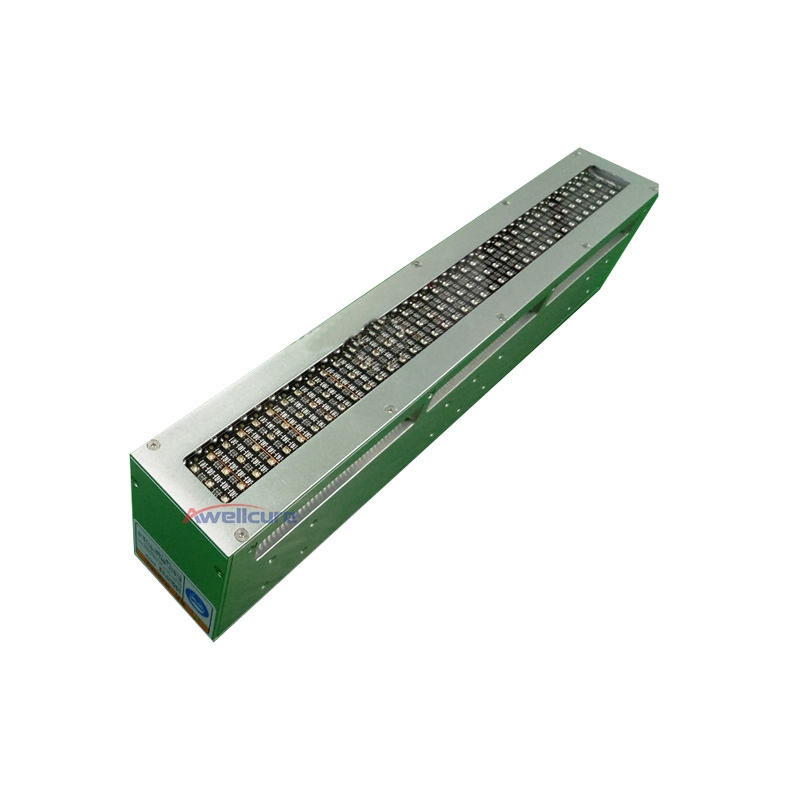

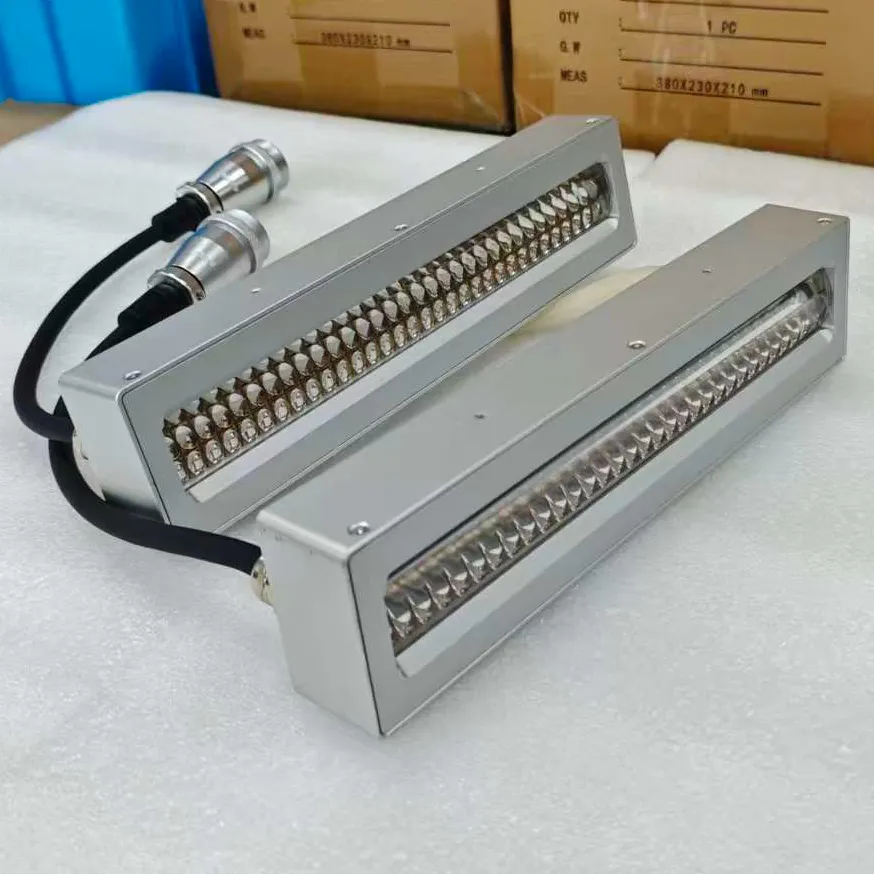

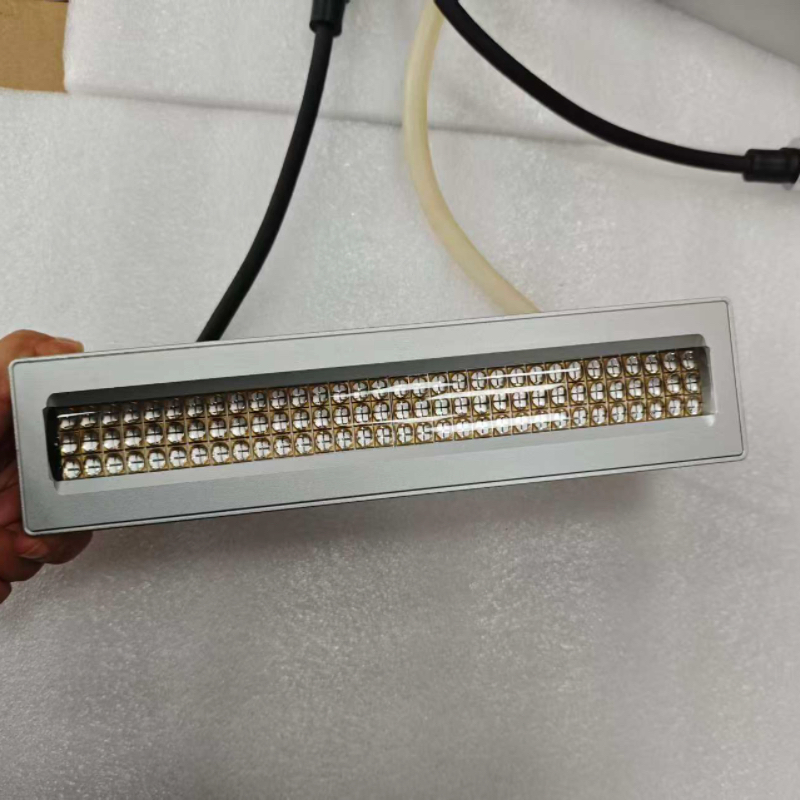

UV LED Curing Irradiator Head

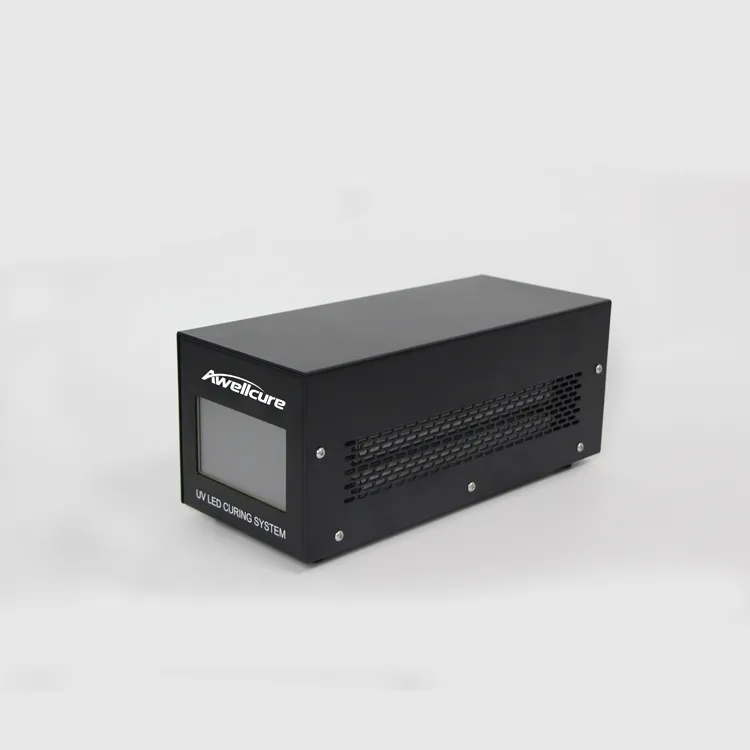

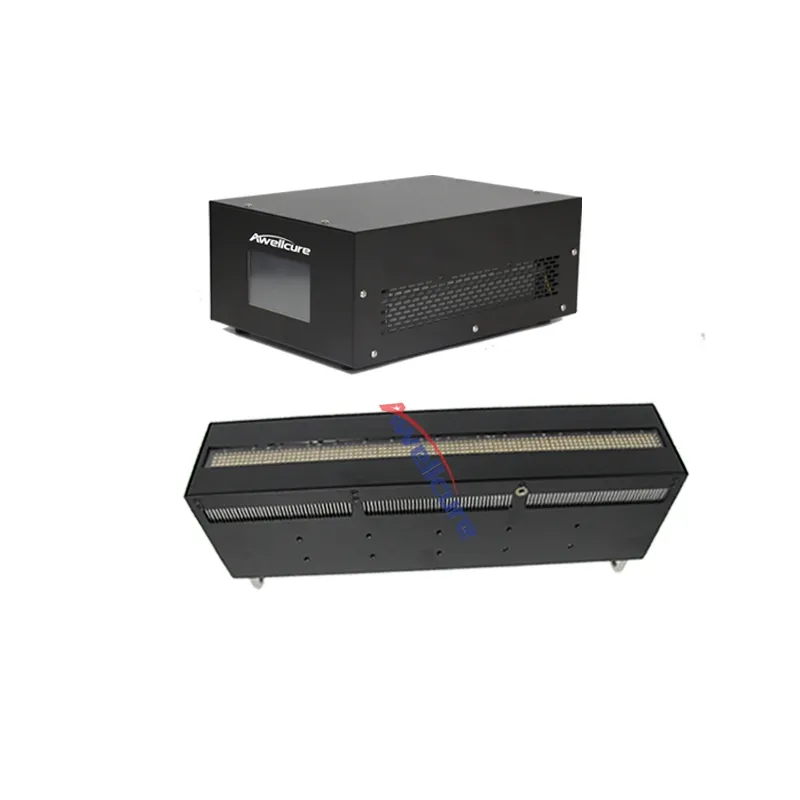

UV LED Controller System
Technical Specifications
Controller Specifications
Voltage100-240V AC
Irradiation Power Adjustable10%~100% mW
Irradiation ModeManual, Automatic (0.1-999.9S), Ladder (1-20 Steps), Pulse
Communication ControlRS232 Serial Port / I/O Interface
Working Temp.0-45℃
Irradiation Head Specifications
LED TypeHigh-Quality Imported Chips
UV LED Usage Time20,000 Hrs @ 80% power
Luminous Size10x300mm
Peak Irradiation Intensity2700mW or Customized
Wavelength Range365nm / 385nm / 395nm / 405nm (±5)
UV LED vs. Mercury Lamp

UV LED curing systems offer faster response, greater energy efficiency, and a more environmentally friendly alternative to traditional mercury lamps.

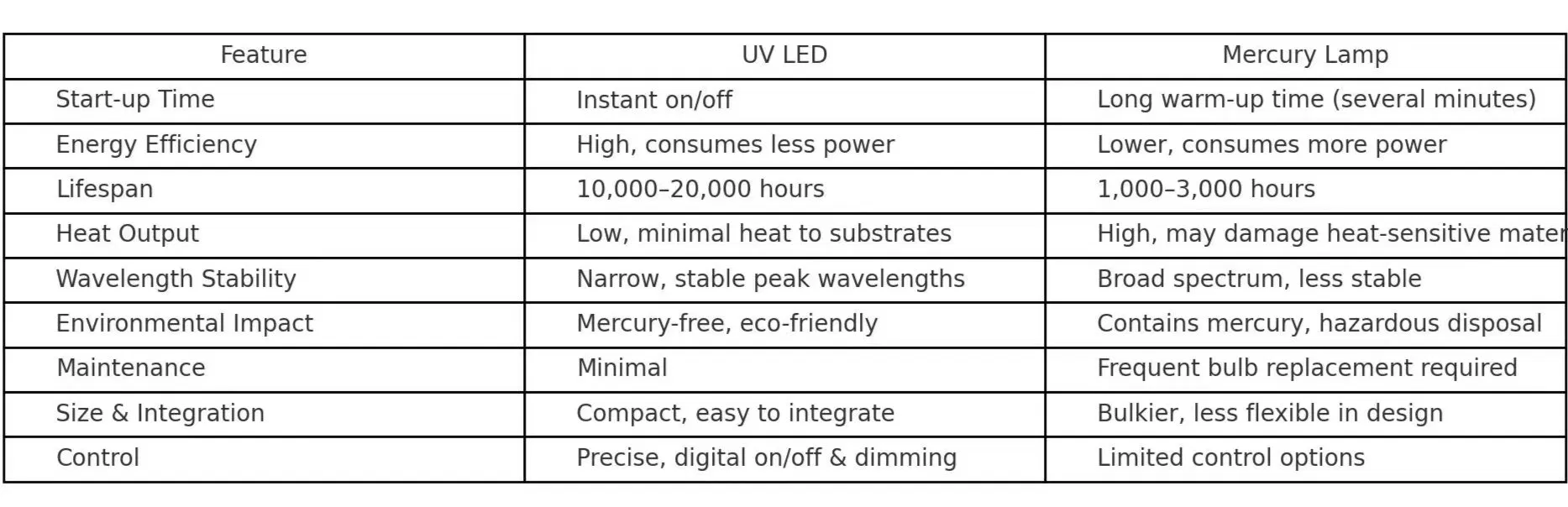

Comparison Overview chart
Main Applications
UV LED Application Case
1. UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
2. UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.

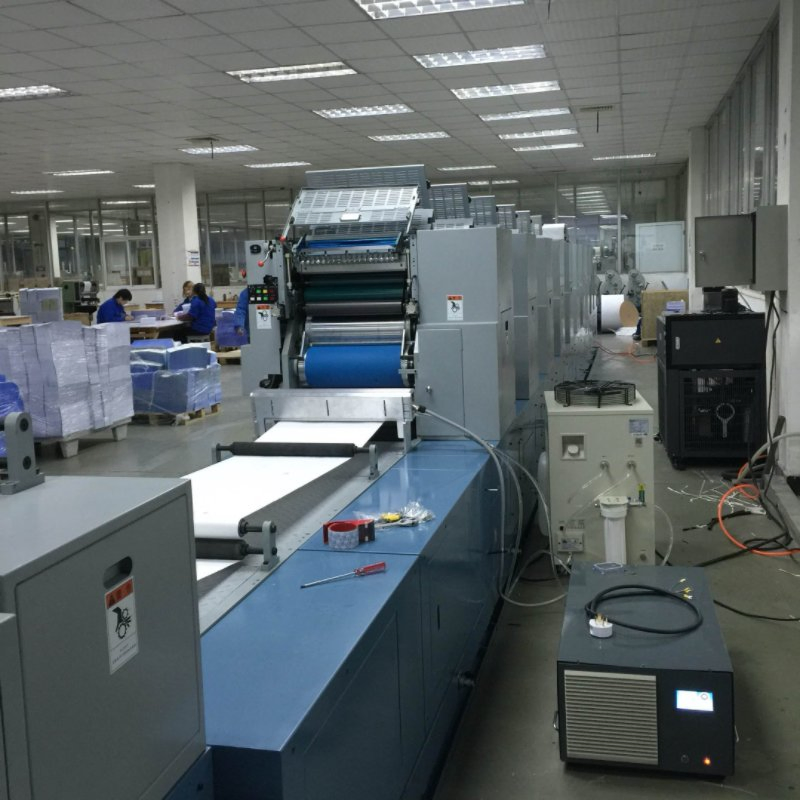

3. UV Ink: UV printing, 3D printing, Flexo printing, digital printing, screen printing.
Service & Support
  • ✓ Standard Warranty: 12 months.
  • ✓ Extended Warranty: Optional coverage up to 36 months.
  • ✓ Global Support: 24/7 technical assistance and spare parts supply.
  • ✓ Training: On-site or remote operation and maintenance training.
  • ✓ Customization: OEM/ODM capabilities and turnkey project solutions.

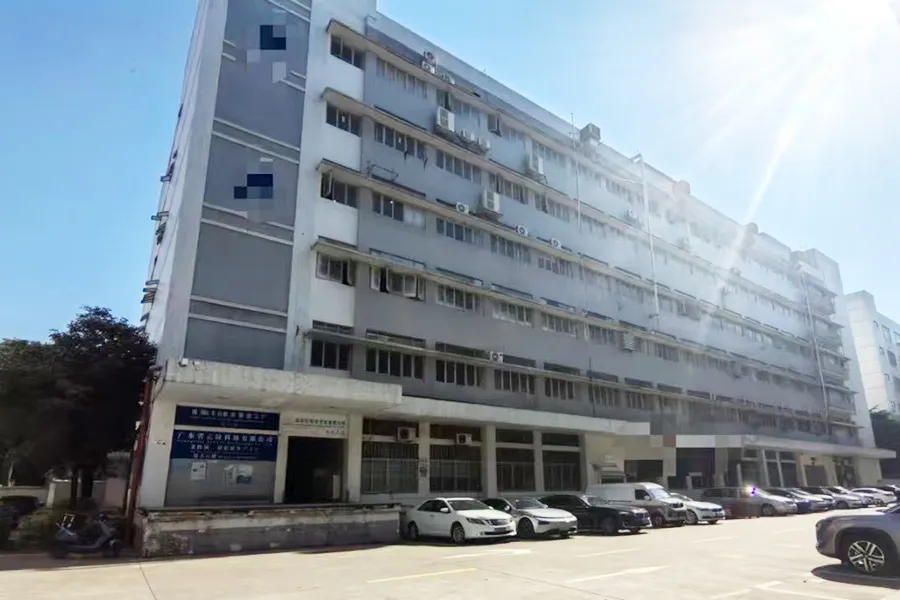

Production Facility

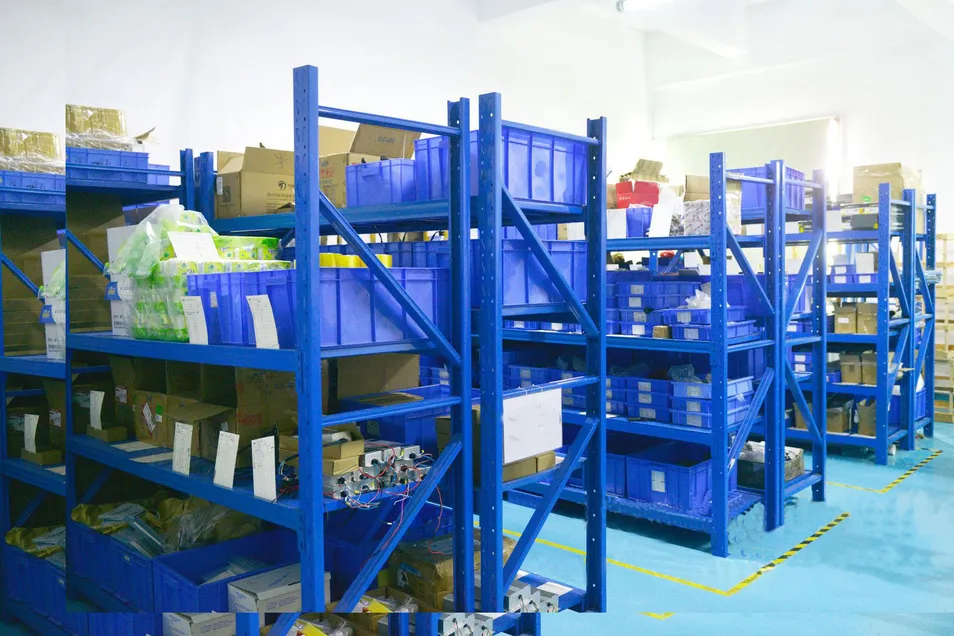

Quality Control
Testing Equipment
Frequently Asked Questions
What are the primary benefits of UV LED systems compared to mercury lamps?
UV LED systems provide a significantly longer service life (up to 20,000 hours), higher energy efficiency, instant power on/off without warm-up, and are ozone-free and environmentally friendly.
What wavelengths are available for this system?
The system supports standard wavelengths of 365nm, 385nm, 395nm, and 405nm (±5nm). Custom wavelengths can be discussed based on your specific UV-sensitive materials.
Can the irradiation window size be customized?
Yes, we can customize the size of the emitting window and the peak irradiance levels to match the specific curing area and production speed requirements of your application.
How is the UV curing system controlled?
The system offers versatile control methods including a touch screen interface, foot pedal, RS232 serial communication for PC integration, and I/O ports for PLC automation.
What materials can be cured with this system?
It is ideal for curing UV glues, UV inks, UV adhesives, UV paints, and UV varnishes used in electronics, medical, automotive, and printing industries.
What is the recommended irradiation distance?
The recommended distance range is typically around 10mm to achieve peak irradiation intensity, though this can be adjusted based on the specific lens configuration and application needs.
