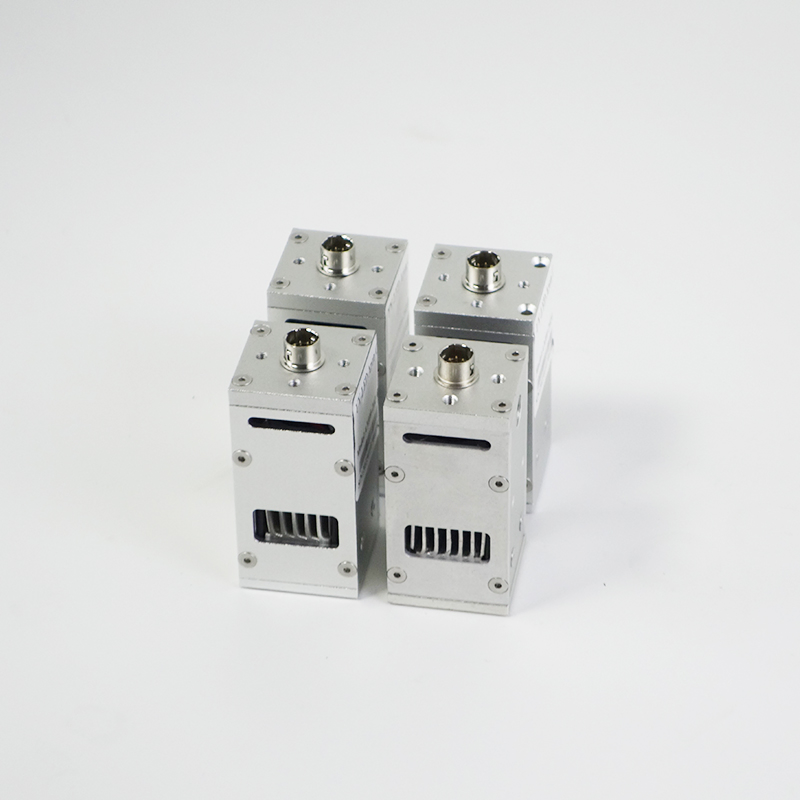

365nm 395nm High Power Air Cooling UV LED Curing Lamp System for Screen Printing Machine

Customization:	Available
Usage:	Industrial use
Shape:	Square

Product Overview

UV LED Curing Lamp 365nm Industrial High Strength Fixing System

Model NO.:AW2020H1

Wavelength:365/385/395/405nm

LED Life:20,000 hrs

Cooling:Air/Water-Cooled

Intensity:12W/cm²

Input Voltage:AC100~240V

Control:RS232/Pedal/PLC

Beam Size:20x20mm

Product Description

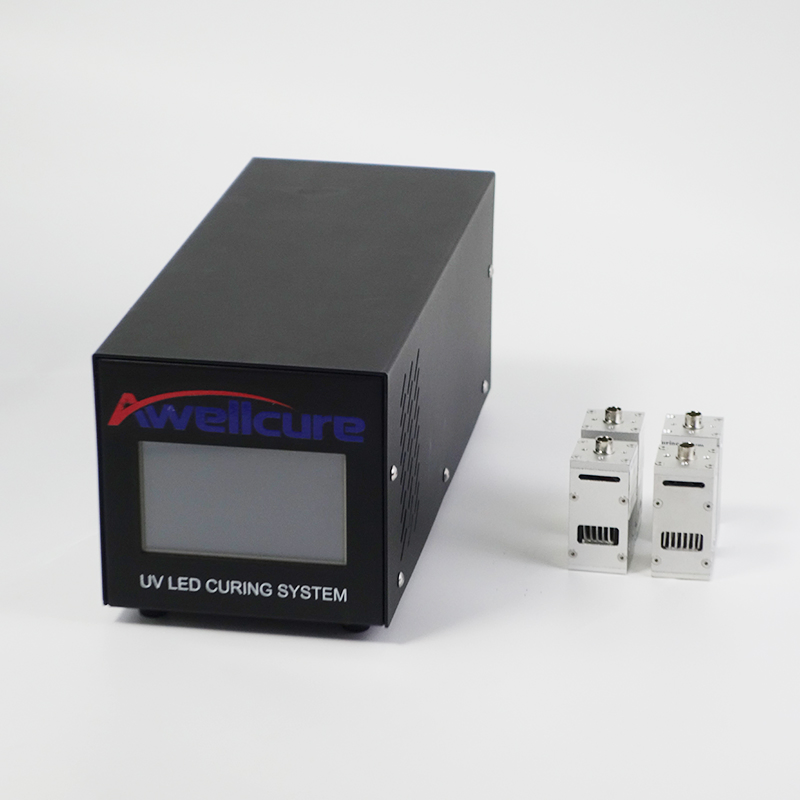

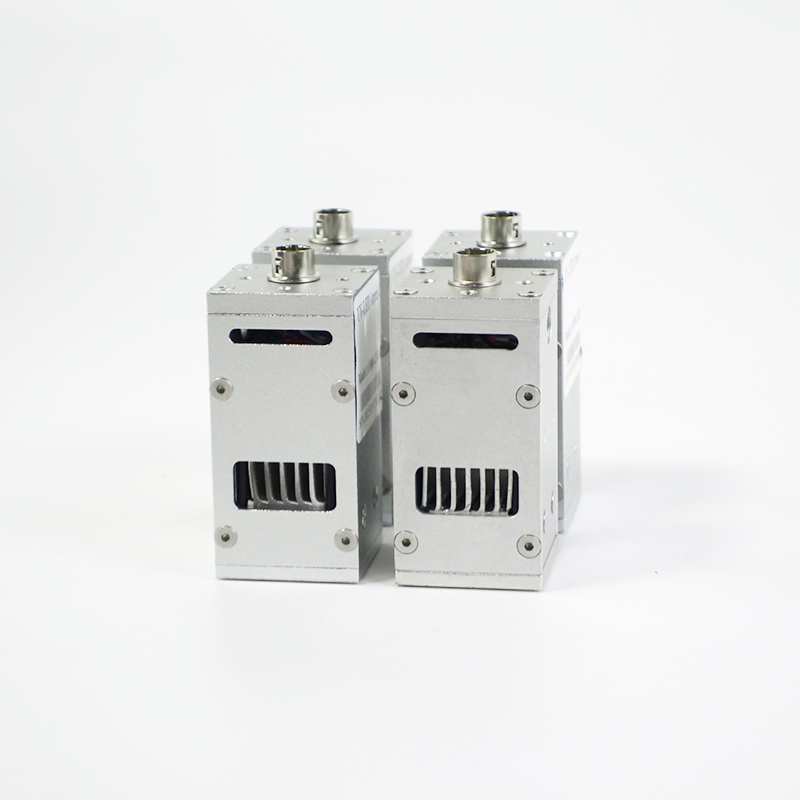

The AW2020H1 UV LED Curing System is designed for high-precision industrial applications. It features a versatile controller capable of driving multiple irradiator heads, providing a flexible solution for shadowless adhesive curing and material fixing.

Key Advantages:

Low Temperature: No infrared radiation, ideal for heat-sensitive materials.
Instant Efficiency: No warm-up phase; instant on/off control.
Versatile Control: External signal support via MCU, PLC, and RS232 interface.
Customizable Spectra: Ensure safe and rapid curing for various chemical compositions.

Technical Specifications

Controller Specifications
Voltage	100-240V AC
Control Method	Touch/Pedal/RS232 Port/PLC
Power Range	10% - 100% Adjustable
Irradiation Modes	Manual, Automatic (0.1-999.9s), Ladder, Pulse
Communication	RS232 Serial Port & I/O Interface

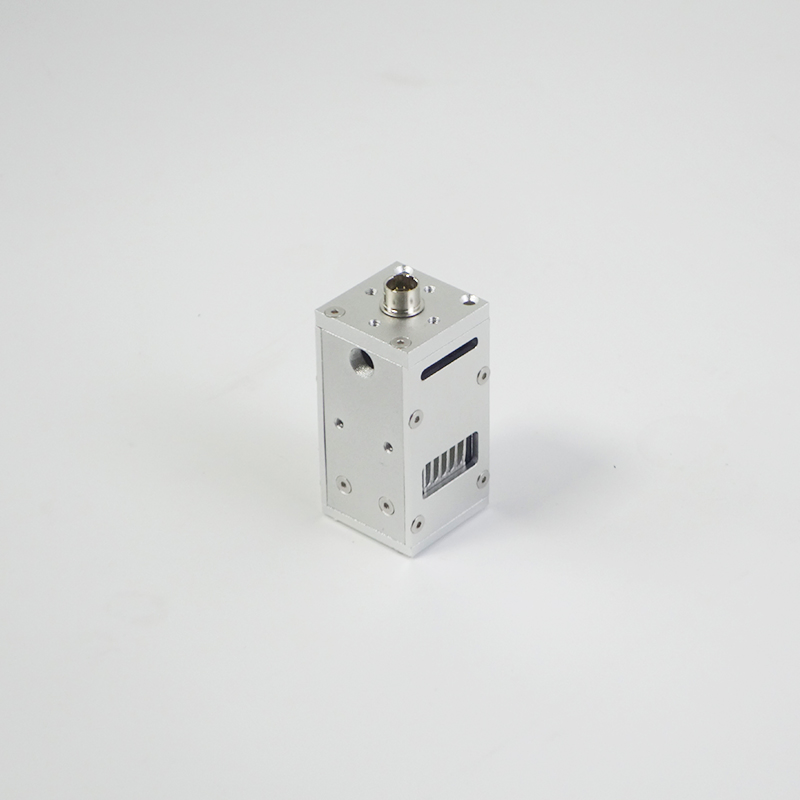

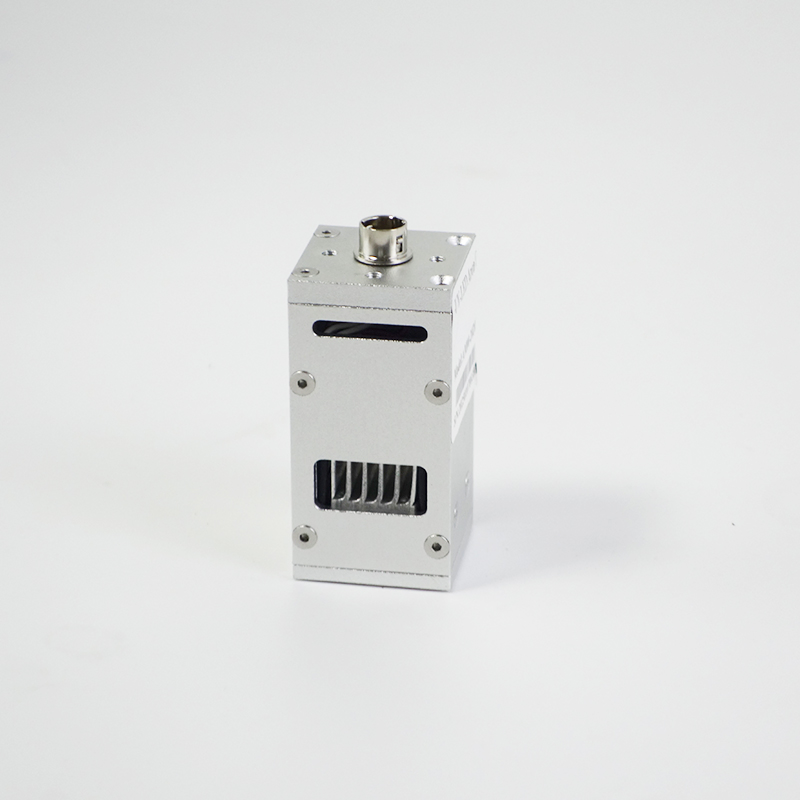

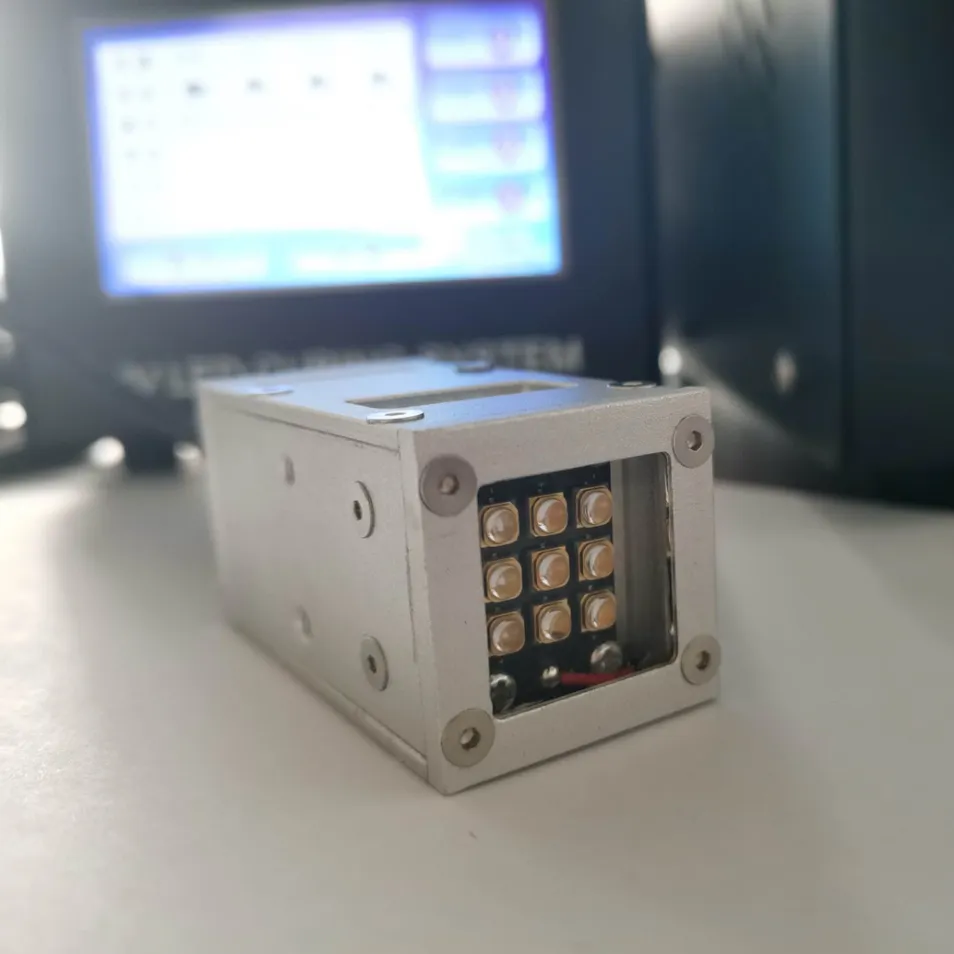

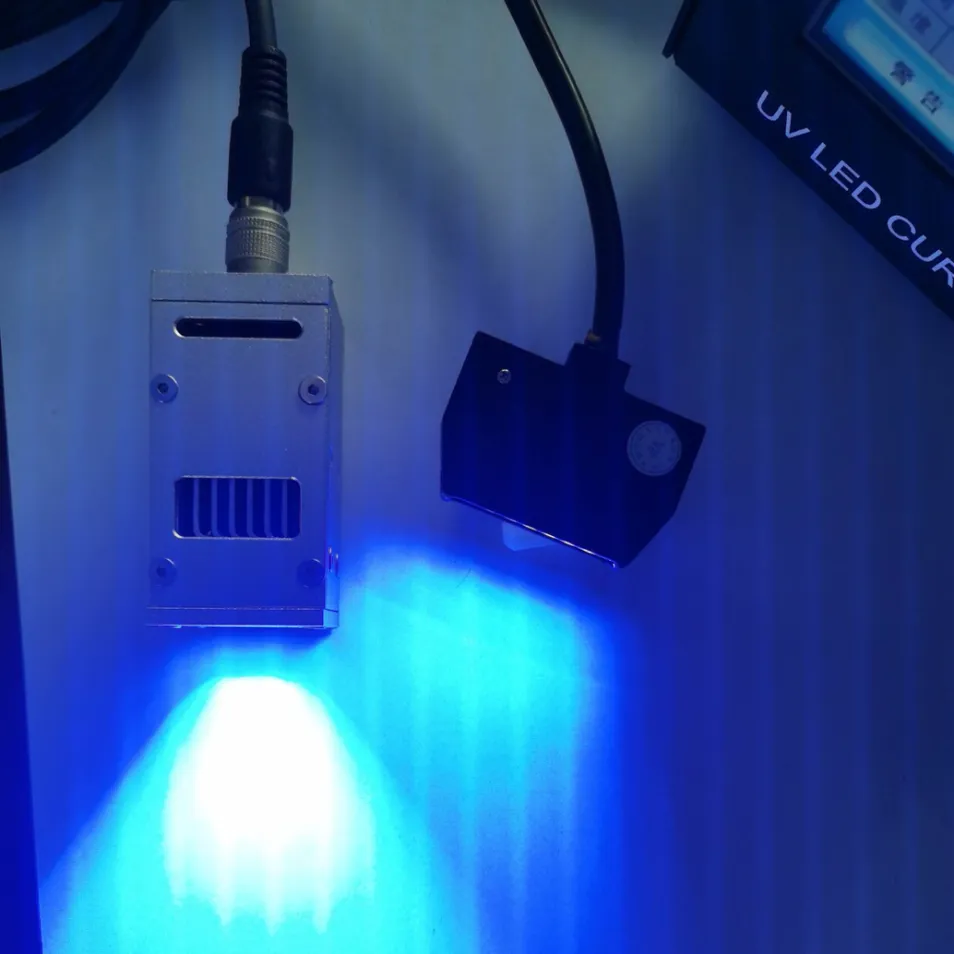

Irradiation Head Specifications
LED Type	High-Quality Imported Chips
UV Wavelength	365nm / 385nm / 395nm / 405nm
Peak Intensity	0.5 ~ 20W/cm²
Luminous Size	20x20mm
Heat Dissipation	Air Cooled / Water Cooled

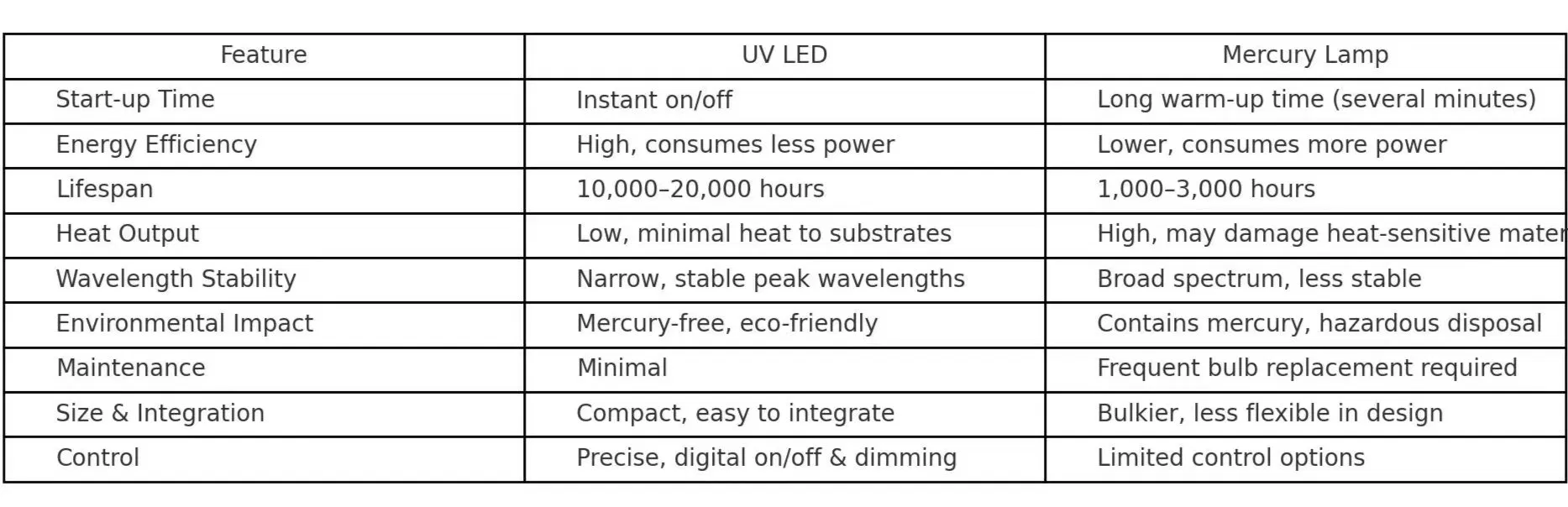

UV LED vs. Mercury Lamp

Modern UV LED curing systems offer significant improvements over traditional mercury lamps, including faster response times, higher energy efficiency, and a mercury-free environment.

Industrial Applications

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
UV Ink: UV offset/flexo printing, 3D printing, Inkjet labeling.

Service & Support

Standard Warranty: 12 months.

Extended Warranty: Up to 36 months optional.

Global Support: 24/7 technical assistance.

Training: On-site or remote maintenance training.

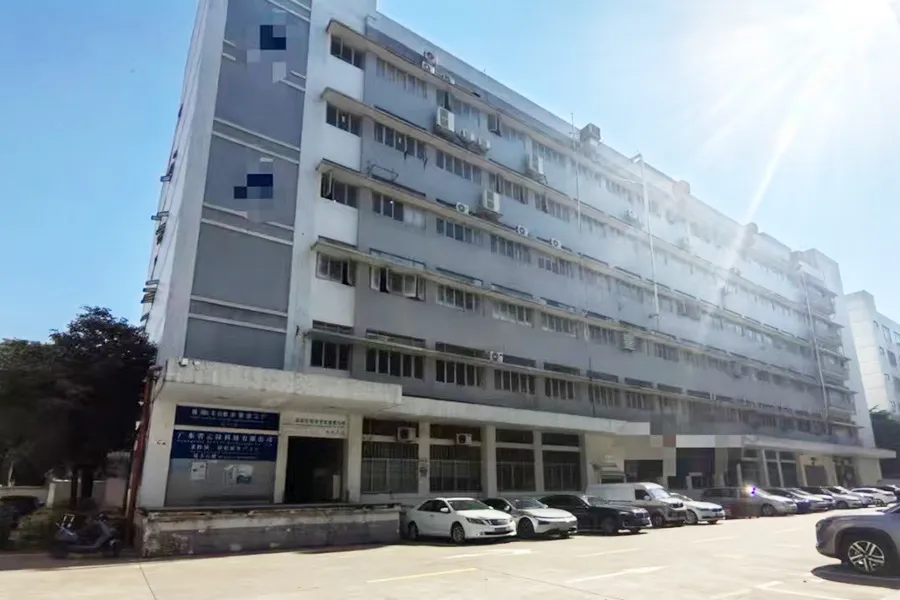

About Awellcure

Awellcure is a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we offer reliable industrial solutions backed by R&D innovation and strict quality control across 50+ countries.

Frequently Asked Questions

Why choose Awellcure UV LED curing systems?

With over 12 years of combined industry experience, our systems are engineered to meet specific client requirements with high reliability and performance.

What are the main applications for this system?

It is primarily used for curing UV glues, inks, adhesives, paints, and varnishes in industries ranging from electronics to medical manufacturing.

What are the advantages over traditional mercury lamps?

The major benefits include significantly longer service life, energy savings, instant on/off capabilities, and an environmentally friendly design.

How do I determine the required emitting window size?

The emitting window size depends entirely on the specific curing area required by your production process or workpiece.

Can the power intensity and window size be customized?

Yes, we provide full customization for emitting window dimensions and peak irradiance to match your specific production efficiency needs.

What control interfaces are supported?

The system supports multiple control methods including Touch Screen interface, Foot Pedal, RS232 Serial communication, and PLC integration.
