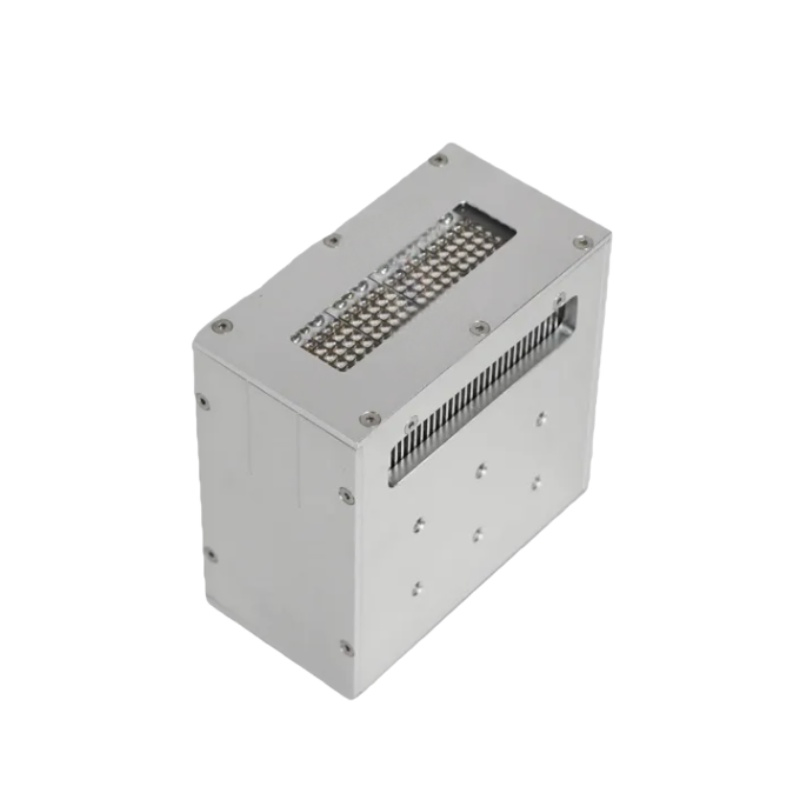

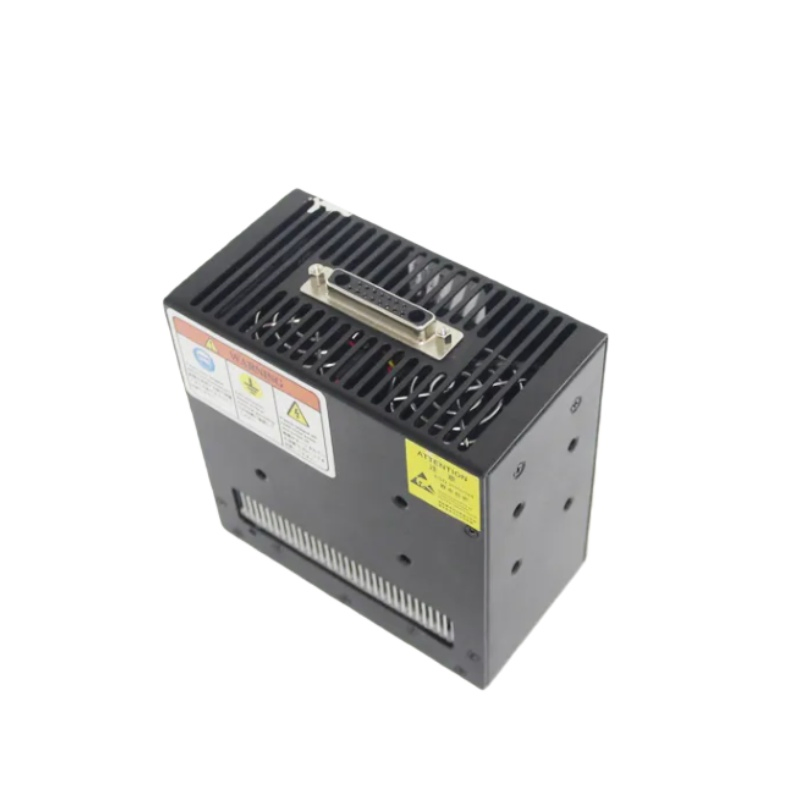

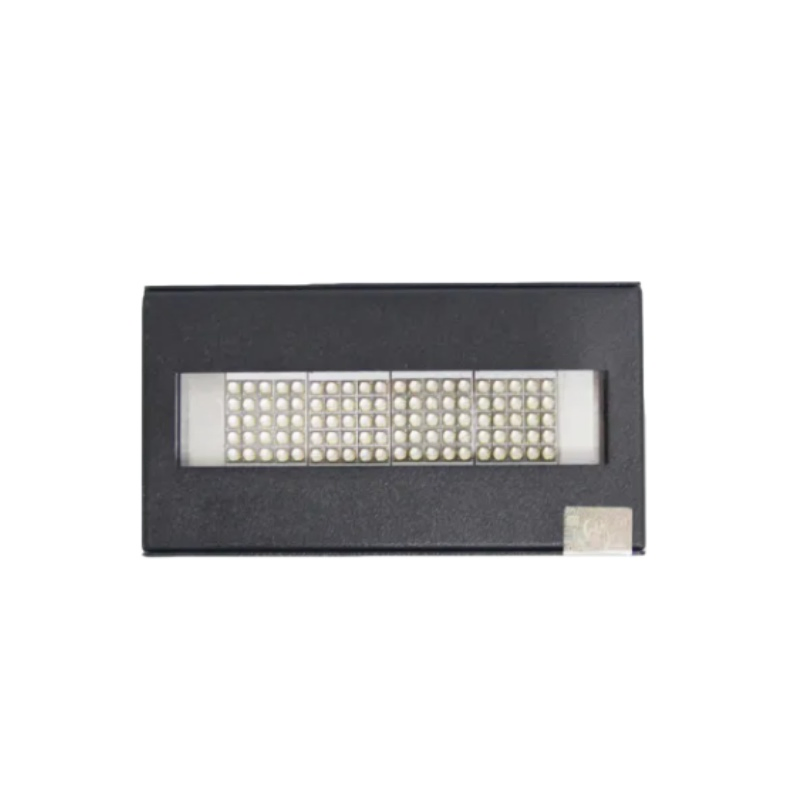

High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
1 / 5
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding
High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding

High Intensity 16W/Cm² 20W/Cm² 385nm 395nm UV LED Curing Lamp System for Inkjet Printing Digital Labeling Coding

Customization: Available
After-sales Service: 1-Year
Condition: New
Send Inquiry

Product Description

Basic Info & Overview

Model NO. A80F20 Certification RoHS, ISO, CE
Warranty 12 Months Wavelength 365nm/385nm/395nm/405nm(±5)
Input Voltage AC100~240V Frequency 50/60Hz
Cooling Method Air-Cooled and Water-Cooled LED Life 20000hrs
Control Method RS232/Pedal/PLC Beam Size 20X80mm
UV Intensity 1~20W/cm² Origin China

High Intensity UV LED Curing Lamp System

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)

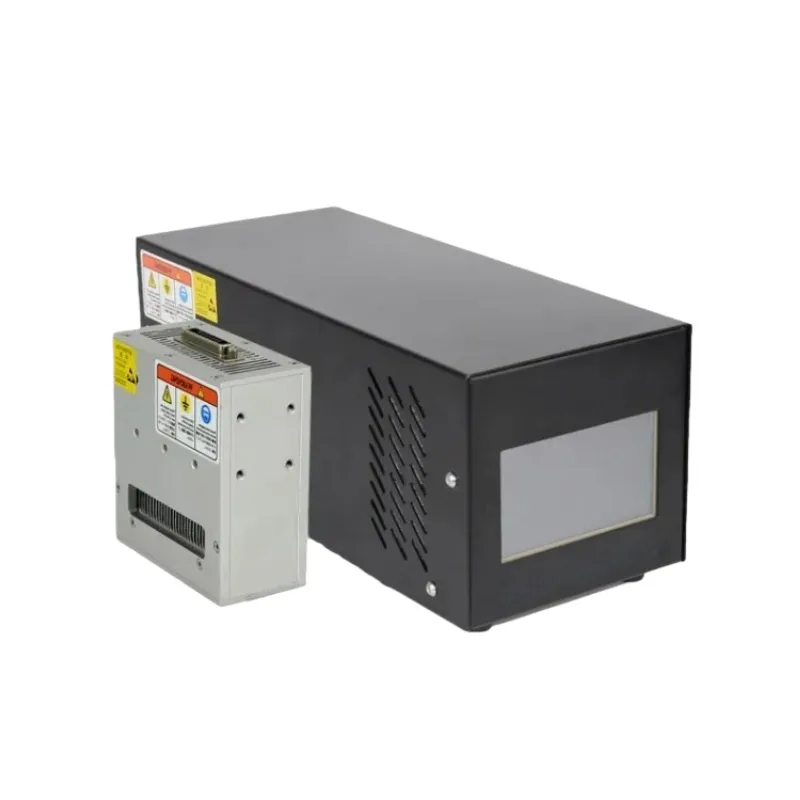

UV LED Curing Lamp 1

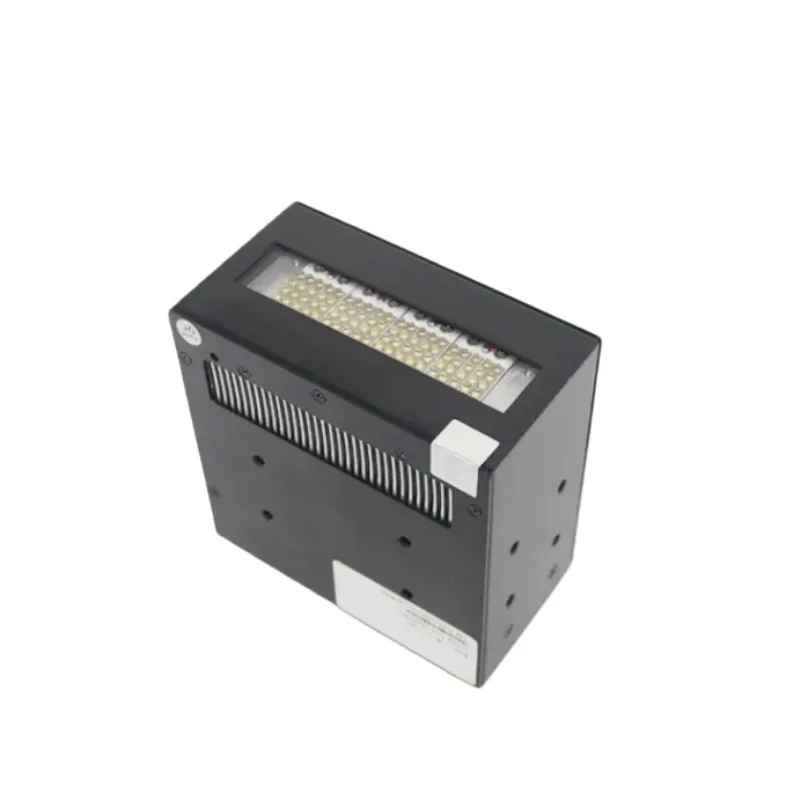

UV LED Curing Lamp 2
UV LED Curing Lamp 3

A UV LED Spot Curing System is an advanced industrial device that utilizes high-intensity, light-emitting diodes (LEDs) to generate concentrated ultraviolet (UV) light. This focused "spot" of UV energy is designed to rapidly cure photosensitive materials such as adhesives, coatings, inks, and resins within seconds.

Detailed Technical Specifications

Controller Parameters
Irradiation Power Range10%~100%mW
Irradiation ModeManual / Automatic (0.1-999.9S) / Ladder (1-20 Steps) / Pulse
CommunicationRS232 Serial Port / I/O Interface
Operation InterfaceTouch Screen
Working Temperature0-45ºC
Irradiation Head Parameters
UV LED TypeImported High-Performance Chips
Peak Irradiation Intensity0.5~20W/cm²
Recommend Distance10mm
Connecting CableStandard 2/5M or Customized Length

Core Advantages & Features

01
Controller Precision: Controlled by external signals, compatible with MCU, PLC, or scanners.
02
Smart Monitoring: Signal outputs for start, stop, running, and alarm indications.
03
Thermal Management: LED head emits no infrared radiation, ideal for temperature-sensitive materials.
04
Efficiency: No warm-up time required; instant on/off capability.

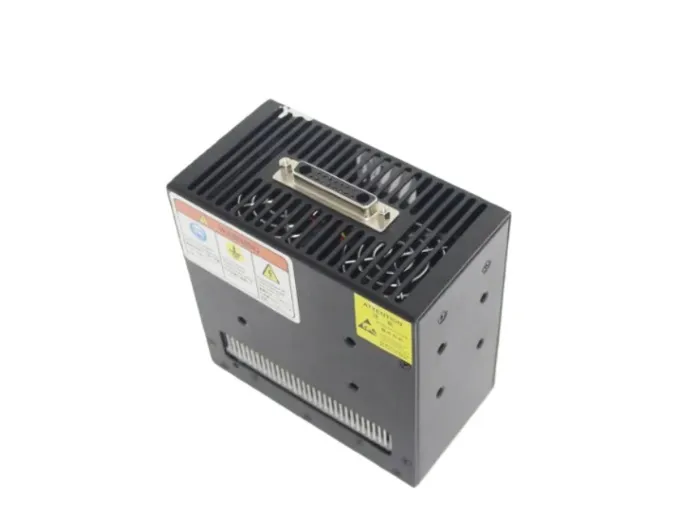

Controller Features

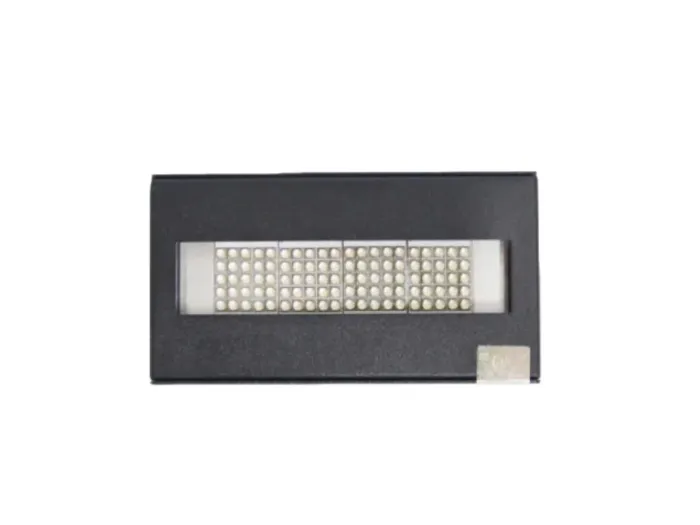

UV LED Advantages

Product Application Fields

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
UV Coating: PCBA, Precision Machining, Chip Packaging, Automotive Industry.
UV Ink: UV Inkjet Printing, 3D Printing, Digital Labeling.
Product Applications

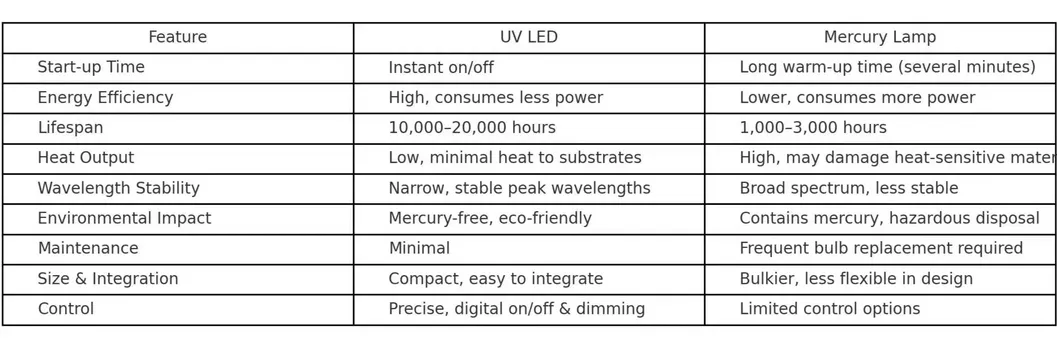

UV LED vs. Mercury Lamp Comparison

UV LED vs Mercury Lamp

Frequently Asked Questions

What wavelengths are available for the A80F20 system?
The system supports multiple wavelengths including 365nm, 385nm, 395nm, and 405nm (±5nm) to suit various photosensitive materials.
What is the expected lifespan of the UV LED?
The UV LED has a long service life of approximately 20,000 hours when operating at 80% power.
Does this system require a warm-up period?
No, unlike traditional mercury lamps, UV LED systems feature instant on/off capability with no warm-up time required.
How is the heat dissipated during operation?
The system supports both air-cooled and water-cooled methods, depending on your specific installation and power requirements.
Can the system be integrated into an automated production line?
Yes, it features RS232 ports and I/O interfaces, allowing it to communicate seamlessly with PLCs, PCs, or other automated control systems.
What materials can be cured using this UV LED lamp?
It is designed for curing UV adhesives, coatings, inks, and resins used in electronics, medical devices, optics, and printing industries.
