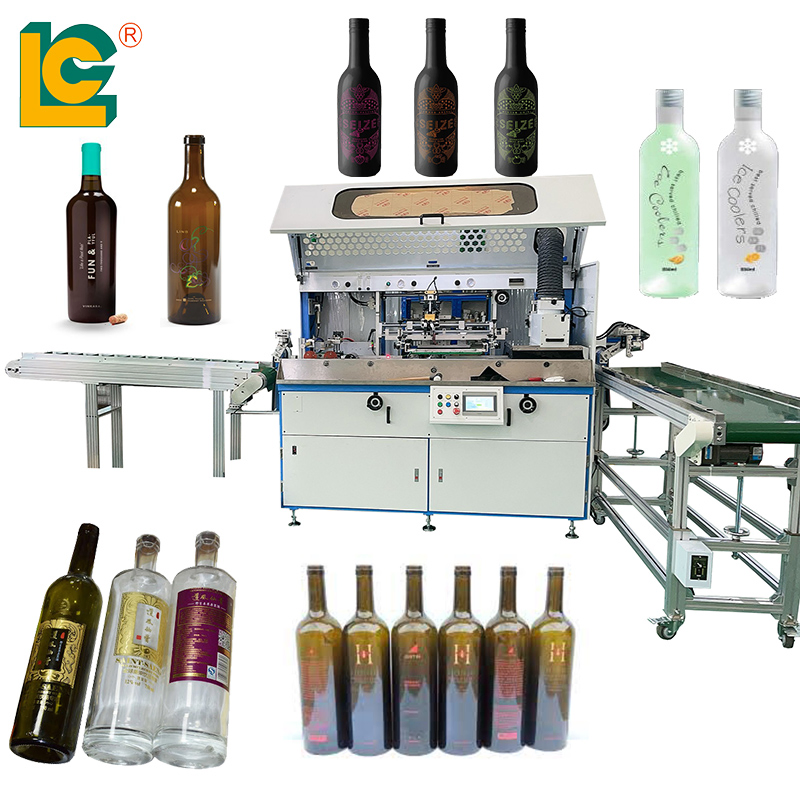

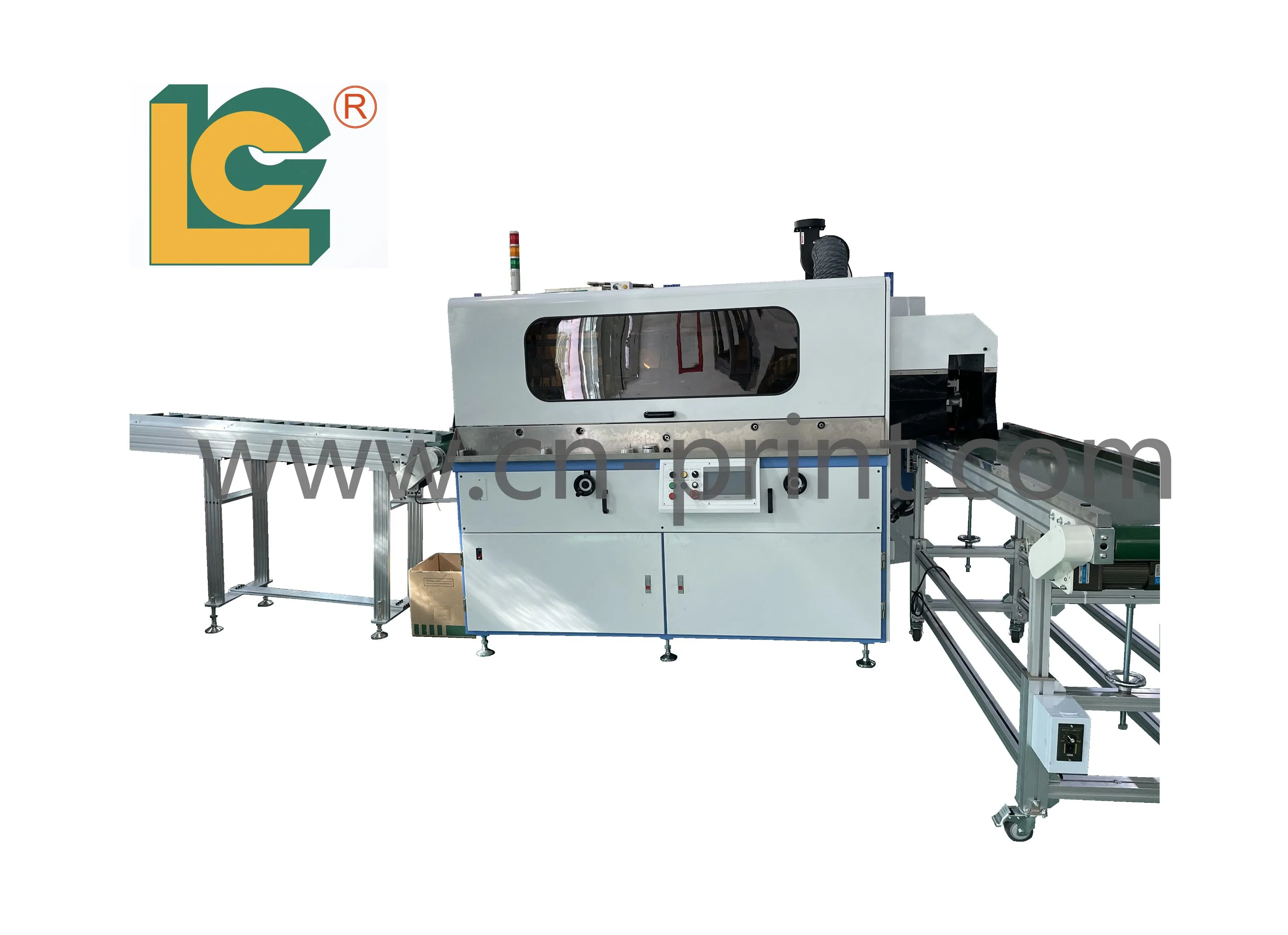

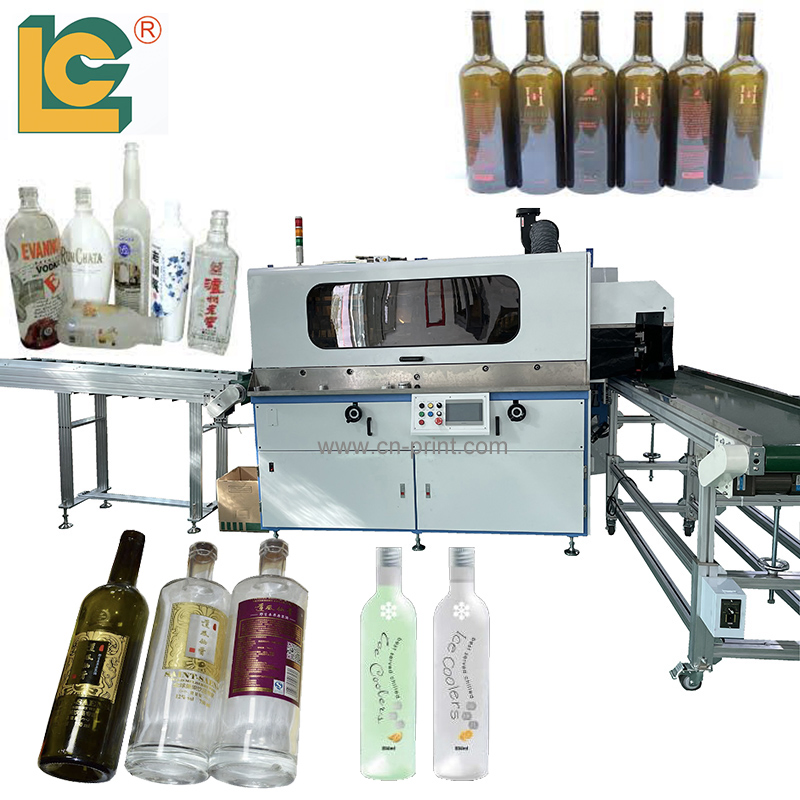

High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
1 / 5
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing
High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing

High Accuracy Cylinder Bottle Screen Printing Machine for Wine Bottle Printing

Customization: Available
After-sales Service: Lifetime Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO. LC-GL130
Type Automatic Screen Printing Machine
Structure Curved Surface Printing
Color & Page Single-Colour Printing Press
Standards Certificate CE
Specification L4700*W2500*H2100
Production Capacity 10 Sets/Month
Product Description

Factory Direct Sale Full Automatic Cylindrical Bottle Screen Printer designed specifically for plastic and glass containers. This high-accuracy system is ideal for wine bottles, cosmetic jars, and various industrial cylindrical items.

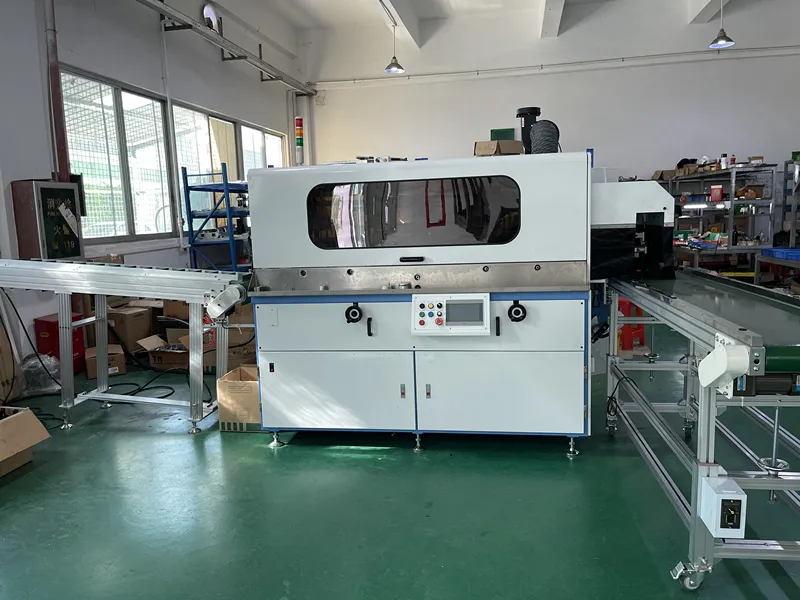

Automatic Cylindrical Bottle Screen Printer
Technical Specifications
Circular Printing Diameter 60mm ~ 100mm ф
Circular Printing Height 80mm ~ 310mm
Maximum Printing Speed 30-35 PCS/min
Power Requirements AC380V 3Phase 50Hz/60Hz
Rated Power 7 kW
Air Pressure Requirement 5 ~ 8 bar
Mechanical Weight Approx. 1700kg
Main Advantages

This machine utilizes a Programmable Logic Controller (PLC) and a high-performance Touch Screen to achieve intelligent control. Featuring imported motors and mechanical transmission, it forms a high-speed system with infinitely variable speed and synchronous transmission.

  • Compatible with V-type inclined conveyor belts.
  • Fully automatic feeding and printing process.
  • Integrated flame surface treatment system for better ink adhesion.
  • Advanced "No Bottle, No Printing" system using high-precision photoelectric sensors.
  • Reliable identification for both transparent and black bottles.
  • High-temperature electric heating system.
  • 90-degree mechanical hand material handling.
Printing Samples & Display

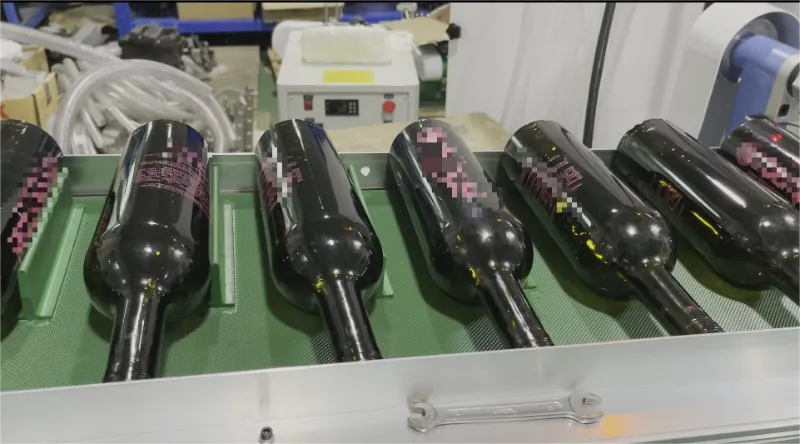

Printing Sample 1

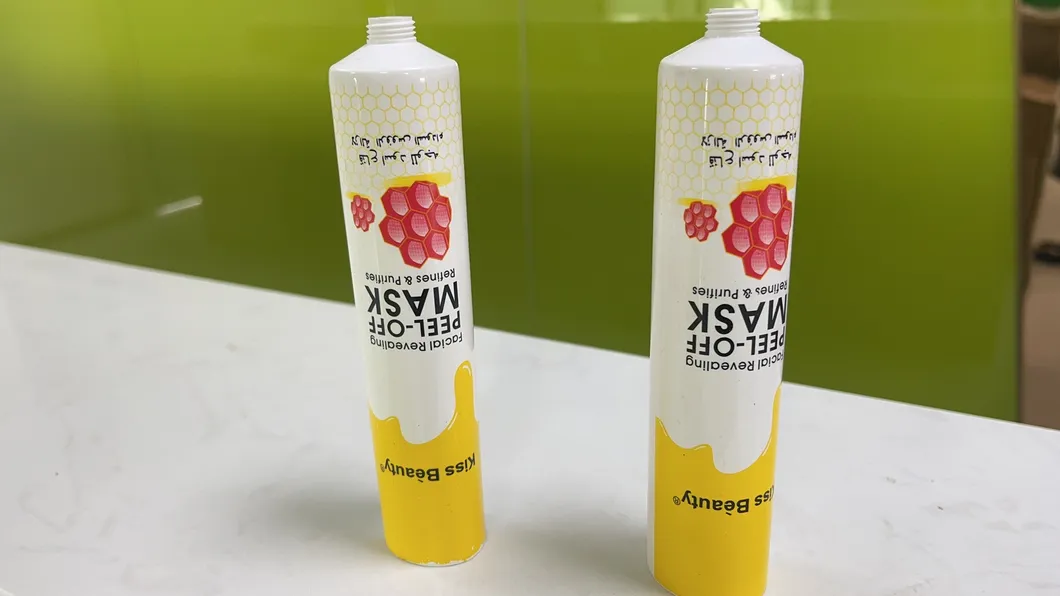

Printing Sample 2

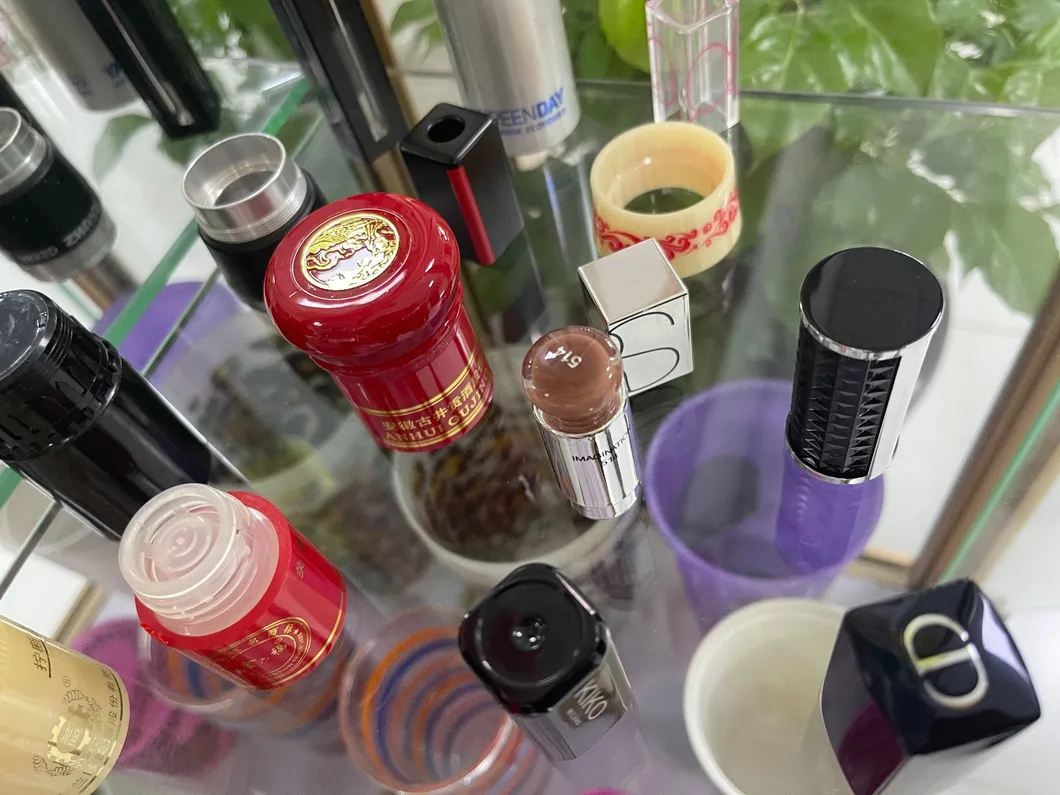

Printing Sample 3

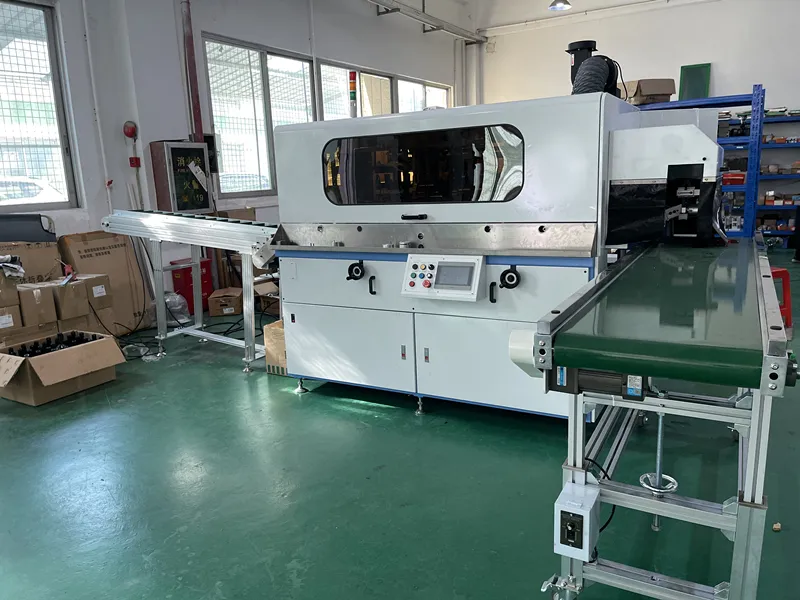

Product Display 1

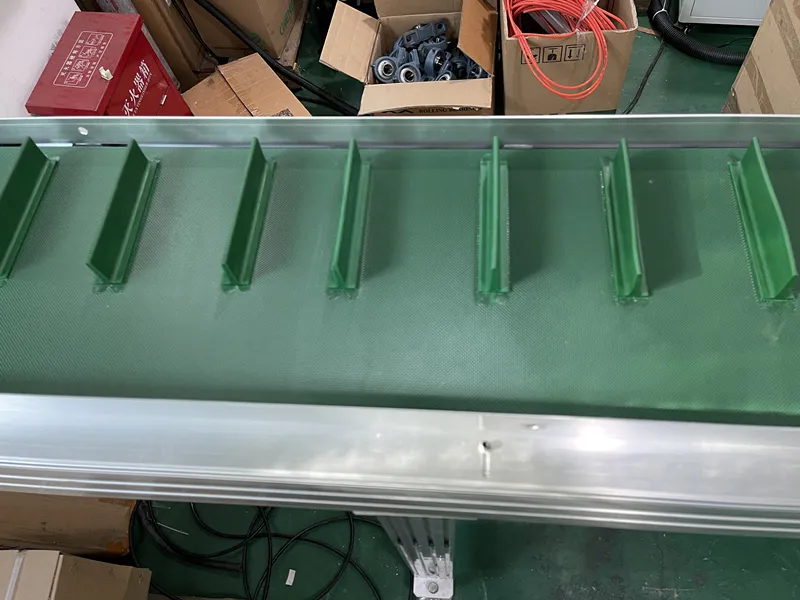

Product Display 2

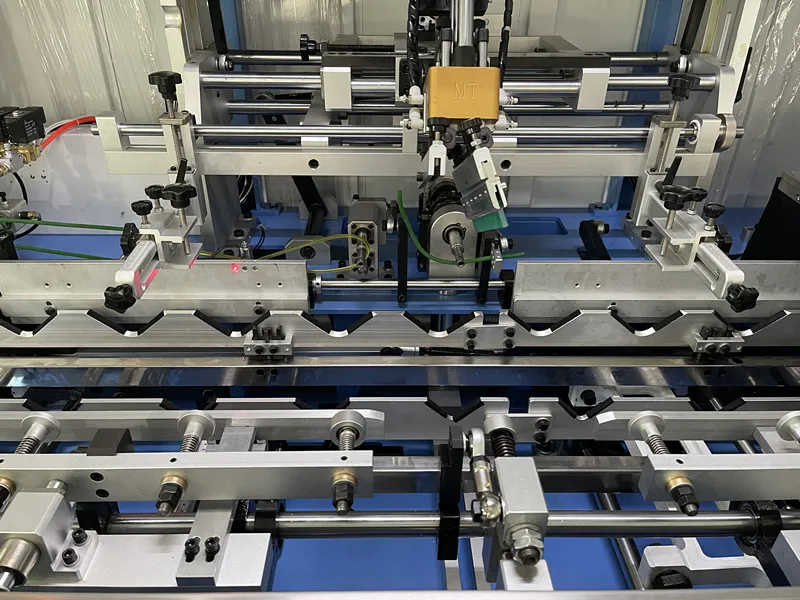

Product Display 3

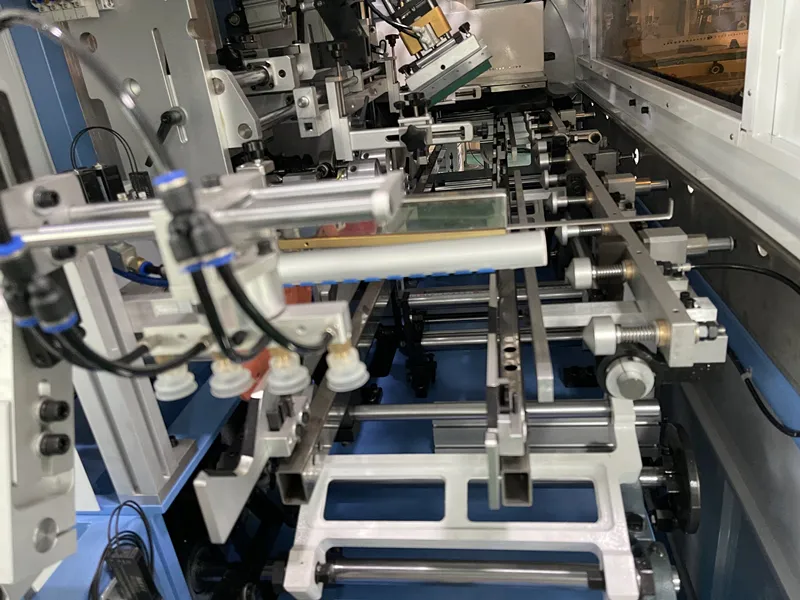

Product Display 4

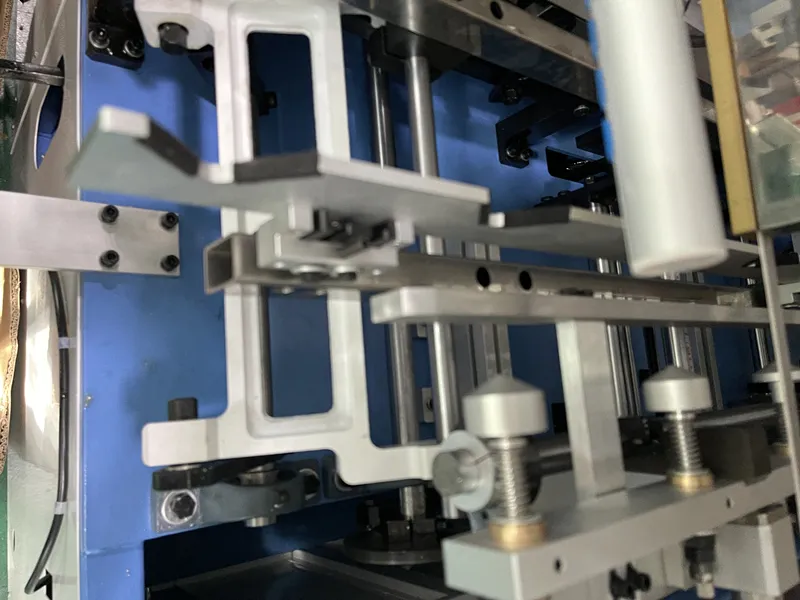

Product Display 5

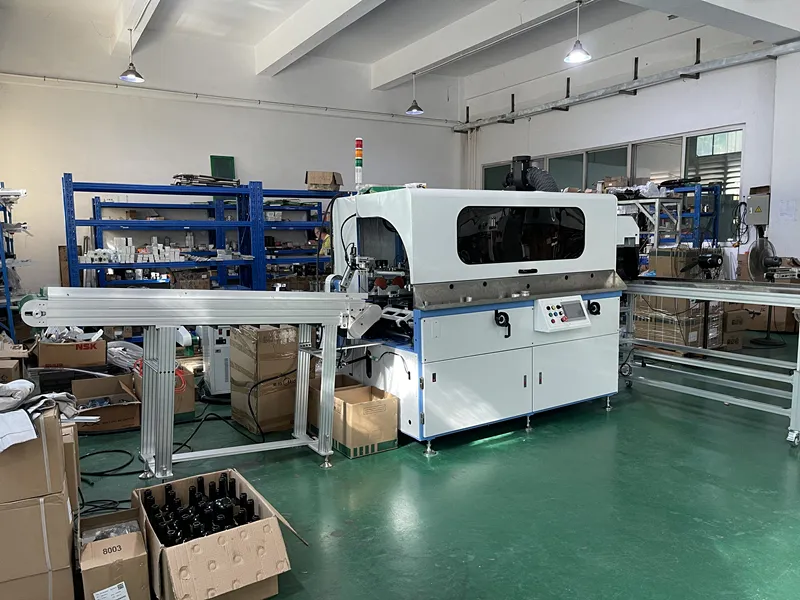

Product Display 6

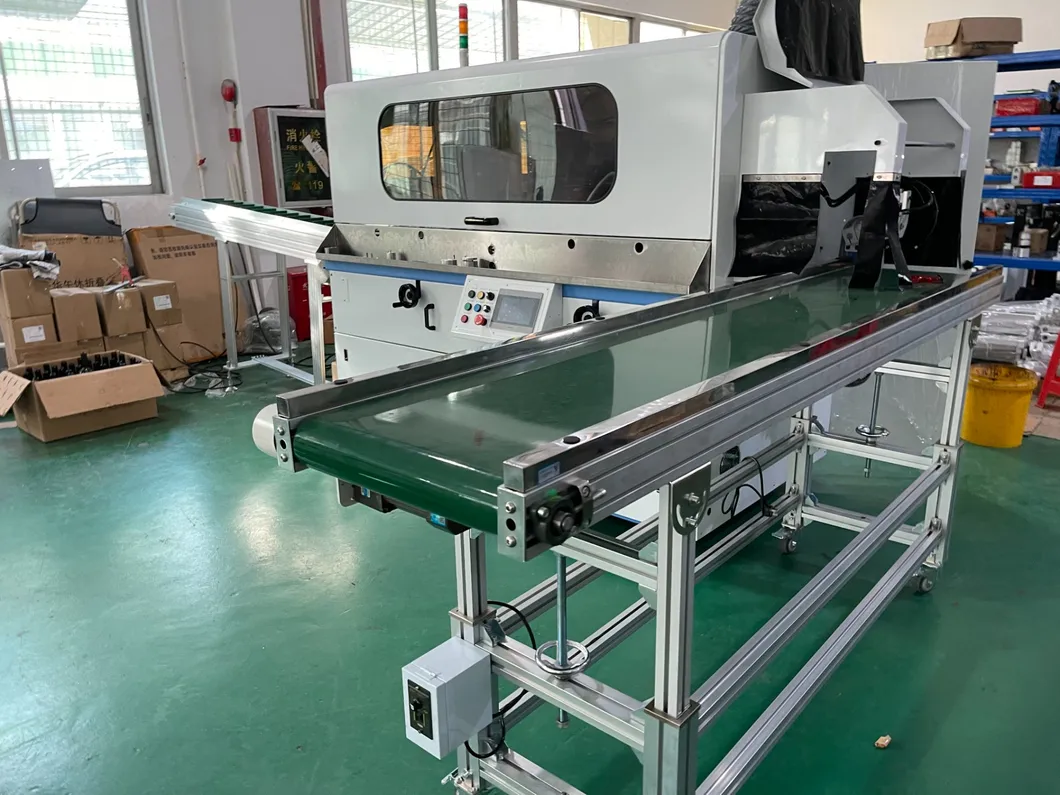

Product Display 7
Full Machine Detail
cylinder screen printing machine bottle screen printing machine cosmetic bottle printer glass bottle screen printer plastic bottle printing automatic screen printer wine bottle printing UV screen printer perfume bottle printer cup screen printer
Frequently Asked Questions
What materials can this machine print on?
The LC-GL130 is highly versatile and compatible with glass containers, plastic bottles (PET, HDPE, PP), and even metal or ceramic cylindrical items.
What is the production speed of the automatic screen printer?
The machine offers a maximum printing speed of 30 to 35 pieces per minute, depending on the container size and design complexity.
Does the machine handle different bottle sizes?
Yes, it can print on cylindrical objects with a diameter ranging from 60mm to 100mm and a height from 80mm to 310mm.
How does the "No Bottle, No Printing" feature work?
The machine is equipped with advanced photoelectric sensors that reliably identify the presence of a bottle. If no bottle is detected, the printing cycle is skipped to save ink and maintain cleanliness.
What kind of control system is used?
The machine utilizes a high-performance PLC (Programmable Logic Controller) combined with an intuitive Touch Screen interface for easy operation and monitoring.
Is there a surface treatment process included?
Yes, the machine features a built-in flame surface treatment system to ensure optimal ink adhesion on plastic surfaces before the printing process begins.
