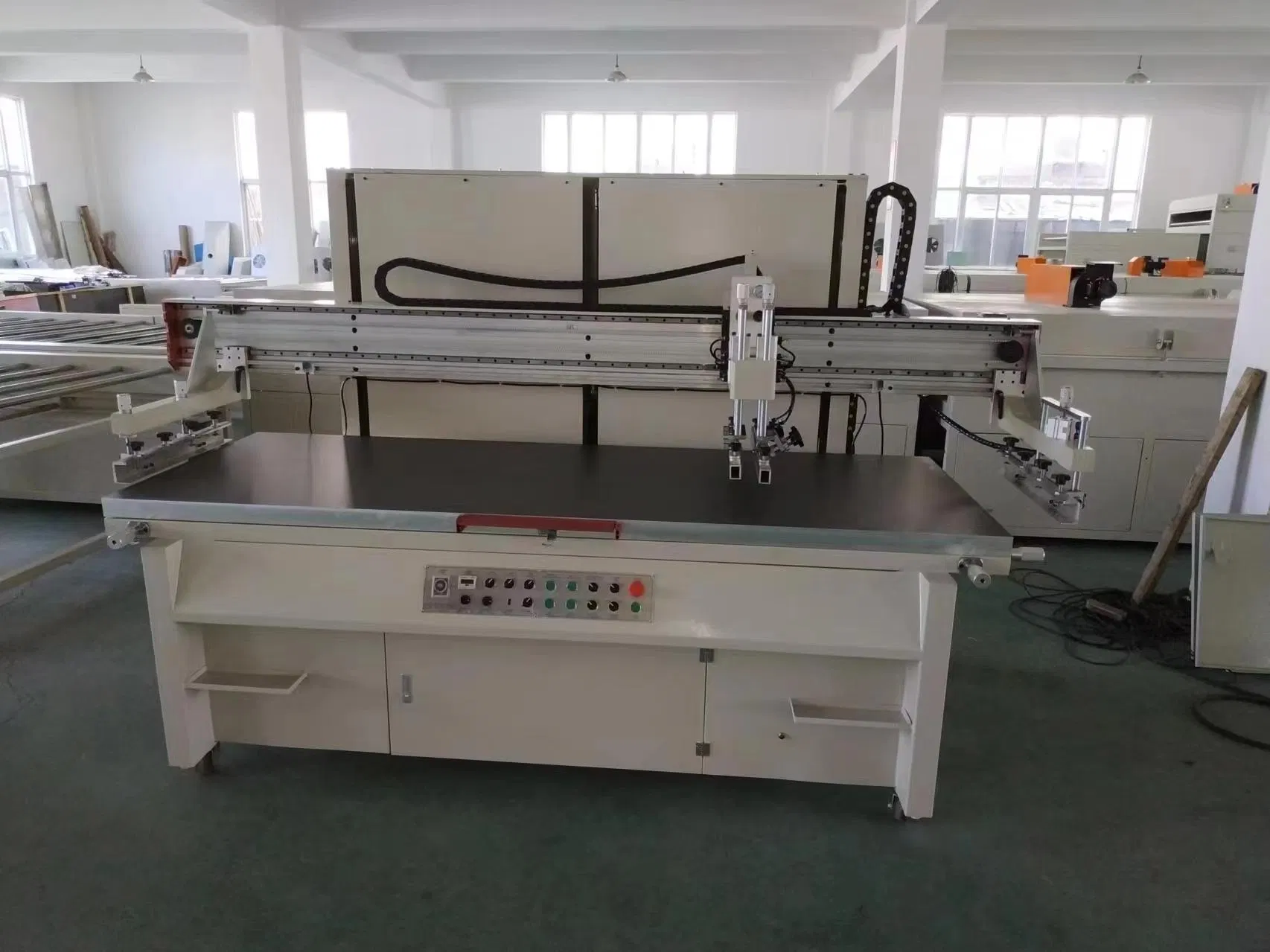

| Model | MTSP-10200 | Color printing | Single color printing |
| Printing face | Flat face | Auto grade | Semi-automatic |
| Max printing area | 1000*2000mm | Worktable size | 1100*2300mm |
| Max mesh frame | 1400*2620mm | Substrate height | 0-30mm |
| Printing pressure | 0.6-0.8 kg/cm2 | Voltage/power | 380V/5.6KW |
| Appliance | All flat materials such as paper, plastics, circuit board, ceramic, glass, non-woven fabric etc. | ||
1. Workshop needs to prepare 380V power supply (Three-phase five-wire). Please use air switch with 30A or more for protection.
Wiring Details: Red (L1), Blue (L2), Black (L3) connect to phase lines; Green (N) connects to zero line; White (E) connects to grounding line.
2. Gas Source: Air consumption is 0.03 cubic meters/minute. Intake pipe configuration is ∮8 tube.

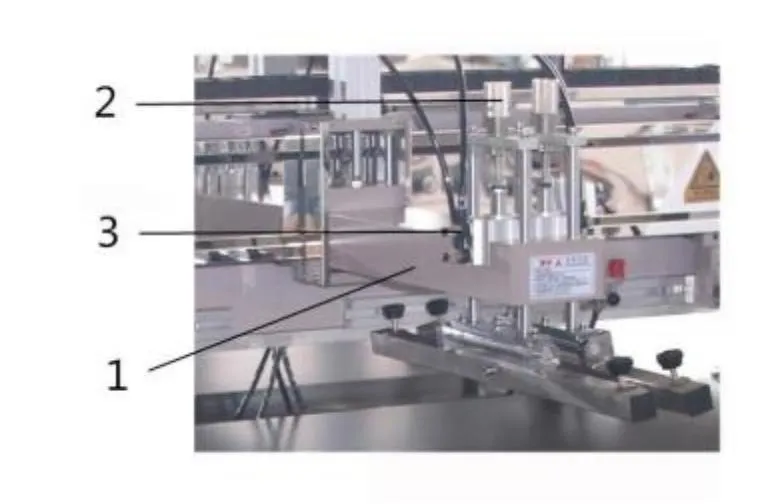

Scraper Angle: Generally set ink reclaiming blade at 90 degrees and scraper at 70-80 degrees.

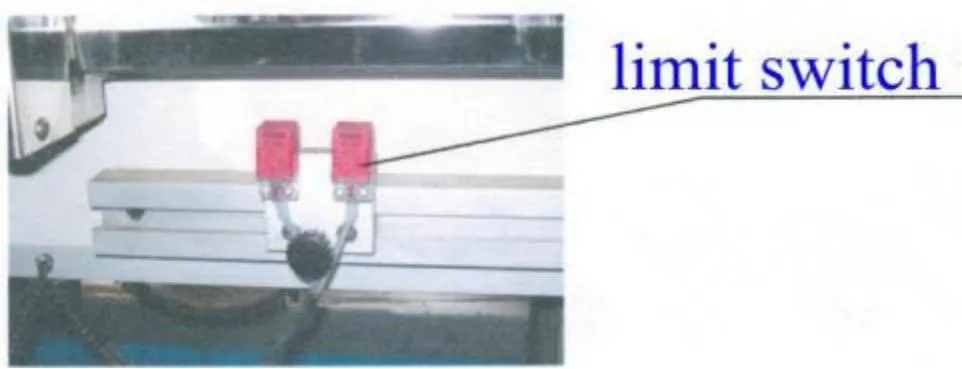

Stroke Adjustment: Move left/right limit switches according to image size. Ensure they do not hit the screen clamp.

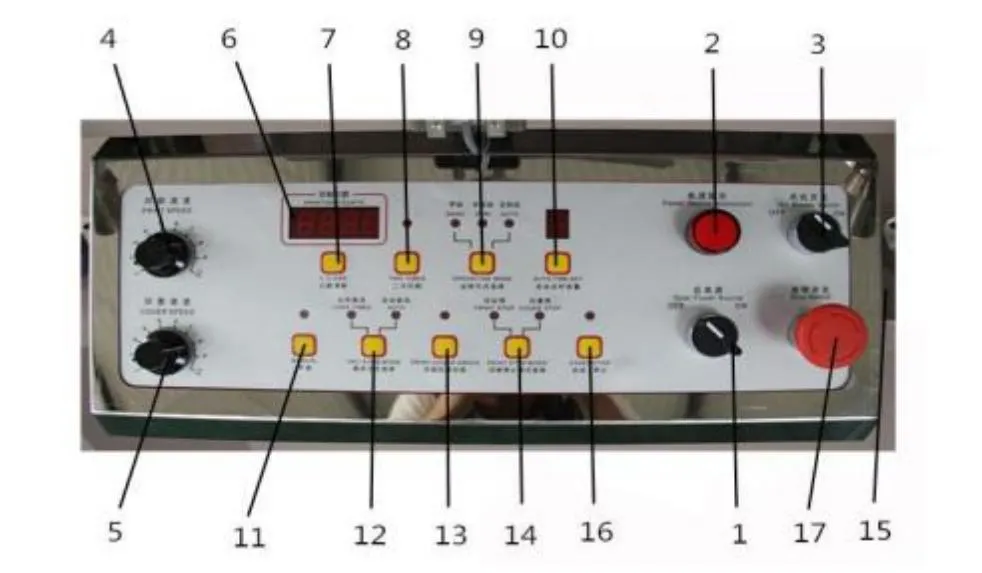

1. Pre-work: Power on 10 minutes before starting and run a manual test.
2. Warm-up: Run the machine empty for 5-10 minutes at low speed to ensure adequate lubrication.
3. Lubrication: Fill running parts with 30#-140# oil. Do not over-fill to avoid paint corrosion.
4. Weekly: Clean and apply lithium grease to rails and sliders. Check electrical connections for looseness.
5. Monthly: Change reduction gear oil every 2-3 months and record the date.
